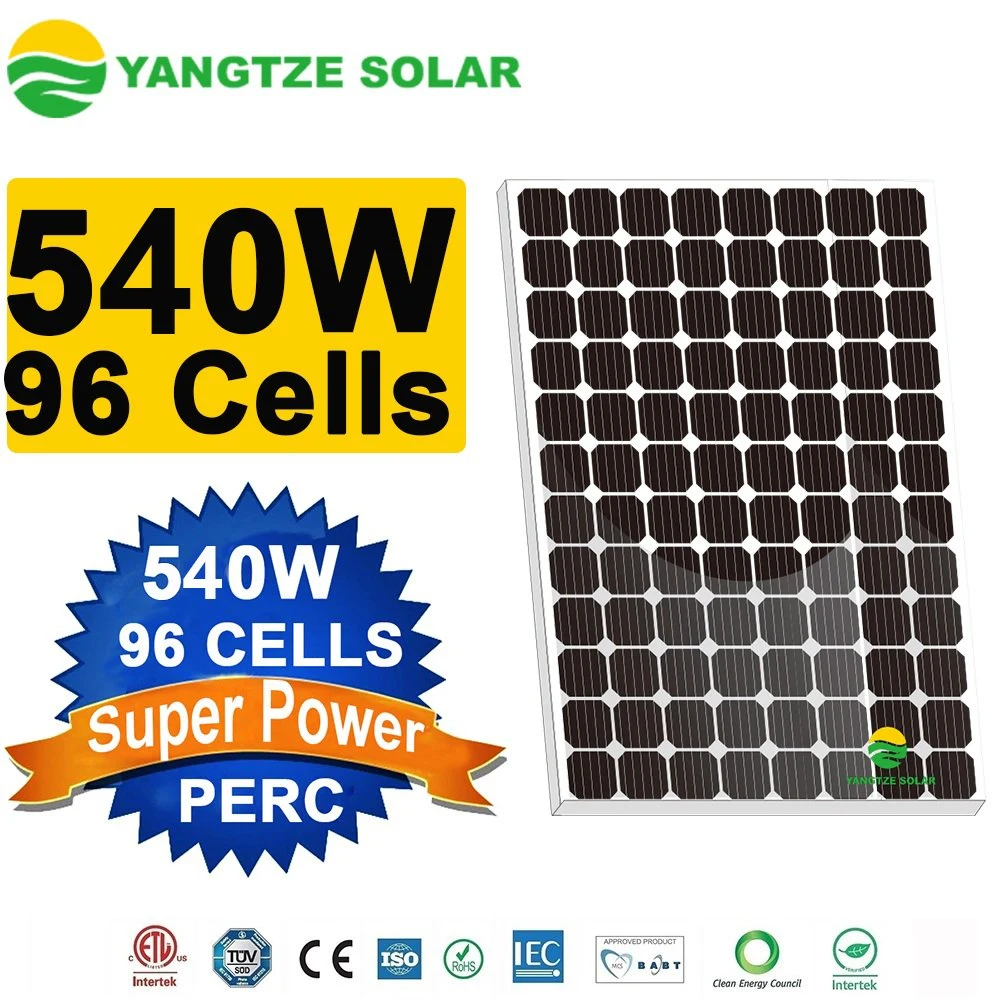

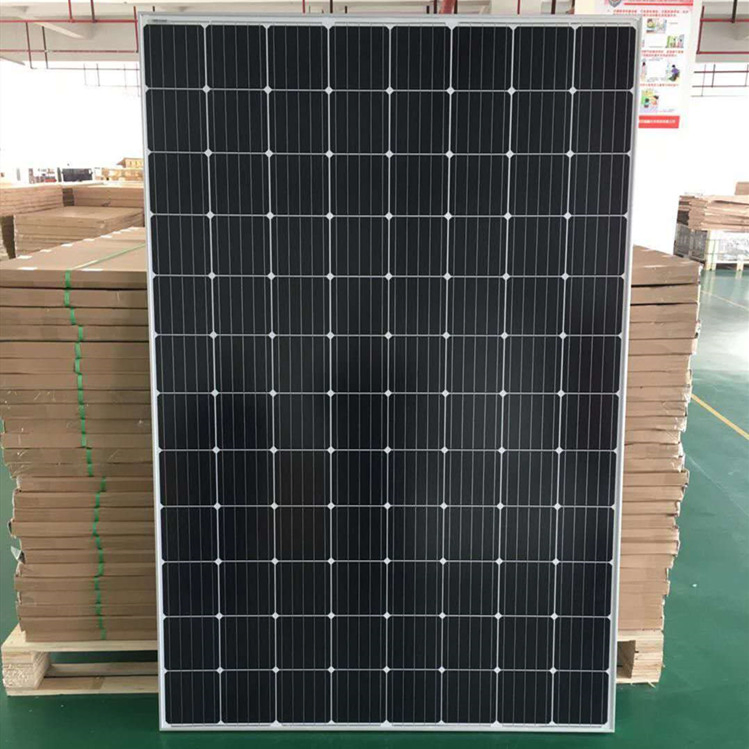

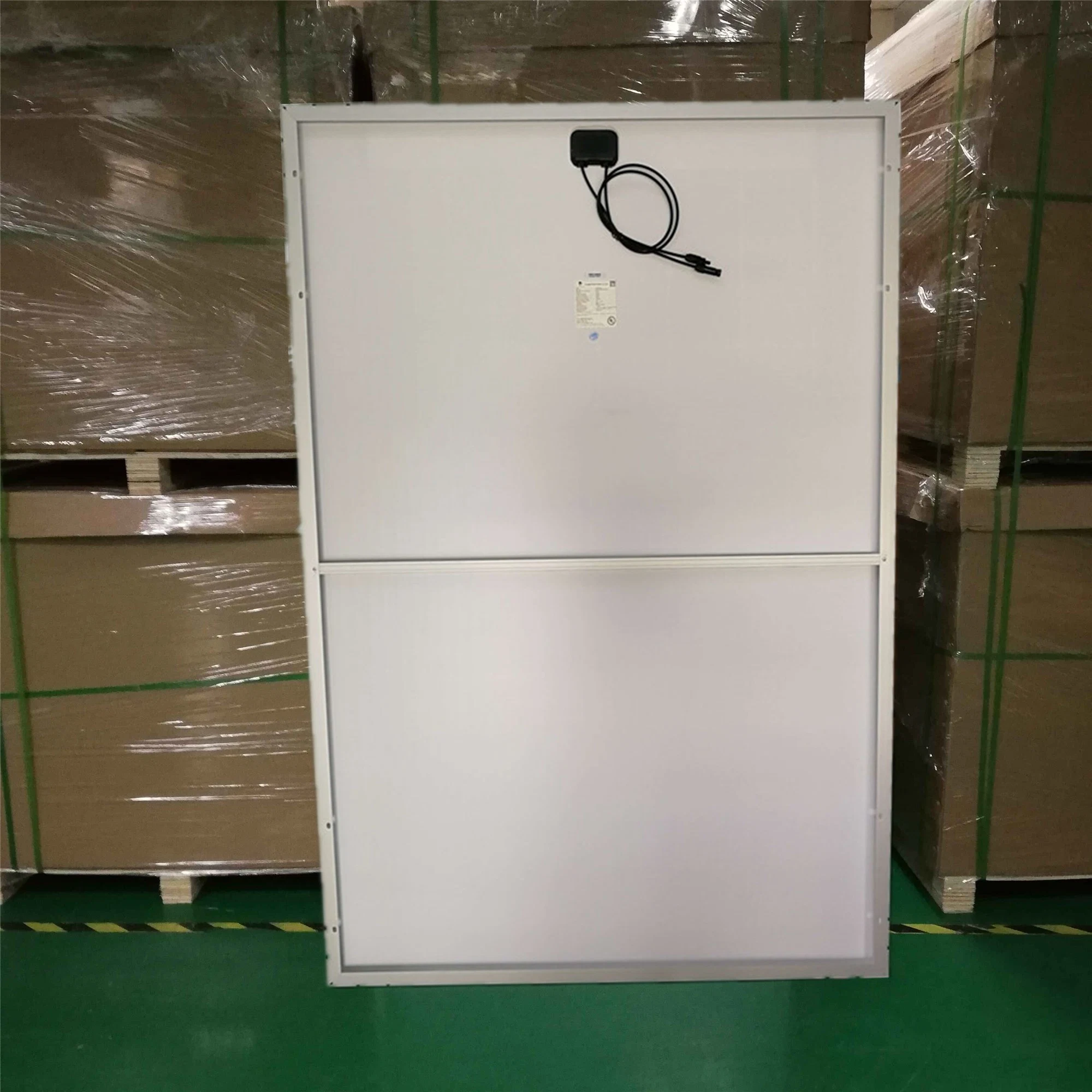

Yangtze Panel 500 520 540 Watt Mono Crystalline 96 Solar Cell
Yangtze Panel 500 520 540 Watt Mono Crystalline 96 Solar Cell
Yangtze Panel 500 520 540 Watt Mono Crystalline 96 Solar Cell
Yangtze Panel 500 520 540 Watt Mono Crystalline 96 Solar Cell
Yangtze Panel 500 520 540 Watt Mono Crystalline 96 Solar Cell
1 / 5
Yangtze Panel 500 520 540 Watt Mono Crystalline 96 Solar Cell
Yangtze Panel 500 520 540 Watt Mono Crystalline 96 Solar Cell
Yangtze Panel 500 520 540 Watt Mono Crystalline 96 Solar Cell
Yangtze Panel 500 520 540 Watt Mono Crystalline 96 Solar Cell
Yangtze Panel 500 520 540 Watt Mono Crystalline 96 Solar Cell

Yangtze Panel 500 520 540 Watt Mono Crystalline 96 Solar Cell

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋

Basic Information

Model NO.
YS500M-96
Application
Industrial
Condition
New
Certification
ISO, CE, TUV, Cec, IEC61215, IEC61730
Material
Monocrystalline Silicon
Frame
Anodized Aluminium Alloy
Junction Box
IP67 Waterproof
Solar Cell
Mono 156X156mm Cell
Front Cover
3.2mm High Transmission Low Iron Tempered Glass
Size
1956X1310X45mm
Connector
Mc4 Compatible Connector
Backsheet Color
White or Black or Transparent
OEM Order
Acceptable
Frame Color
Silvery or Black
Weight
27 Kg
Origin
China
☀️

Product Description

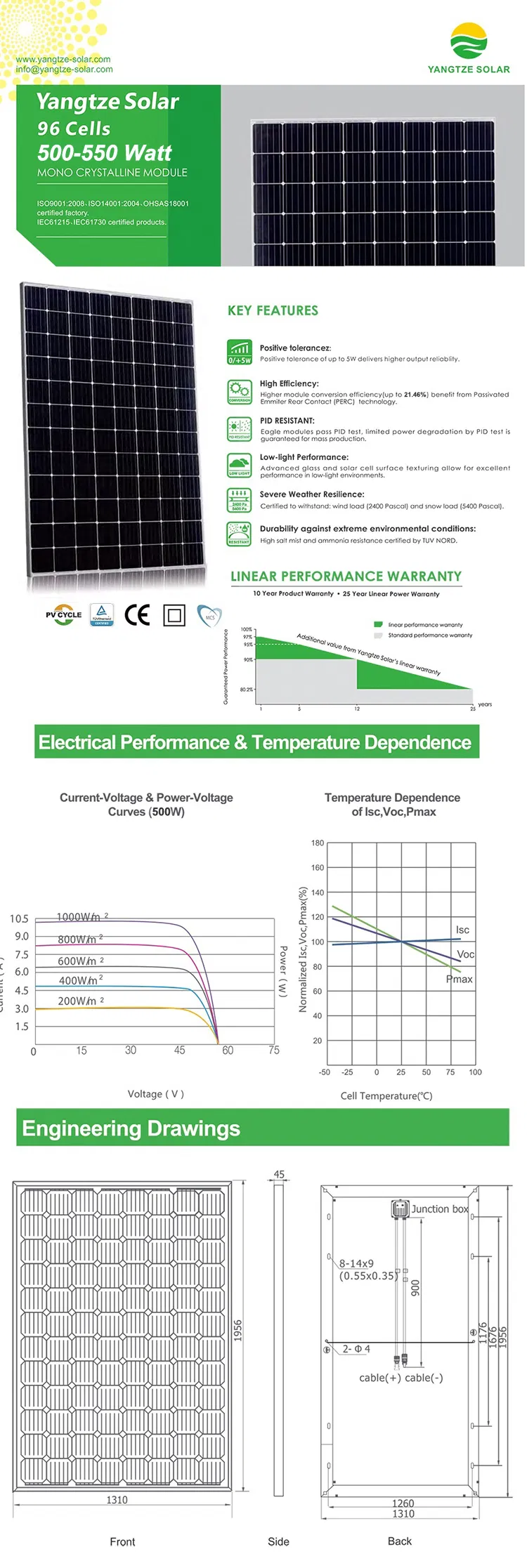

Solar Panel 500 520 540 Watt Mono Crystalline 96 Solar Cell
Model YS500M-96 YS510M-96 YS520M-96 YS530M-96 YS540M-96 YS550M-96
Rated Maximum Power (STC) 500W 510W 520W 530W 540W 550W
Maximum Power Voltage (Vmp) 48.4V 48.58V 48.76V 48.94V 49.12V 49.30V
Maximum Power Current (Imp) 10.33A 10.51A 10.69A 10.88A 11.06A 11.24A
Open Circuit Voltage (Voc) 58.08V 58.30V 58.52V 58.73V 59.95V 59.16V
Short Circuit Current (Isc) 10.54A 10.72A 10.90A 11.09A 11.28A 11.46A
Module Efficiency 19.51% 19.90% 20.35% 20.68% 21.07% 21.46%
STC: Irradiance 1000W/m², Module Temperature 25°c, Air Mass 1.5

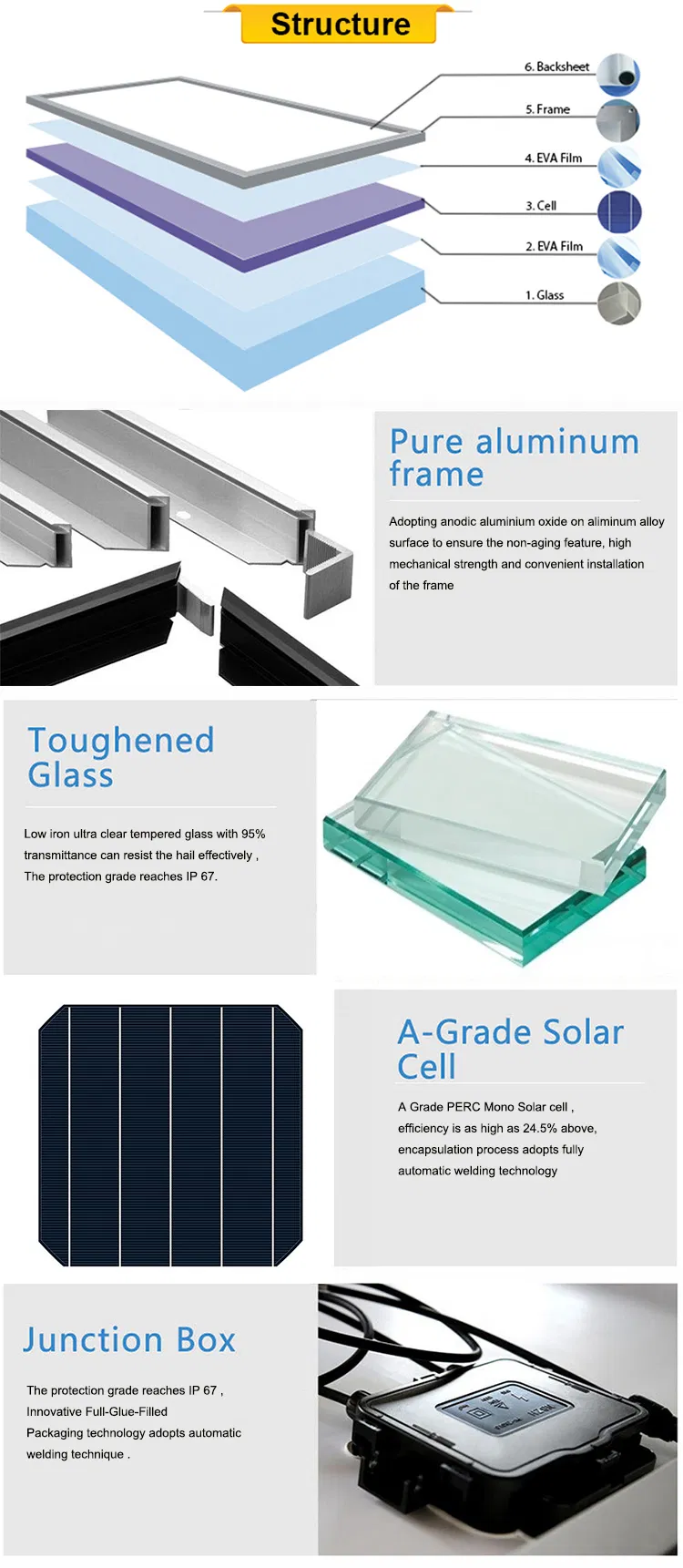

Solar Panel Specifications
🏭

Key Features & Production

  • 300MW solar panel production capacity, range from 5W to 550W
  • 10 years workmanship and materials warranty
  • 25 years for 80% linear power output warranty
  • 100% EL test before package and shipping
  • Products exported to more than 150 countries
  • Certified by TUV (Germany), UL (America), and CE
  • Turn-key solar systems offered for integrated solutions

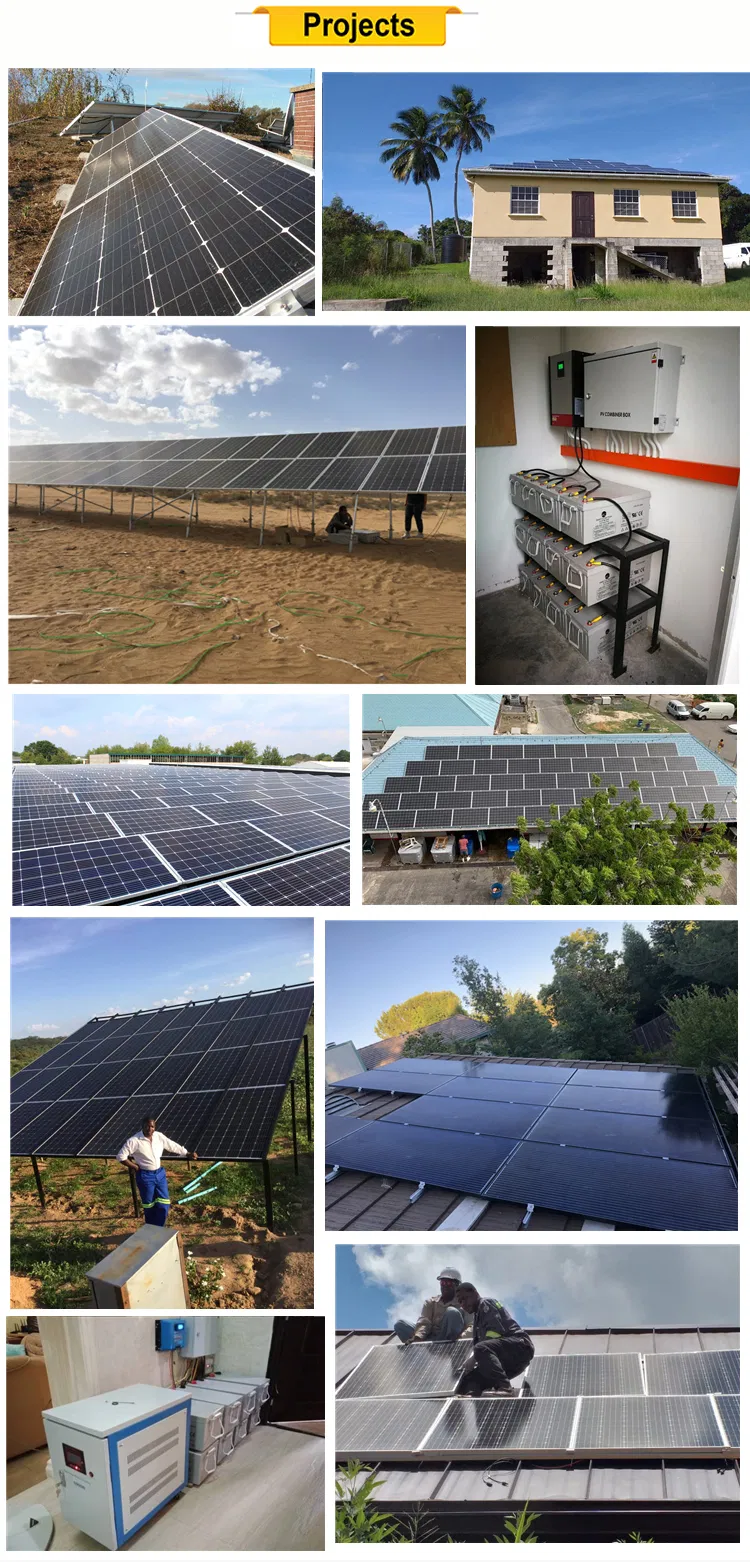

  • Rich experience in overseas construction of solar projects

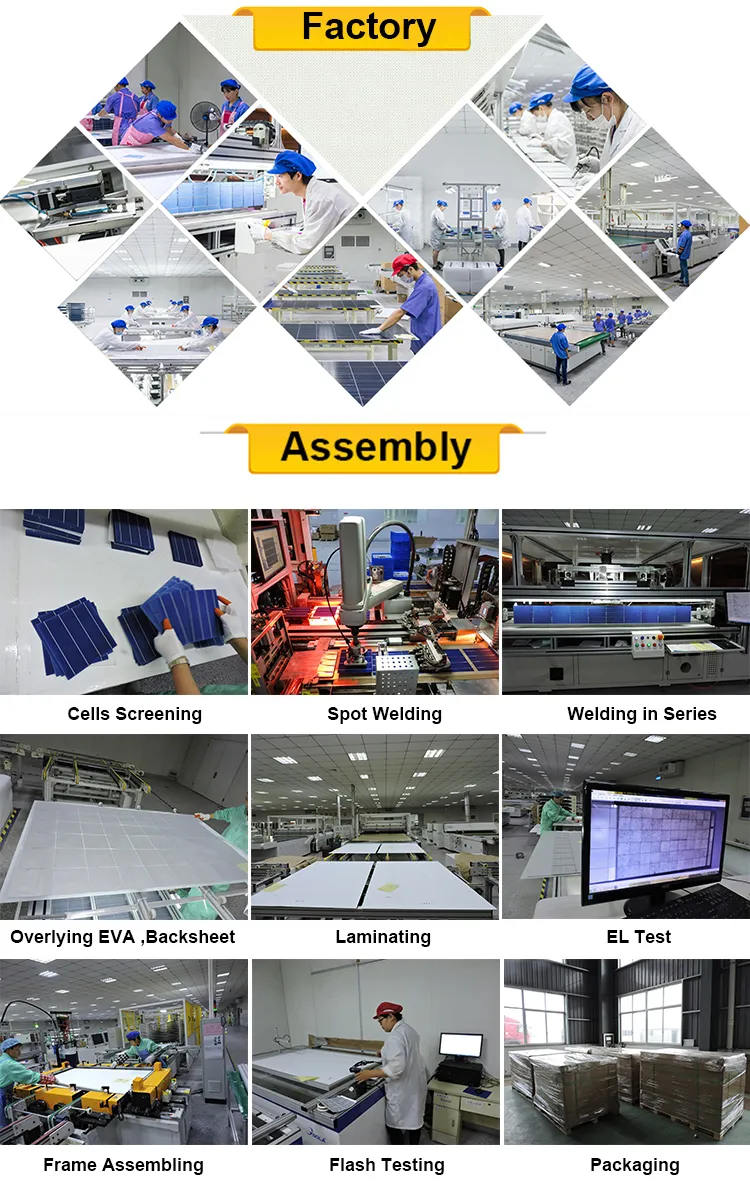

Production Process
Facility 1
Facility 2
Quality Control

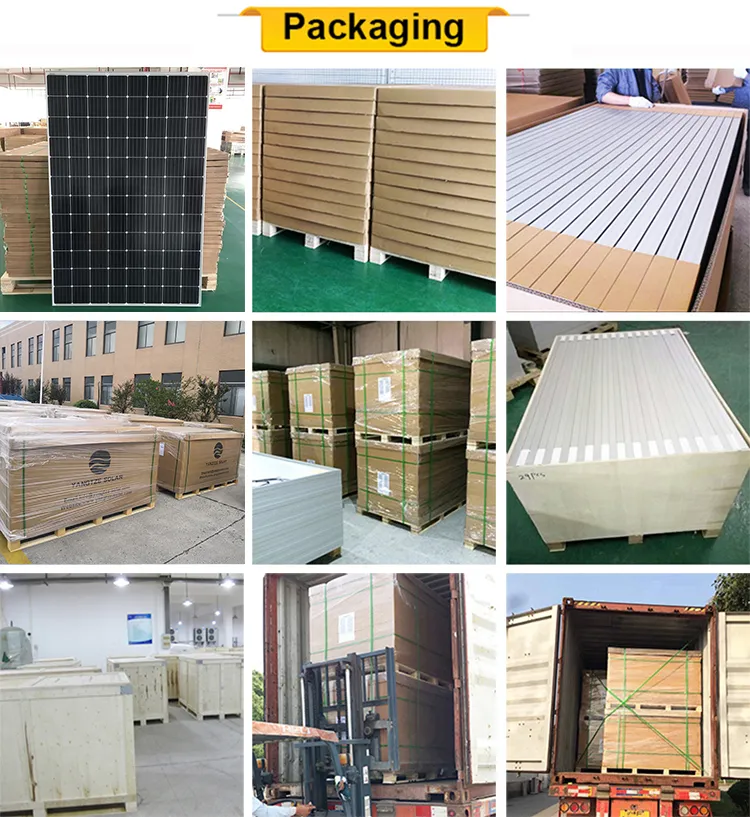

Shipping 1
Shipping 2

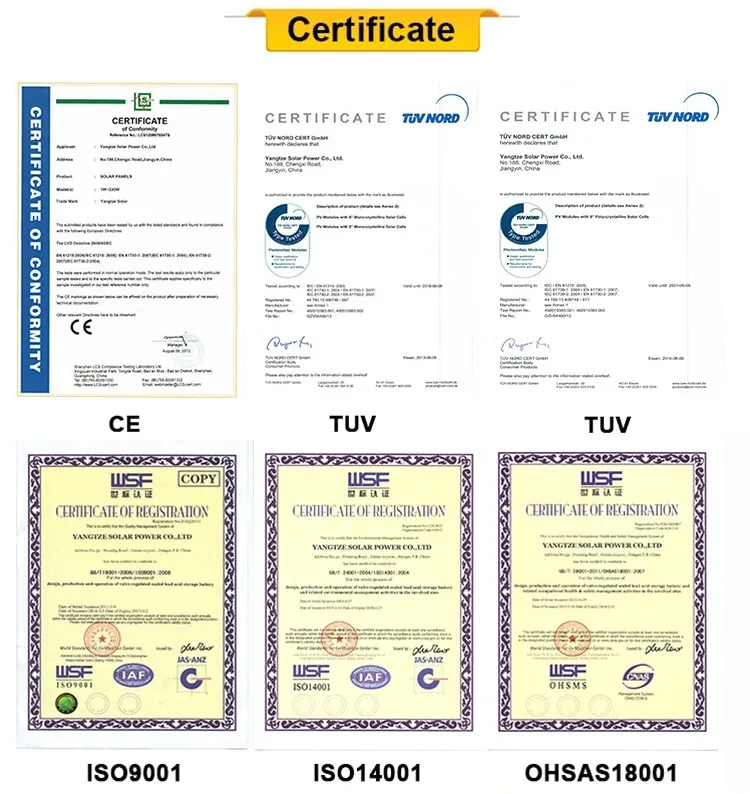

Certification
❓

Frequently Asked Questions

Q1: What is the maximum efficiency of these solar panels? The monocrystalline series offers high efficiency, reaching up to 21.46% for the 550W model.
Q2: What kind of warranties are provided? We offer a 10-year total workmanship and materials warranty, along with a 25-year linear power output warranty (at least 80% after 25 years).
Q3: Are the panels tested for quality before delivery? Yes, 100% EL (Electroluminescence) testing is conducted on every panel before packaging and shipping to ensure no micro-cracks or defects.
Q4: What certifications do your solar products hold? Our products are certified by internationally recognized bodies including TUV (Germany), UL (America), CE, ISO, and IEC.
Q5: Can these panels withstand harsh outdoor conditions? Absolutely. They feature an IP67 waterproof junction box, 3.2mm tempered glass, and an anodized aluminum alloy frame to operate between -40°C and +85°C.
Q6: Do you accept OEM orders? Yes, OEM orders are acceptable to meet specific project requirements and branding needs.
