Wing Solar
Wing Solar

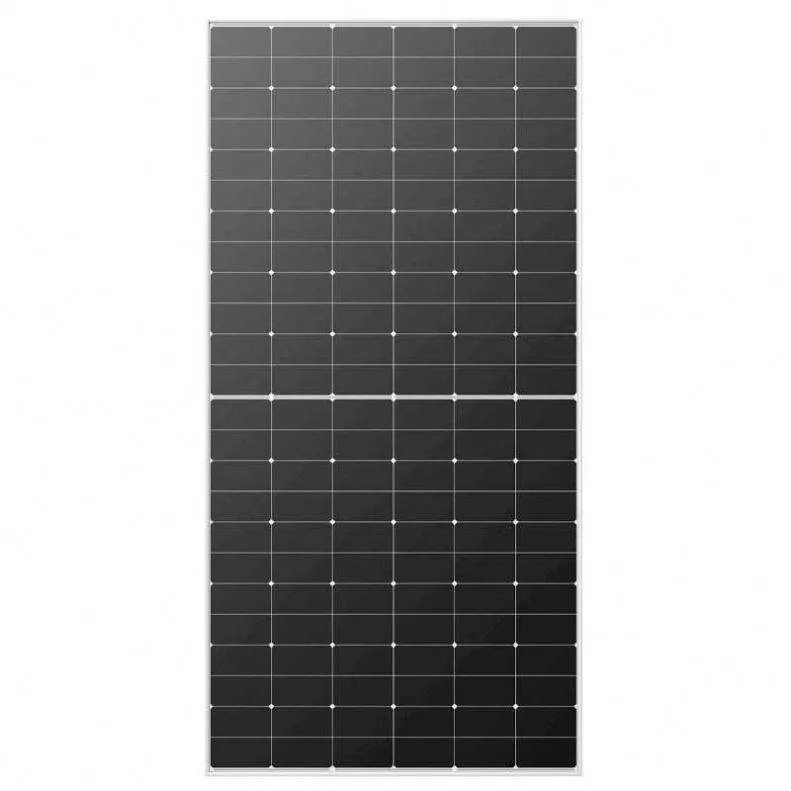

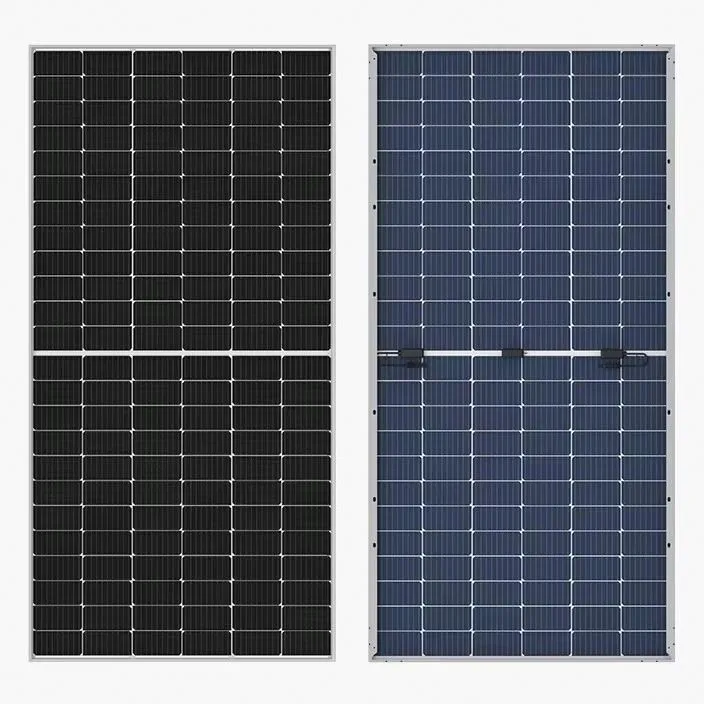

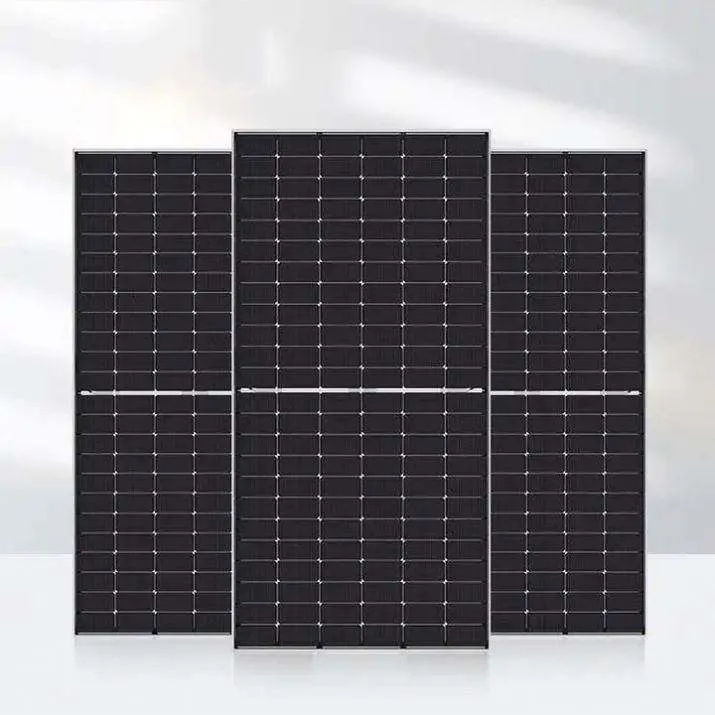

Mono Solar Panel: To produce monocrystalline silicon cells, absolutely pure semiconduction material is necessary. Monocrystalline rods are extracted from melted silicon and then sawed into thin plates. This production process guarantees a relatively high level of efficiency silicon and makes monocrystalline panels one of the most efficient, producing smaller solar cells, and therefore smaller panels. Monocrystalline works very well in bright cool conditions.
| ELECTRICAL CHARACTERISTICS (100W - 140W) | |||||
| Maximum Power-Pmax(w) | 100 | 110 | 120 | 130 | 140 |
| Open Circuit Voltage-Voc(V) | 20.60 | 21.23 | 21.60 | 21.95 | 23.16 |
| Short Circuit Current-Isc(A) | 5.94 | 6.41 | 6.87 | 7.21 | 7.46 |
| Maximum Power Voltage-Vmpp(V) | 17.82 | 18.15 | 18.48 | 19.08 | 19.80 |
| Maximum Power Current-Impp(A) | 5.62 | 6.07 | 6.50 | 6.82 | 7.08 |
| Module Efficiency(%) | 18.80 | 20.70 | 22.69 | 21.30 | 20.30 |
| ELECTRICAL CHARACTERISTICS (150W - 190W) | |||||
| Maximum Power-Pmax(w) | 150 | 160 | 170 | 180 | 190 |
| Open Circuit Voltage-Voc(V) | 23.58 | 21.05 | 21.53 | 24.42 | 24.88 |
| Short Circuit Current-Isc(A) | 7.86 | 9.31 | 9.71 | 9.02 | 9.35 |
| Maximum Power Voltage-Vmpp(V) | 20.16 | 18.15 | 18.48 | 21.06 | 21.45 |
| Maximum Power Current-Impp(A) | 7.45 | 8.82 | 9.20 | 8.55 | 8.86 |
| Module Efficiency(%) | 21.70 | 19.50 | 20.70 | 17.80 | 18.80 |

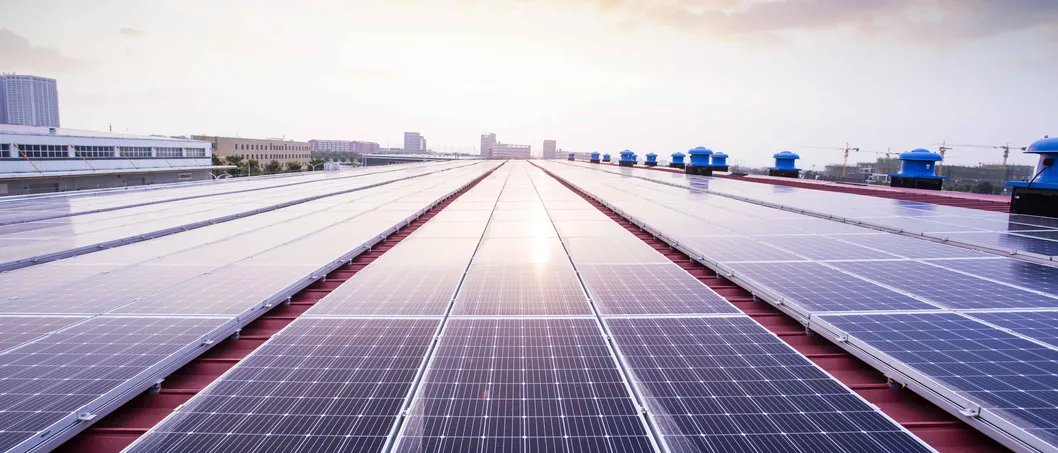

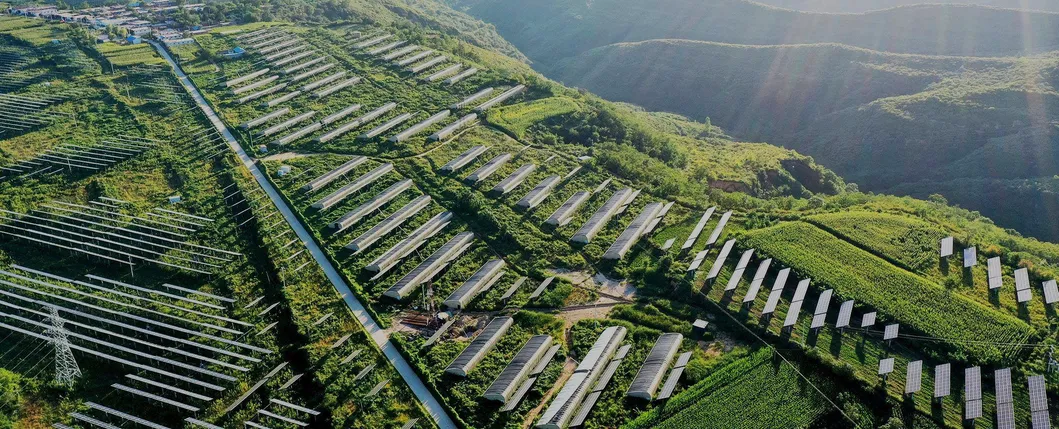

Grid-friendly, environmentally-friendly, and economic benefits-friendly. Featured applications include large-scale PV power plants on flat terrain, mountainous terrain, and floatovoltaics on water.
Solar PV can be paired with high-energy-consuming enterprises' own power plants. It can also power green hydrogen production, replacing carbon-producing fuels to achieve decarbonization goals.

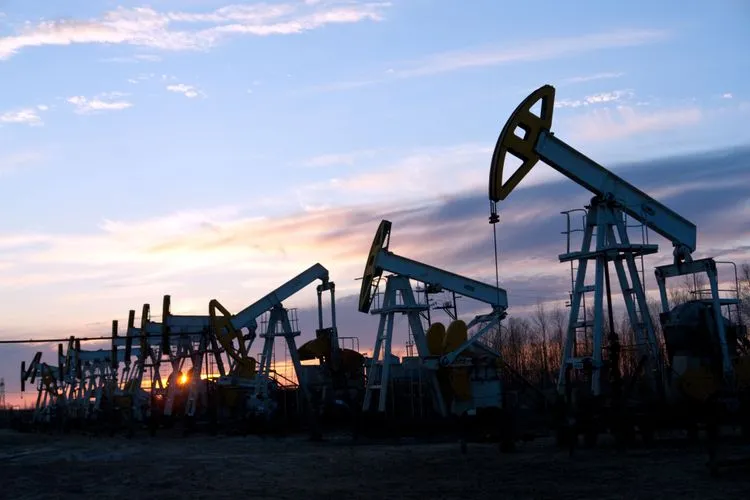

Helping petroleum enterprises become greener. Reduce energy consumption and pollution, improve the regional environment, and enhance brand equity while reducing long-term operating costs.
Create a new industrial paradigm with clean energy as the main energy system, promoting global green environmental protection.

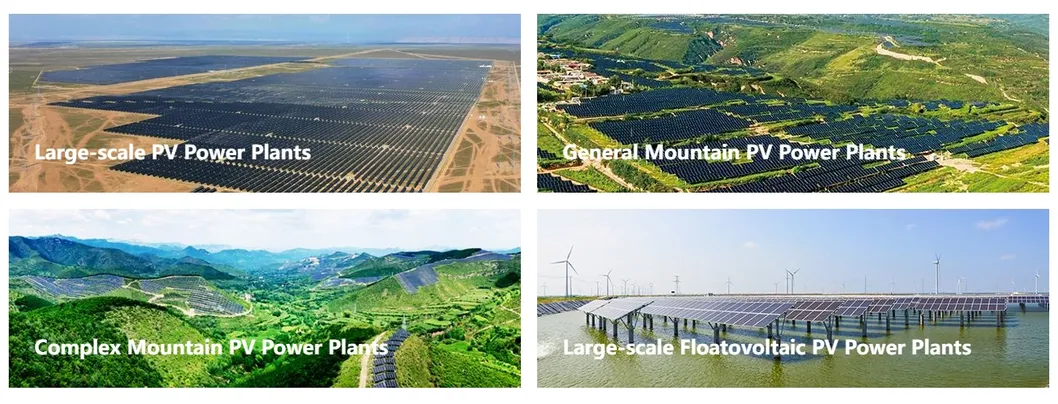

Depending on the different types of construction sites, installation locations and methods, we can provide solutions for large-scale, mountain, complex terrain, and floating PV power plants.
