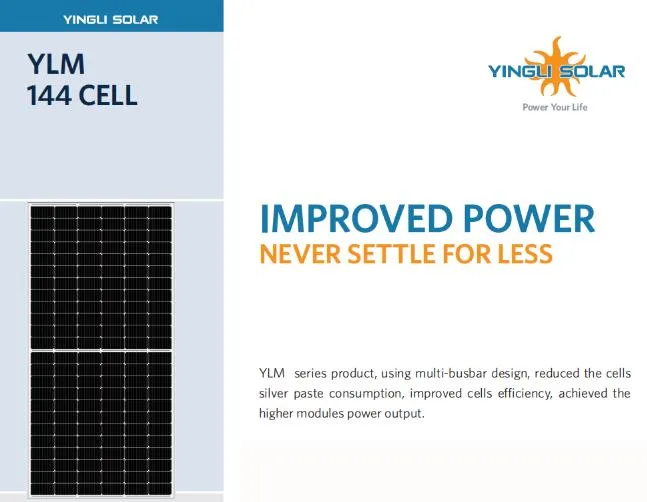

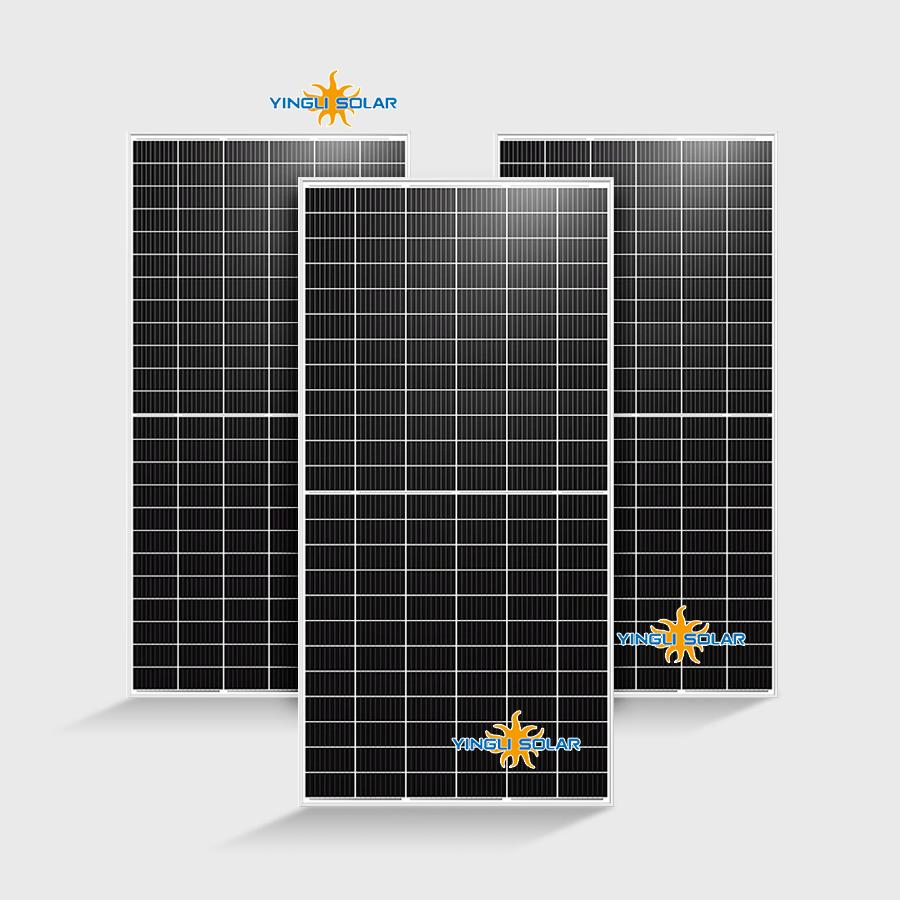

The multi-busbar design can decrease the risk of the cell micro-cracks and fingers broken, ensuring long-term reliability.
High conversion efficiency and more power output per square meter, achieved by lower series resistance and improved light harvesting.
Less energy loss caused by shading due to new cell string layout and split J-box; lower cell connection power loss due to half-cell design.
High-transmission glass features a unique anti-reflective coating that directs more light on the solar cells, resulting in a higher energy yield.
| Electrical Parameters at Standard Test Conditions (STC) | ||||||
| Module | 430W-144 ~ 455M-144 | |||||
| Power output (Pmax) | 430W | 435W | 440W | 445W | 450W | 455W |
| Voltage at Pmax (Vpmax) | 40.72V | 40.97V | 41.20V | 41.44V | 41.67V | 41.90V |
| Current at Pmax (Ipmax) | 10.56A | 10.62A | 10.68A | 10.74A | 10.80A | 10.86A |
| Open-circuit voltage (Voc) | 48.80V | 49.05V | 49.30V | 49.55V | 49.80V | 50.05V |
| Short-circuit current (Isc) | 11.18A | 11.24A | 11.30A | 11.36A | 11.42A | 11.48A |
| Module efficiency | 19.96% | 20.19% | 20.42% | 20.65% | 20.88% | 21.12% |
