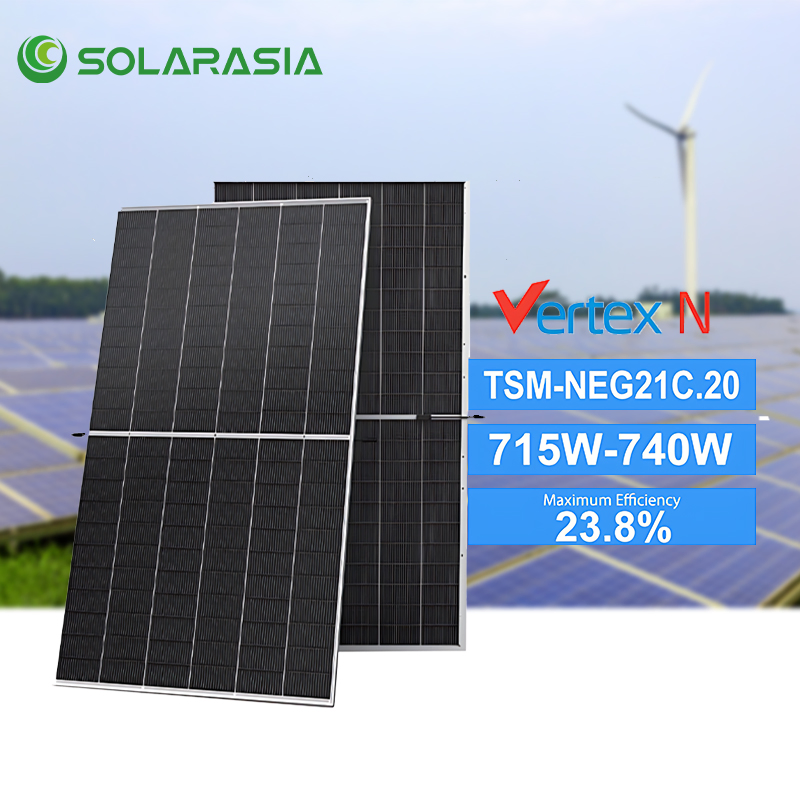

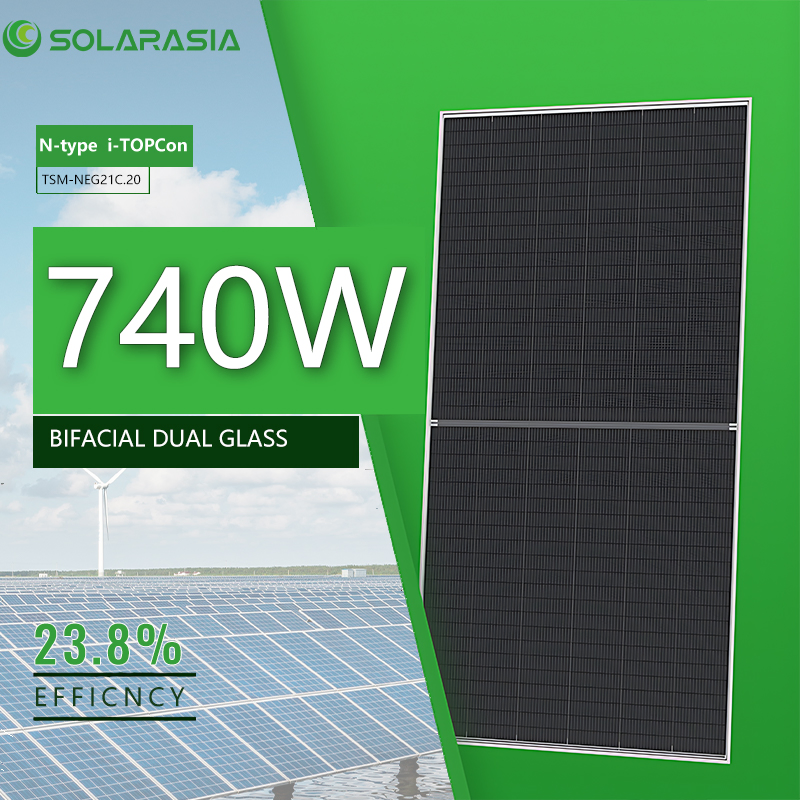

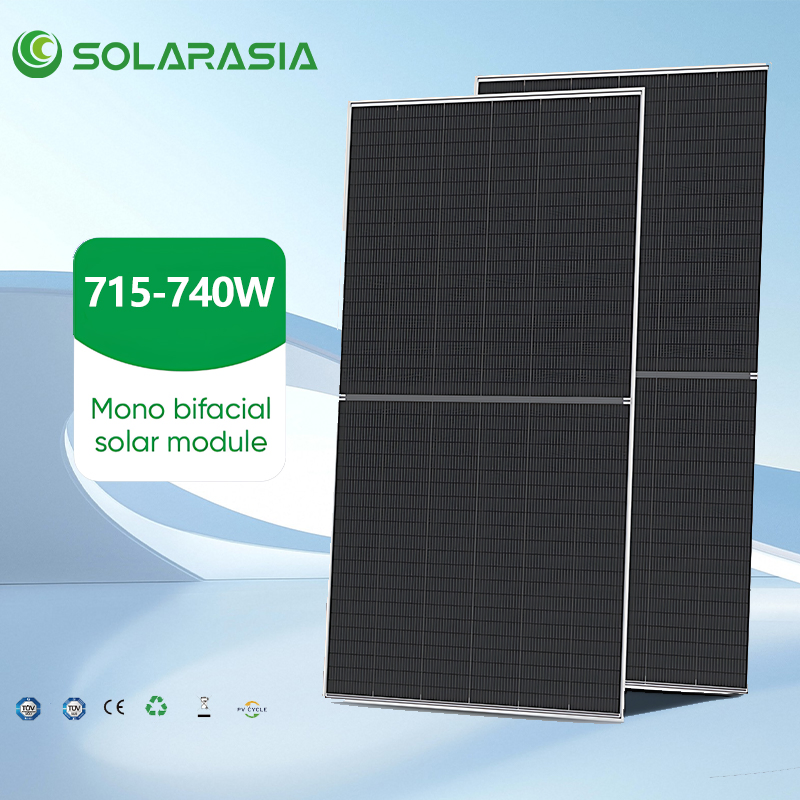

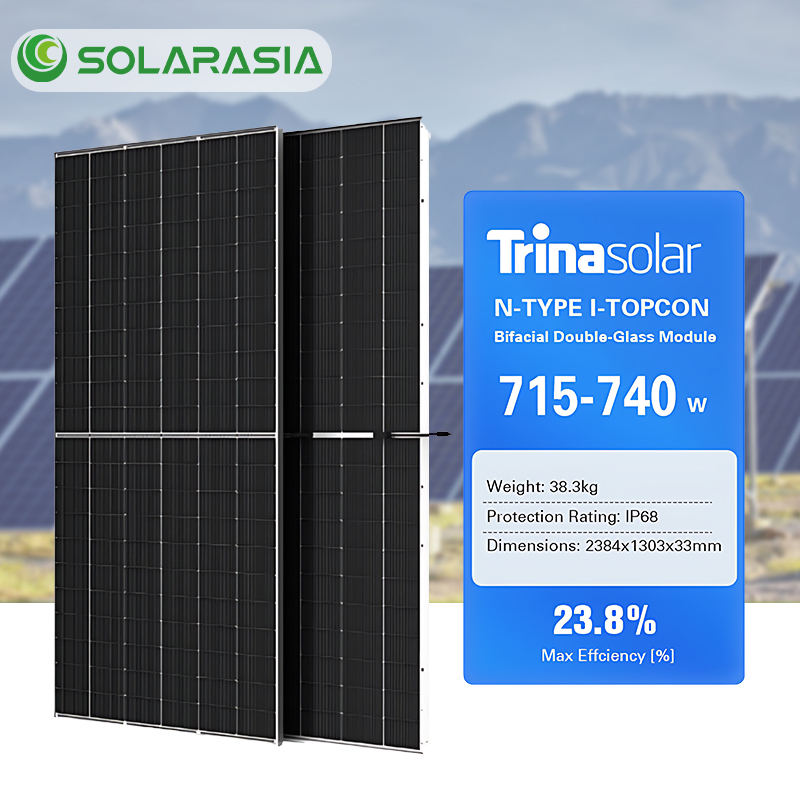

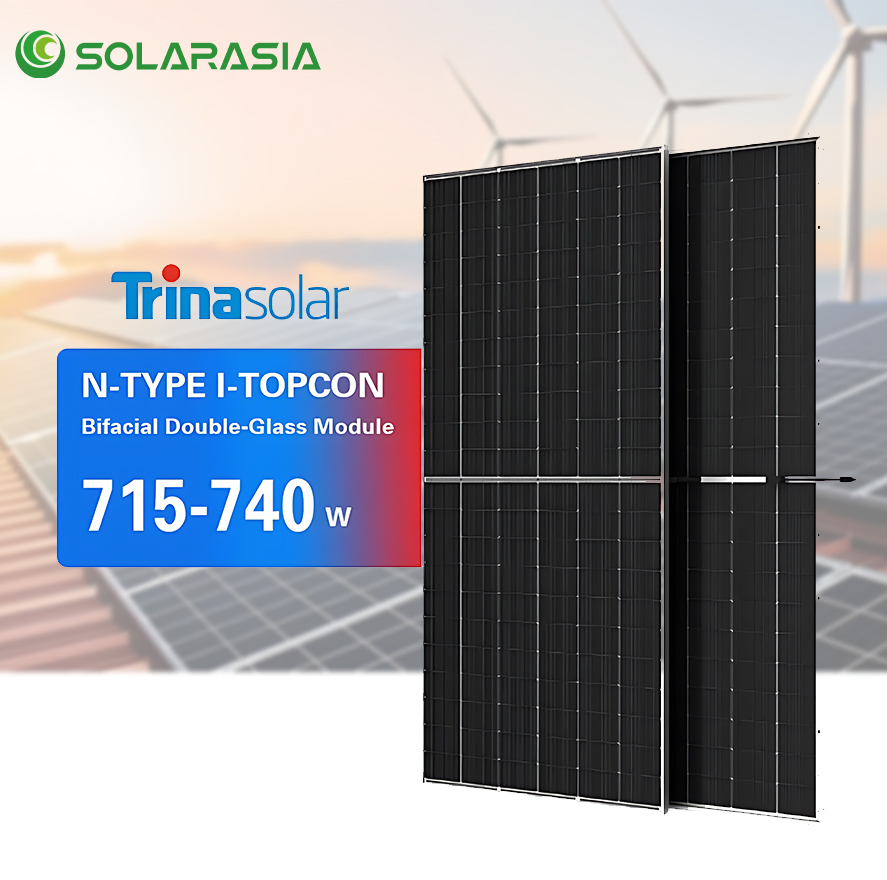

Trina 700 Watt Highest Efficiency Half Cell PV Monocrystalline Solar Panel 715W 720W 725W 730W 735W 740W Solar Panel Module for Home Power Systems

1 / 5

Trina 700 Watt Highest Efficiency Half Cell PV Monocrystalline Solar Panel 715W 720W 725W 730W 735W 740W Solar Panel Module for Home Power Systems

Customization:	Available
After-sales Service:	Yes
Number of Cells:	132 Cells

Send Inquiry

Product Description

Product Overview

Model NO.

TSM-NEG21C. 20

Application

Industrial

Certification

ISO, CE

Material

Monocrystalline Silicon

J-Box

IP 68 Rated

Weight

38.3 Kg

Solar Cells

N-Type I-Topcon

Specification

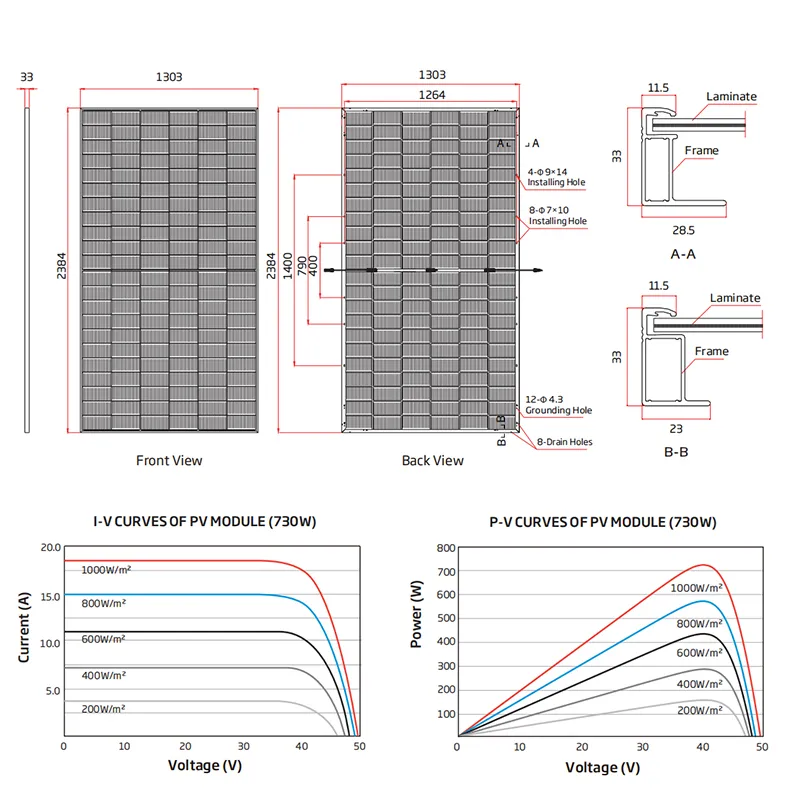

2384*1303*33 mm

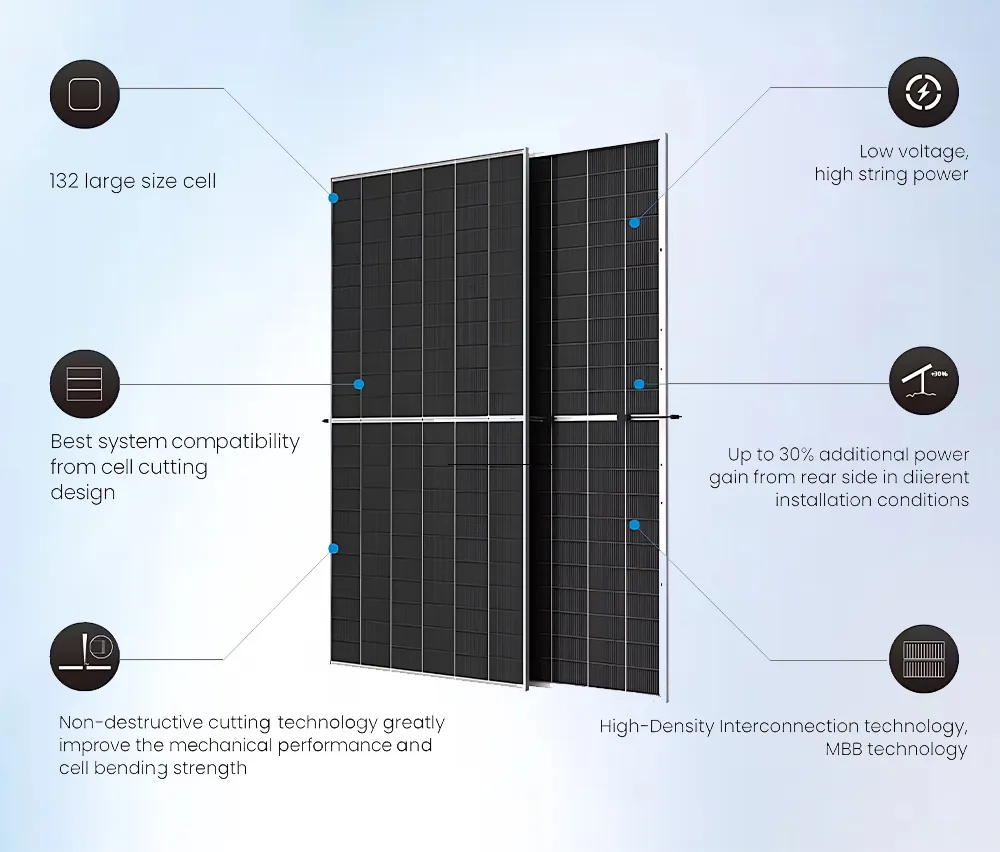

Product Features

Technical Specifications

Model No. (Wp)	715	720	725	730	735	740
Voltage at Pmax (Vmpp)	41.1 V	41.3 V	41.5 V	41.7 V	41.9 V	42.1 V
Current at Pmax (Impp)	17.4 A	17.44 A	17.47 A	17.51 A	17.55 A	17.58 A
Open Circuit Voltage (Voc)	49.2 V	49.4 V	49.6 V	49.9 V	50.1 V	50.3 V
Short Circuit Current (Isc)	18.44 A	18.49 A	18.54 A	18.58 A	18.62 A	18.66 A
Panel Efficiency	23%	23.20%	23.30%	23.50%	23.70%	23.80%
Max System Voltage	1500 V

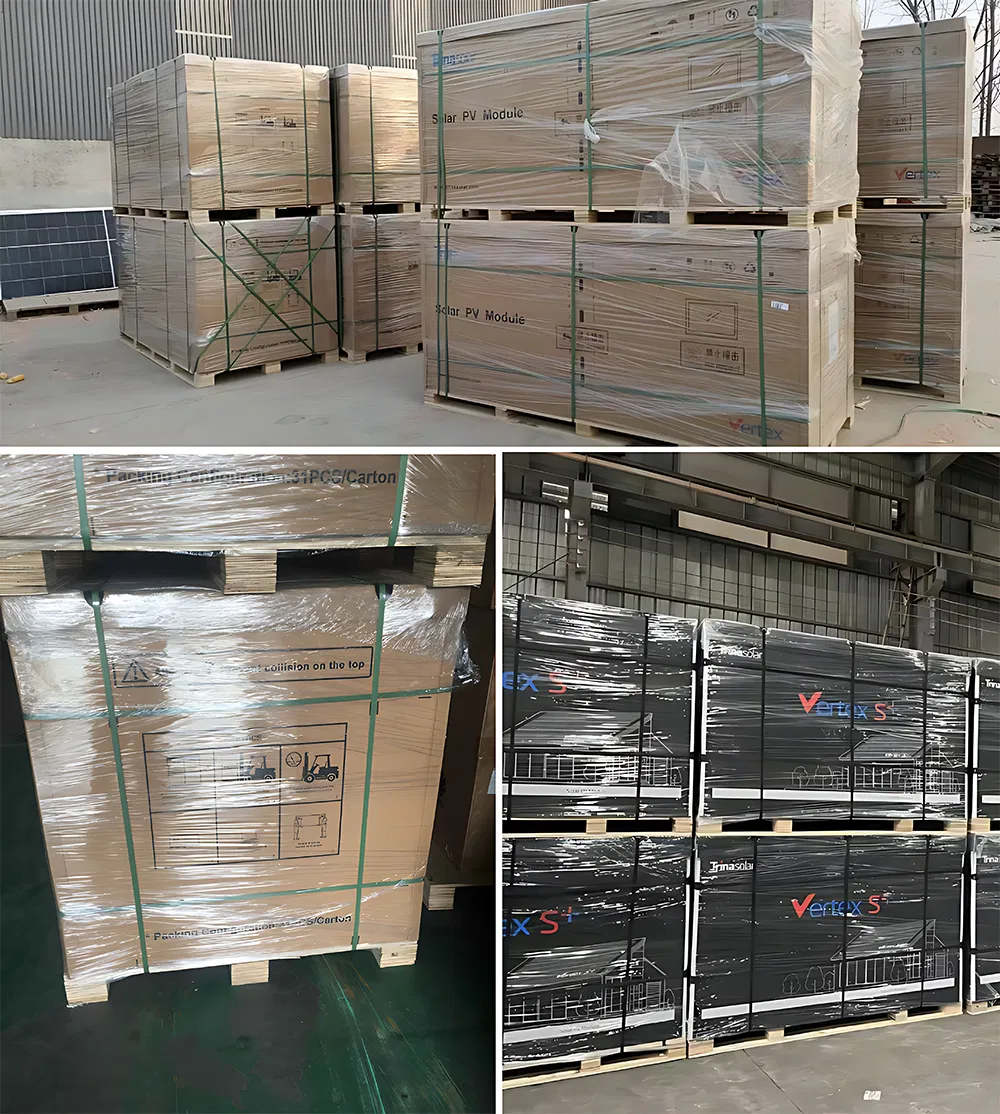

Packing & Logistics

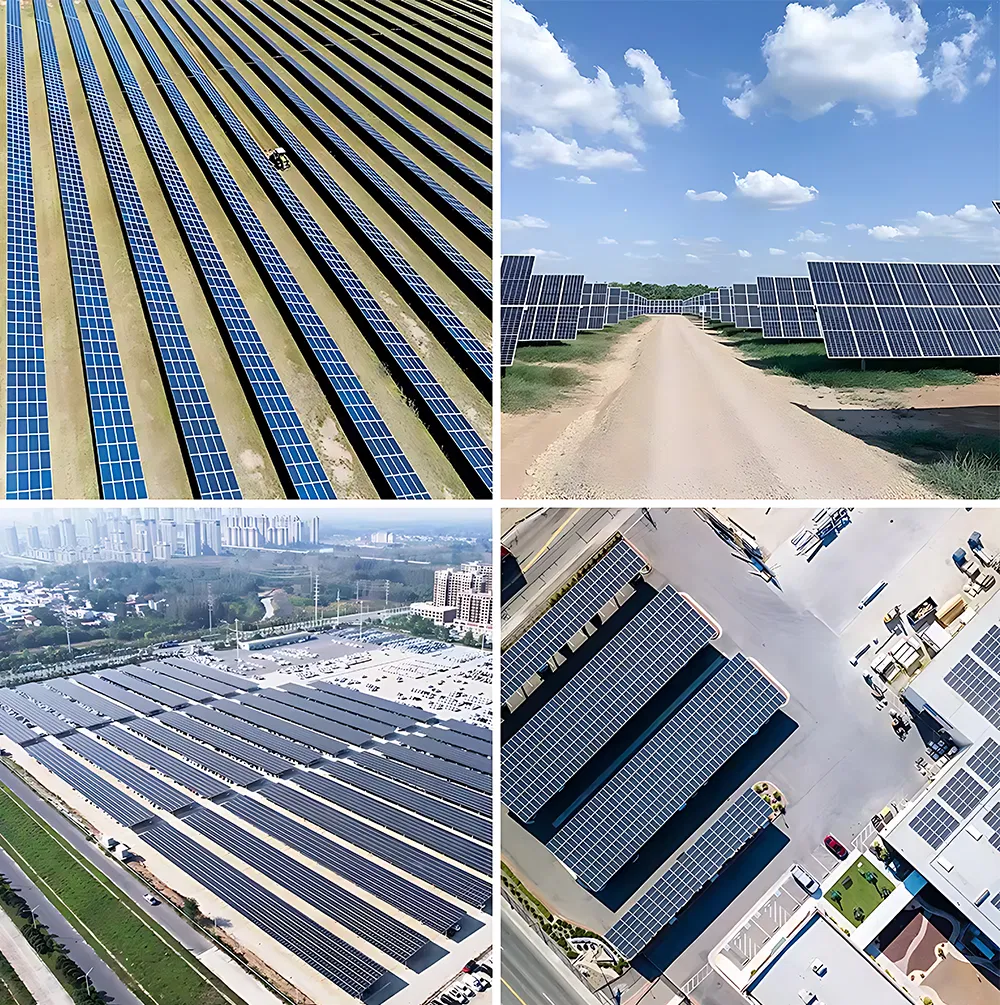

Project Showcase

Certifications

Frequently Asked Questions

● What is the power range of this solar panel series?

The series delivers ultra-high power output ranging from 715W to 740W, making it ideal for utility-scale and large commercial projects.

● What specific technology is used in these cells?

It utilizes advanced N-type i-TOPCon cell technology, which provides higher efficiency and lower degradation rates compared to traditional P-type modules.

● Is this module suitable for harsh environmental conditions?

Yes, with an IP 68 rated junction box and monocrystalline silicon material, it is designed for durability and high performance in various industrial environments.

● Does it support bifacial energy generation?

Yes, the module is optimized for bifacial energy gain, allowing for increased total energy yield particularly when installed on reflective surfaces.

● What are the standard certifications for these panels?

These panels comply with international standards including IEC 61215 and IEC 61730, ensuring safety and quality for global solar installations.

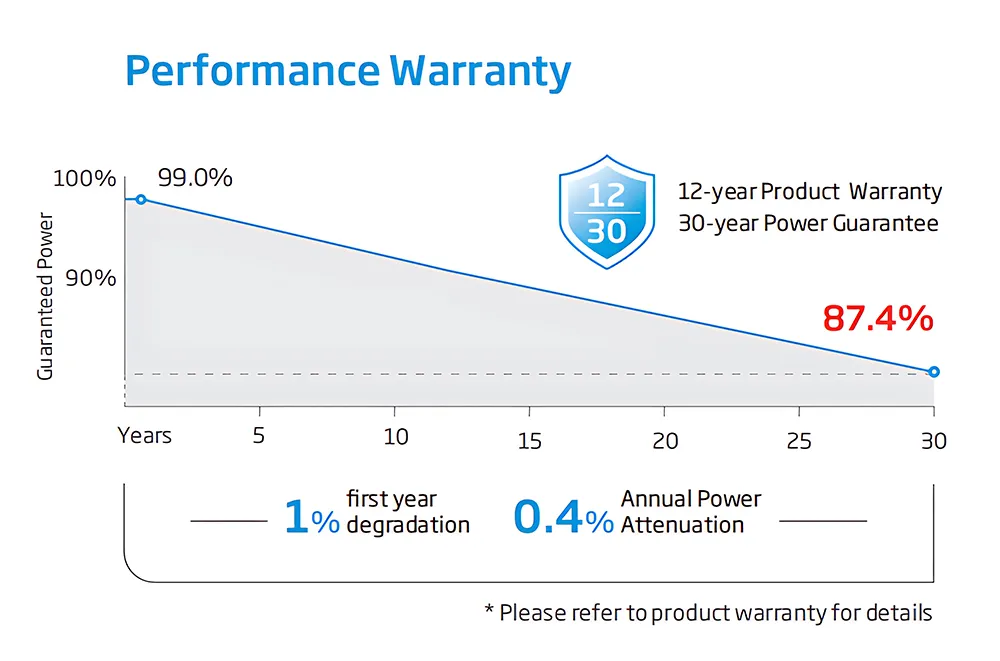

● What is the expected long-term performance?

The panels feature a low degradation rate (approx. 0.42%) and are backed by a 30-year linear power warranty for long-term reliability.
