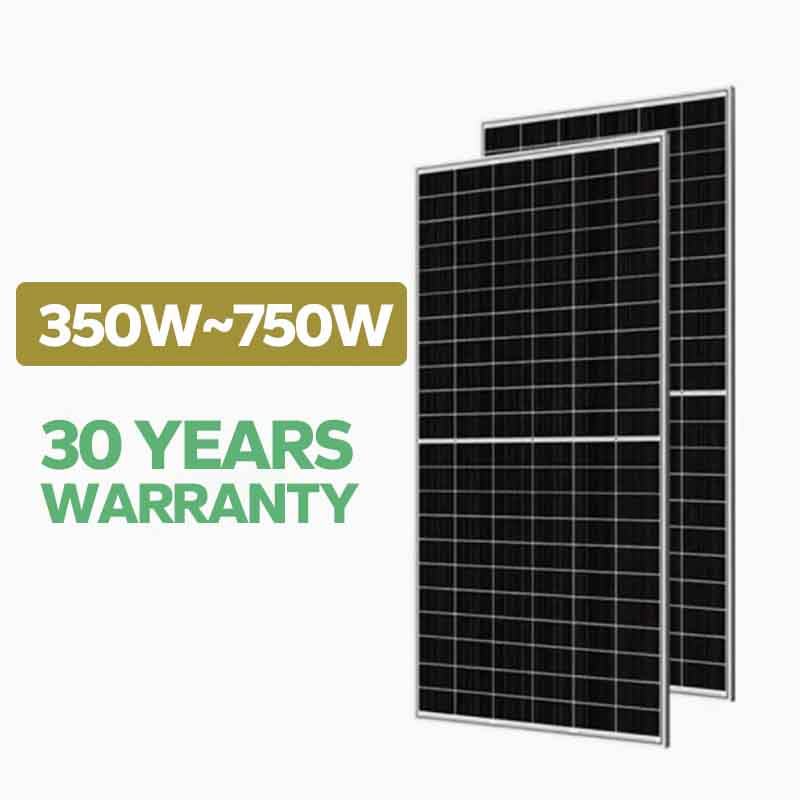

N-Type Wholesale N Type Hjt Bifacial Solar Panel All Black 750W Monocrystalline
N-Type Wholesale N Type Hjt Bifacial Solar Panel All Black 750W Monocrystalline
N-Type Wholesale N Type Hjt Bifacial Solar Panel All Black 750W Monocrystalline
N-Type Wholesale N Type Hjt Bifacial Solar Panel All Black 750W Monocrystalline
N-Type Wholesale N Type Hjt Bifacial Solar Panel All Black 750W Monocrystalline
1 / 5
N-Type Wholesale N Type Hjt Bifacial Solar Panel All Black 750W Monocrystalline
N-Type Wholesale N Type Hjt Bifacial Solar Panel All Black 750W Monocrystalline
N-Type Wholesale N Type Hjt Bifacial Solar Panel All Black 750W Monocrystalline
N-Type Wholesale N Type Hjt Bifacial Solar Panel All Black 750W Monocrystalline
N-Type Wholesale N Type Hjt Bifacial Solar Panel All Black 750W Monocrystalline

N-Type Wholesale N Type Hjt Bifacial Solar Panel All Black 750W Monocrystalline

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

■ Basic Information
Model NO.
YS750M-132
Number of Cells
66
Material
Monocrystalline Silicon
Solar Cell
Mono 210X210 mm Cell
Size
2384*1303*35mm
Weight
36kg
Junction Box
IP68 Waterproof
Specification
750W
Certification
ISO, CE
Frame
Anodized Aluminium Alloy
■ Product Description
N-Type Wholesale N Type Hjt bifacial Solar Panel All Black 750W Monocrystalline

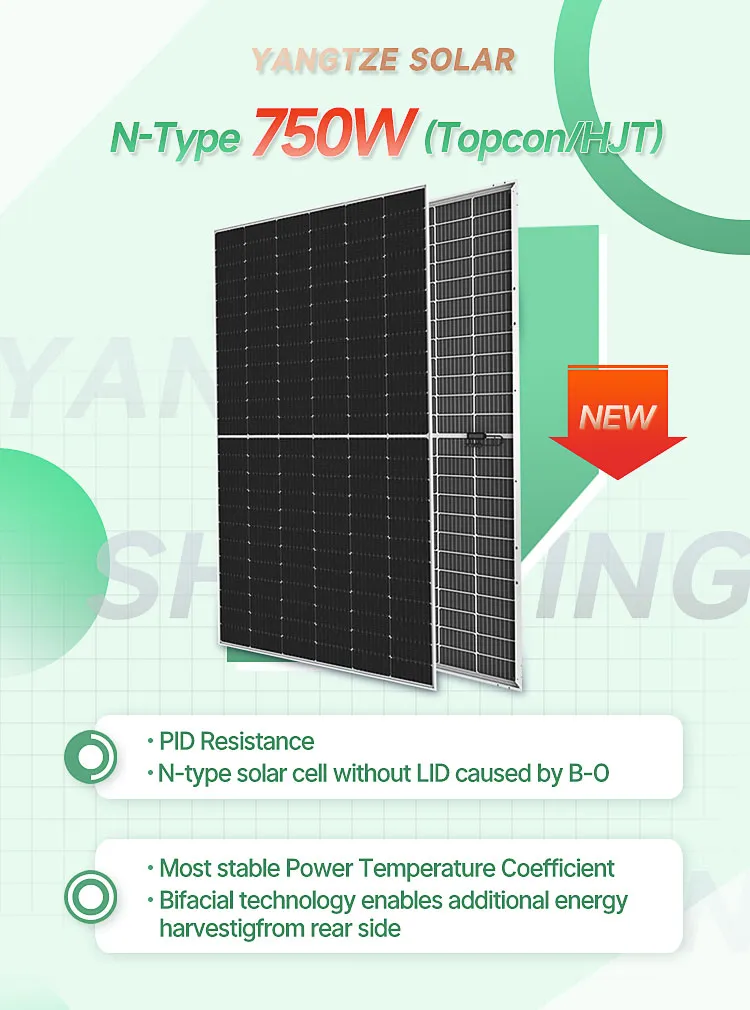

N-Type Bifacial Solar Panel
Model Type YS710M-132 YS720M-132 YS730M-132 YS740M-132 YS750M-132
Rated Power (STC) 710W 720W 730W 740W 750W
Max Power Voltage (Vmp) 40.48V 40.86V 41.04V 41.34V 41.52V
Max Power Current (Imp) 17.54A 17.62A 17.78A 17.9A 18.06A
Open Circuit Voltage (Voc) 45.55V 45.85V 46.15V 46.45V 46.75V
Short Circuit Current (Isc) 18.45A 18.54A 18.66A 18.79A 18.92A
Module Efficiency 22.85% 23.17% 23.5% 23.82% 24.14%
Working Conditions
Operating Temperature -40°c ~ +85°c
Maximum System Voltage DC 1000V(IEC) / 1500V(IEC)
Power Tolerance 0 ~ +5W

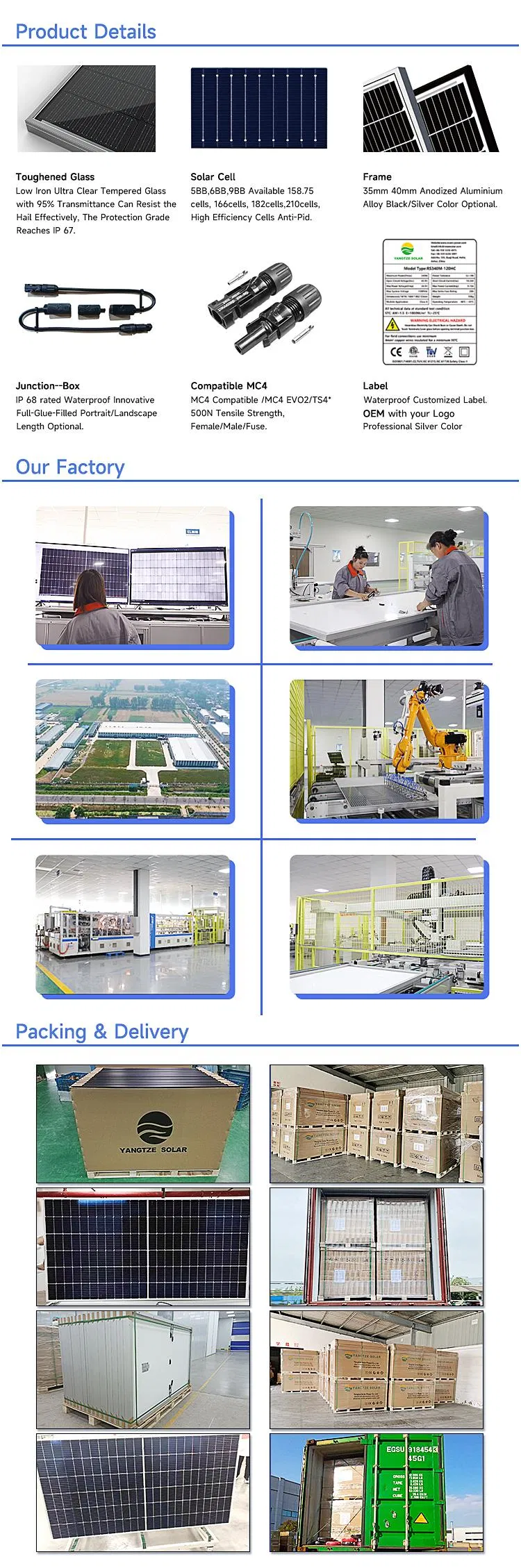

Solar Panel Details
Technical Specifications
■ Key Features & Manufacturing
  • ✦ Solar panel production capacity of 300MW, ranging from 3W to 750W.
  • ✦ 10 years workmanship and materials warranty; 25 years linear power output warranty.
  • ✦ 100% EL test performed before packaging and shipping for quality assurance.
  • ✦ Certified by TUV (Germany) and CE for international safety standards.
  • ✦ Products exported to more than 150 countries worldwide.
  • ✦ Offering turn-key solar systems to optimize installation time and cost.
Production Process
Certifications
■ Frequently Asked Questions
Q1: What is the maximum efficiency of this solar panel?
The YS750M-132 model reaches a maximum module efficiency of 24.14% under standard testing conditions.
Q2: Are these panels suitable for extreme weather environments?
Yes, these panels are designed to operate in temperatures ranging from -40°C to +85°C and feature an IP68 waterproof junction box.
Q3: What kind of warranty is provided with these solar modules?
We offer a 10-year warranty on workmanship and materials, along with a 25-year linear power output warranty (at least 80% after 25 years).
Q4: What are the dimensions and weight of the 750W model?
The panel measures 2384*1303*35mm and weighs approximately 36kg.
Q5: Is the frame durable enough for industrial use?
Yes, the panels are constructed with an Anodized Aluminium Alloy frame, providing high structural integrity and corrosion resistance for industrial applications.
Q6: What is the benefit of N-Type HJT technology?
N-Type HJT technology provides higher efficiency, lower degradation rates, and better performance in low-light conditions compared to traditional P-type cells.
