Wing Solar
Wing Solar
First Choice for Value:
The product takes over the core technology of HPBC 2.0 cells, leading in power generation performance, reliability, and customer benefits, which can better meet the needs of distributed customers for products. It includes four series - Explorer, Scientist, Guardian, and Artist, making it the first choice for value of distributed PV.
| Item | Value |
|---|---|
| Cell size | 182mm x 182mm |
| Type | Half Cell, Monofacial, IBC, N-TYPE, TOPCON |
| Panel Efficiency | 24.1% |
| Glass | Single glass, 3.2mm coated tempered glass |
| Application | Solar Power System |
| Certificate | TUV/CE/CEC/ISO |

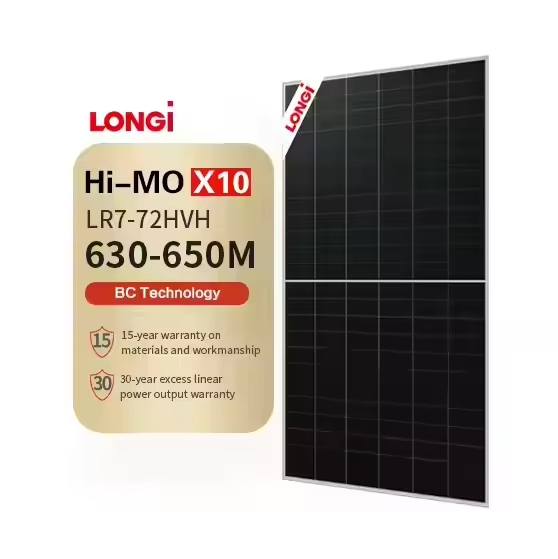

| Module Type (Electrical characteristics) | LR7-72HVH-630M | LR7-72HVH-640M | LR7-72HVH-650M |
|---|---|---|---|
| Maximum Power (Pmax/W) | 630 / 480 | 640 / 487 | 650 / 495 |
| Open Circuit Voltage (Voc/V) | 53.50 / 50.84 | 53.70 / 51.04 | 53.90 / 51.23 |
| Short Circuit Current (Isc/A) | 14.97 / 12.02 | 15.13 / 12.15 | 15.29 / 12.28 |
| Voltage at Max Power (Vmp/V) | 44.16 / 41.96 | 44.36 / 42.15 | 44.56 / 42.35 |
| Current at Max Power (Imp/A) | 14.27 / 11.44 | 14.43 / 11.56 | 14.59 / 11.69 |
| Module Efficiency (%) | 23.3 | 23.7 | 24.1 |
