| Electrical Characteristics (Tiger Pro 72HC 550-570 Watt) | |||||
|---|---|---|---|---|---|
| Maximum Power (Pmax) | 550Wp | 555Wp | 560Wp | 565Wp | 570Wp |
| Power Voltage (Vmp) | 40.90V | 40.99V | 41.09V | 41.21V | 41.34V |
| Power Current (Imp) | 13.45A | 13.54A | 13.63A | 13.71A | 13.79A |
| Module Efficiency | 21.29% | 21.48% | 21.68% | 21.87% | 22.07% |

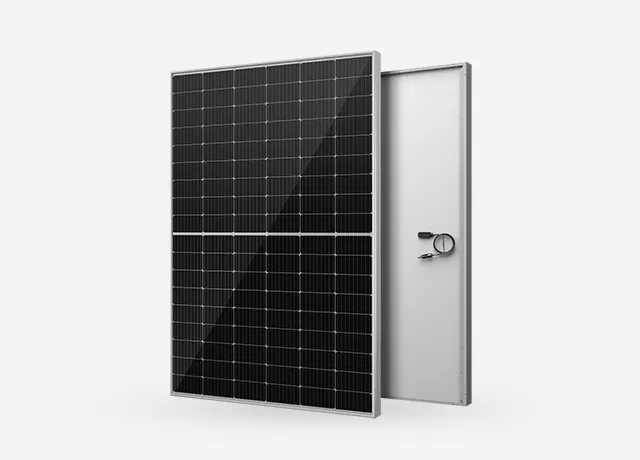

Power Range: 410-430W
No. of Cells: 108 cells
Dimension: 1722×1134×30 mm
Weight: 22 kg

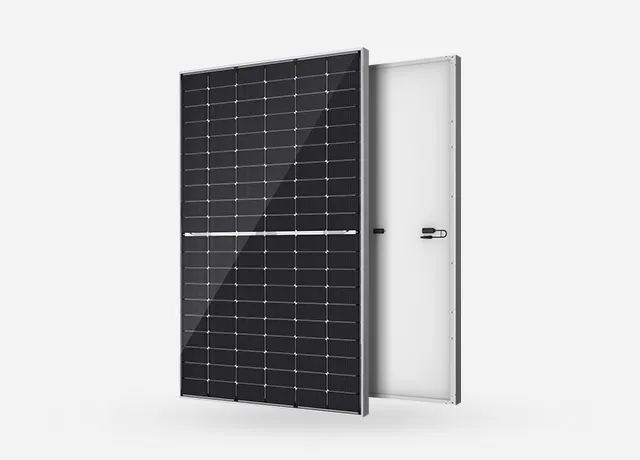

Power Range: 460-480W
No. of Cells: 120 cells
Dimension: 1903×1134×30mm
Weight: 24.2 kg
Power Range: 565-585W
No. of Cells: 144 cells
Dimension: 2278×1134×35mm
Weight: 28 kg

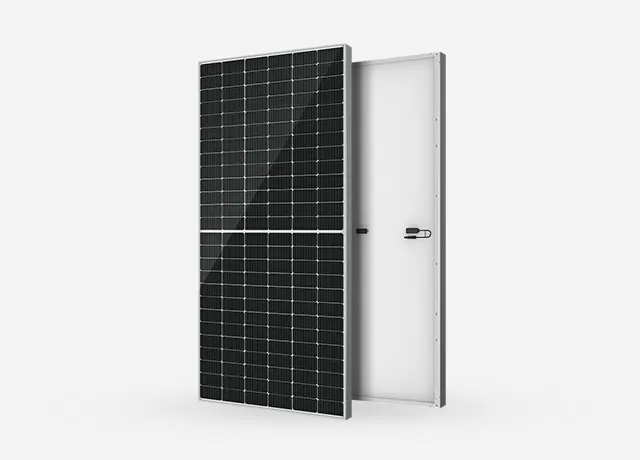

Power Range: 610-630W
No. of Cells: 156 cells
Dimension: 2465×1134×35mm
Weight: 30.6 kg
Yes, we export to most countries and regions including Central/South America, EMEA, SEA, SSA, and AU. Please provide your region for final confirmation.
For requirements under 200kW, the lead time is approximately 10 working days. For orders exceeding 200kW, the timeline will be negotiated based on capacity.
We accept 100% TT, or a structured payment of 30% TT in advance with the remaining 70% TT due when goods are ready before shipment.
The panels come with a 12-year enhanced product warranty on materials and workmanship, and a 25-year linear power output warranty.

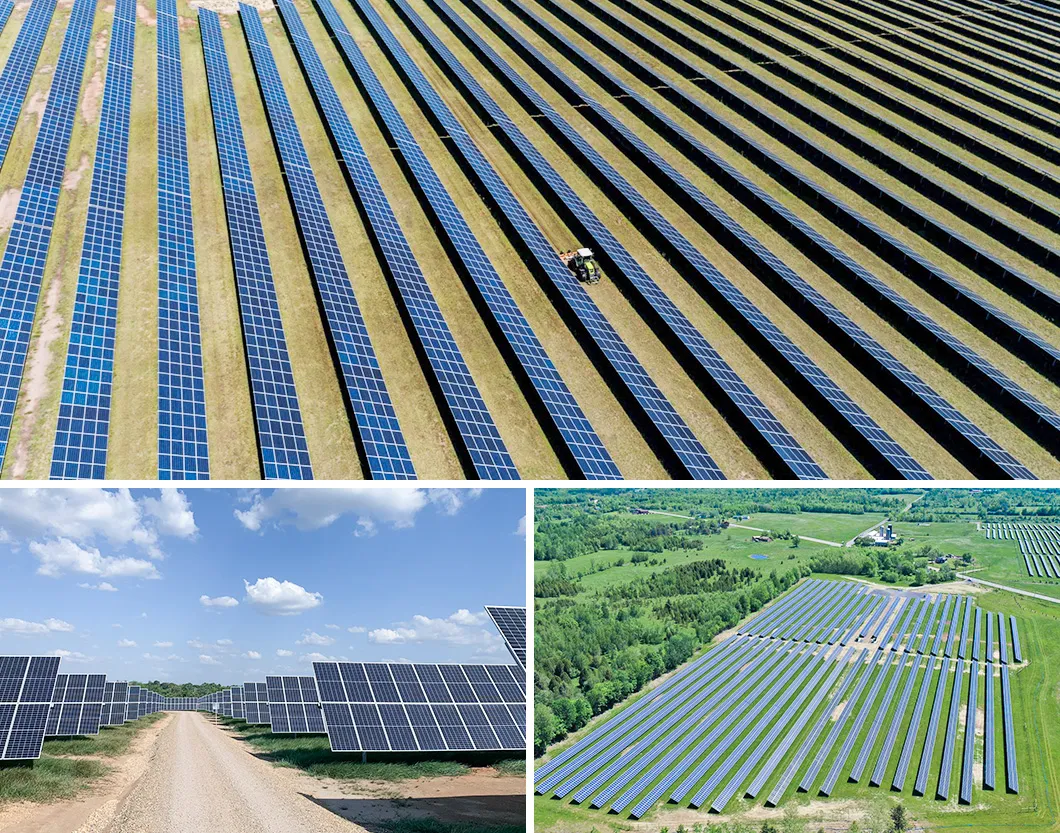

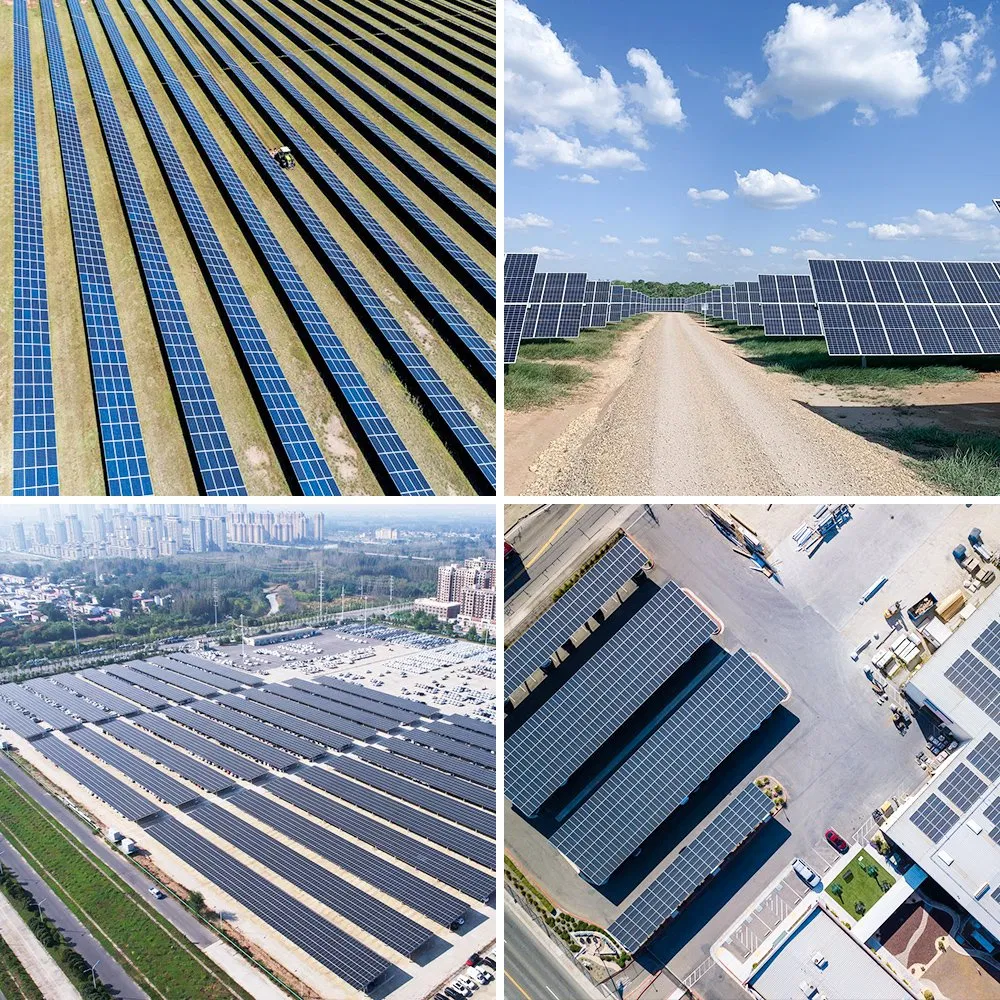

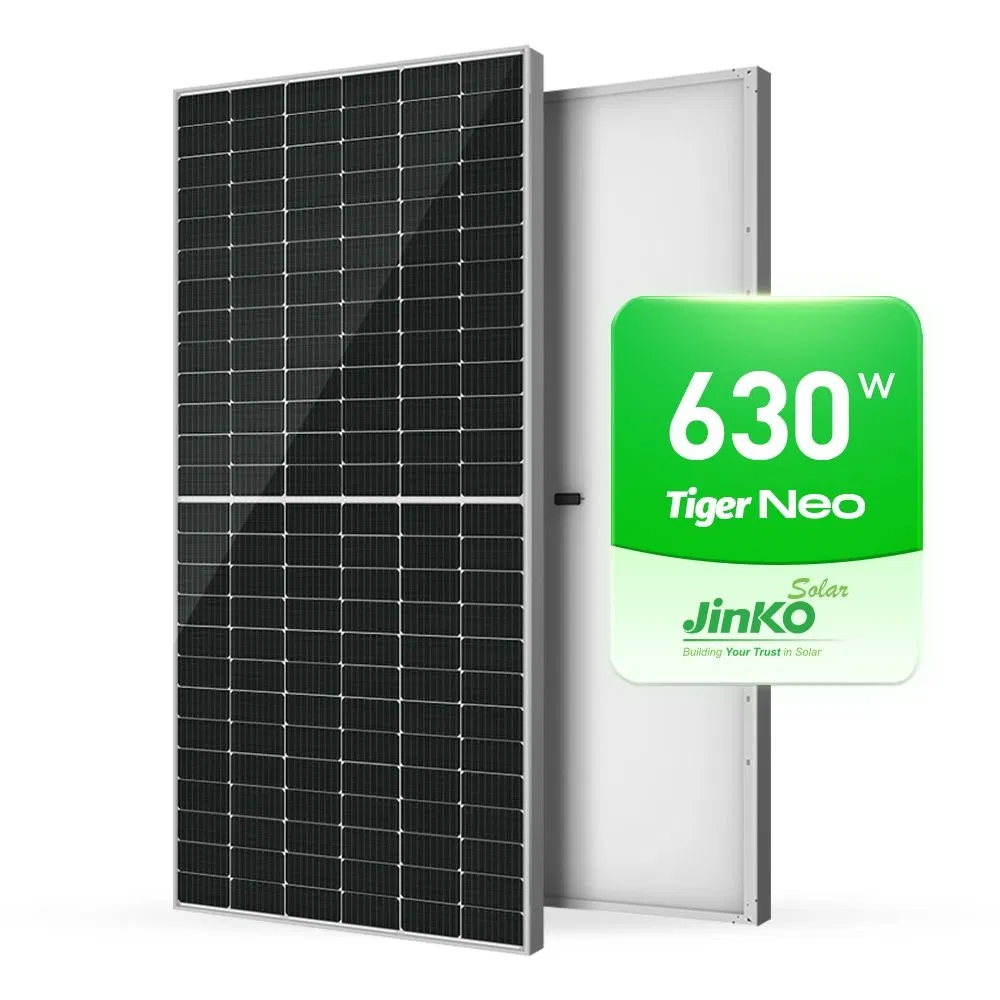

Yes, these monocrystalline photovoltaic solar panels are specifically designed for high-efficiency industrial and large-scale utility applications.

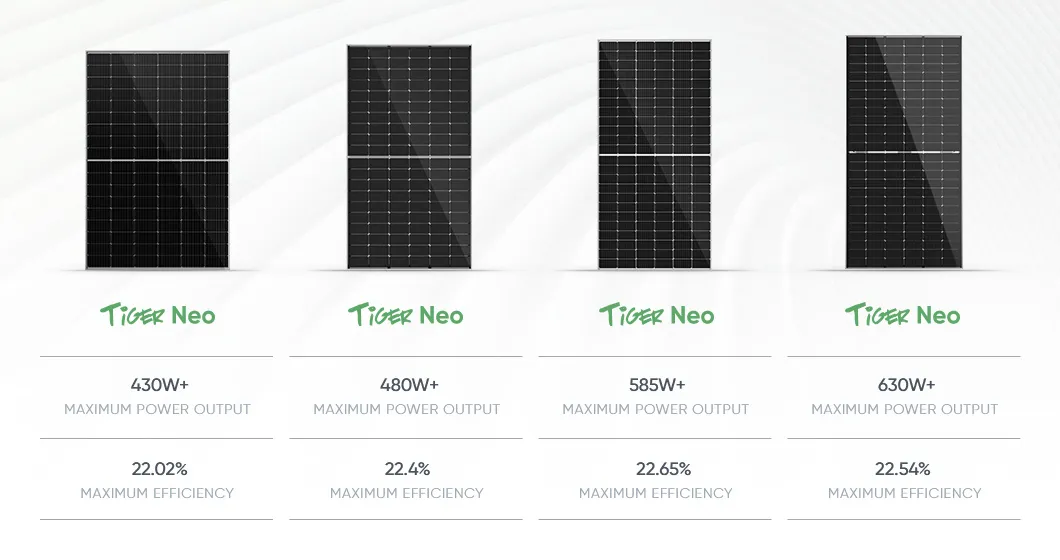

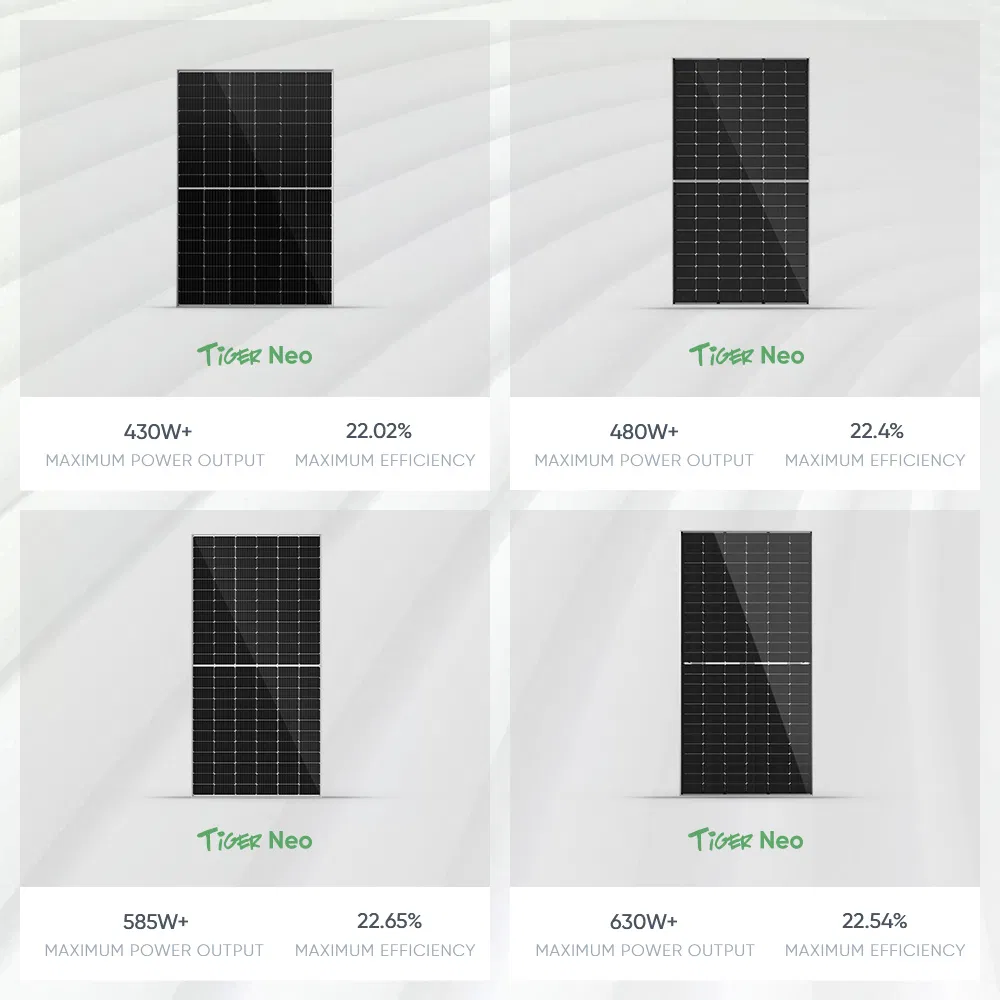

The main differences lie in the power range (from 410W to 630W) and the number of cells (from 108 to 156), allowing for flexible installation based on space and energy needs.
