Jinko Monocrystalline Solar Power Panels 1000W 720 Watts 625W 600W Bifacial Double Glass Solar Panel
Jinko Monocrystalline Solar Power Panels 1000W 720 Watts 625W 600W Bifacial Double Glass Solar Panel
Jinko Monocrystalline Solar Power Panels 1000W 720 Watts 625W 600W Bifacial Double Glass Solar Panel
Jinko Monocrystalline Solar Power Panels 1000W 720 Watts 625W 600W Bifacial Double Glass Solar Panel
Jinko Monocrystalline Solar Power Panels 1000W 720 Watts 625W 600W Bifacial Double Glass Solar Panel
1 / 5
Jinko Monocrystalline Solar Power Panels 1000W 720 Watts 625W 600W Bifacial Double Glass Solar Panel
Jinko Monocrystalline Solar Power Panels 1000W 720 Watts 625W 600W Bifacial Double Glass Solar Panel
Jinko Monocrystalline Solar Power Panels 1000W 720 Watts 625W 600W Bifacial Double Glass Solar Panel
Jinko Monocrystalline Solar Power Panels 1000W 720 Watts 625W 600W Bifacial Double Glass Solar Panel
Jinko Monocrystalline Solar Power Panels 1000W 720 Watts 625W 600W Bifacial Double Glass Solar Panel

Jinko Monocrystalline Solar Power Panels 1000W 720 Watts 625W 600W Bifacial Double Glass Solar Panel

Customization: Available
After-sales Service: 30 Years
Warranty: 30 Years
Send Inquiry

Product Description

Technical Specifications

Model NO.
Tiger Neo N-type 66HL5-B
Number of Cells
132 Cells
Application
Residential, Commercial, Industrial
Certification
ISO, CE, TUV
Material
Monocrystalline Silicon
Panel Efficiency
22%
Bifaciality
80±5 %
Max System Voltage
1500 VDC (IEC)
Cell Size
210mm x 210mm
Frame
Anodized Aluminium Alloy
Junction Box
IP68 Rated, 3 Diodes
Weight
37.5kg

Packaging & Delivery

Package Size
238.40cm * 130.30cm * 3.30cm
Gross Weight
37.800kg
Transport Package
Carton with Pallets
Capacity
1000 pieces / Day

Product Description

Solar Power Panel View 1
Solar Power Panel View 2

Electrical Data (STC)

Model Cell Types Watts Cells Size Package
Tiger Neo N-type 54HL4-B N type mono 182×182mm 395-415W 108 (6×18) 1722×1134×30mm 36pcs/pallet
Tiger Neo N-type 54HL4-B N type mono 182×182mm 410-430W 108 (6×18) 1722×1134×30mm 36pcs/pallet
Tiger Neo N-type 60HL4-B N type mono 182×182mm 460-480W 120 (6×20) 1903×1134×30mm 36pcs/pallet
Tiger Neo N-type 72HL4-B N type mono 182×182mm 555-575W 144 (6×24) 2278×1134×35mm 31pcs/pallet
Tiger Neo N-type 66HL5-B N type mono 210×210mm 710-735W 132(66x2) 2384x1303x33mm 33pcs/pallet

STC: Irradiance 1000W/m², Cell Temperature 25°C, Air Mass AM1.5. Measuring Tolerance: ±3%.

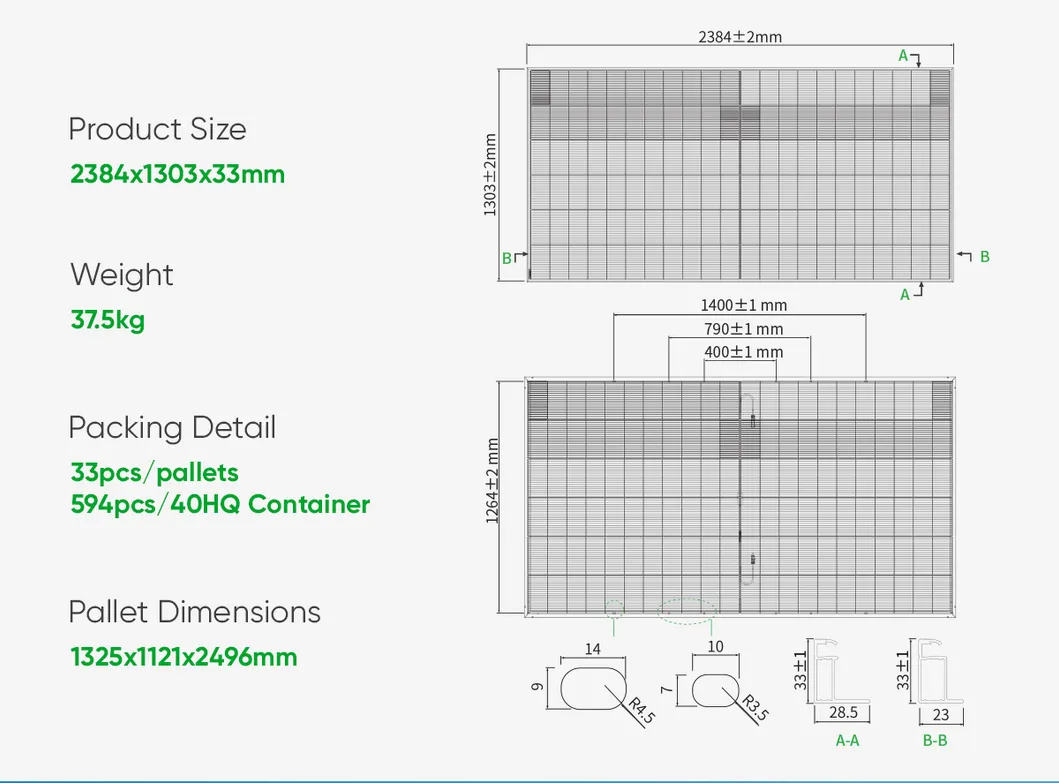

Technical Chart 1

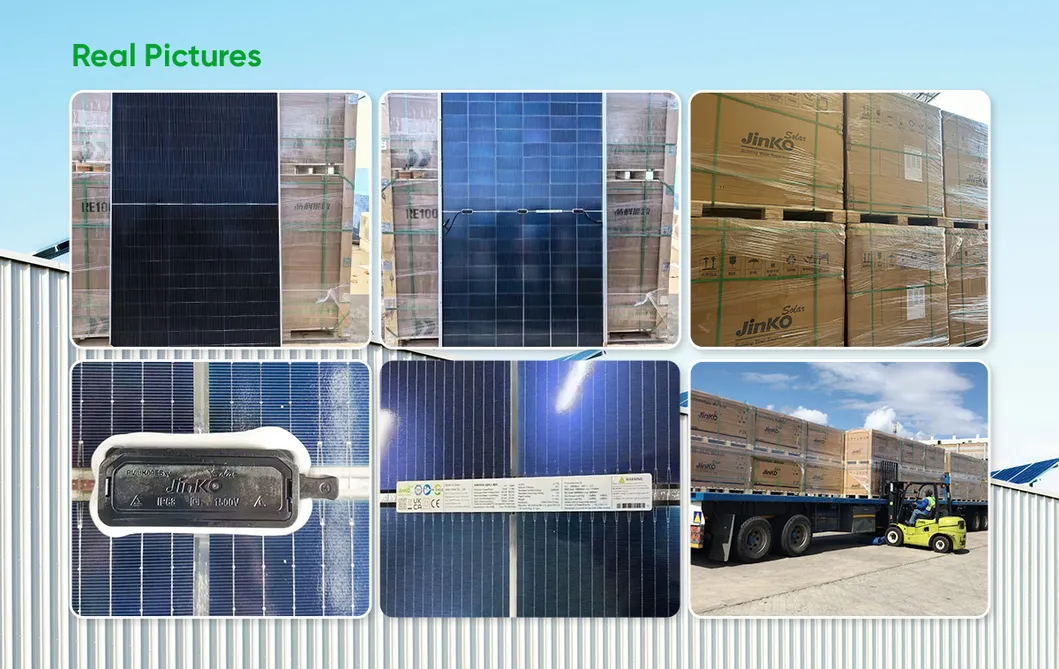

Technical Chart 2

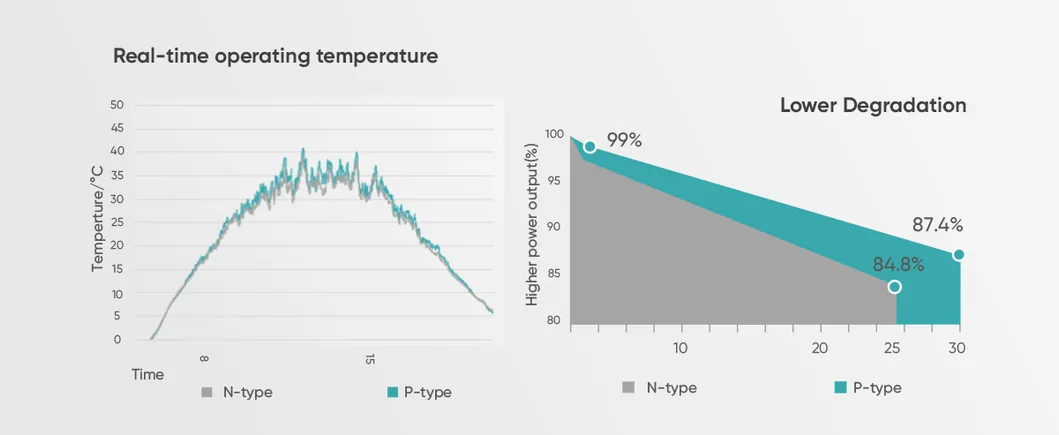

N-Type VS P-Type Technology

N-Type vs P-Type Comparison

The Advantage of N-Type

Optimized Temperature Coefficient: -0.29%/ºC. Compared to P-type at -0.35%/ºC, Tiger Neo can generate 2% more power under high-temperature conditions.

Limited Warranty

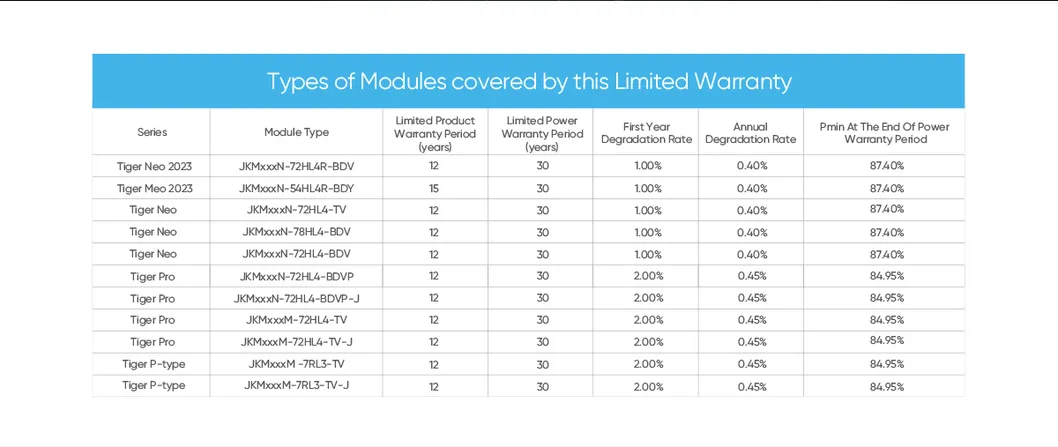

Warranty Coverage Chart

Warranties are provided to the original purchaser and permitted assigns for solar modules sold under agreements signed on or after 1st April, 2023.

Frequently Asked Questions

What is the maximum efficiency of these solar panels?

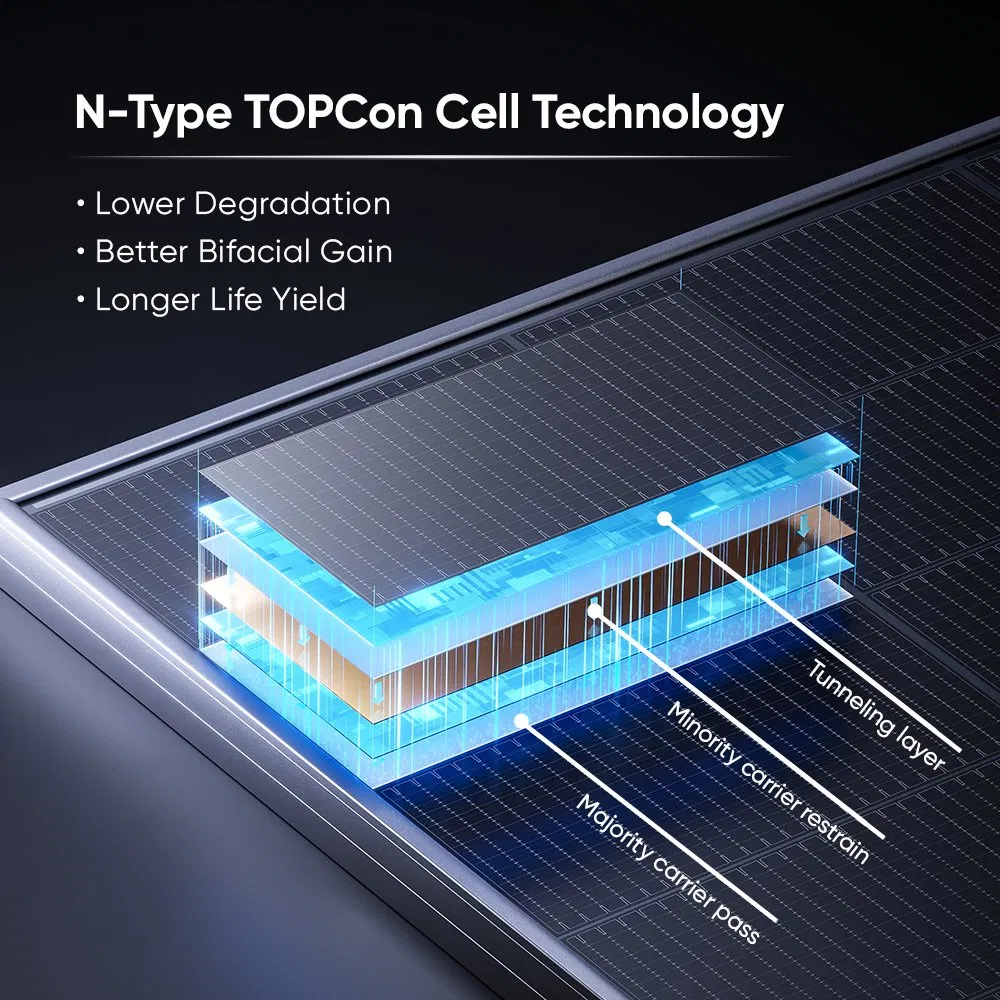

The Tiger Neo N-type series achieves a high panel efficiency of up to 22%, thanks to advanced N-type TOPCon technology.
What are the benefits of Bifacial Double Glass modules?
Bifacial modules can capture sunlight from both the front and back sides, increasing total energy yield. The double-glass structure provides enhanced durability and resistance to PID.
How does the N-type technology perform in hot climates?
N-type panels have a superior temperature coefficient of -0.29%/ºC, allowing them to maintain higher power output in high-temperature environments compared to traditional P-type panels.
What certifications do these panels hold?
The modules are fully certified with international standards including ISO, CE, CB, and TUV, ensuring safety, quality, and reliability.
What is the mechanical load capacity?
These panels are designed to withstand extreme weather conditions, with a certified wind load of 2400Pa and a snow load of up to 5400Pa.
What applications are these panels suitable for?
They are highly versatile and suitable for a wide range of projects, including residential rooftops, commercial buildings, and large-scale industrial solar farms.
