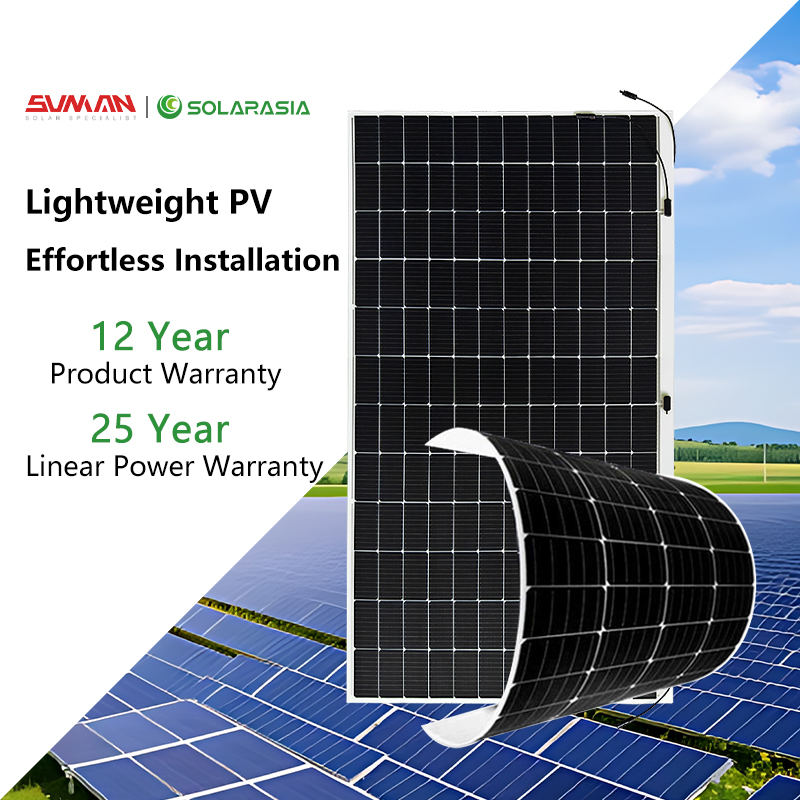

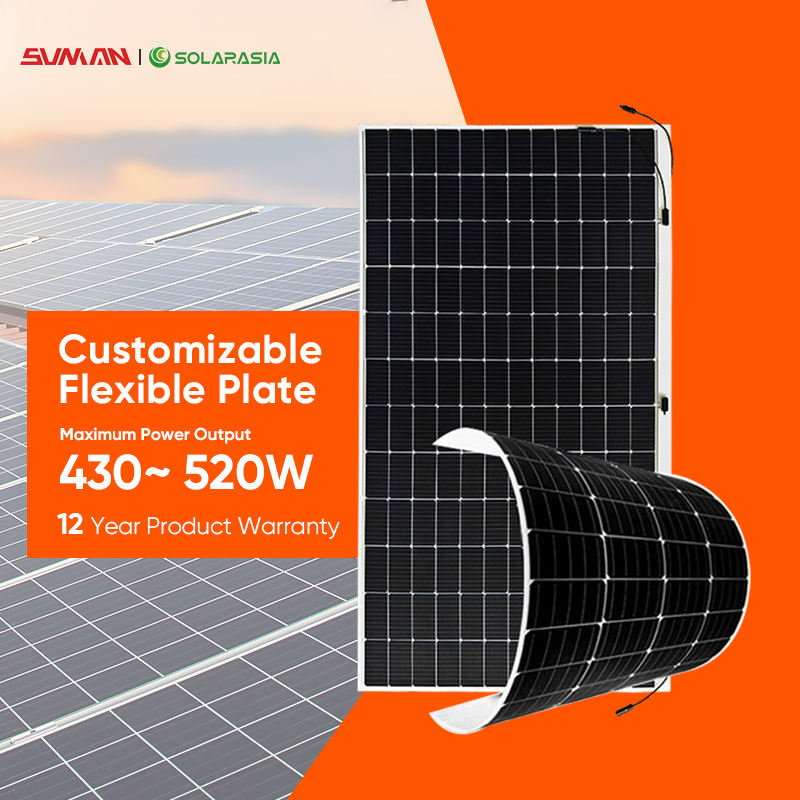

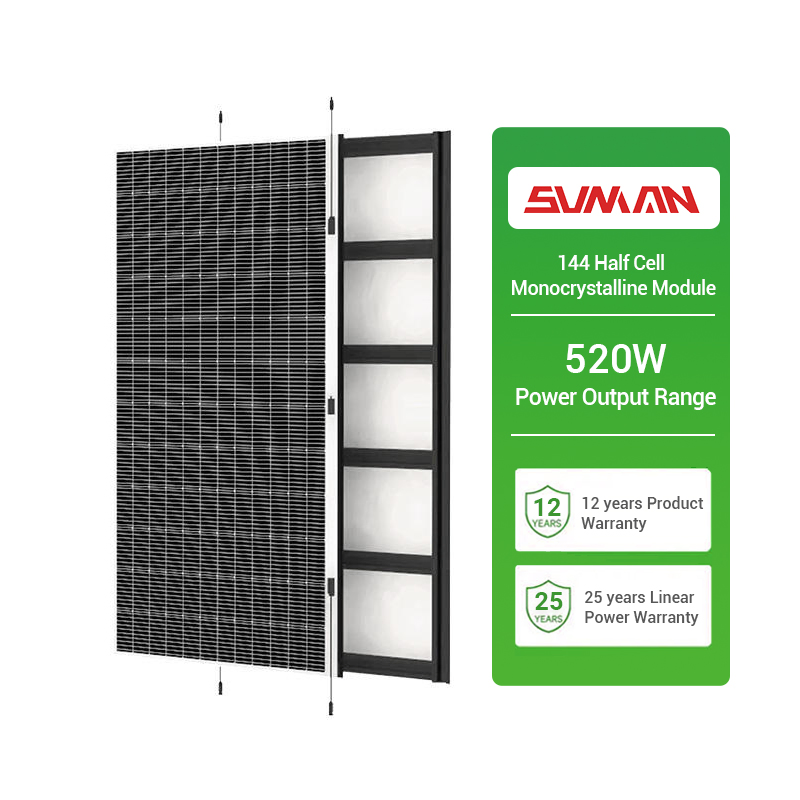

Flexible Solar Panel Solar Power 520W Flexible Solar Panel Monocrystalline Module Price for Home Solar Energy System Lightweight PV Module
Flexible Solar Panel Solar Power 520W Flexible Solar Panel Monocrystalline Module Price for Home Solar Energy System Lightweight PV Module
Flexible Solar Panel Solar Power 520W Flexible Solar Panel Monocrystalline Module Price for Home Solar Energy System Lightweight PV Module
Flexible Solar Panel Solar Power 520W Flexible Solar Panel Monocrystalline Module Price for Home Solar Energy System Lightweight PV Module
Flexible Solar Panel Solar Power 520W Flexible Solar Panel Monocrystalline Module Price for Home Solar Energy System Lightweight PV Module
1 / 5
Flexible Solar Panel Solar Power 520W Flexible Solar Panel Monocrystalline Module Price for Home Solar Energy System Lightweight PV Module
Flexible Solar Panel Solar Power 520W Flexible Solar Panel Monocrystalline Module Price for Home Solar Energy System Lightweight PV Module
Flexible Solar Panel Solar Power 520W Flexible Solar Panel Monocrystalline Module Price for Home Solar Energy System Lightweight PV Module
Flexible Solar Panel Solar Power 520W Flexible Solar Panel Monocrystalline Module Price for Home Solar Energy System Lightweight PV Module
Flexible Solar Panel Solar Power 520W Flexible Solar Panel Monocrystalline Module Price for Home Solar Energy System Lightweight PV Module

Flexible Solar Panel Solar Power 520W Flexible Solar Panel Monocrystalline Module Price for Home Solar Energy System Lightweight PV Module

Customization: Available
After-sales Service: Yes
Warranty: 25 Years
Send Inquiry

Product Description

Basic Information

Model NO.SMF520J-12X12UW
Number of Cells144cells
ApplicationIndustrial
MaterialMonocrystalline Silicon
Cell TypeMono-Crystalline
Junction BoxIP68 Rated
Weight5.7kg
Specification1840*1040*2.5mm

Packaging & Delivery

Package Size215.00cm * 110.00cm * 20.00cm
Package Gross Weight80.000kg

Product Description

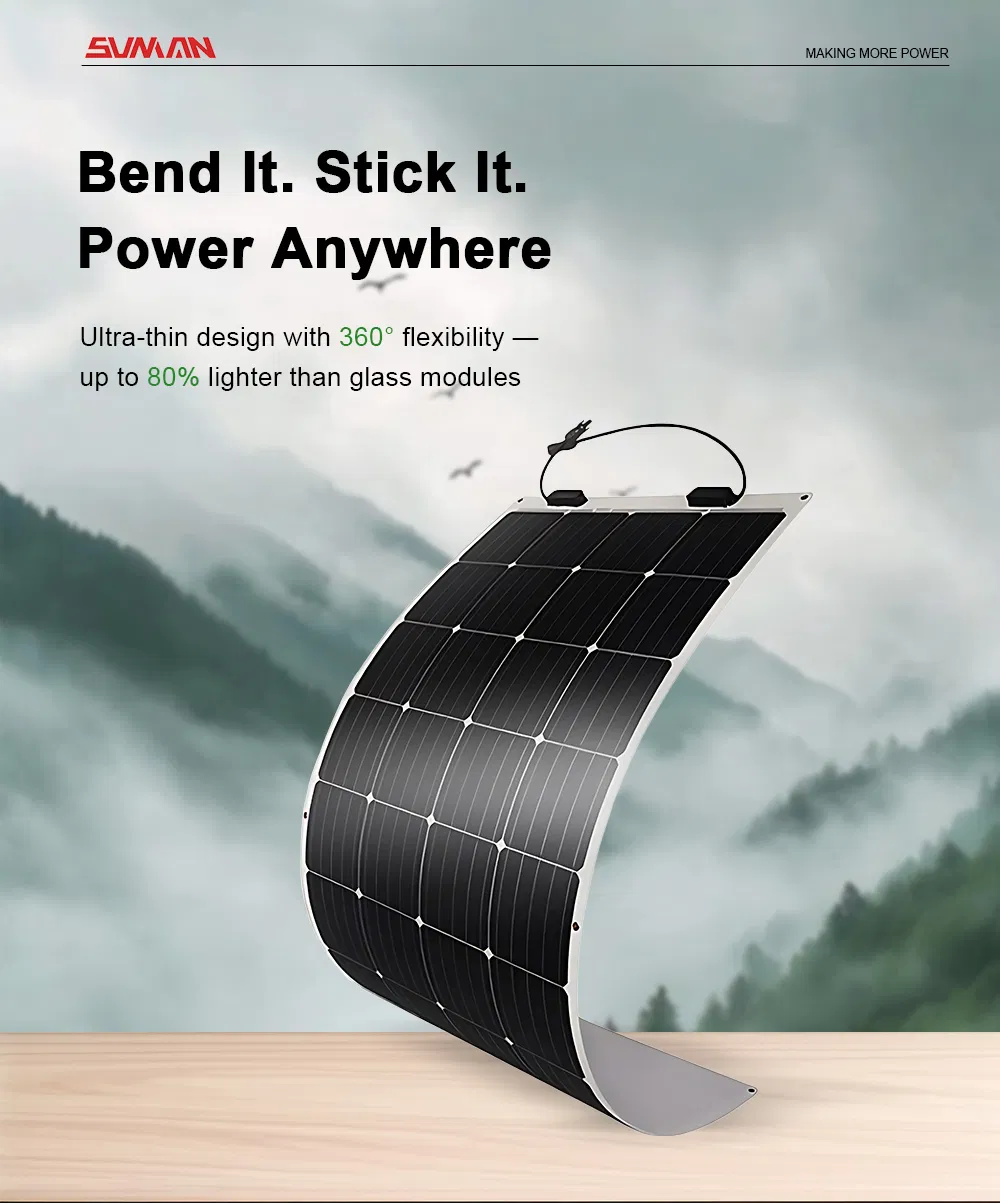

Flexible Solar Panel 1

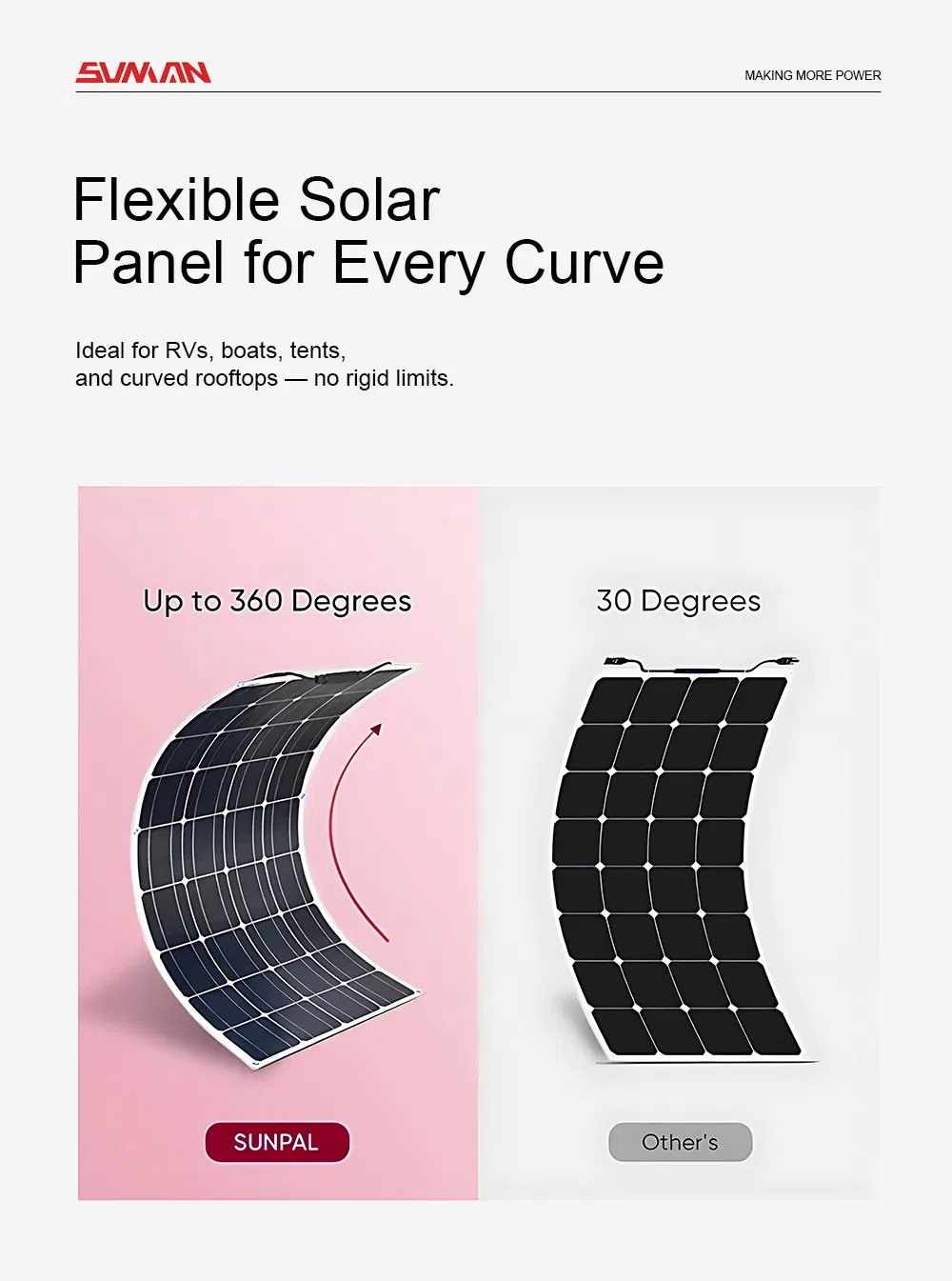

Flexible Solar Panel 2
💡High-Efficiency 520W Power

The SUNMAN SMF520J-12X12UW is a high-efficiency 520W flexible solar panel designed for lightweight, bendable, and space-efficient solar installations. Built with advanced flexible photovoltaic technology, this panel delivers reliable power generation on curved surfaces and unconventional mounting structures where traditional rigid modules are impractical.

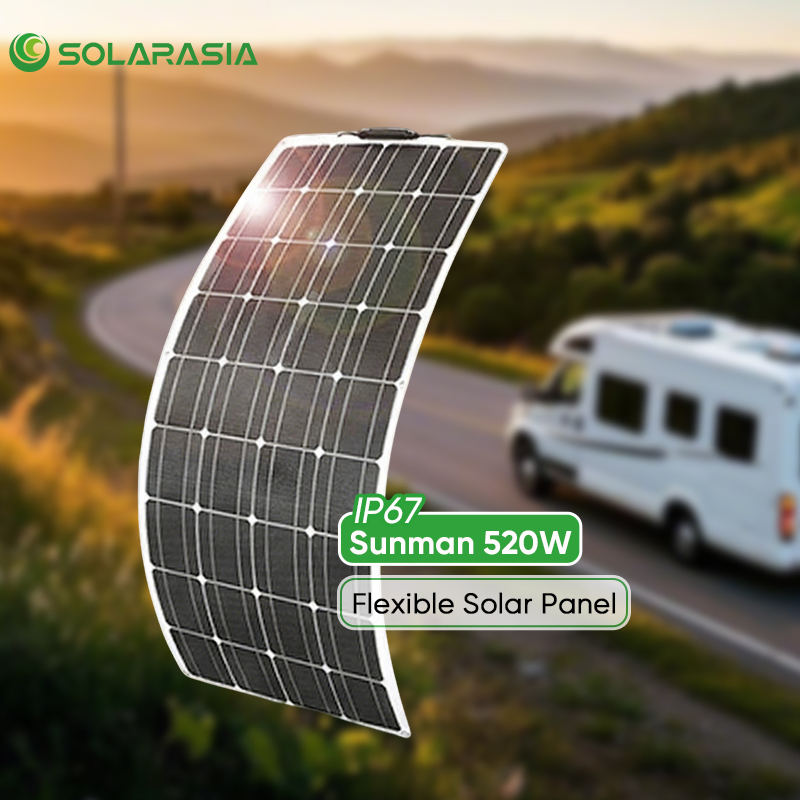

This flexible panel is ideal for mobile applications, marine, RV, camping, tiny homes, rooftops with curvature, and light-weight structures.

Flexible Solar Panel 3

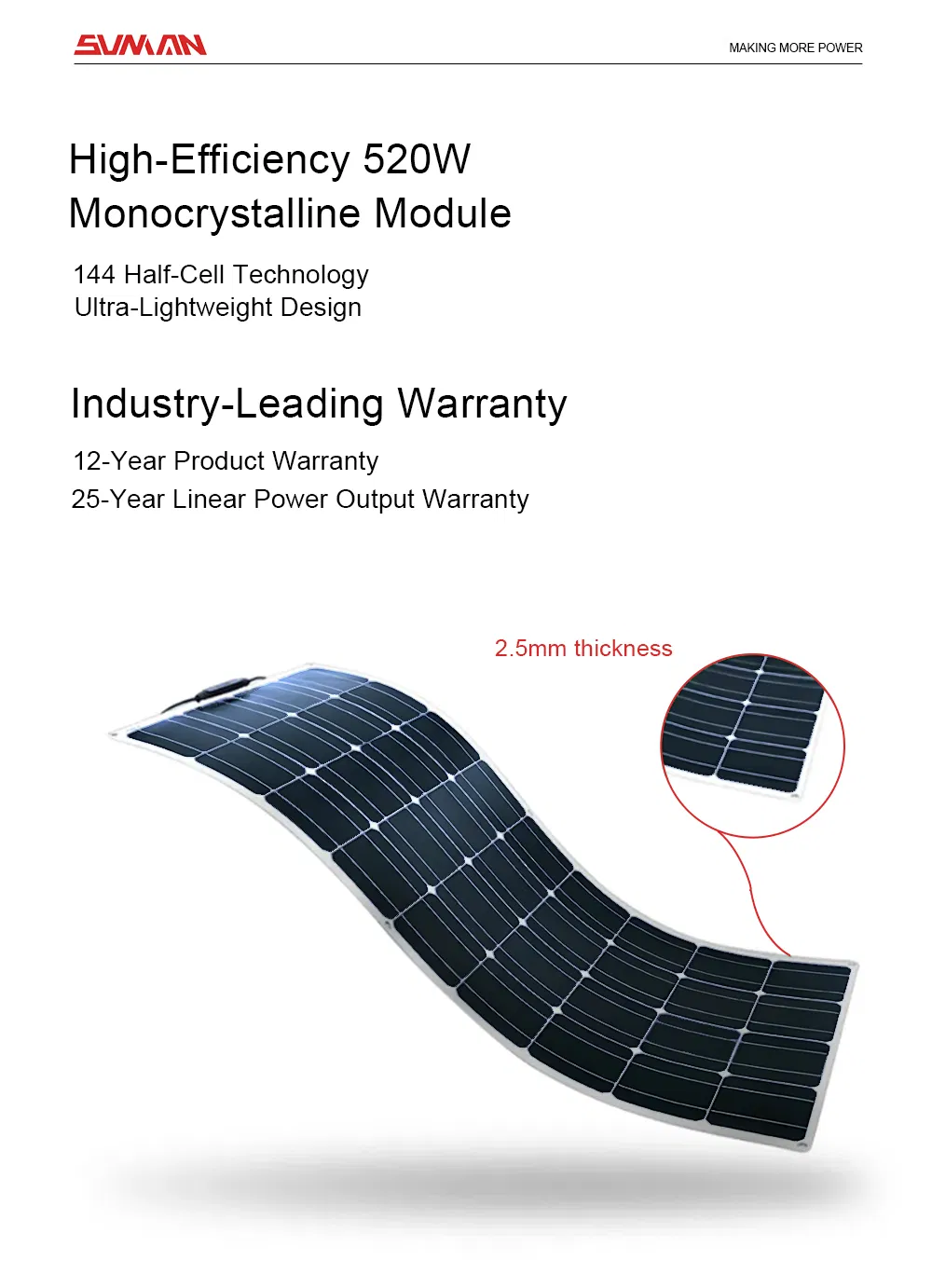

Flexible Solar Panel 4

Product Parameters

Specification Item SMF520J-12X12UW
Maximum Power (Pmax)520W
Maximum Power Voltage (Vmp)42.3V
Maximum Power Current (Imp)12.31A
Open-circuit Voltage (Voc)49.5V
Short-circuit Current (Isc)13.56A
Module Efficiency (%)19.3%
Operating Temperature-40ºC to 85ºC
Maximum System Voltage1500V DC(IEC)
Weight8.6KG
Size2246*1197*2mm

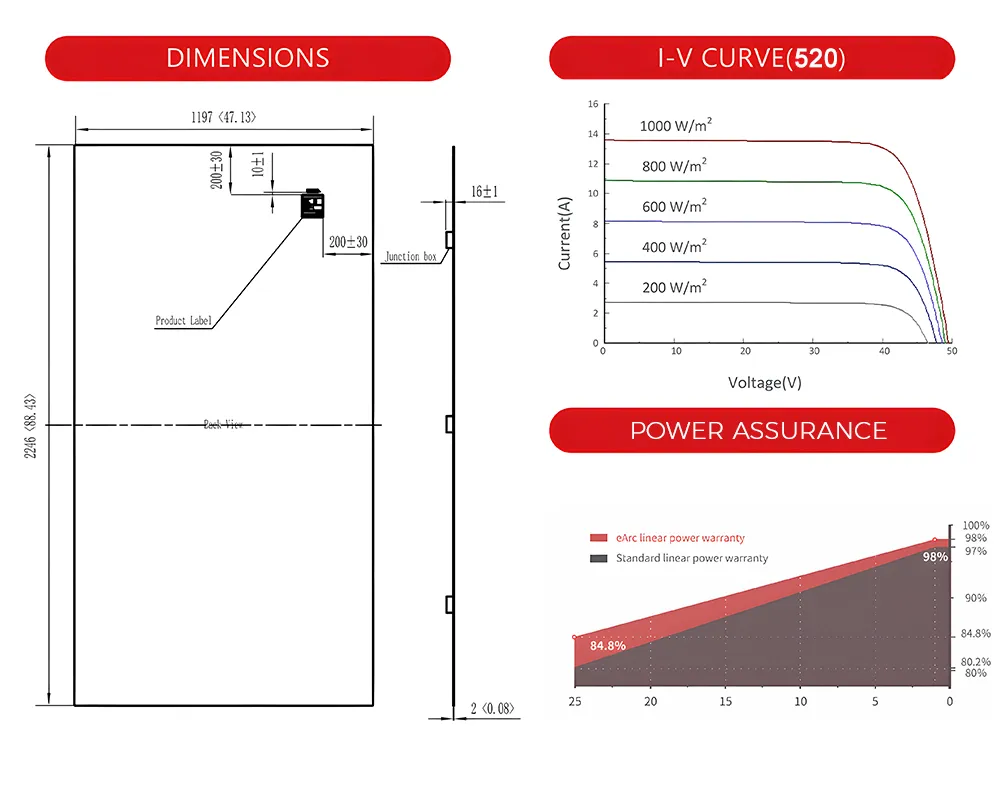

Product Detail

Project Case

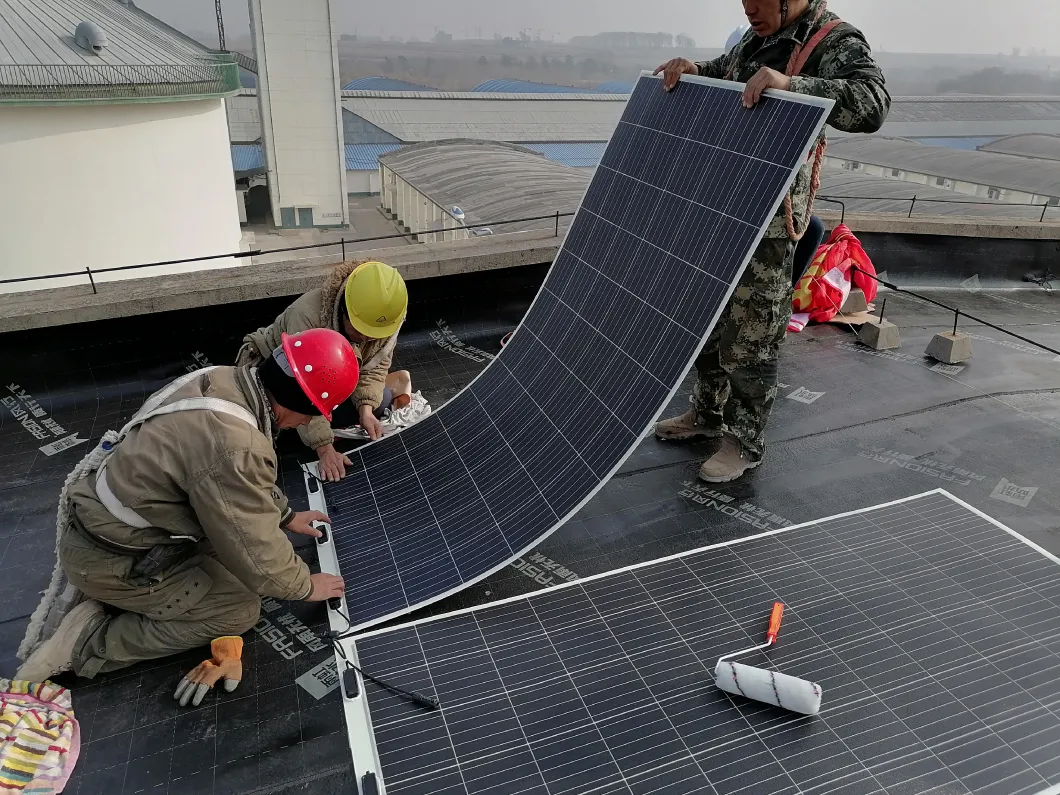

Case 1

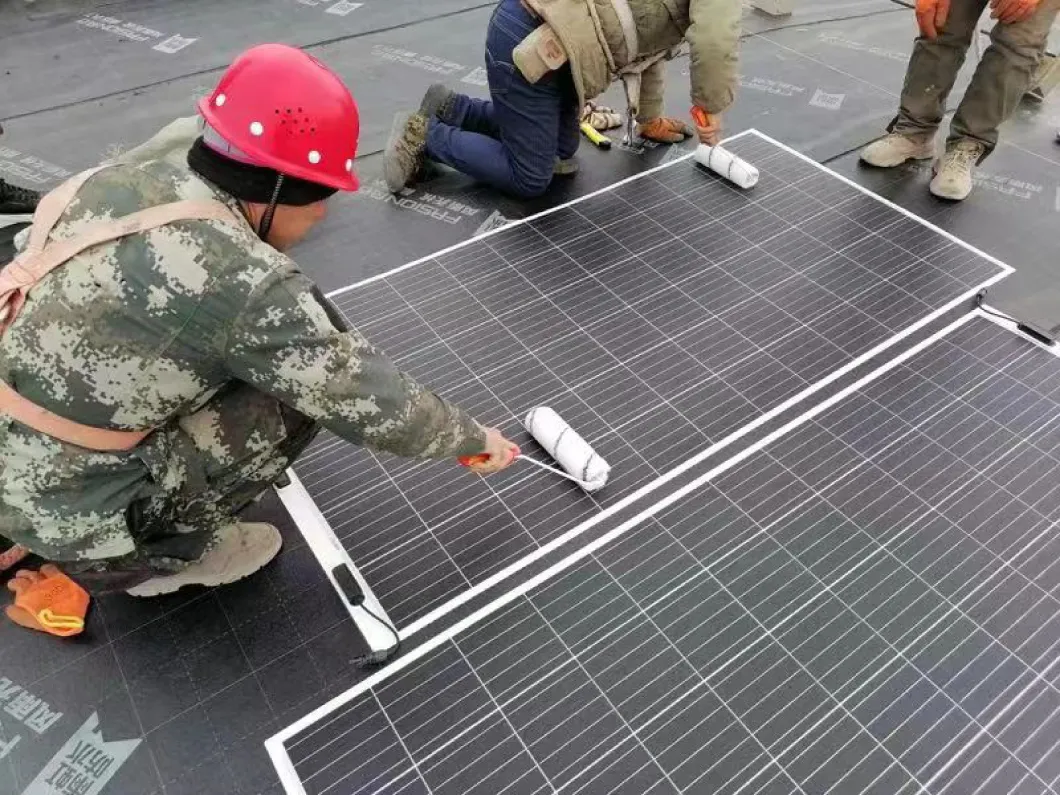

Case 2

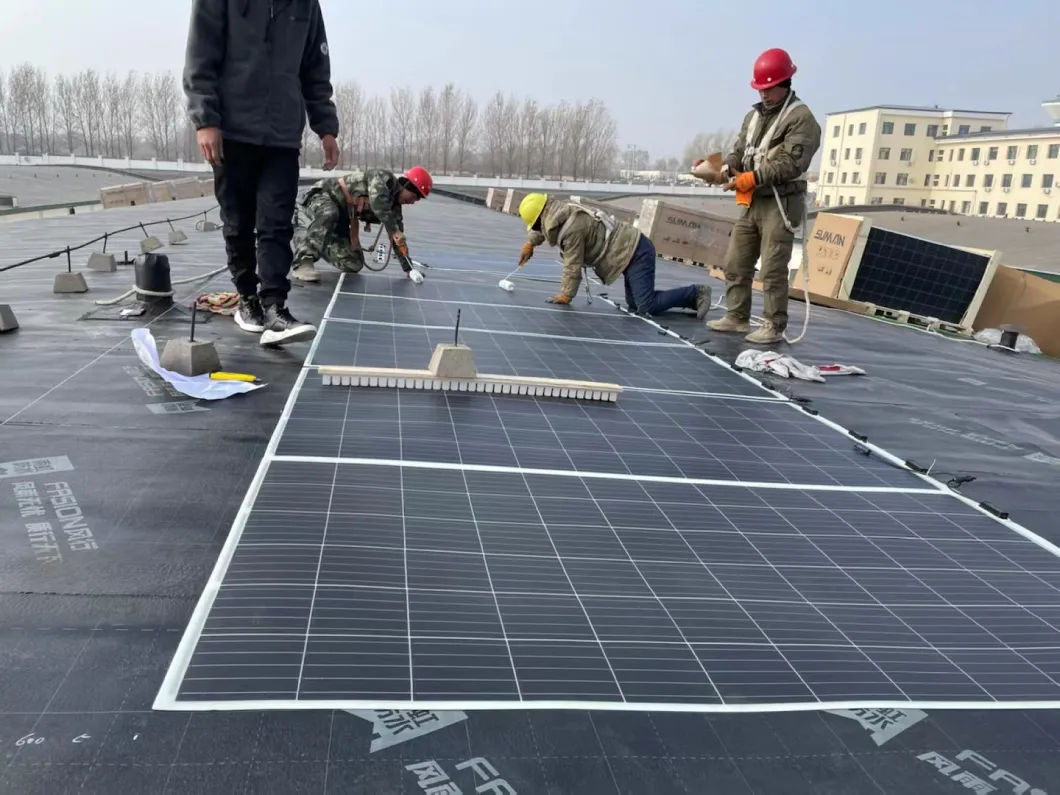

Case 3
Case 4
Case 5

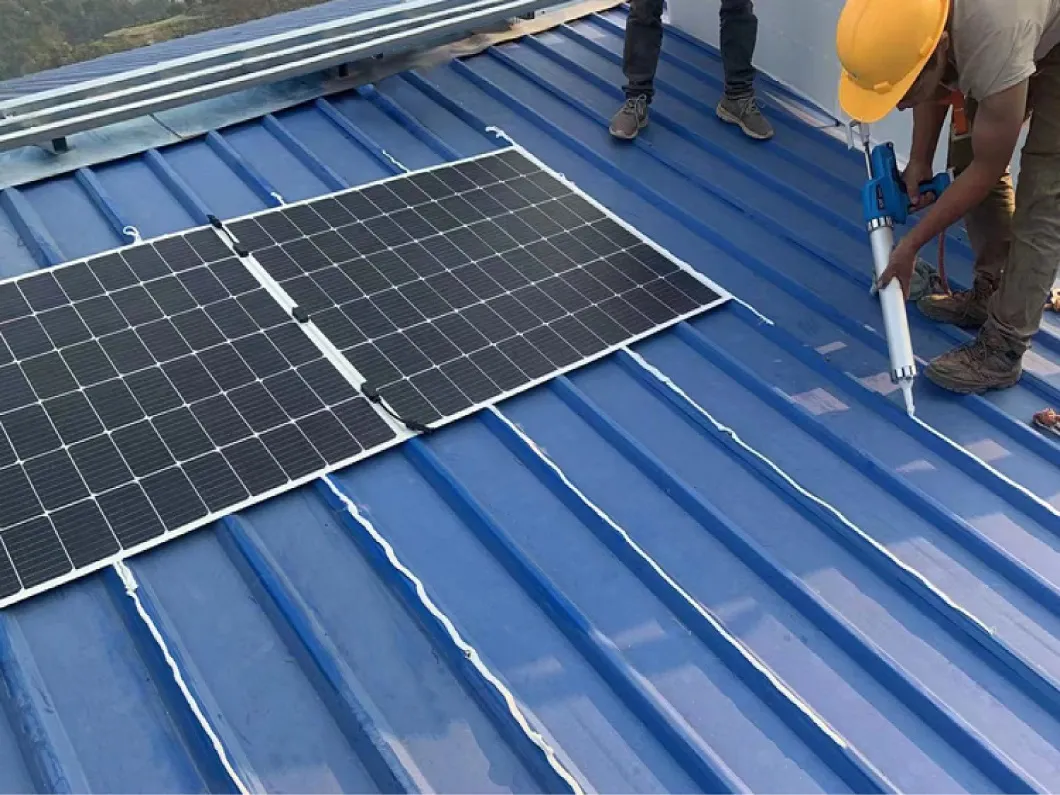

Case 6

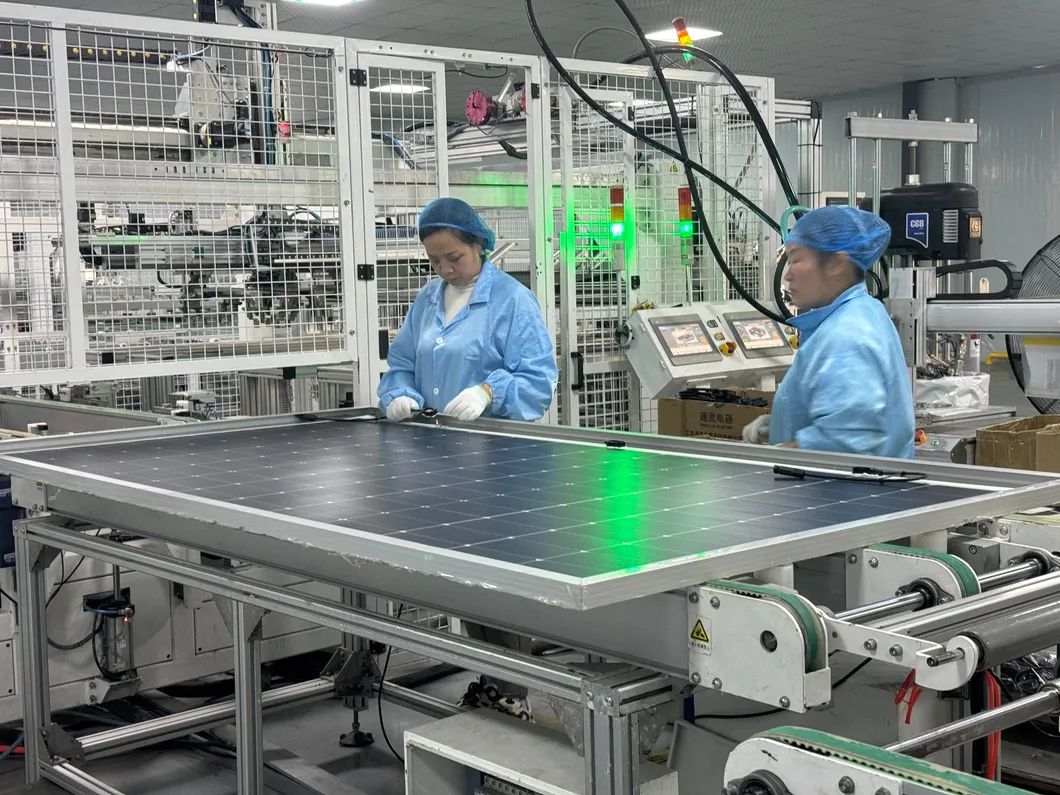

Production Process

Production Process

Exhibition & Global Cooperation

Exhibition
Global Cooperation

Frequently Asked Questions

Q1: What type of solar panel is the SUNMAN SMF520J-12X12UW?
A: The SMF520J-12X12UW is a 520W flexible solar panel designed for lightweight and curved surface installations. It is ideal for applications where traditional rigid solar panels cannot be installed.
Q2: What are the main advantages of a flexible solar panel compared to rigid panels?
A: Flexible solar panels are lighter, bendable, and easier to install. They place less load on the mounting surface and can be installed on curved roofs, mobile structures, RVs, boats, and lightweight buildings.
Q3: How flexible is this solar panel? Can it be installed on curved surfaces?
A: Yes. The SUNMAN SMF520J-12X12UW can be installed on gently curved surfaces, allowing it to adapt to non-flat roofs and structures without damaging the solar cells.
Q4: Is the 520W output reliable for flexible solar panels?
A: Yes. This model delivers a high power output of 520W, which is significantly higher than many standard flexible solar panels. It uses high-efficiency solar cells to ensure stable and reliable energy generation.
Q5: What installation methods are supported?
A: The panel supports adhesive mounting, mechanical fastening, or customized mounting solutions, depending on the installation surface and project requirements.
Q6: Is this flexible panel suitable for outdoor and marine environments?
A: Yes. The panel is designed for outdoor use and performs well in environments such as marine, RV, camping, and mobile solar applications, where durability and weather resistance are required.
