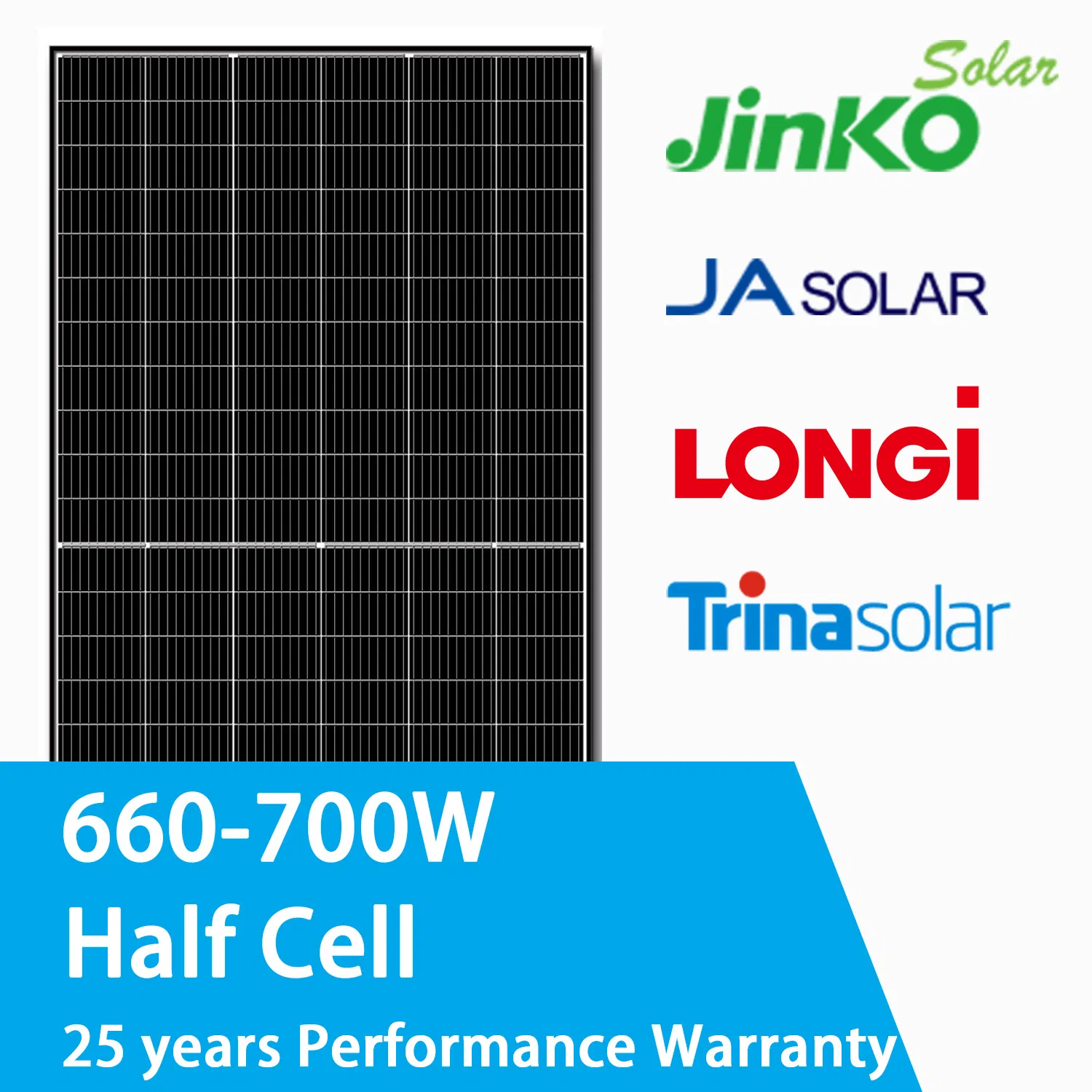

Aioties New Half Cell Dual Glass Solar Module 680W 685W 690W 695W 700W Bifacial Monocrystalline Solar Panel for Home Power System
Aioties New Half Cell Dual Glass Solar Module 680W 685W 690W 695W 700W Bifacial Monocrystalline Solar Panel for Home Power System
Aioties New Half Cell Dual Glass Solar Module 680W 685W 690W 695W 700W Bifacial Monocrystalline Solar Panel for Home Power System
Aioties New Half Cell Dual Glass Solar Module 680W 685W 690W 695W 700W Bifacial Monocrystalline Solar Panel for Home Power System
Aioties New Half Cell Dual Glass Solar Module 680W 685W 690W 695W 700W Bifacial Monocrystalline Solar Panel for Home Power System
1 / 5
Aioties New Half Cell Dual Glass Solar Module 680W 685W 690W 695W 700W Bifacial Monocrystalline Solar Panel for Home Power System
Aioties New Half Cell Dual Glass Solar Module 680W 685W 690W 695W 700W Bifacial Monocrystalline Solar Panel for Home Power System
Aioties New Half Cell Dual Glass Solar Module 680W 685W 690W 695W 700W Bifacial Monocrystalline Solar Panel for Home Power System
Aioties New Half Cell Dual Glass Solar Module 680W 685W 690W 695W 700W Bifacial Monocrystalline Solar Panel for Home Power System
Aioties New Half Cell Dual Glass Solar Module 680W 685W 690W 695W 700W Bifacial Monocrystalline Solar Panel for Home Power System

Aioties New Half Cell Dual Glass Solar Module 680W 685W 690W 695W 700W Bifacial Monocrystalline Solar Panel for Home Power System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊

Basic Specifications

Model NO.
MY-M12/132-680~700
Number of Cells
132 / 144
Material
Monocrystalline Silicon
Efficiency
21.89%-22.54%
Weight
38.3 Kg
Dimensions
2384*1303*33mm
Certification
ISO, CE, TUV
Glass
3.2mm, Anti-Reflection Coating
Junction Box
IP68, Three Diodes
Connector
MC4 Compatible
☀️ High Efficiency

Up to 22.54% module conversion efficiency

🛡️ IP68 Protection

Highest waterproof level for junction box

💎 Bifacial Power

Dual glass design for home and utility systems

🔍

Product Overview

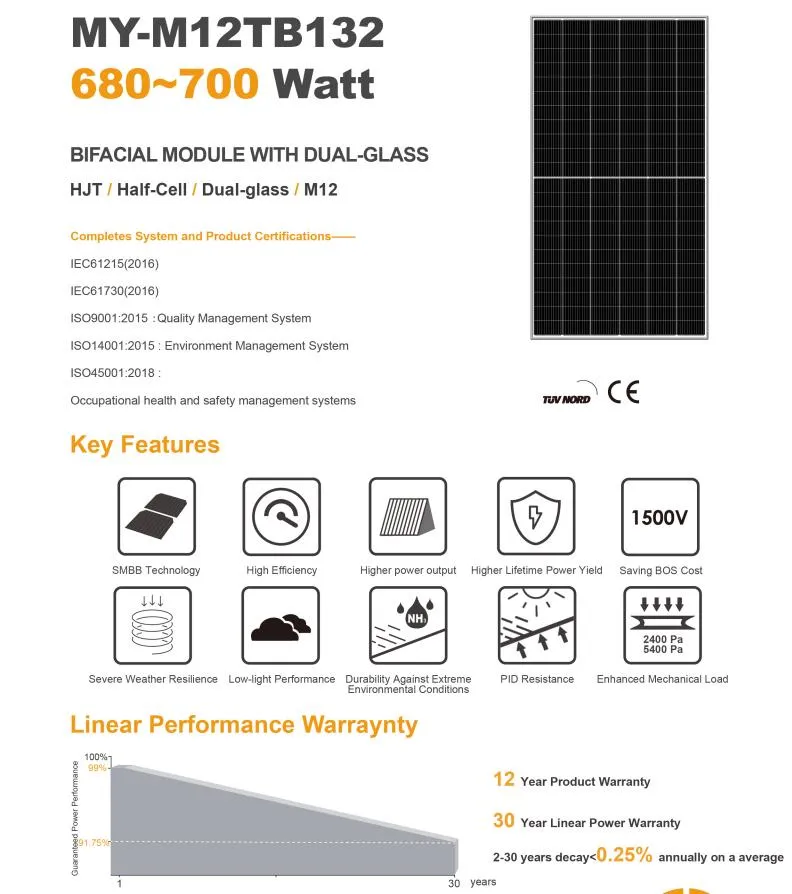

Solar Module Diagram
Model Types Bar
Model Type MY-M12TB/132-680 MY-M12TB/132-685 MY-M12TB/132-690 MY-M12TB/132-695 MY-M12TB/132-700
Rated Power (STC) 680W 685W 690W 695W 700W
Max Power Voltage (Vmp) 42.08V 42.32V 42.55V 42.77V 43.00V
Max Power Current (Imp) 16.16A 16.19A 16.22A 16.25A 16.28A
Open Circuit Voltage (Voc) 49.51V 49.71V 49.91V 50.11V 50.31V
Short Circuit Current (Isc) 17.13A 17.15A 17.17A 17.19A 17.21A
Module Efficiency 21.89% 22.06% 22.22% 22.37% 22.54%
🖼️

Product Gallery

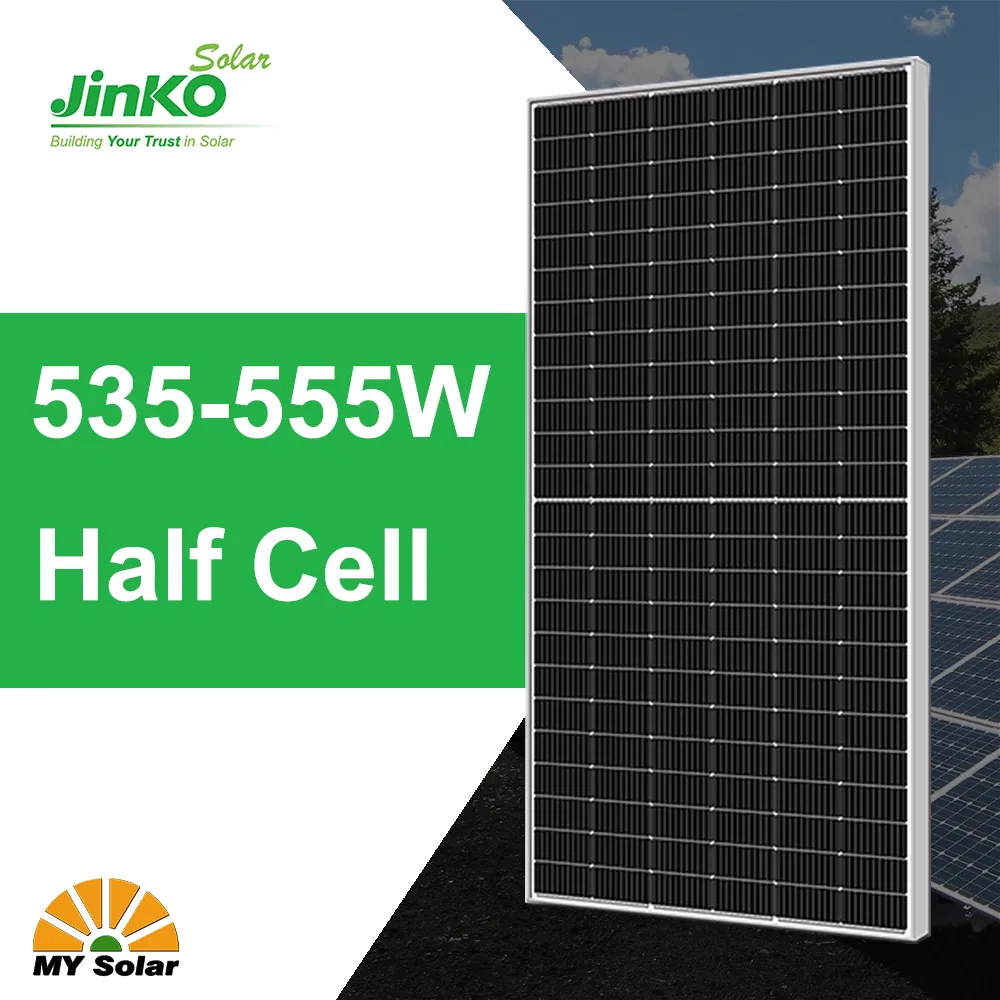

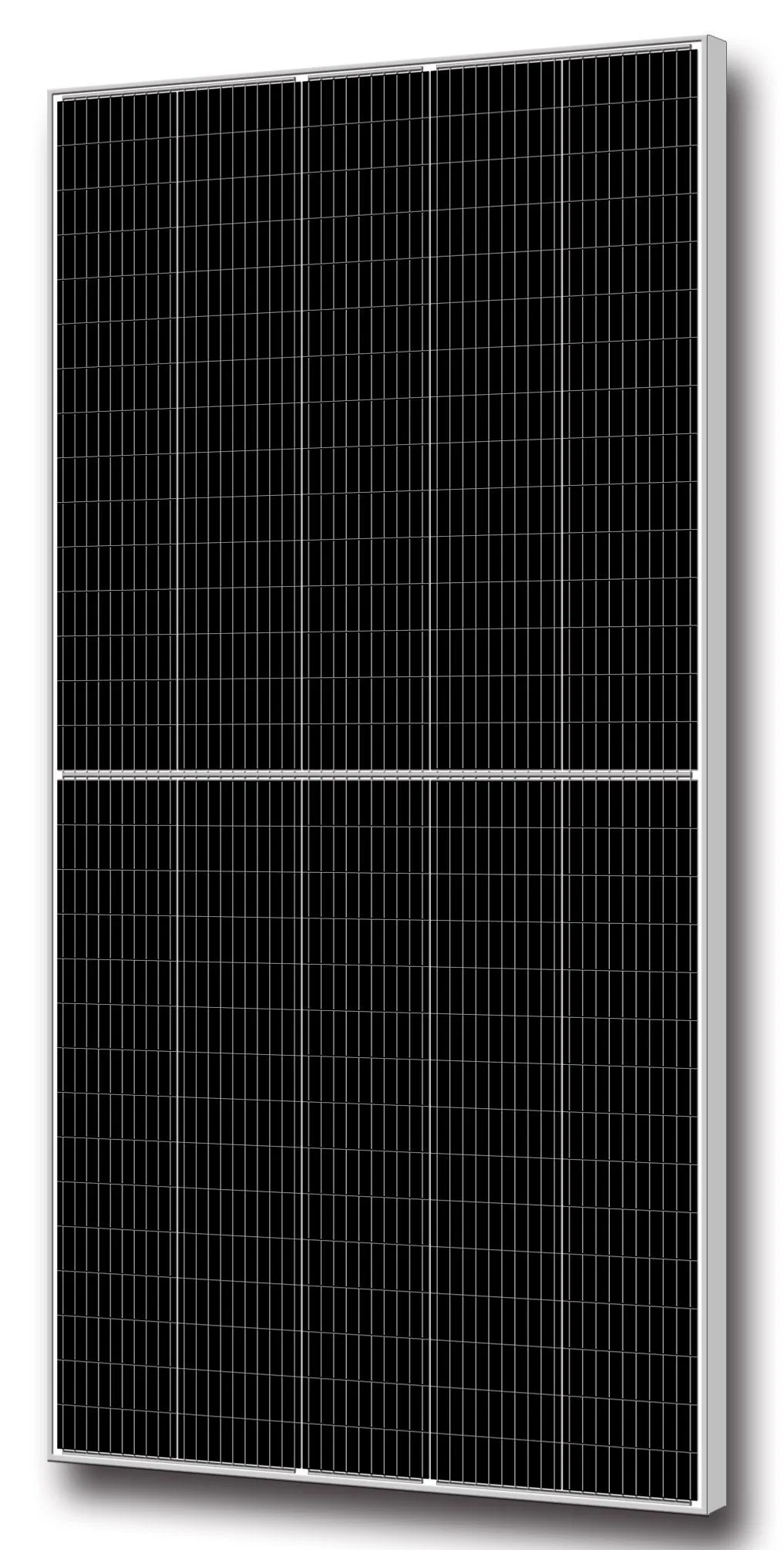

Solar Panel Front

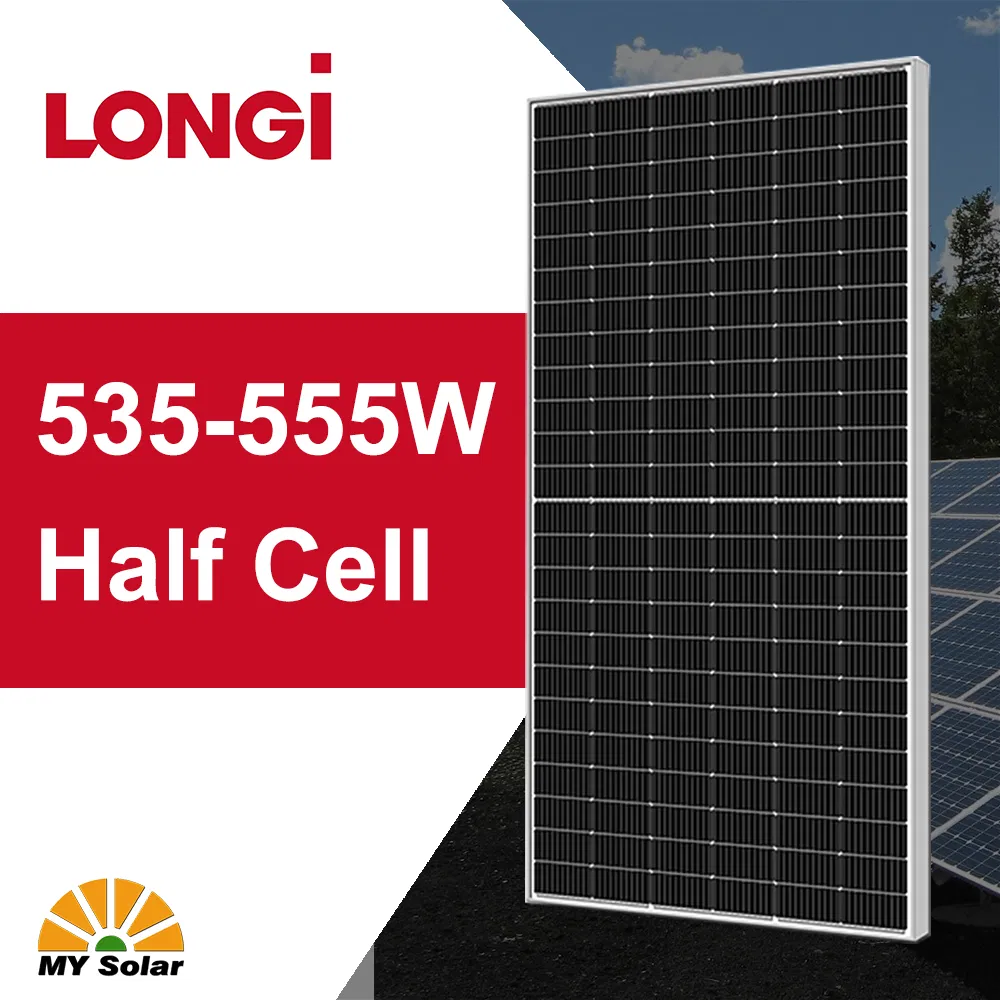

Solar Panel Detail

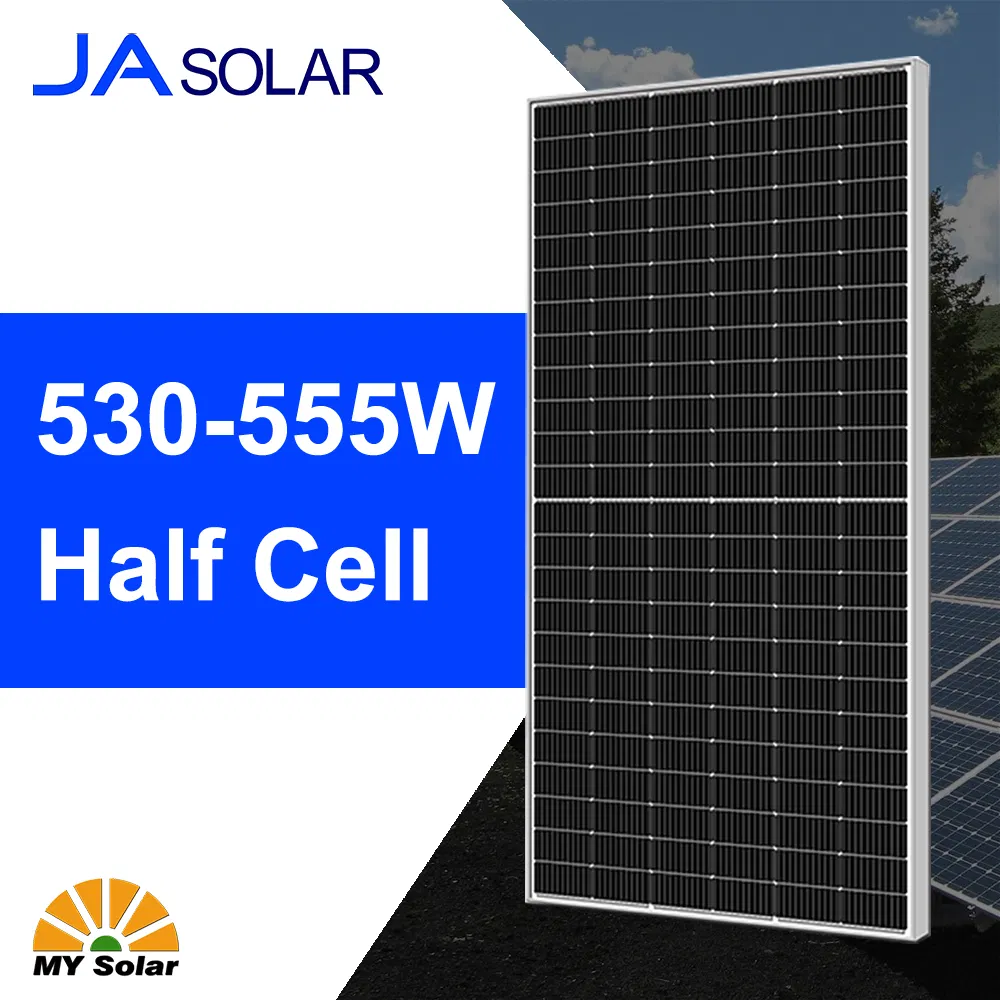

Solar Panel Back

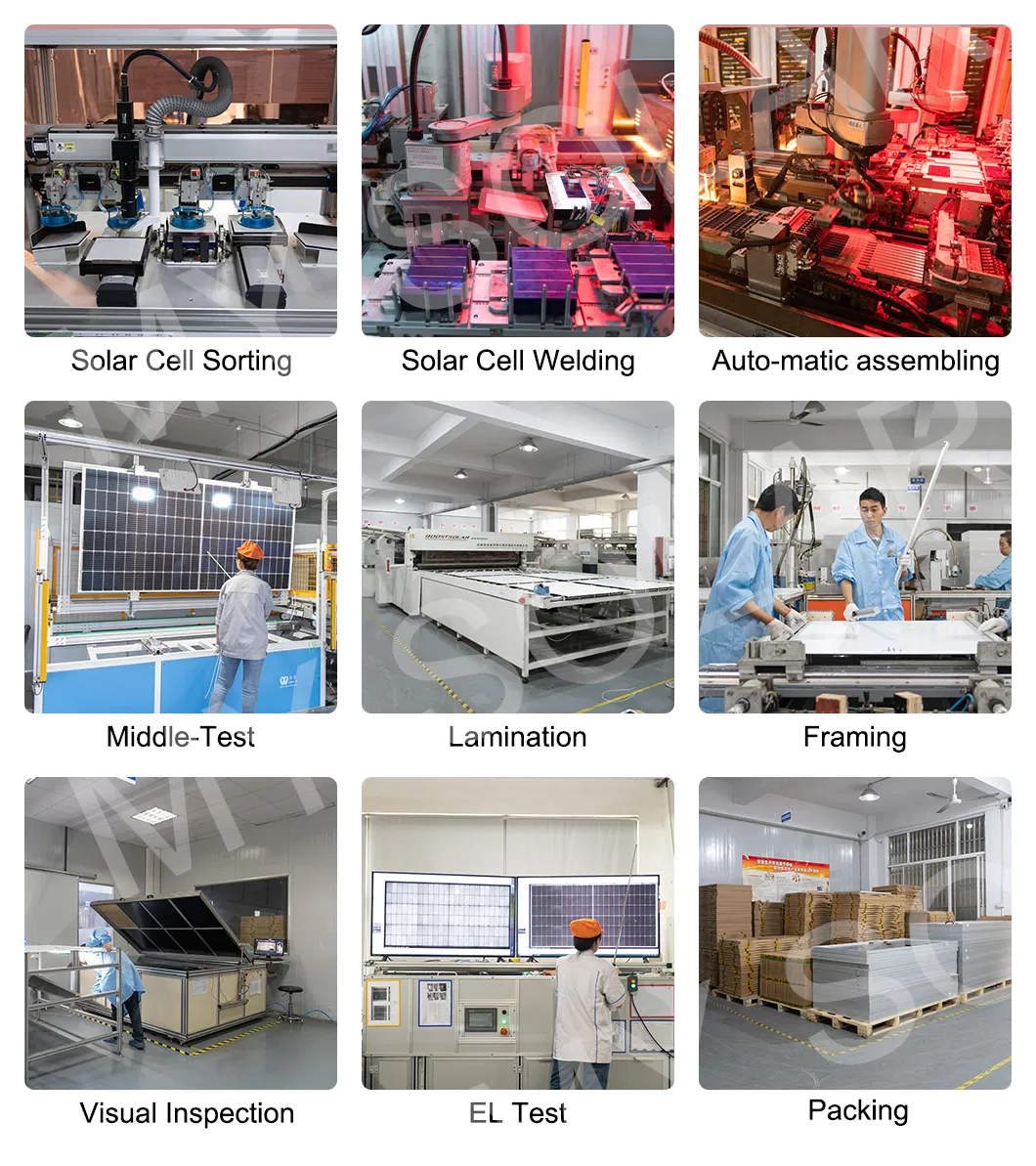

Technical Specs
Installation Diagram
📦

Packaging & Logistics

Package Size
227.00cm * 113.00cm * 30.00cm
Gross Weight
30.000kg
Transport Package
Carton with Pallet
Production Capacity
3000 PCS/Week

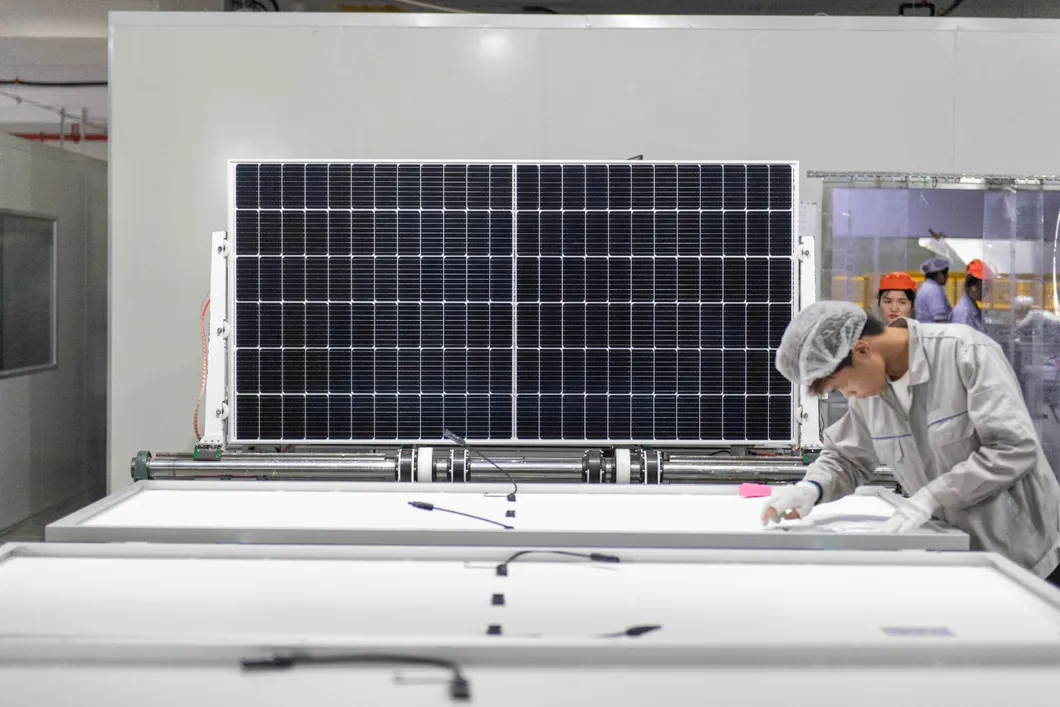

Warehouse

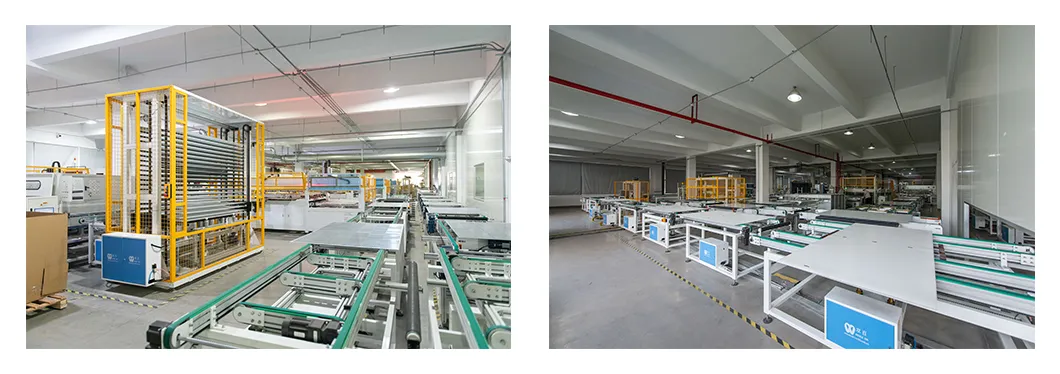

Loading Details
❓

Frequently Asked Questions

What are your payment terms?
We accept T/T, L/C, PayPal, Western Union, and other standard payment methods.
What are the advantages of choosing your products?
We provide high-quality manufacturing and also cooperate with top-tier brands like Longi, JA Solar, Jinko, and Trina to offer competitive pricing and diverse choices.
Can I request a sample to check the quality?
Yes, we welcome sample orders for testing and quality verification purposes.
What is the estimated delivery time?
Usually 15-20 days after receiving payment. The exact time depends on the specific items and order quantity.
Which ports do you use for loading?
Our primary loading ports are Shanghai and Ningbo.
Do you provide OEM services?
Yes, we provide full OEM services to meet customized requirements.
