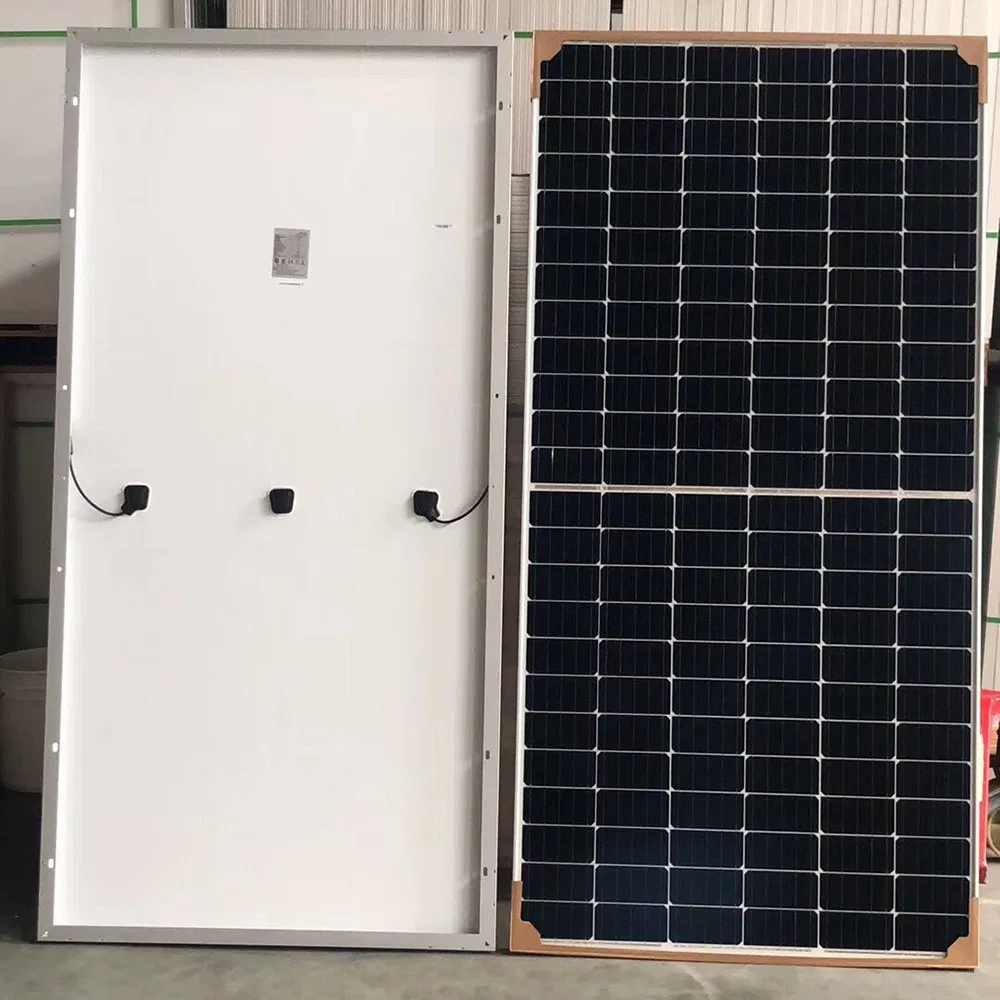

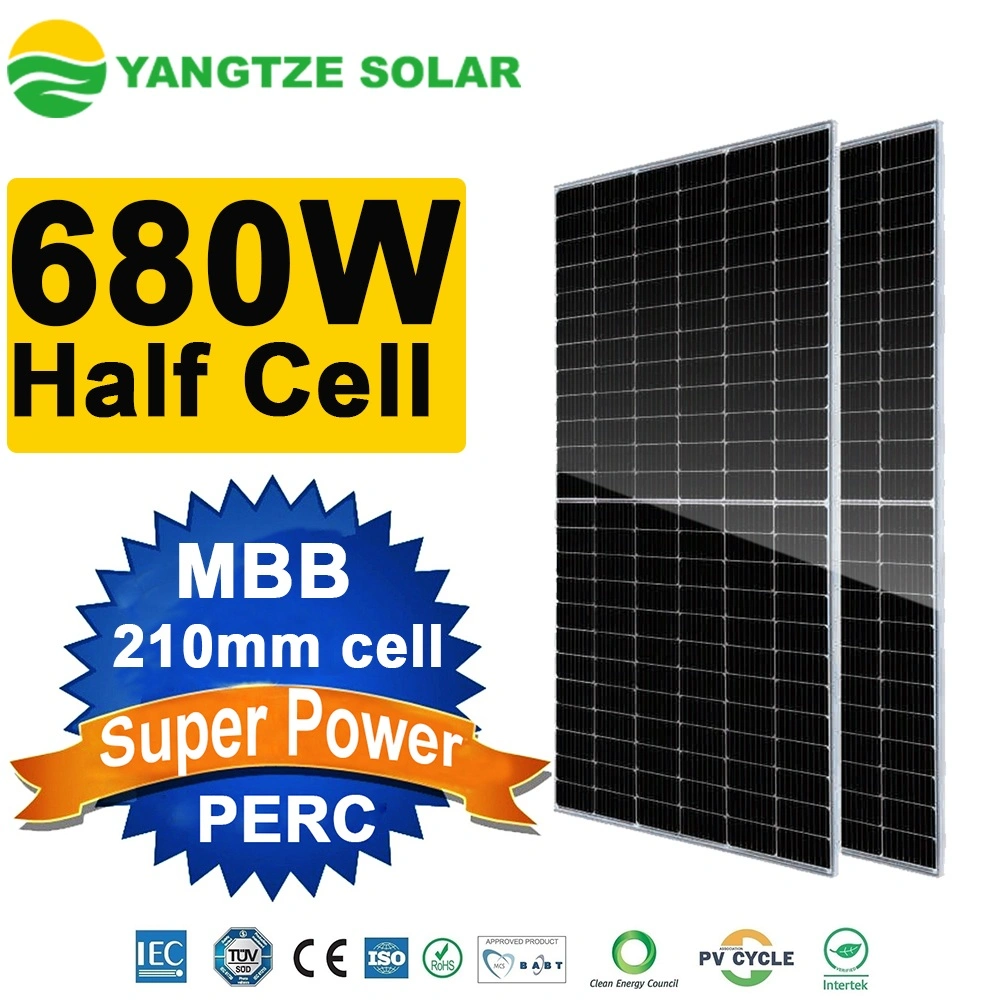

700W Biggest Power 25 Years Warranty Half Cell PV Solar Power System Monocrystalline Solar Panel Together with Solar Battery Bank TUV CE ISO IEC

1 / 5

700W Biggest Power 25 Years Warranty Half Cell PV Solar Power System Monocrystalline Solar Panel Together with Solar Battery Bank TUV CE ISO IEC

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

🔹 Basic Specifications

Model NO.

YS700M-66

Number of Cells

132 PCS

Application

Industrial

Condition

New

Certification

ISO, CE, TUV, Cec, IEC61215, IEC61730

Material

Monocrystalline Silicon

Frame

Anodized Aluminium Alloy

Junction Box

IP68 Waterproof

Solar Cell

Mono 210*105mm Half Cell

Front Cover

3.2mm High Transmission Low Iron Tempered Glass

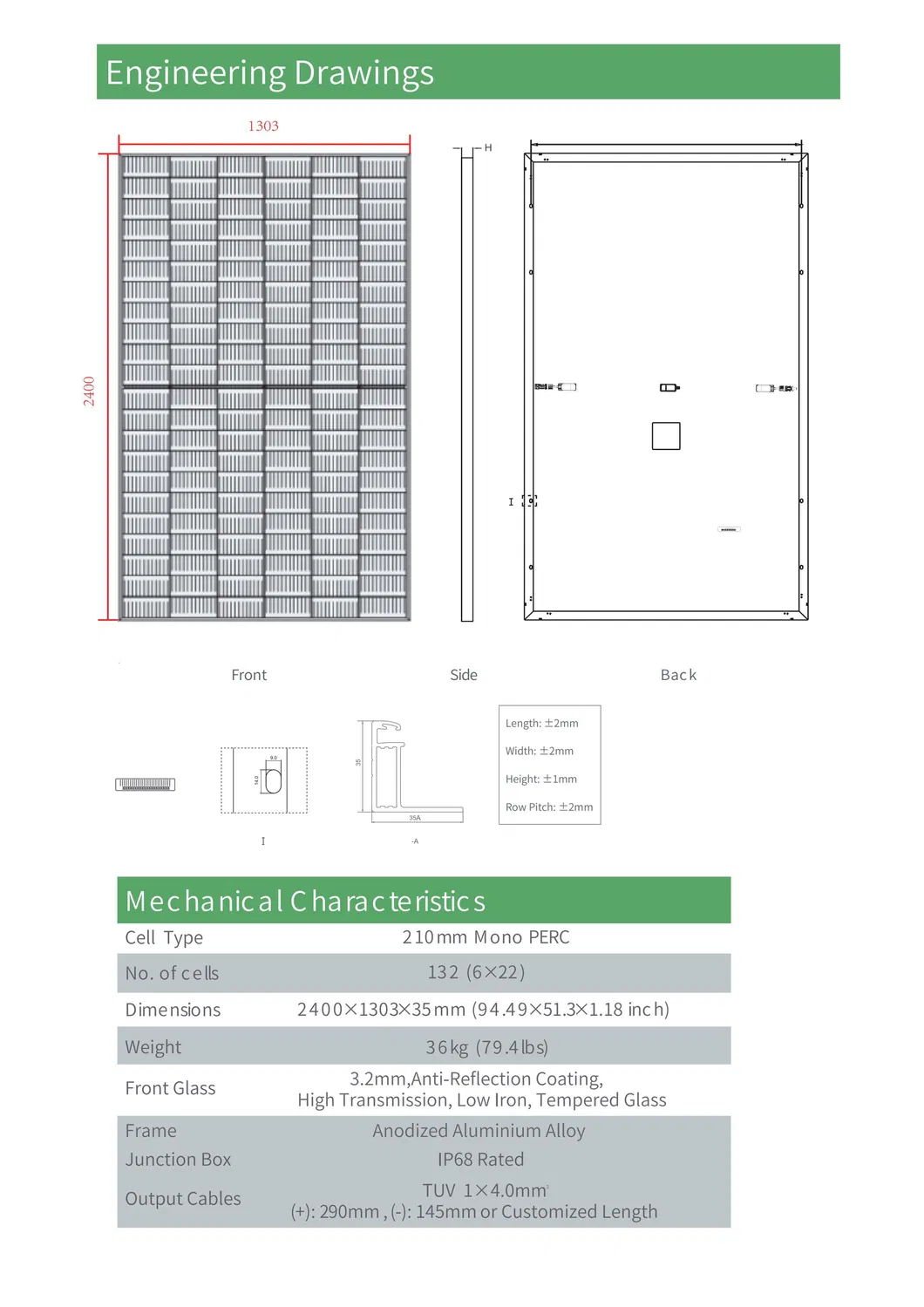

Size

2400*1303*35mm

Connector

Mc4 Compatible Connector

Backsheet Color

White or Black or Transparent

OEM Order

Acceptable

Frame Color

Silvery or Black

Weight

36 Kg

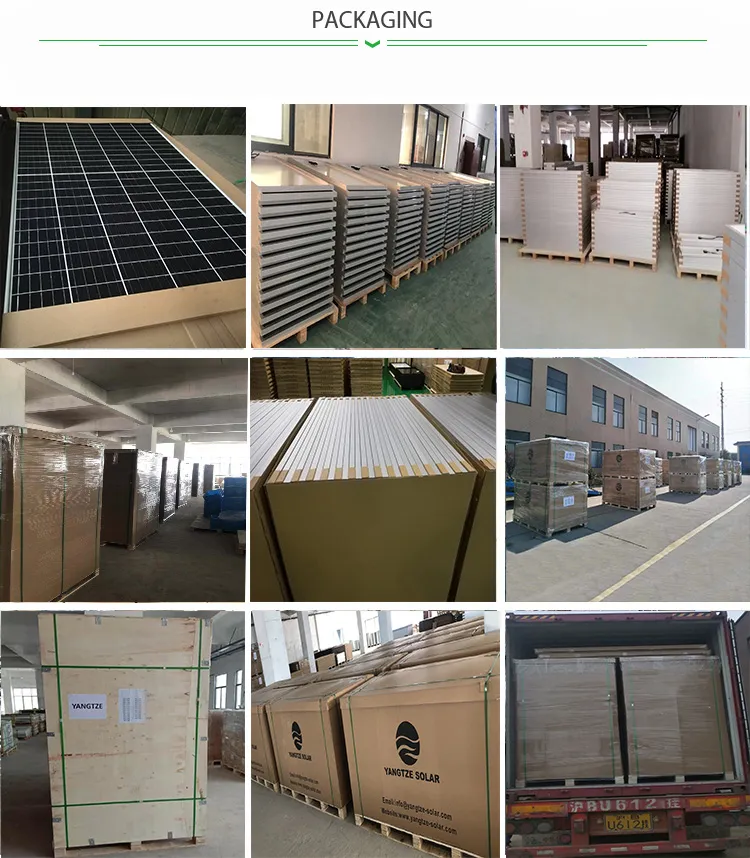

Transport Package

by Carton & Pallet

Origin

China

HS Code

8541402000

Capacity

500,000 Piece/Year

📊 Product Performance Data

Model Type	YS660M-66	YS670M-66	YS680M-66	YS690M-66	YS700M-66
Rated Max Power (STC)	660W	670W	680W	690W	700W
Max Power Voltage (Vmp)	38.38V	38.68V	38.98V	39.28V	39.58V
Max Power Current (Imp)	17.20A	17.33A	17.45A	17.57A	17.69A
Open Circuit Voltage (Voc)	45.55V	45.85V	46.15V	46.45V	46.75V
Short Circuit Current (Isc)	18.45A	18.54A	18.66A	18.79A	18.92A
Module Efficiency	21.1%	21.4%	21.7%	22.0%	22.3%

Working Conditions & Coefficients
Operating Temperature	-40°c ~ +85°c
Maximum System Voltage	DC 1000V(IEC) / 1500V(IEC)
Maximum Series Fuse	25A
Power Tolerance	0~+5W
Temperature Coefficient of Pmax	-0.35%/°c
Temperature Coefficient of Voc	-0.29%/°c
Temperature Coefficient of Isc	+0.048%/°c

*STC: Irradiance 1000W/m2, Cell Temperature 25°C, AM1.5 | NOCT: Irradiance 800W/m2, Ambient 20°C, Wind 1m/s.

🏭 Production & Quality Assurance

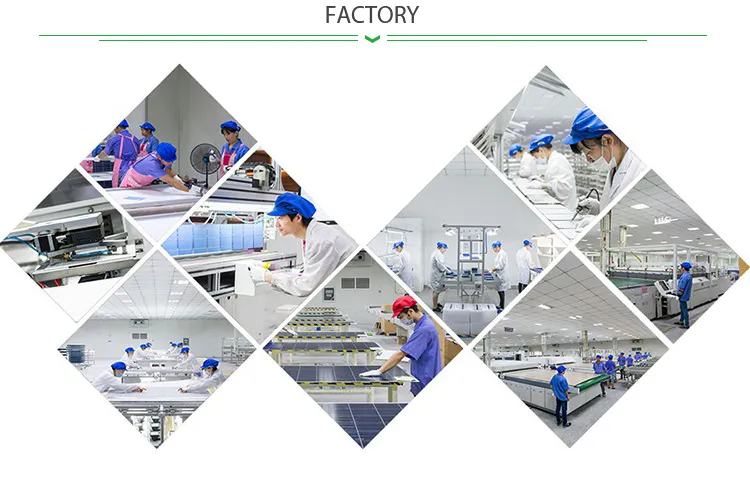

300MW solar panel production capacity, range from 3W to 800W (Mono/Poly).
10 years total workmanship and materials warranty.

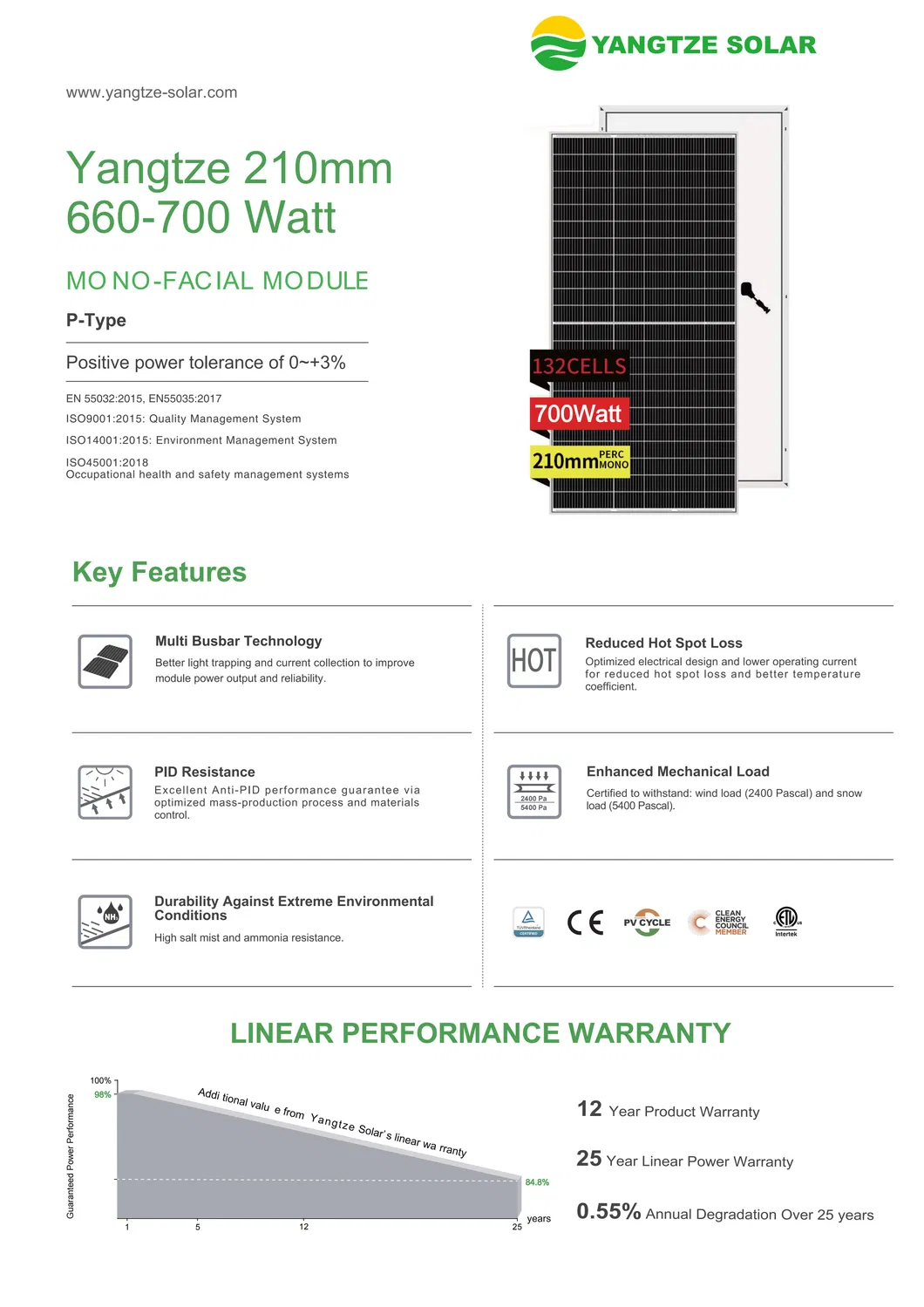

Linear power output warranty: 10 years at 90%, 25 years at 80%.
100% EL (Electroluminescence) testing before packaging and shipping.
Dual specialized factories for solar panels and battery systems.
Products exported to more than 150 countries worldwide.
Fully certified by TUV (Germany) and CE standards.
Turn-key solar system solutions offered for time and cost savings.

❓ Frequently Asked Questions

What is the efficiency range of these 700W series solar panels?

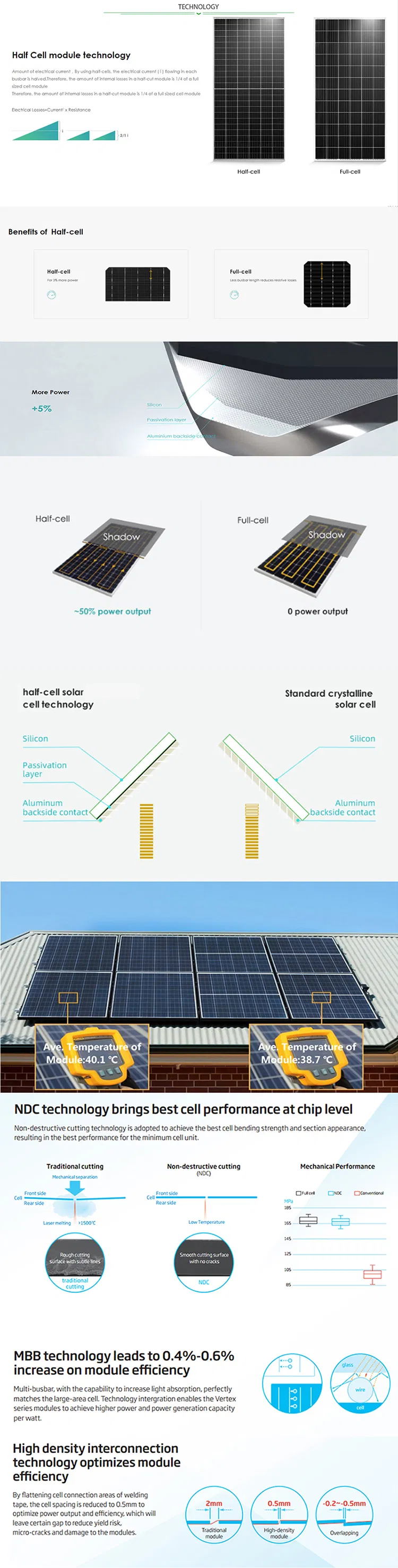

These modules offer high efficiency ranging from 21.1% for the 660W model up to 22.3% for the 700W model, thanks to 210mm monocrystalline half-cell technology.

What kind of warranty is provided with these panels?

We provide a 10-year workmanship and materials warranty, along with a 25-year linear power output warranty (90% at 10 years and 80% at 25 years).

Are these solar panels suitable for harsh environmental conditions?

Yes, they are built with IP68 waterproof junction boxes and anodized aluminium alloy frames, designed to operate in temperatures ranging from -40°C to +85°C.

How is the quality of the panels ensured before shipping?

Every single panel undergoes a 100% EL (Electroluminescence) test before packaging to ensure there are no micro-cracks or defects in the solar cells.

What certifications do these solar products hold?

Our solar panels are certified by world-recognized organizations including TUV (Germany), CE, ISO, IEC61215, and IEC61730, ensuring international safety and performance standards.

Can these panels be used for industrial-scale projects?

Absolutely. These high-power 700W modules are specifically designed for industrial and utility-scale applications to maximize power density and minimize balance-of-system (BOS) costs.
