📦 Basic Information
Model NO.
JN-T-MPPT-W2000/S2000-48
Application
Solar System Controller, Charger Controller, Wind Controller
Charge Mode

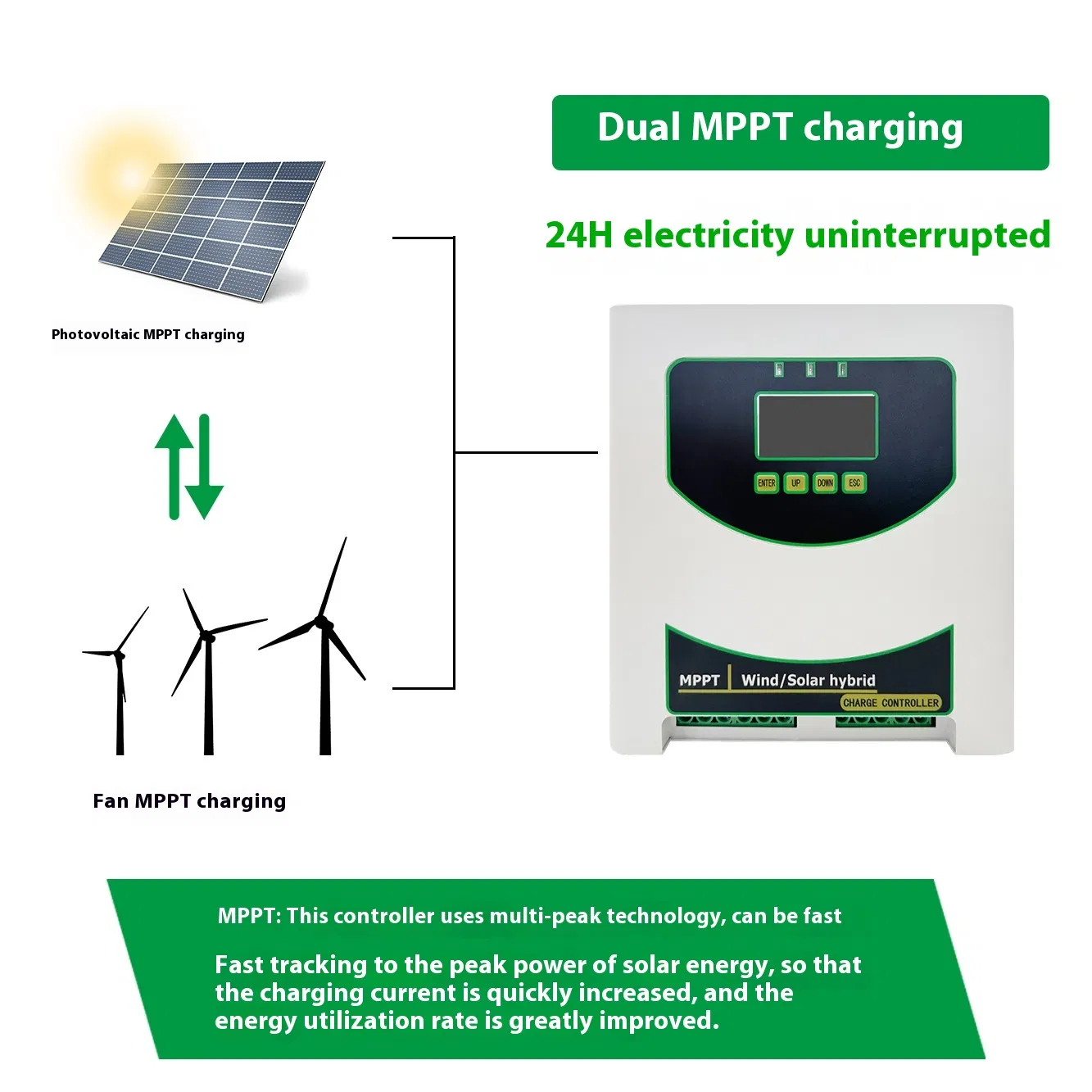

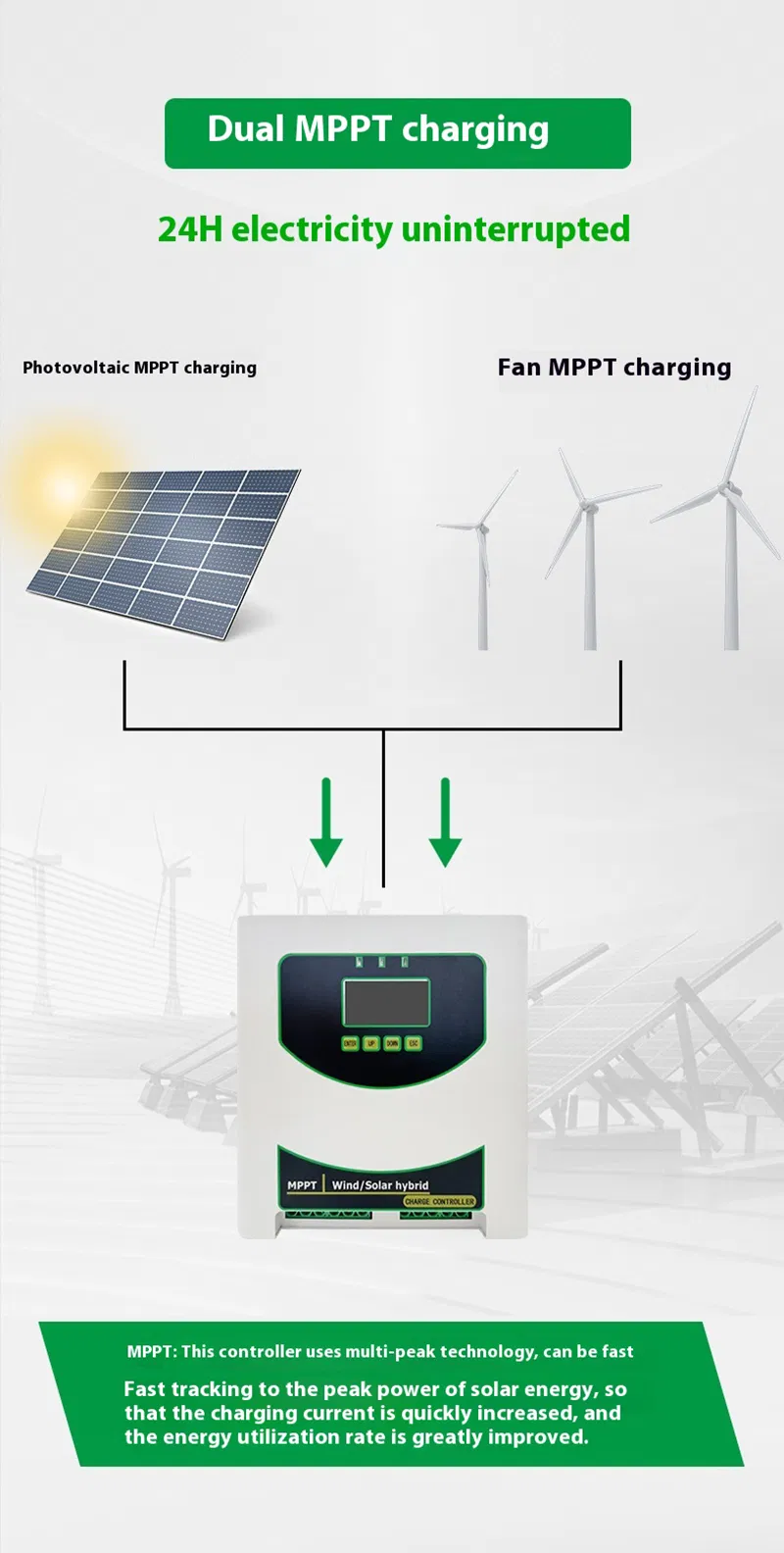

Dual MPPT Wind Solar Charge Controller
Communication
RS 485 Optional

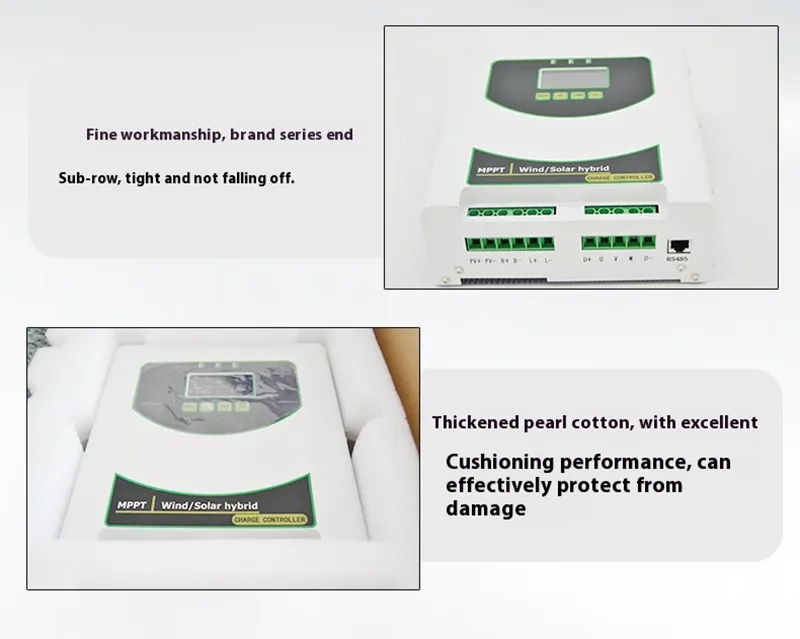

🚚 Packaging & Delivery
Package Size
43.30cm * 40.30cm * 15.00cm
📝 Product Description

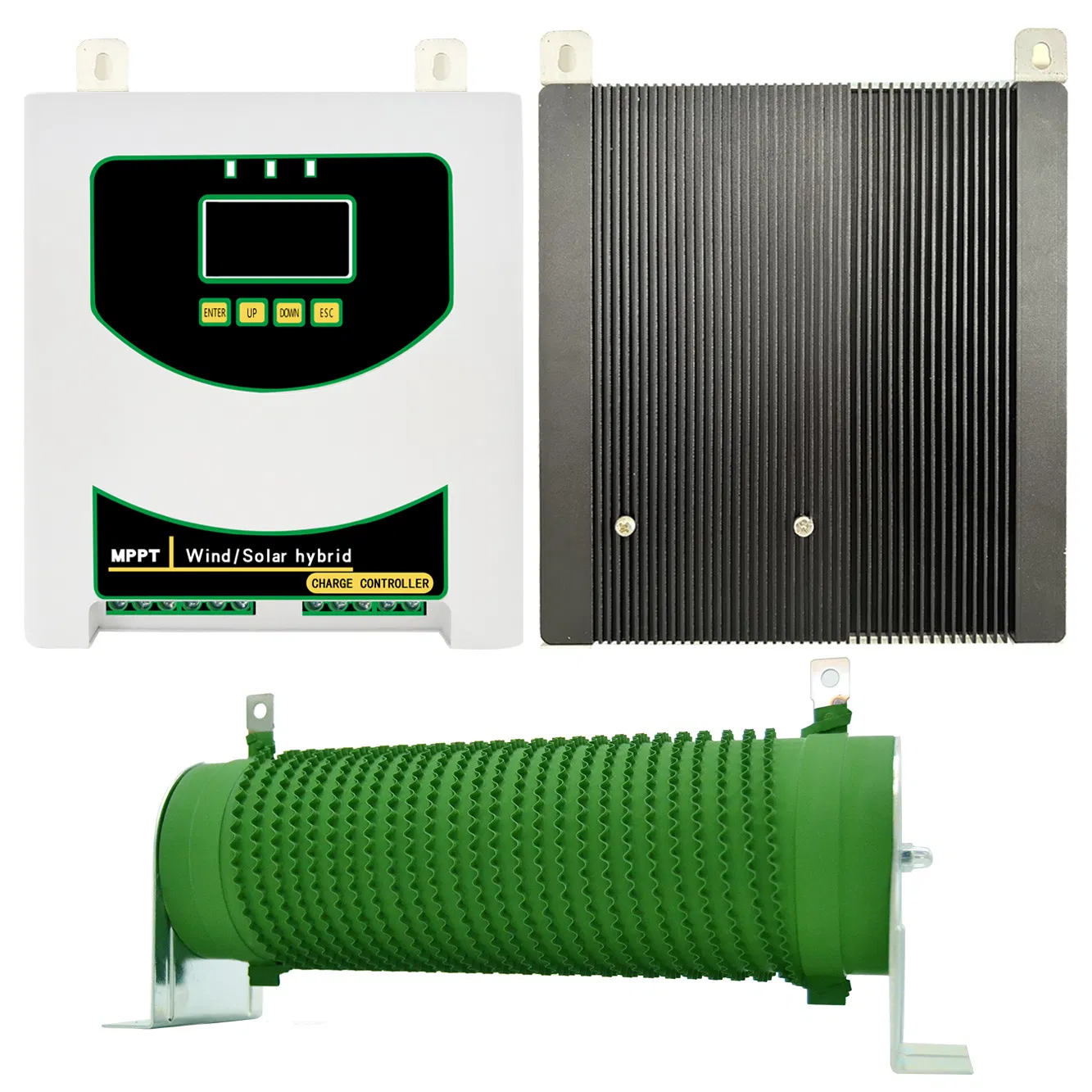

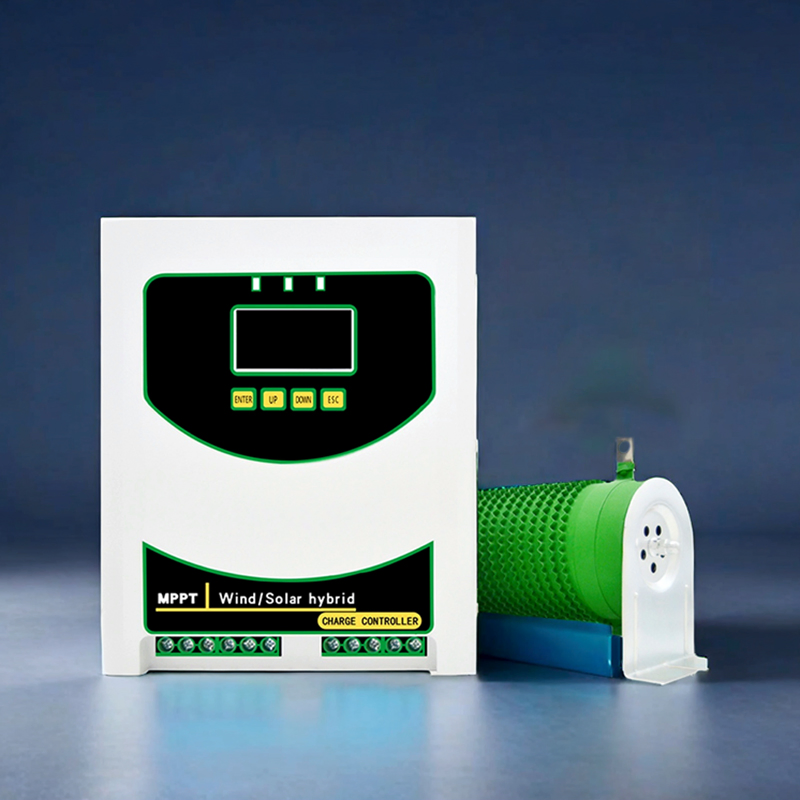

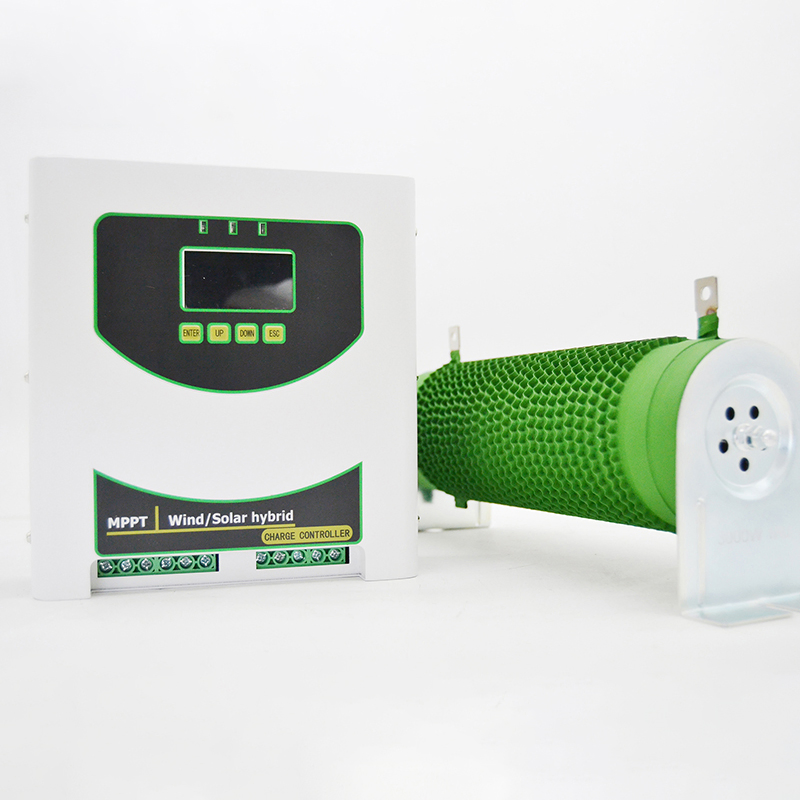

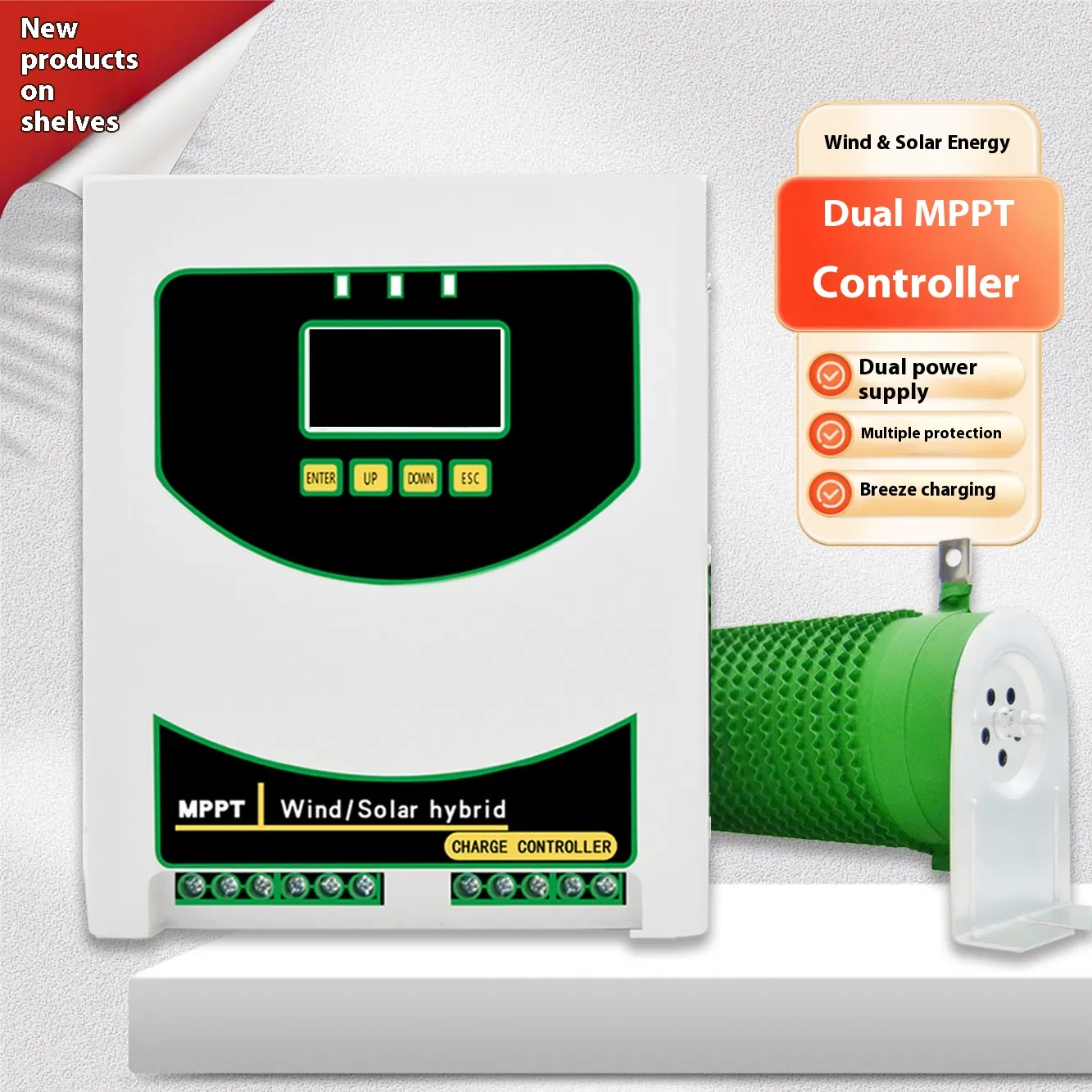

Wind MPPT Charger Controller 48V 2000W Dual MPPT Wind Solar Hybrid Controller

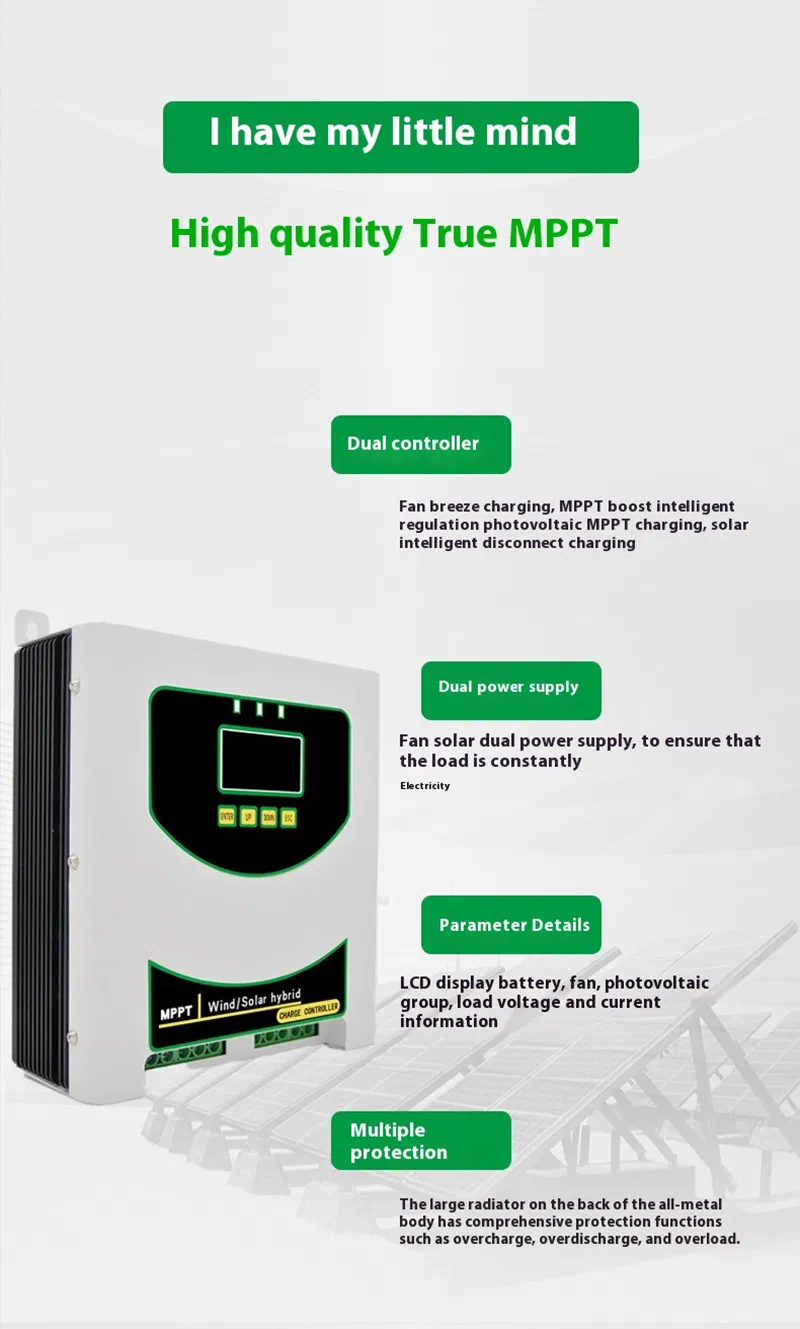

- The display screen adopts a color screen design, providing more comprehensive information and a clearer interface.
- MPPT control algorithm for fan charging ensures efficient charging even at low wind speeds.
- Photovoltaic charging utilizes advanced MPPT maximum power point tracking technology with efficiency ≥99.5%.

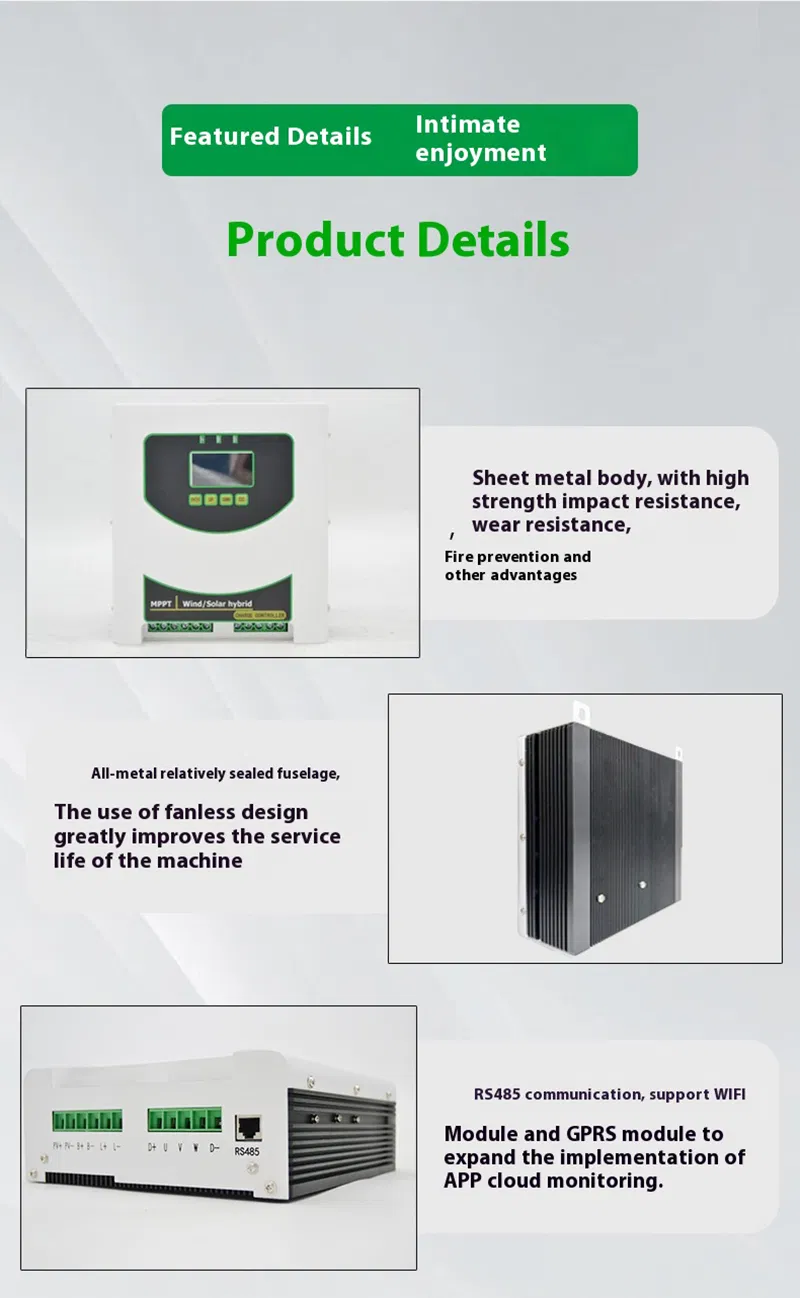

- RS485 communication support for unified integrated management and secondary development.
- Mobile phone APP monitoring and parameter setting (optional).
- Comprehensive protection: overcharge, overdischarge, and overload functions.
- Multiple battery support: Lead-acid, ternary lithium, lithium iron phosphate, and custom modes.
- Flexible load control methods with adjustable output power and timing.
- Wide adaptability for automatic day and night identification.
- Fan charging includes a battery activation function for BMS-protected lithium battery packs.
📊 Product Parameters
| Parameter Name |
W800/S1000-24 |
W1000/S1000-24 |
W1500/S1500-24 |
W2000/S2000-48 |
W3000/S1500-48 |
| Battery Voltage |
24V |
24V |
24V |
48V |
48V |
| PV Max VOC |
145V |
145V |
145V |
145V |
145V |
| PV Rated Current |
40A |
40A |
40A |
40A |
40A |
| PV Module Power |
≤1000W |
≤1000W |
≤1500W |
≤2000W |
≤1500W |
| Wind Turbine Power |
≤800W |
≤1000W |
≤1500W |
≤2000W |
≤3000W |
💡 Frequently Asked Questions
What is the tracking efficiency of this MPPT controller?
The photovoltaic charging utilizes advanced MPPT technology with a tracking efficiency of no less than 99.5%, which is 15-20% more efficient than standard PWM algorithms.
Can I use this with low wind speeds?
Yes, the specialized MPPT control algorithm used for the fan/wind turbine ensures that charging can occur even at low wind speeds.
What types of batteries are supported?
This controller supports Lead-acid batteries, ternary lithium batteries, lithium iron phosphate (LiFePO4), and custom battery charging modes.
Does it support remote monitoring?
Yes, it features RS485 communication for integrated management, and there is an optional mobile phone APP for viewing and setting operating parameters.
What safety protections does the device have?
It includes comprehensive protection functions such as overcharge protection, over-discharge protection, and overload protection to ensure system safety.
