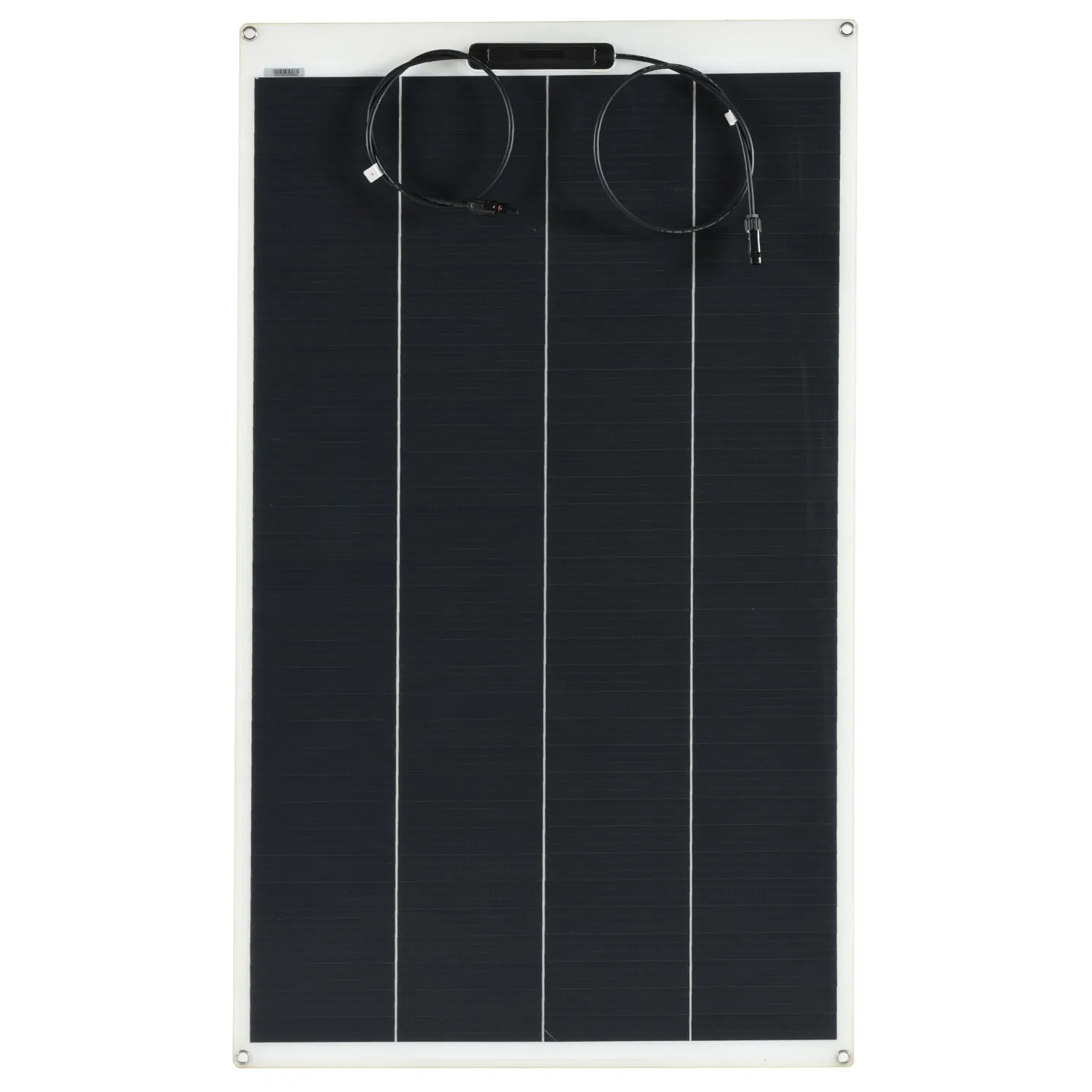

| Model No : | FFXS-150W |
| Solar panel size : | 1050*670*2.5mm |
| Product net weight : | 2.74 KG |
| Solar cell: | Sunpower solar cell |
| Efficiency: | 21.50% |
| Maximum power(Pm): | 150W |
| Voltage at max power(Vmp): | 17.6(V) |
| Current at max power(Imp): | 5.68(A) |
| Short circuit current(Isc): | 6.25(A) |
| Open circuit voltage(Voc): | 20.8(V) |
| Number of cells and connections: | 32pcs(4*8) |
| Connector : | MC4 |
| Operating Temperature : | - 40ºC to +85ºC |

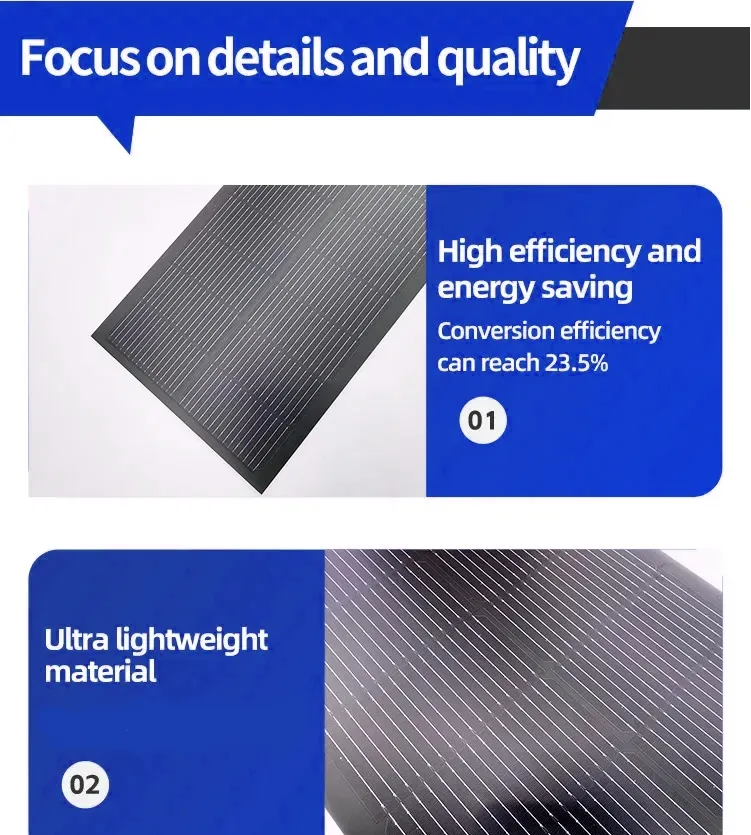

Efficiency is up to 23.5%, significantly higher than standard similar products on the market.
Pre-drilled holes for fast mounting. Can be affixed by adhesive or grommets without structural reinforcements.

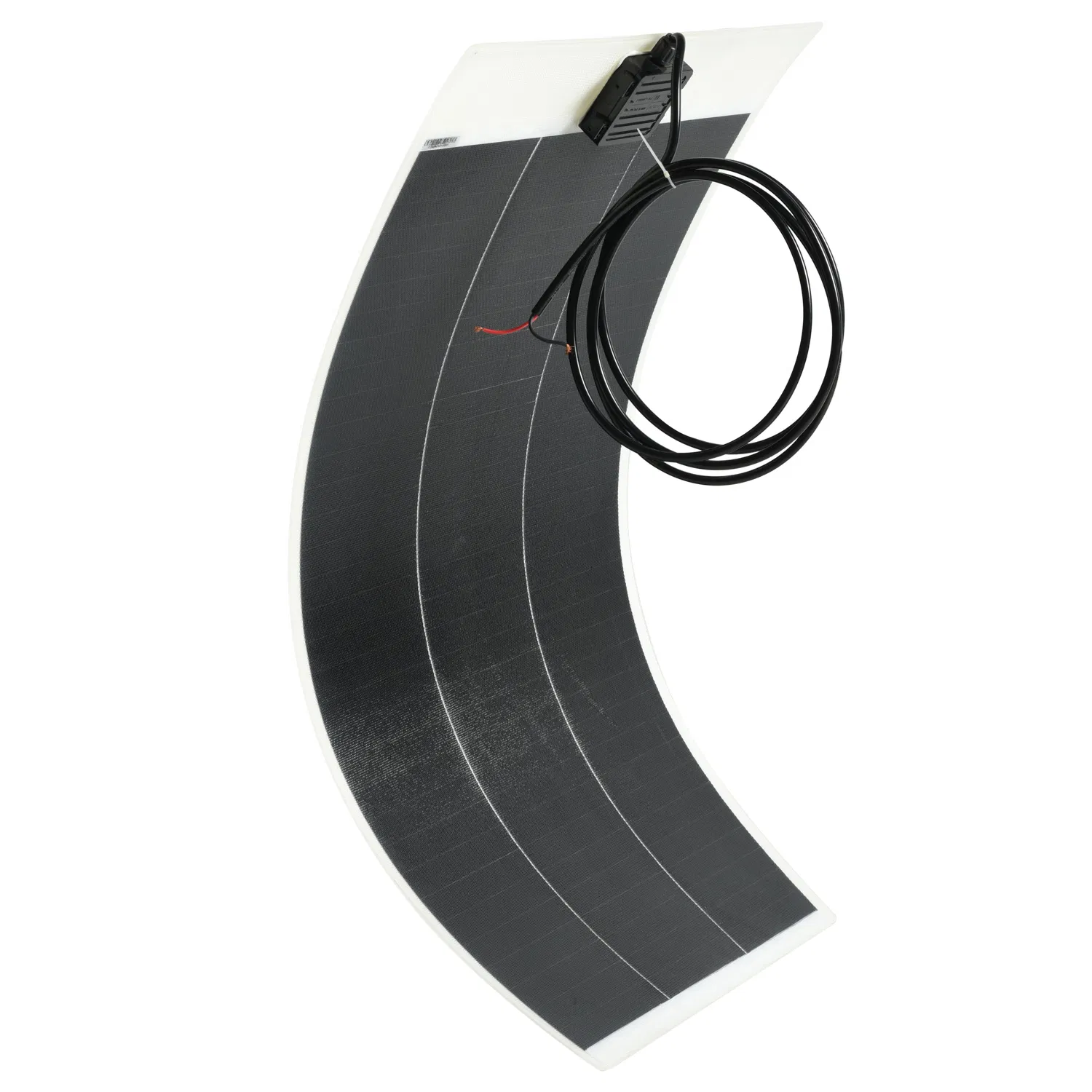

Can be curved to a maximum 30-degree arc, making it ideal for irregular surfaces like RVs and boats.
Sealed and waterproof junction box with bypass diodes to minimize performance drop due to partial shade.
A: We provide a 10-year product warranty and a 25-year linear power output warranty.
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
A: A professional product quality inspection team ensures the order quality and low defect rate.
A: Yes. Please inform us formally before production and confirm the design based on our sample.

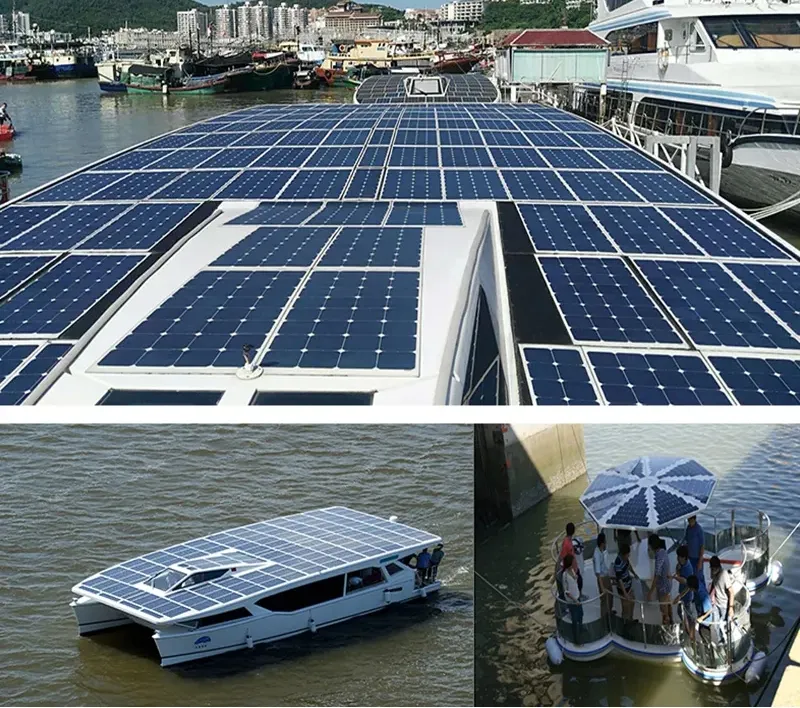

A: They are widely compatible with Boats, Yachts, RVs, Expedition Vehicles, and remote communication sites.
A: First, let us know your requirements. We provide a quote, you confirm the samples and deposit, and then we arrange production.
