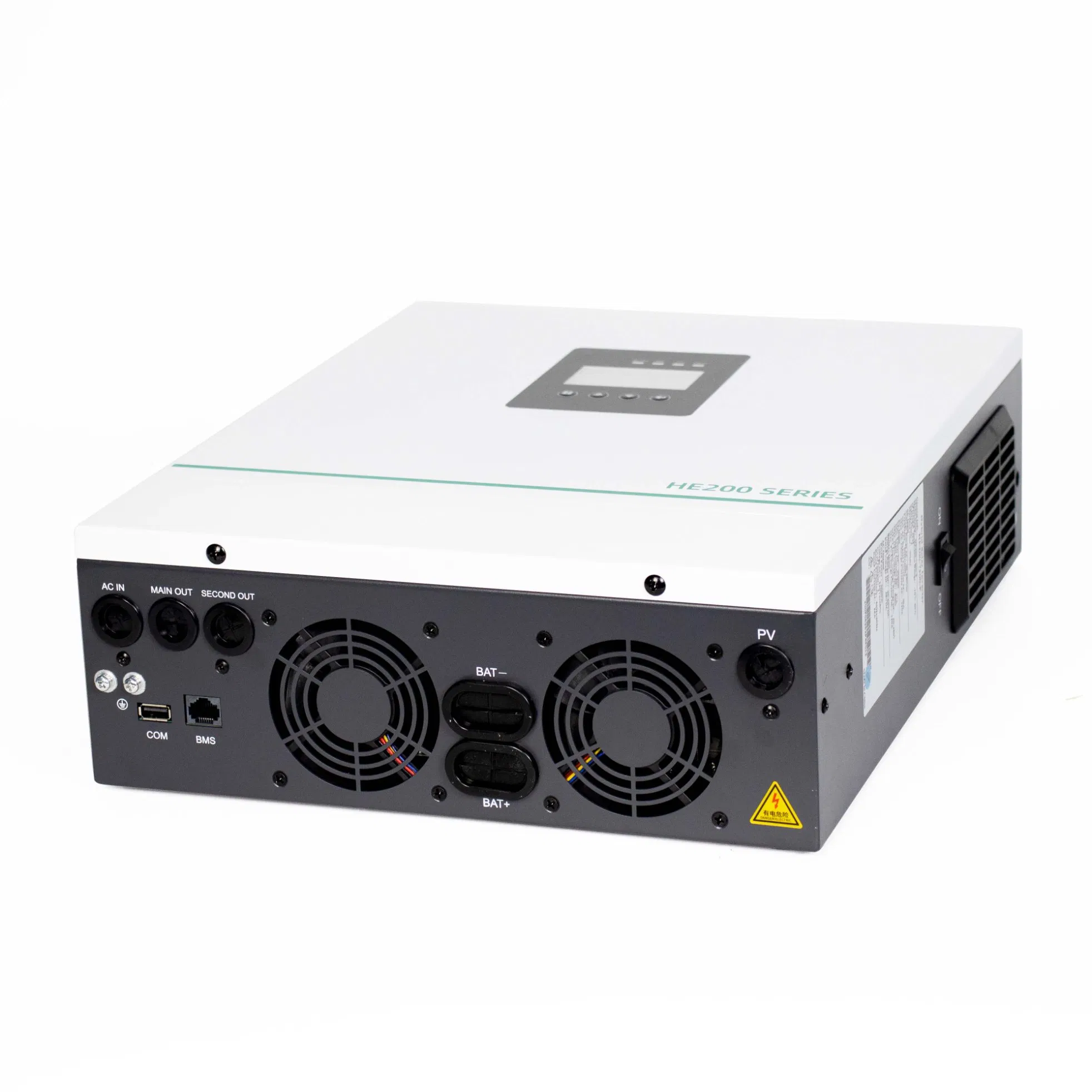

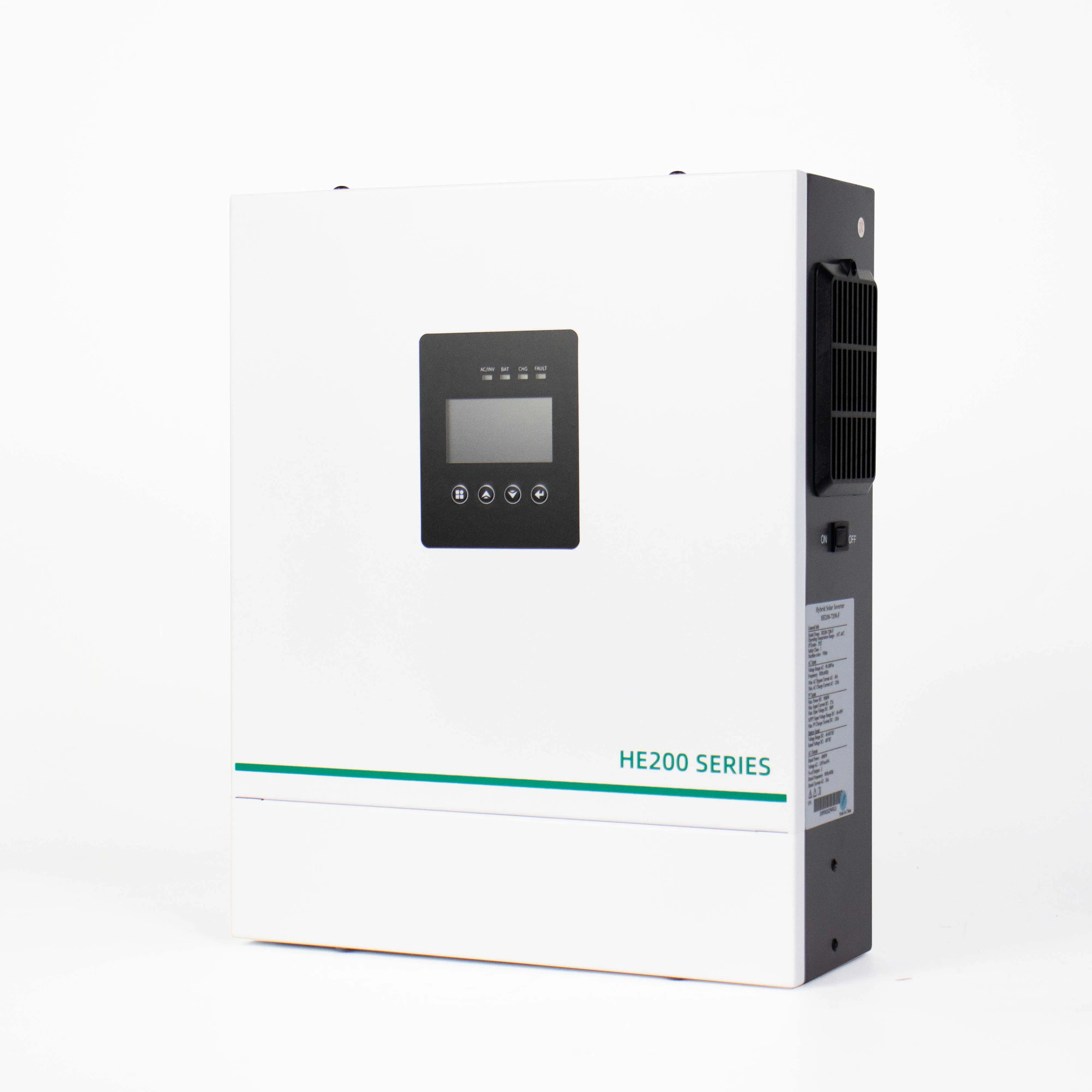

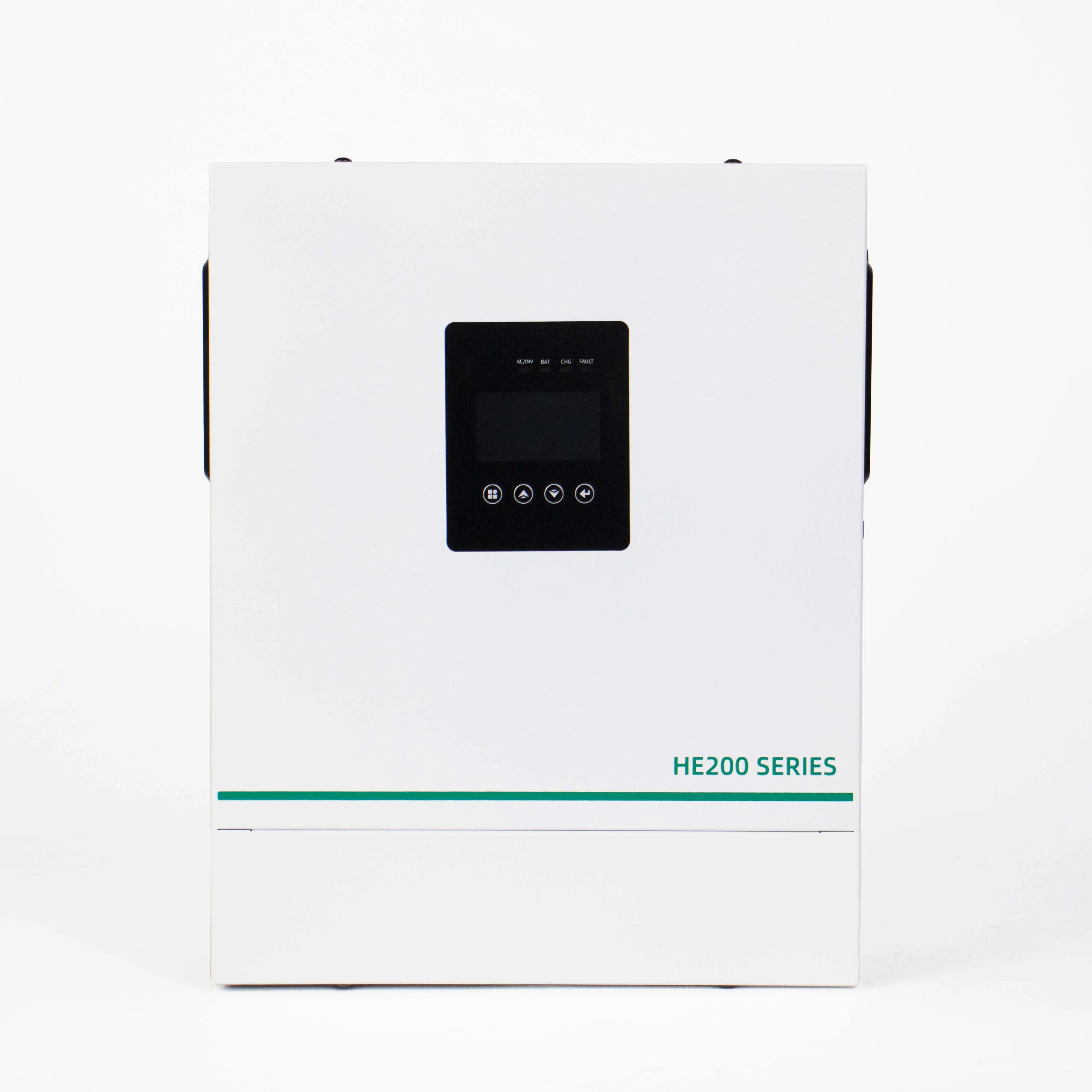

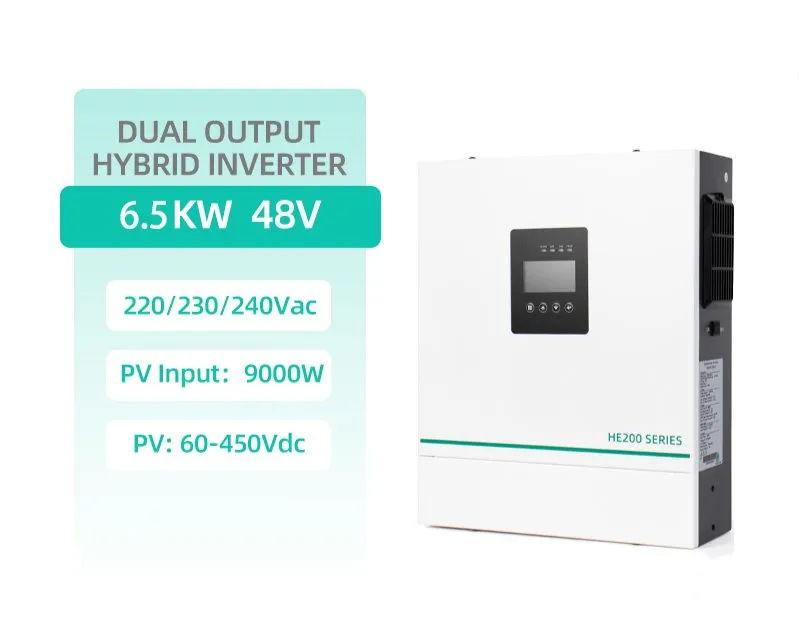

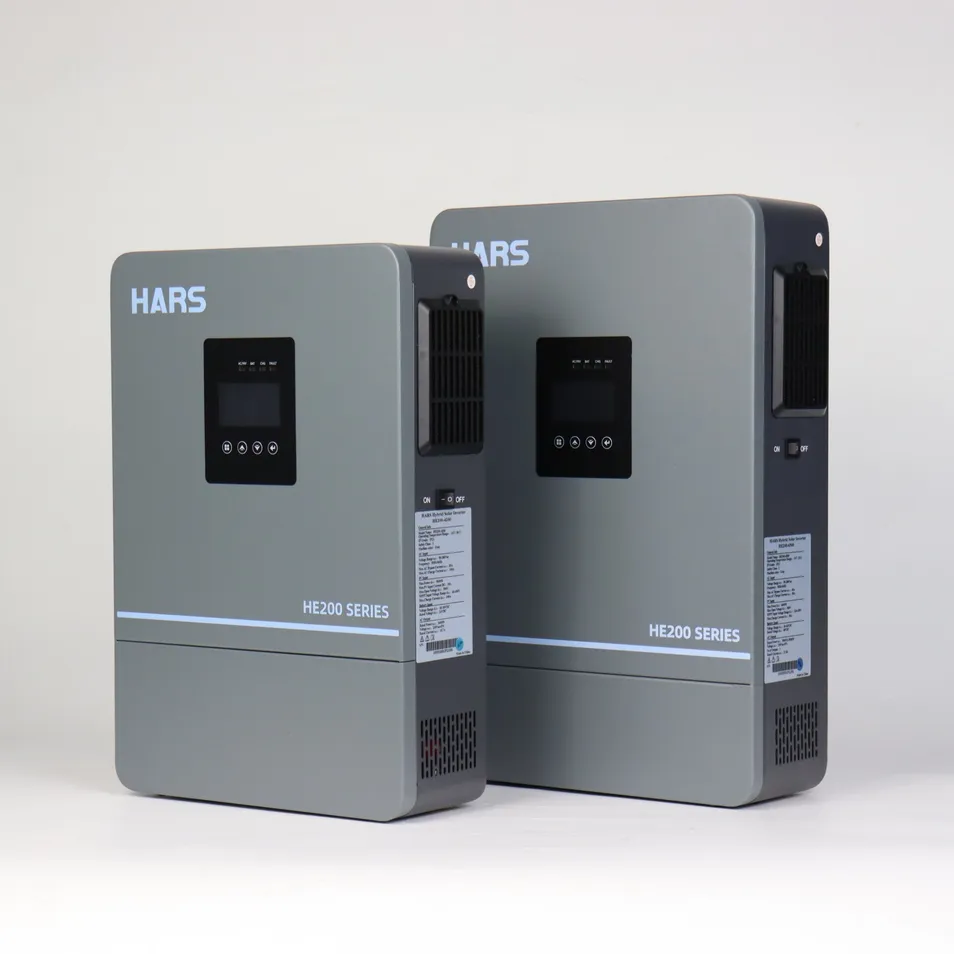

HE200 is a multifunctional hybrid solar inverter that outputs single-phase pure sine wave. Designed with a portable form factor, it supports uninterruptible power supply (UPS) switching and allows for precise settings of battery charging voltage and current.

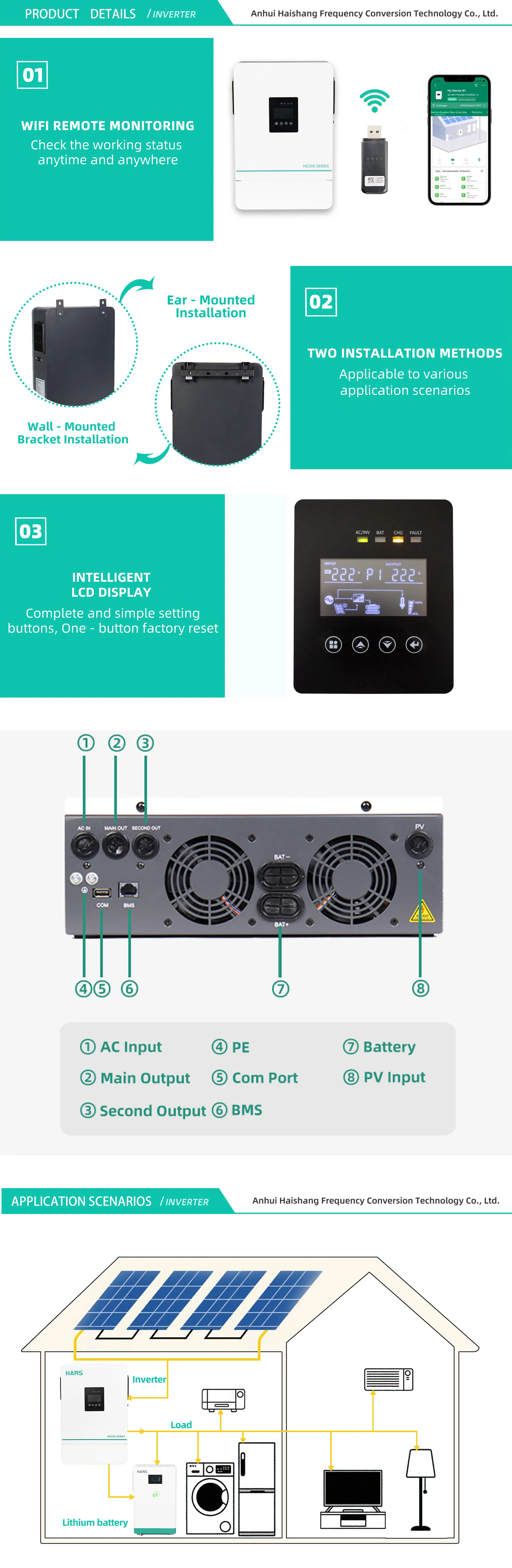

Featuring multiple power input and output priority settings, the AC voltage and frequency are fully adjustable to suit various grid environments. Additionally, users can monitor real-time data online through a dedicated mobile phone APP.
| Inverter Output Details | |
|---|---|
| Rated Output Power | 6500W |
| Rated Output Voltage | 230Vac±5% (single phase) |
| Rated Output Current | 27A |
| Rated Output Frequency | 50/60Hz |
| Output Waveform | Pure Sine Wave |
| Battery & Charging | |
|---|---|
| Battery Type | Lead acid/Gel/Lithium |
| Rated Battery Voltage | 48V |
| Max PV Charging Power | 9000W |
| Max PV Charging Current | 120A |
| Max Charging Efficiency | 99.5% |
| PV & AC Input | |
|---|---|
| MPPT Number | 1 |
| Max Open Circuit Voltage | 500Vdc |
| PV Input Voltage Range | 60~450V |
| AC Input Voltage Range | 90~280Vac |
| Max AC Bypass Current | 50A |

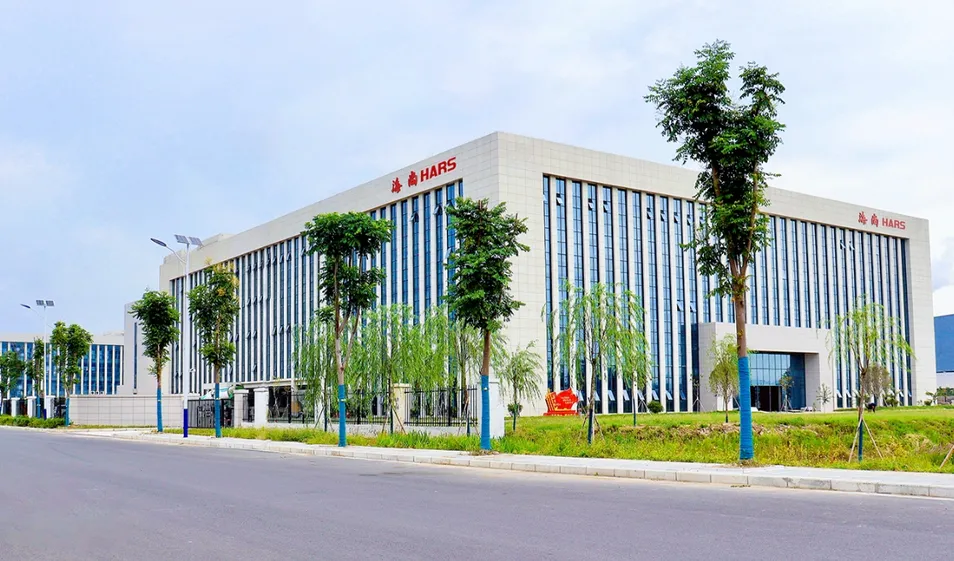

Our facility is a high-tech enterprise integrating R&D, production, and technical services. With an automated production rate of 80%, we ensure high precision and sufficient inventory for consistent delivery. Our headquarters covers a construction area of 30,000 square meters, alongside a dedicated photovoltaic factory of 20,000 square meters. We provide comprehensive technical support and various manufacturing services.
