Wing Solar
Wing Solar
| Model NO. | SFL-50W |
| Number of Cells | 36pcs |
| Application | Light Industry |
| Condition | New |
| Certification | ISO, CE, RoHS |
| Material | Monocrystalline Silicon |
| Maximum Power (Pmax) | 50W |
| Voltage at Pmax (Vmp) | 20V |
| Current at Pmax (Imp) | 2.5A |
| Open Circuit Voltage (Voc) | 23.6V |
| Short Circuit Current (Isc) | 2.75A |

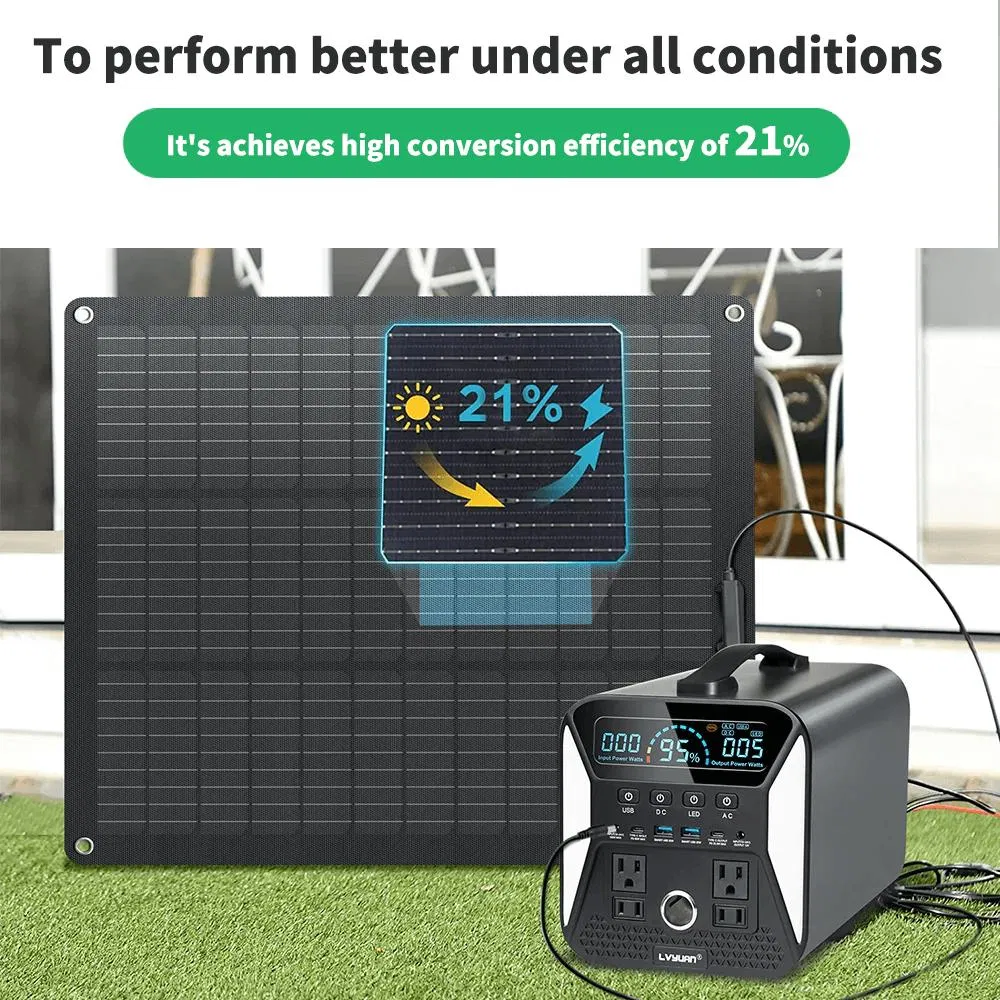

| Cell Conversion Efficiency (%) | 21% |

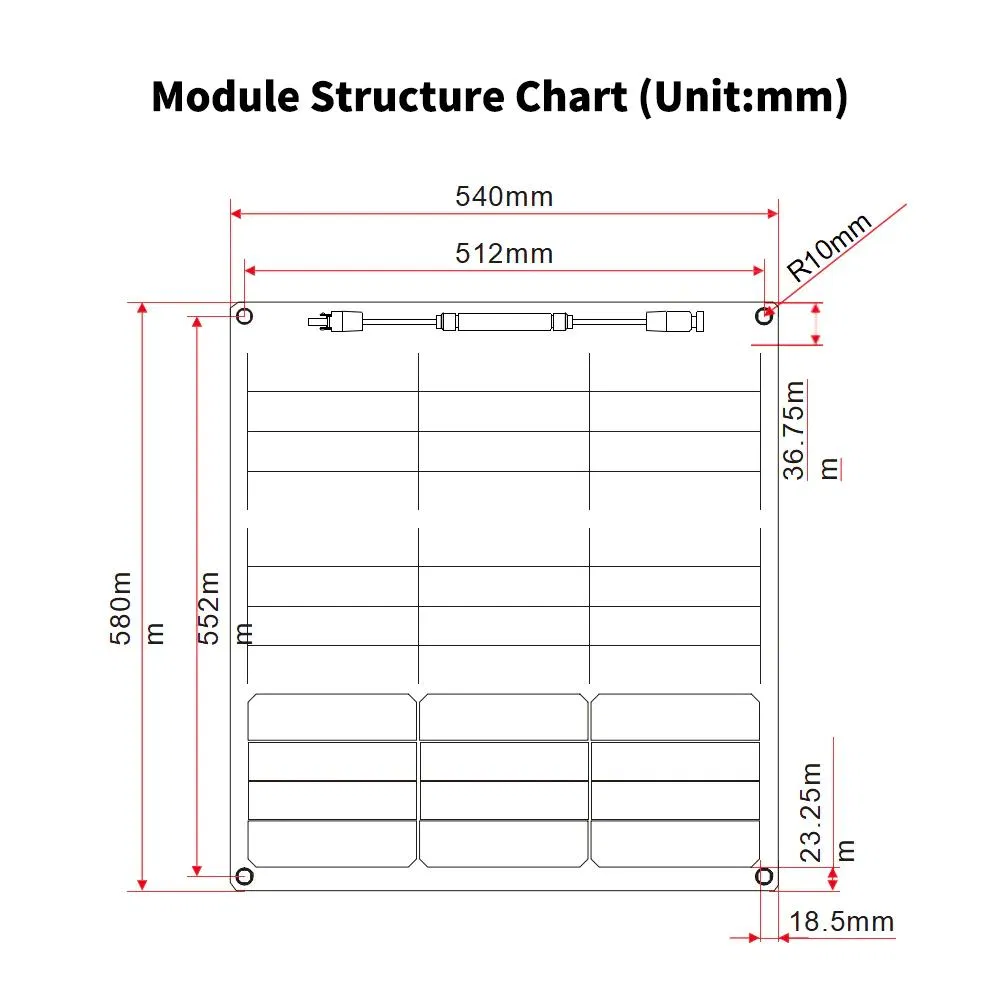

| Module Dimensions | 580*540*3mm |
| Weight | 1.15kgs |
| Package Size | 60.00cm * 56.00cm * 1.00cm |
| Package Gross Weight | 2.000kg |
Flexible solar panels offer the benefits of a traditional solar system in a more portable package. Unlike rigid solar panels used in home installations, flexible solar panels are thinner alternatives for off-grid and mobile installations. They provide adequate power for boats, RVs, campers, or camping sites.

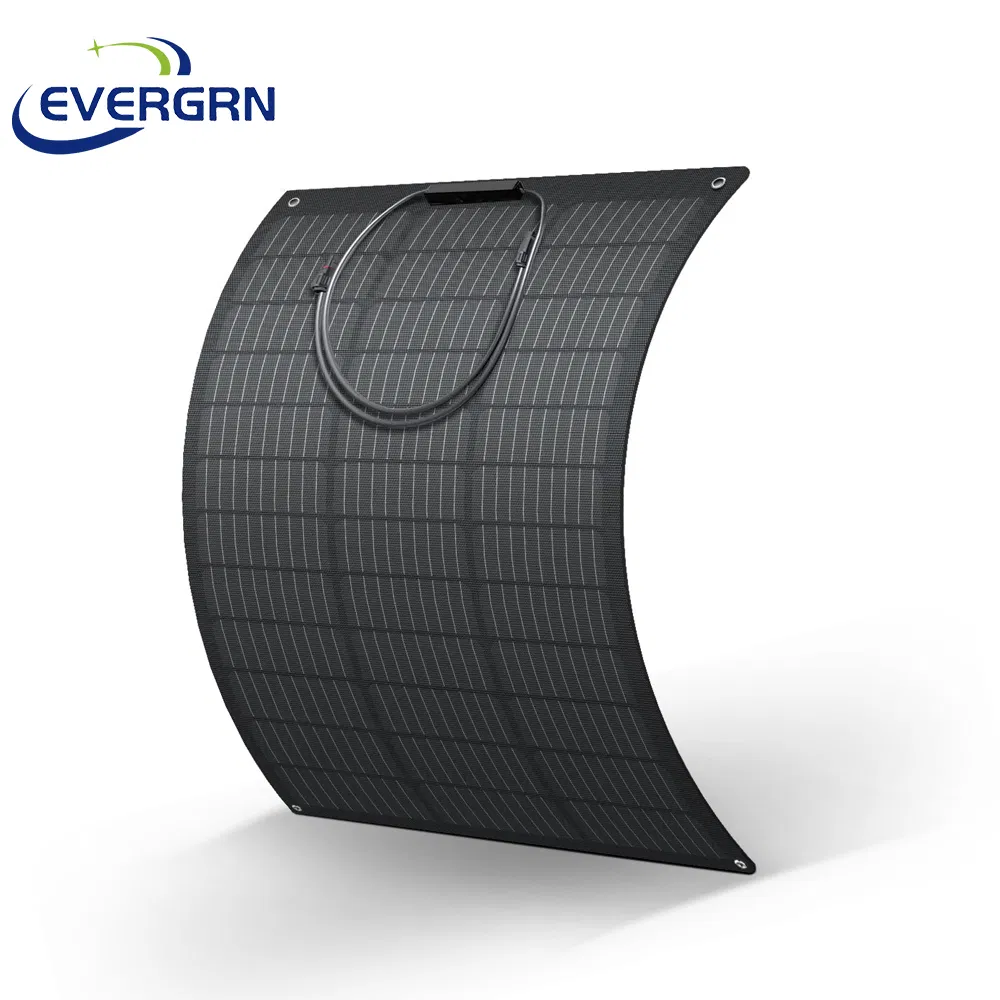

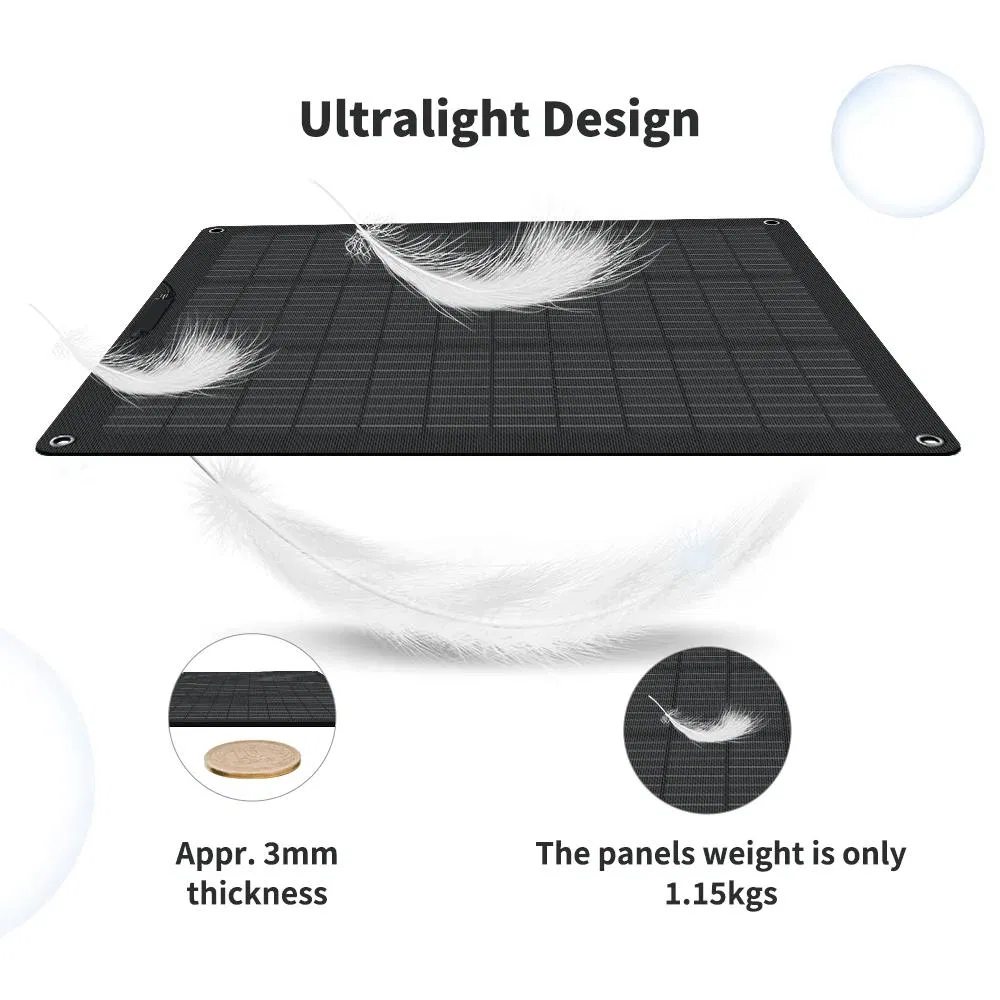

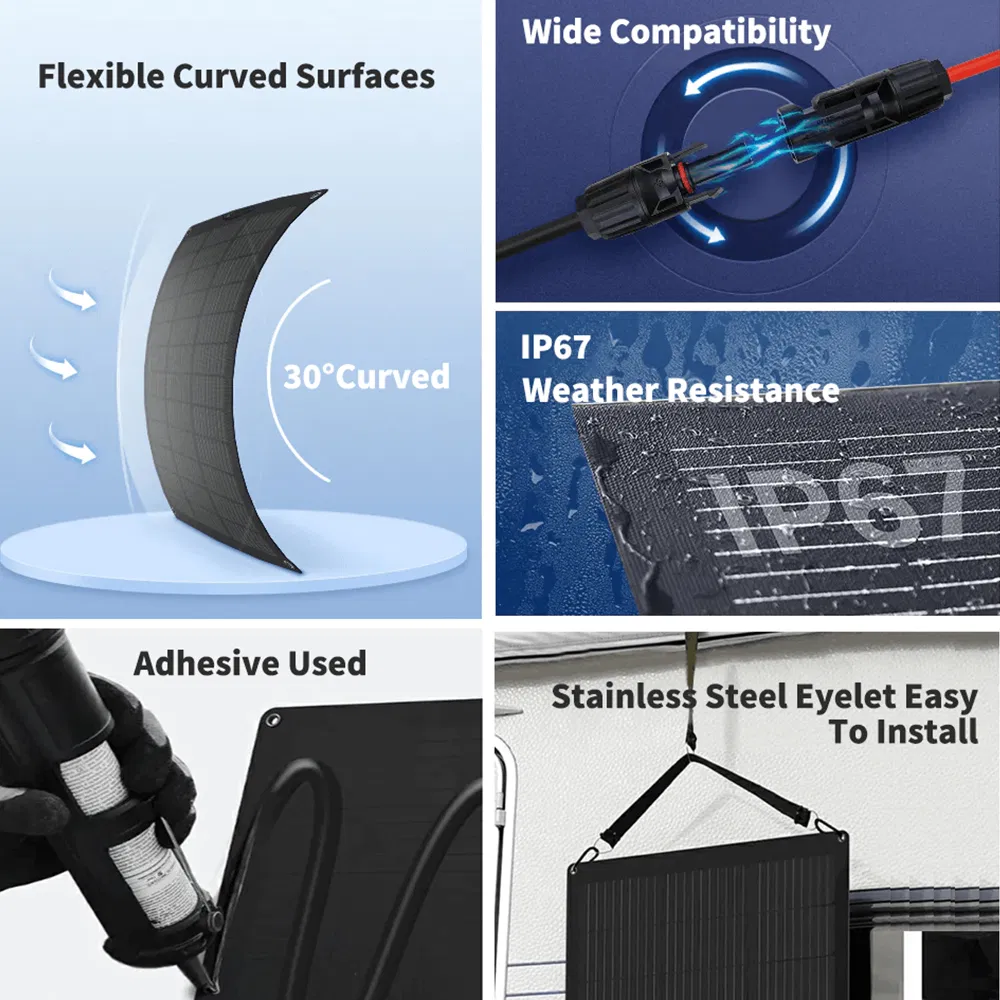

Flexible panels are ultra-thin, lightweight panels that are easily installed. They're also bendable, making them easier to attach to a curved roof or window. Typical flexible panel installation involves using adhesive tape to mount the panels, compared to the stiff mounting racks used for traditional rooftop installations.
| Item | Data |
|---|---|
| Power Model | SFL-50W/20V |
| Maximum Power (Pmax) | 50W |
| Voltage at Pmax (Vmp) | 20V |
| Current at Pmax (Imp) | 2.5A |
| Open Circuit Voltage (Voc) | 23.6V |
| Short Circuit Current (ISC) | 2.75A |
| Cell Conversion Efficiency (%) | 21% |
| Max System Operating Voltage | 1000V |

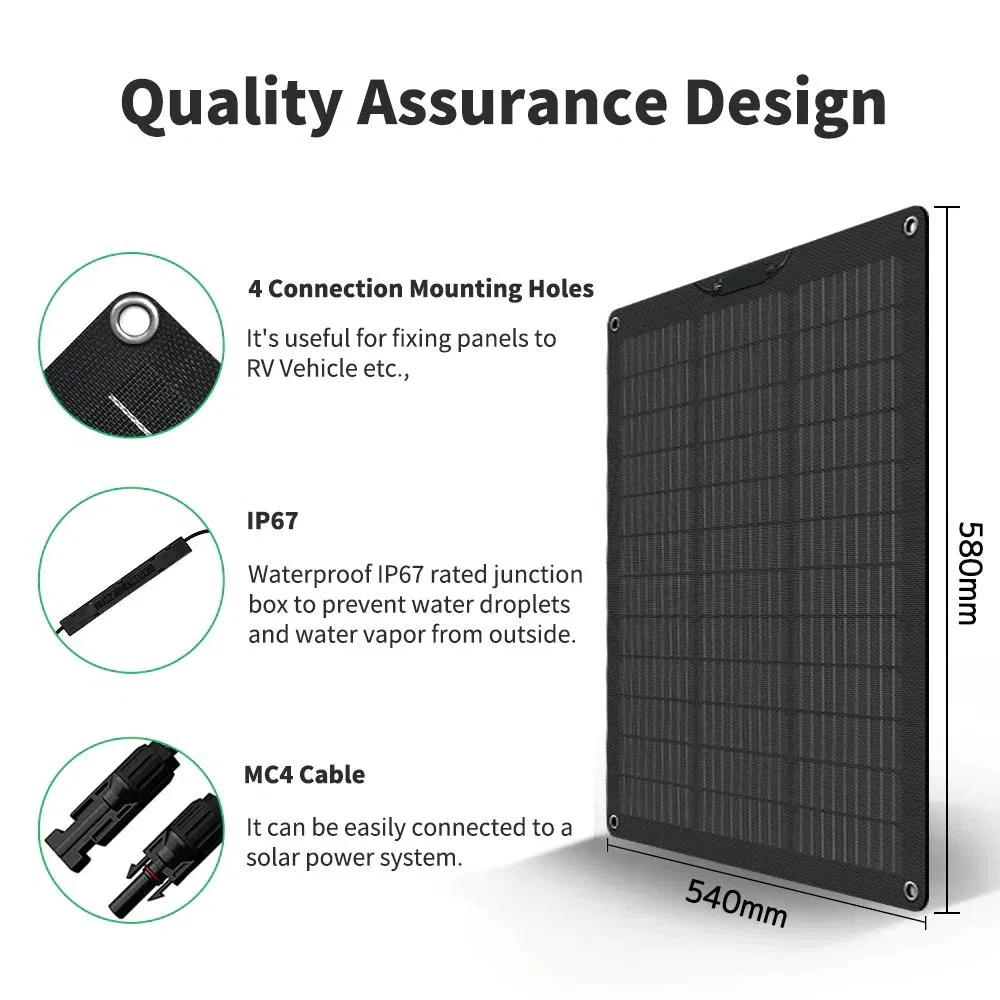

| Module Dimensions | 580*540*3mm |
| Weight | 1.15Kgs |
We have been providing full categories of battery chargers, inverters, portable power stations, solar panels, solar energy systems and various renewable energy products with over 6 years of experience.
We are committed to providing one-stop service for wholesalers and dealers, offering both off-the-shelf and customized design services. All products carry complete certificates including CE, FCC, RoHS, PSE, and ISO9001.
Our team supports OEM/ODM services with professional engineer support and competitive pricing.
