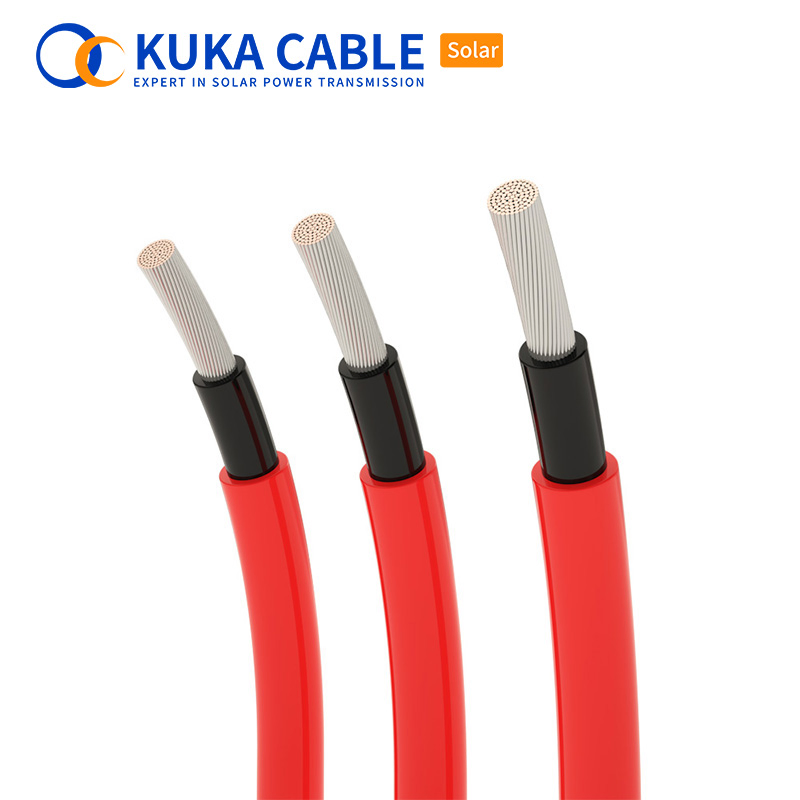

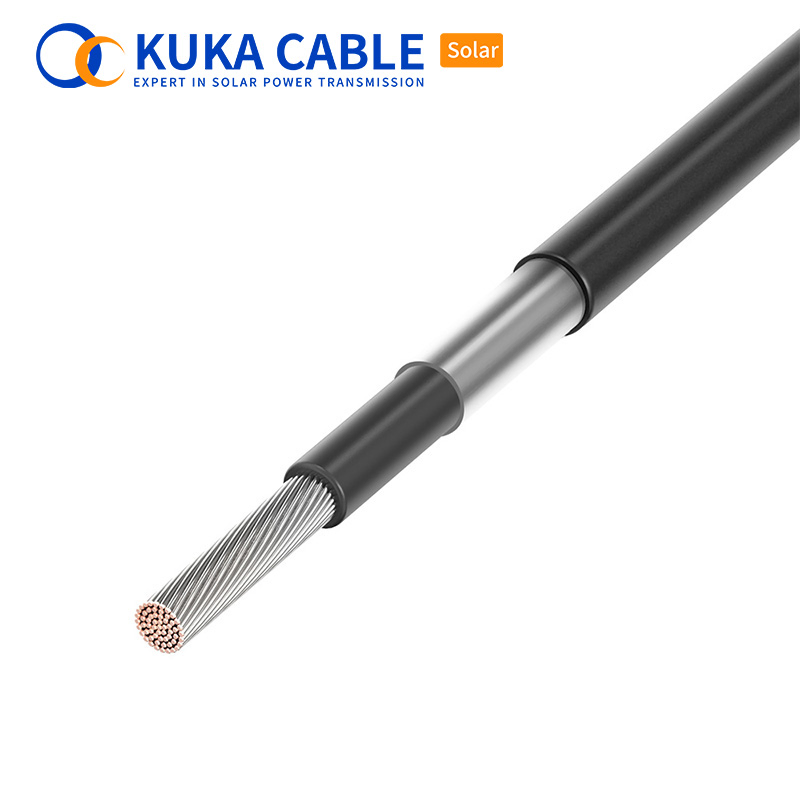

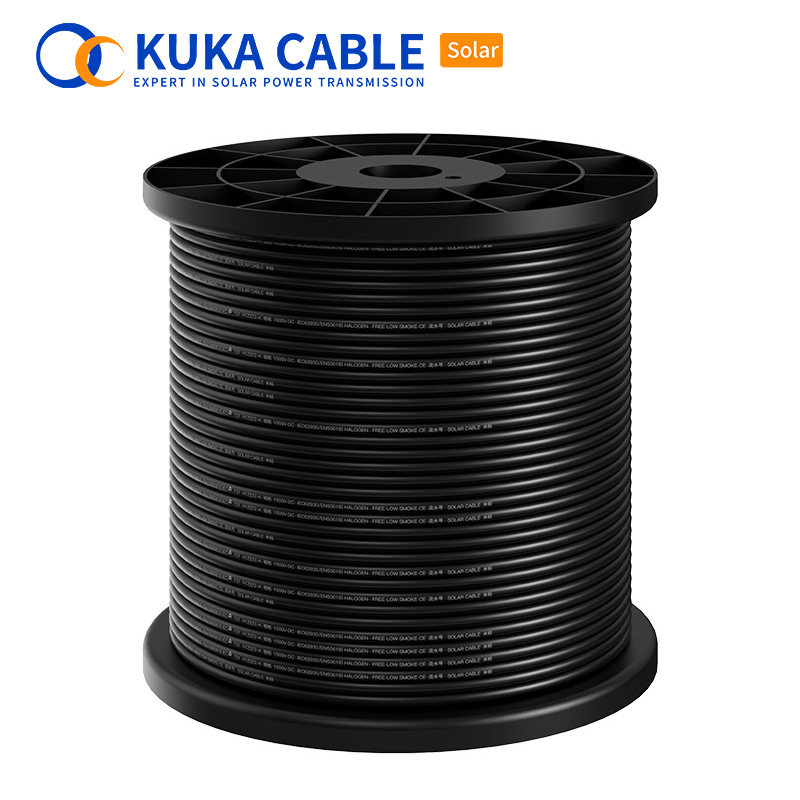

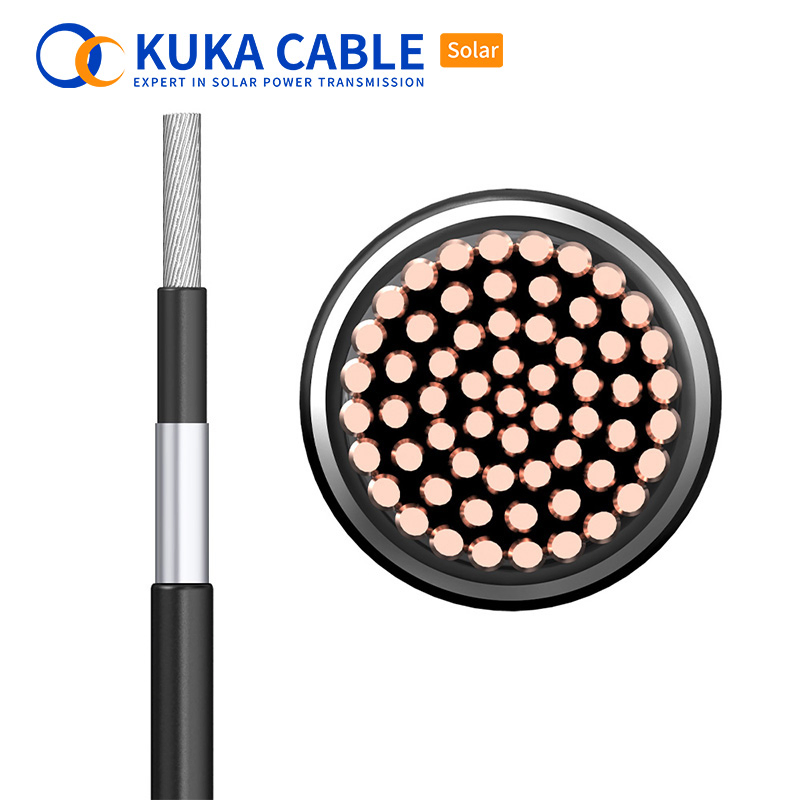

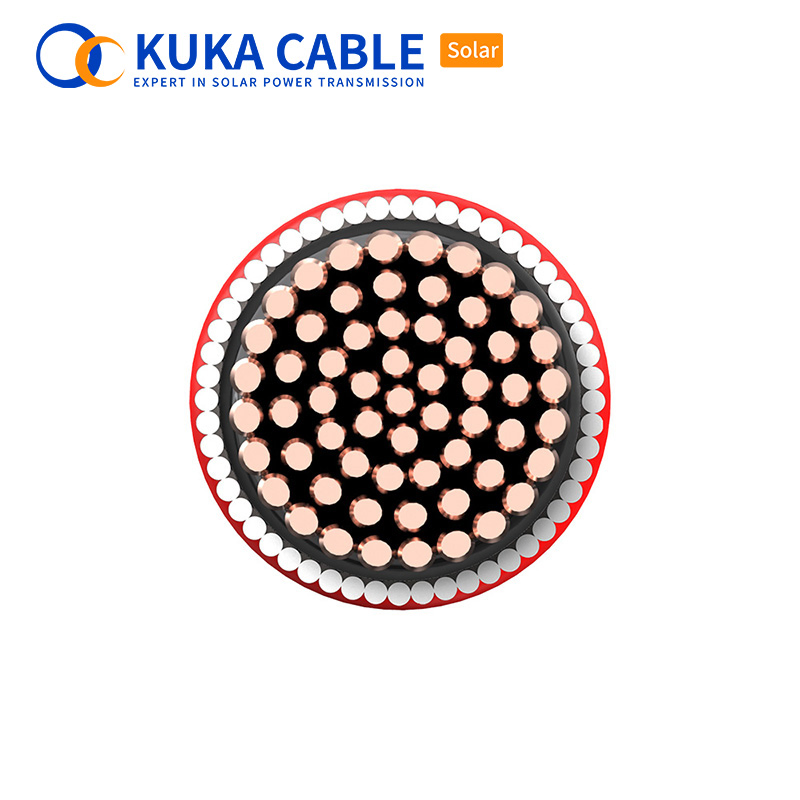

TUV Certificate 30years Expected Service Life 6mm Solar Cable for PV System
TUV Certificate 30years Expected Service Life 6mm Solar Cable for PV System
TUV Certificate 30years Expected Service Life 6mm Solar Cable for PV System
TUV Certificate 30years Expected Service Life 6mm Solar Cable for PV System
TUV Certificate 30years Expected Service Life 6mm Solar Cable for PV System
1 / 5
TUV Certificate 30years Expected Service Life 6mm Solar Cable for PV System
TUV Certificate 30years Expected Service Life 6mm Solar Cable for PV System
TUV Certificate 30years Expected Service Life 6mm Solar Cable for PV System
TUV Certificate 30years Expected Service Life 6mm Solar Cable for PV System
TUV Certificate 30years Expected Service Life 6mm Solar Cable for PV System

TUV Certificate 30years Expected Service Life 6mm Solar Cable for PV System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
H1Z2Z2-K
Application
PV System
Conductor Material
Tinned Copper
Sheath Material
Xlpo
Insulation Material
Xlpo
Certification
ISO9001, CE, CCC, RoHS, VDE
Size
6mm²
Rated Voltage
DC 1.5kv, AC 1.0/1.0kv
Standards
TUV En 50618, IEC 62930, RoHS, CPR, UL
Production Capacity
800,000 meters/Day
☀ Product Description
Solar Cable H1Z2Z2-K: High-quality electrical cables specifically designed for use in solar power systems. Made of materials that withstand extreme temperatures, UV radiation, and moisture, ensuring safe and efficient transmission of electricity.

Certified to meet international safety standards such as TUV and UL, these cables feature a long service life—often lasting up to 25 years or more. They are designed to minimize power losses and maximize system efficiency. Available in common specifications including 4mm², 6mm², and 10mm².

Solar Cable Service Life

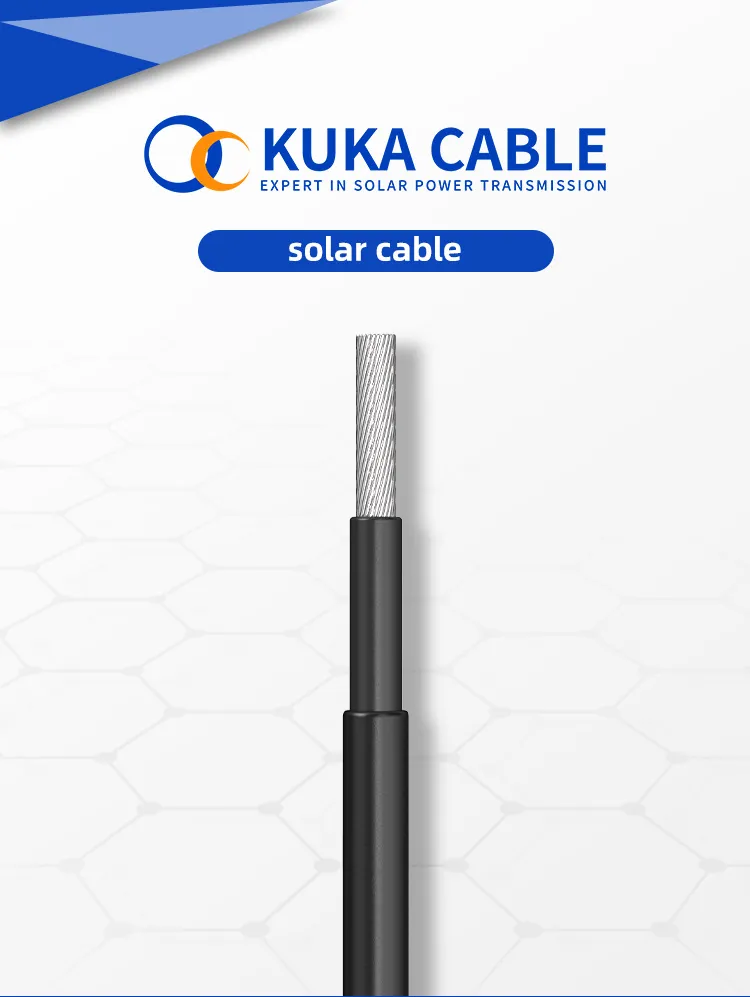

Solar Cable Detail 1

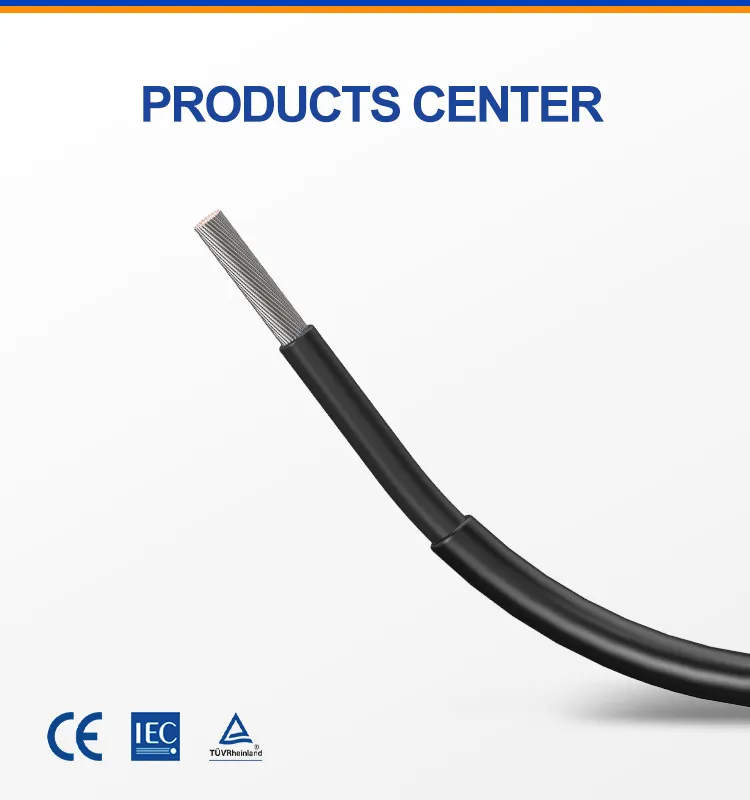

Solar Cable Detail 2

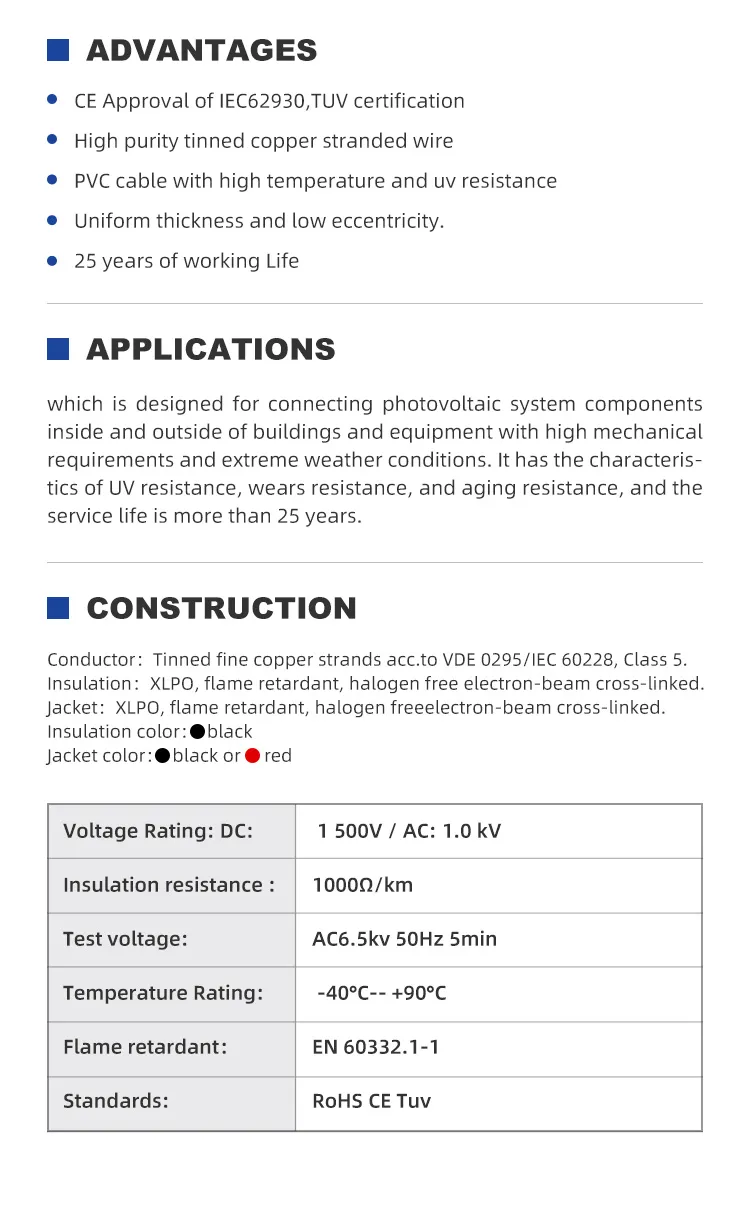

Solar Cable Detail 3

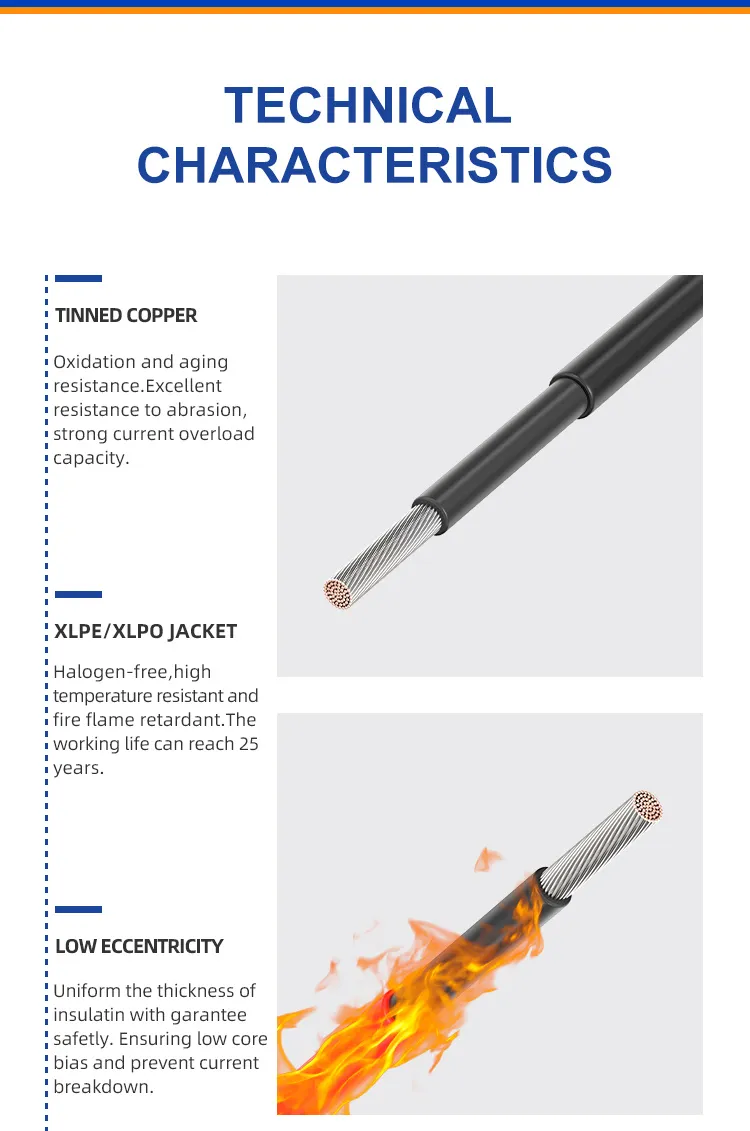

Application 1

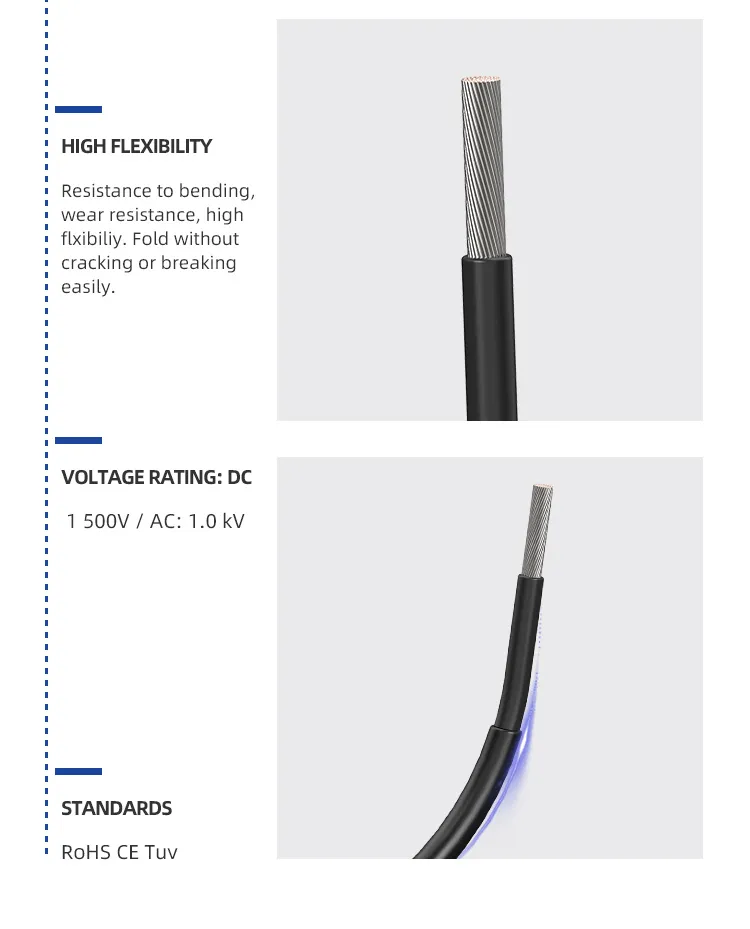

Application 2

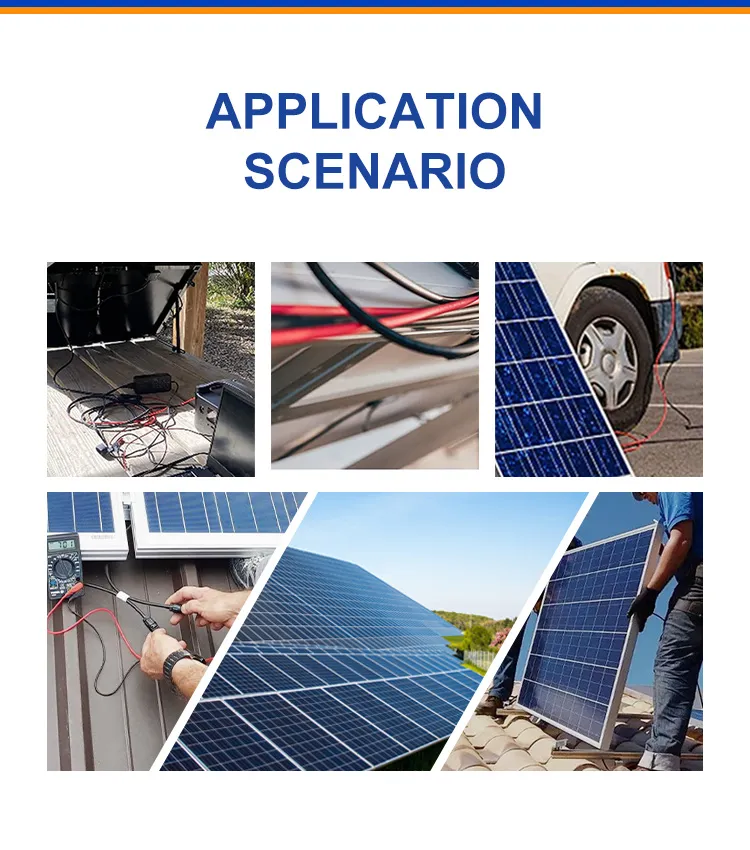

Application 3
⚙ Technical Parameters

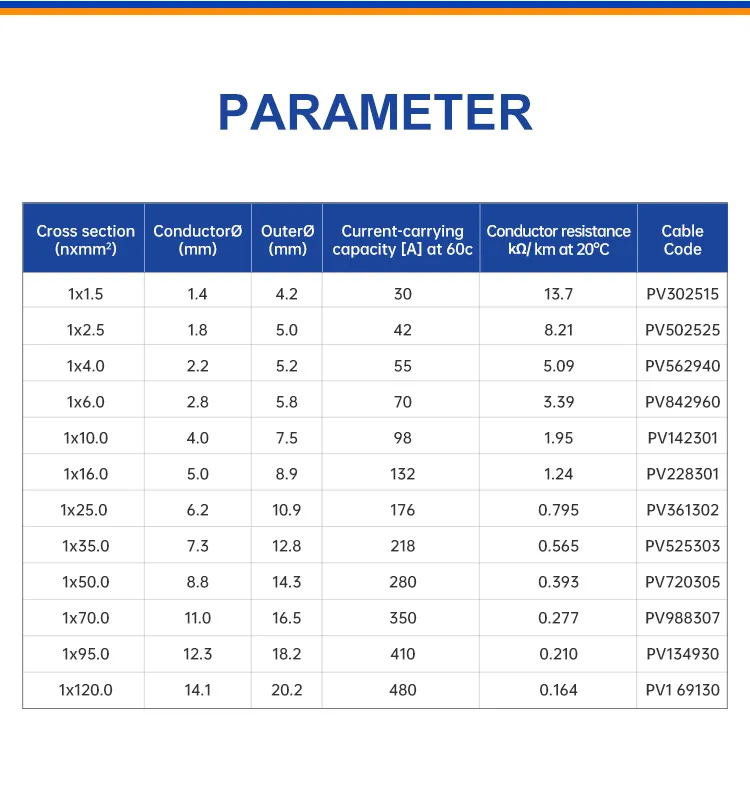

Cable Parameters Diagram
MECHANICAL FEATURE
Minimum Bending RadiusFixed: 4xOD; Flexing: 5xOD
Temperature Range-40ºC to +90ºC (Max conductor +120ºC)
Weather/UV ResistanceEN 50289-4-17
Ozone ResistanceEN 50396:2005
Halogen FreeEN 50525:1
Flame-Resistance TestEN 60332-1-2
Anticipated Service Life30 years
🏭 Production & Factory

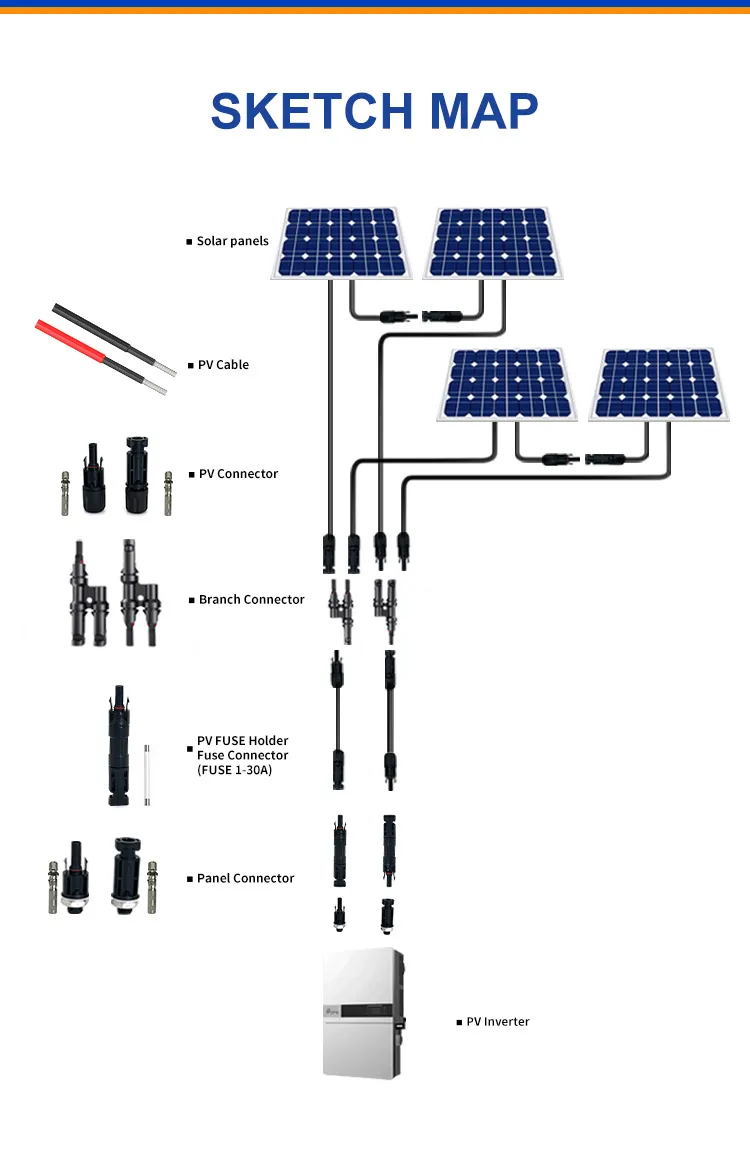

Factory Production 1
Factory Production 2

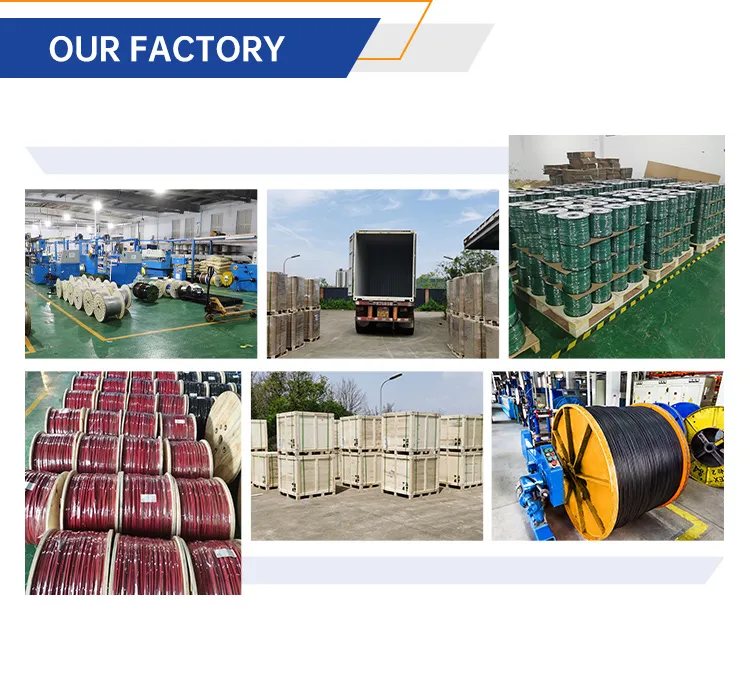

Production Facility
🎖 Certifications
TUV and Safety Certificates
❓ FAQ
What if I cannot find the specific model I need on this page?
As a professional factory, we provide full catalogs and customization services to meet your specific requirements. Please reach out for more details.
How long is the typical delivery time?
Generally, it takes 5-10 days if the goods are in stock. If not in stock, delivery typically ranges from 15-20 days depending on the order quantity.
Are samples available before placing a bulk order?
Yes, we can provide small samples for quality testing and market evaluation.
What is your Minimum Order Quantity (MOQ)?
While we have standard MOQ requirements, we are open to accepting small quantity orders to support your projects.
What is the expected service life of these solar cables?
Our PV cables are designed for durability with an anticipated service life of 30 years under standard operating conditions.
What are your standard payment terms?
For orders under 1000 USD, 100% in advance. For orders over 1000 USD, 30% T/T in advance and the remaining balance before shipment.
