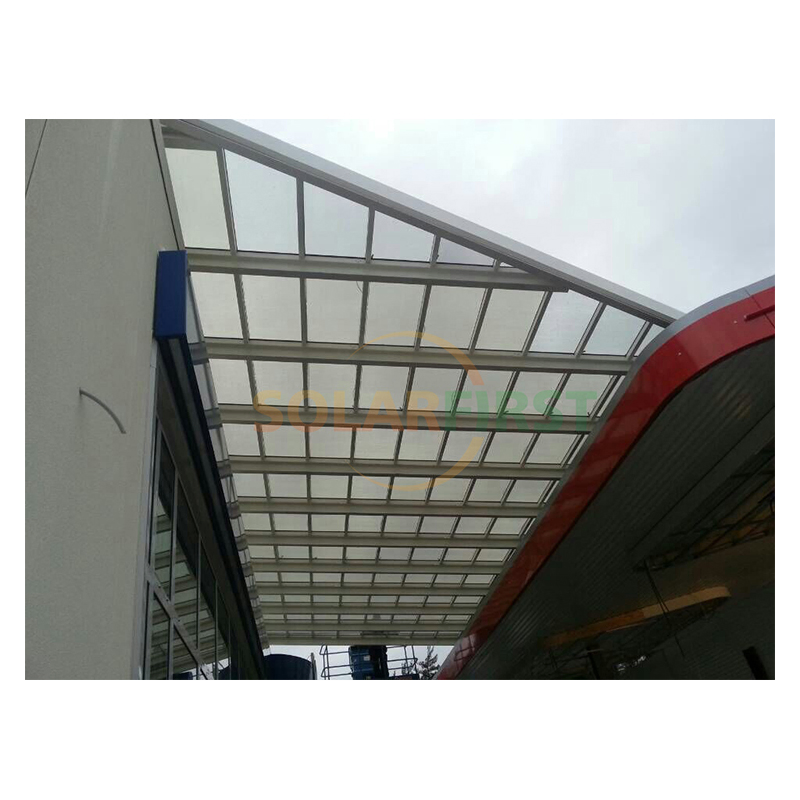

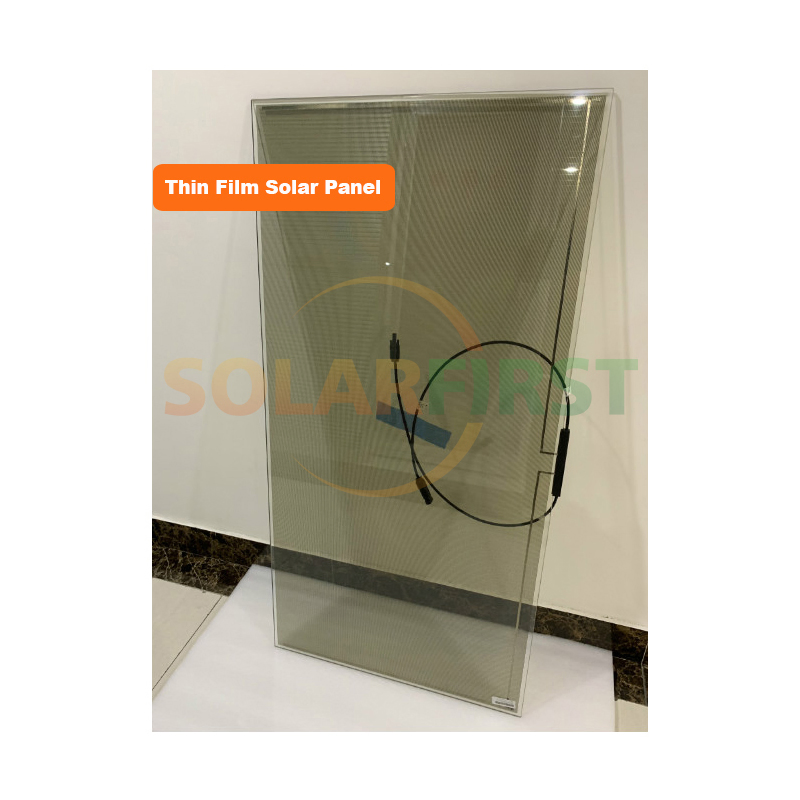

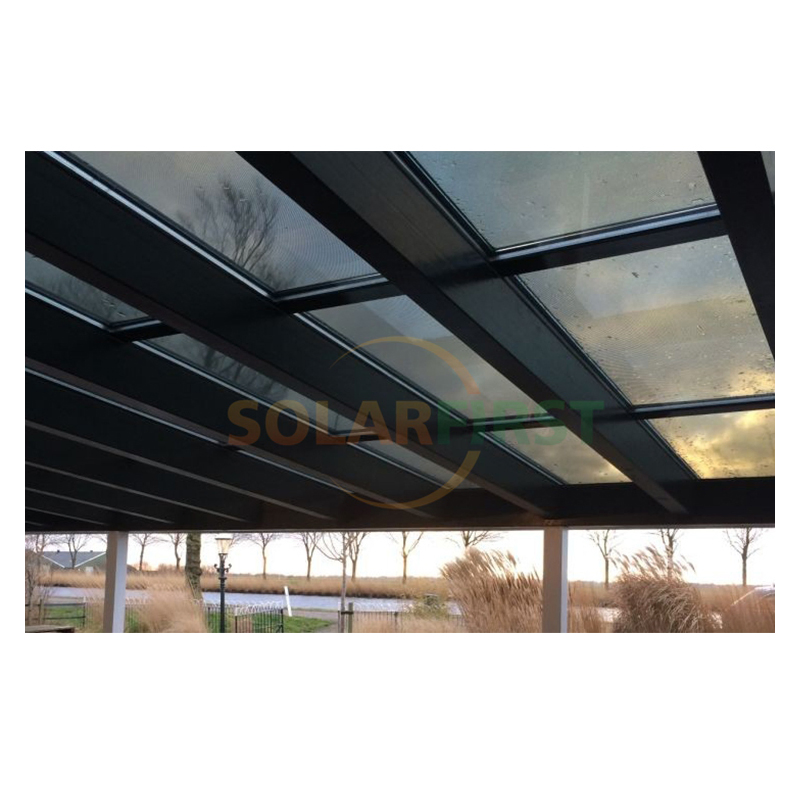

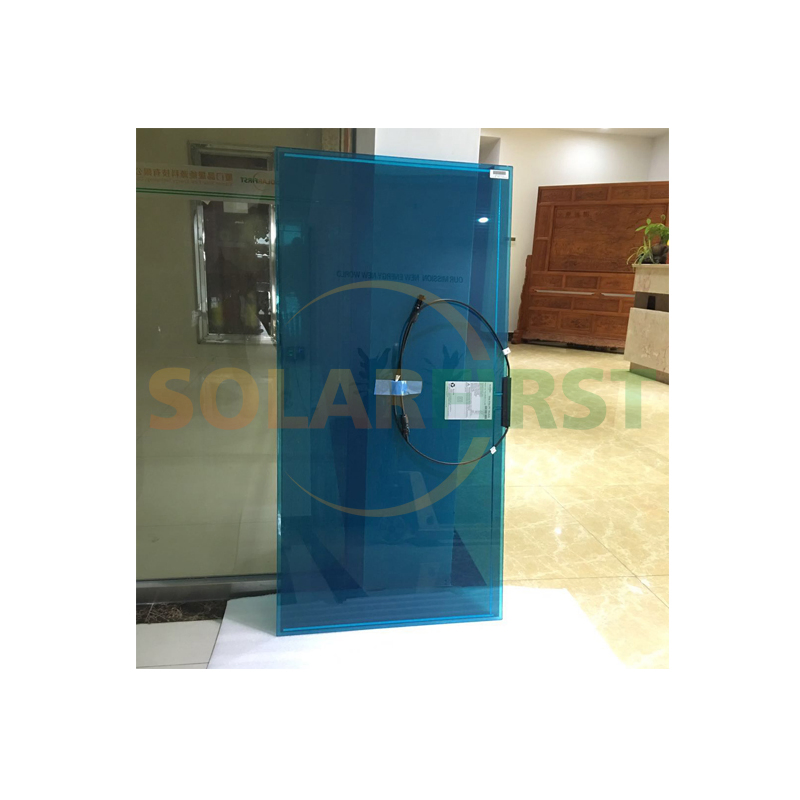

30% 40% 50% Transparent Cdte Thin Film Solar Panel BIPV for Carport
30% 40% 50% Transparent Cdte Thin Film Solar Panel BIPV for Carport
30% 40% 50% Transparent Cdte Thin Film Solar Panel BIPV for Carport
30% 40% 50% Transparent Cdte Thin Film Solar Panel BIPV for Carport
30% 40% 50% Transparent Cdte Thin Film Solar Panel BIPV for Carport
1 / 5
30% 40% 50% Transparent Cdte Thin Film Solar Panel BIPV for Carport
30% 40% 50% Transparent Cdte Thin Film Solar Panel BIPV for Carport
30% 40% 50% Transparent Cdte Thin Film Solar Panel BIPV for Carport
30% 40% 50% Transparent Cdte Thin Film Solar Panel BIPV for Carport
30% 40% 50% Transparent Cdte Thin Film Solar Panel BIPV for Carport

30% 40% 50% Transparent Cdte Thin Film Solar Panel BIPV for Carport

Customization: Available
Material: Thin Film, Cdte
Application: Industrial
Send Inquiry

Product Description

📋

Basic Information

Model NO.
SF-TFSP21
Product Name
Thin Film Solar Panel
Color
Customized Color
Feature
Light Weight
Weight
11.8kg
Frame
None
Cell Type
Cadmium Telluride
Area
0.72m2
Thickness
7mm
OEM Order
Acceptable
Warranty
10 Years
Condition
New
Certification
ISO, CE
After-sales Service
Yes
Number of Cells
Electric Line
Transport Package
Plywood Box
Specification
1200*600*7mm
Production Capacity
100000 Watts / Per Week
💡

Product Description

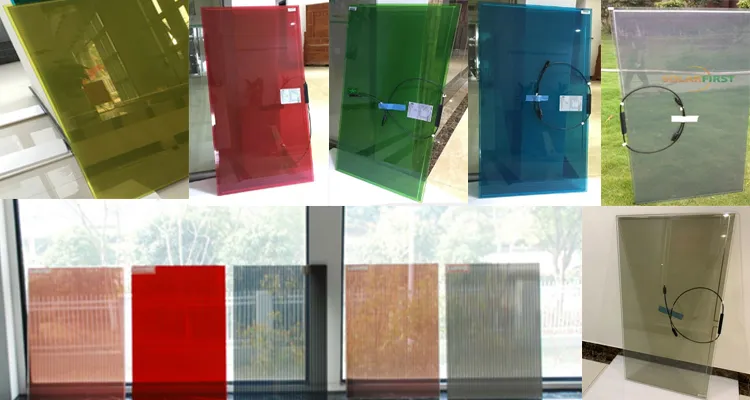

Transparent Cdte Thin Film Solar Panel

Key Features:

  • Generates electricity even at low light levels using second generation solar technology with aesthetics to suit the application.
  • Available in transparencies up to 50% with an efficiency of up to 12%.
  • Works efficiently down to ambient light levels with a highly aesthetic finish.
  • Less position sensitive; bespoke sizing available in single or double glazed panels.
⚙️

Technical Details

CDTE Transparent Thin Film Solar Panels Specification
ItemTransparencySizeWeightPmaxVocIscVmppImpp
ST1-15w80%1200*600*7mm12Kg15w111V0.23A85.5V0.18A
ST1-23w70%1200*600*7mm12Kg23w114V0.31A87.8V0.26A
ST1-30w60%1200*600*7mm12Kg30w114V0.41A87.8V0.34A
ST1-34w55%1200*600*7mm12Kg34w114V0.46A87.8V0.39A
ST1-38w50%1200*600*7mm12Kg38w114V0.51A87.8V0.43A
ST1-42w45%1200*600*7mm12Kg42w114V0.56A87.8V0.48A
ST1-46w40%1200*600*7mm12Kg46w114V0.61A87.8V0.52A
ST1-52w30%1200*600*7mm12Kg52w114V0.72A87.8V0.59A
ST1-61w20%1200*600*7mm12Kg61w114v0.82A87.8V0.70A
CDTE No Transparency Thin Film Solar Panels Specification
ItemTransparencySizeWeightPmaxVocIscVmppImpp
SF1-85wNo1200*600*6.8mm11.8Kg85w120.5V0.98A96.06V0.88A
SF1-90wNo1200*600*6.8mm11.8Kg90w122.0V1.06A96V0.94A
SF1-94wNo1200*600*6.8mm11.8Kg94w122.5V1.08A96V0.96A

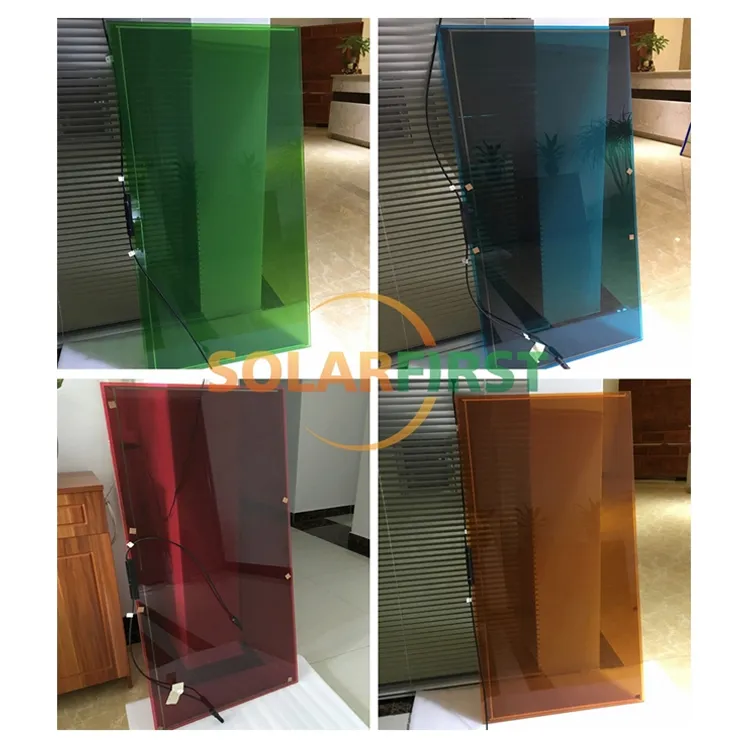

Solar Panel Detail 1

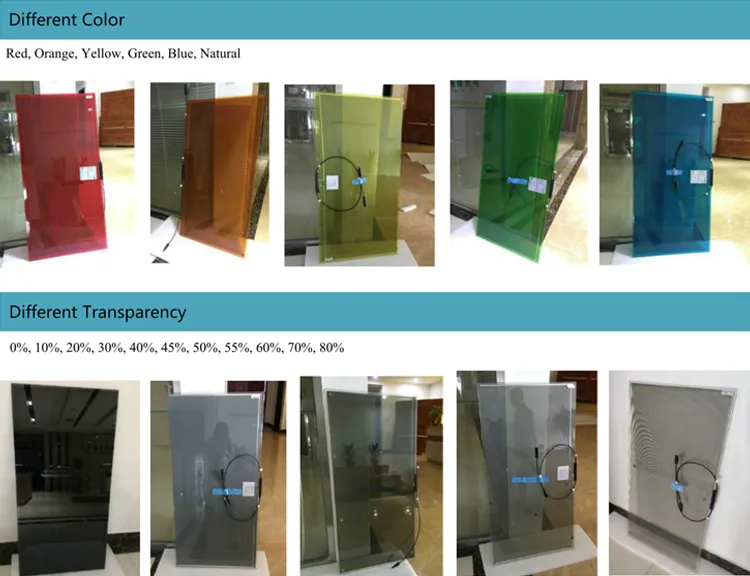

Solar Panel Detail 2
🏭

Production & Logistics

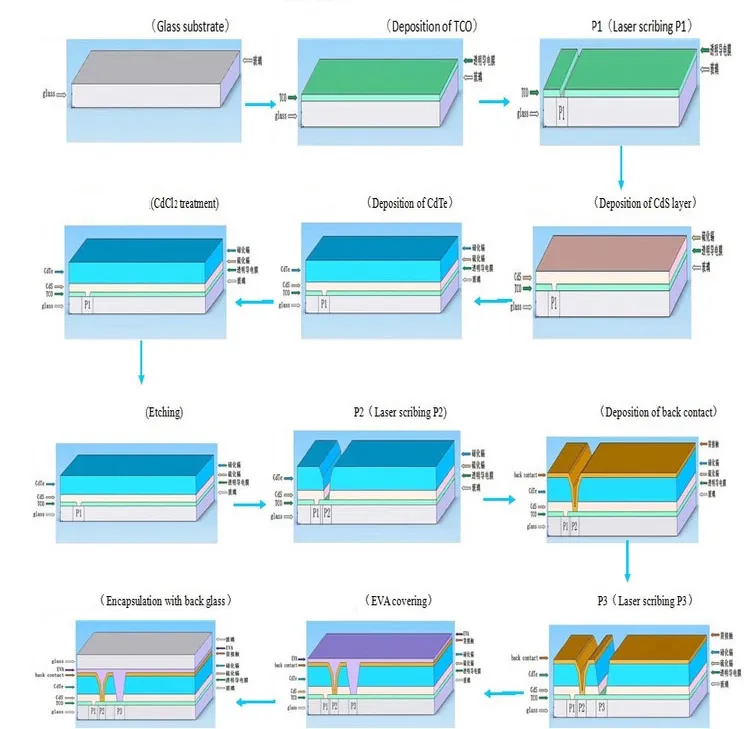

Production Process:

Production Process

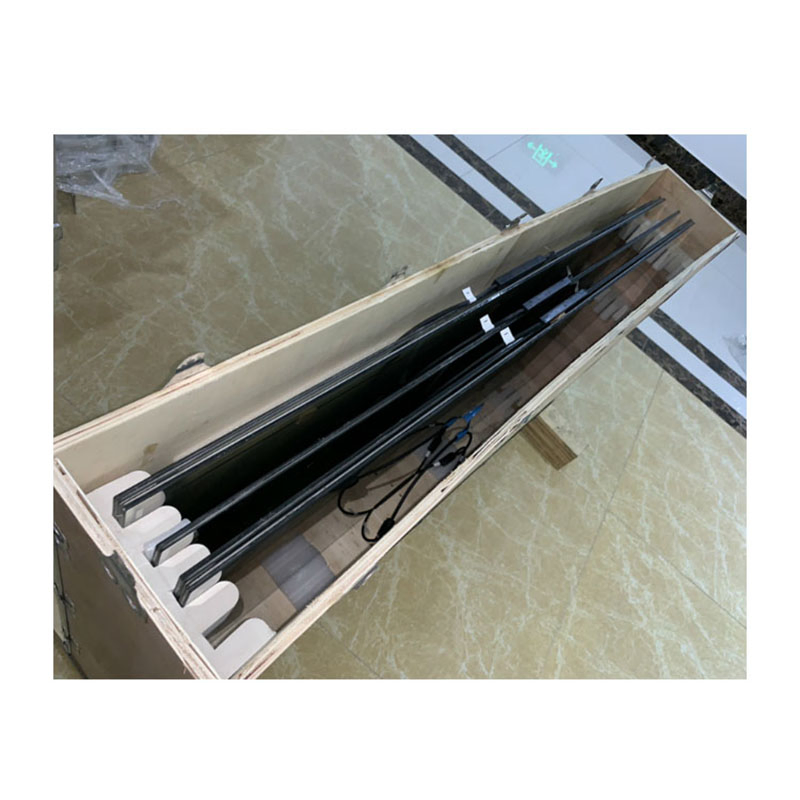

Packaging & Shipping:

Packaging and Shipping
🏗️

Projects & Exhibition

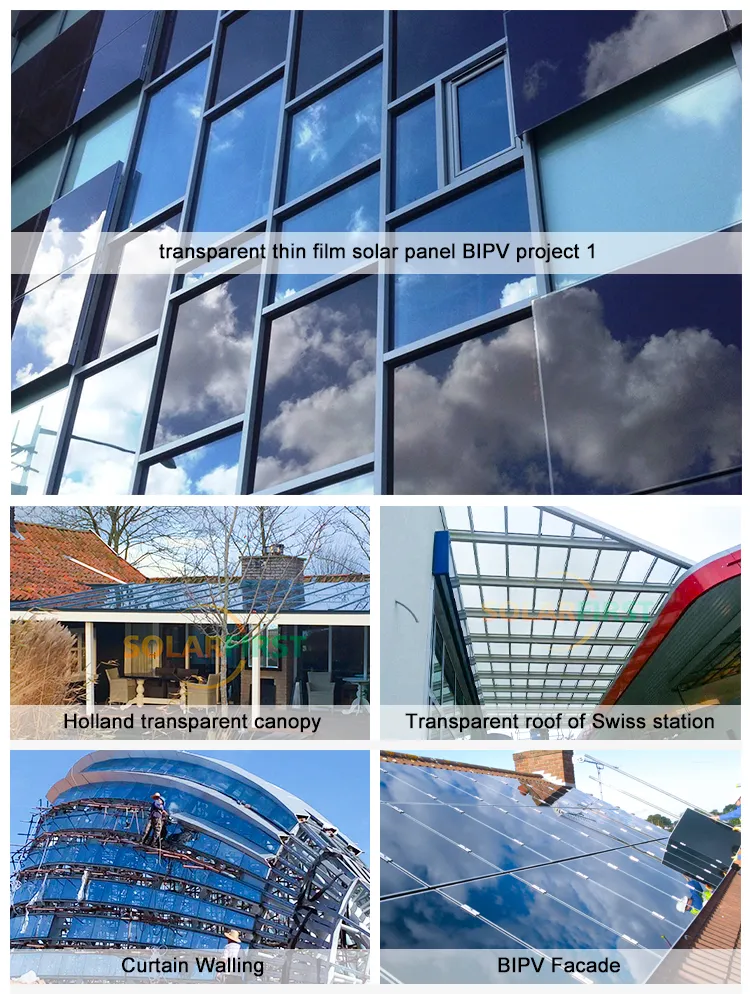

Project Showcase
Exhibition Display
❓

Frequently Asked Questions

What is the advantage of thin film solar panel?
Thin film solar panel is a new category of products compared to traditional crystalline solar panels; it can produce electricity even in dim light conditions.
What is the typical application of these panels?
They are mostly used in BIPV (Building Integrated Photovoltaics) projects and on roof mounting systems where aesthetics and transparency are required.
Are you a manufacturer?
Yes, we are a manufacturer. You are warmly welcomed to visit our factory facility.
What are the available sizes and colors?
Our standard size is 1200*600*7mm. Any other sizes and colors can be customized according to specific customer demands.
What is the warranty period for these panels?
We provide a 10-year warranty on our thin film solar panels to ensure long-term reliability and performance.
What certifications do your products hold?
Our products are fully certified with ISO and CE standards, meeting international quality and safety requirements.
