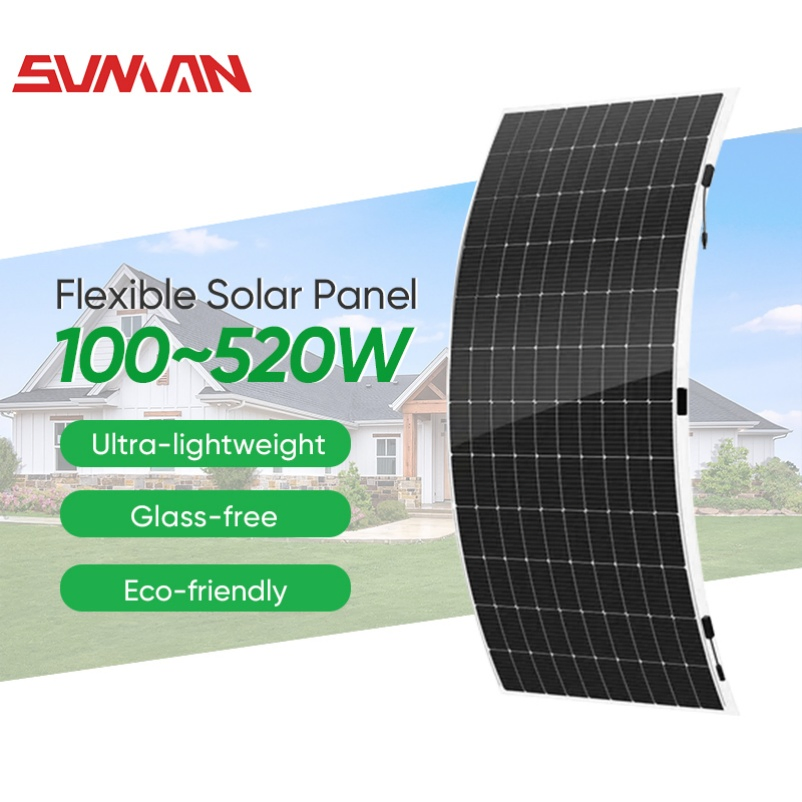

Sunman High Quality Flexible Solar Panel 380W 400W 430W 500W 520W Portable Solar Photovoltaic Panel Silicon Thin Film Solar Panel for Camping
Sunman High Quality Flexible Solar Panel 380W 400W 430W 500W 520W Portable Solar Photovoltaic Panel Silicon Thin Film Solar Panel for Camping
Sunman High Quality Flexible Solar Panel 380W 400W 430W 500W 520W Portable Solar Photovoltaic Panel Silicon Thin Film Solar Panel for Camping
Sunman High Quality Flexible Solar Panel 380W 400W 430W 500W 520W Portable Solar Photovoltaic Panel Silicon Thin Film Solar Panel for Camping
Sunman High Quality Flexible Solar Panel 380W 400W 430W 500W 520W Portable Solar Photovoltaic Panel Silicon Thin Film Solar Panel for Camping
1 / 5
Sunman High Quality Flexible Solar Panel 380W 400W 430W 500W 520W Portable Solar Photovoltaic Panel Silicon Thin Film Solar Panel for Camping
Sunman High Quality Flexible Solar Panel 380W 400W 430W 500W 520W Portable Solar Photovoltaic Panel Silicon Thin Film Solar Panel for Camping
Sunman High Quality Flexible Solar Panel 380W 400W 430W 500W 520W Portable Solar Photovoltaic Panel Silicon Thin Film Solar Panel for Camping
Sunman High Quality Flexible Solar Panel 380W 400W 430W 500W 520W Portable Solar Photovoltaic Panel Silicon Thin Film Solar Panel for Camping
Sunman High Quality Flexible Solar Panel 380W 400W 430W 500W 520W Portable Solar Photovoltaic Panel Silicon Thin Film Solar Panel for Camping

Sunman High Quality Flexible Solar Panel 380W 400W 430W 500W 520W Portable Solar Photovoltaic Panel Silicon Thin Film Solar Panel for Camping

Customization: Available
After-sales Service: Yes
Warranty: 25 Years
Send Inquiry

Product Description

📊

Basic Info

Model NO.:SMF520J-12X12UW
Number of Cells:144cells
Application:Homeuse
Certification:ISO, CE, TUV
Material:Monocrystalline Silicon
Pmax:520
Vmp:42.3
Module Efficiency:19.3%
Weight:8.6kg
Specification:2246*1197*2mm
📝

Product Description

The 520W Flexible Solar Panel is a high-efficiency, lightweight, and bendable monocrystalline module designed for versatile solar energy applications. Utilizing advanced thin-film technology with ETFE coating, this ultra-thin (2mm) panel delivers up to 520W output with 22%+ efficiency, making it ideal for curved surfaces, portable setups, and space-constrained installations.

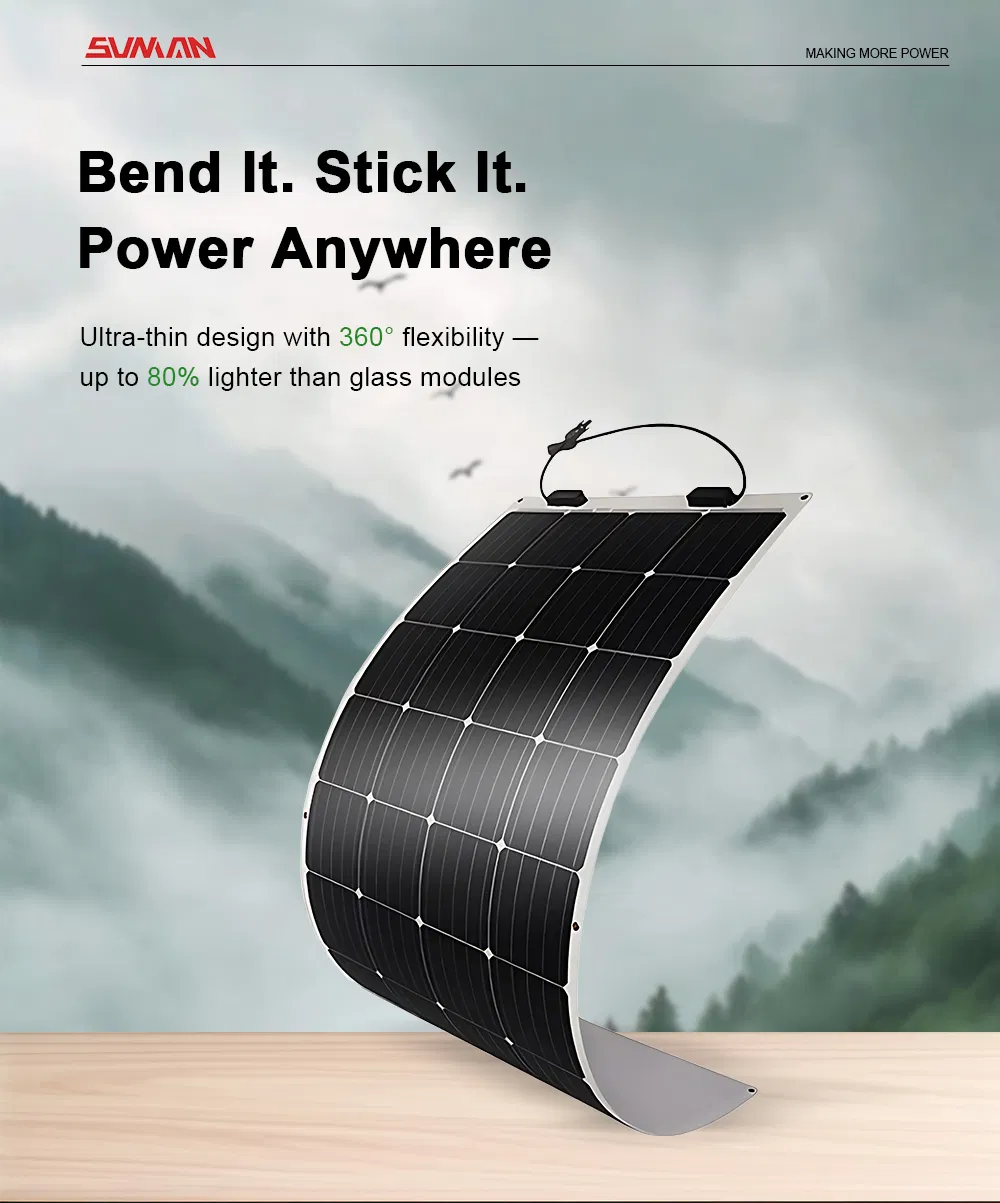

Flexible Solar Panel

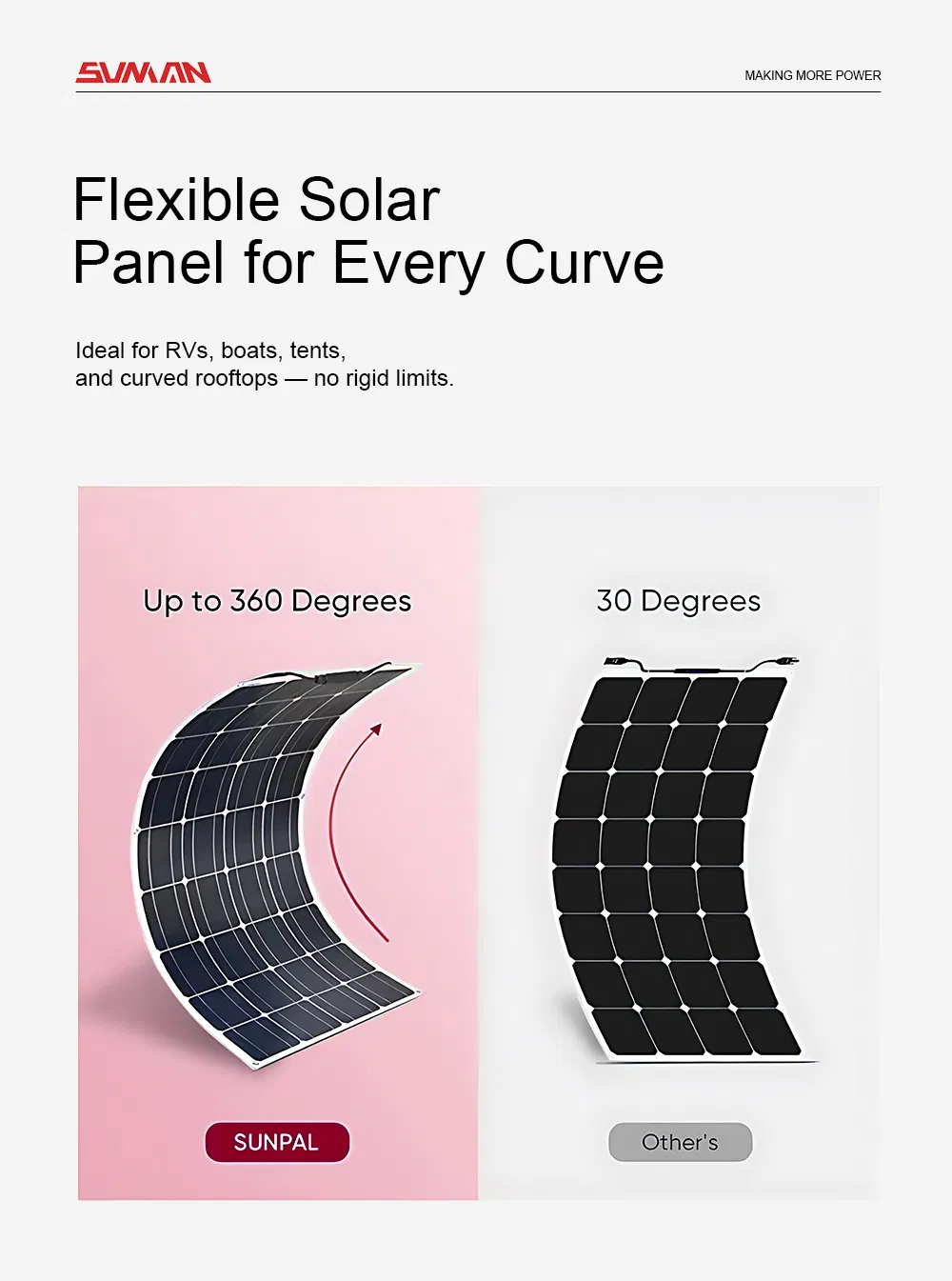

Flexible Solar Panel Details

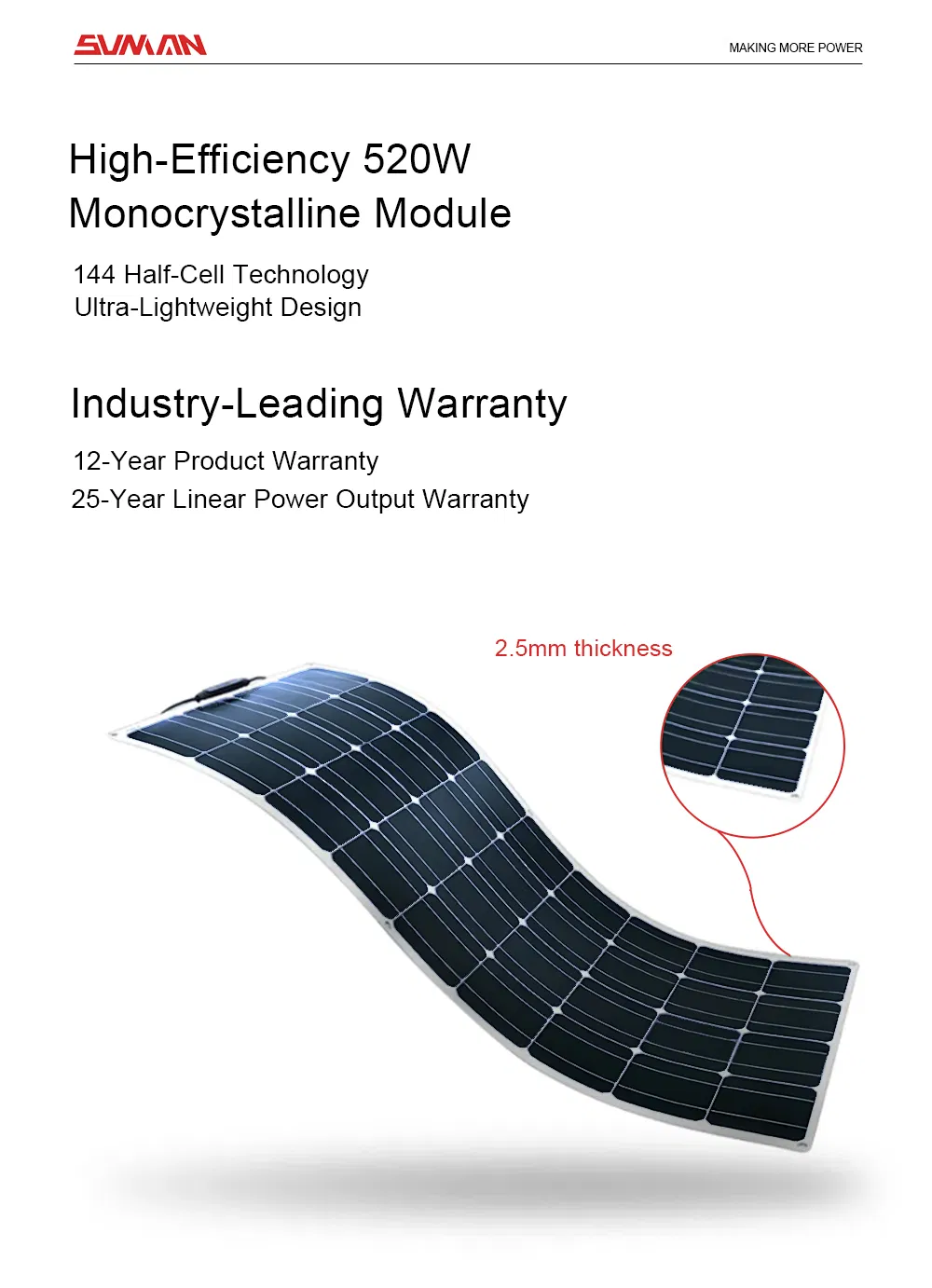

High Efficiency Module

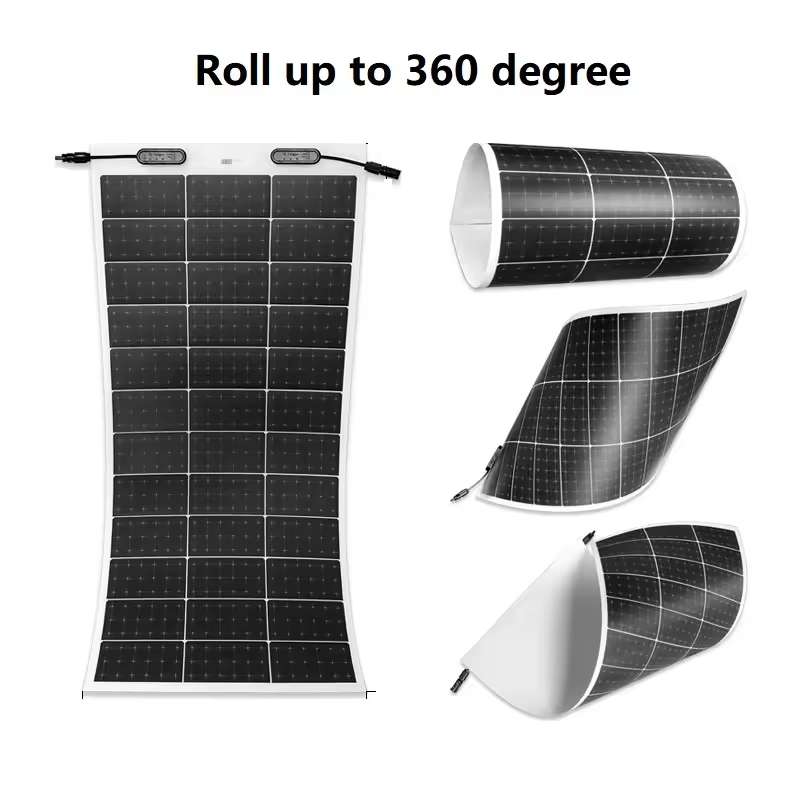

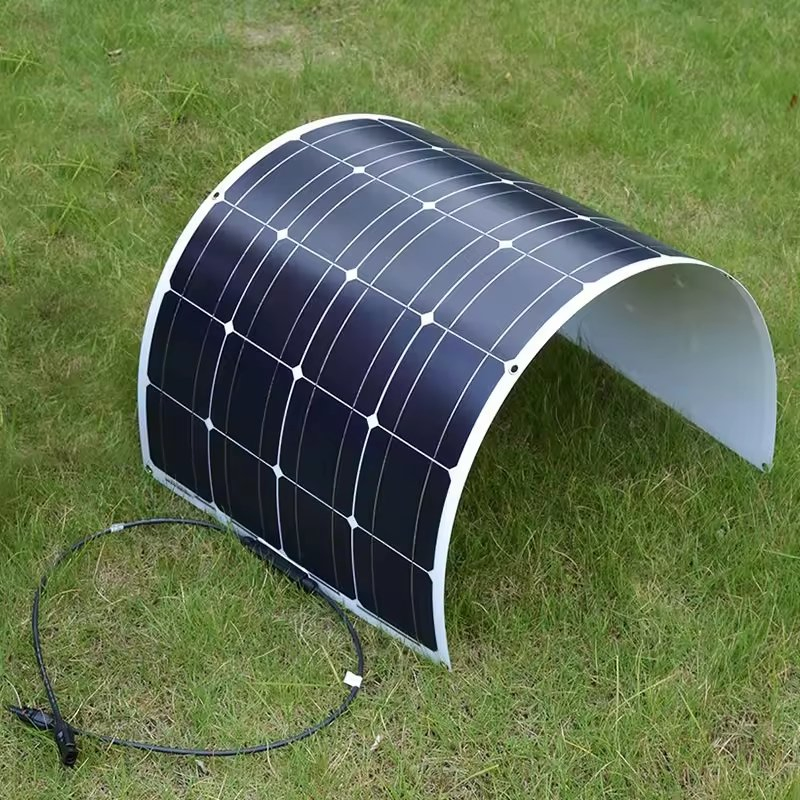

Bending Performance
⚙️

Product Parameters

ParameterValue (SMF520J-12X12UW)
Maximum Power (Pmax)520 W
Maximum Power Voltage (Vmp)42.3 V
Maximum Power Current (Imp)12.31 A
Open-circuit Voltage (Voc)49.5 V
Short-circuit Current (Isc)13.56 A
Module Efficiency (%)19.3%
Operating Temperature-40ºC to 85ºC
Maximum System Voltage1500V DC(IEC)
Weight8.6 KG
Size2246*1197*2 mm
⭐

Key Features & Benefits

  • ✔
    High Efficiency: 520W rated power with up to 23% module efficiency using premium monocrystalline cells.
  • ✔
    Flexible & Lightweight: Ultra-thin 2mm profile, bendable up to 30-40°, and 70% lighter than traditional glass panels.
  • ✔
    Durable ETFE Coating: UV-stable, corrosion-resistant, and walkable design (up to 120kg load).
  • ✔

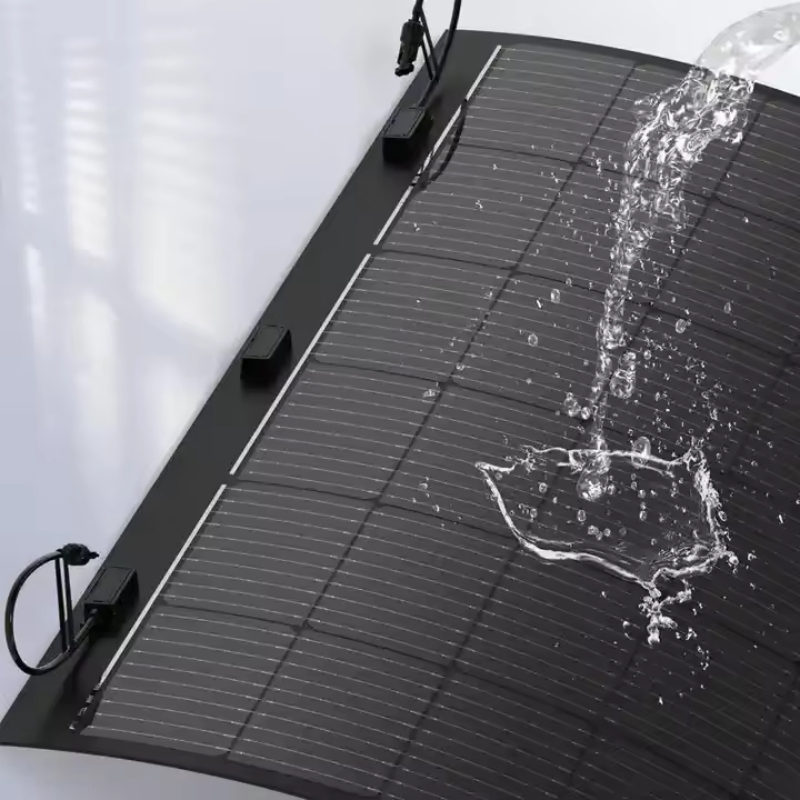

    Weatherproof: IP67/IP68 rated for extreme waterproof and dustproof performance.
  • ✔
    Easy Install: Pre-drilled holes and adhesive compatibility for quick setup on boats, RVs, and roofs.

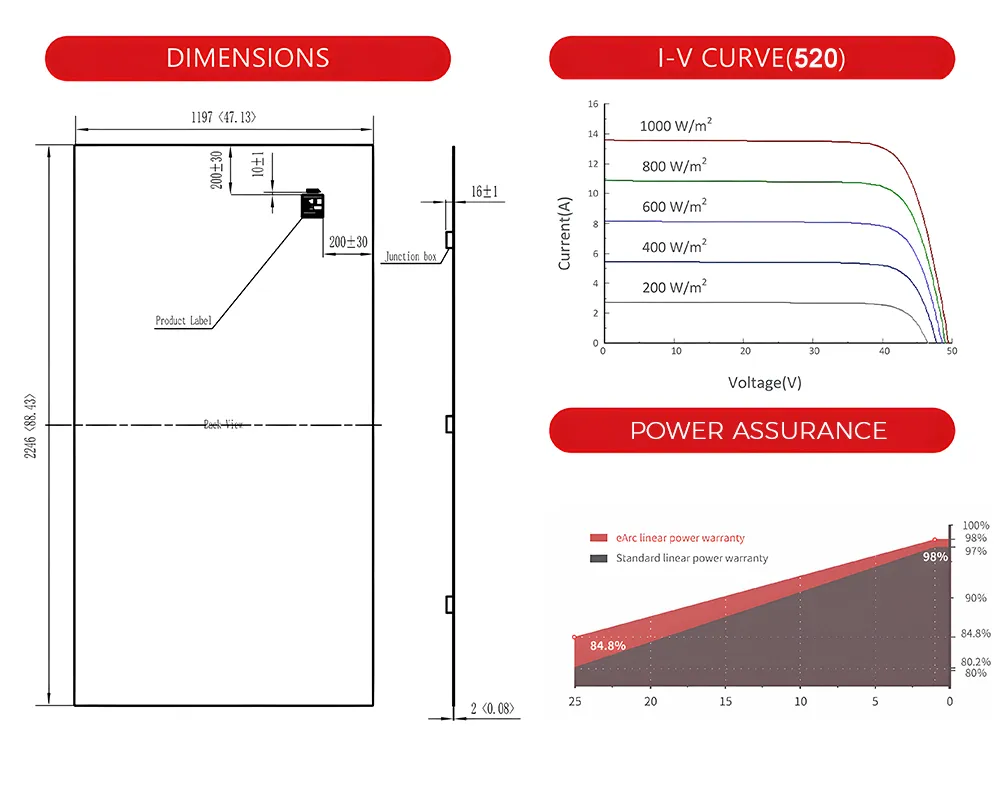

Structure Details

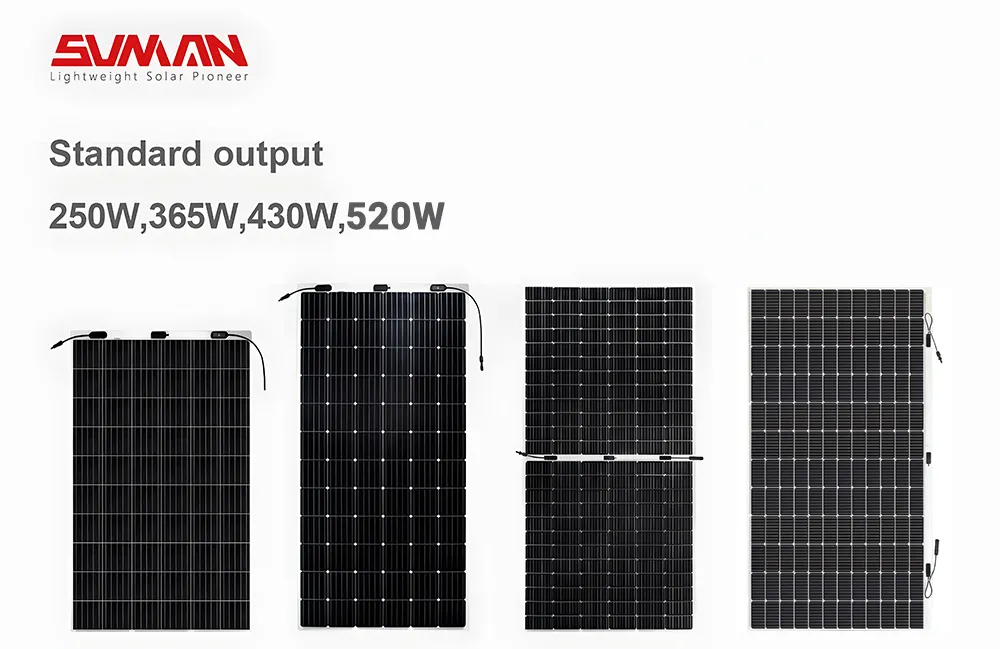

Connection Details
🏠

Project Cases

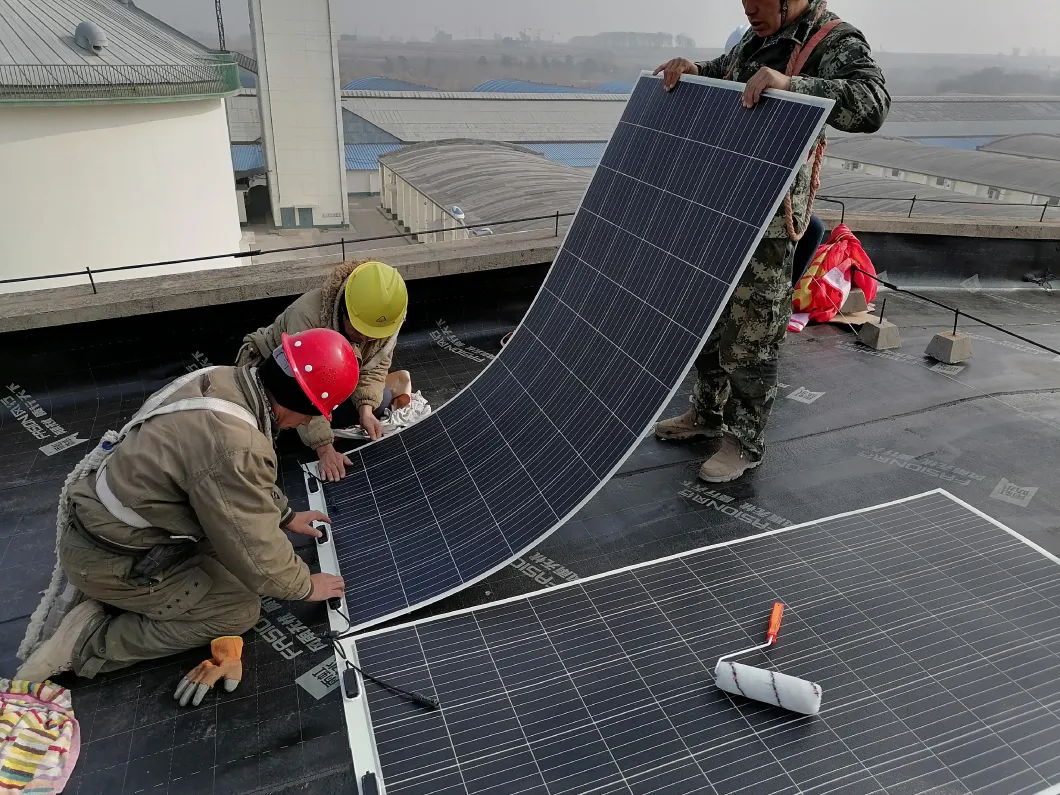

RV Project

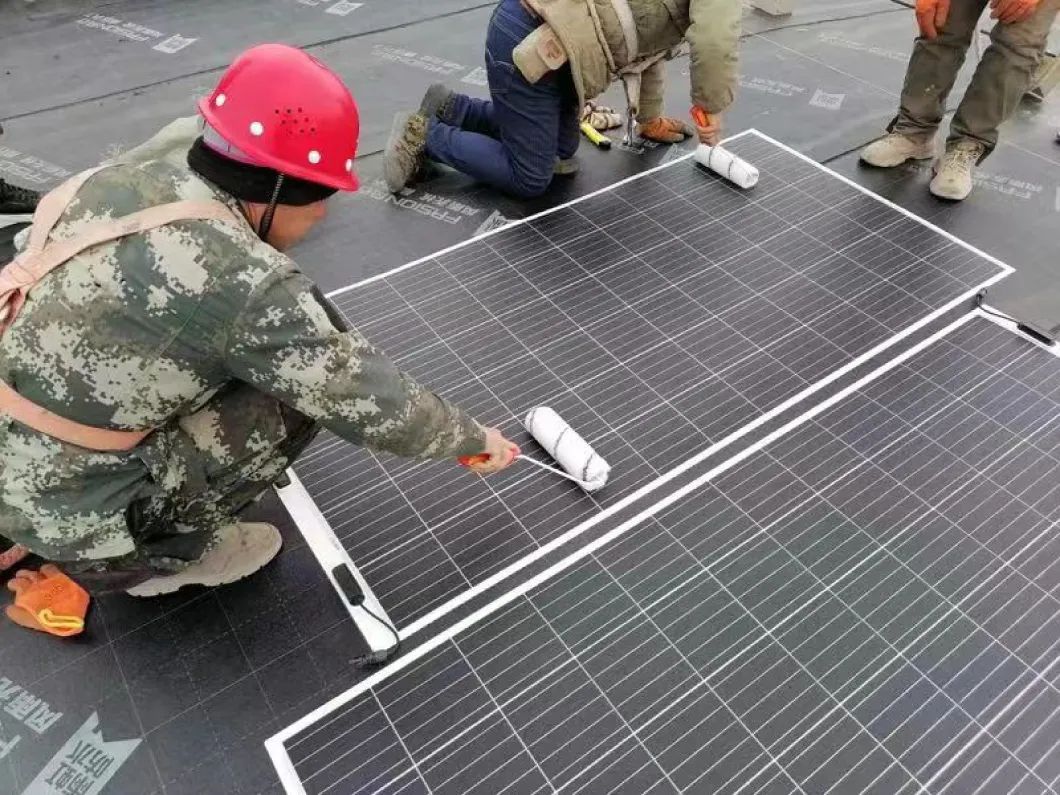

Marine Project

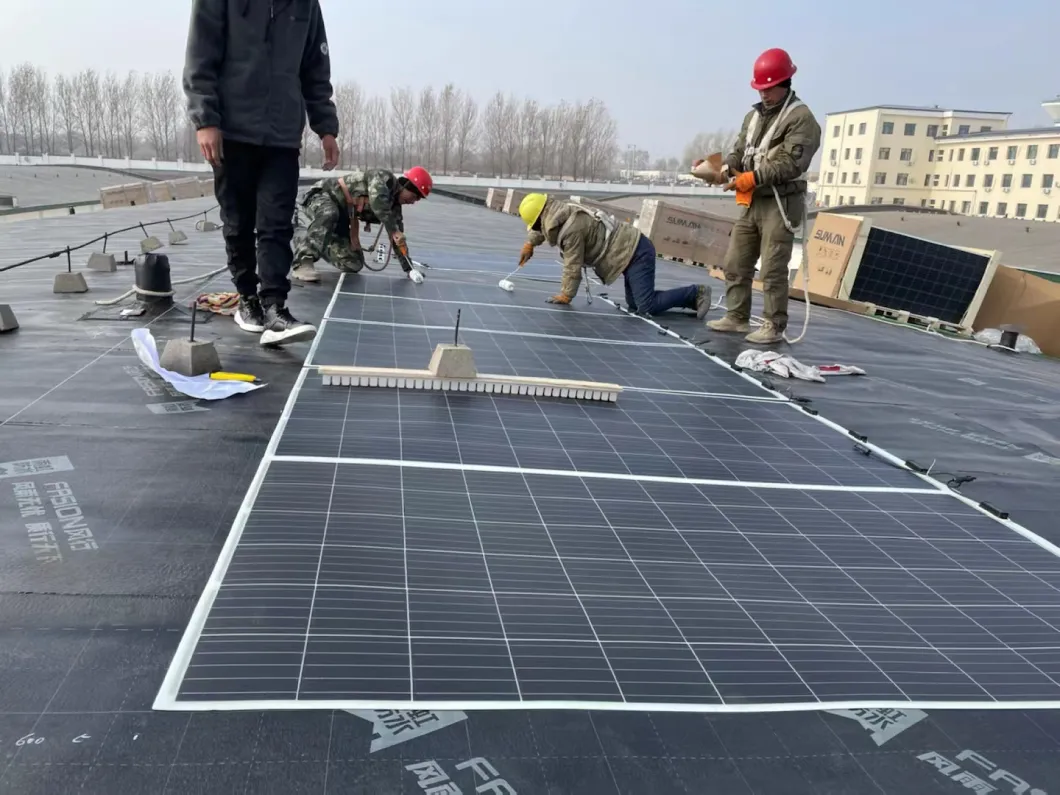

Roof Installation
🏆

Certifications

Certificate 1
Certificate 2
Certification Logo
❓

Frequently Asked Questions

Q: What is the bend radius of this flexible panel?
Up to 30-40°—suitable for slightly curved surfaces like RV roofs or boats, but not for sharp folds.
Q: Is it waterproof?
Yes—IP67/IP68 rated, fully sealed against dust, rain, and submersion, ideal for outdoor and marine use.
Q: Can it be walked on?
Yes—The ETFE coating supports up to a 120kg load, though heavy stepping on the junction box should be avoided.
Q: What batteries/inverters is it compatible with?
It works with any MPPT charge controller or inverter for 12V/24V/48V systems using standard MC4 connectors.
Q: How does it perform in low light?
Excellent performance—premium monocrystalline cells maintain high output even in cloudy or shaded conditions.
Q: What is the product warranty?
We provide a 10-year product warranty against defects and a 25-year linear power warranty (80% output retention).
