Wing Solar
Wing Solar

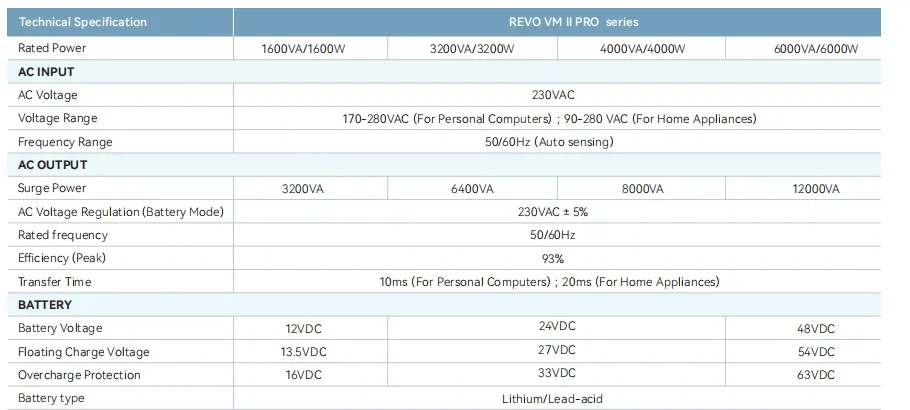

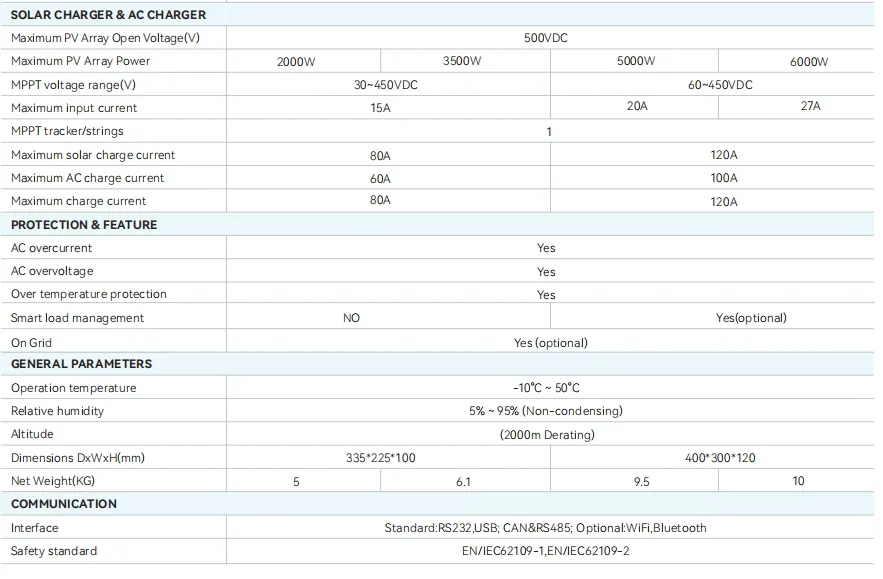

| Model NO. | REVO VM II PRO |
| Nature of Source Flow | Passive inverter |
| Phase | Single |
| Output Power | >1000W |
| Certification | CE, ISO9001 |
| Type | DC/AC Inverters |
| Power Source | Solar Power |
| Nominal Output Voltage | 220/230/240VAC |
| Maximum Conversion Efficiency | up to 93.5% |
| Frequency Range | 50Hz/60Hz (Auto Sensing) |
| Operating Temperature | 0 to 50 °C |
| Transport Package | Standard Exported Package |

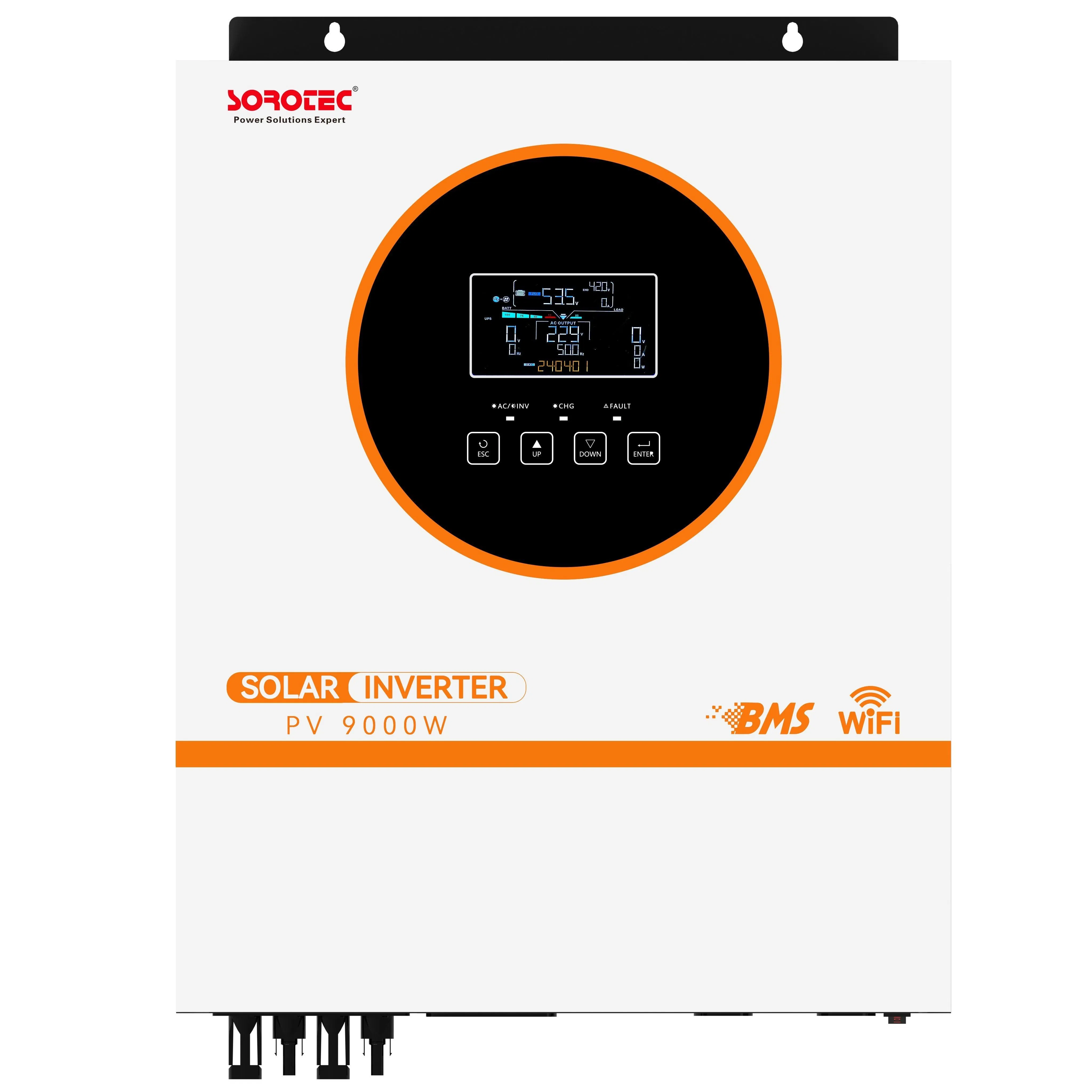

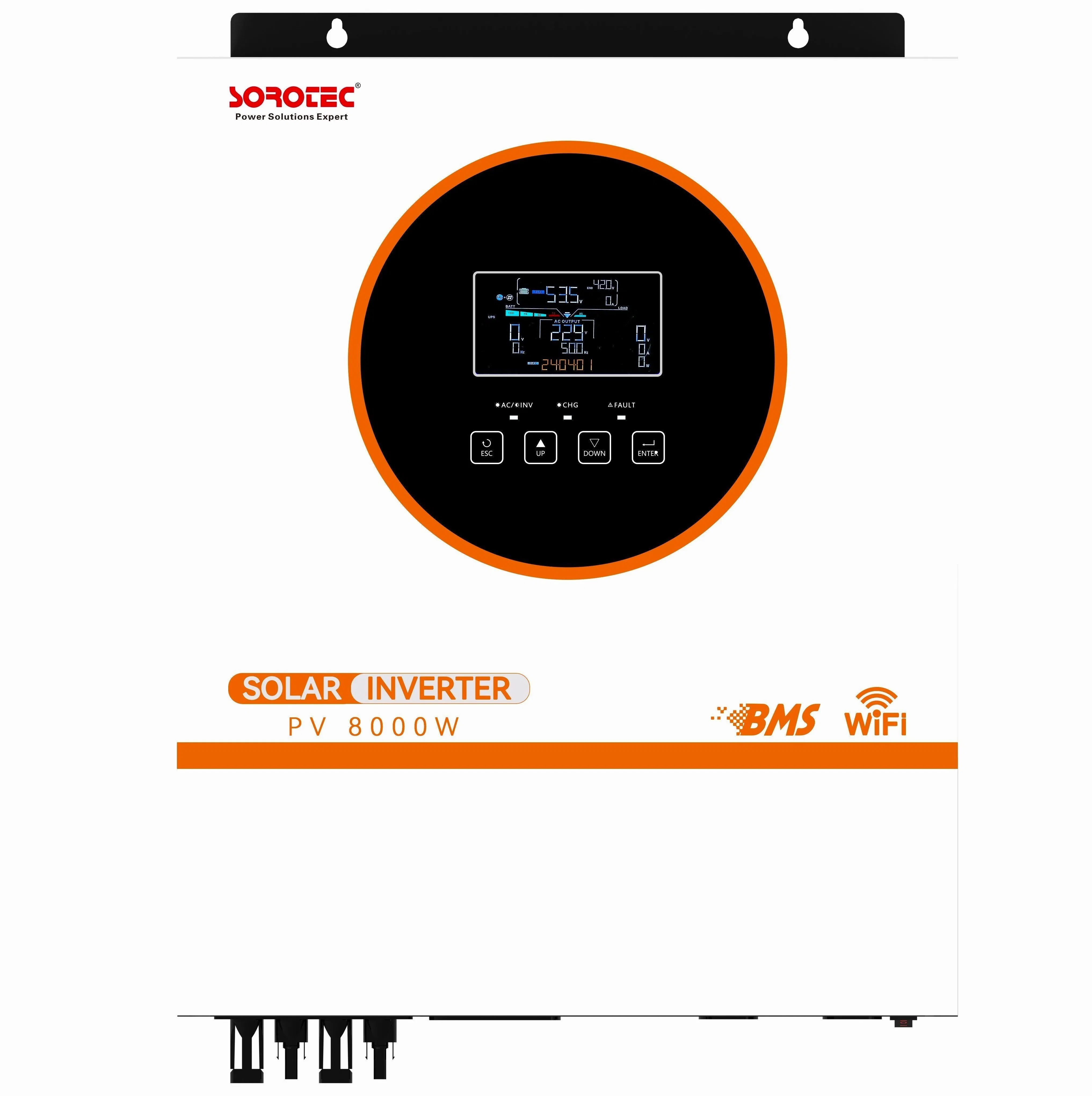

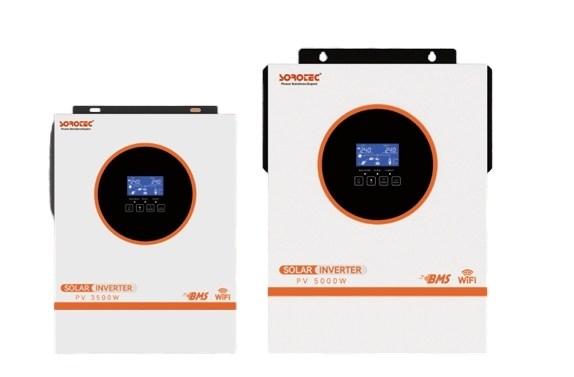

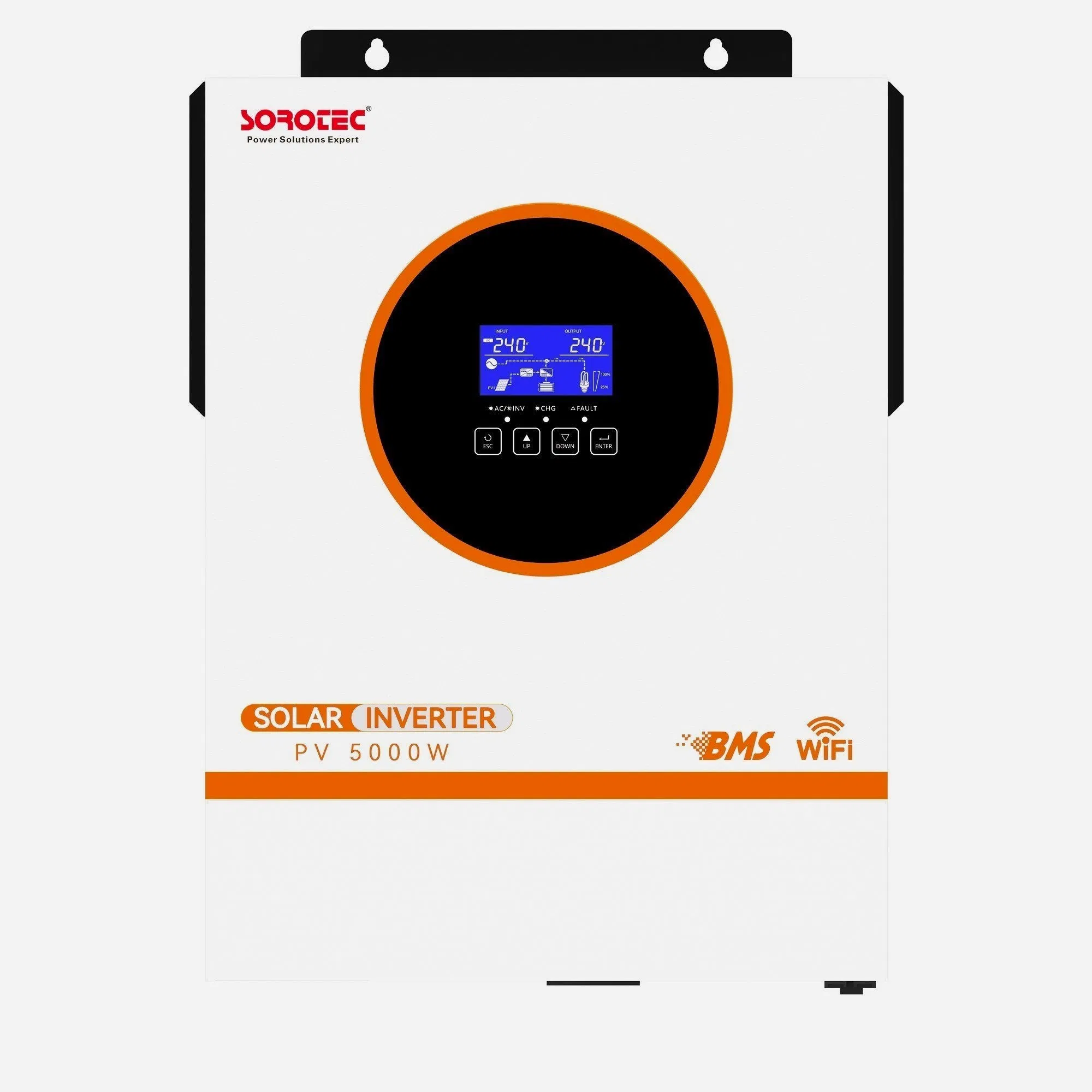

This Series features a Touch Display Screen 3-5.5KW On/Off Grid Hybrid Energy Storage Solar Inverter. It is engineered as an affordable yet highly reliable hybrid solar inverter, designed to deliver strong performance in regions where power stability is a daily challenge.

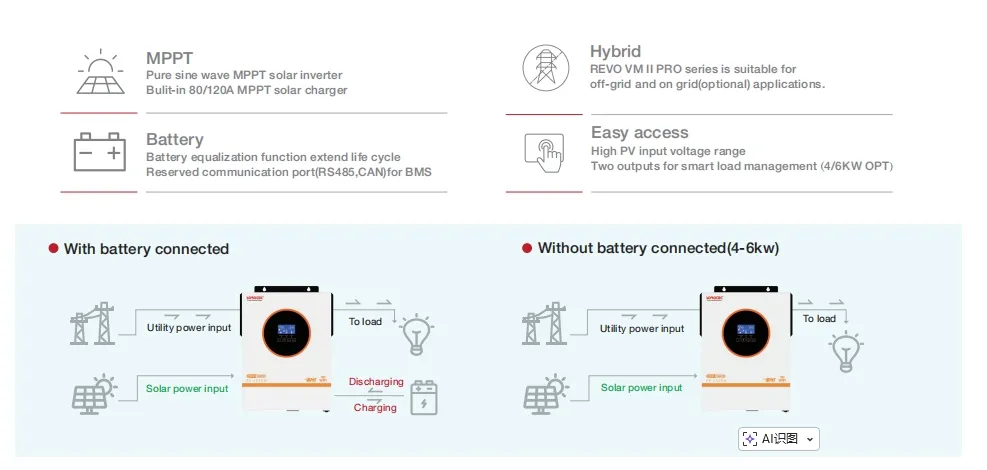

The system is a value-oriented solution that retains intelligent functions such as WiFi/GPRS app monitoring, flexible operating modes (Solar First / Battery First / AC First), and LCD display for real-time system data. Parallel operation is supported on 4kW-10kW models (up to 6 units), enabling users to scale gradually based on budget and future load expansion.
| Package Size | 70.00cm * 40.00cm * 51.00cm |
| Package Gross Weight | 10.000kg |
