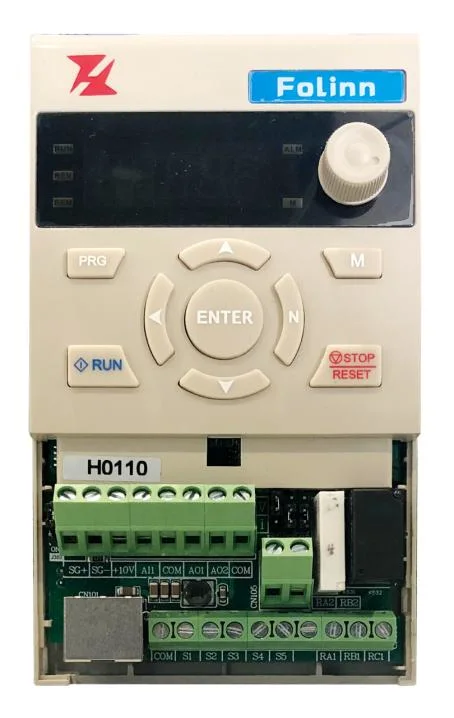

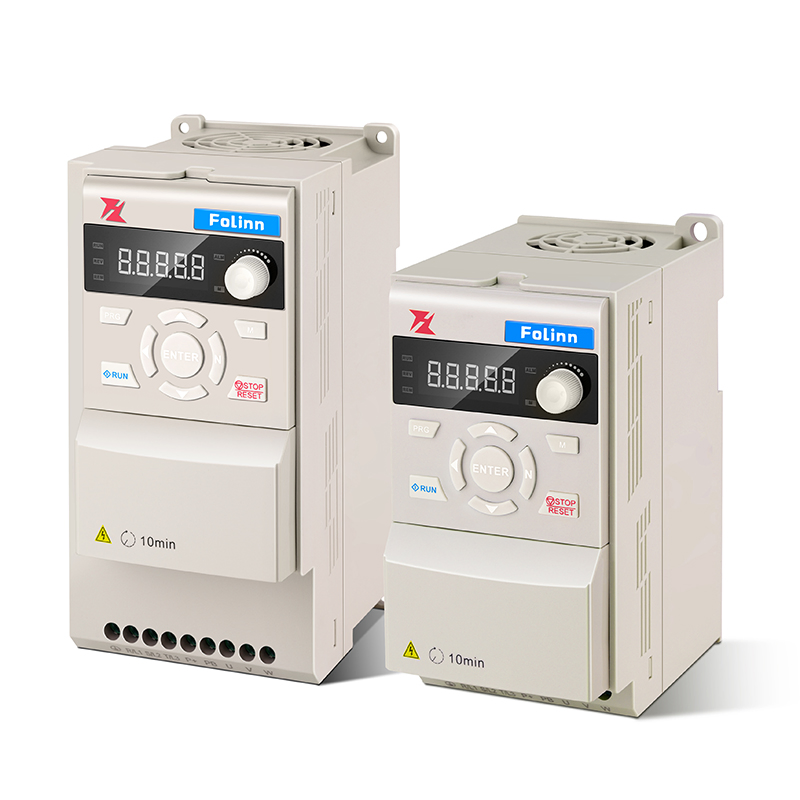

Solar Water Pump Inverter Can Be Put in AC and DC Voltage for Irrigation

Basic Specifications

Model NO.

H129

Principle of Work

Vector Control Transducer

Switch Mode

PWM Control

Main Circuit Type

Voltage

Voltage Supply

Low Voltage VFD

Link of Transformation

DC-AC

Nature of DC Power

Voltage VFD

Function

Special for Water Pump

Color

White

Input Voltage

DC, AC

Output Frequency

0-1000Hz

HS Code

8504409999

Origin

China

Production Capacity

1000

Packaging & Logistics

Package Size

22.50cm * 11.00cm * 16.50cm

Gross Weight

1.200kg

Transport Package

Carton

Product Overview

The H129 series photovoltaic water pump special inverter is a high-performance vector control technology developed for the photovoltaic water pump industry. It features maximum power point tracking (MPPT), intelligent sleep and wake-up functions, under-load protection, water shortage alarms, and other advanced control functions. Designed for easy wiring and seamless operation.

Key Features

⚡

Flexible Application: Suitable for three-phase asynchronous and synchronous motors, and mainstream photovoltaic modules.

💧

Water Management: Connects to various water level switches or sensors for automated control.

⚙️

Smart Functionality: Programmable application macros simplify custom function calls and complex tasks.

🔌

Grid Switching: Cost-effective design allows switching to the grid power when needed.

📏

Compact Design: Small size allows for zero-distance side-by-side installation.

🛡️

Reliable Protection: Built-in motor and pump protection, including over-voltage, over-load, and dry-running.

📱

Remote Monitoring: Standard RS-485 interface and optional GPRS for historical parameter tracking anywhere.

💎

Advanced Module: Built-in intelligent IGBT module for enhanced vector performance and durability.

Product Gallery

Frequently Asked Questions

1. What types of motors are compatible with the H129 inverter?

The H129 series is compatible with both three-phase asynchronous motors and three-phase synchronous motors, making it highly versatile for various irrigation needs.

2. Does this inverter support both DC and AC input?

Yes, the system is designed to accept both DC input from photovoltaic modules and standard AC grid power, providing flexibility for 24/7 operation.

3. What are the built-in protection functions?

The inverter includes comprehensive protection such as MPPT tracking, intelligent sleep/wake, water shortage alarms, over-voltage, over-load, over-heat, and dry-running protection.

4. Can I monitor the system remotely?

Absolutely. The unit comes with a standard RS-485 interface and has an optional GPRS module for remote monitoring of system performance and historical data.

5. Is the installation complicated?

No, the H129 is designed for easy wiring and operation. Its small size also allows for zero-distance side-by-side installation to save space.

6. How does the MPPT function benefit my solar pump?

Maximum Power Point Tracking (MPPT) ensures that the inverter always extracts the maximum possible power from the solar panels regardless of weather conditions, optimizing pump efficiency.
