Solar Structure Solar Power System Rooftops PV Mount Systems Solar Panel Kit Flat Roof Bracket Mounting Systems for Home

1 / 5

Solar Structure Solar Power System Rooftops PV Mount Systems Solar Panel Kit Flat Roof Bracket Mounting Systems for Home

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Material

Aluminum Alloy

Type

Roof Bracket

Standard

DIN, ASTM/ASME, JIS, En, ISO, as, GB

Finishing

Zinc, HDG, Sandblasting

Certificate

ISO 9001:2015

Delivery Time

7-30 days

Installation Site

Flat Roof, Ground

Wind Load

60m/S

Snow Load

1.6kn/M2

Panel Layout

Portrait or Landscape

Packaging

20-25kg/Cartons + 900kg/Pallets

Specification

SS304, AL6005-T5

Capacity

500 ton/Month

Product Description

Solar Structure Solar Power System Rooftops PV Mount Systems Solar Panel Kit Flat Roof Bracket Mounting Systems for Home

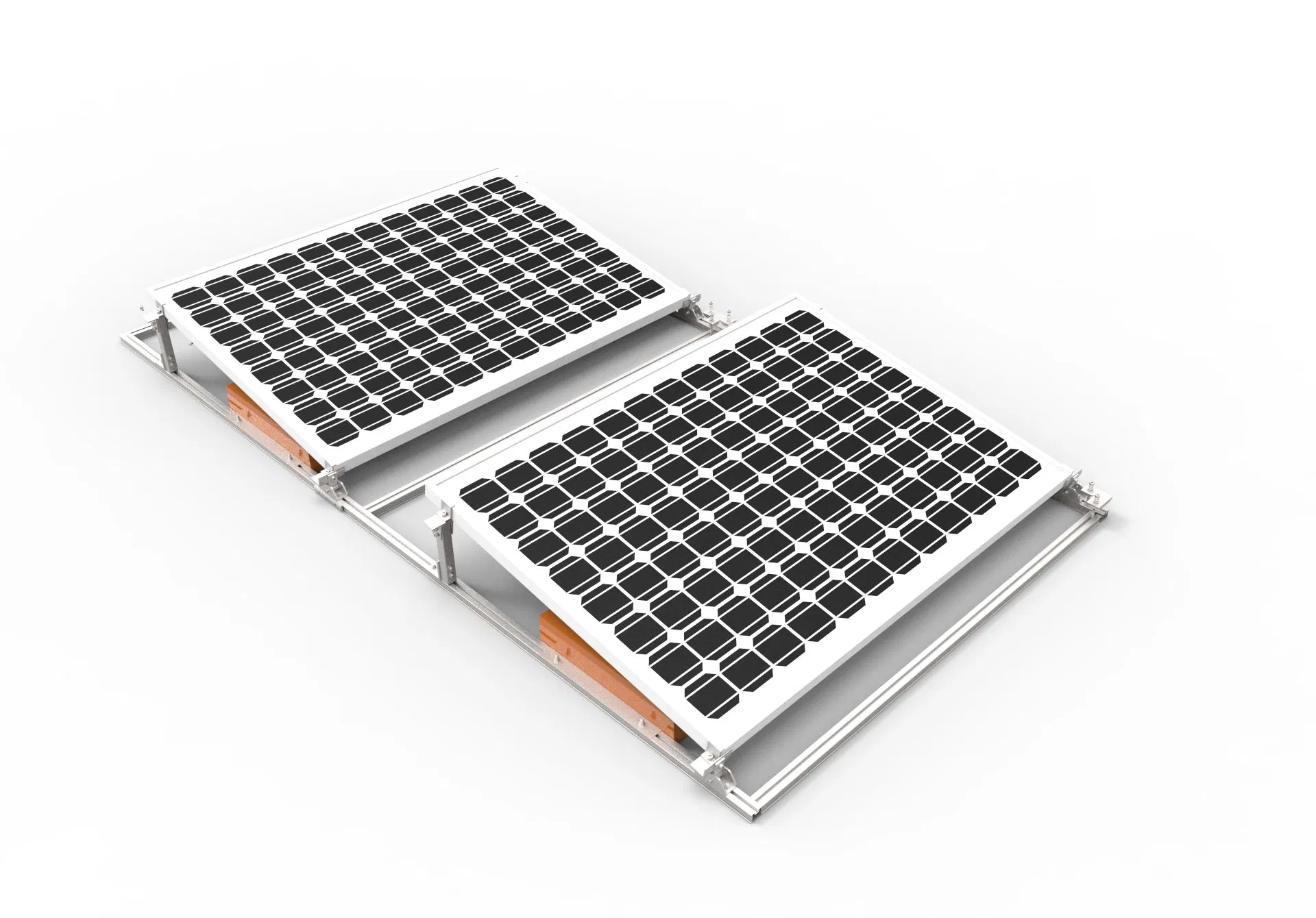

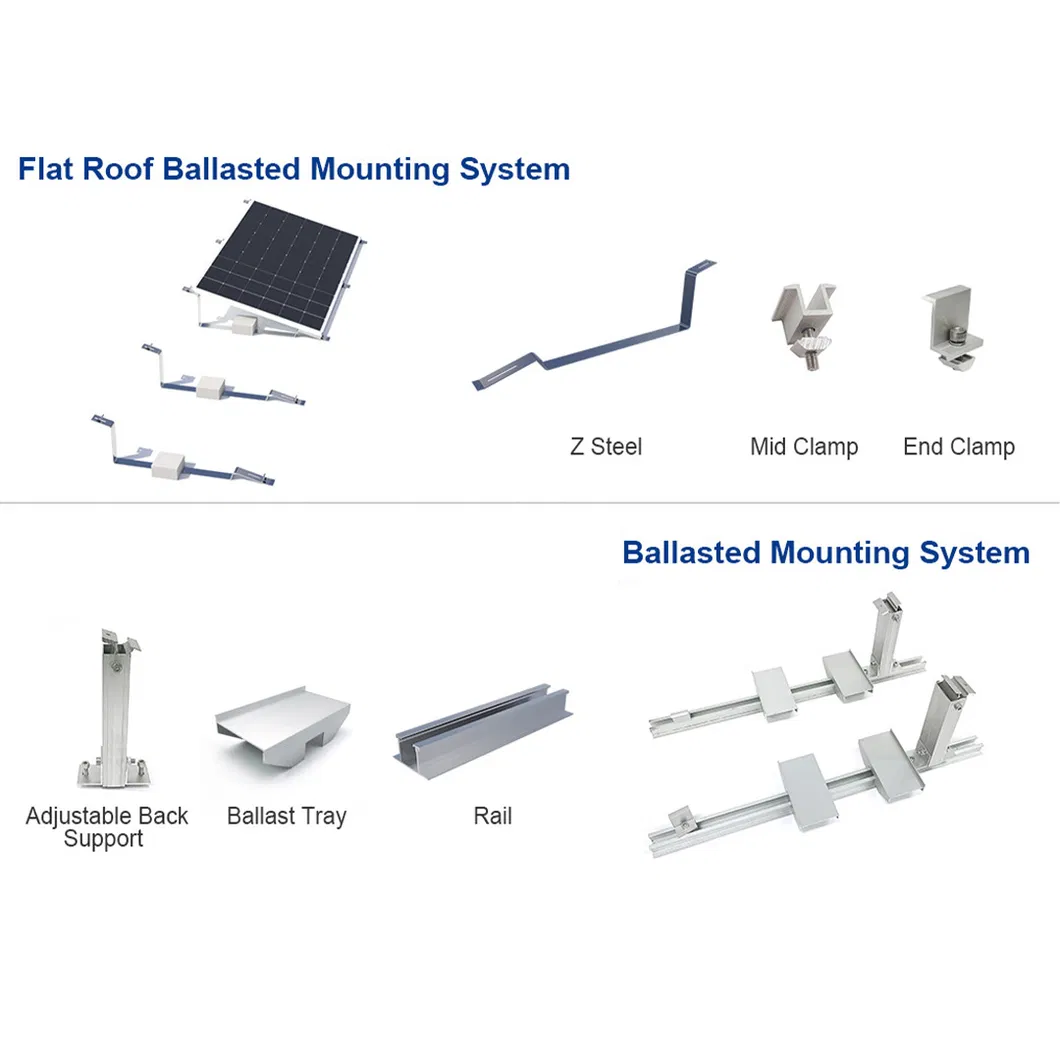

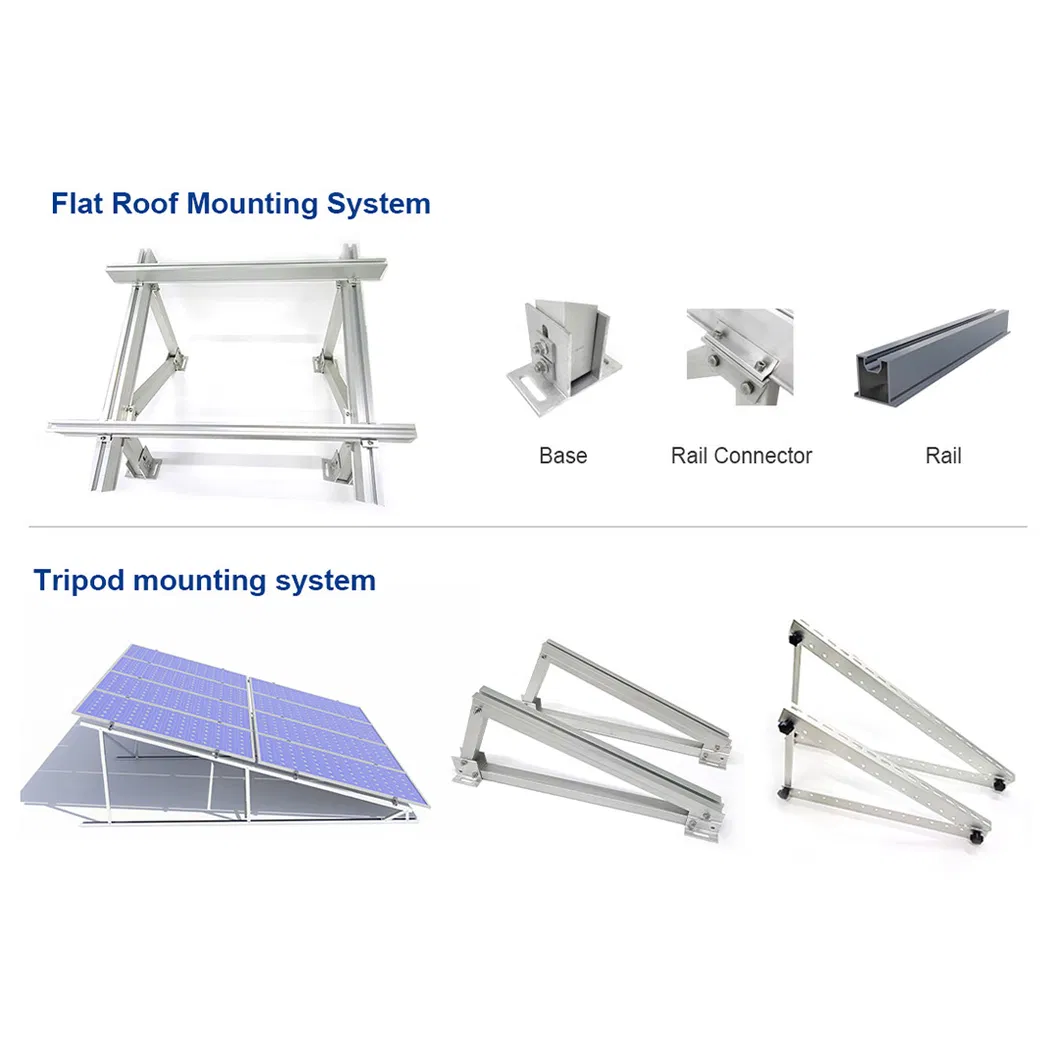

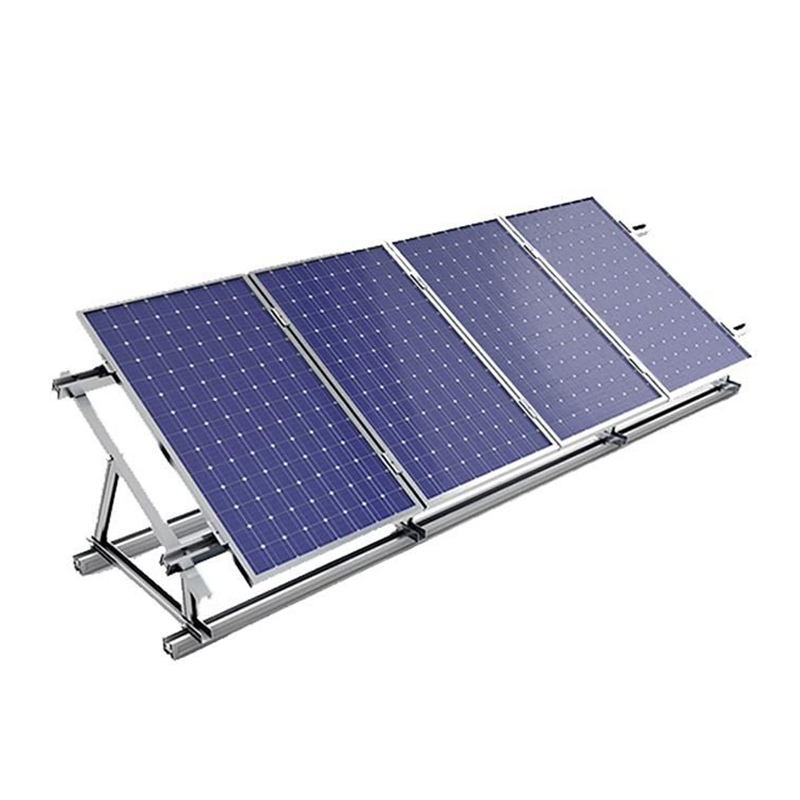

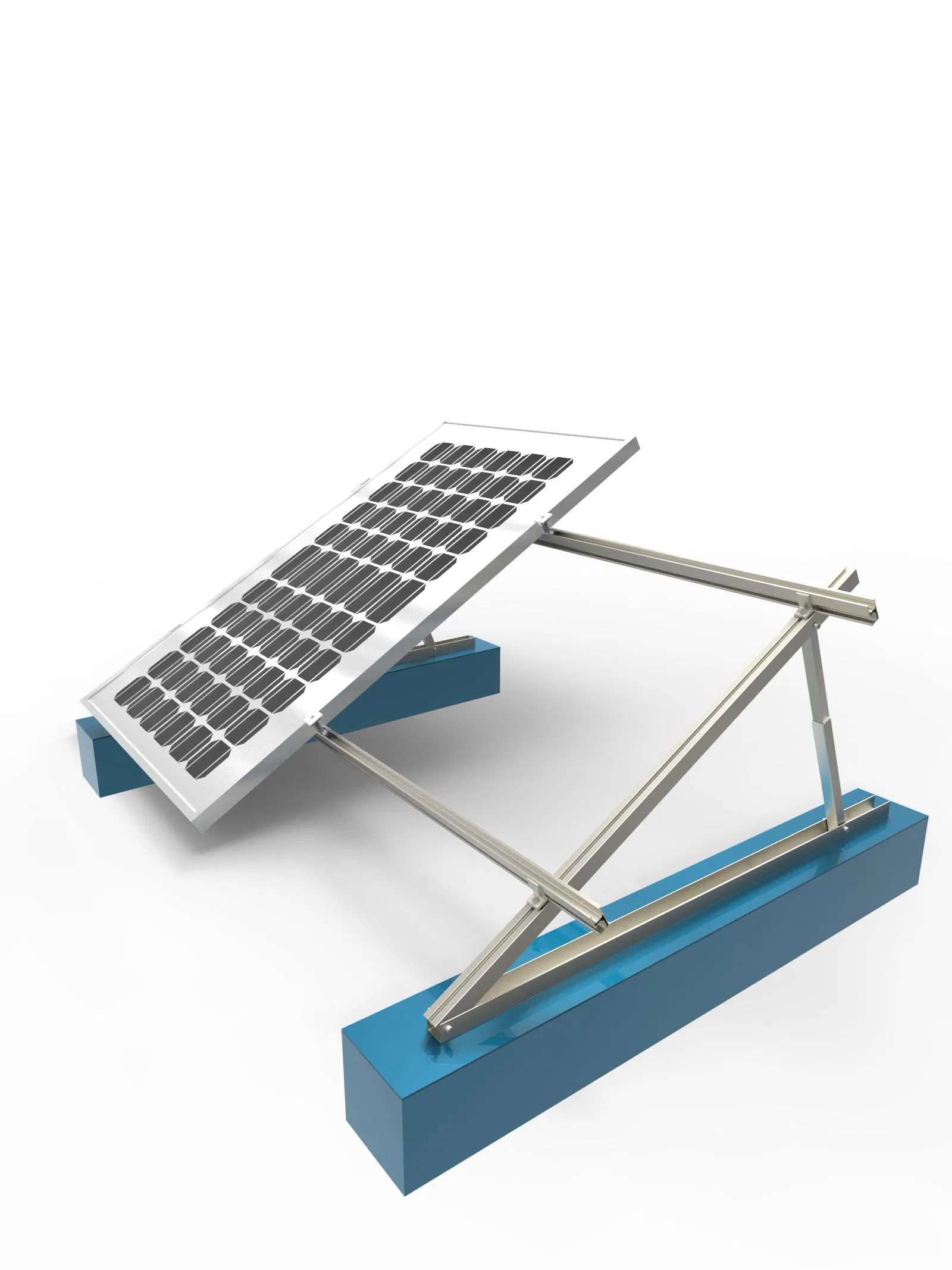

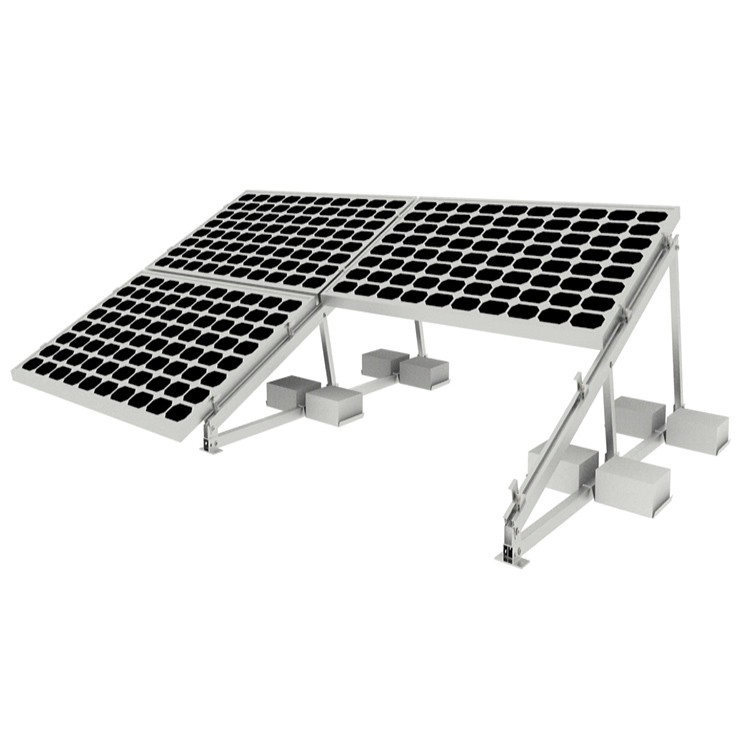

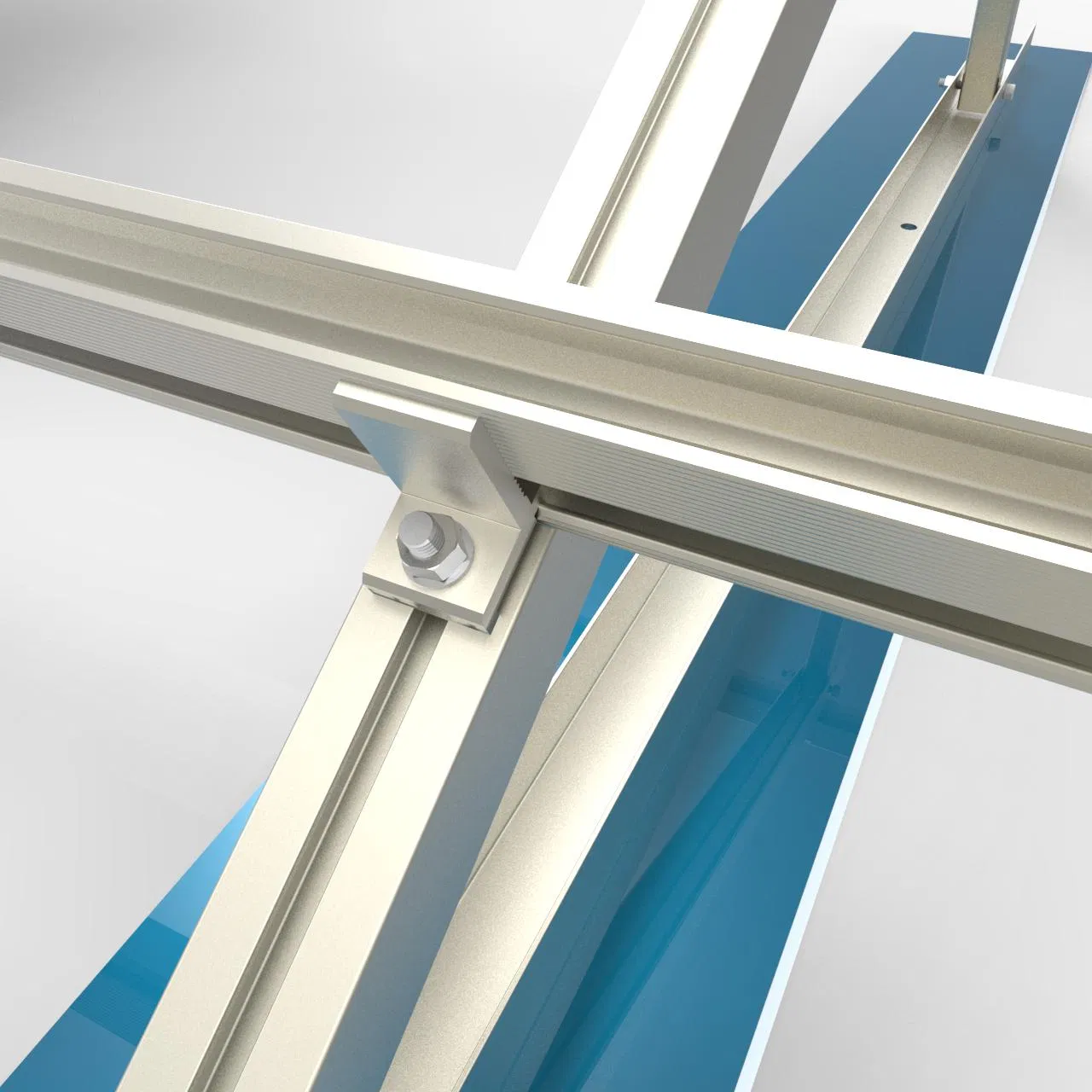

The solar flat roof mounting system is a solar photovoltaic bracket system specifically engineered for flat roof applications. The system is primarily composed of solar hooks, solar fasteners, aluminum rails, galvanized C steel channels, and other high-grade components. It is recognized for its simple structure, convenient installation process, and robust bearing capacity.

Key Advantages:

Stable structure with high load-bearing capabilities.
Easy installation without the need for heavy hoisting equipment.
Wide range of applications suitable for various flat roof types.
Cost-effective and reusable components.

Technical Parameters
System Name	Solar Flat Roof Mounting System	Design Standard	AS/NZS 1170, DIN 1055, JIS C8955:2017
Installation Site	Flat Roof, Ground	IBC Standard	IBC 2009
Tilt Angle	5-10°	CBC Standard	CBC 2010
Wind Load	60m/s	Hook Material	SUS304
Snow Load	1.6KN/M2	Fastener	SUS304
Solar Module	Framed	Small Components	AL6005-T5 (Anodized)
Panel Layout	Portrait or Landscape	Warranty	10-year warranty

Our Professional Services

Professional Manufacturing: All fasteners are designed and manufactured according to precise buyer specifications and performance requirements.

Guaranteed Quality: Rigorous durability testing and critical technical design ensure an enhanced lifetime for all components.

Cost-Effective Solutions: We offer competitive pricing through direct factory supply channels.

10 Years of Expertise: Benefit from a decade of experience in providing perfect fastening solutions with a wide part selection.

Customized Development: We provide tailored services based on provided samples and technical drawings.

Frequently Asked Questions

1. What type of roofs is this system suitable for?

This system is specifically designed for flat roofs and can also be applied to ground installations.

2. What is the wind and snow load capacity of the brackets?

The system is engineered to withstand a wind load of 60m/s and a snow load of 1.6KN/M2.

3. What materials are used for durability?

We use high-grade Aluminum Alloy (AL6005-T5) with anodized finishing and Stainless Steel (SUS304) for fasteners to ensure maximum corrosion resistance.

4. Does the system support different panel orientations?

Yes, the brackets are versatile and support both Portrait and Landscape layouts for framed solar modules.

5. What is the standard warranty for the mounting system?

The system comes with a comprehensive 10-year warranty, reflecting our confidence in the component durability.

6. Is technical customization available?

Yes, as a professional manufacturer, we offer customized services based on specific samples or technical drawings provided by the buyer.
