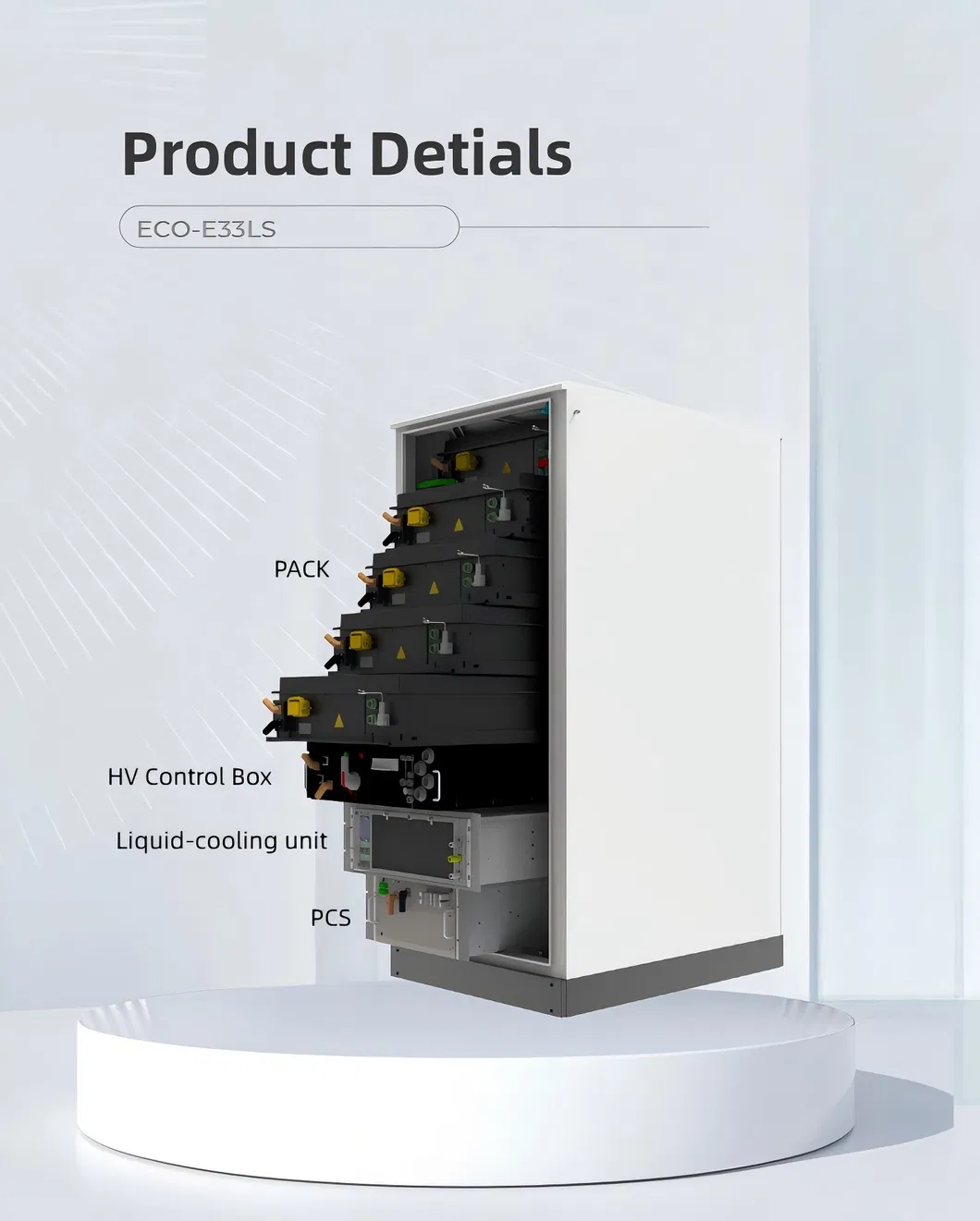

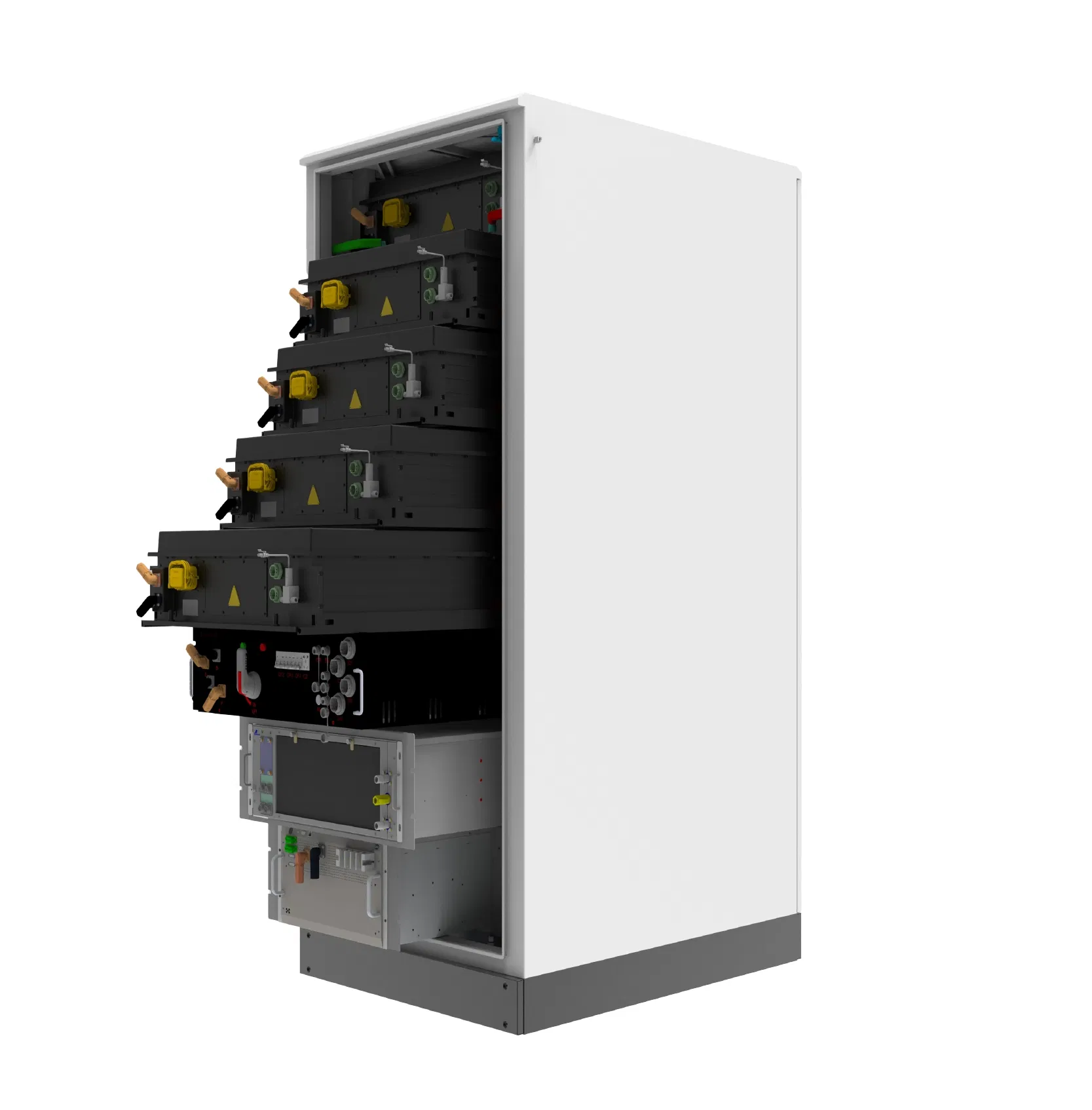

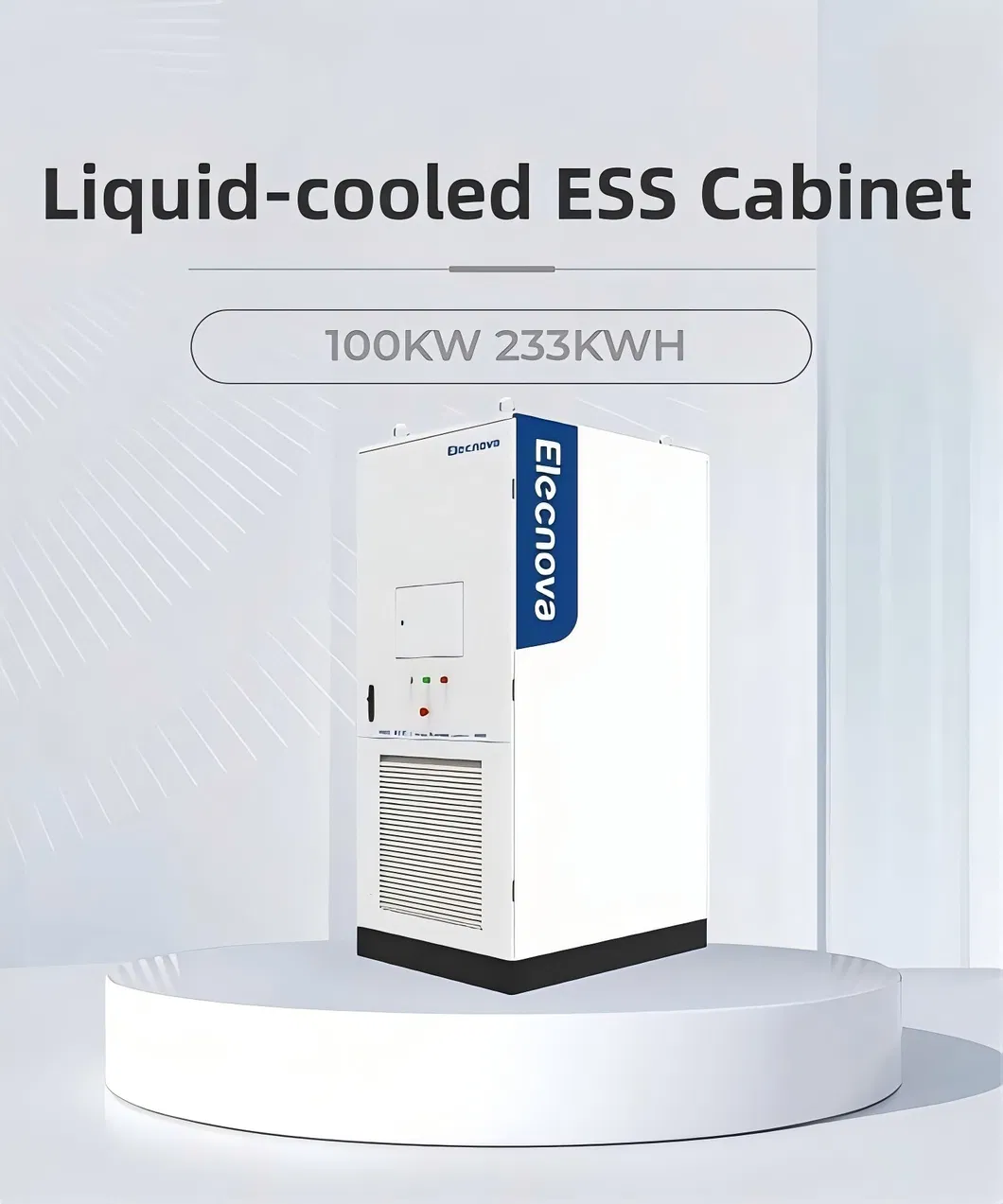

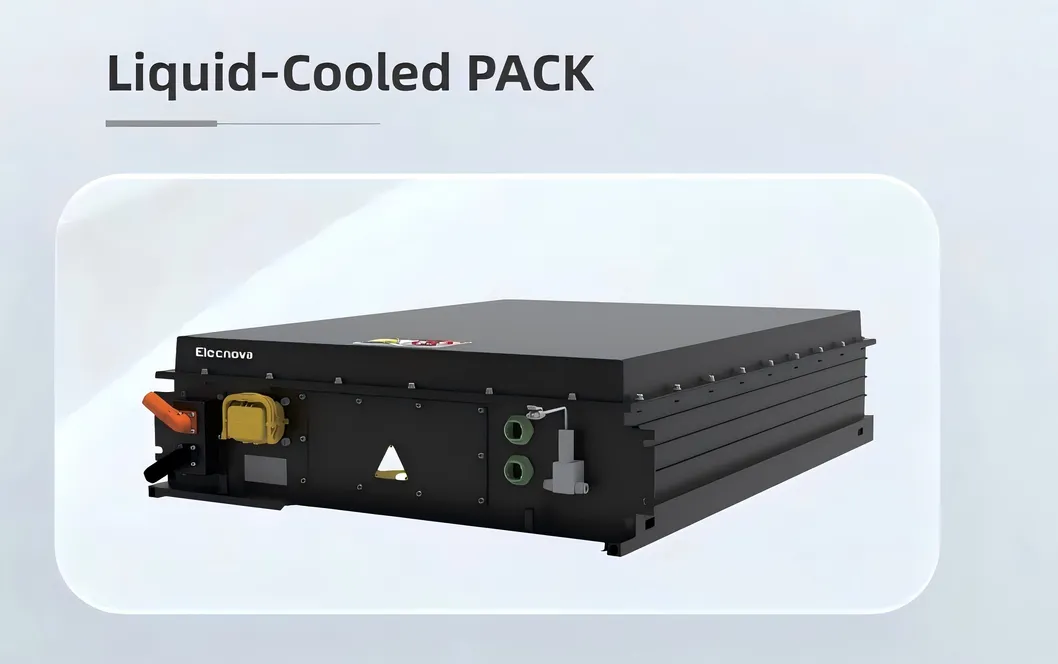

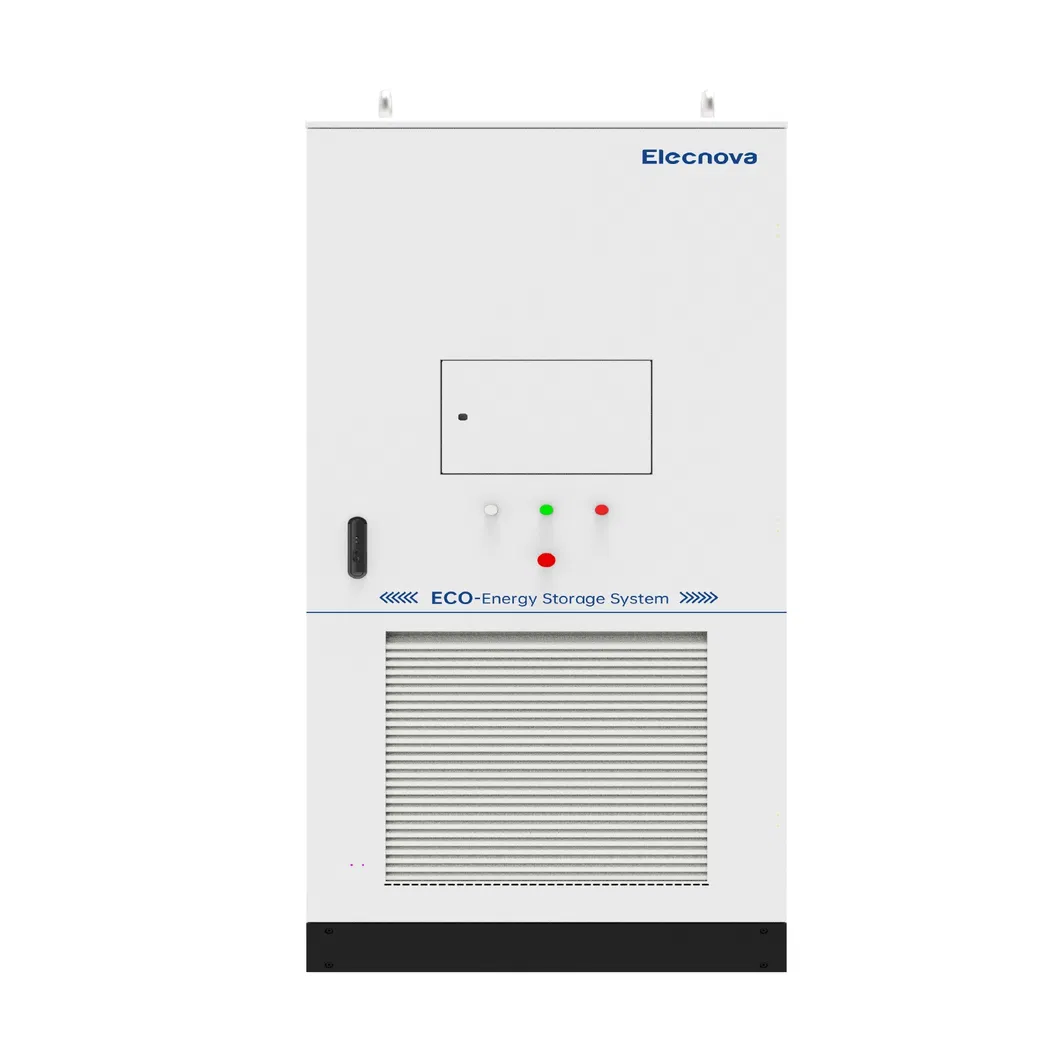

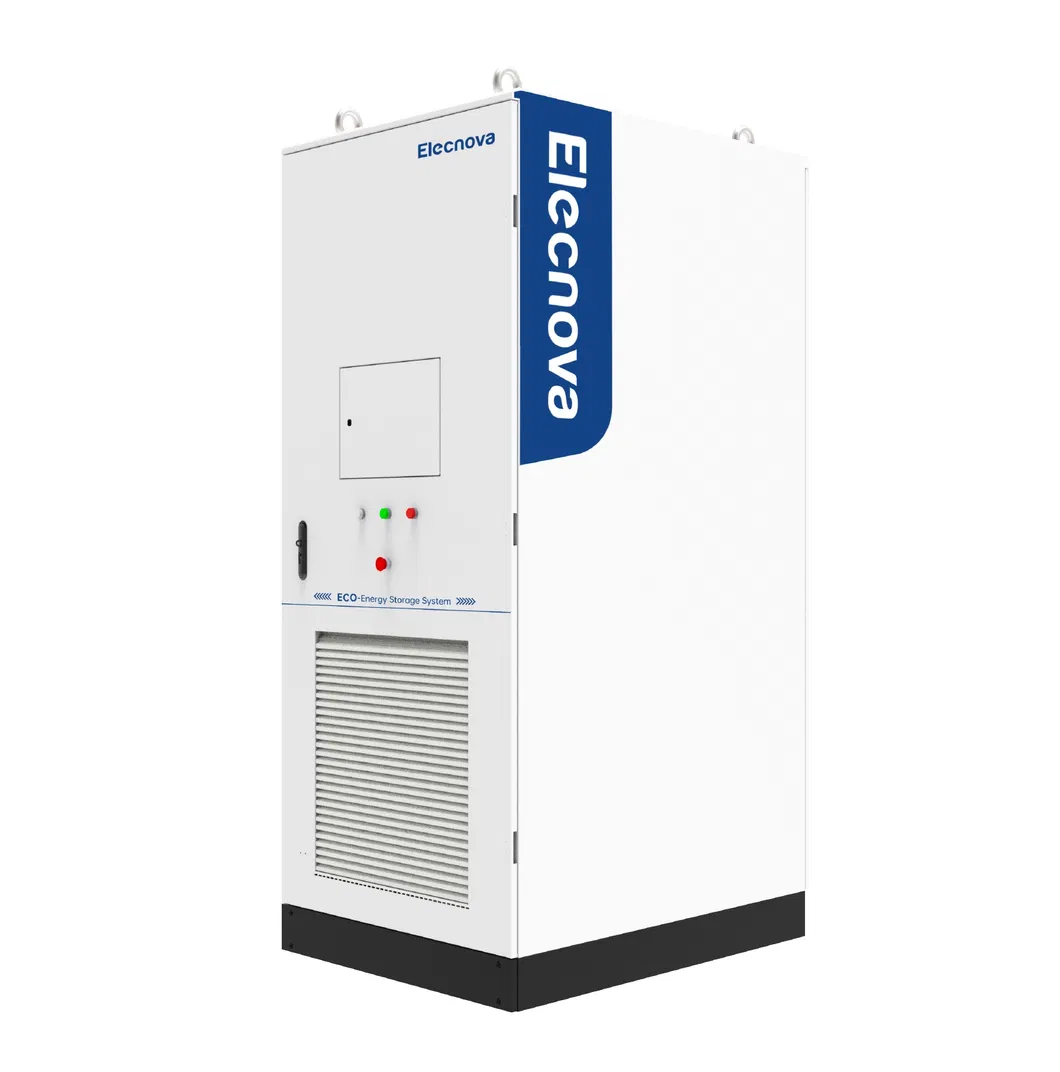

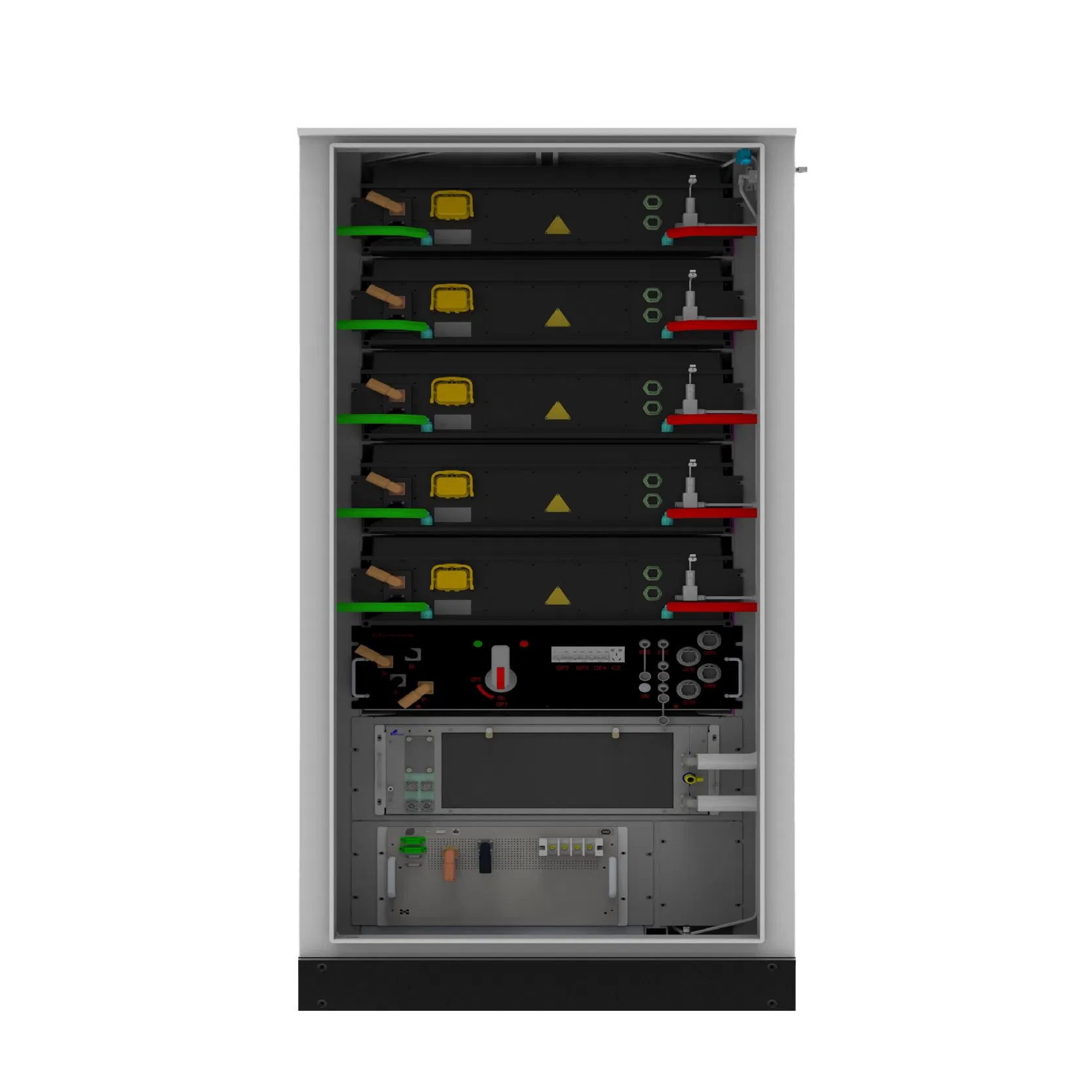

The 233KWH commercial & industrial energy storage system adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is less than 3°C, which further improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and has higher energy density.
Conversion efficiency: 99%. IP65 rating, ms-level on-/off-grid switching. Suitable for various scenarios such as C&I ESS, microgrid energy storage, and PV-plus ESS.
Active thermal management system. Over 8,000 times cycle life with a 10-year designated lifespan.
| DC Side | |
| Cell Type | LFP280Ah |
| Battery System | 232.96kWh/1P260S |
| Voltage Range | 728~936Vdc |
| AC Side | |
| Rated Power | 100kW |
| Nominal Voltage | 400Vac/3P+N+PE |
| Nominal Frequency | 50/60 Hz |
| General Performance | |
| System Efficiency | ≥90% |
| Cycle Life | ≥8,000 times |
| Operating Temperature | -25ºC~55ºC |
| Dimensions (W*D*H) | 1,050*1,350*2,400 (mm) |
| Weight | 2,570kg |

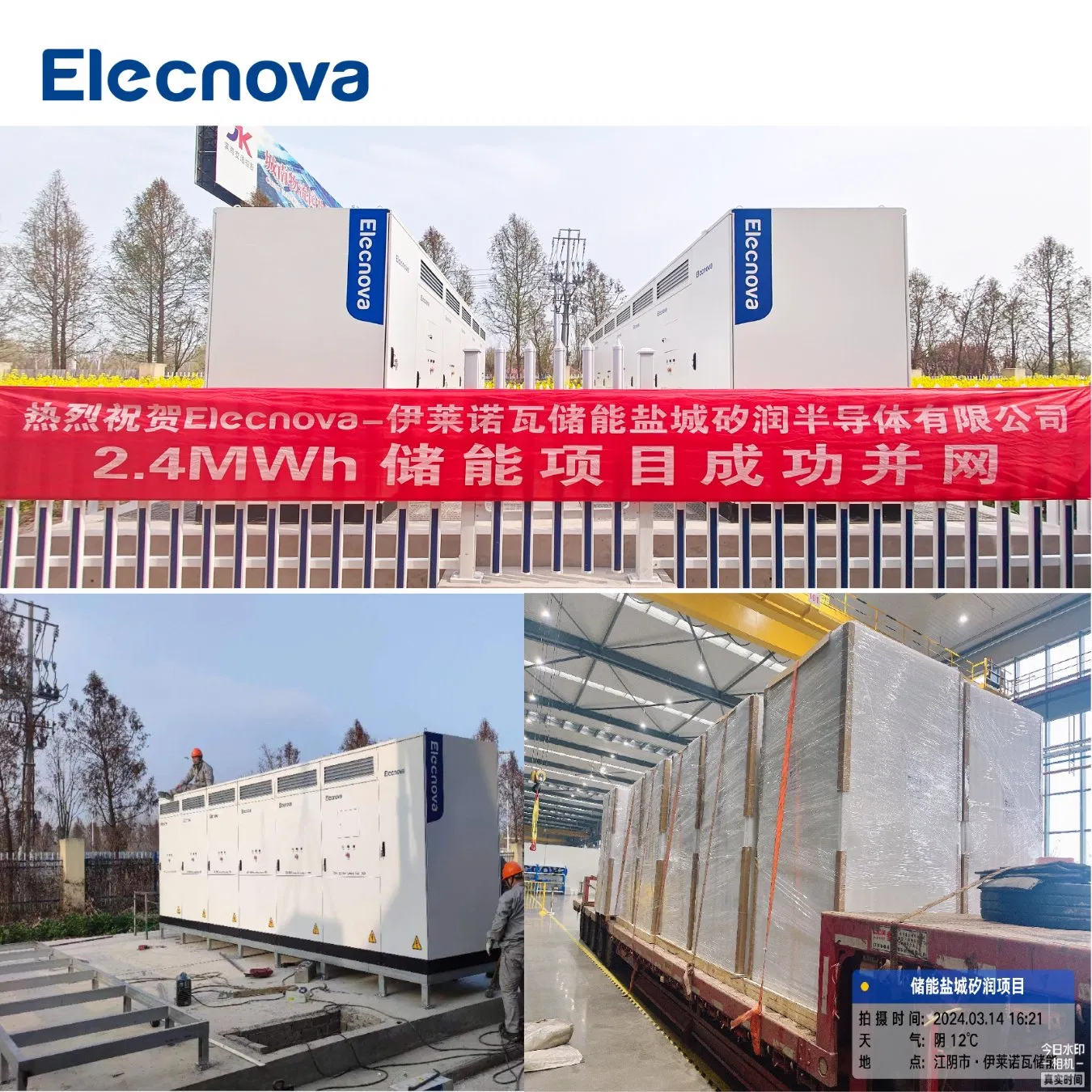

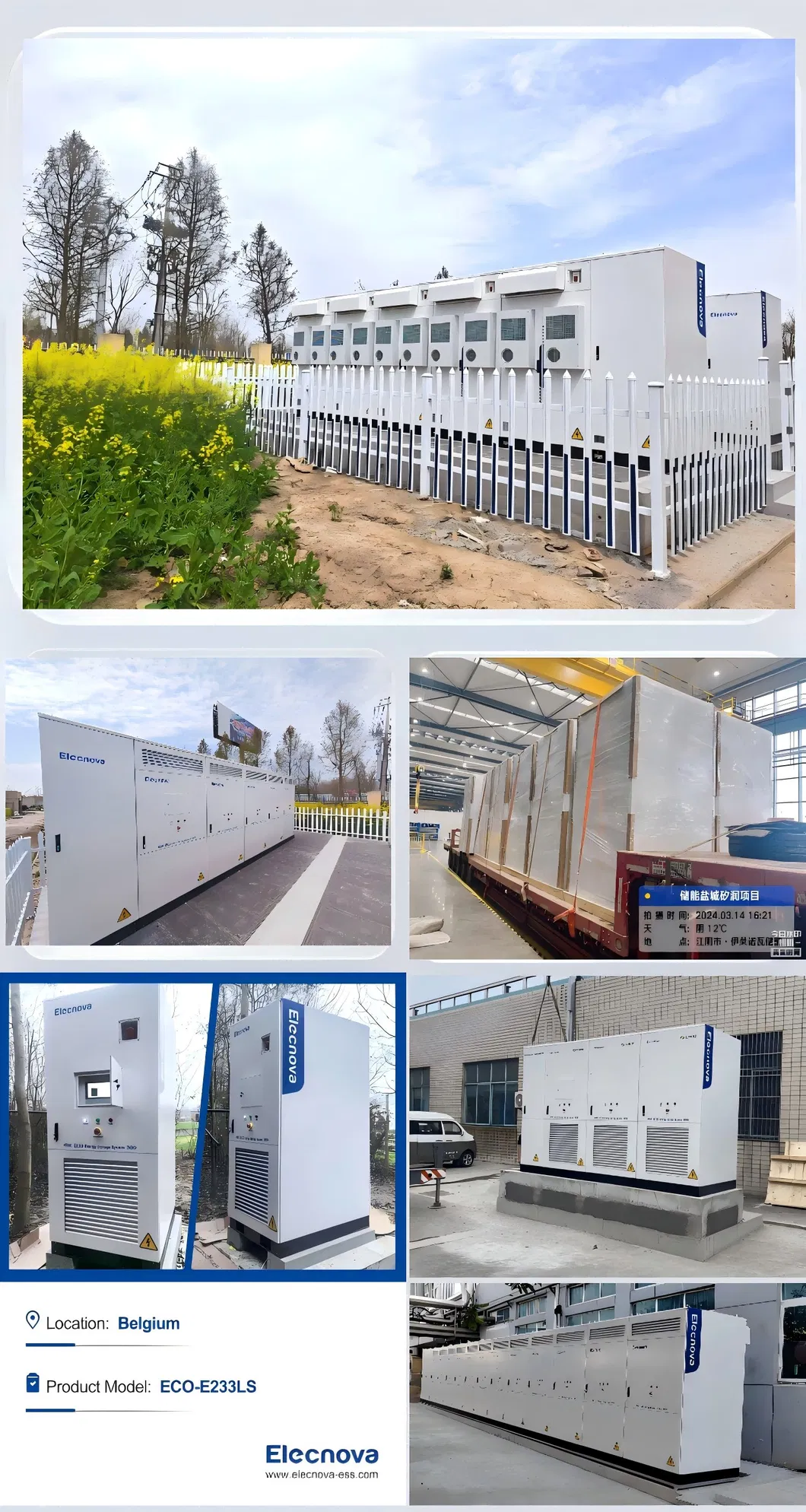

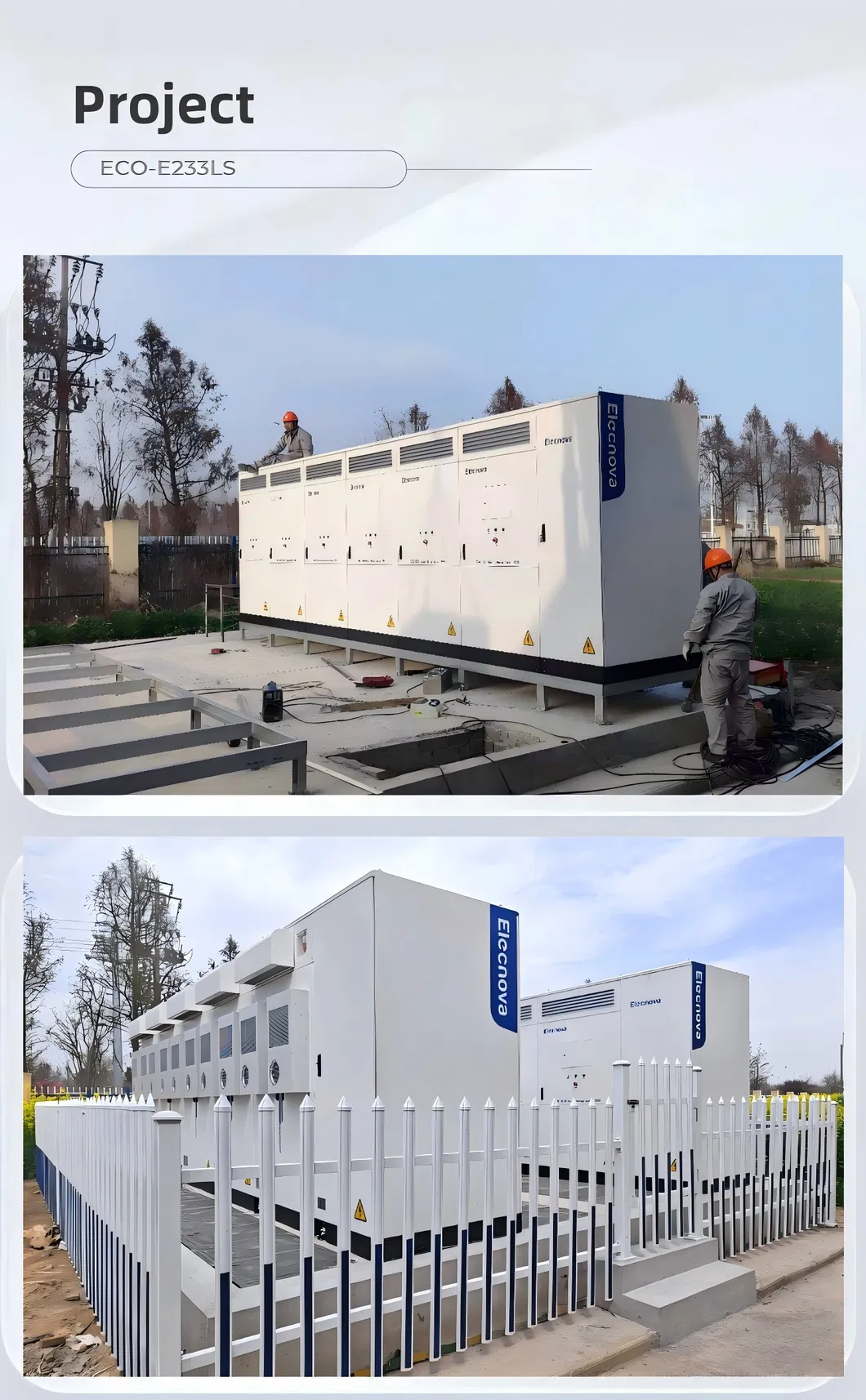

Successful 2.4MWh energy storage project connected to the grid, featuring high efficiency, stability, and safety.

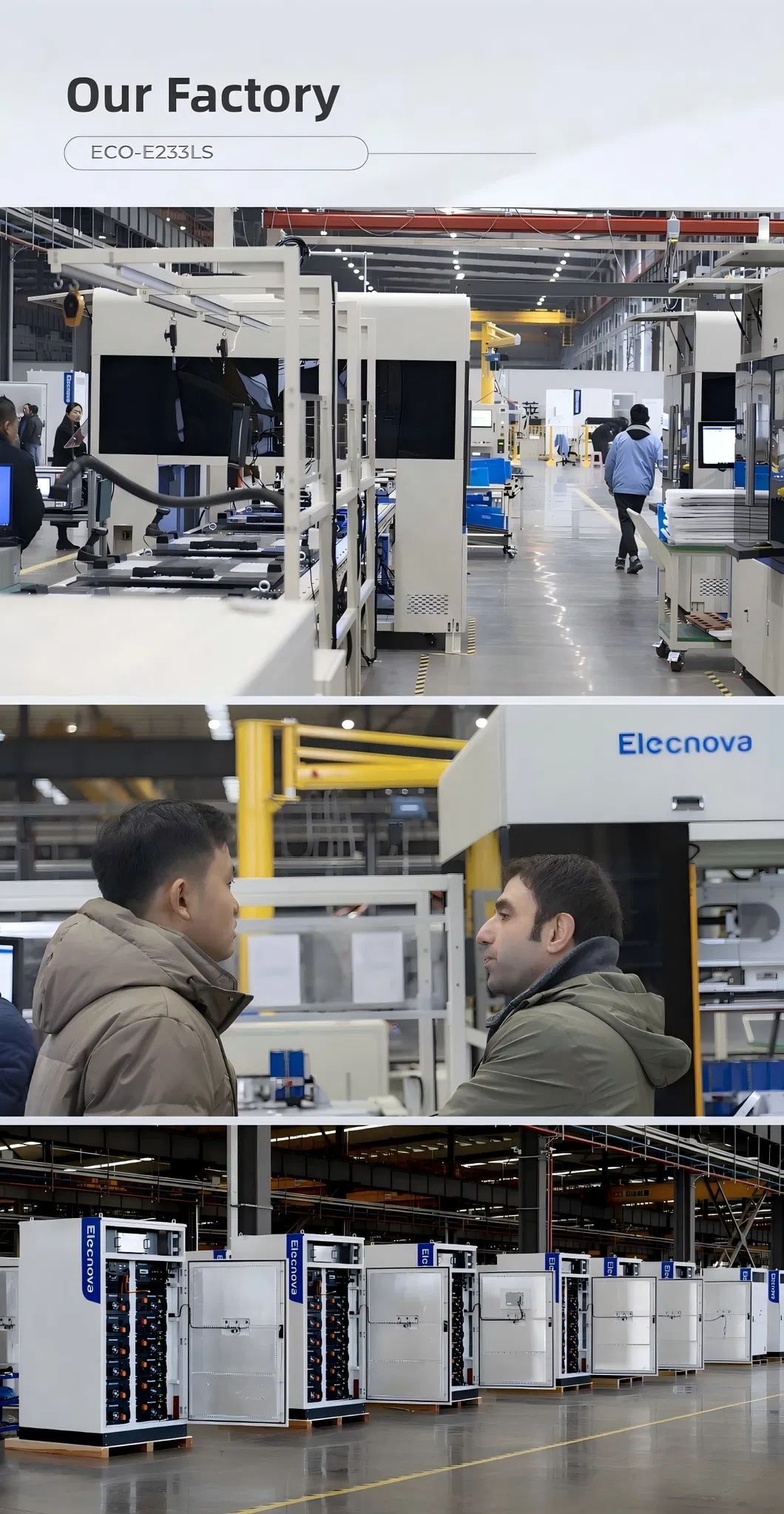

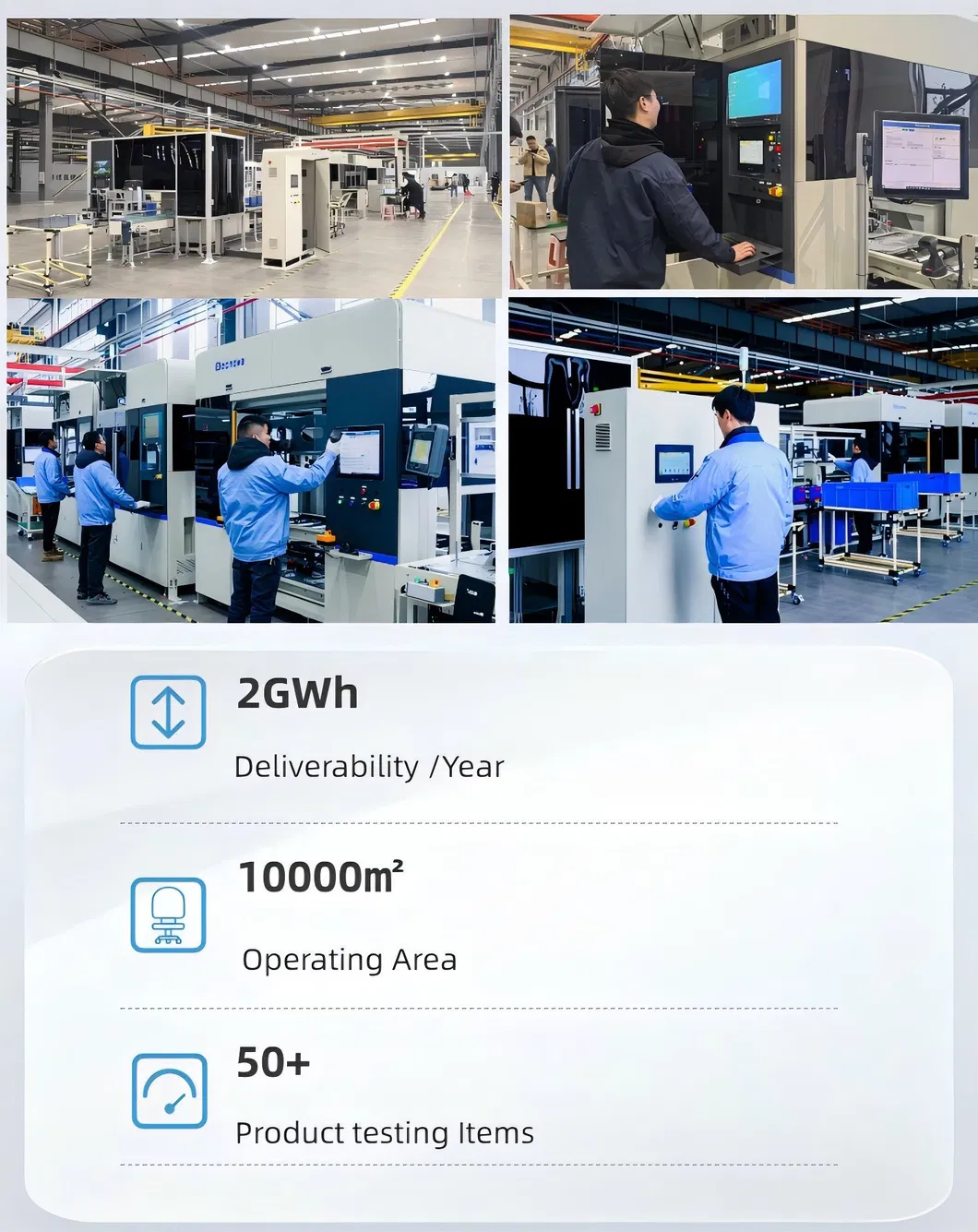

We are a technology-based enterprise focusing on overall solutions for energy storage systems. Our expertise covers the system integration of PACK, PCS, and BMS. We aim to meet diversified energy requirements across power generation, grid side, and user side scenarios with high-quality customized products.
