Single/Three Phase 3-4kw Solar Charger Power Grid Power Hybrid Supply Control Board PCBA Controller for Inverter Heat Pump & Water Heater with Compressor Drive

Customization: Available
After-sales Service: Sales and Technical Support
Warranty: 12 Months

Product Description

📊

Basic Specifications

Model NO.
SolarHP3Tb
Condition
New
Certification
ISO, CE, RoHS
Application
Water Heater/Thermal Controller
Rated Voltage
220V, 380V
Power Type
AC/DC Hybrid
Compressor Type
BLDC/Pmsm
Refrigerant
R410;R32;R290
Communication
RS485, WiFi, APP
HS Code
8537101190
🛡️

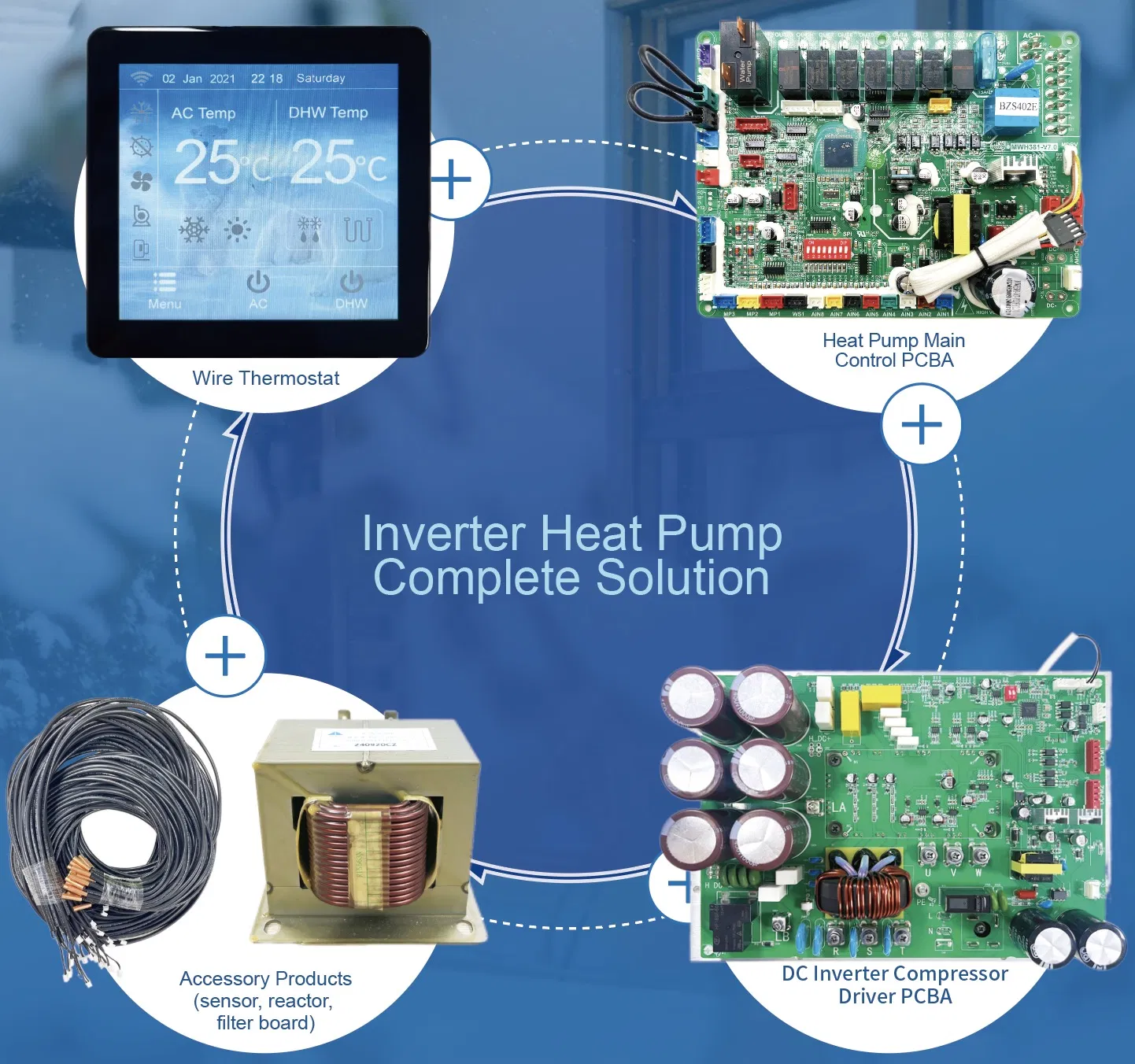

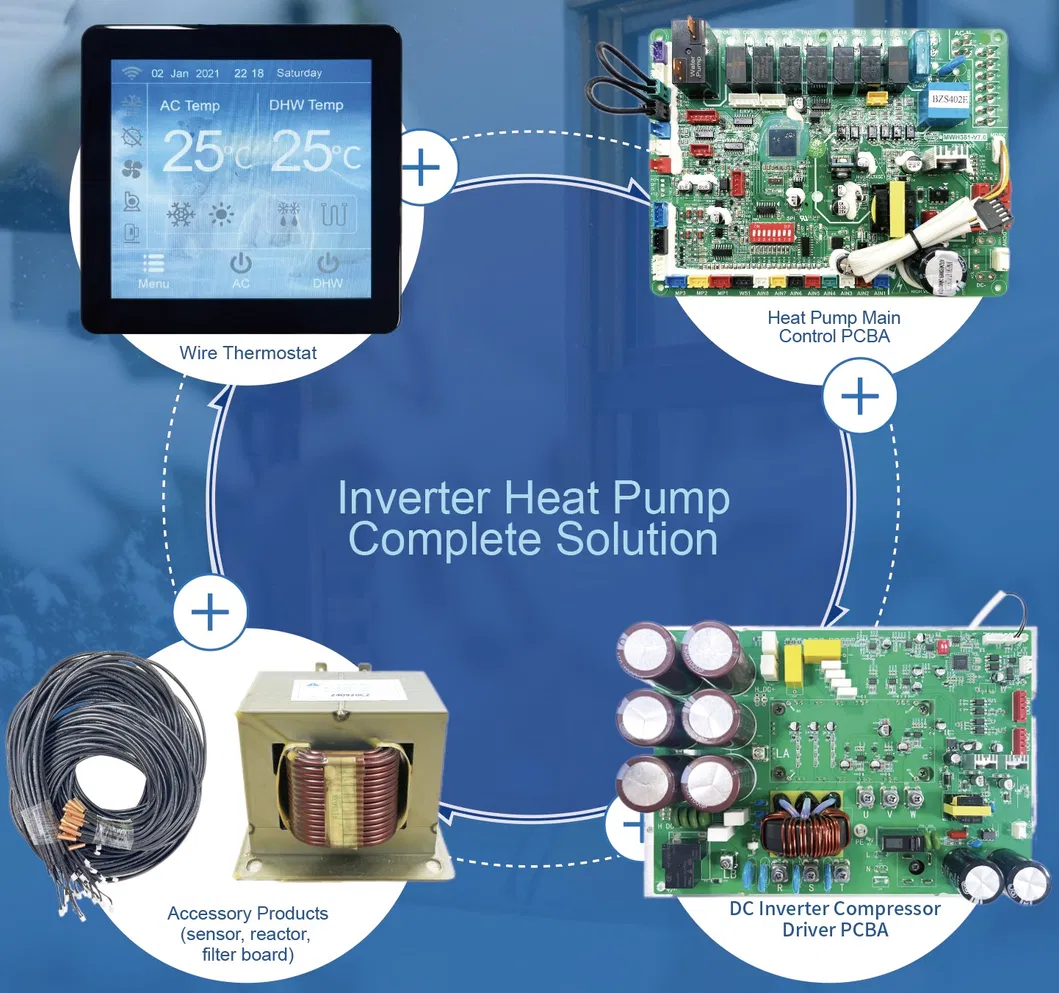

Heat Pump Controller Set

Controller Set

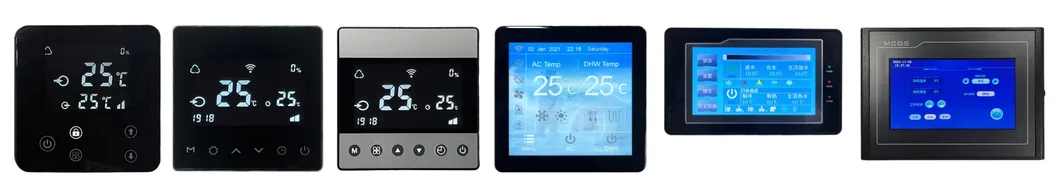

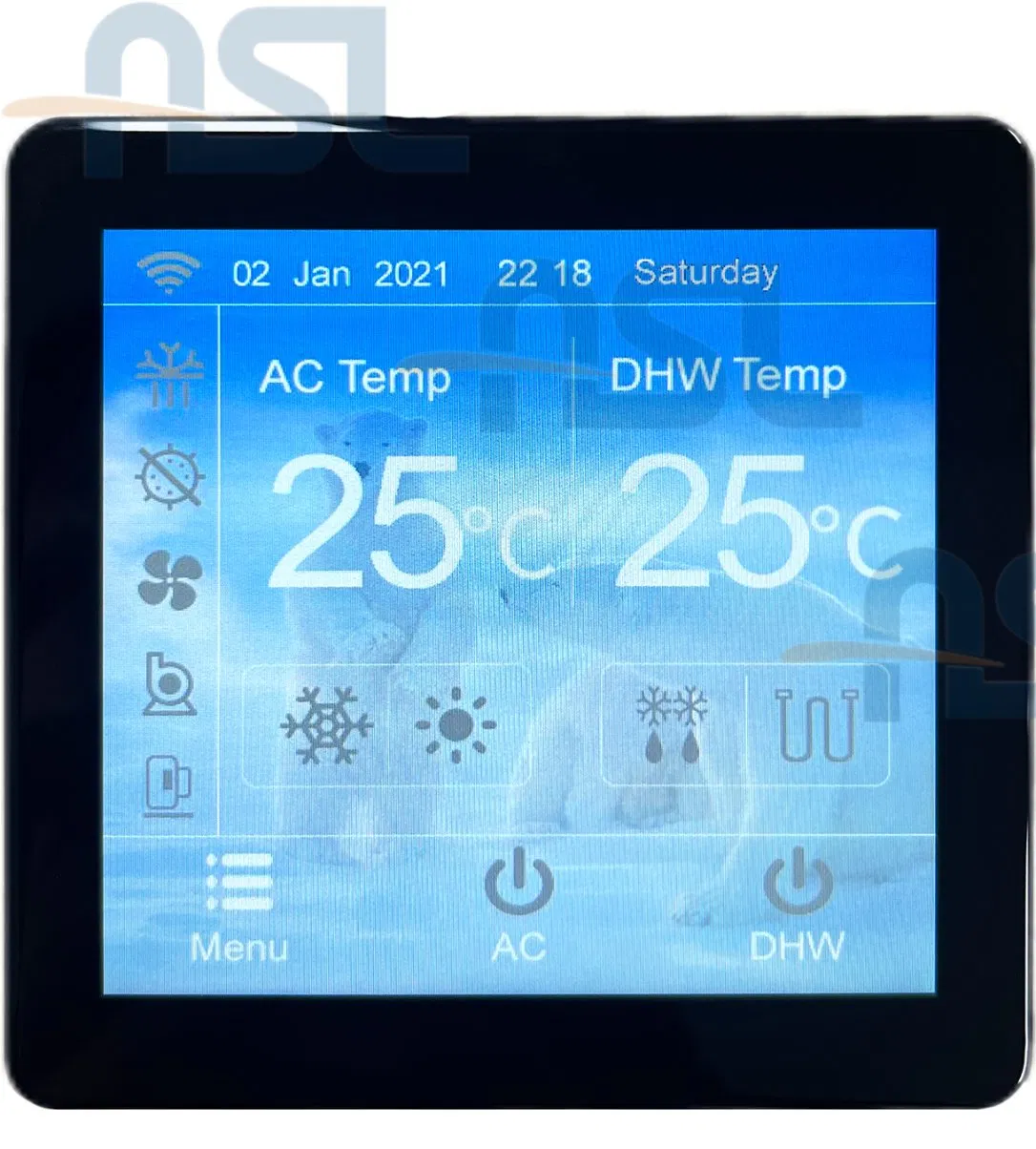

Thermostat Interface
1. Wire Thermostat: User interface for heat pump interaction.
Available Types86 Type IPS/LCD Touch Screen, 4.3/7 Inch TFT Screen
Input VoltageDC 12V±5%
CommunicationModbus-RS485
Remote ControlApp Controlled via WIFI/4G
Temp RangeOperating: -20~70°C; Storage: -30~70°C
⚙️

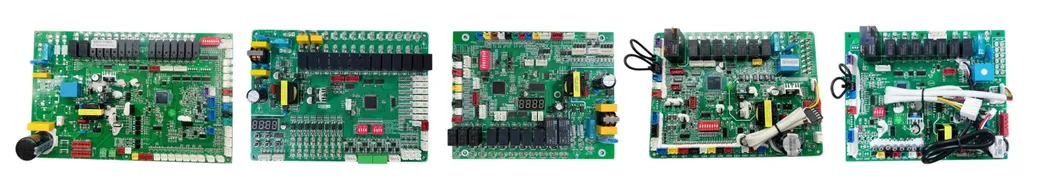

Main Control Board

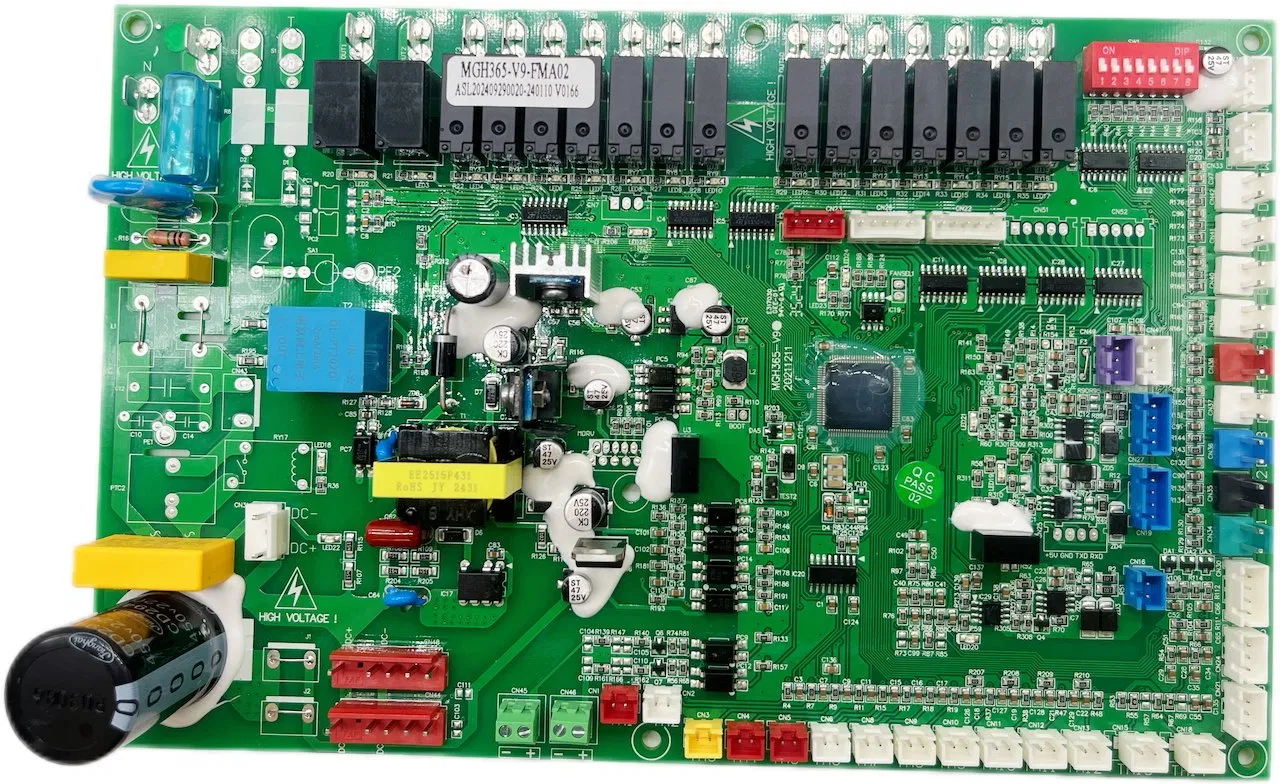

Main Control Board
ScenariosAir to Water, Water Heater, Floor Heating
VoltageSingle Phase 220V / Three Phase 380V / Solar
Input/Output9-ch Input, 17-ch Analog, 16-ch Relay, 4-ch Expansion Valve
CertificatesTUV

Inverter Compressor Drive Board

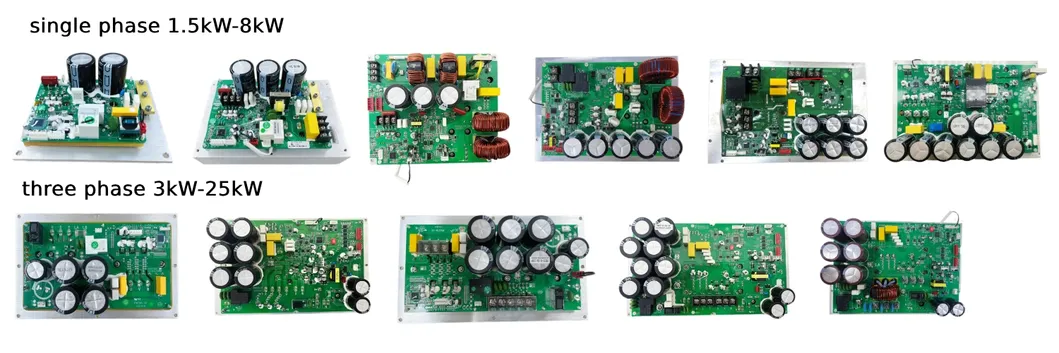

Inverter Drive Board
Output Frequency20Hz-120Hz
Power Factor0.99
Efficiency0.93~0.95
Cooling MethodAir Cooling / Liquid Cooling
🌍

Global Presence & Performance

Global Market
Production Power
Certifications
120+ Countries: Products used worldwide.
300,000+ Units: Annual production capacity.
60%+ Share: Leading market share in DC inverter pool heat pump segment.
💎

Technical Advantages

  • Leading DC Inverter Compressor Drive Algorithm and Control Logic.
  • Low-frequency torque compensation and weak magnetic self-adaptive technology.
  • Parameter adaptation and multi-level overcurrent protection.
  • Comprehensive coverage of all major variable frequency compressor brands.
  • Established production processes with high-quality sensor components.
Control Logic
🏠

Usage Scenarios

Usage Scenarios

Solar heat pump, water heater, water cooler, floor heating, dehumidifiers, dryers, air source heat pumps, swimming pool heat pumps, and geothermal systems.

Frequently Asked Questions

1. What is the standard delivery time? The typical lead time for production and delivery is between 20 to 30 days.
2. What is the warranty period for these controllers? All products come with a standard 1-year quality guarantee.
3. Are the PCBA products standardized for all heat pump brands? No. Since logic and structures vary between brands, we customize the PCBA solution for every customer to ensure compatibility.
4. What refrigerants are supported by your controllers? Our systems are fully compatible with R410, R32, and R290 refrigerants.
5. Does the system support remote monitoring? Yes, the controllers support remote interaction via WiFi and a dedicated smartphone APP.
6. What is the cooperation process for a new project? The process includes technical communication, solution suggestion/quotation, sample ordering, custom software/hardware design, logic confirmation, and finally batch production.
