Wing Solar
Wing Solar
| Model NO. | Mini Solar Panel |
| Material | Monocrystalline Silicon |
| Surface Film | ETFE, PET, Glass |
| Custom Service | Wattage, Voltage, Current, Shapes |
| Production Capacity | 10,000,000 PCS/Month |
| Package Size | 20.00cm * 20.00cm * 10.00cm |
| Gross Weight | 0.500kg |
| Water Protection | IPX6 |
High-Efficiency Mini Solar Panel Solutions
Our custom shape and dimension mini solar panels are engineered for high performance across thousands of solar applications, converting sunshine energy into reliable power.

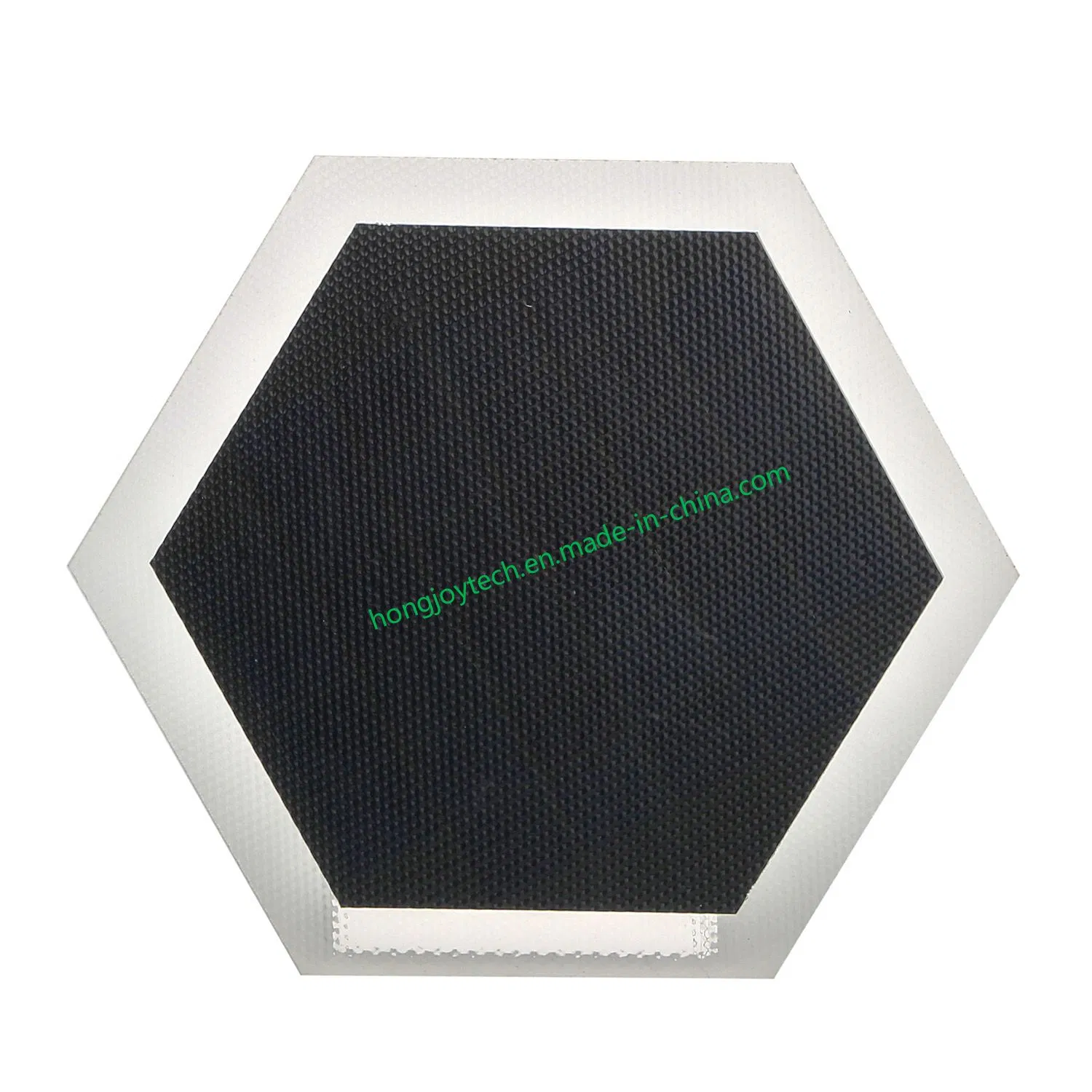

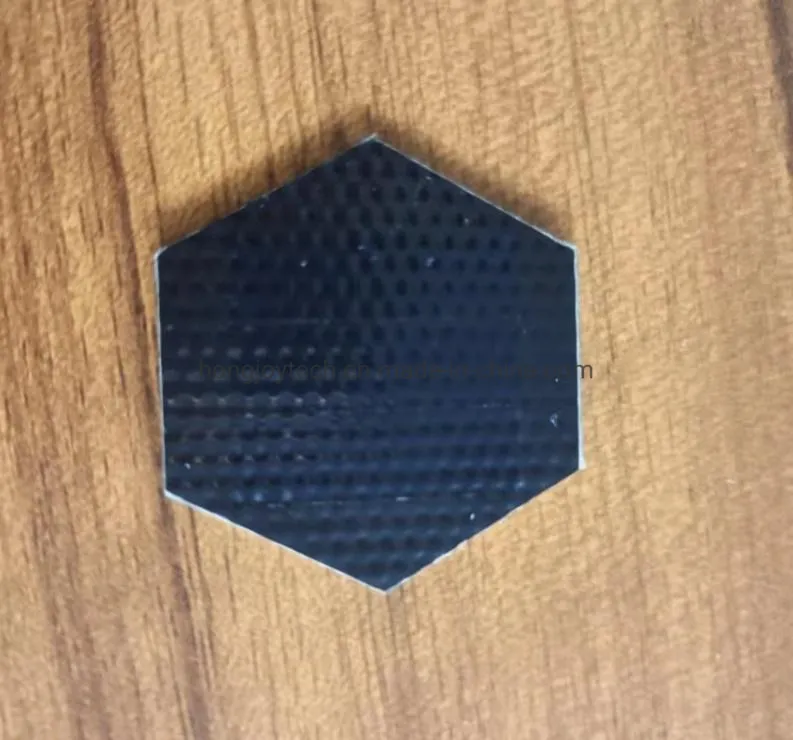

Power: 0.11W | Voltage (Vm): 4.5V
Open Circuit (Voc): 5.4V | Current (Im): 24.5mA
Dimension: Diagonal 40mm x 1.8mm
Weight: 3g

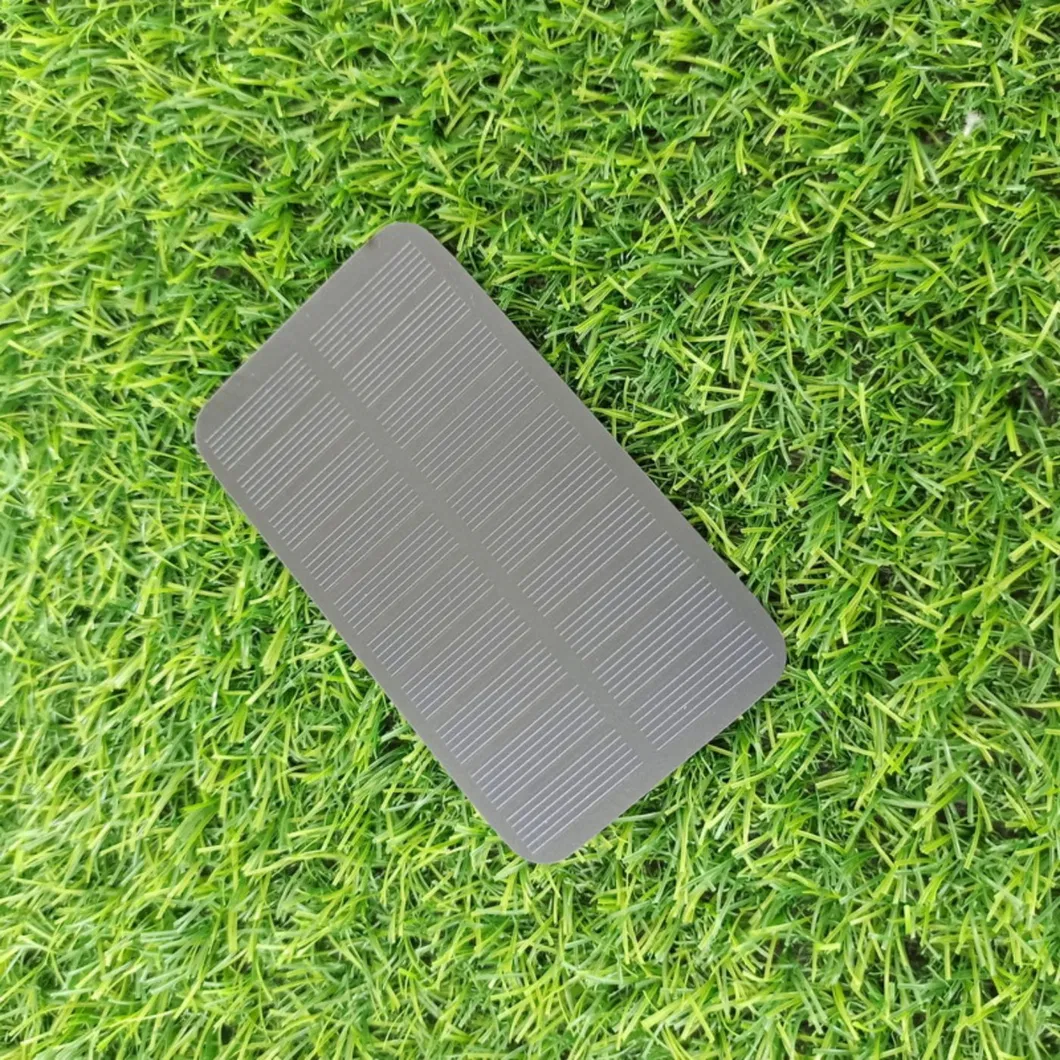

Power: 1.1W | Voltage (Vm): 12V
Open Circuit (Voc): 14.4V | Current (Im): 92mA
Dimension: 130mm * 80mm * 2mm
Weight: 25.7g

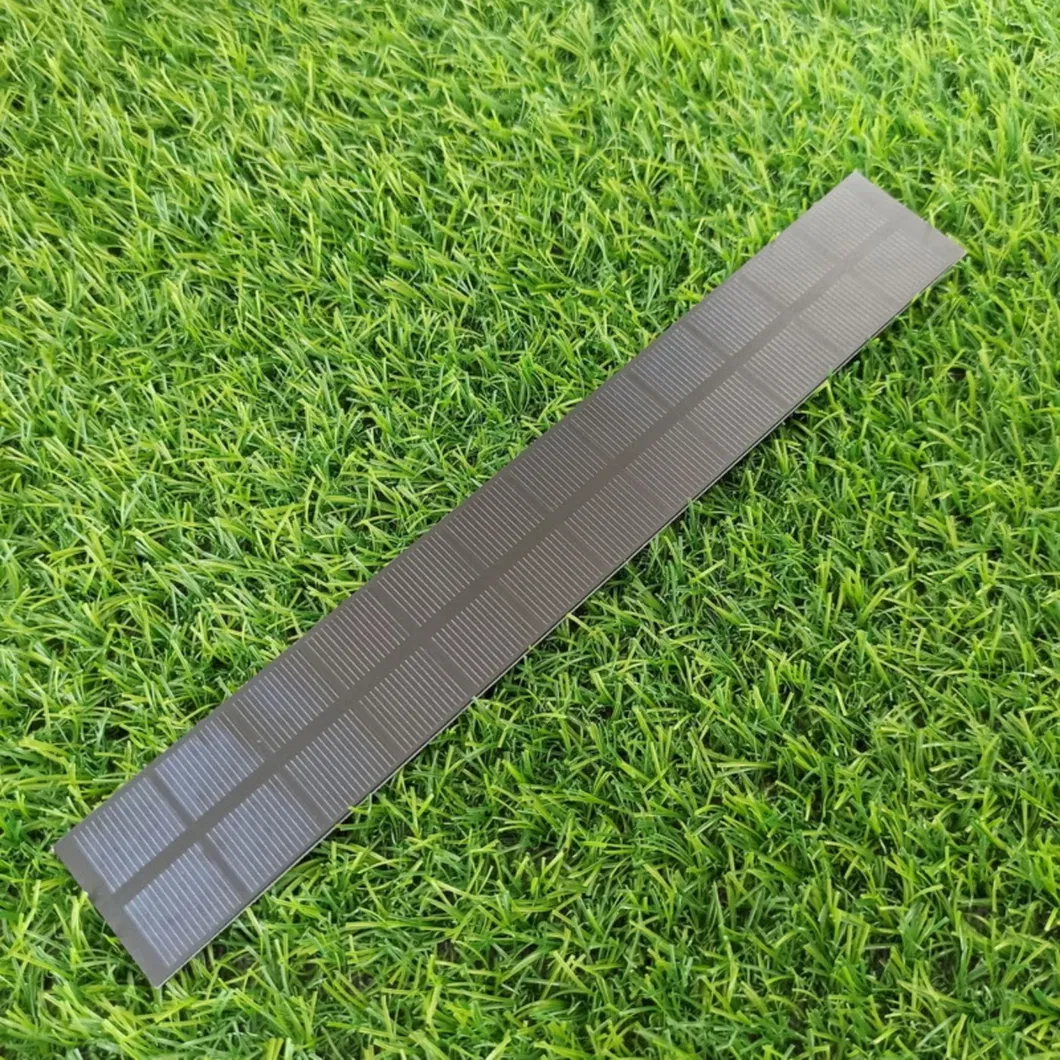

Power: 8.2W | Voltage (Vm): 20V
Open Circuit (Voc): 24V | Current (Im): 410mA
Dimension: 473mm * 150mm * 2mm
Weight: 140g
Power: 2.8W | Voltage (Vm): 17V
Open Circuit (Voc): 20.4V | Current (Im): 165mA
Dimension: 380mm * 70mm * 5mm
Weight: 182g

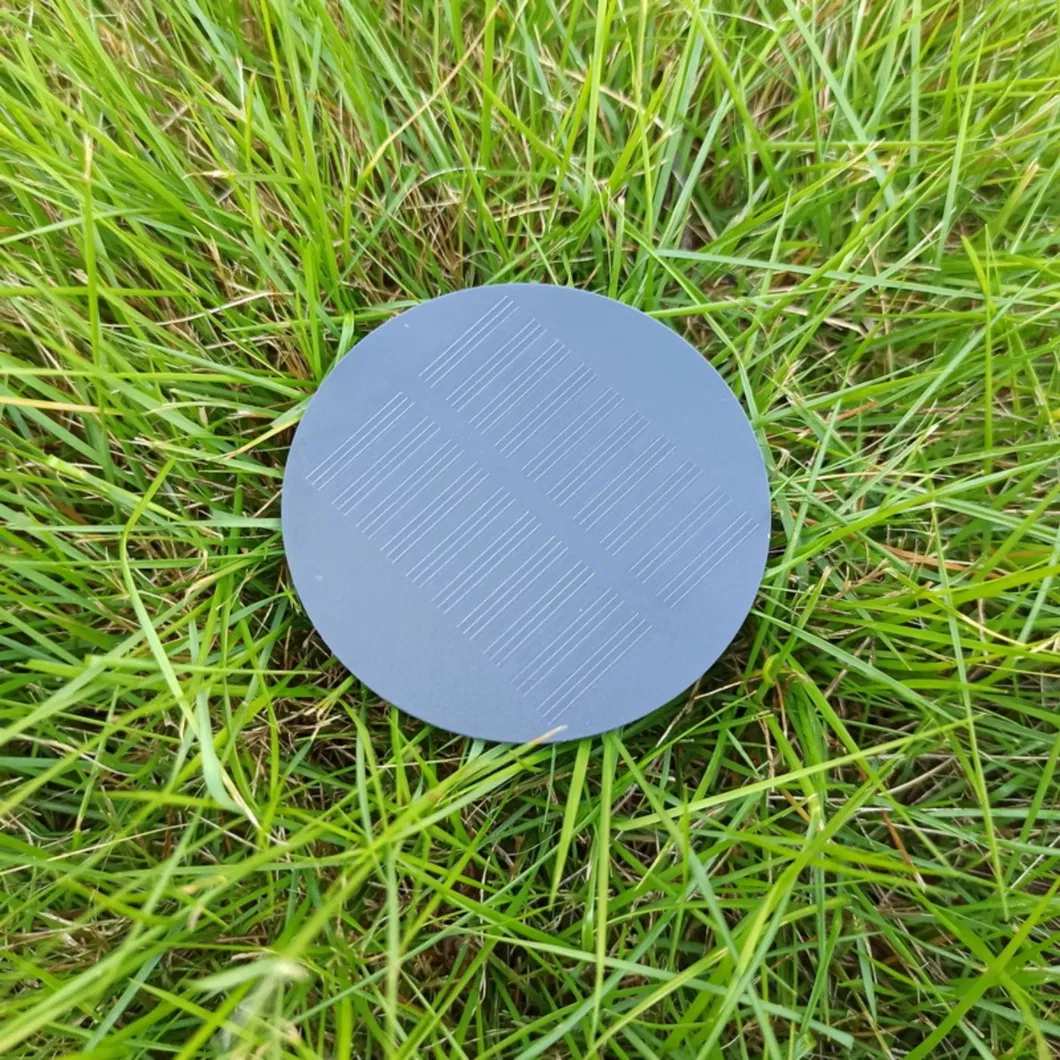

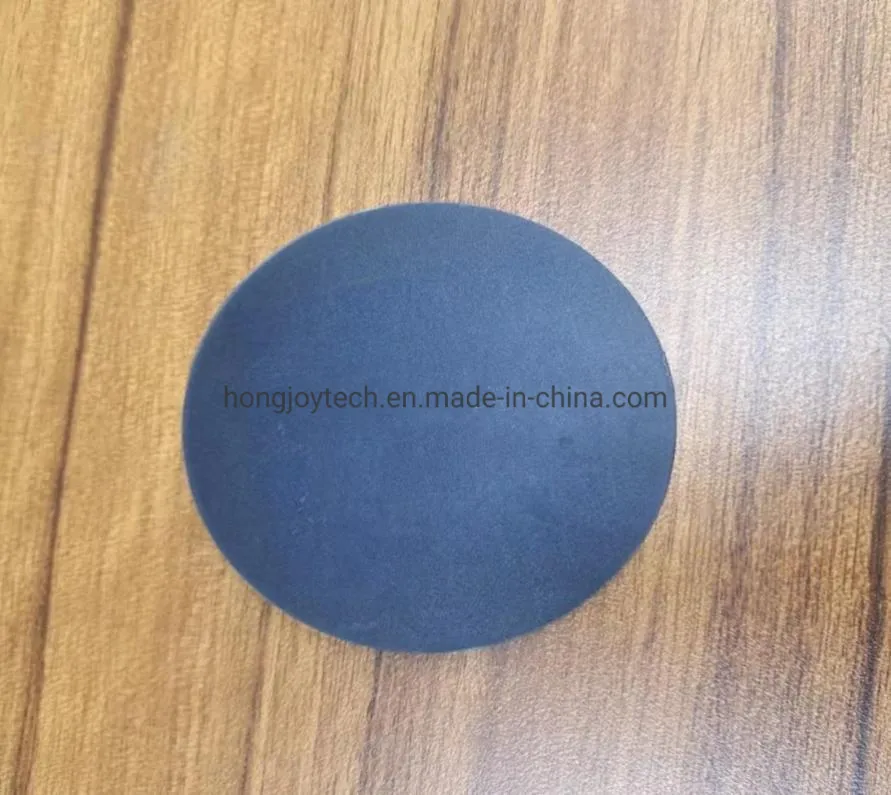

Power: 1W | Voltage (Vm): 12V
Open Circuit (Voc): 14.4V | Current (Im): 84mA
Dimension: Diameter 100mm * 2mm
Weight: 24.2g
