Rosen 10kw Hybrid Solar System 30kw 50kw 100kw Lithium Battery Storage

1 / 5

Rosen 10kw Hybrid Solar System 30kw 50kw 100kw Lithium Battery Storage

Customization:	Available
After-sales Service:	Yes
Warranty:	25 Years

Send Inquiry

Product Description

Basic Specifications

Model NO.

RS10KW-HY

Condition

New

Certification

ISO, CB, CE, TUV, VDE, IEC61215, IEC617, Pid, Cec, Jet

Application

Home, Industrial, Commercial, Agriculture Irrigation

Specification

Normal, 10KW

Solar Panel Type

Mono / Poly Solar Panel

Load Power

10kw

Output Frequency

50/60Hz

Output Voltage

EU: 380/400/480V Us: 240/480V etc

Monitoring

WiFi/GPRS Device

PV Cable

4/6/10mm2 etc

Work Time (H)

24hours/Day

Mounting Brackets

Roof/Ground Installation

Accessories

Mc4 Spanner, Crimping Pliers etc

Inverter

Three Phase, 3L/N/PE

Battery Type

AGM/Gel/Lithium Battery

Origin

China

HS Code

8543709990

Capacity

100000watt/Week

Logistics Information

Package Size

1.00cm * 1.00cm * 1.00cm

Gross Weight

120.000kg

Transport

Wooden Box / Carton Packing

Product Overview

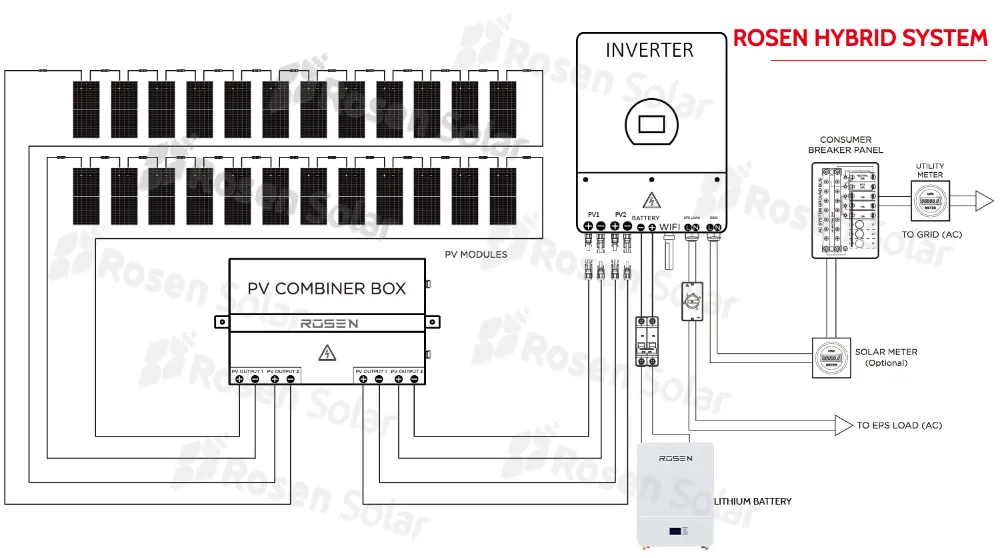

System Configuration

Item	5KW	10KW	15KW
Half Cell Solar Panel	12 pieces	24 pieces	36 pieces
PV Combiner Box	1 inputs 1output	2 inputs 2outputs	3 inputs 3 outputs
Hybrid Off Grid Inverter	5kw	10kw	15kw
WIFI Module Monitor	1 set	1 set	1 set
Solar Battery	GEL/Lithium Powerwall with BMS	GEL/Lithium Powerwall with BMS	GEL/Lithium Powerwall with BMS
PV Cable	6mm2	6mm2	6mm2
Mounting Bracket	Tile Roof/Ground	Tile Roof/Ground	Tile Roof/Ground
MC4 Connector	12pcs	24pcs	36pcs
Installation Tool Box	1set	1set	1set
Installation Manual	Yes	Yes	Yes

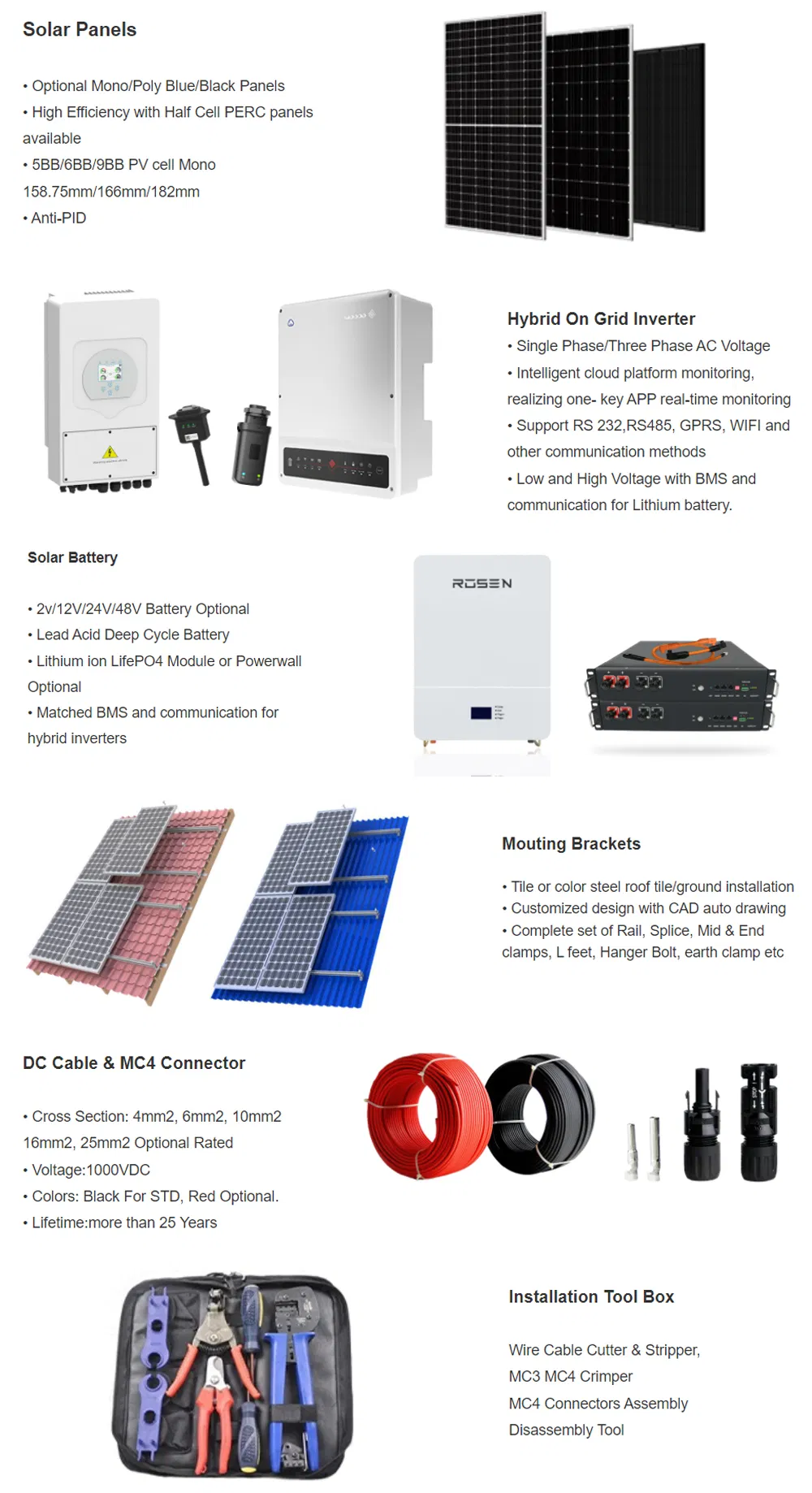

Technical Specification

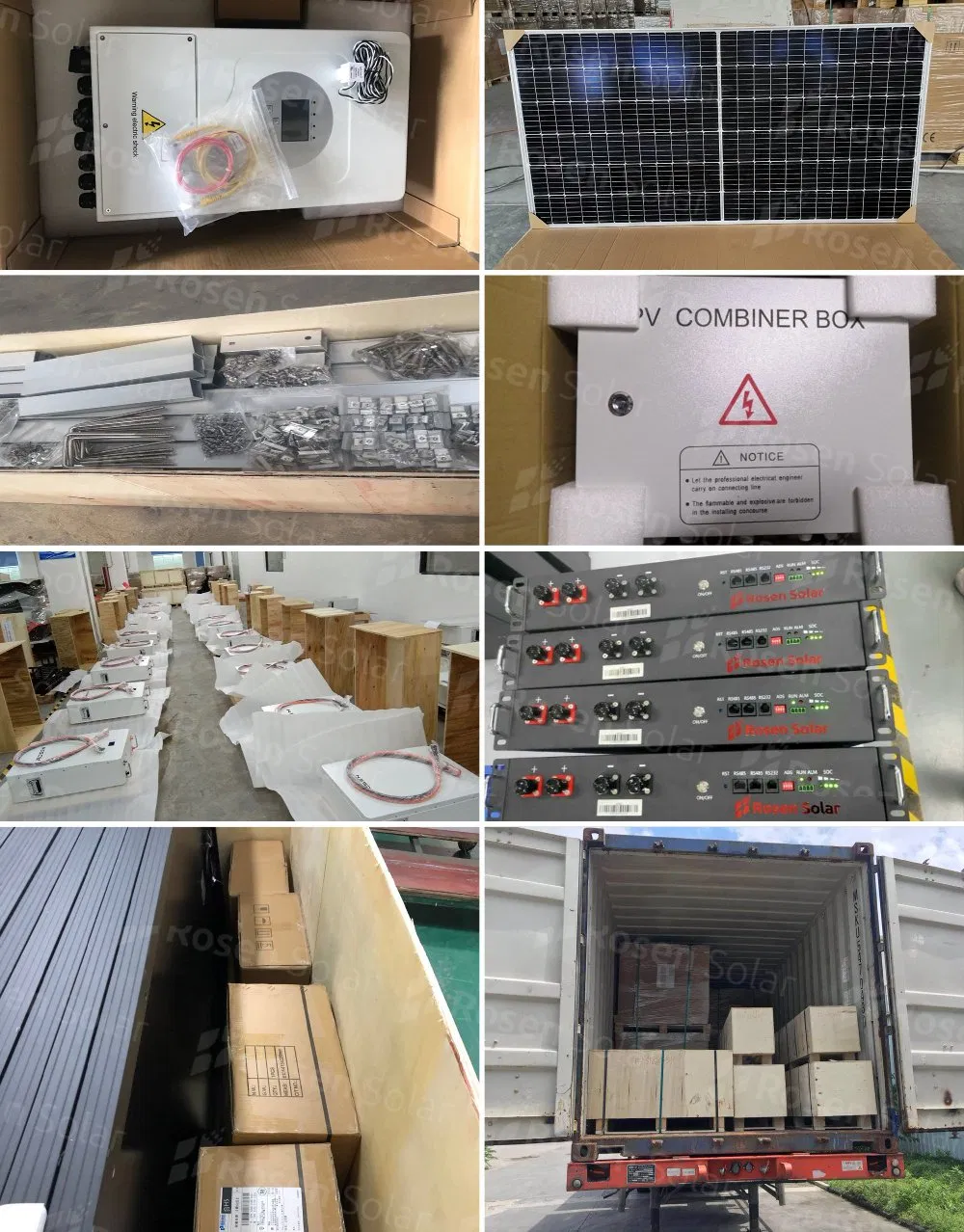

Packing & Delivery

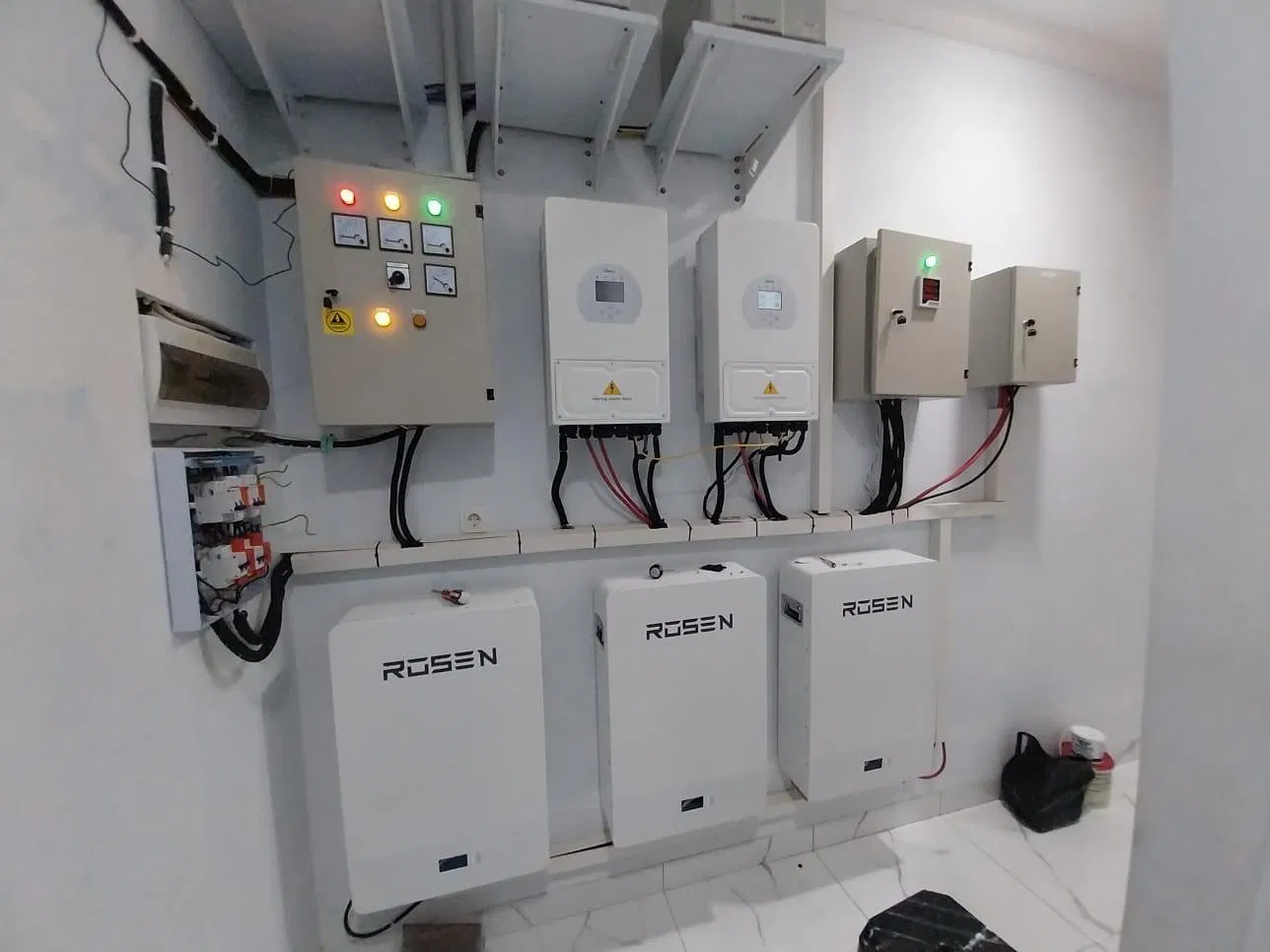

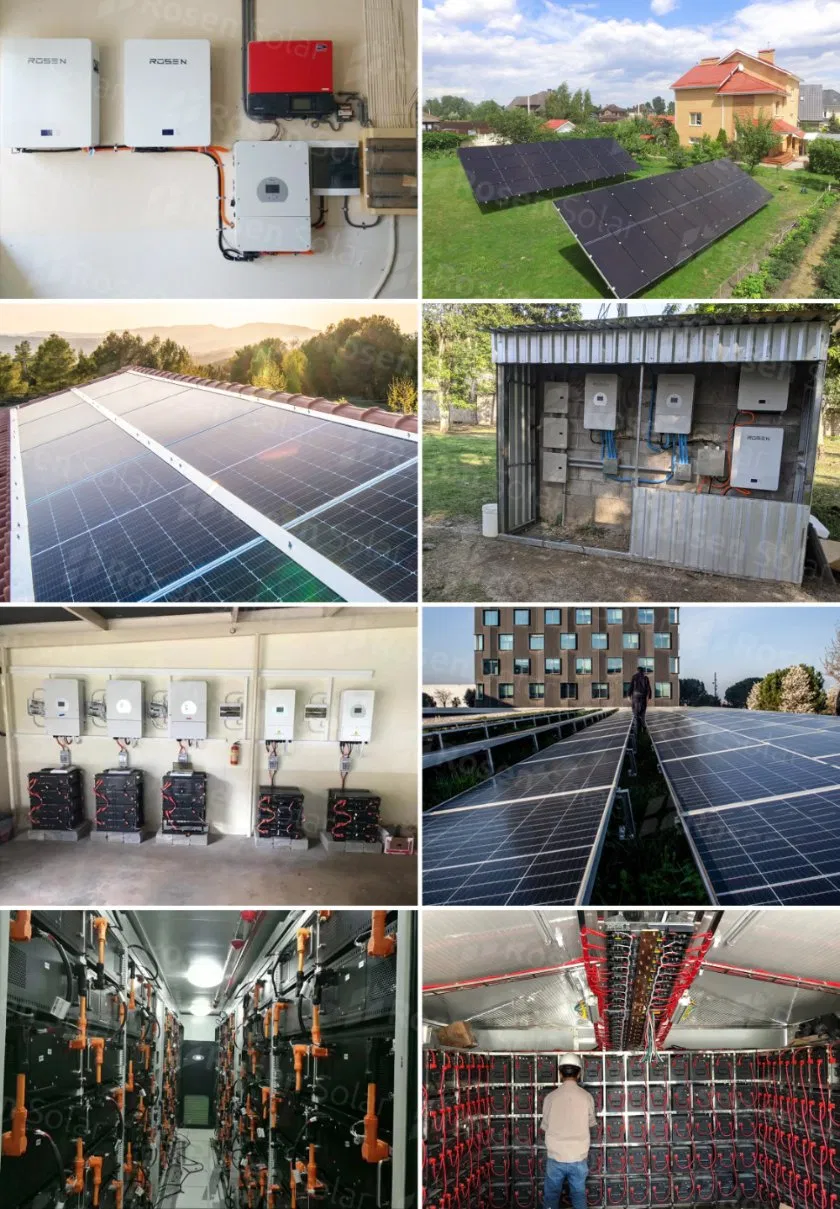

Project Cases

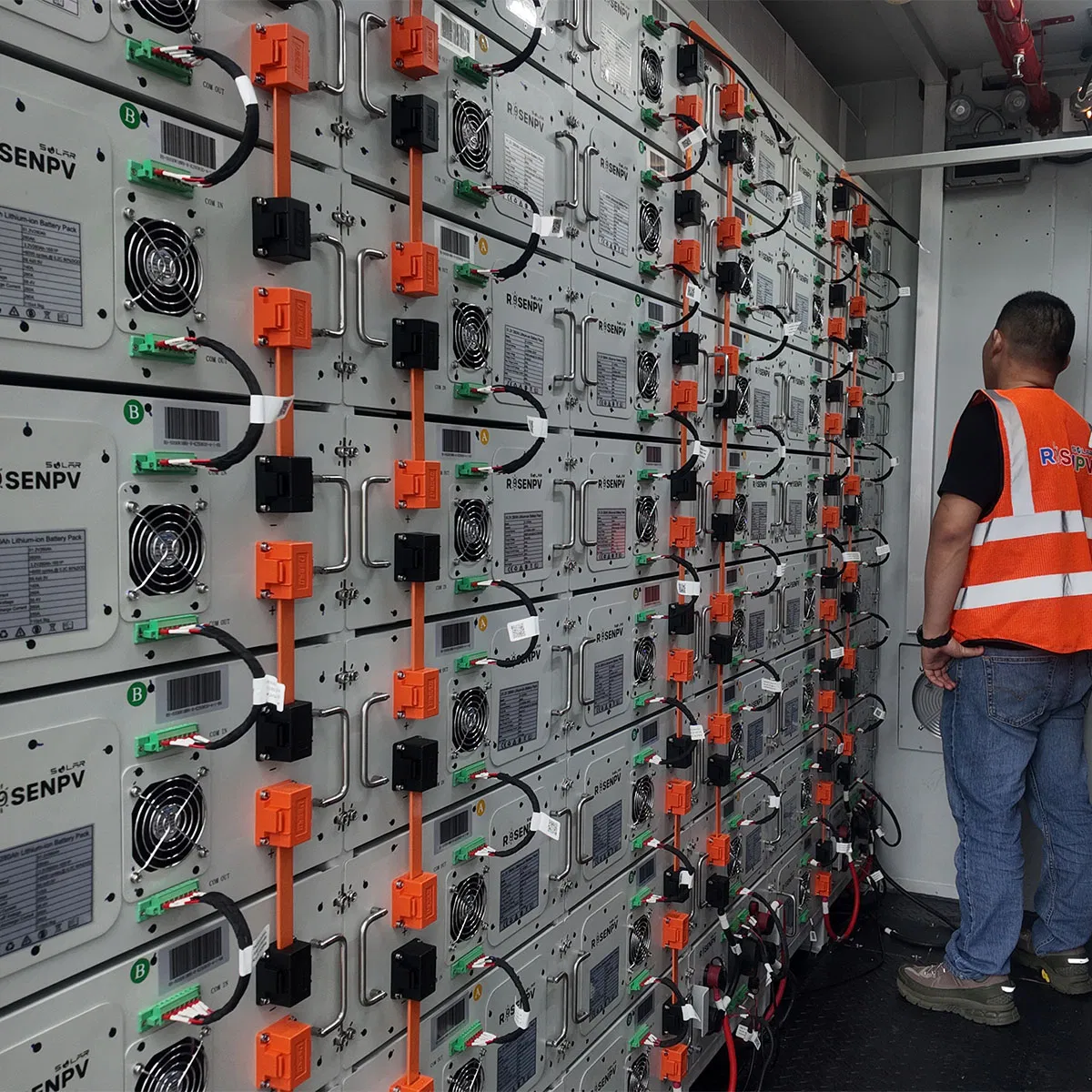

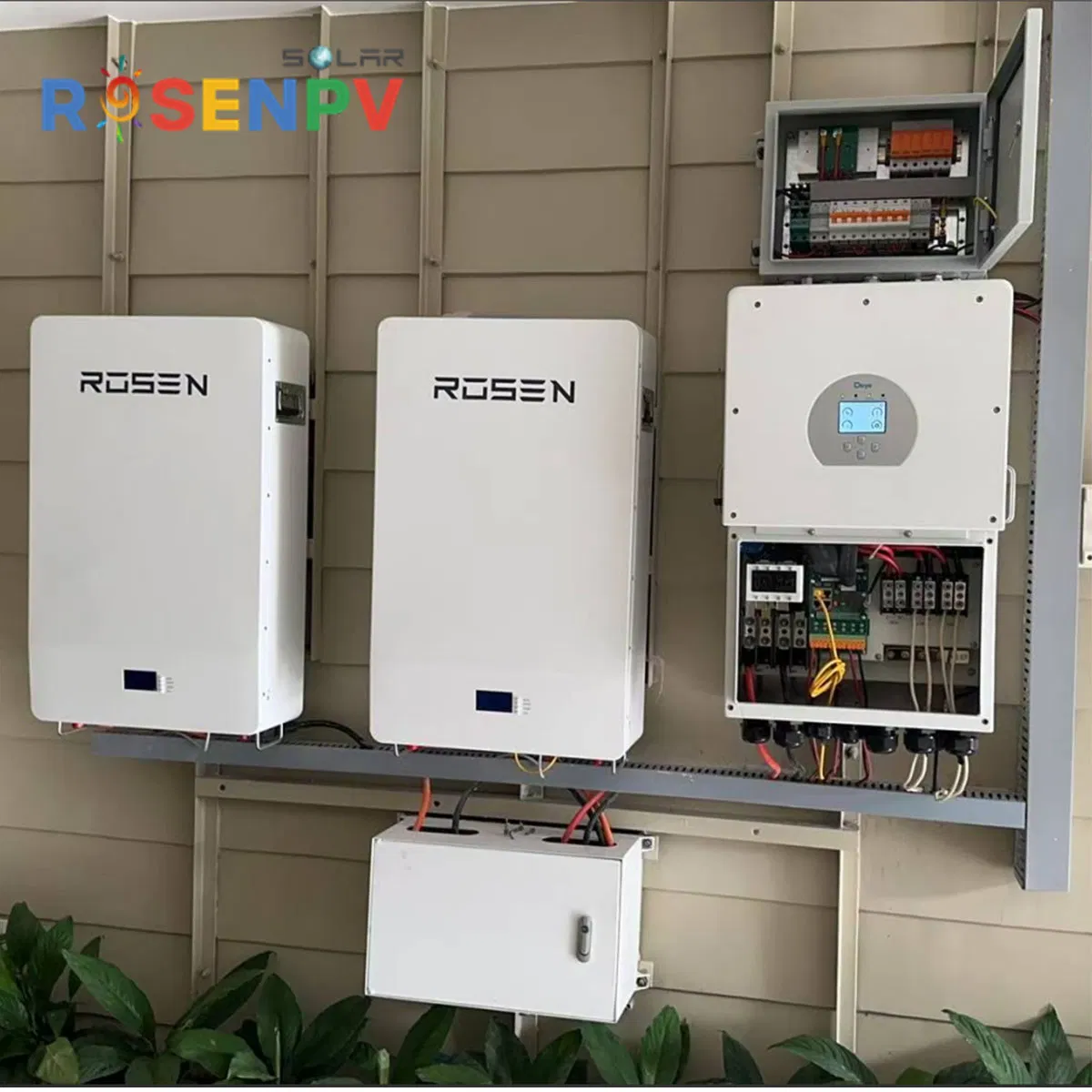

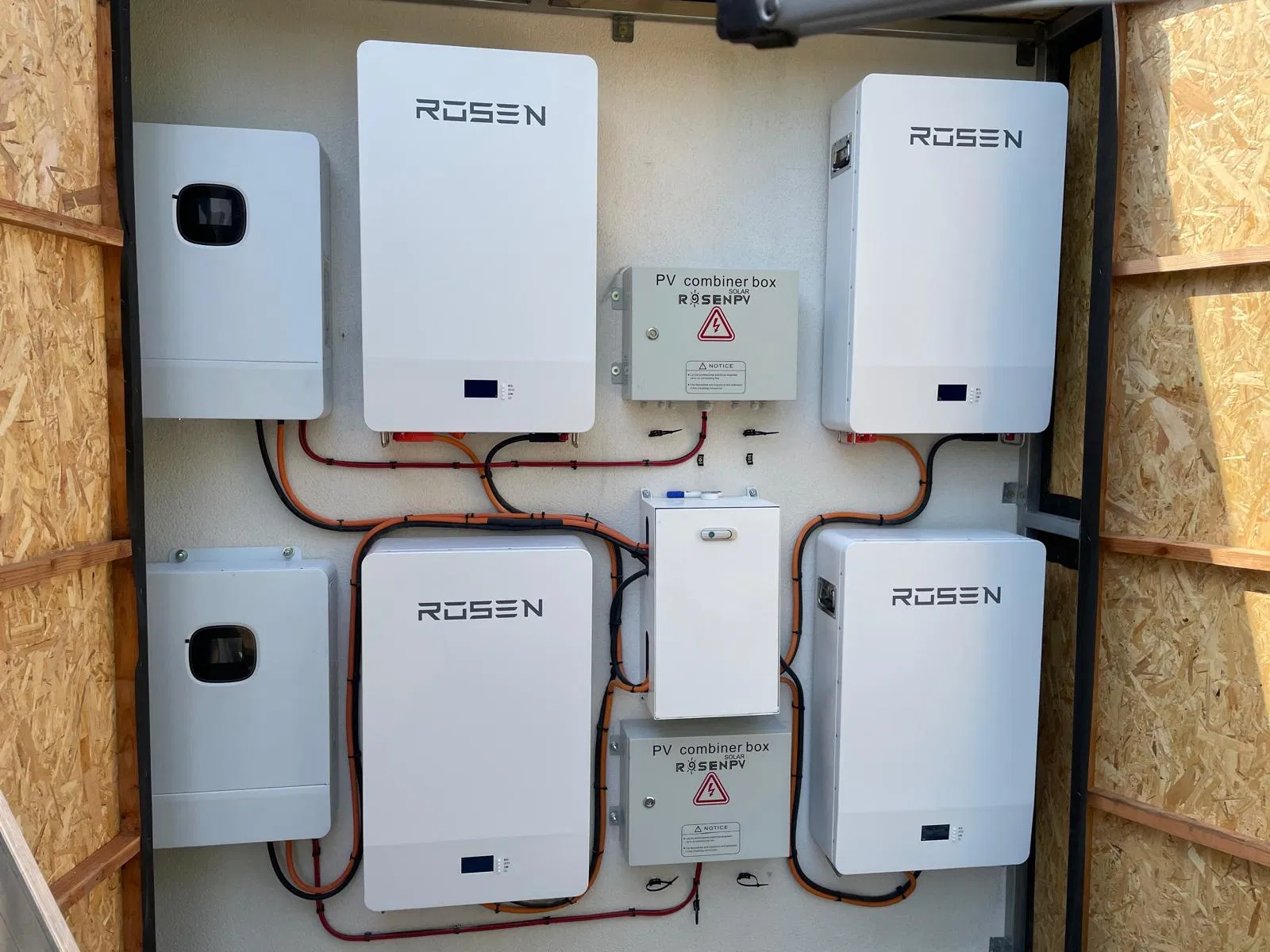

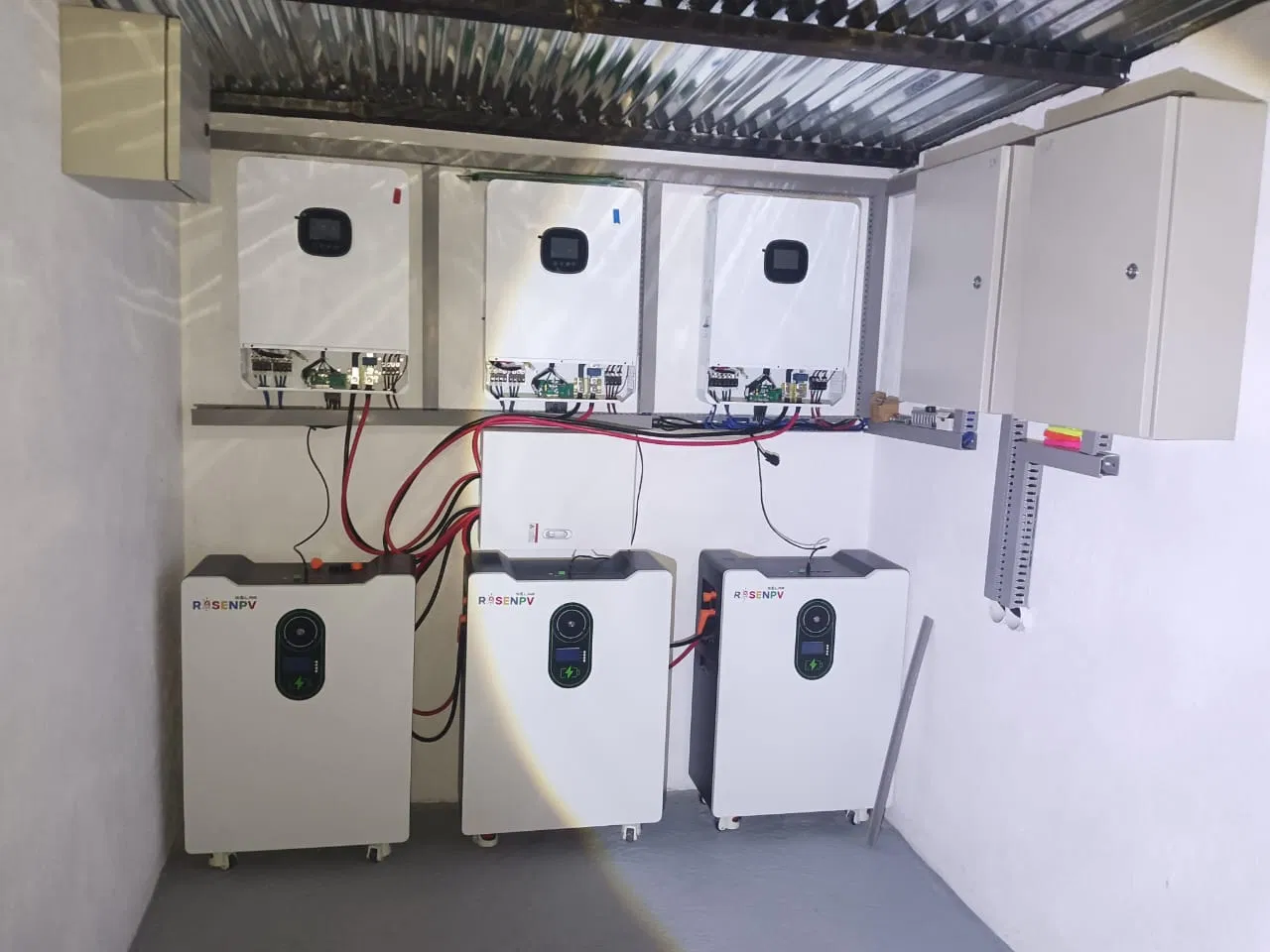

Lithium battery projects are installed for home and commercial solar projects. Home projects are more used with power wall types 48Vdc or 51.2Vdc 50Ah, 100Ah, 150Ah, 200Ah, 300Ah, 400Ah etc whose communication protocols are compatible with hybrid solar storage inverters 3kw, 5kw, 8kw, 10kw, 12kw etc. DOD more than 6000cycles for long life usage. Commercial projects BESS are more for factories like 100kw, 150kw, 200kw, 250kw, 300kw, 500kw, 1MW, 2MW, 5MW, 10MW etc, with containerized design and EMS programmable. Lithium battery warranty is up to 10years, and MSDS/UN38.3 certificates are listed for safety installation.

Frequently Asked Questions

What battery types are supported by this system?

The system is compatible with AGM, Gel, and Lithium batteries, including specialized Powerwall units with built-in Battery Management Systems (BMS).

Can I monitor my solar system remotely?

Yes, the system includes a WiFi/GPRS monitoring device that allows you to track performance and status via your smartphone or computer.

What is the lifespan of the lithium batteries?

The lithium batteries are designed for long-term usage with a Depth of Discharge (DOD) of more than 6000 cycles and come with a warranty of up to 10 years.

Is the system suitable for both residential and industrial use?

Absolutely. The system configuration is versatile, making it ideal for home, industrial, commercial applications, and even agricultural irrigation.

What certifications does the product hold?

The equipment is fully certified with ISO, CB, CE, TUV, VDE, and IEC standards, ensuring safety and high performance for global installations.

What kind of maintenance is required for the installation?

The system is designed for 24-hour daily operation with minimal maintenance. Mounting brackets are available for both roof and ground setups to suit your specific site conditions.
