PV Solar Panel Energy Power Plant Pitched Roof Aluminum Pole Ground Structure Mounting System for Farm

ℹ️

Basic Information

Model NO.

HINA

Material

Steel

Type

Roof Bracket

Standard

DIN, ASTM/ASME, JIS, En, ISO, as, GB

Finishing

Zinc, HDG, Sandblasting

Certificate

ISO 9001:2015

Installation Site

Flat Roof, Ground

Wind Load

60m/S

Snow Load

1.6kN/M2

Panel Layout

Portrait or Landscape

Specification

SS304, AL6005-T5

Production Capacity

500ton/Month

📦

Packaging & Delivery

Package Size

20.00cm * 20.00cm * 20.00cm

Package Gross Weight

10.000kg

Transport Package

20-25kg/Cartons+900kg/Pallets

Delivery Time

7-30 days

🛠️

Product Description

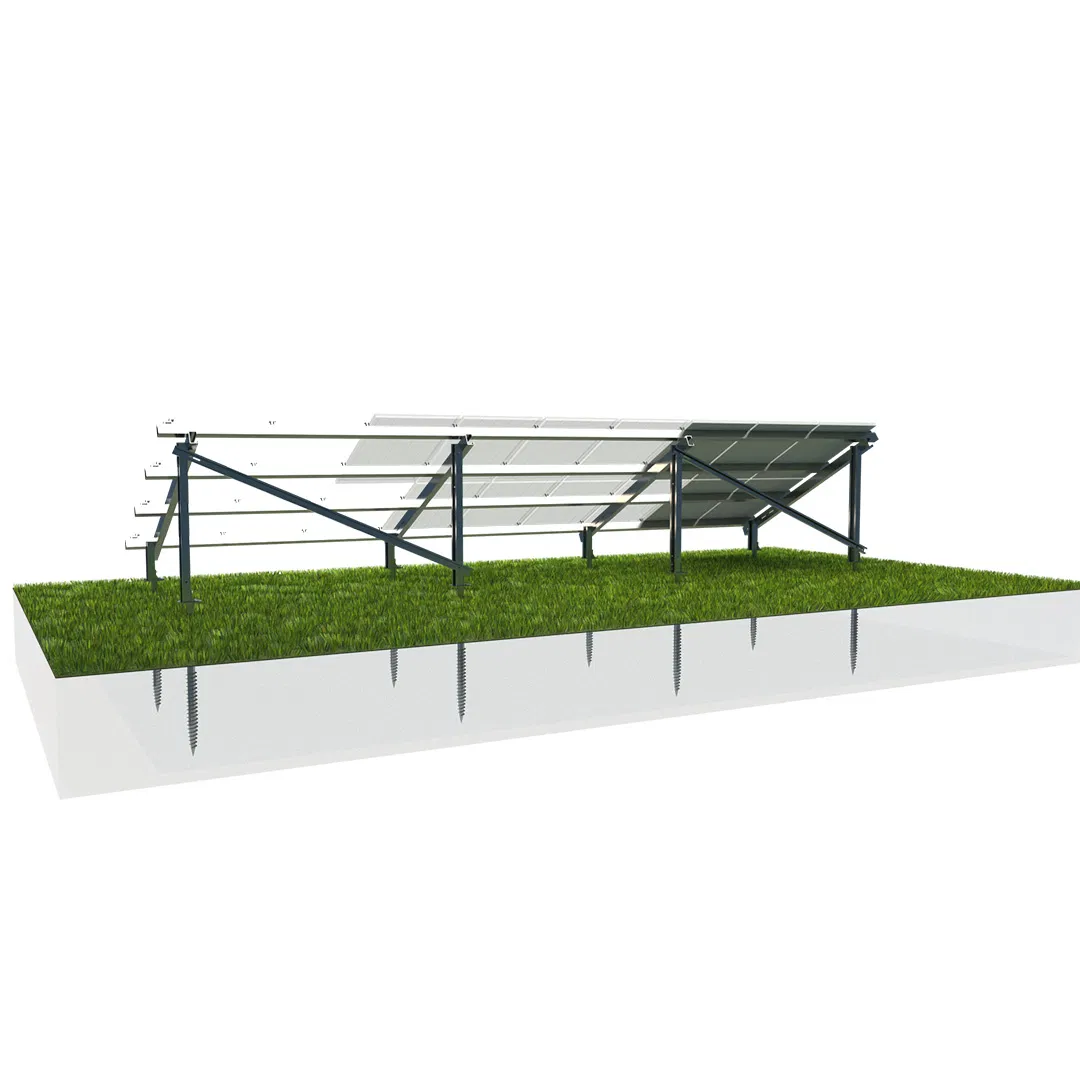

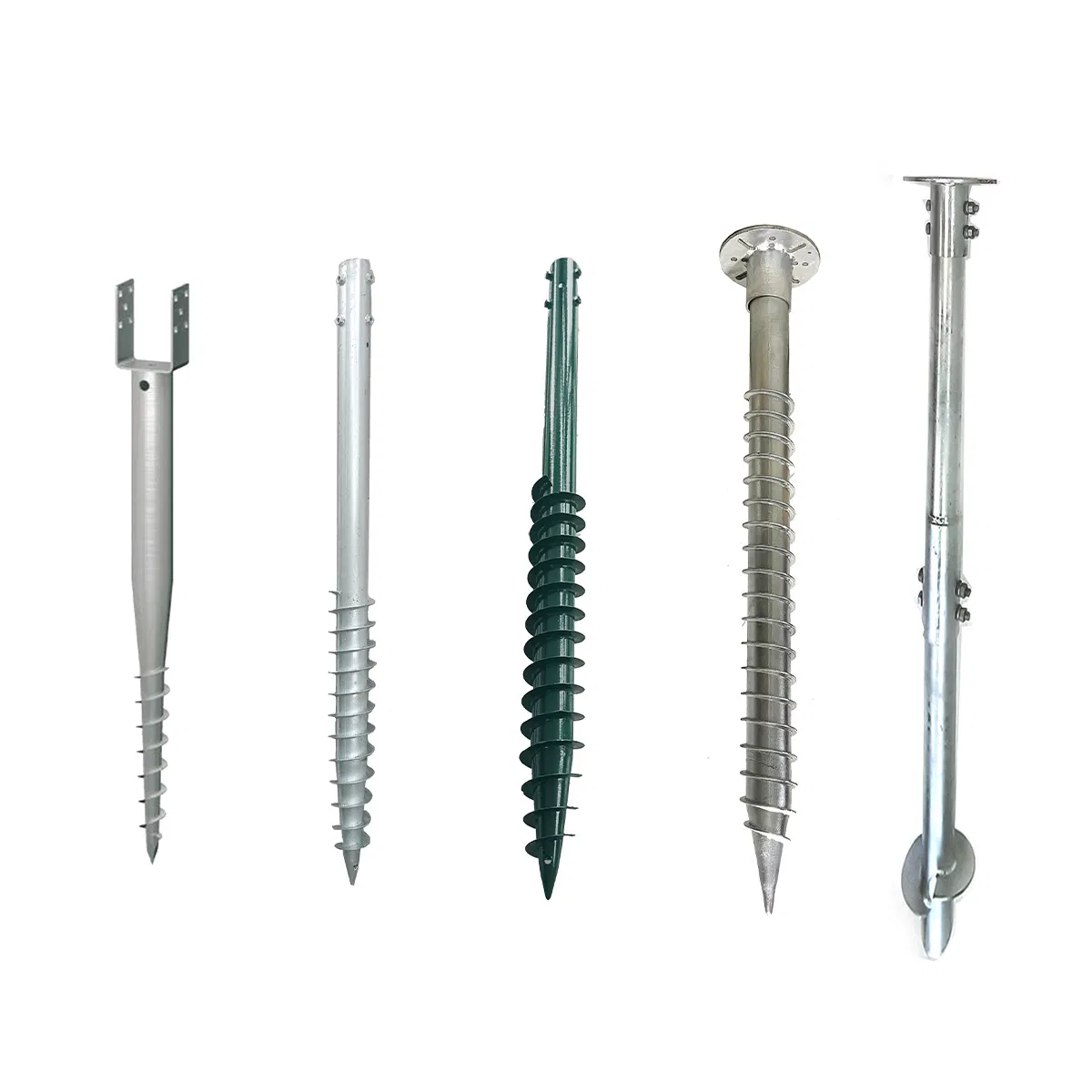

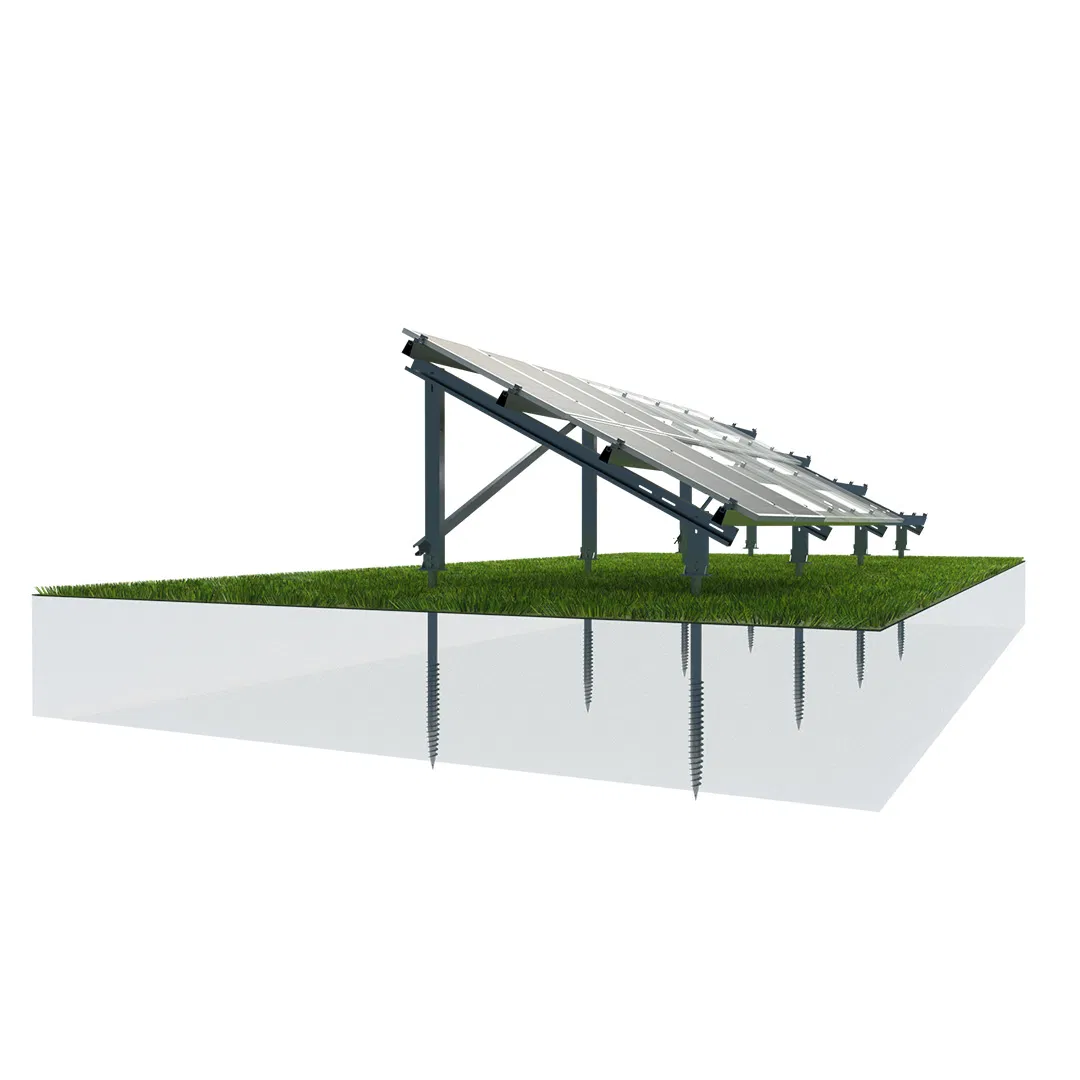

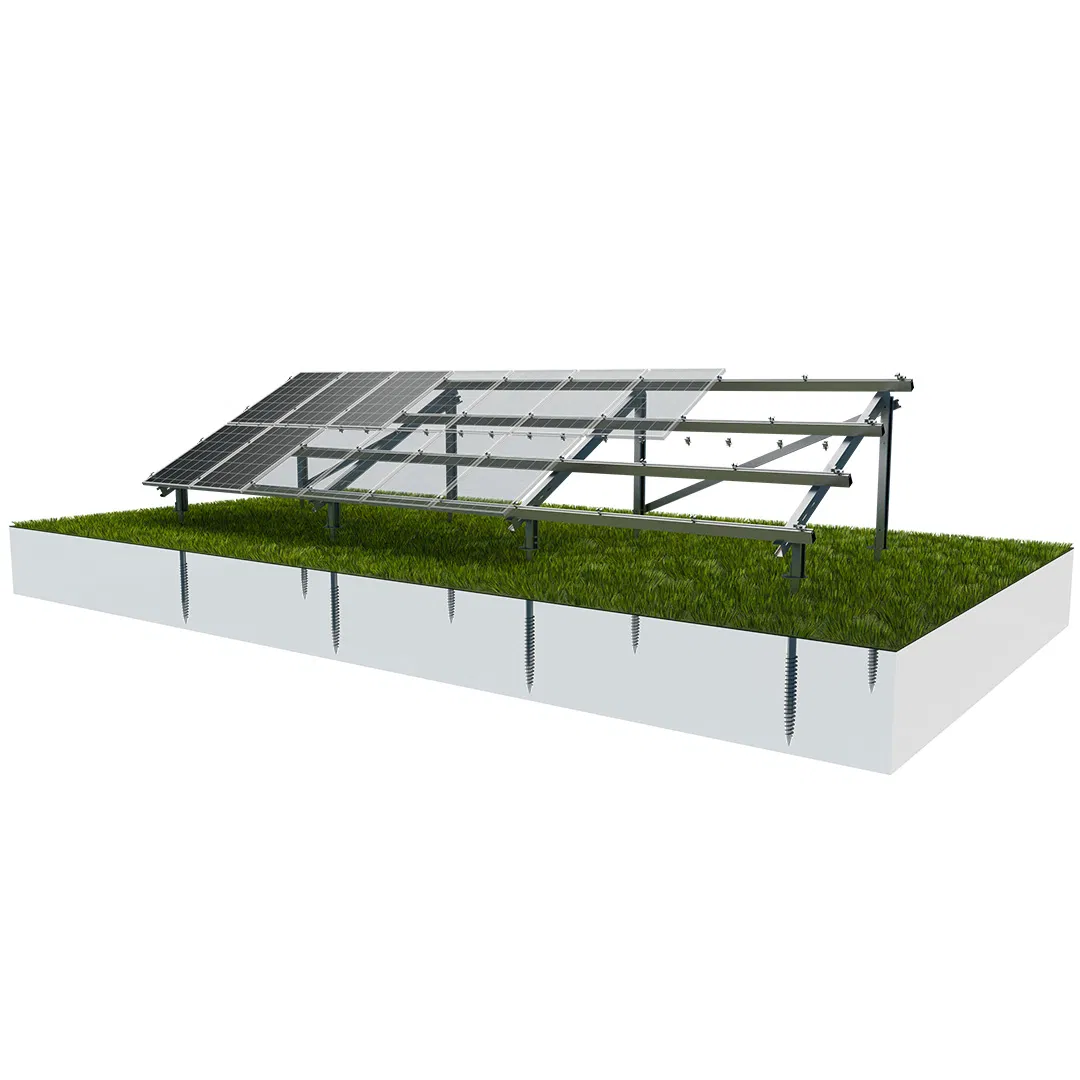

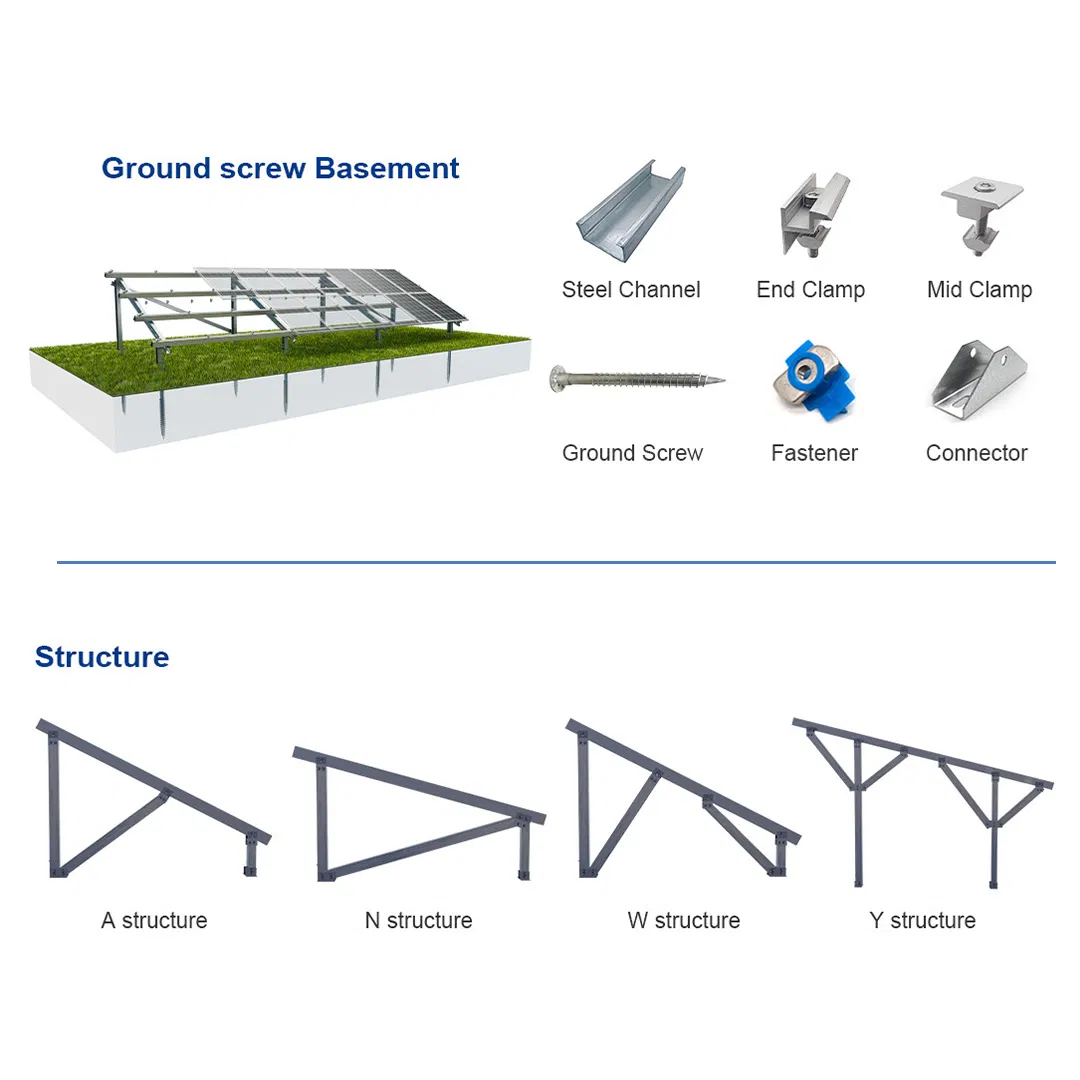

PV Solar energy power plant Structure Mounting system for Farm: A ground screw (also known as a helical pile or screw pile) is a type of foundation used in solar mounting systems. It is a steel shaft with one or more helical blades (similar to a screw) that is drilled into the ground to provide a stable foundation for solar panels and related structures.

Technical Parameters
System Name	Solar Ground Mounting System	Design Standard	AS/NZS 1170, DIN 1055, JIS C8955:2017
Installation Site	Flat Roof, Ground	IBC Standard	International Building Code: IBC 2009
Tilt Angle	5-10°	CBC Standard	California Building Code: CBC 2010
Wind Load	60m/s	Hook Material	SUS304
Snow Load	1.6KN/M2	Fastener	SUS304
Solar Module	Framed	Small Components	AL6005-T5(Anodized)
Panel Layout	Portrait or Landscape	Warranty	10-year warranty

⭐

Our Services

Professional Manufacturer: All fasteners are designed and manufactured according to buyers' specification and performance.
Quality Guaranteed: Durability testing and critical technical design to enhance fasteners lifetime.
Cost Effective: Competitive prices with professional factory supply.
10 Years Experience: Wide range of parts selection to solve your fastening problems perfectly.
Customized Solutions: Services tailored according to the samples and drawings offered.

📸

Product Display

❓

Frequently Asked Questions

Q1: What materials are used in the solar ground mounting system? A: The system primarily uses high-quality Steel, SUS304 Stainless Steel for fasteners, and AL6005-T5 Anodized Aluminum for small components to ensure durability and corrosion resistance.

Q2: What is the maximum wind and snow load the system can handle? A: The mounting system is designed to withstand a maximum wind load of 60m/s and a snow load of up to 1.6kN/M2, meeting international building standards.

Q3: Can this system be installed on different types of terrain? A: Yes, the system is versatile and suitable for both ground installations and flat roof applications, providing a stable foundation via ground screws or brackets.

Q4: Does the system support different panel orientations? A: Absolutely. The layout can be configured in either Portrait or Landscape orientation depending on your specific project requirements and space availability.

Q5: What is the typical delivery time for orders? A: Depending on the order volume and customization requirements, the standard delivery time ranges between 7 to 30 days.

Q6: What kind of warranty is provided? A: We offer a 10-year warranty on the mounting system components, reflecting our commitment to quality and long-term performance.
