Product Description

Basic Specifications

Model NO.PV cable

CurrentDC & AC

Insulation MaterialXLPE

Sheath MaterialCrosslinking

Wire Core MaterialTinned Wire

CertificationISO, CCC, CE

Voltage Rating0.6/1kv

Temperature Rating120°C

Thermal Endurance25 years

Standard2 Pfg 1169/08.2007

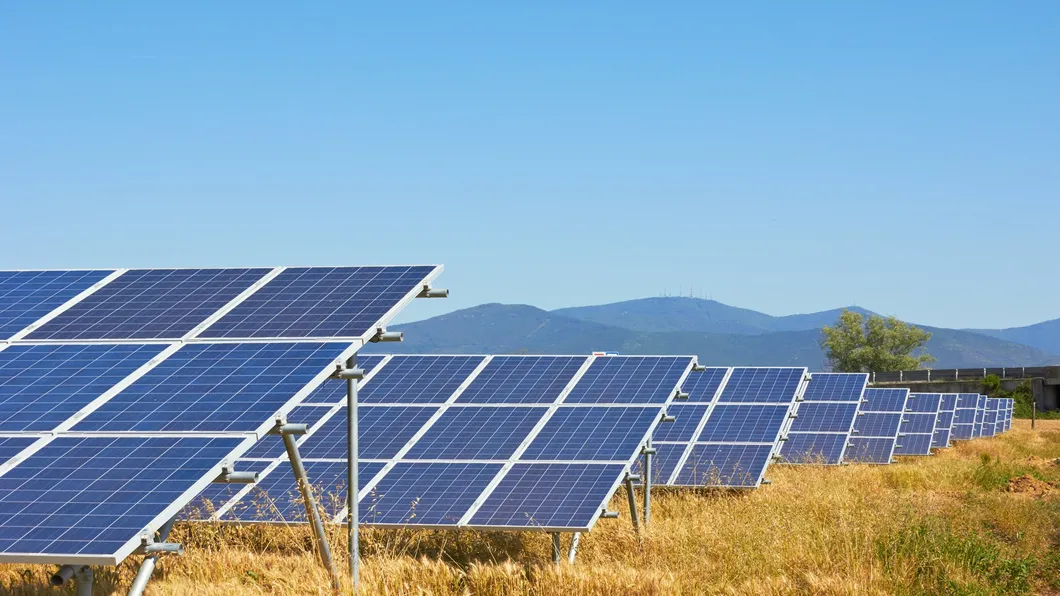

Product Application

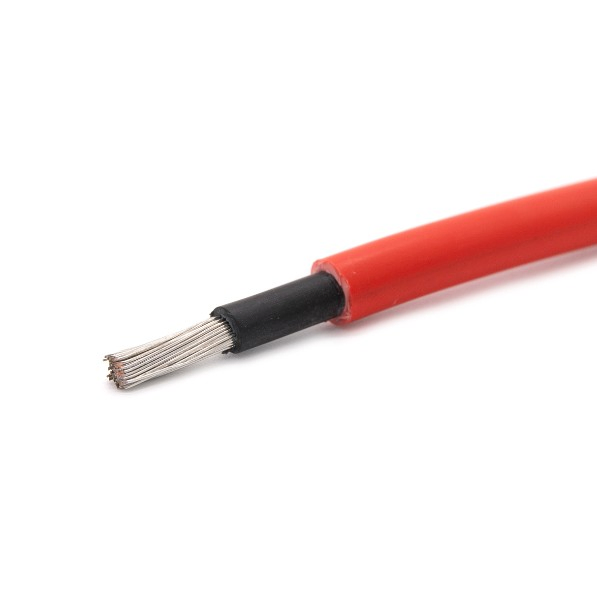

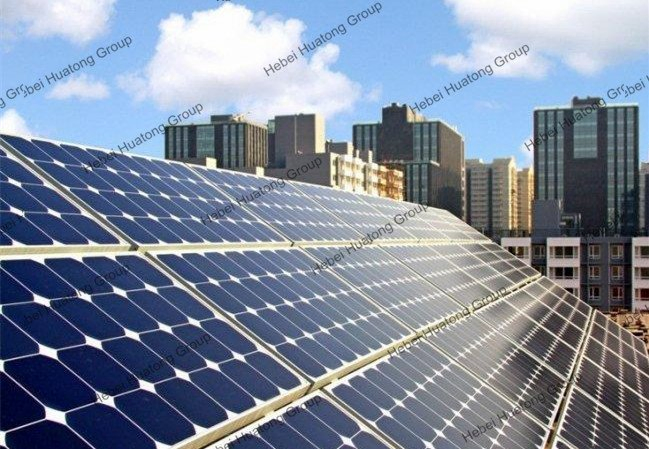

The PV1F Solar Cable is specifically engineered for fixed installations and internal connections within solar panel systems. It is TUV Approved and optimized for long-term outdoor exposure with superior UV-resistant properties.

Key Characteristics

Double insulation, electron beam cross-linked
Excellent resistance to UV, water, and ozone
High resistance to salt and general weathering
Superior abrasion resistance
Halogen-free and flame retardant
Low toxicity for safety
Excellent flexibility and stripping
High current carrying capacity
TUV and UL certified

Technical Datasheet

Sectional area (mm²)	0.5	0.75	1	1.5	2.5	4	6	10	16
Copper (Ω/km)	36	24.5	18.1	12.1	7.41	4.61	3.08	1.83	1.15
Tinned copper (Ω/km)	36.7	24.8	18.2	12.2	7.56	4.7	3.11	1.84	1.16

Sectional area (mm²)	25	35	50	70	95	120	150	185	240
Copper (Ω/km)	0.727	0.524	0.387	0.268	0.193	0.153	0.124	0.0991	0.0754
Tinned copper (Ω/km)	0.734	0.529	0.391	0.27	0.195	0.154	0.126	0.1	0.0762

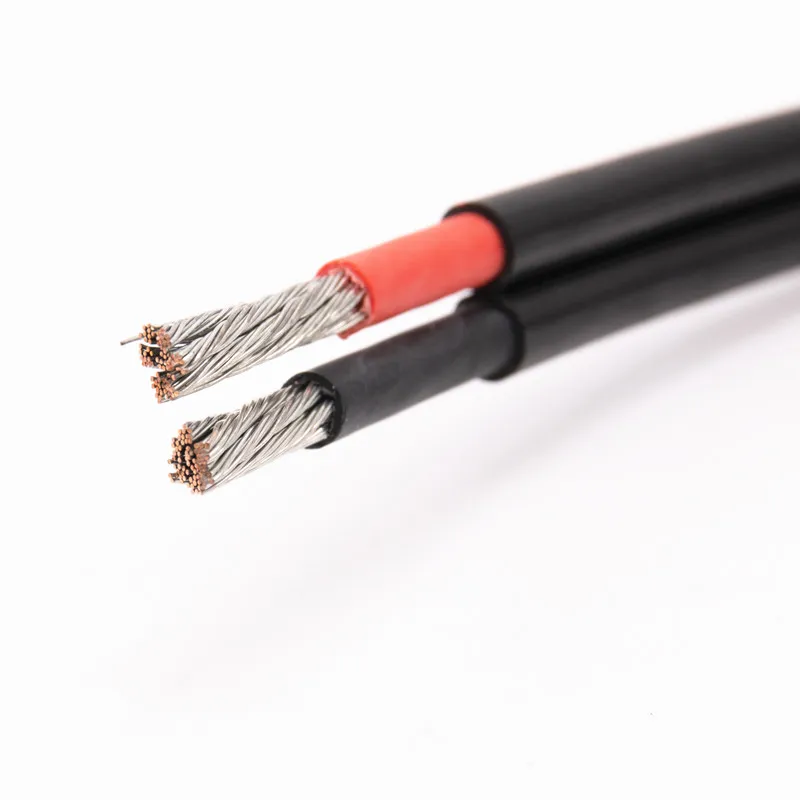

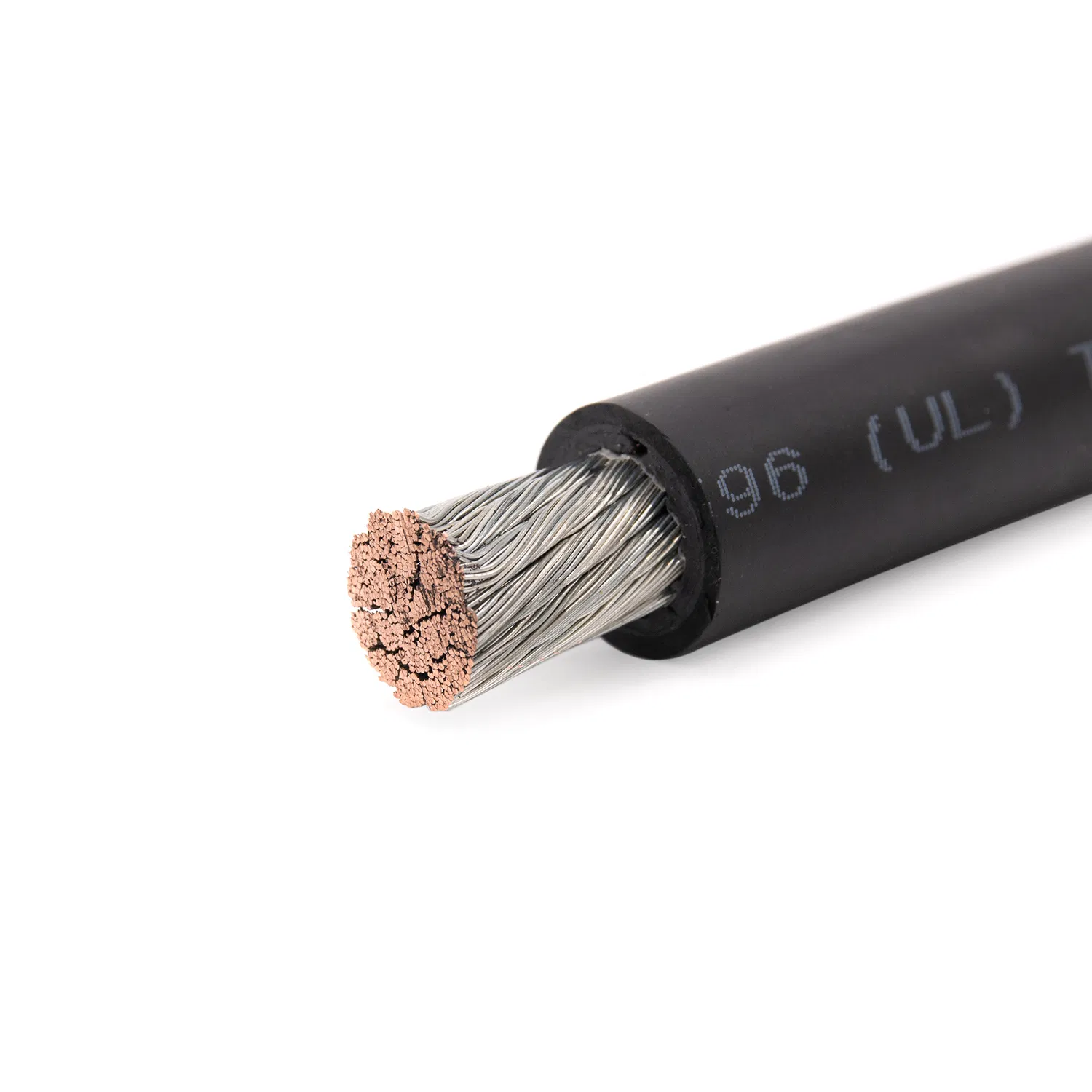

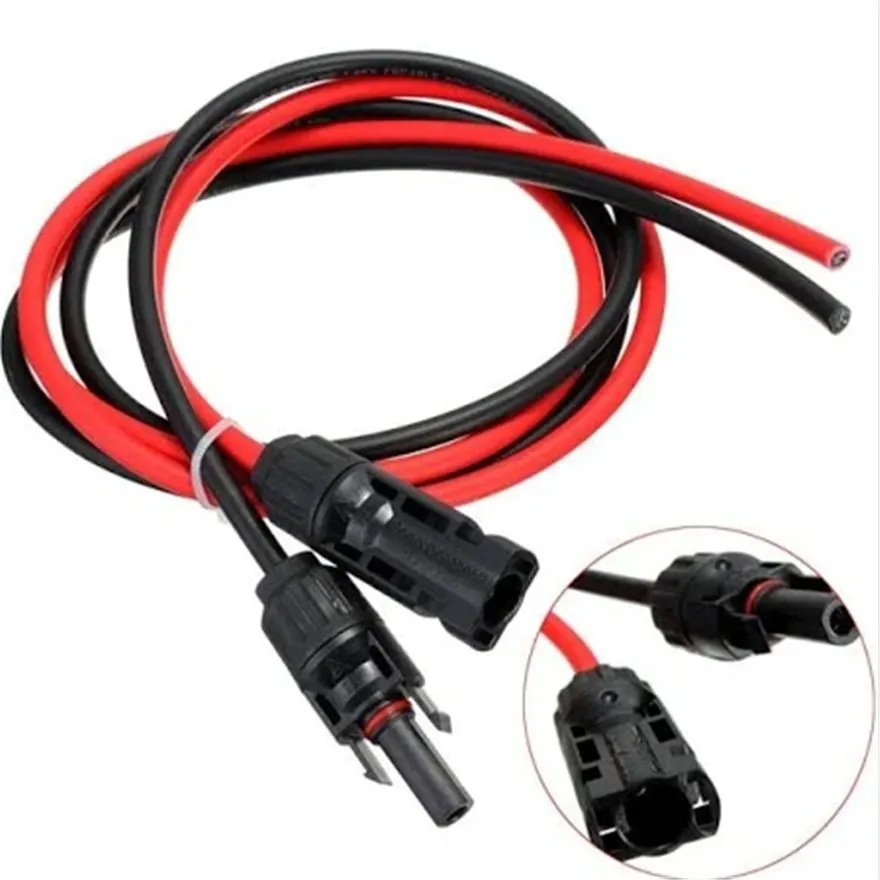

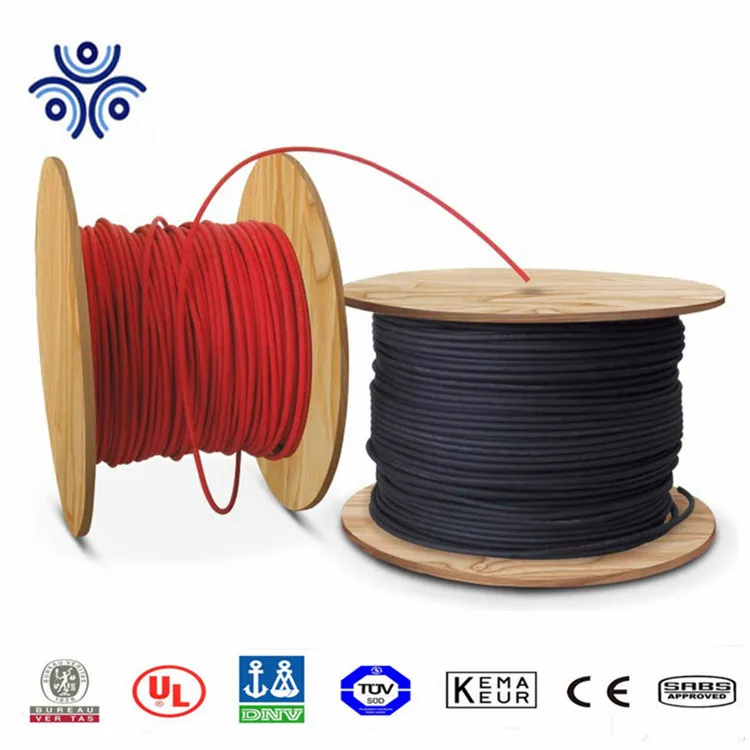

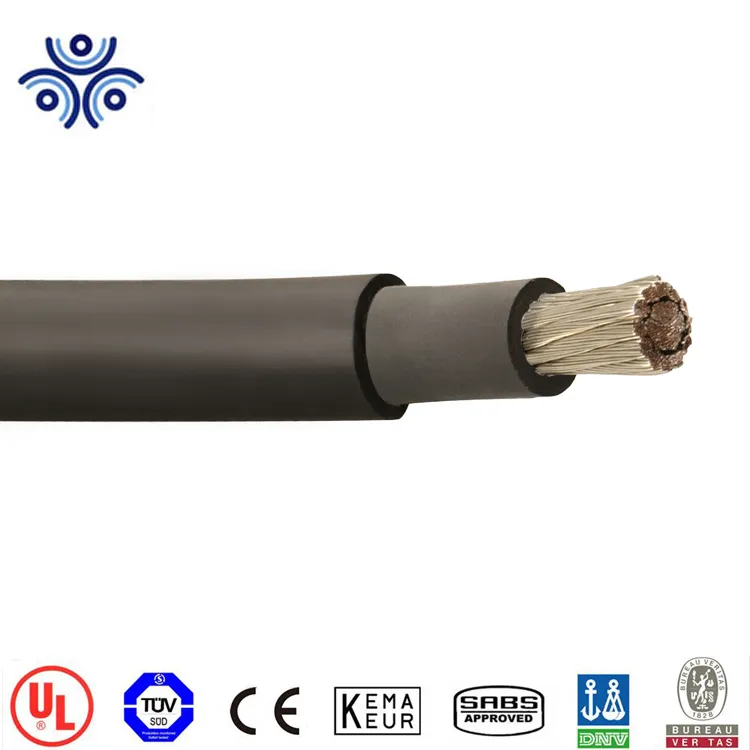

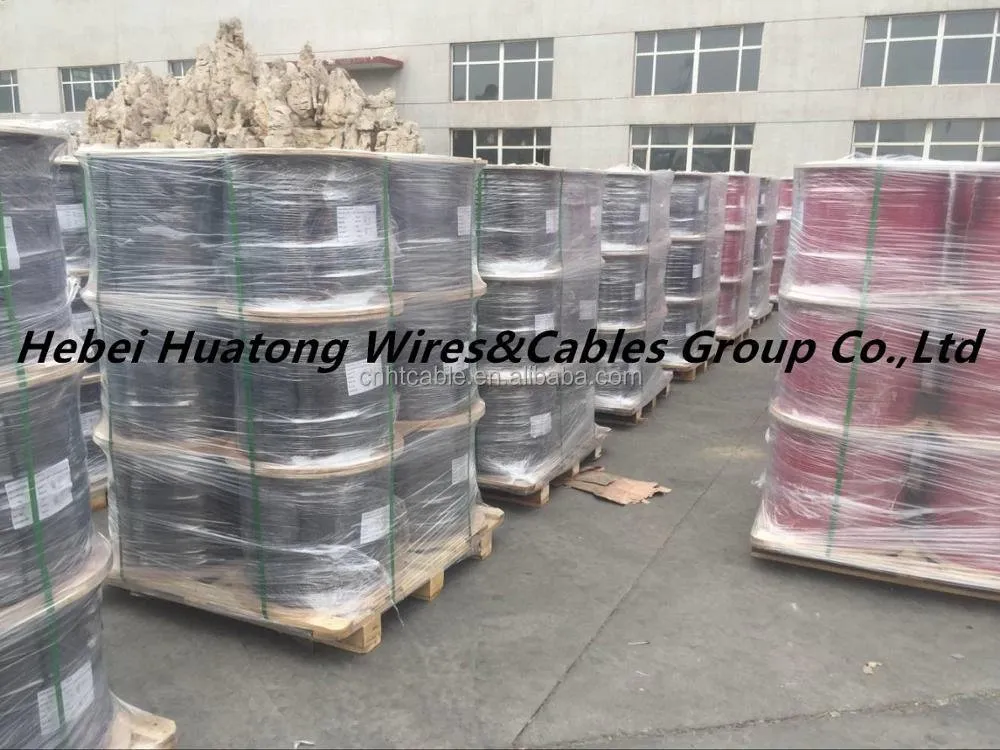

Product Gallery & Packaging

Frequently Asked Questions

What is the expected lifespan of these solar cables?

The PV1F Solar Cable is designed for extreme durability with an expected period of use of at least 25 years under standard operating conditions.

What certifications do these cables hold?

Our solar cables are fully certified and comply with TUV, UL, CE, ISO, and CCC standards, ensuring global compatibility and safety.

What is the temperature range for these cables?

The cables can operate in ambient temperatures ranging from -40°C to +90°C, with a maximum conductor temperature rating of 120°C.

Are these cables resistant to outdoor elements?

Yes, they feature XLPE double insulation which provides excellent resistance to UV radiation, water, ozone, salt, and general weathering.

What core material is used in the PV1-F cable?

The conductor is made of high-quality stranded tinned copper, which offers superior conductivity and corrosion resistance compared to standard copper.

Is the cable flame retardant?

Yes, the cable is halogen-free and flame retardant, meeting the IEC60332-1-2 safety standards for flame propagation.
