This product has acquired the relevant product qualification(s) and license(s) applicable for global standards. Designed for high efficiency and long-term durability in various environmental conditions.
| MECHANICAL DATA | |
|---|---|

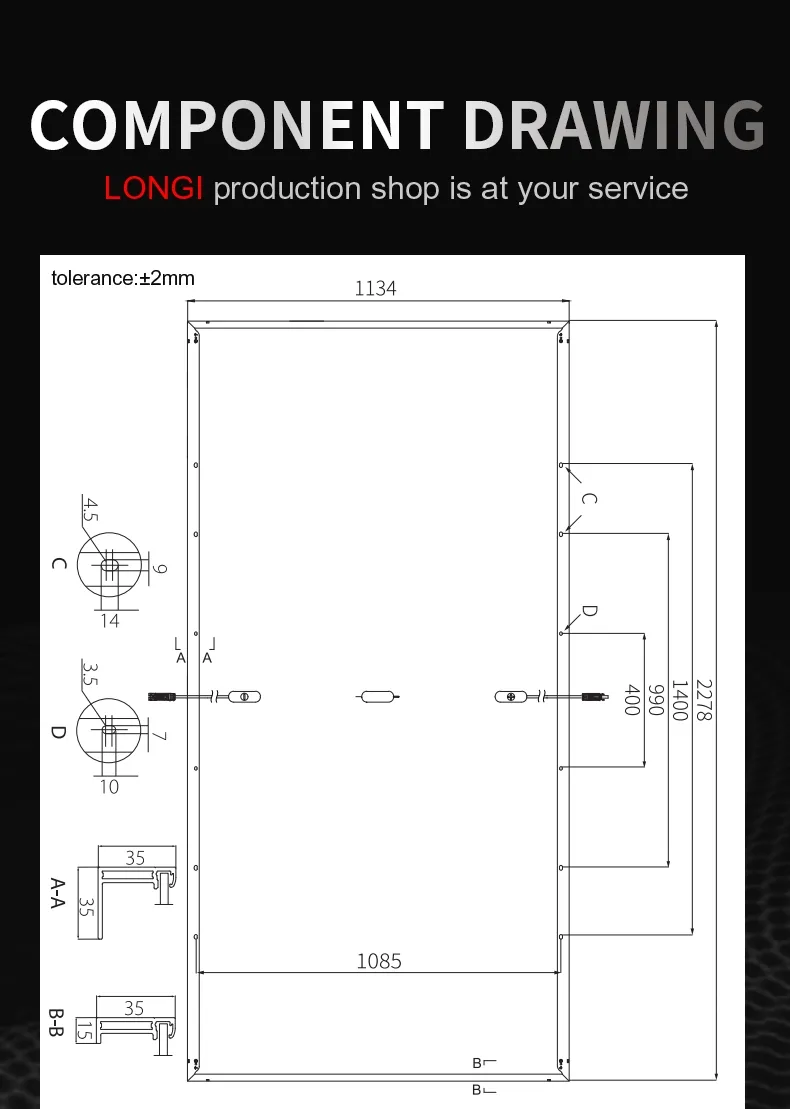

| Module Dimensions | 2278*1134*35mm |
| Weight | 27.3kg |
| Glass | 3.2 mm, High Transmission, AR Coated Tempered Glass |
| Junction-Box | IP 68, three diodes |
| Cables | 4.0mm², 300mm in length |
| Cell Orientation | 144 cells (6*24) |
| Electrical Characteristics | ||||||
|---|---|---|---|---|---|---|
| Model Number | 72HTH-560M | 72HTH-565M | 72HTH-570M | 72HTH-575M | 72HTH-580M | 72HTH-585M |
| Max Power (Pmax/W) | 560 | 565 | 570 | 575 | 580 | 585 |
| Open Circuit Voltage (Voc/V) | 51.61 | 51.76 | 51.91 | 52.06 | 52.21 | 52.36 |
| Short Circuit Current (Isc/A) | 13.94 | 14.01 | 14.07 | 14.14 | 14.20 | 14.27 |
| Voltage at Pmax (Vmp/V) | 43.46 | 43.61 | 43.76 | 43.91 | 44.06 | 44.21 |
| Current at Pmax (Imp/A) | 12.89 | 12.96 | 13.03 | 13.10 | 13.17 | 13.24 |
| Module Efficiency (%) | 21.7 | 21.9 | 22.1 | 22.3 | 22.5 | 22.6 |
