Wing Solar
Wing Solar
| Parts | Specification | SP5KW | SP6KW | SP8KW | SP10KW | SP12KW |
|---|---|---|---|---|---|---|
| Solar Panel | 590W Mono Panel | 6 Pieces | 10 Pieces | 12 Pieces | 16 Pieces | 20 Pieces |
| Hybrid Inverter | Single/Three Phase | 1 pcs 5KW | 1 pcs 6KW | 1 pcs 8KW | 1 pcs 10KW | 1 pcs 12KW |
| LiFePO4 Battery | 48V 5/10KWH | 1 Pieces | 2 Pieces | 2 Pieces | 2 Pieces | 2 Pieces |
| Bracket | Ground or Roof | 1 set | 1 set | 1 set | 1 set | 1 set |
| PV Cables | 4mm² | 100m | 200m | 200m | 200m | 200m |
| MC4 Connector | Male + Female | 5 pairs | 10 pairs | 10 pairs | 15 pairs | 15 pairs |
Note: Product dimensions and physical appearance in this data sheet are nominal. We reserve the right to make the product changes from time to time, without prior notification.

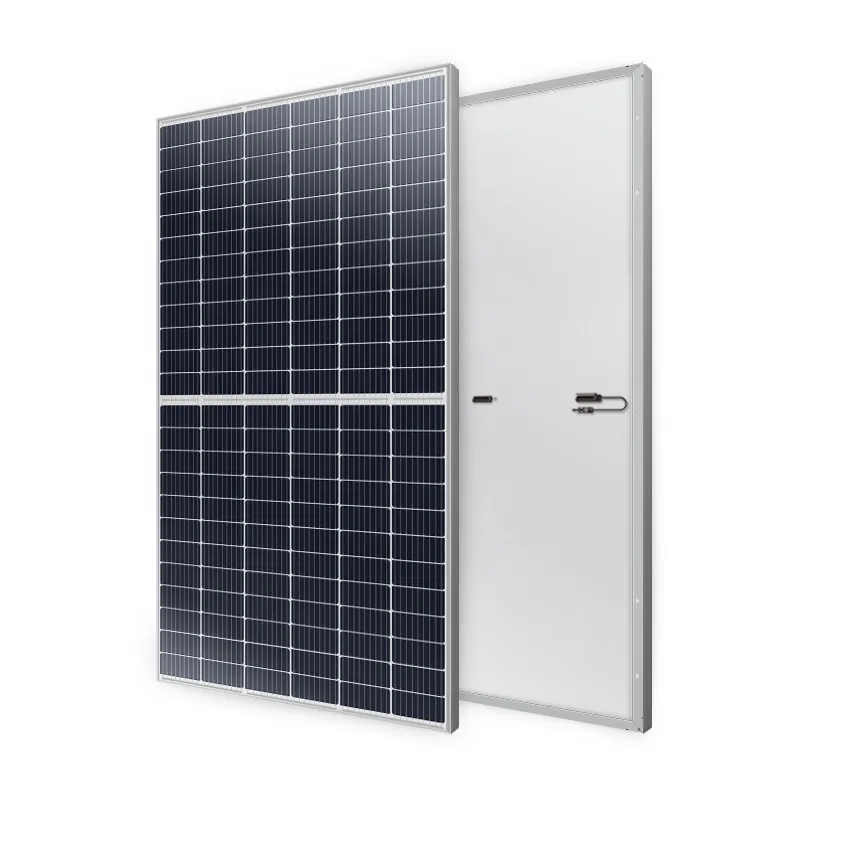

Peak Power Watts: 590W | Voltage: 41.5V | Current: 11.3A
Dimensions: 2094*1038*35 mm | Weight: 25 kg

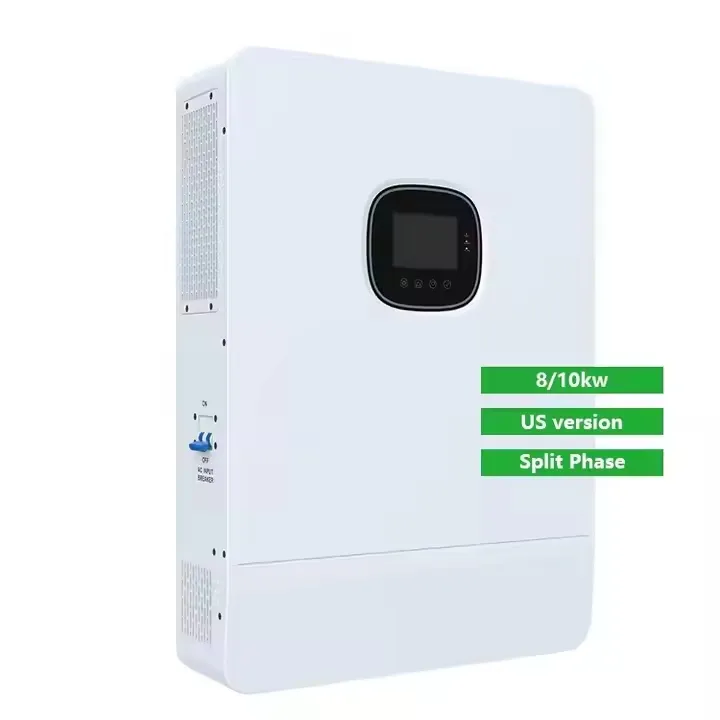

Capacity 5.5KW | AC 220V/230V | MPPT Range 70-450Vdc
Gross Weight: 15KG | Volume: 0.045m³

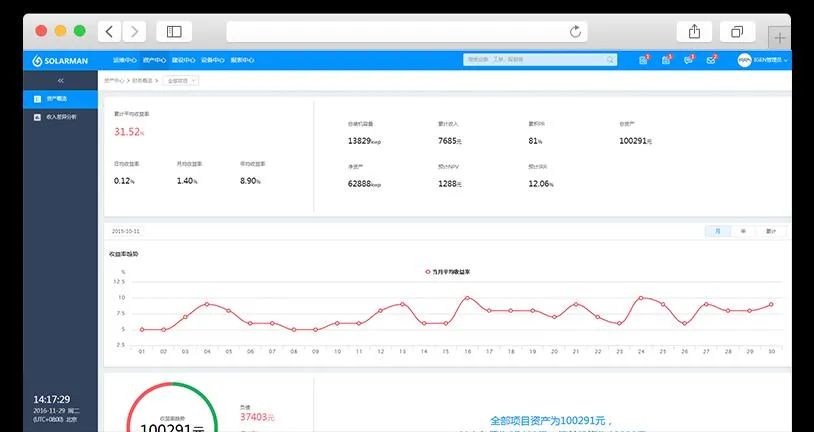

Data Logging Stick for real-time PV system updates via Wi-Fi, Lan or GPRS. App available for PC, iOS & Android.

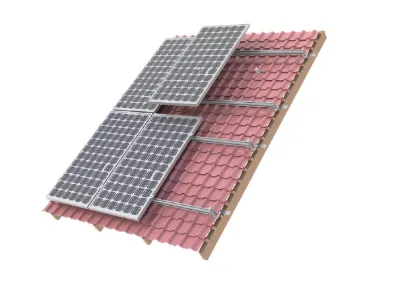

AI6005 & SUS304 components. Rails, Splice Kits, and Clamps (35-50mm) included. Options for Asphalt Shingle or Ground.

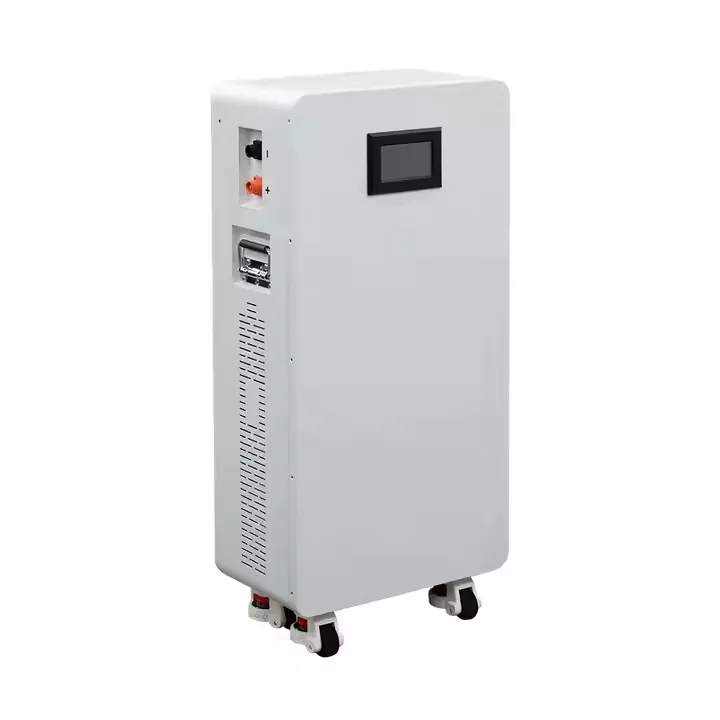

Capacity: 4.8KWH. Includes connection and communication cables.
Gross Weight: 103KG | Package: 710*500*310mm

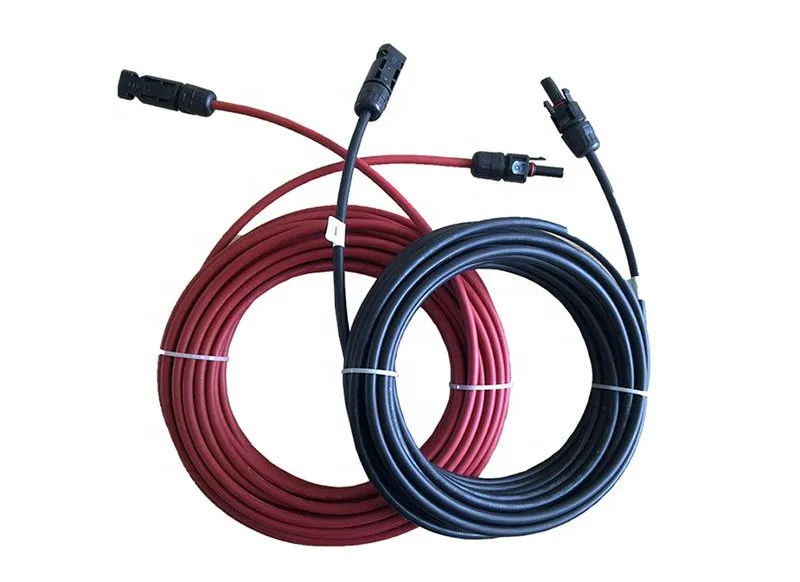

4mm² / 6mm² cross section. Rated 600V/1000VDC. Lifetime up to 25 years.
