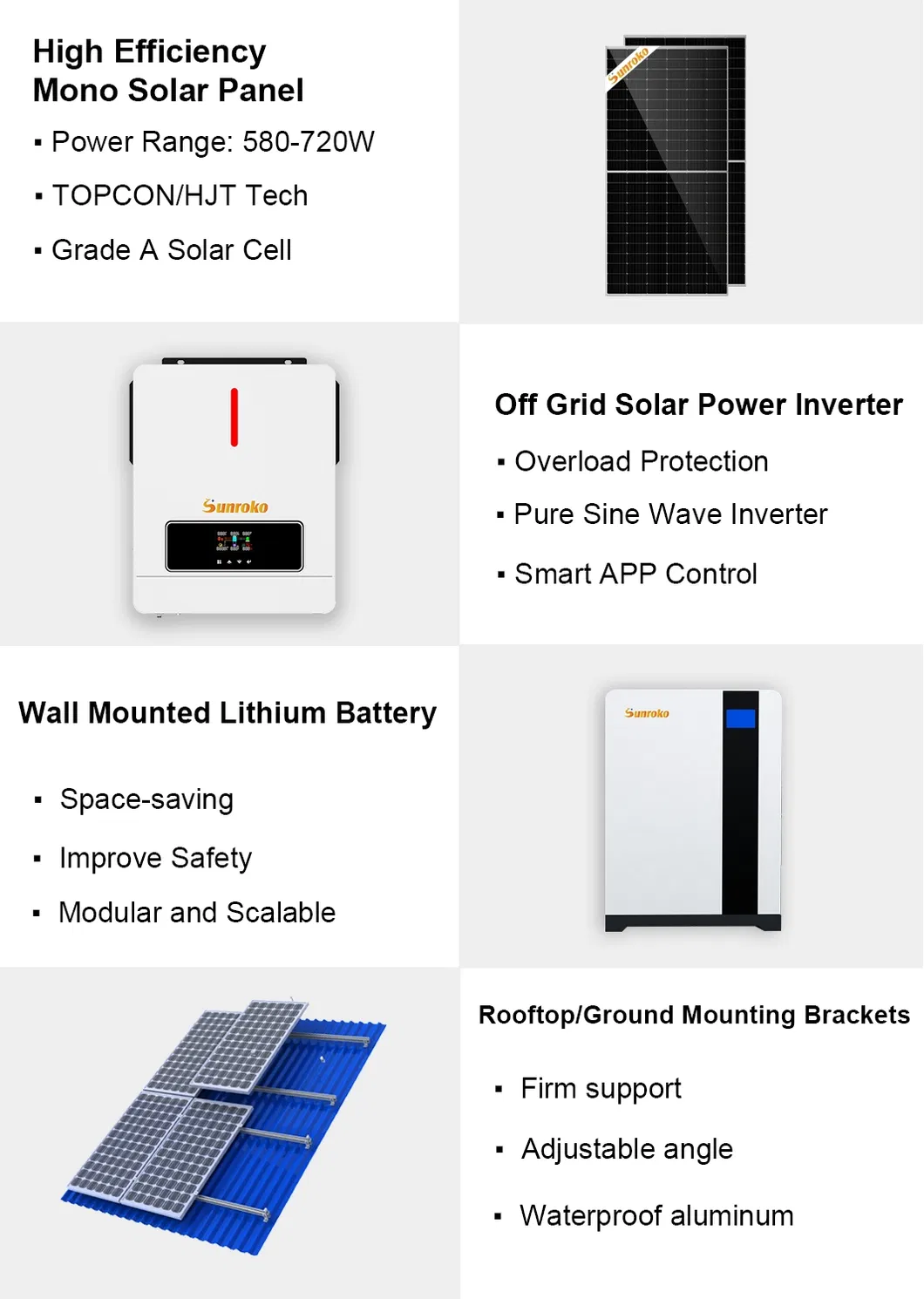

Off Grid Solar System is also called a Stand Alone solar system. It is ideal for areas without grid power or where the grid is unstable. It features battery backup for night or rainy day use, providing full outage protection for your home.

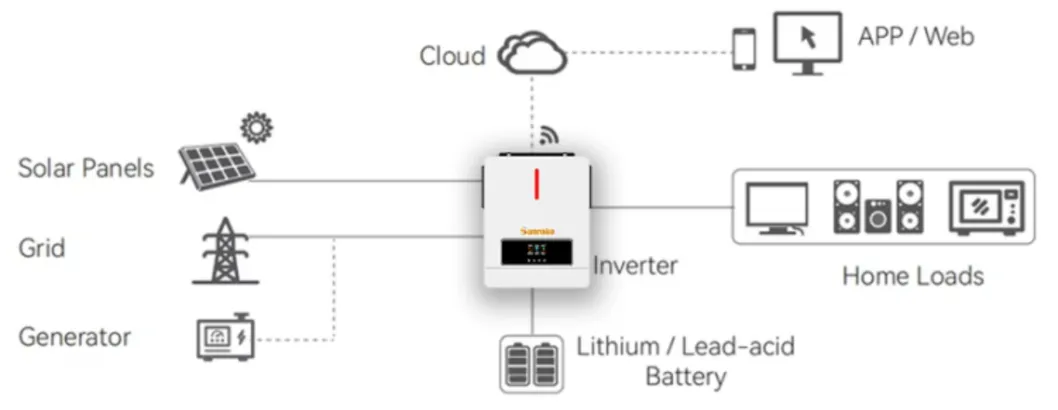

Hybrid Solar System is suitable for locations with unstable grid power. This functions as an off-grid system with utility backup or a grid-tied system with extra battery storage.
On Grid Solar System (Grid Tied) is designed for residential, commercial, and industrial applications. It connects to the stable grid, significantly reducing electricity bills and allowing the sale of surplus power.
| Model | 3.6KW | 4.2KW | 6.2KW |
| Maximum PV Input Power | 6200W | 6200W | 6500W |
| Rated Output Power | 3600W/3600VA | 4200W/4200VA | 6200W/6200VA |
| Max Solar Charging Current | 120A | ||
| PV INPUT (DC) | |||
| Nominal/Max DC Voltage | 360/500VDC | ||
| MPPT Voltage Range | 60~450VDC | ||
| GRID OUTPUT (AC) | |||
| Nominal Output Voltage | 220/230/240VAC | ||
| Nominal Output Current | 15.7A | 18.2A | 27.0A |
| PHYSICAL SPECIFICATIONS | |||
| Dimension (D*W*H mm) | 420*350*110 | ||
| Net Weight (kgs) | 8.0 | 8.0 | 8.9 |

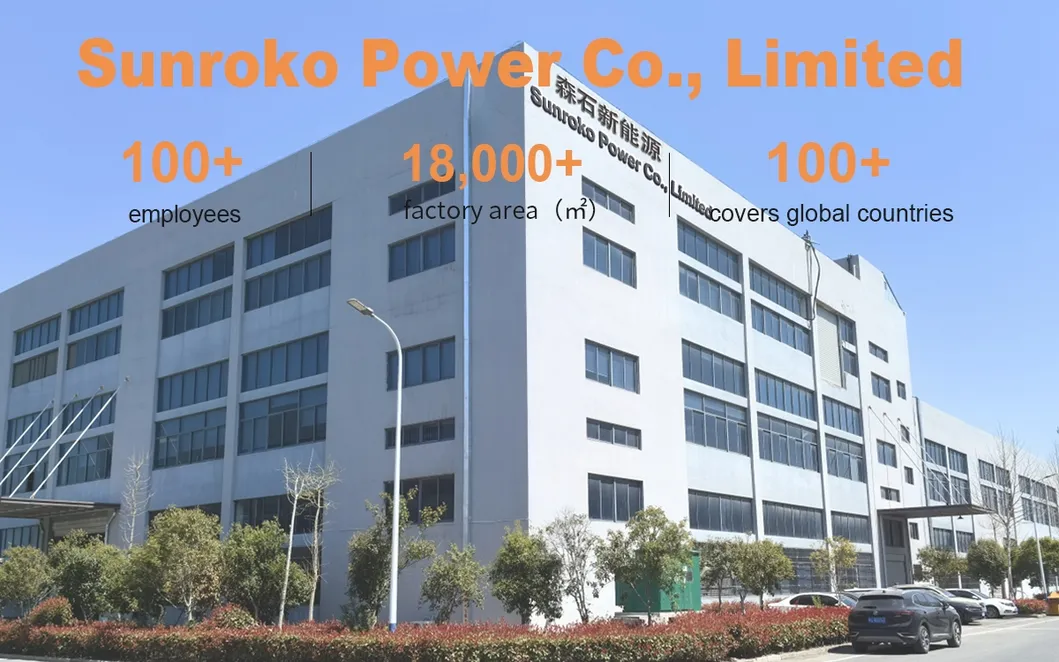

Established in 2009, we are a one-stop solution manufacturer specializing in the solar photovoltaic industry. Our expertise spans solar modules, complete solar systems, high-efficiency inverters, solar cells, and containerized energy storage solutions. Supported by a professional technical team, we bring years of industrial experience to every project.

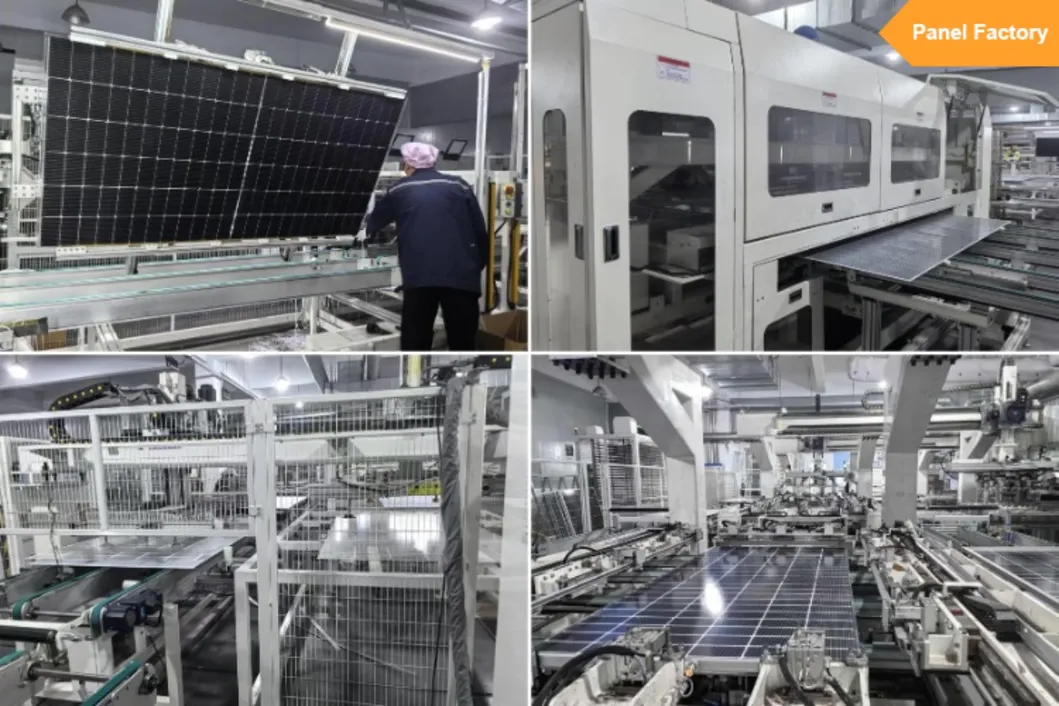

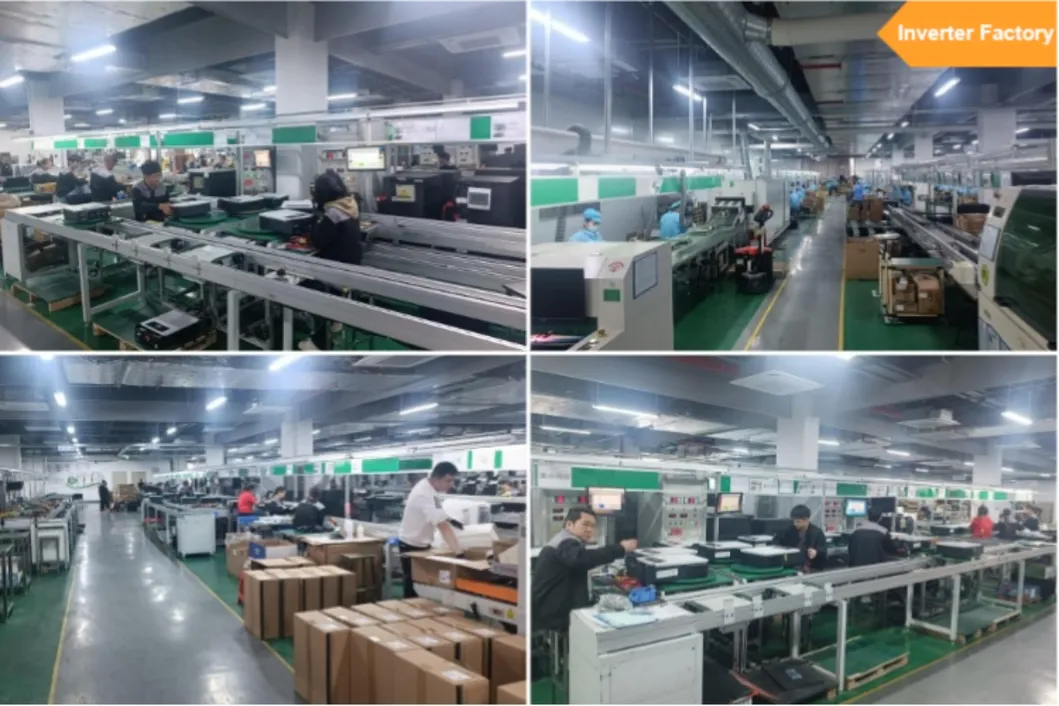

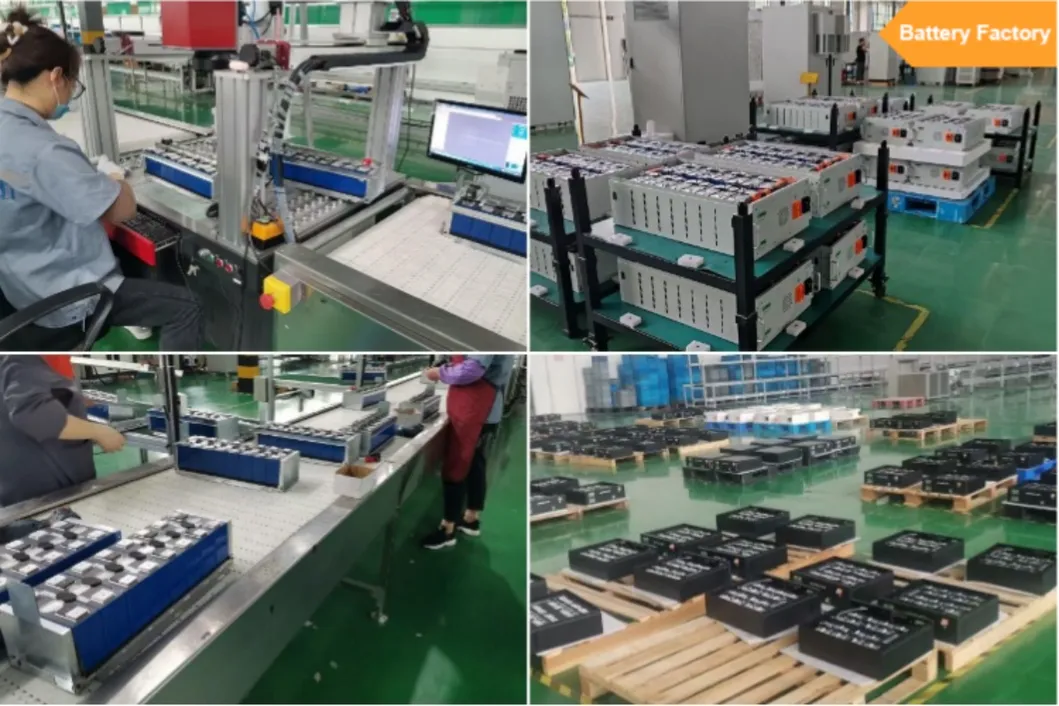

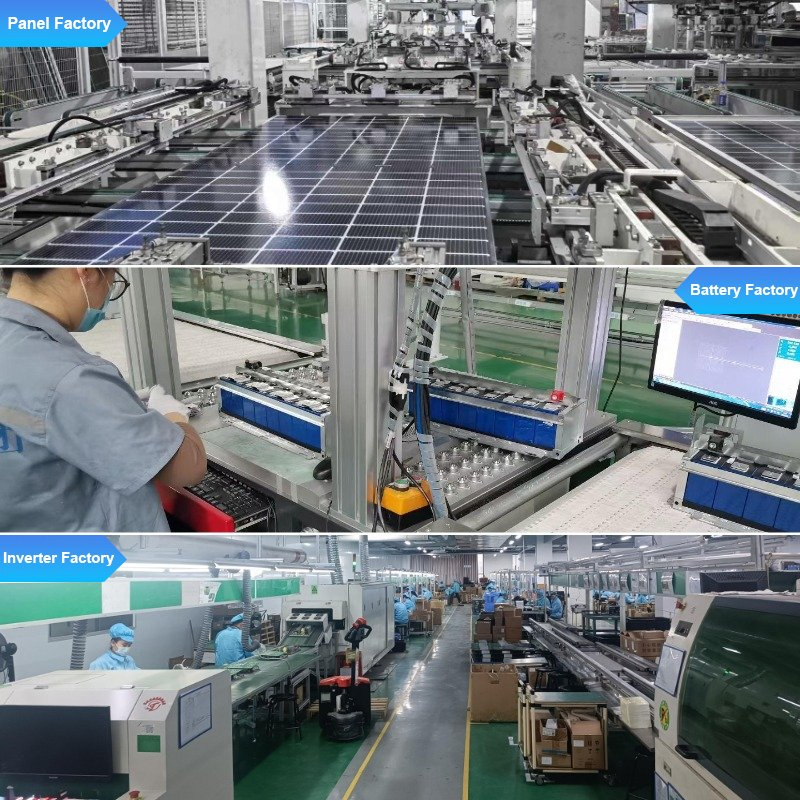

Our facility operates with over 80% automated production, featuring a dedicated team of 10 engineers and 100 skilled workers. We focus on satisfying customer needs and providing exceptional service, having served clients in 100 countries worldwide as of 2025.
