Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

Off Grid Hybrid Solar Inverter
SUB-D 3-11KW

Basic Information

Model NO.
SUB-D
Nature of Source
Active Inverter
Phase
Single
Output Power
>1000W
Certification
SAA, CE, ROHS, ISO9001, CCC
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Half-Bridge Type
Wave String
Sine Wave Inverter
Specification
3KW-11KW

Key Features

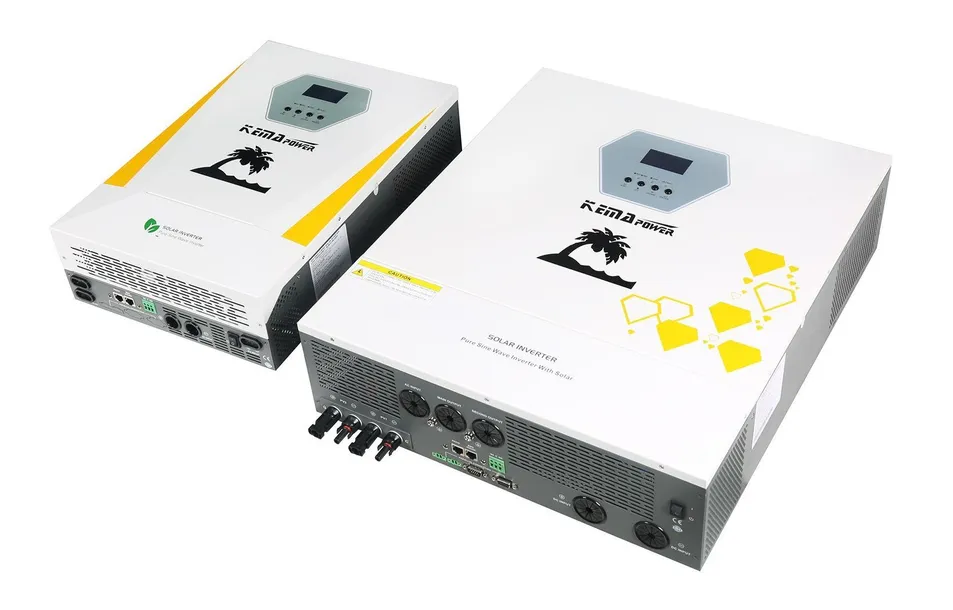

Hybrid Inverter Features
  • High Frequency off grid hybrid solar inverter SUB-D 3-11KW, PF=1
  • 3 in 1 design: Power Inverter + MPPT controller + Grid Charger
  • Working without battery during daytime
  • Support lithium activation wake-up and cold start function
  • Auto restart while AC is recovering
  • Intelligent power supply mode: solar panel/mains/battery power shares
  • Adjustable AC and PV charge voltage for different battery types
  • Adjustable Charge Current & Voltage, selectable Lead acid / Lithium battery
  • Solar, Grid and Battery Energy complement each other with priority selection
  • RS232, BMS/RS485, Dry Contact Communication
  • WiFi Plug or GPRS option for Mobile App, Automatic generator station option

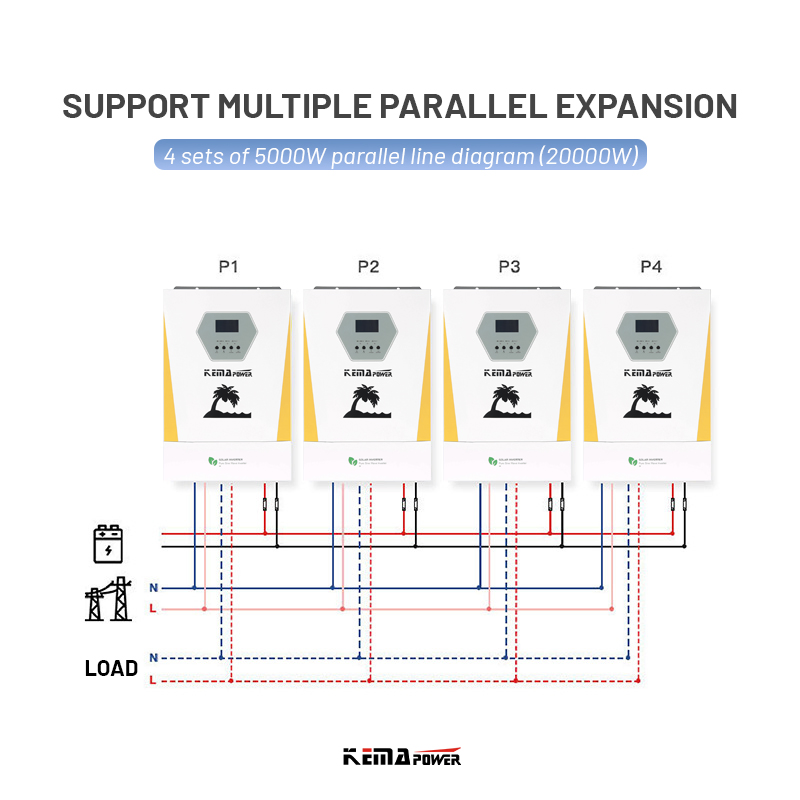

  • Parallel function for 6.2KW/11KW models (max 9 units)
  • Wide MPPT range 40-500VDC / 120-500VDC
  • Intelligent 3 stage AC battery charger
  • Pure sine wave output suitable for various loads
  • Full protection: overload, over temperature, short-circuit, battery low/reverse

Product Display

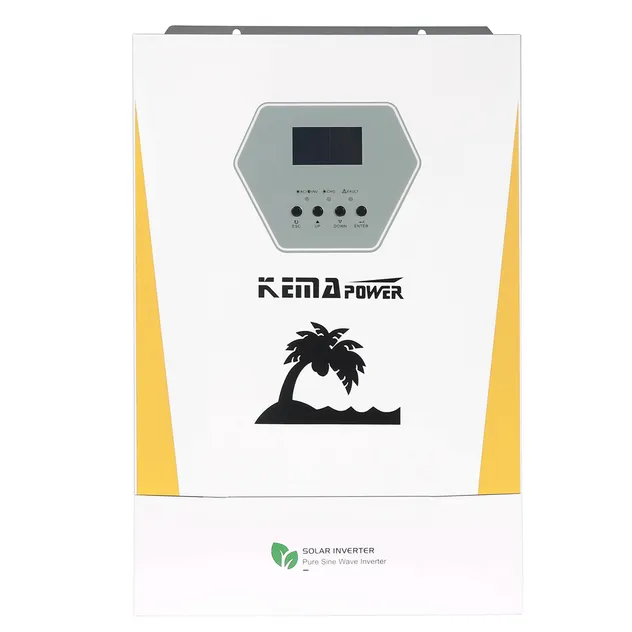

Inverter Display 1

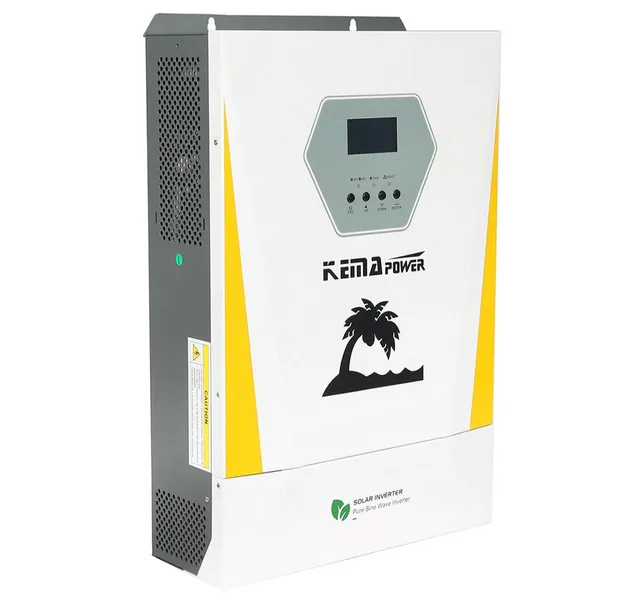

Inverter Display 2

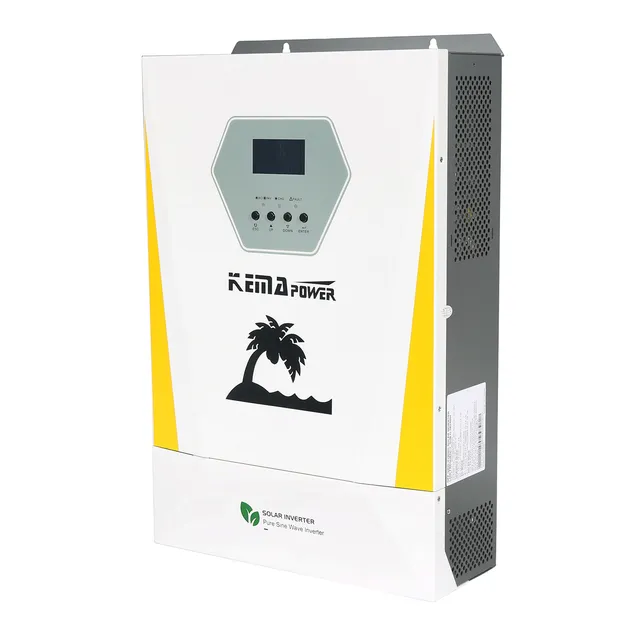

Inverter Display 3

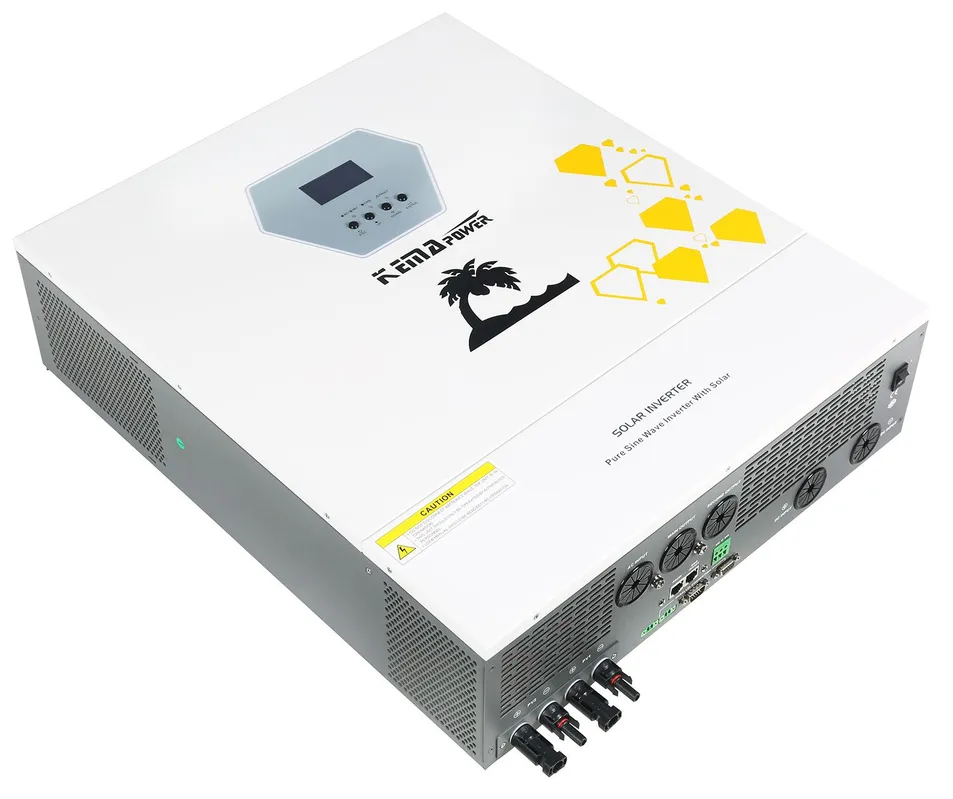

Inverter Interior

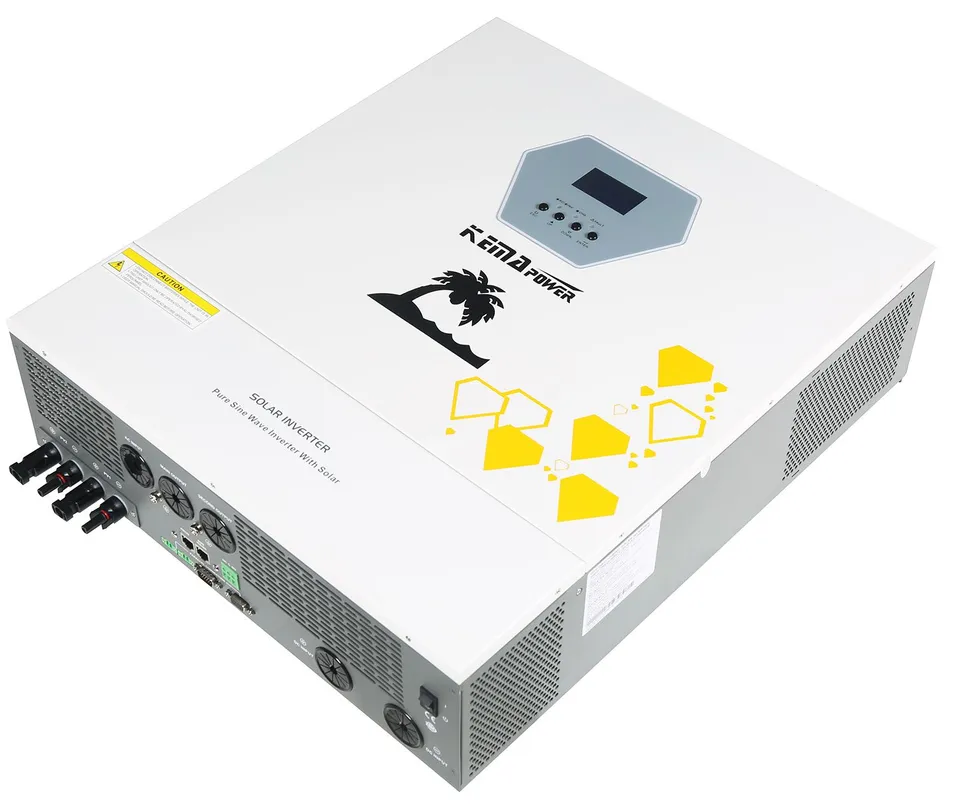

Inverter Side View

Technical Specifications

ITEM Model SUB-D-E3024 SUB-D-3624 SUB-D-6248 SUB-D-11048 SUB-D-6248GP SUB-D-11048GP
INPUT RATED POWER 3KW 3.6KW 6.2KW 11KW 6.2KW 11KW
Voltage 220/230/240VAC
OUTPUT Voltage 220/230/240VAC ± 5%(Bat Mode)
Waveform Pure sine wave
Parallel Extension No No No No Max 9PCS Max 9PCS
BATTERY Voltage 24 VDC 48 VDC
Max Charge 60A 80A 80A 150A 80A 150A
SOLAR PV Max Power 3KW 4.2KW 6.2KW 2*5.5KW 6.2KW 2*5.5KW
MPPT Range 50-500VDC 150-500VDC

Interfaces & Connectivity

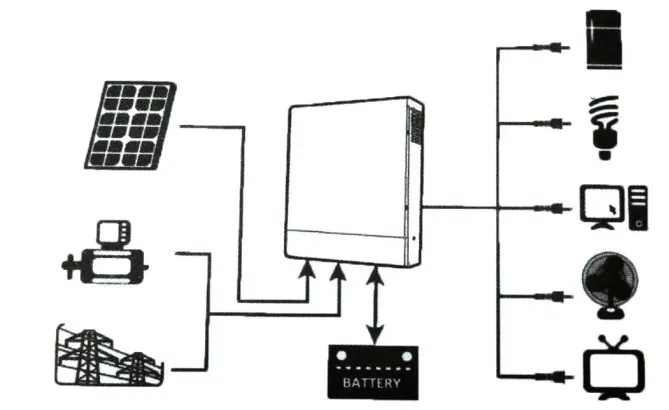

Working Mode

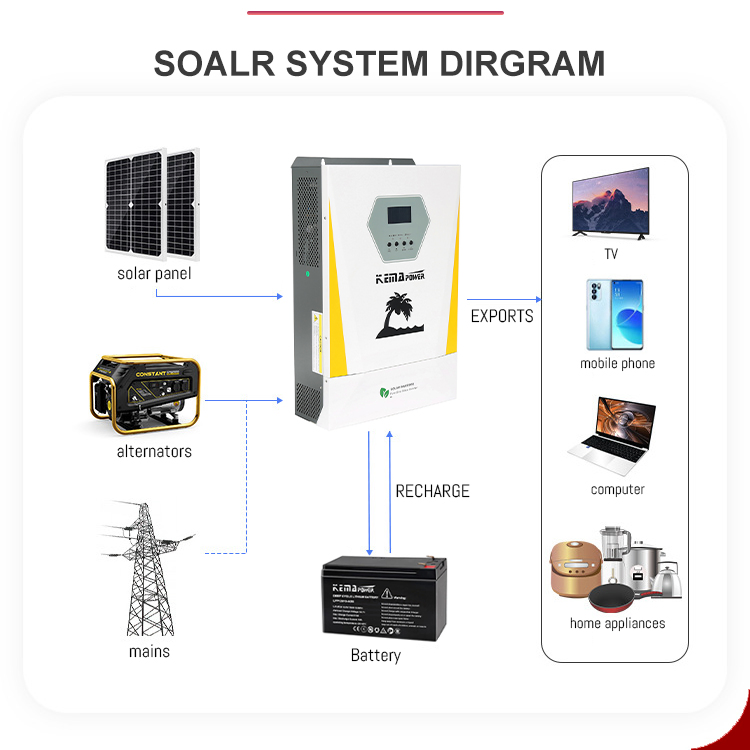

Working Mode Diagram

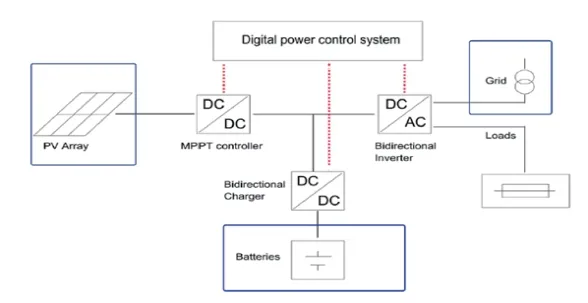

Design Layout
Design Layout

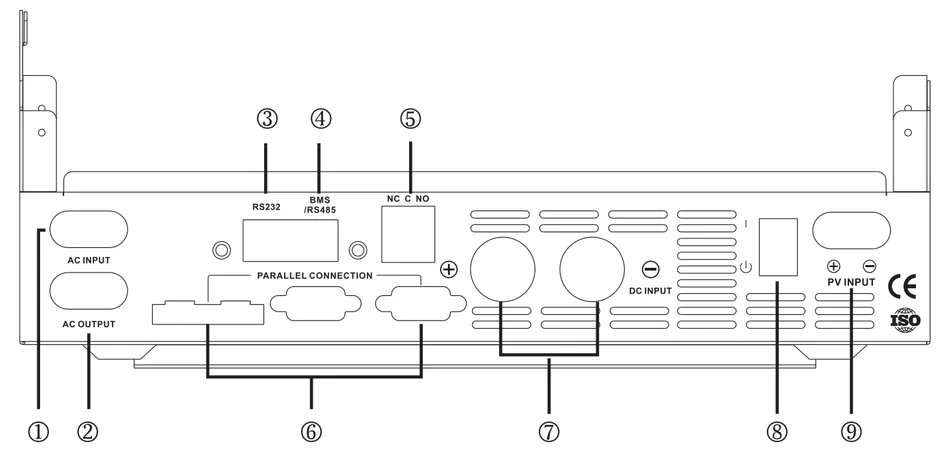

Ports 3K-6K
Outside Ports (3KVA-6.2KVA)

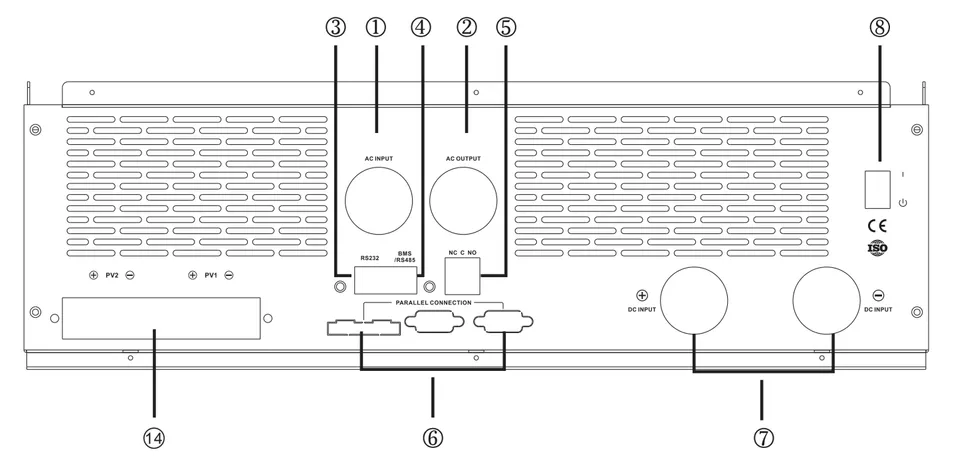

Ports 11K
Outside Ports (11KVA)
1. AC input | 2. AC output | 3. RS232 port | 4. BMS/RS485 port | 5. Dry contact | 6. Parallel connection | 7. Battery input
8. Power switch | 9. PV input | 10. Input breaker | 11. Fan | 12. Battery (+) | 13. Battery (-) | 14. Solar input

Product Visualizations

Product Detail Product Detail Product Detail Product Detail

Frequently Asked Questions

Can this inverter work without a battery?
Yes, the SUB-D series is designed to work without a battery during the daytime, utilizing solar power directly to support the loads.
What is the maximum power capacity for parallel connection?
The 6.2KW and 11KW models support parallel functions, allowing you to connect up to 9 units for higher capacity requirements.
Is it compatible with Lithium batteries?
Yes, it features adjustable charging currents and voltages specifically for both Lead-acid and Lithium batteries, including a lithium activation wake-up function.
What type of output waveform does the SUB-D provide?
It provides a Pure Sine Wave output, which is suitable and safe for all types of electronic loads and appliances.
How wide is the MPPT voltage range?
The MPPT range varies by model, typically starting from 50VDC or 150VDC up to a maximum of 500VDC, allowing for flexible solar panel configurations.

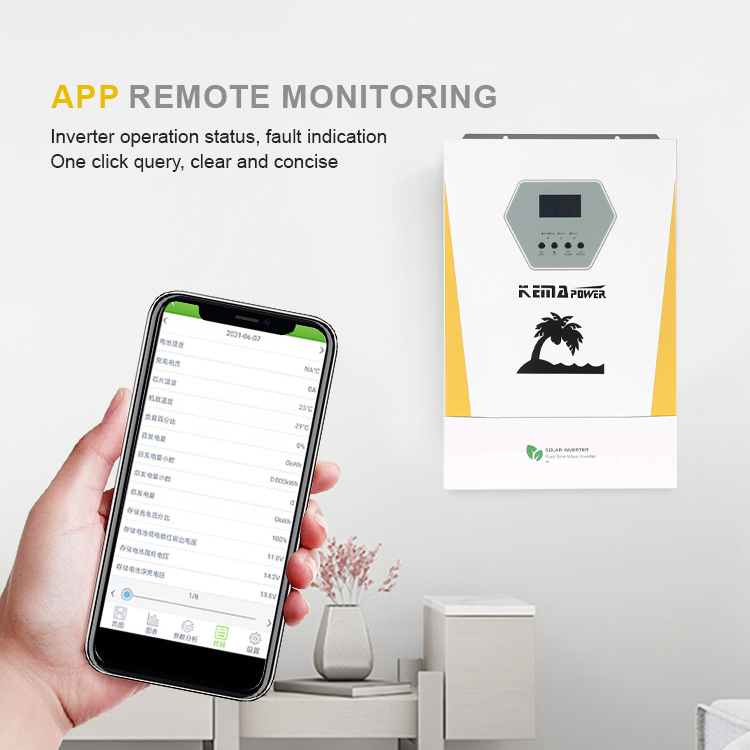

Does the inverter support remote monitoring?
Yes, it offers several communication interfaces including RS232, BMS/RS485, and an optional WiFi plug or GPRS for mobile app monitoring.
