Wing Solar
Wing Solar
| Model NO. | Solar Cable |
| Sheath Material | PVC |
| Insulating Material | PVC |
| Conductor Type | Solid/Stranded |
| Certification | ISO9001/CE/CCC/RoHS/VDE |
| Wire Core Material | Red Copper Wire |
| Color | Black/Red, Optional |
| Model | PV1500VDC-Al-K |
| Metirial | Low Smoke Halogen Zero Material |

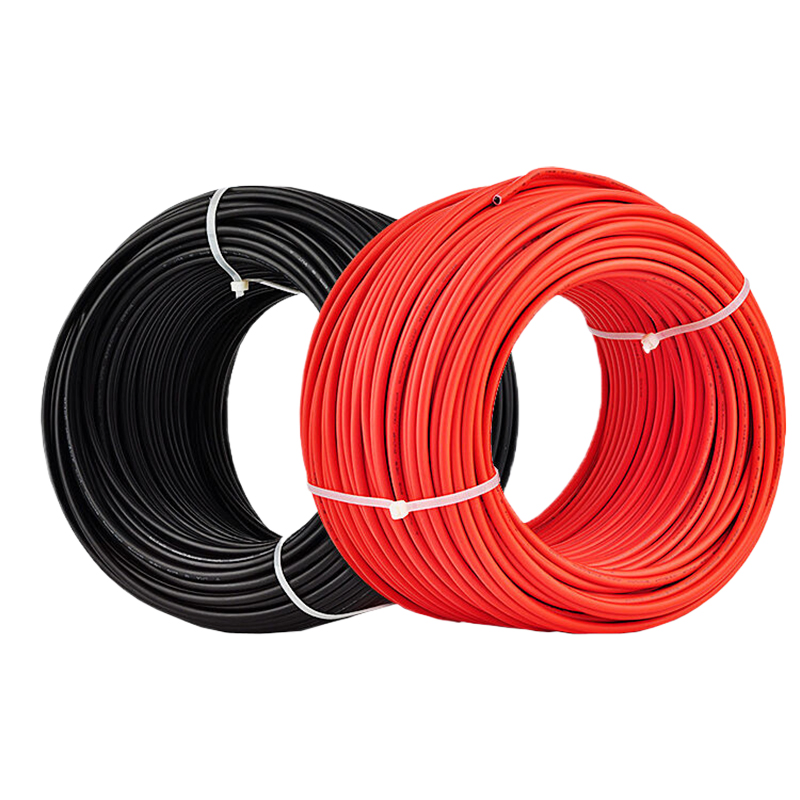

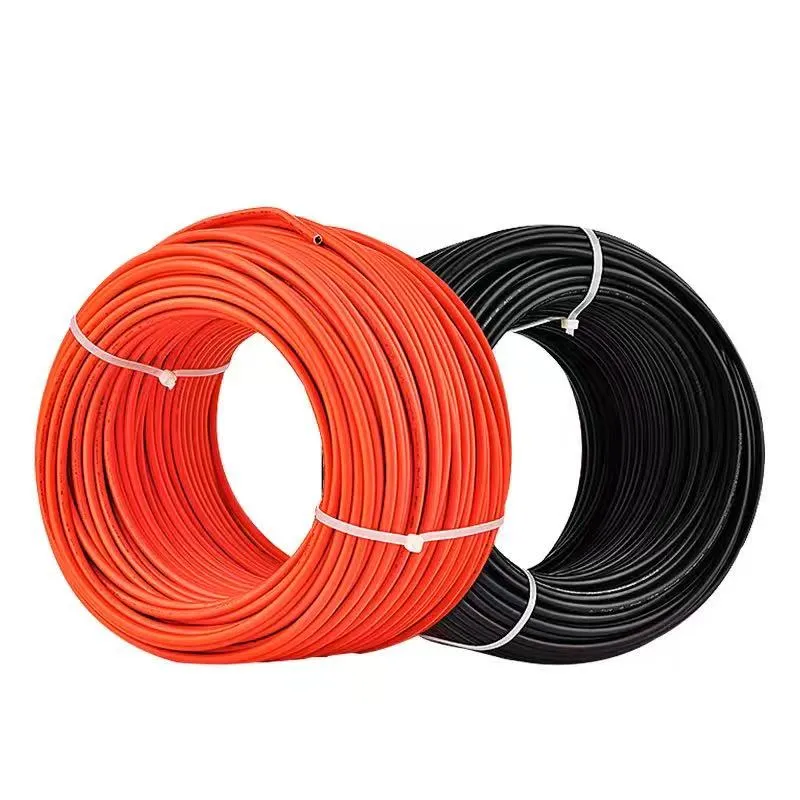

| Product Name | New Energy Photovoltaic Cable/Solar Cable |
| Specification | Multicore |
| HS Code | 8544601290 |
| Production Capacity | 1,000,000 Rolls/Year |

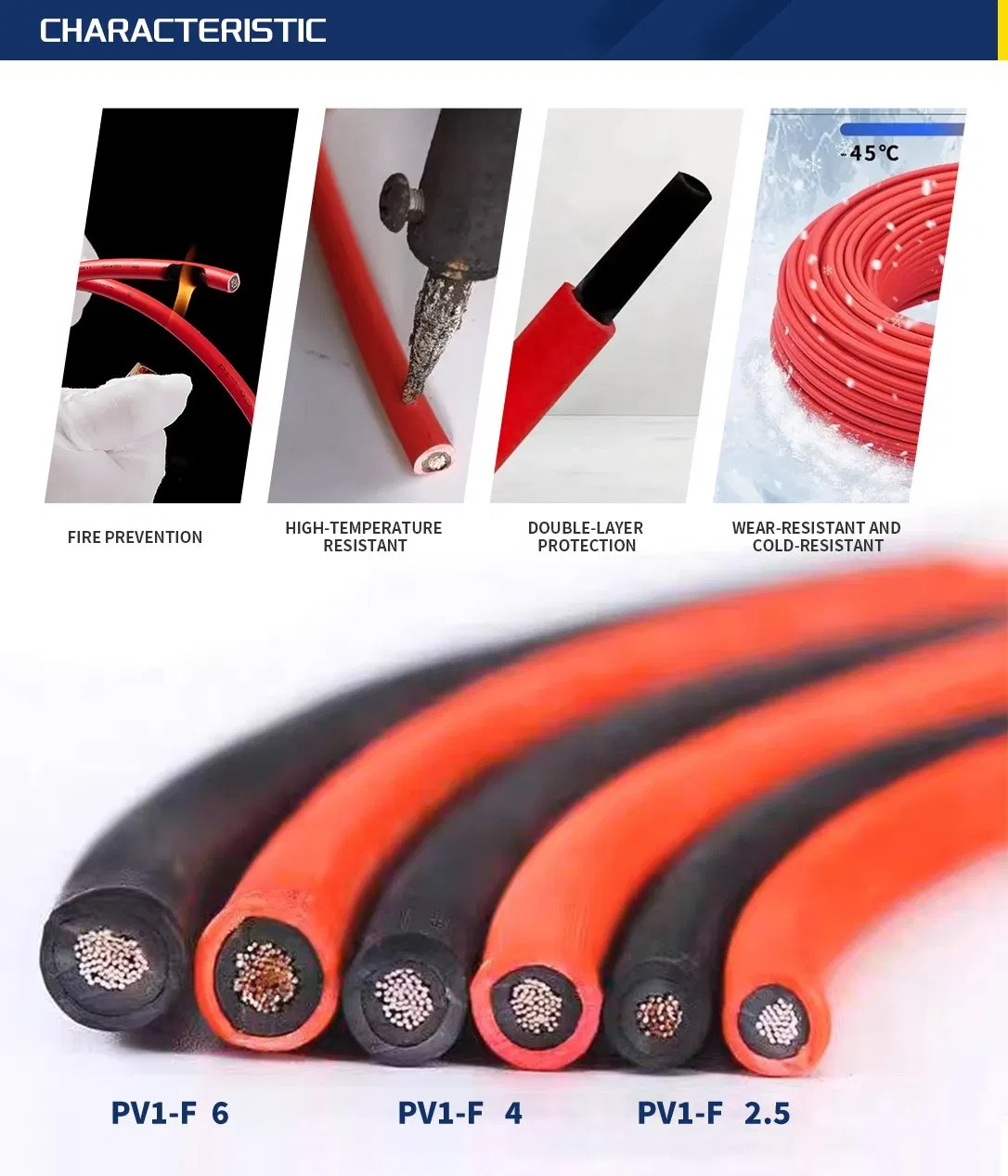

Strict control of finished product quality with high flexibility.
Ultraviolet resistance, flame retardant, and aging resistance for 25+ years of service life.
Corrosion resistance and high strength suitable for harsh environments.
Low eccentricity with uniform outer edge thickness to prevent breakdown.

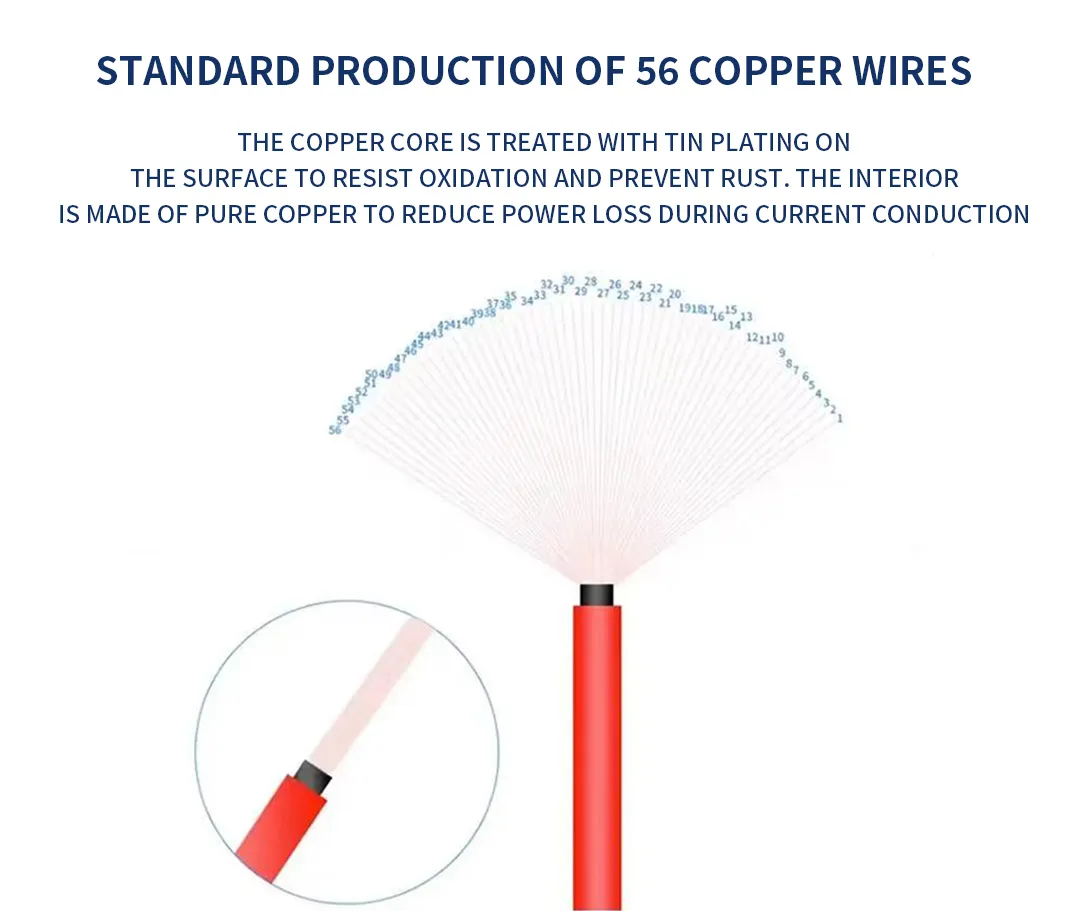

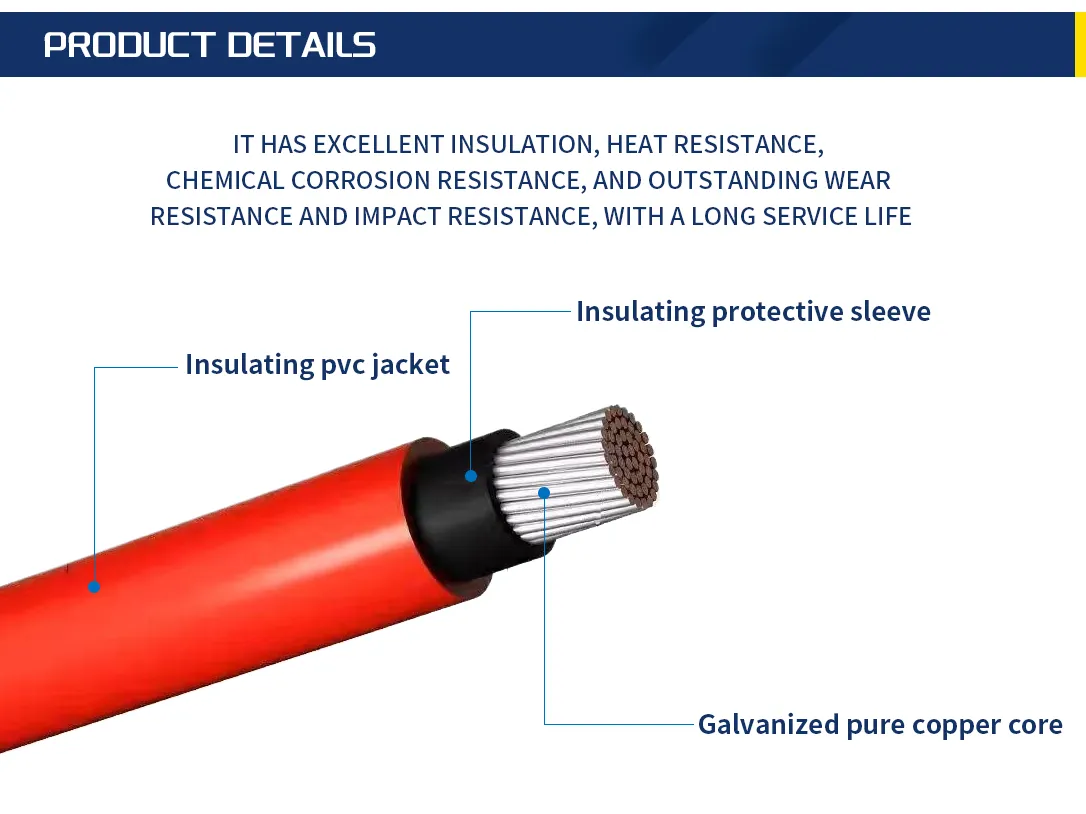

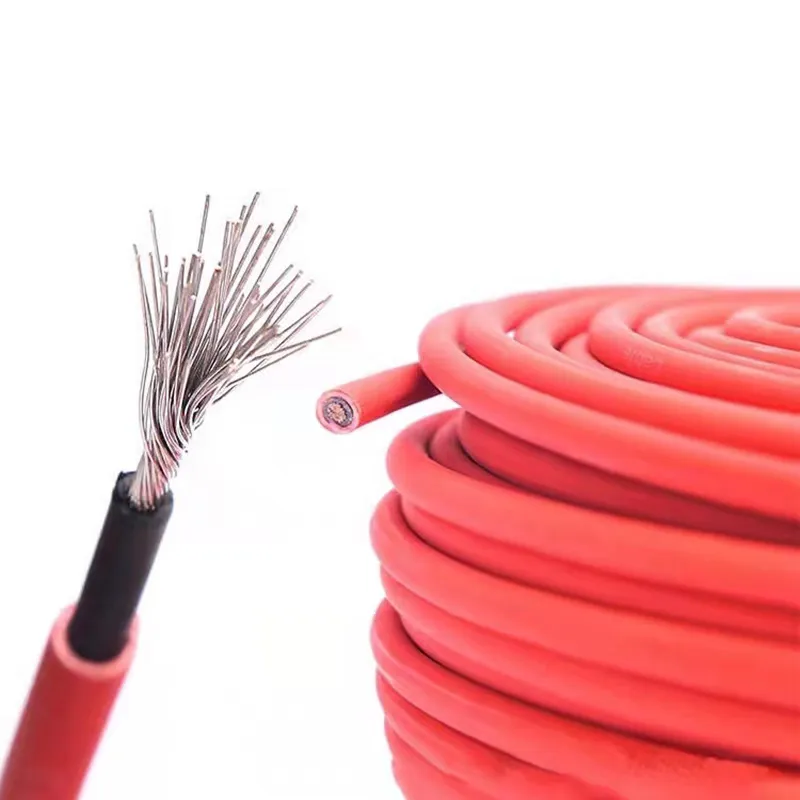

| Conductor | High-purity Class 5 stranded tinned copper wires |
| Insulation | PVC |
| Core | Multi-core |
| Cross Section | 1.5/2.5/4/6/10/16/25mm² |
| Application | Specifically designed for solar photovoltaic systems |
| Cross section (n×mm^2) | Conductor (mm) | Outer (mm) | Current [A] at 60ºC | Resistance kΩ/km at 20ºC | Cable Code |
|---|---|---|---|---|---|
| 1×1.5 | 1.4 | 4.2 | 30 | 13.7 | PV302515 |
| 1×2.5 | 1.8 | 5.0 | 42 | 8.21 | PV502525 |
| 1×4.0 | 2.2 | 5.2 | 55 | 5.09 | PV562940 |
| 1×6.0 | 2.8 | 5.8 | 70 | 3.39 | PV842960 |
| 1×10.0 | 4.0 | 7.5 | 98 | 1.95 | PV142301 |
| 1×16.0 | 5.0 | 8.9 | 132 | 1.24 | PV228301 |
| 1×25.0 | 6.2 | 10.9 | 176 | 0.795 | PV361302 |
