| Model NO. | PD-BS03 |
| Certification | ISO, CE, SGS |
| Application | Commercial |
| Material | Aluminum Alloy |
| Type | Roof Ballast Bracket |
| Color | Silver |
| Snow Load | 1.4 kN/M2 |
| Wind Speed | 60 M/S |
| Surface Treatment | Anodized |
| Lead Time | 21 Days |
| Specification | Component: AL6005-T5; Parts: AL6005-T5/SUS304 |
| Production Capacity | 5000 Set/Month |

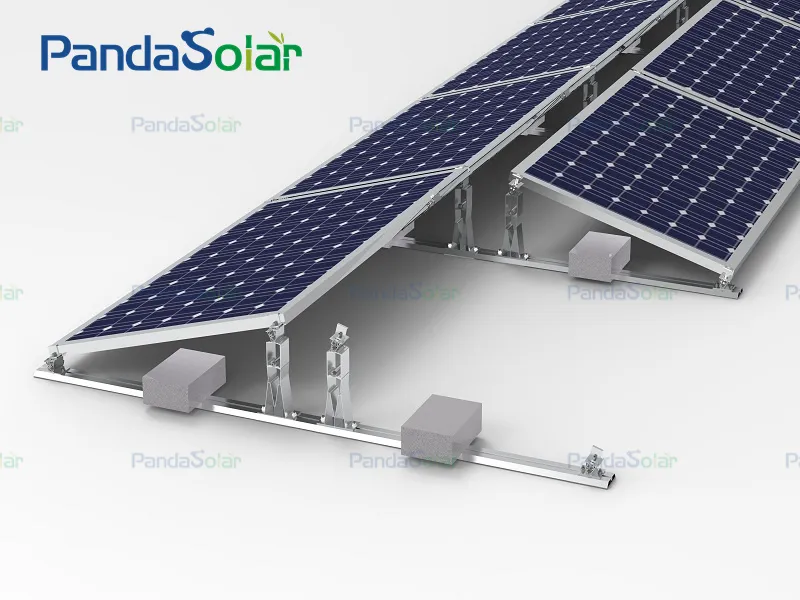

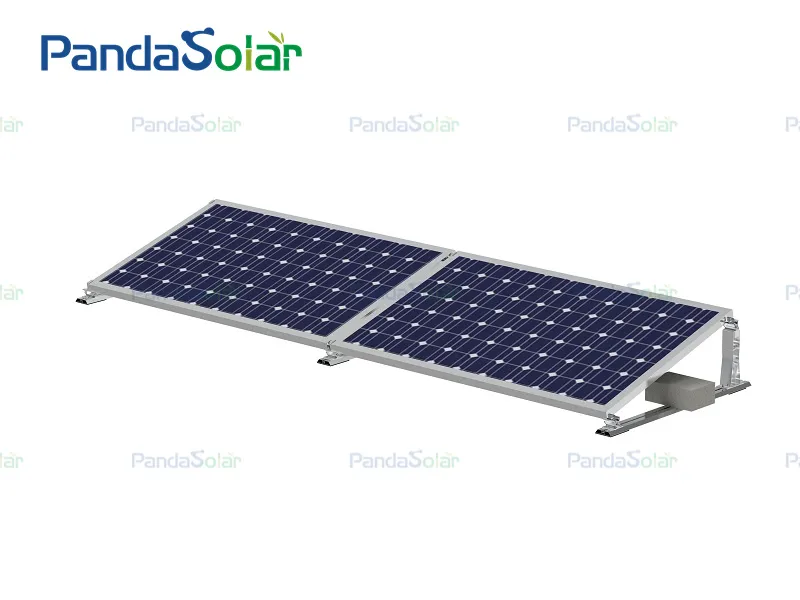

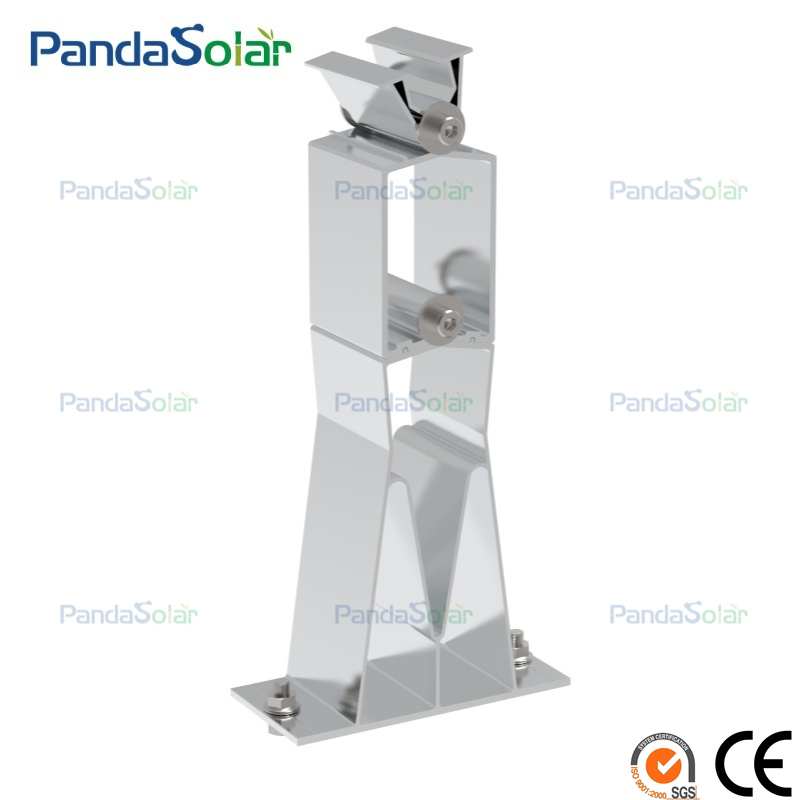

The adjustable solar ballasted system is designed to meet different installation requirements, allowing for the optimal angle to maximize energy generation. The system features a 5-degree heightening design. The original angle is 10 degrees; heightening parts can increase this to 15 or 20 degrees as needed.
Ballasted System Advantages:
Unsurpassed adaptability and layout flexibility with 10-20 degree tilt to maximize array layout and energy production.

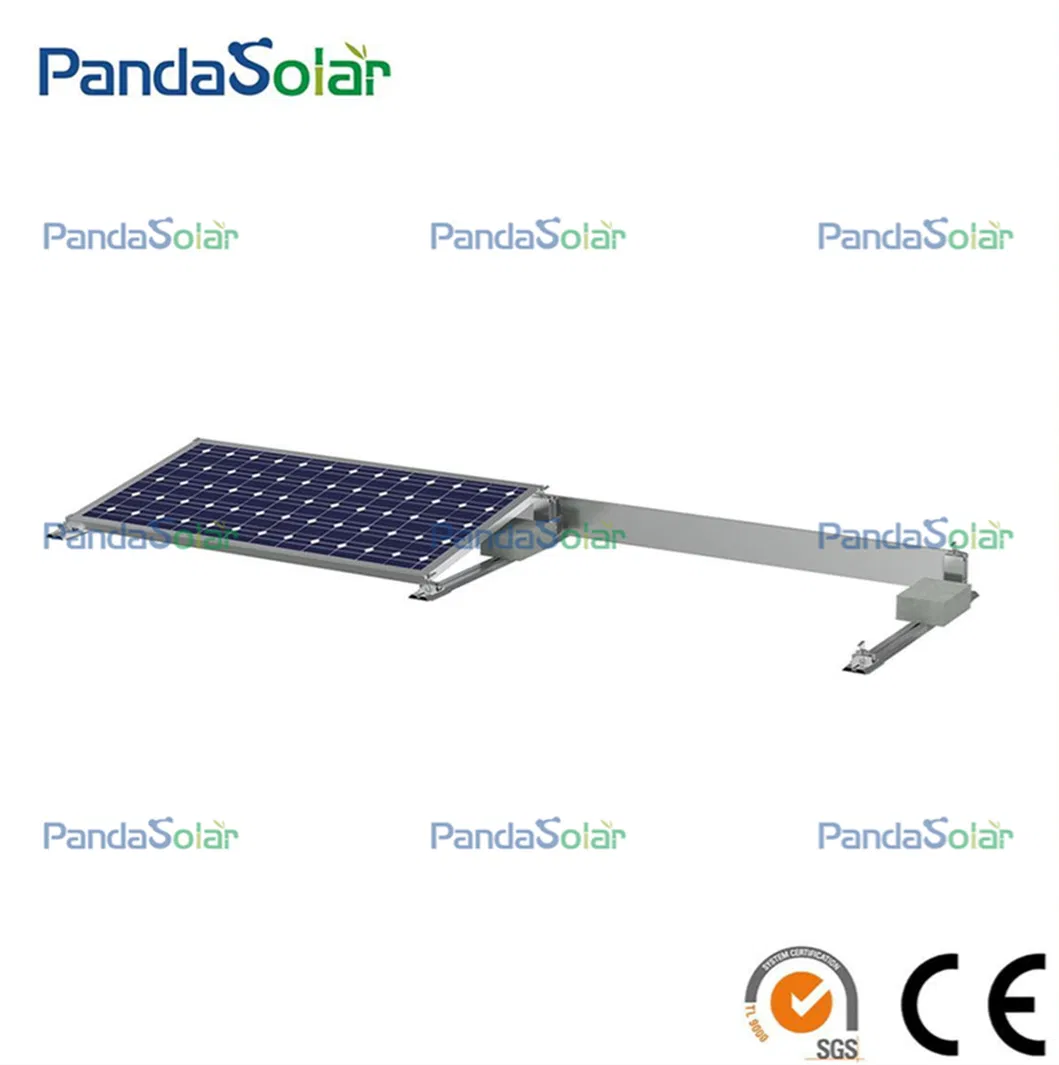

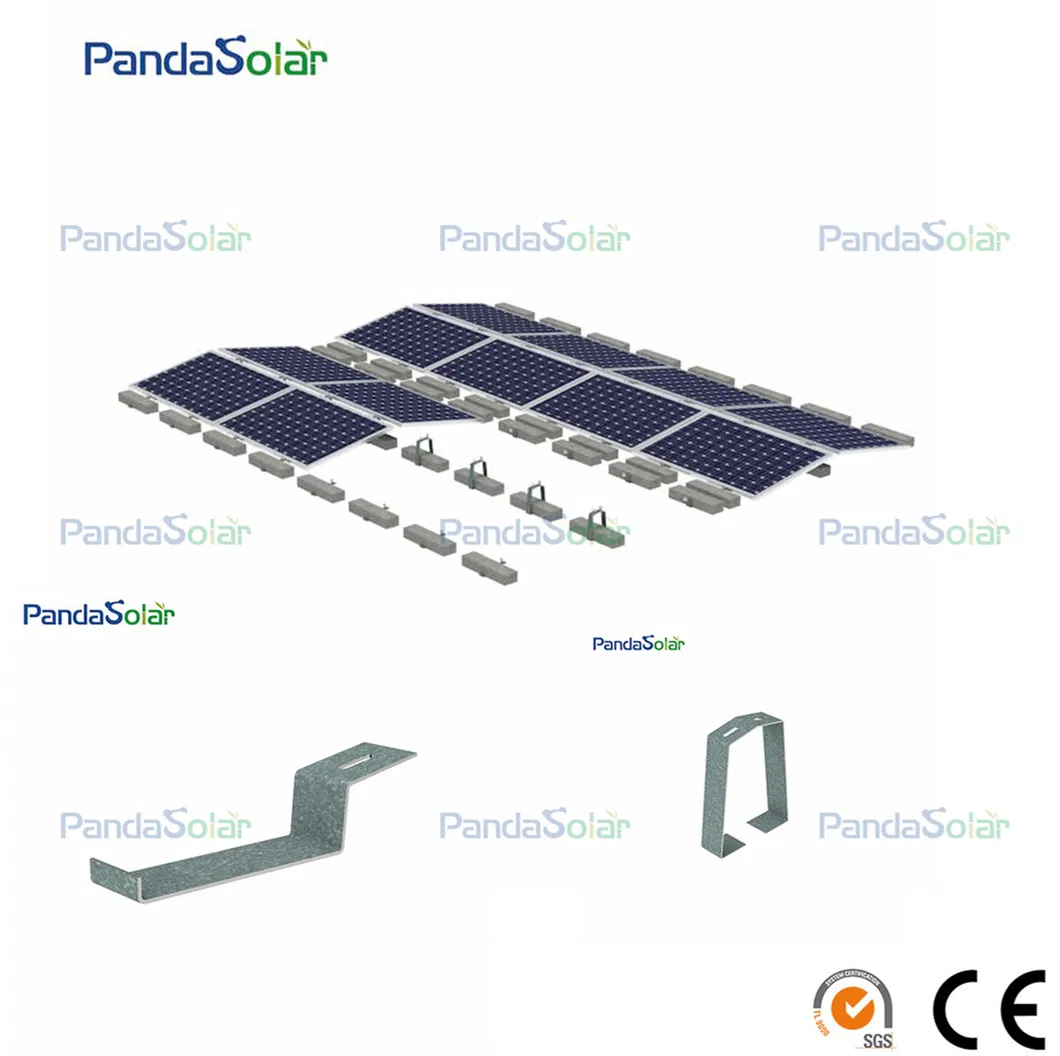

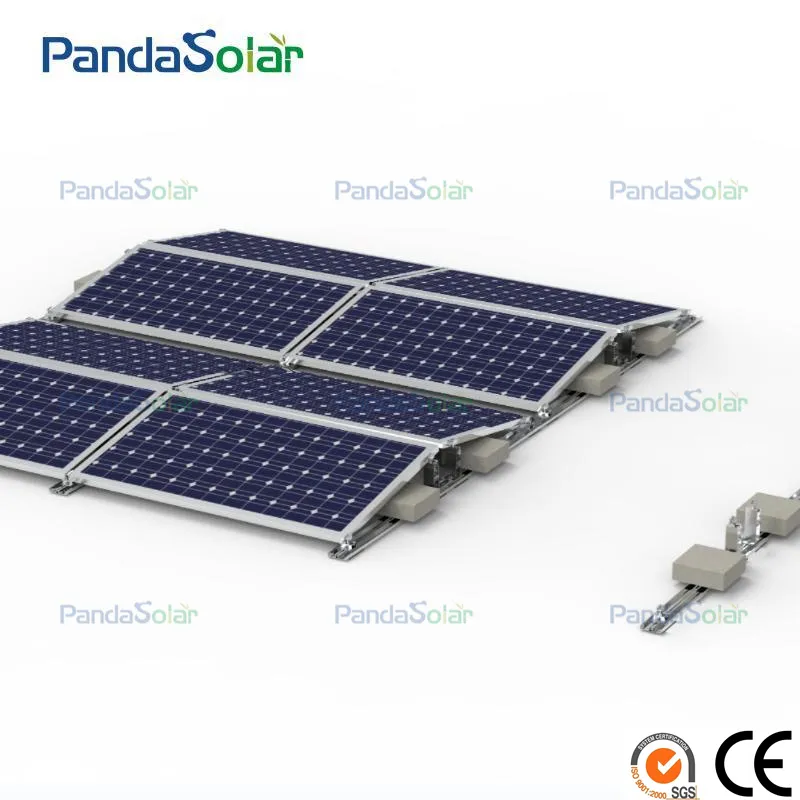

Related Solutions:
| Material | Structure: AL6005-T5 (Anodized); Components: SUS304 |
| Application | Flat Solar Roof Mounting |
| Adjustable Angle | 10-20 degree |
| Wind Speed | 0-45 m/s |
| Snow Load | 0-150cm |
| Design Standard | AS/NZS 1170, DIN 1055, JIS C8955: 2017, IBC 2009 |
| Service Life | Over 30 years |
| Warranty | 12 years |

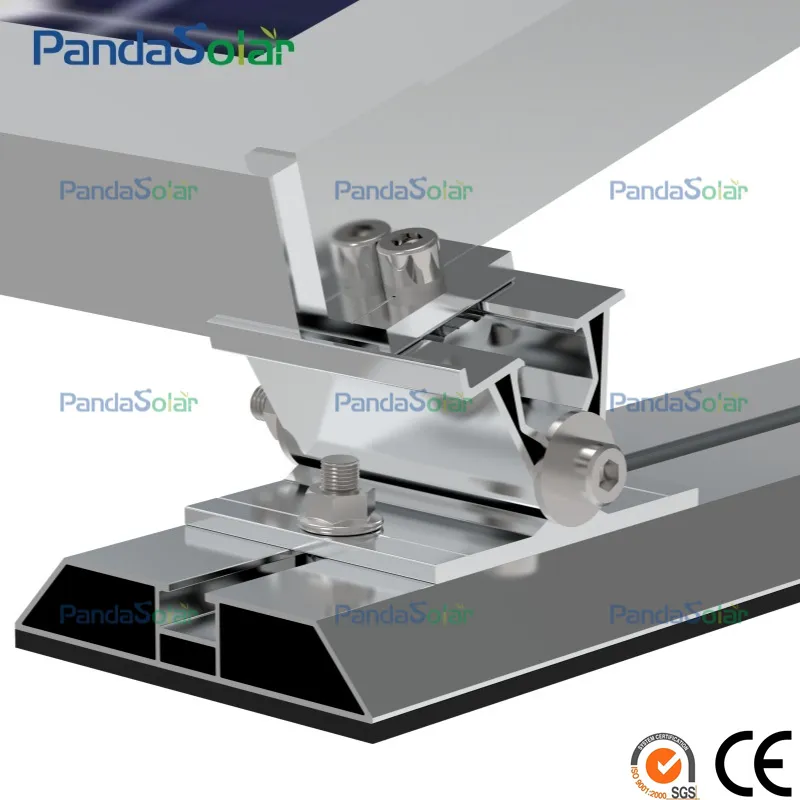

Place the bottom profile on the ground and attach the front leg to the bottom profile.

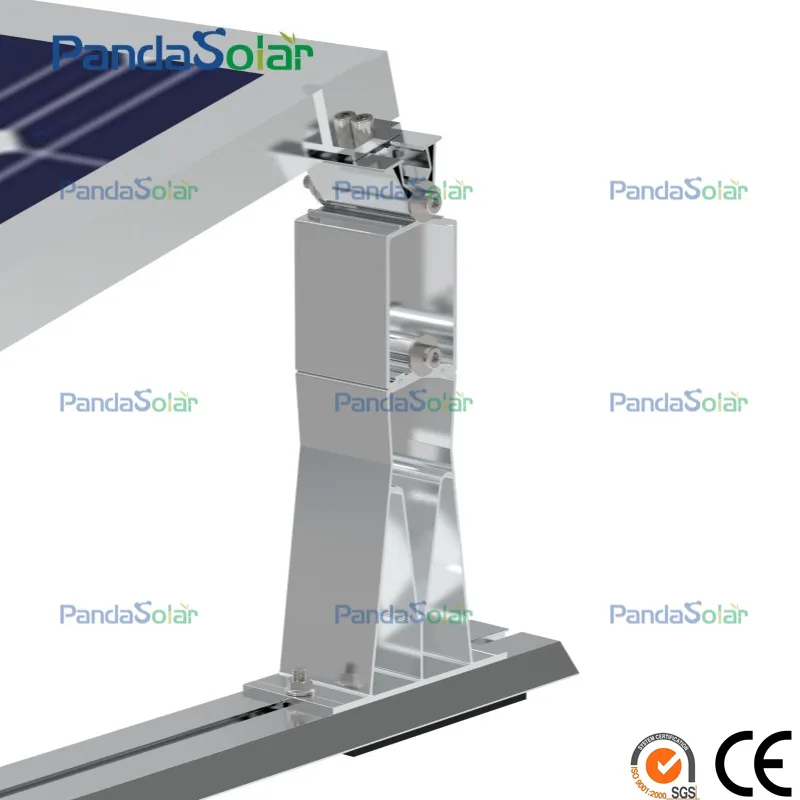

Attach the rear leg to the bottom profile.

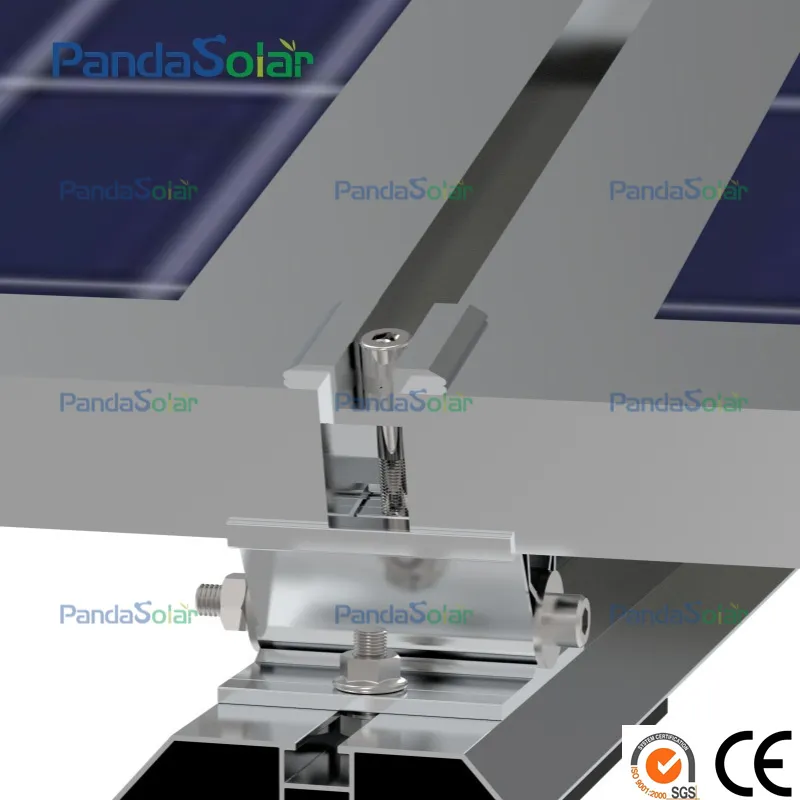

Fix the solar panel to the system using end clamps and mid clamps.

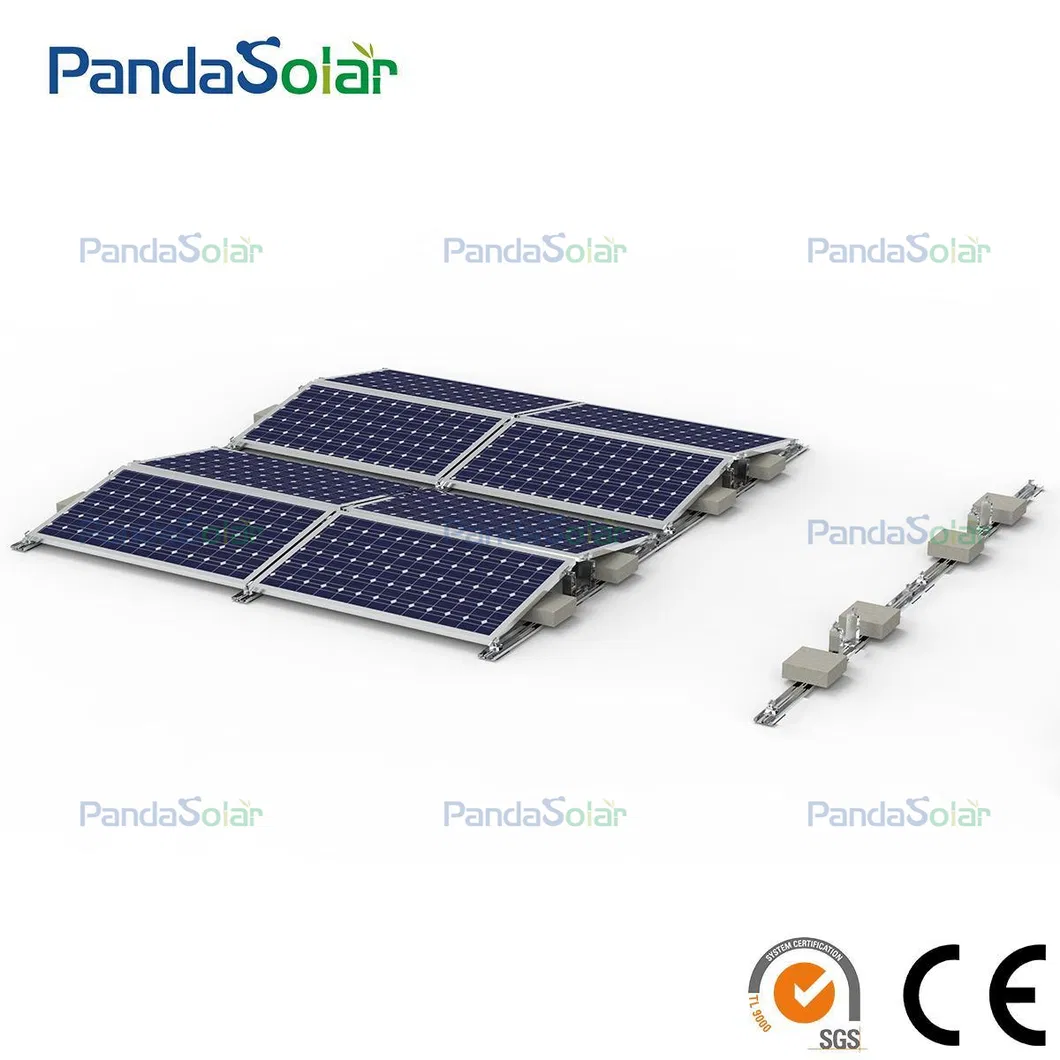

Place the corresponding weight of the cement pier on the bottom profile based on local wind and snow loads.

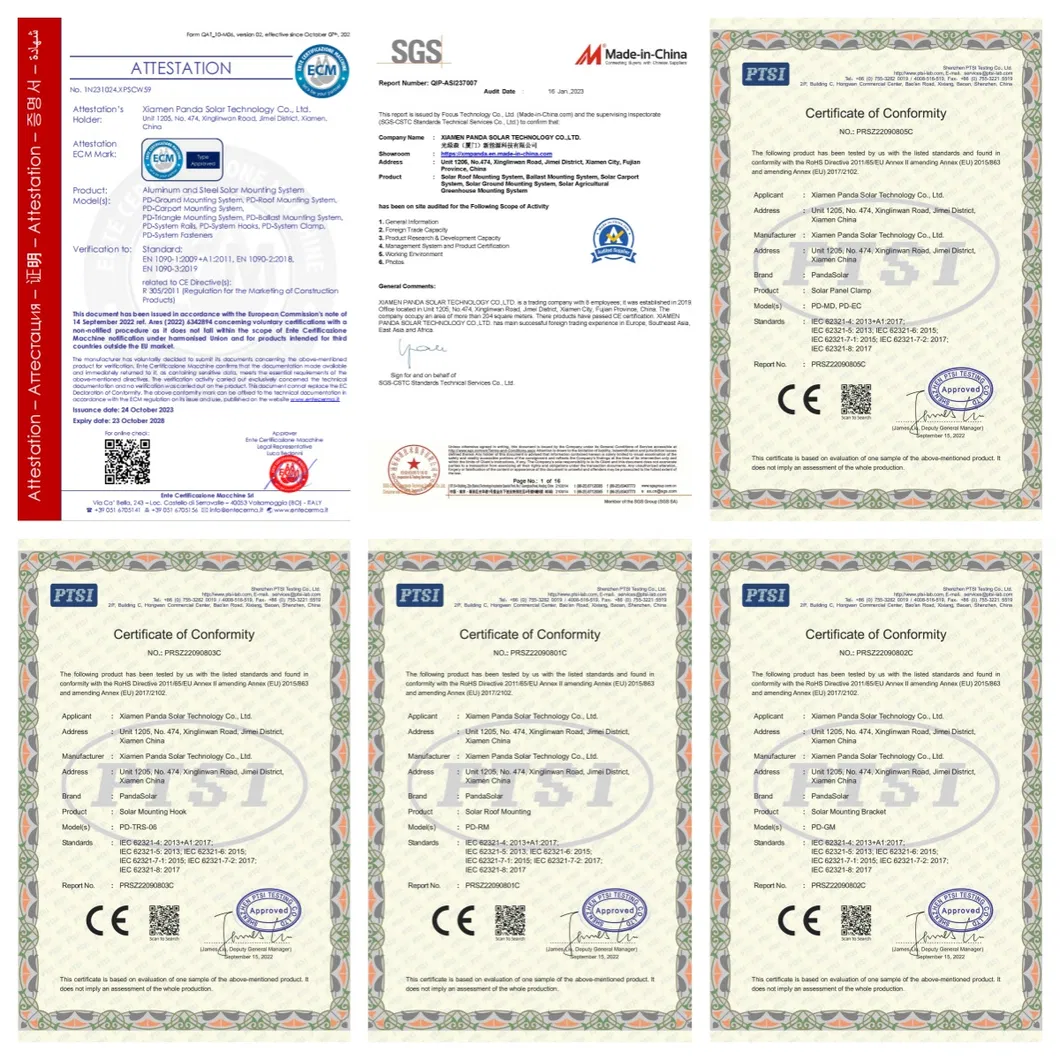

Comprehensive CE certifications for solar roof mounting brackets, ground mounting, carports, and aluminum profiles.

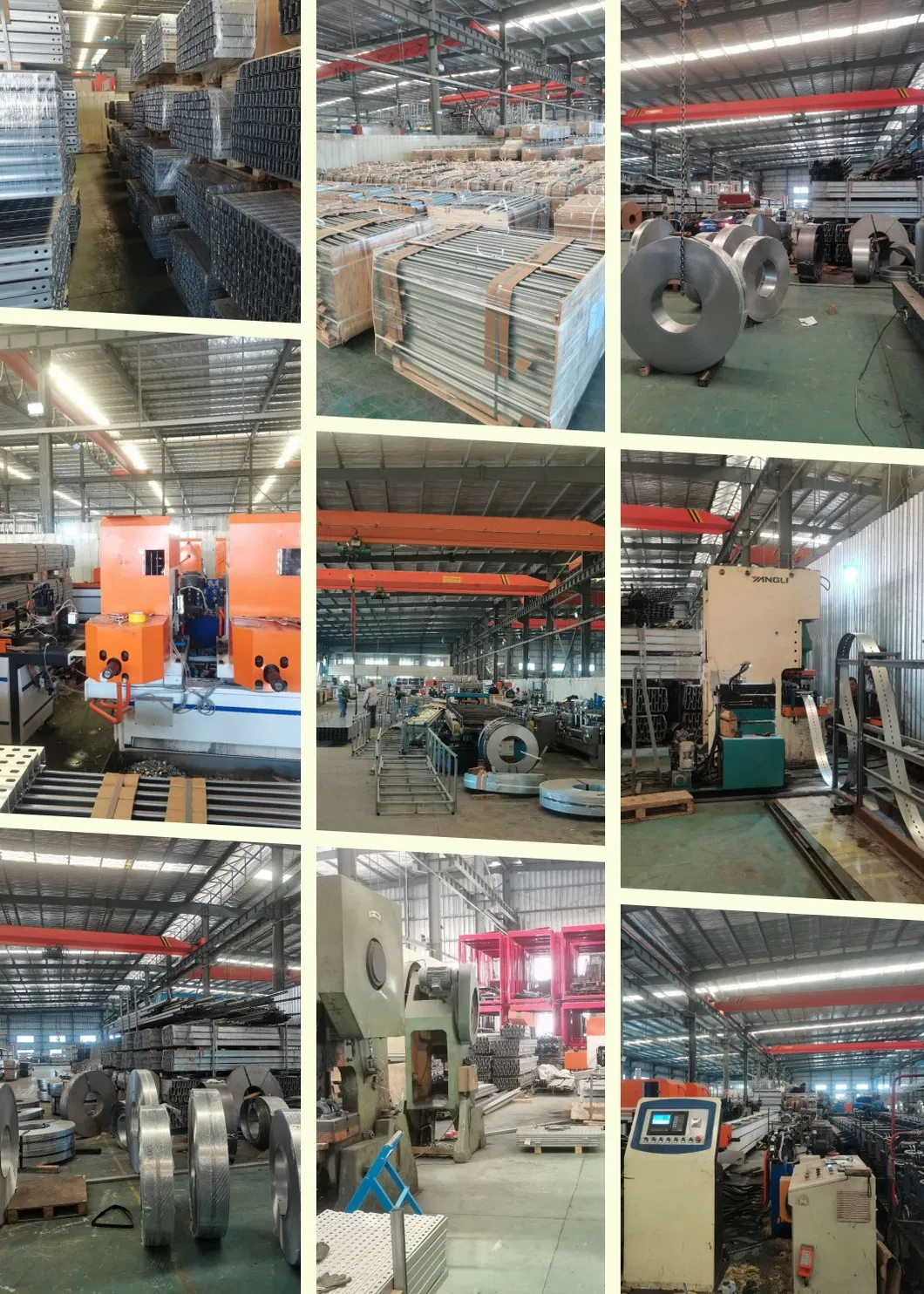

Aluminum Material: Professional processing workshop for cutting, drilling, stamping, and forging with high customization capabilities.
Steel Material: Equipped with 6 production lines for steel/Magnesium aluminum zinc (S350GD/S450GD) with a monthly productivity of 40-50MW.

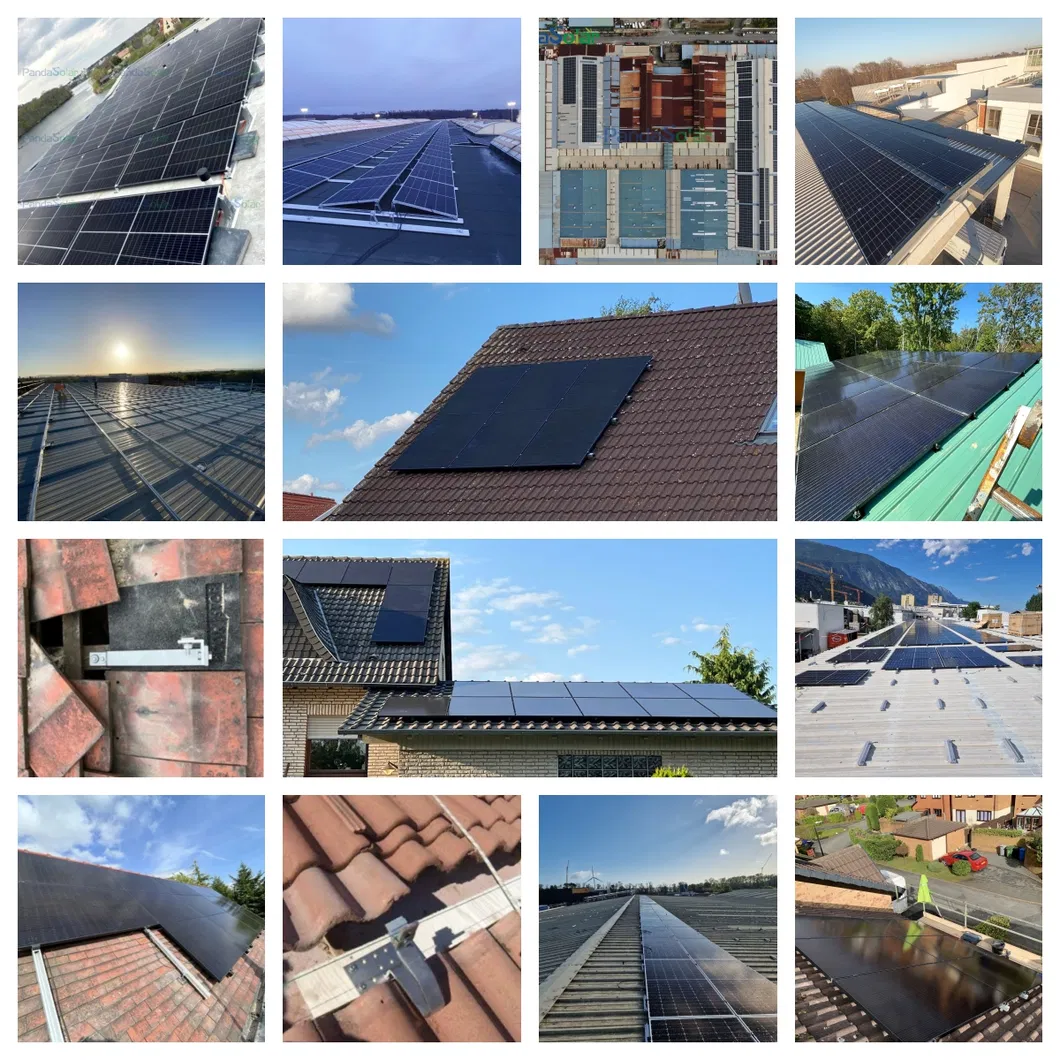

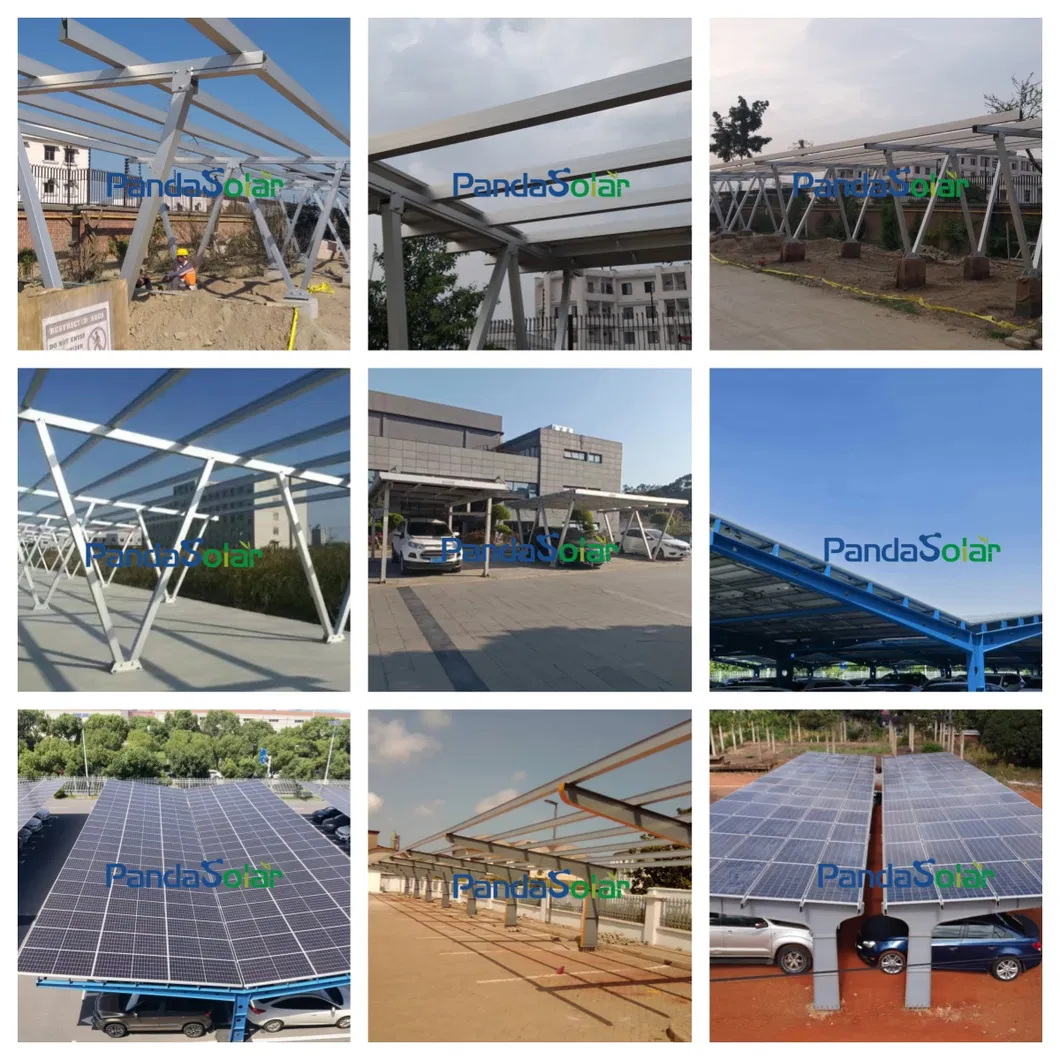

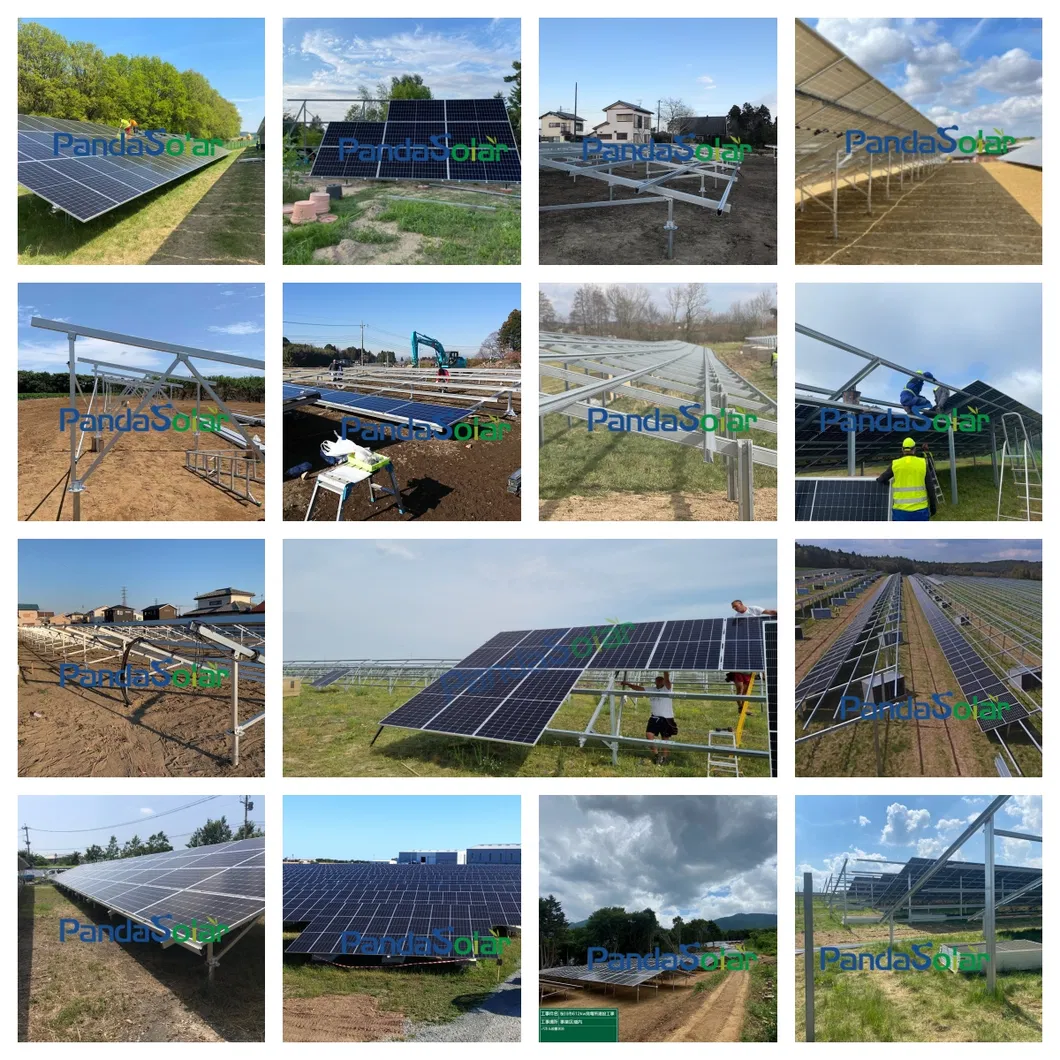

Over 300MW of solar mounting projects completed annually across various global locations.
