10A 20A 40AMP 60A 80A 100AMP MPPT Solar Hybrid Lithium Charge Controller

Customization: Available
After-sales Service: Free Parts
Warranty: 2 Years

Product Description

Basic Information

Model NO.
XD-Wonder2
Condition
New
Certification
ISO, CE
Application
Collector Controller, Charger Controller, Solar Working Station, Voltage Controller
Rated Voltage
12V/24V/48V
Rated Current
10A/20A/30A/40A/50A/60A/80A/100A
MPPT Efficiency
>99%
Max PV Power
140W~5600W
Communication
RS485/APP (WiFi Monitoring or GPRS Monitoring)
Cooling Method
Intelligent Fan Control

Controller Features

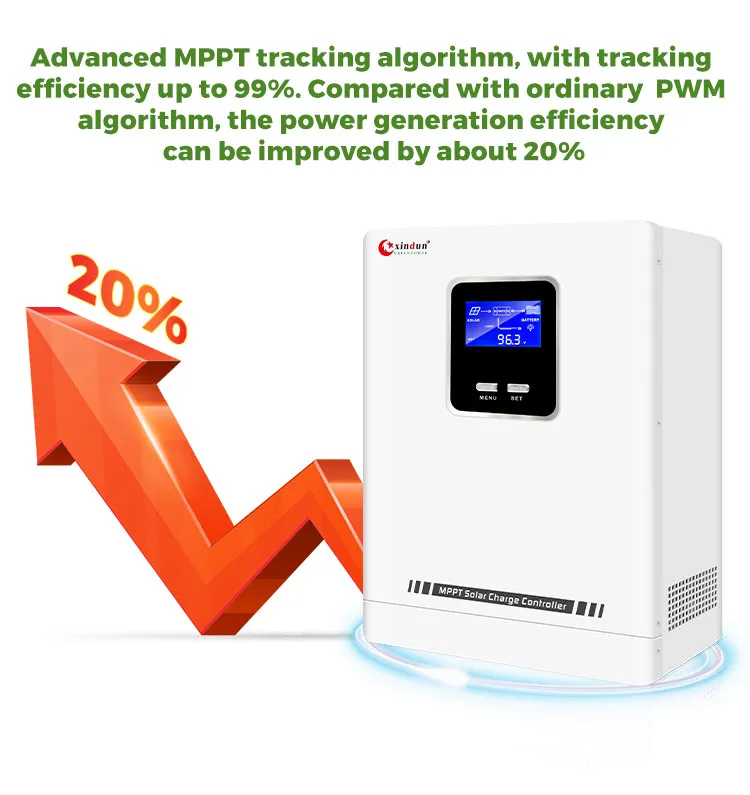

  • Advanced MPPT tracking algorithm, with tracking efficiency up to 99%. Compared with ordinary PWM algorithm, the power generation efficiency can be improved by about 20%.
  • 📊 LCD graphic display of photovoltaic power generation data and simulation of power generation process.
  • ⚙️ Multiple load working modes can be set to adapt to different working occasions.

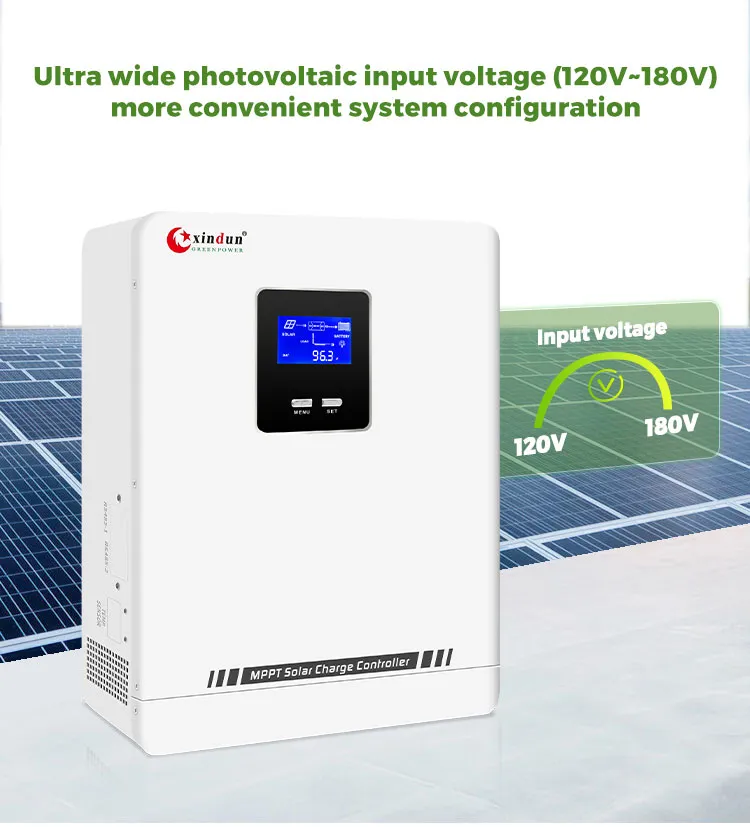

  • Ultra wide photovoltaic input voltage range, more convenient system configuration.

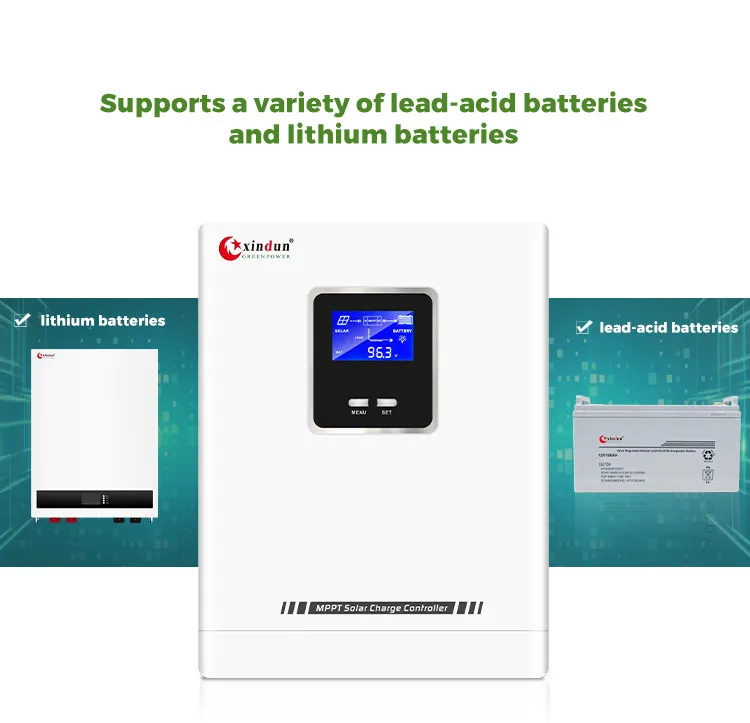

  • 🔋 Supports a variety of lead-acid batteries and lithium batteries; users can customize the charging and discharging parameters.

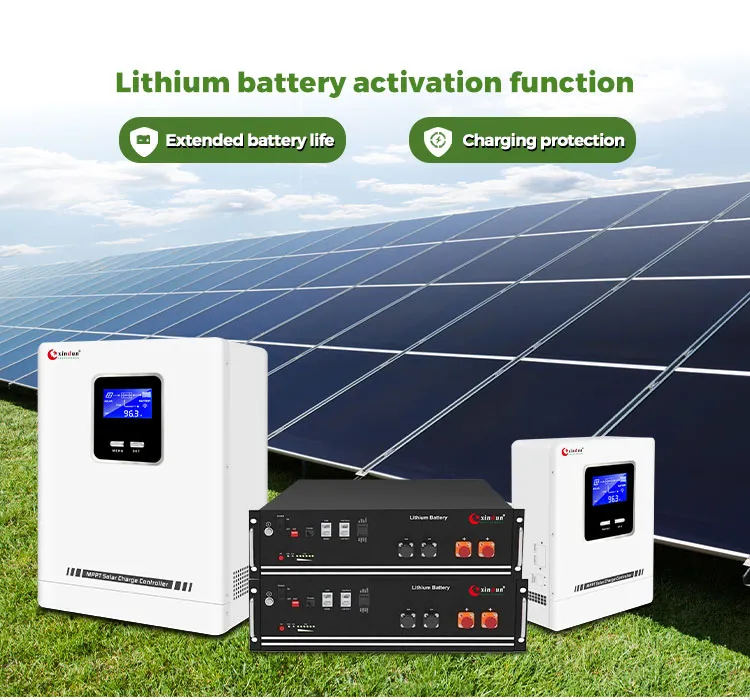

  • 🔄 Lithium battery activation function included.
  • 🛡️ Full range of electronic protection: battery anti-reverse, PV anti-reverse, over-current, over-temperature, and voltage protection.

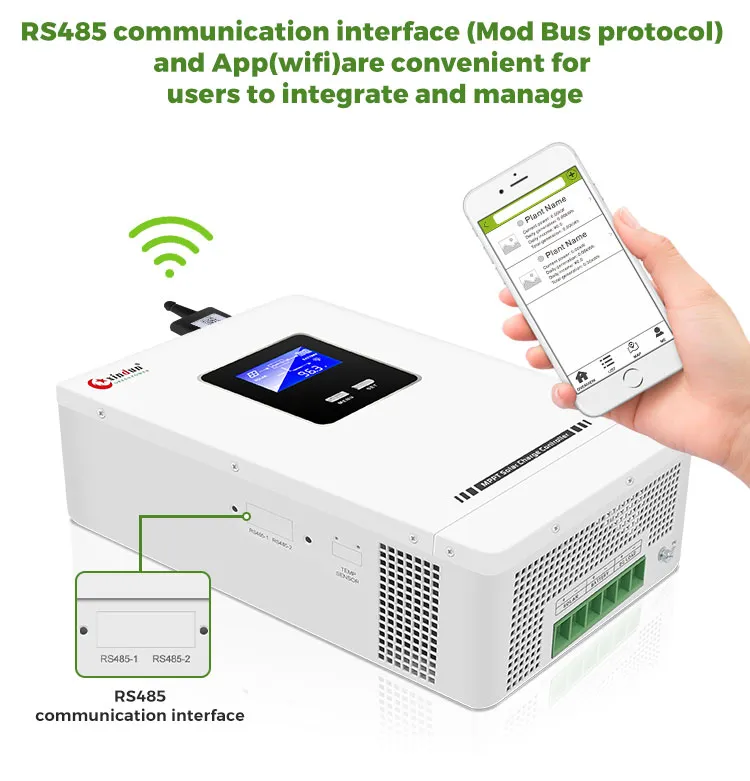

  • 📱 RS485 communication interface (Mod Bus protocol) and mobile phone APP for easy integration and management.

Product Highlights

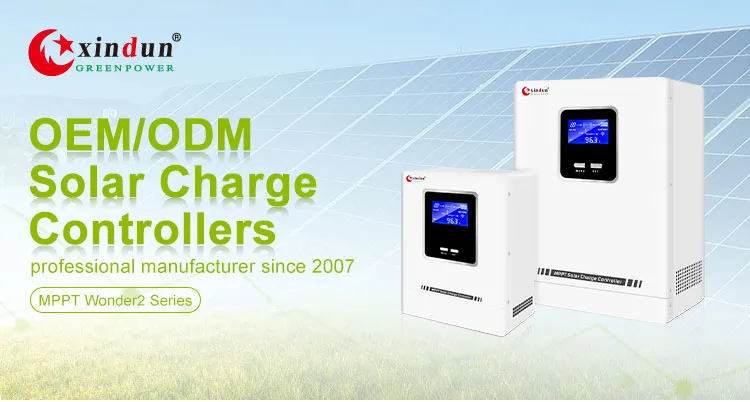

Highlight 1
Highlight 2
Highlight 3
Highlight 4
Highlight 5
Highlight 6

Technical Specifications

Model: Wonder2 10124 - 30124 1048 - 3048 40124 - 60124 4048 - 6048 80124 - 100124 8048 - 10048
Rated Current 10A/20A/30A 40A/50A/60A 80A/100A
Rated System Voltage 12V/24V 48V 12V/24V 48V 12V/24V 48V
Max PV Voltage (Voc) 120V 180V 120V 180V 120V 180V
Conversion Efficiency >98%
MPPT Efficiency >99%
Battery Type Lead acid / Lithium / User Custom
Protection Over-voltage, Under-voltage, Over-temperature, Anti-reverse
Communication RS485 / APP (WiFi or GPRS)

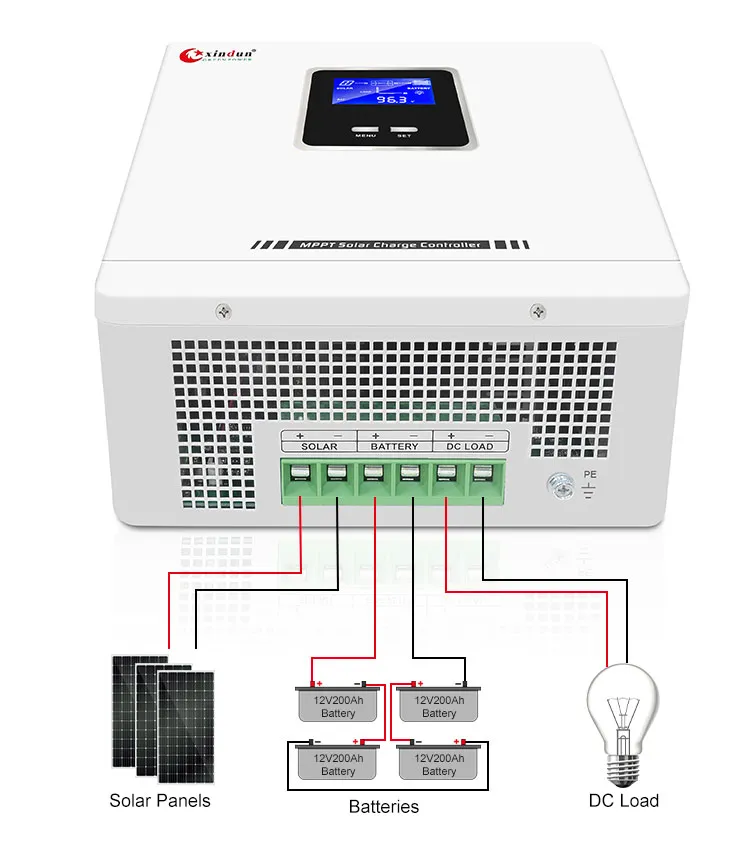

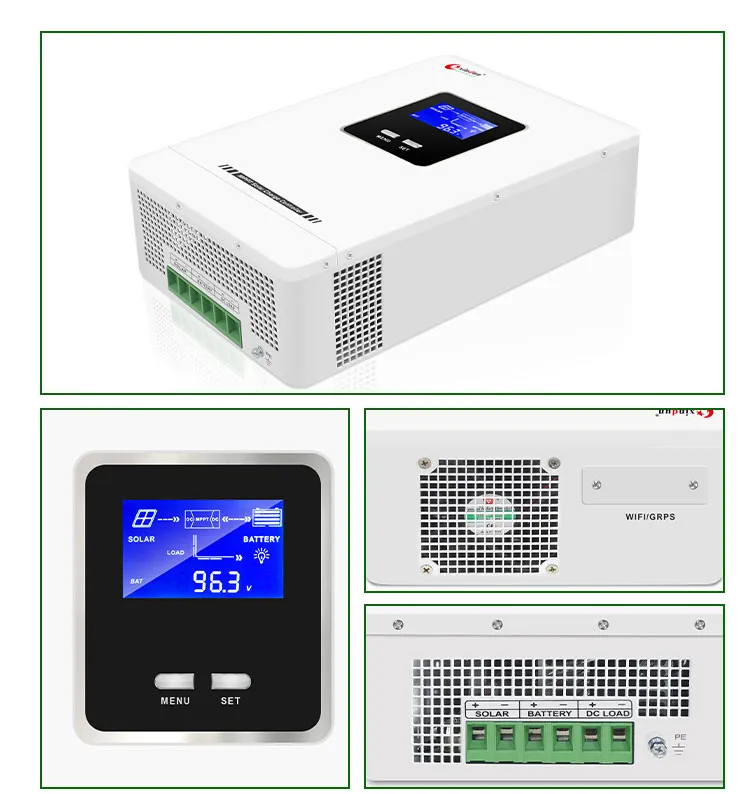

Product Detail & Wiring Diagram

Product Detail Wiring Diagram

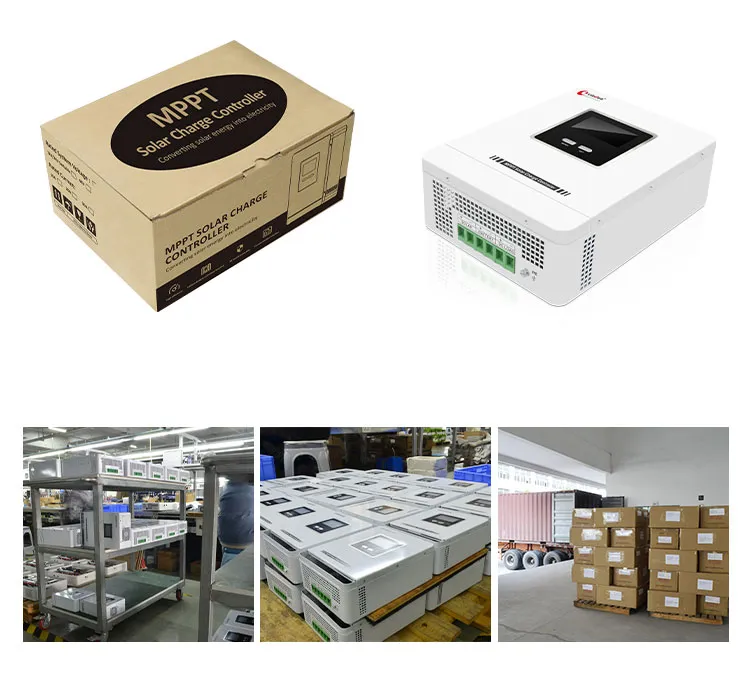

Packing & Delivery

Packing

Package Details

Standard Carton Box for packaging. Wooden Box is advised for samples to ensure maximum protection during transportation.

Shipping Methods

  • Fedex/ DHL/ TNT/ UPS for samples (Door-to-door).
  • By air or by sea for batch goods.
  • Delivery time: 7 days for samples; 10 to 25 days for batch goods.

Production Workshop

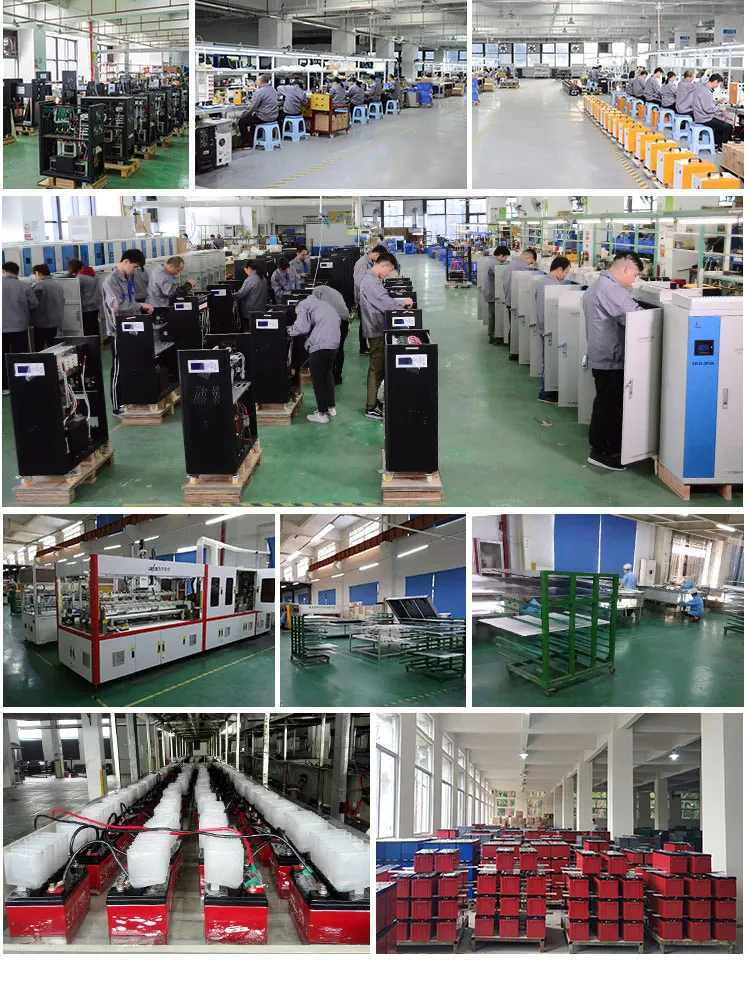

Workshop 1
Workshop 2
Workshop 3

Frequently Asked Questions

What is the tracking efficiency of this MPPT solar controller?
The controller utilizes an advanced MPPT tracking algorithm that achieves a tracking efficiency of up to 99%, which is about 20% more efficient than standard PWM controllers.
What types of batteries can I use with the Wonder2 series?
It supports a wide range of batteries, including Lead-acid batteries and Lithium batteries. Users can also customize charging and discharging parameters for other specialized battery types.
Can I monitor the system remotely via my phone?
Yes, the controller features an RS485 communication interface and supports mobile APP monitoring via WiFi or GPRS modules for real-time data management.
What protection features are built into the device?
The unit includes a full range of electronic protections: battery and PV anti-reverse connection, charging over-current, DC output over-current, over-temperature, over-voltage, and under-voltage protection.
Does it have a special function for lithium batteries?
Yes, it includes a dedicated lithium battery activation function to ensure optimal performance and safety for lithium-based energy storage systems.
What is the maximum PV input voltage supported?
The maximum PV input voltage (Voc) is 120V for standard models and up to 180V for 48V system models, allowing for flexible solar array configurations.
