MPPT 20/30/40/50/60/80/100A Charge Controller 12/24/36/48V Auto Solar Regulator MPPT Controller for Solar Panel Lithium Battery

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

⚡ Basic Information

Model NO.MPPT-R

ConditionNew

CertificationISO, CB, CE

Rated Voltage12V/24V/36V/48V

ApplicationSolar System, Charger, Lighting, Wind, Thermal Controllers

Capacity50,000 PCS/Year

OriginChina

HS Code9032899090

📦 Packaging & Delivery

Package Size289.00cm * 204.00cm * 101.00cm

Gross Weight2.800kg

📘 Product Description

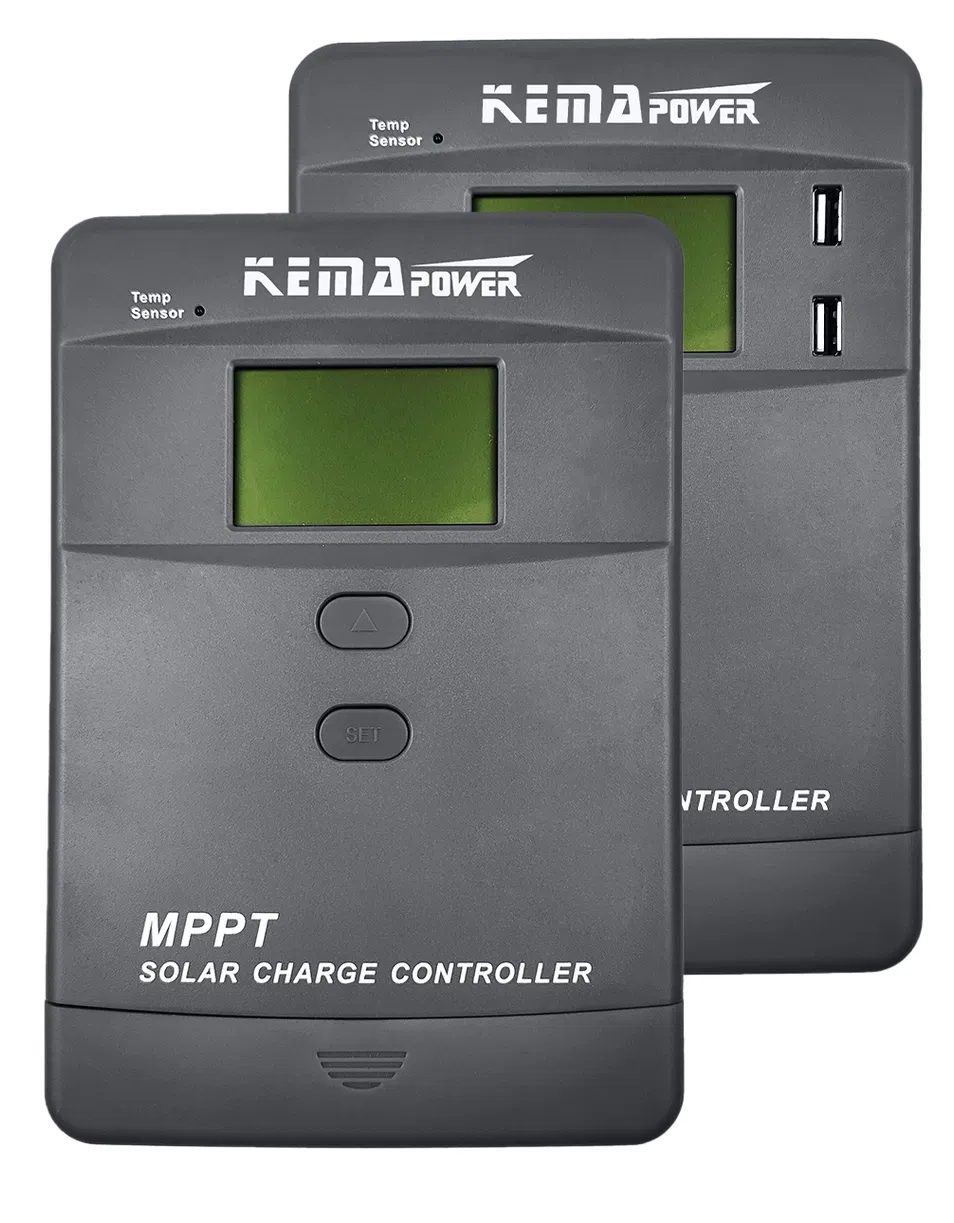

MPPT Solar Charge Controller MPPT-R Series

⭐ Key Features

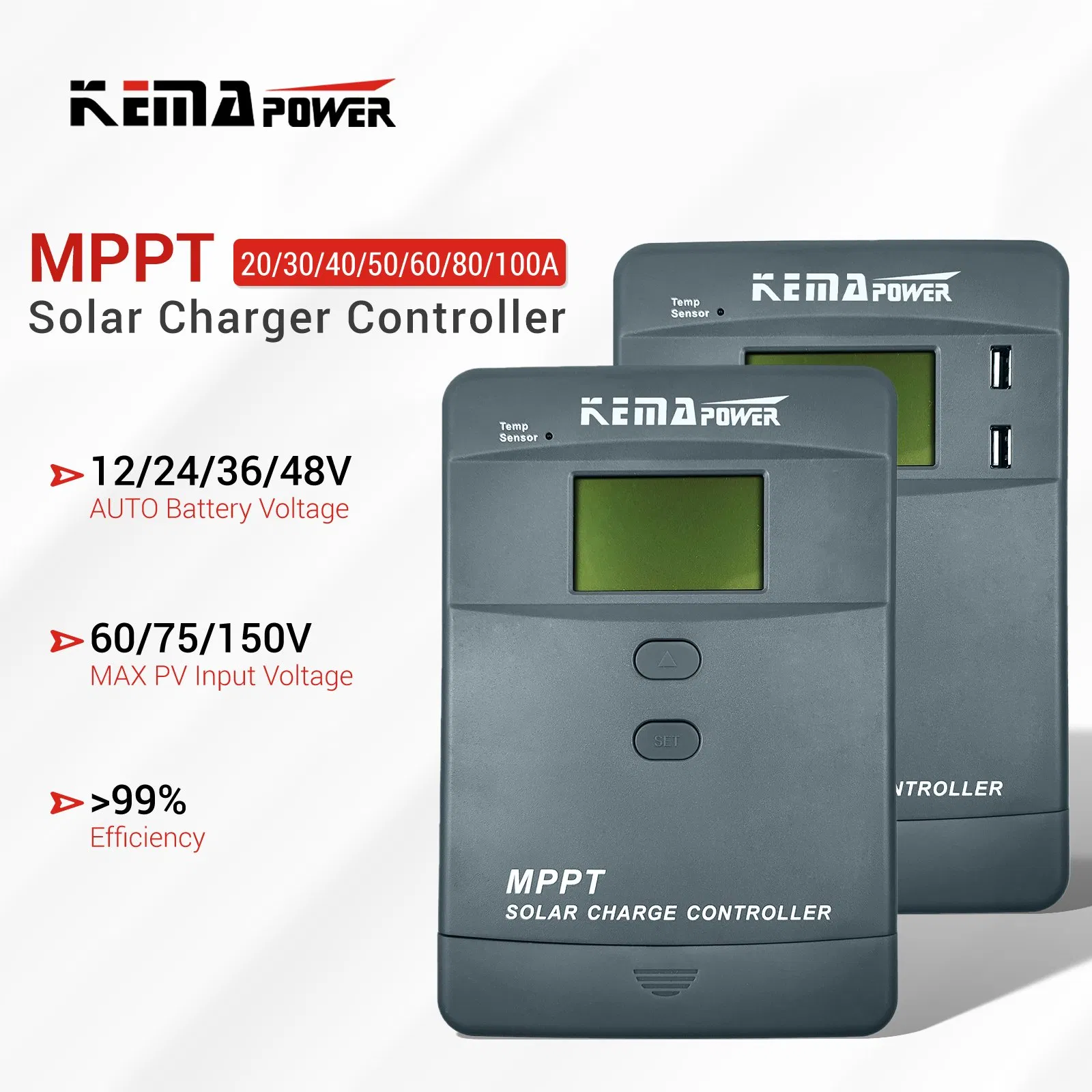

MPPT solar charge controller 12/24V 20-60A and 12/24/36/48V 30-100A
Common Positive, Max PV input 60/75/150V, efficiency >99%
LCD display for PV Bat Load parameter setup and working status
Multi-stages charging mode: Bulk, Absorption, Float, Equalization, CV
Compatible with GEL, Sealed, Flooded, LiFePO4, Li(NiCoMn)O2, and customization
Equipped with Temperature Compensation and current limiting charging
Lithium battery activation function included

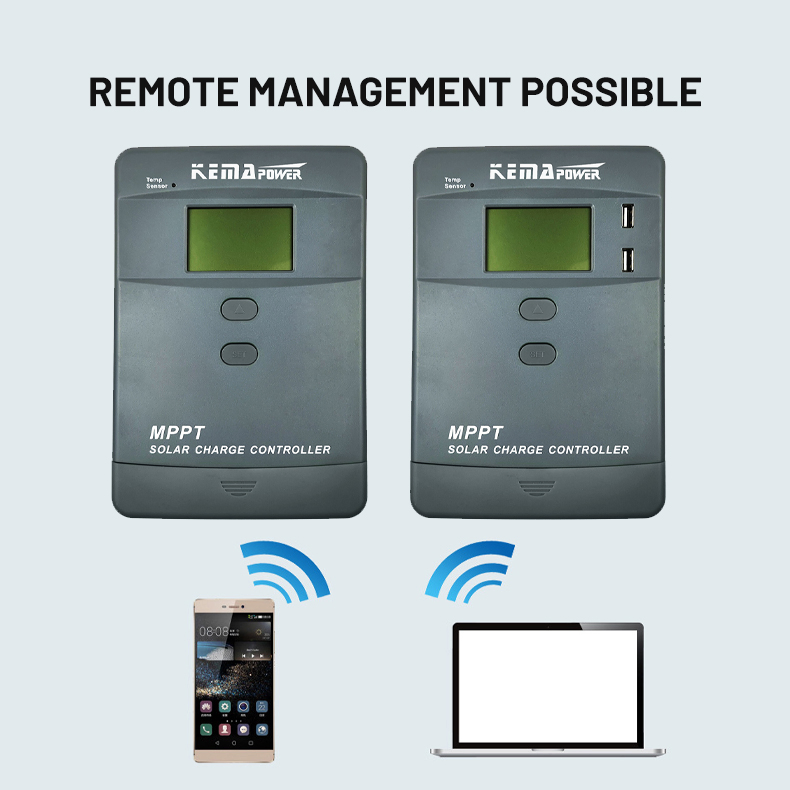

Optional Internal Bluetooth or External WIFI Communication
Dual 2A/5V USB ports for 12/24V 20-40A controllers

🖼️ Product Display

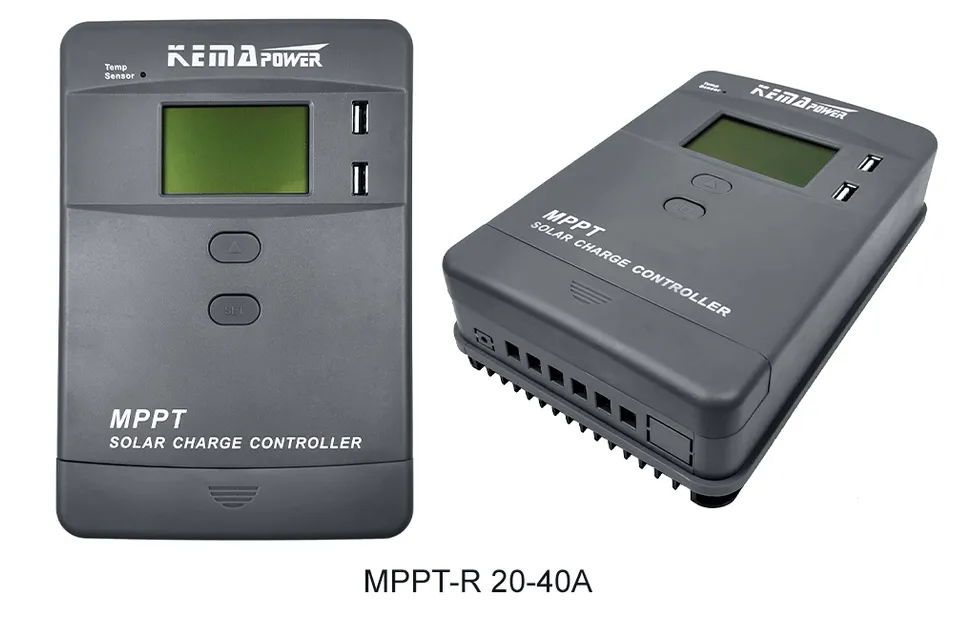

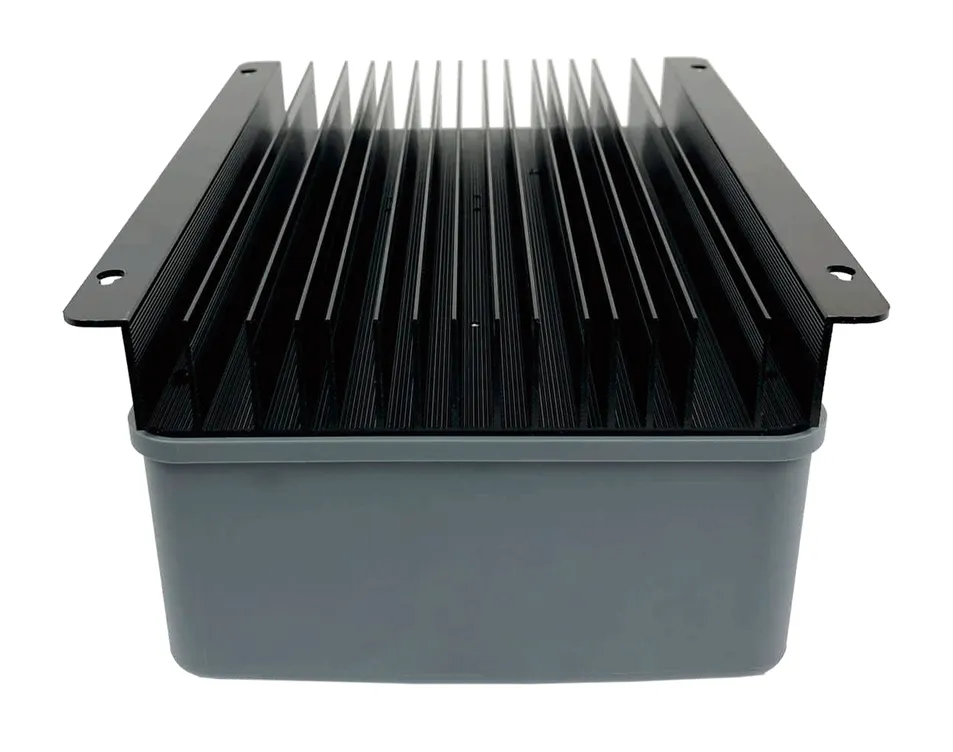

20-40A, Natural cooling

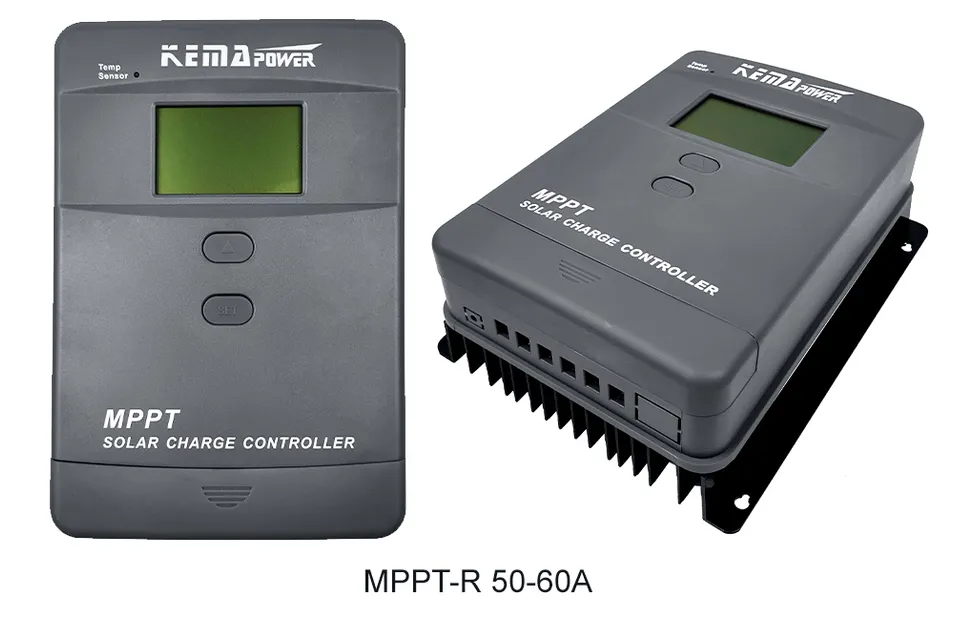

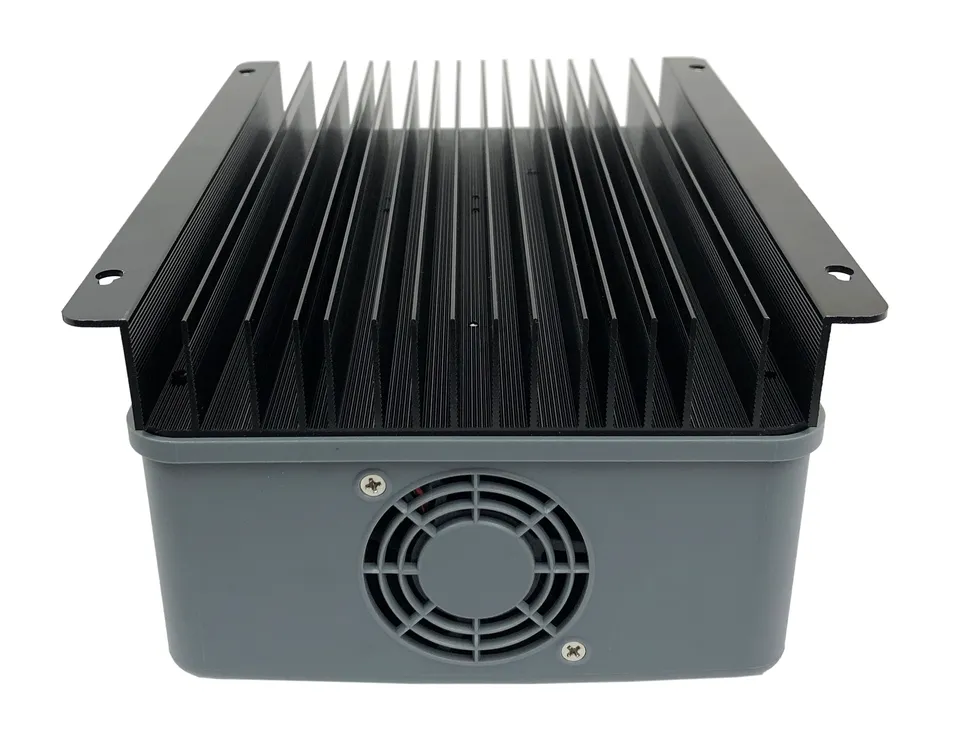

50-100A, Fan cooling

📊 Technical Specifications

(Custom configurations available upon request.)

Model		MPPT 2420R	MPPT 2440R	MPPT 2460R	MPPT 4830R	MPPT 4850R
System voltage		12 / 24V Auto	12 / 24V Auto	12 / 24V Auto	12 / 24 / 48V Auto
Rated charging current		20A	40A	60A	30A	50A
Max PV VOC		<60V	<100V	<100V	<150V	<150V
Max PV Input	12V	260W	520W	780W	390W	650W
Max PV Input	24V	520W	1040W	1560W	780W	1300W
Battery type		GEL, Sealed, Flooded, LiFePO4, Li(NiCoMn)O2, customization
Protection		PV/BAT Reverse Connection, Over/Low Voltage, Over Load
Cooling Mode		Natural	Natural	Fan	Natural	Fan

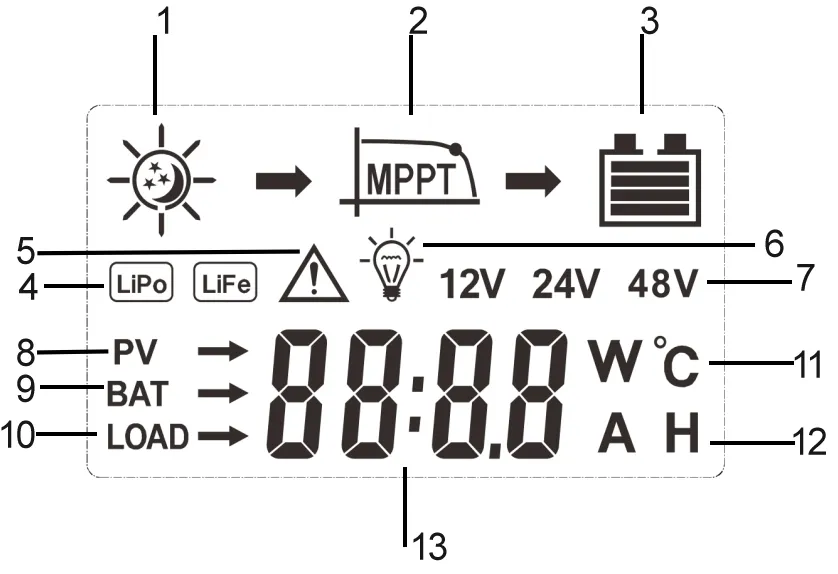

LCD Interface:
1. Day/Night
2. Charge status
3. Battery capacity
4. Battery type
5. Warning
6. Load status
7. System voltage

❓ Frequently Asked Questions

Q1: What is the tracking efficiency of this MPPT controller? The controller features advanced MPPT technology with a tracking efficiency of over 99%.

Q2: Which types of batteries are compatible with this device? It supports a wide range of batteries including GEL, Sealed, Flooded, LiFePO4, and Li(NiCoMn)O2, with custom settings available.

Q3: Does the controller support remote monitoring? Yes, internal Bluetooth or external WiFi communication modules are available as optional features for remote data viewing.

Q4: How does the cooling system work? Models ranging from 20A to 40A use natural cooling, while high-power models from 50A to 100A are equipped with fan cooling for optimal heat dissipation.

Q5: What safety protections are built into the unit? The unit includes protection against PV/Battery reverse connection, battery over/low voltage, and output overload.

Q6: Can this controller activate lithium batteries? Yes, it includes a dedicated Lithium battery activation function to recover deeply discharged lithium cells.
