Mini off Grid Solar Power Lighting Home Systems
Mini off Grid Solar Power Lighting Home Systems
Mini off Grid Solar Power Lighting Home Systems
Mini off Grid Solar Power Lighting Home Systems
Mini off Grid Solar Power Lighting Home Systems
1 / 5
Mini off Grid Solar Power Lighting Home Systems
Mini off Grid Solar Power Lighting Home Systems
Mini off Grid Solar Power Lighting Home Systems
Mini off Grid Solar Power Lighting Home Systems
Mini off Grid Solar Power Lighting Home Systems

Mini off Grid Solar Power Lighting Home Systems

Customization: Available
Condition: New
Application: Home, Camping and So on
Send Inquiry

Product Description

China 8W 4W PV Panel Solar Power Home Lighting System with 1W LED Lamp USB Charging Cable
Basic Information
Model NO.
SS-E03/2
Specification
Normal
Flexibility
Portable
Sample
Available
Solar Panel
8V 4W Polycrystalline Silicon
Warranty
2 Years
Life
50000 Hrs
Battery
3.2V3300mAh LiFePO4
Suit
1pc Control Box, 1pc Solar Panel, 2pcs LED Lighting
Packaging
Color Box/Outer Carton
Origin
China
HS Code
8507600090
Technical Specifications
Model NO.SS-E03/2
Solar Panel8V 4W Polycrystalline silicon solar panel with 6m cable
Battery3.2V3300mAh LiFePO4
Light Source3pcs*1W LED Lamp
InputSolar
OutputDC / USB
DC Output4PCS (DC6.4V1A=6.4W)
USB Output2PCS (5V1A)
Full-Charged Time6-7 hours
Working Time3-9.5 Hours
Operation Temperature-10°C to 50°C
ProtectionOvercharge and Overdischarge Protection

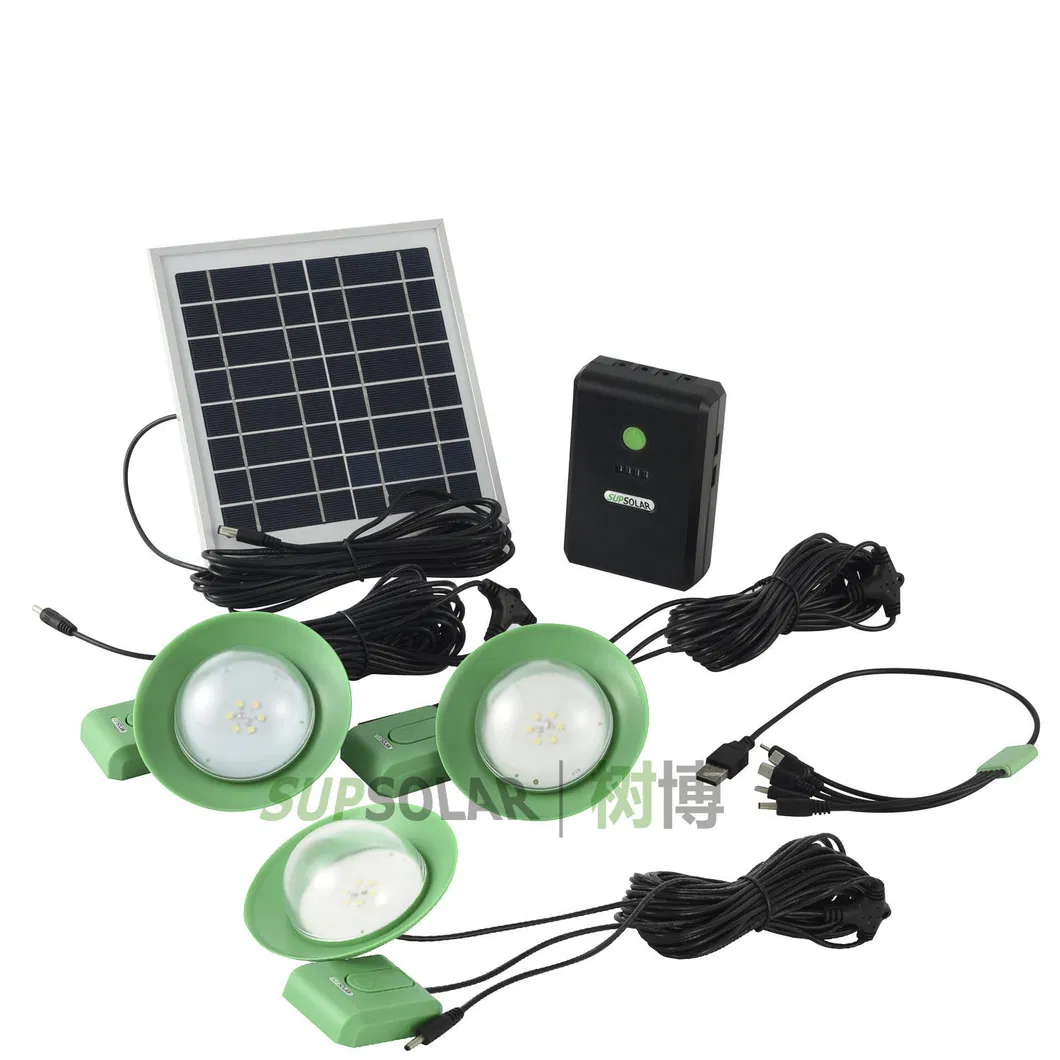

Solar Power Home Lighting System
Key Features
  • Advanced charging modes: Trickle current, constant current, and constant voltage for optimal LiFePO4 management.
  • Complete charge management for single-section lithium iron phosphate batteries.
  • Deep discharge battery recovery with trickling charge function.
  • Wide input voltage range compatibility: 6.5V to 15V.
  • Integrated MPPT (Maximum Power Point Tracking) function for solar panels.
  • Simple one-button start mechanism.
  • Smart power-off: 3-second long press to prevent accidental shutdown.
  • Dual protection: USB overcurrent and LED lamp short circuit protection.
  • Real-time status display: Red light flashing prompts for charging, discharging, and low voltage.

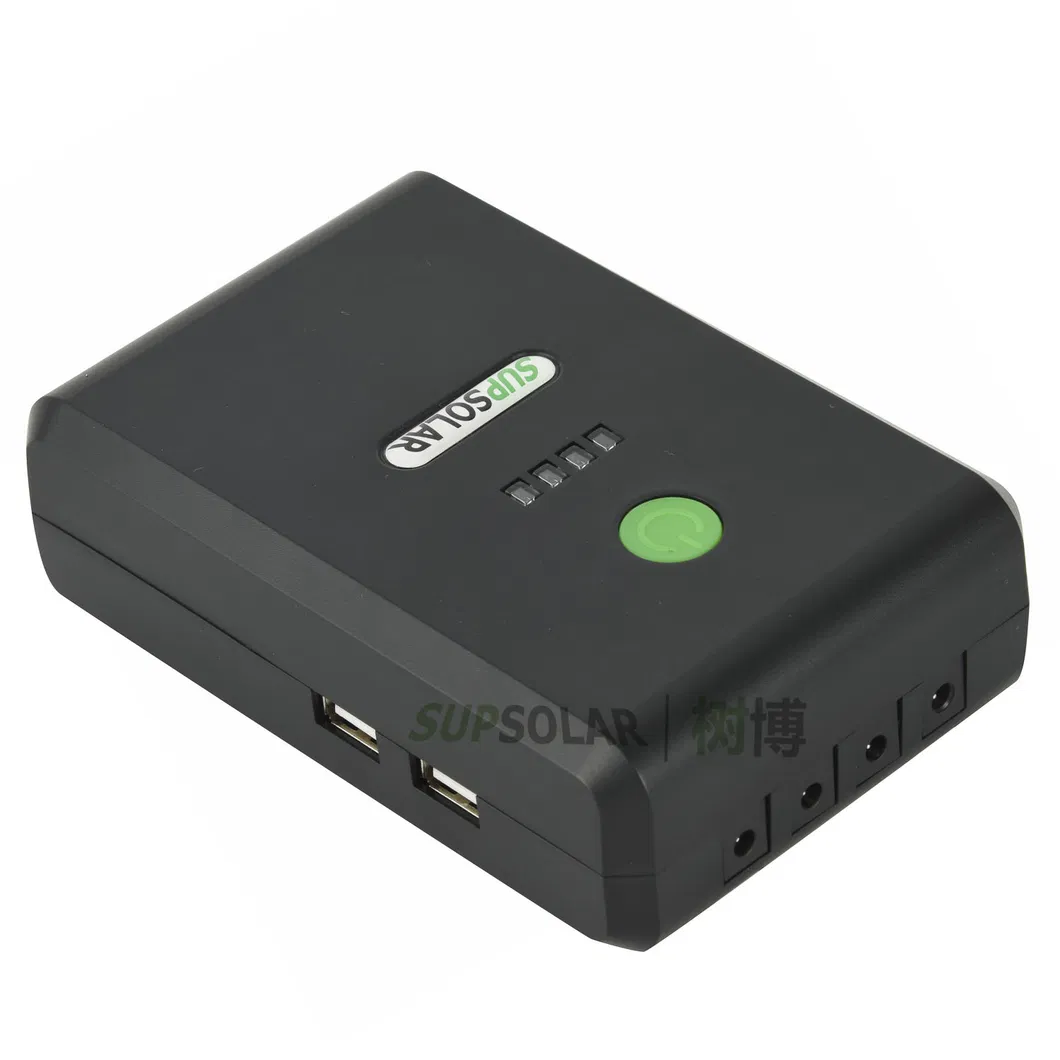

System Feature 1

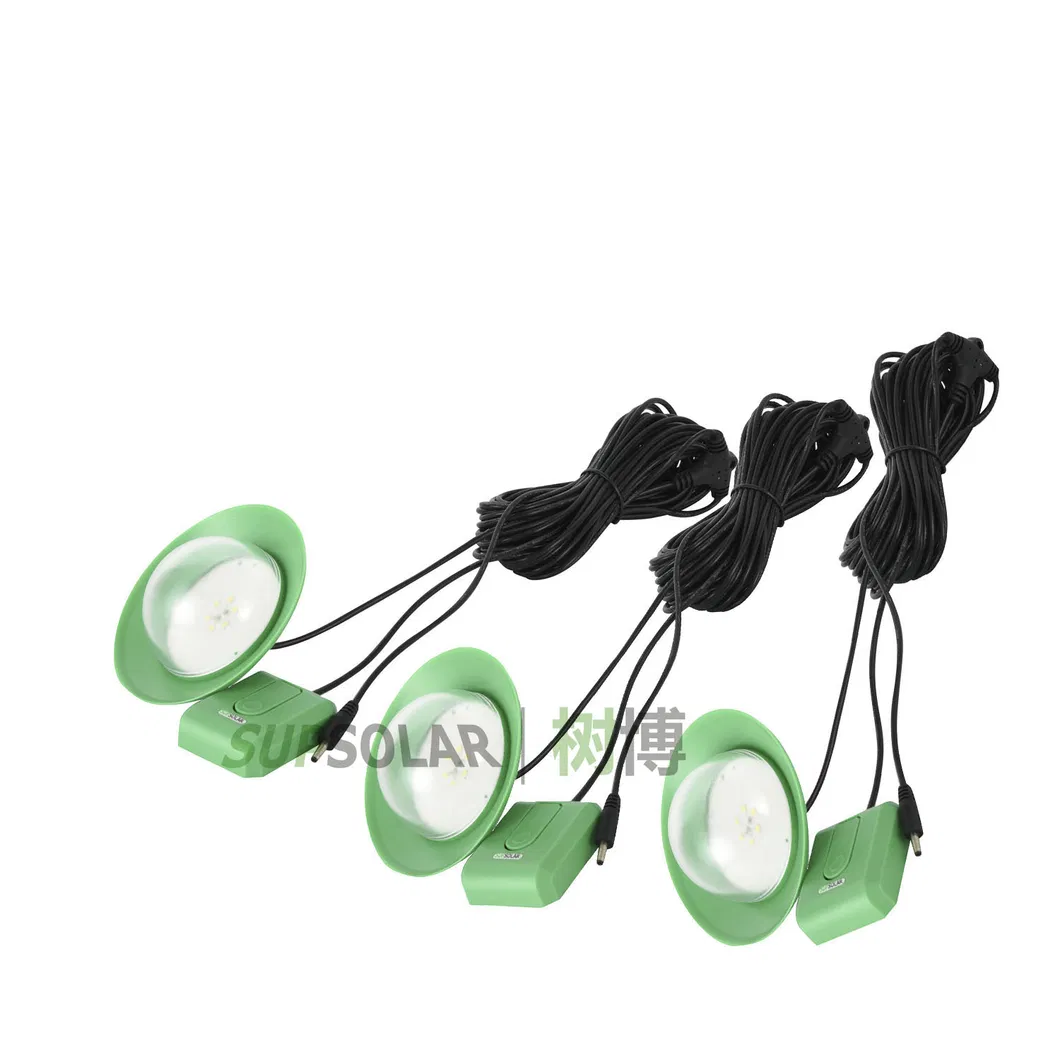

System Feature 2

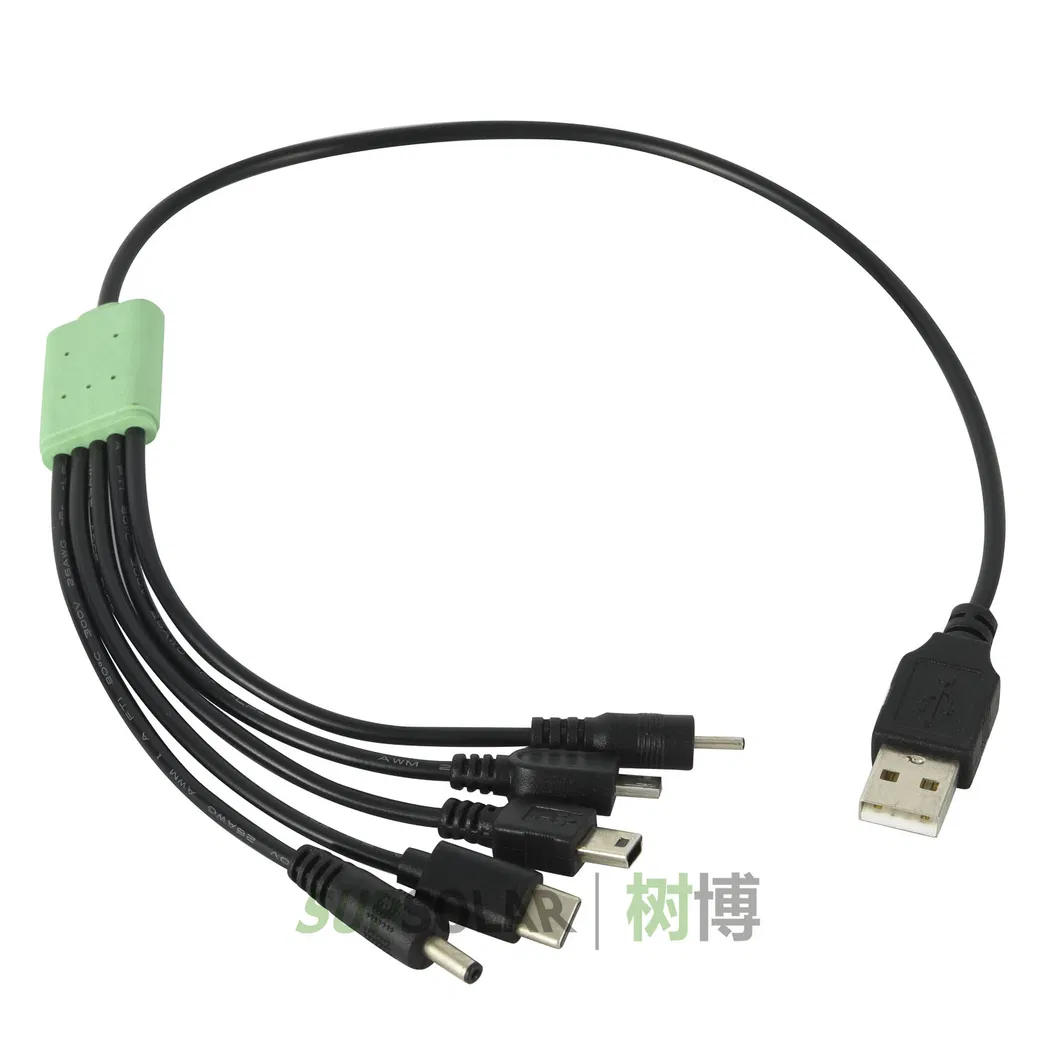

System Feature 3
Advantages & Sustainability
  • Utilizes sustainable and clean solar energy.
  • Enhanced safety with eco-friendly LiFePO4 battery technology.
  • Ideal solution for rural areas or locations without stable grid electricity.
  • OEM customization available to meet specific needs.
Solar Lighting Application

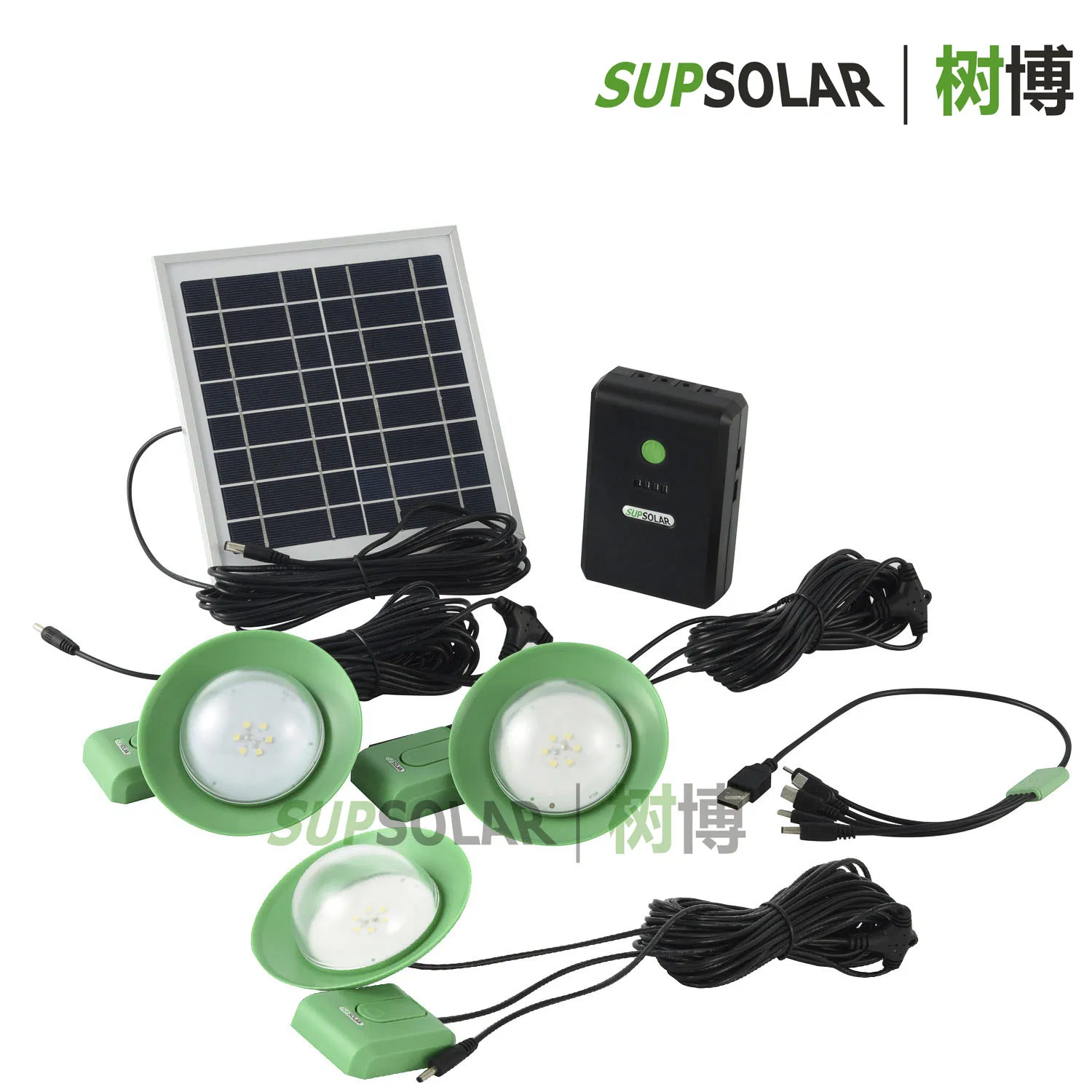

Package Contents

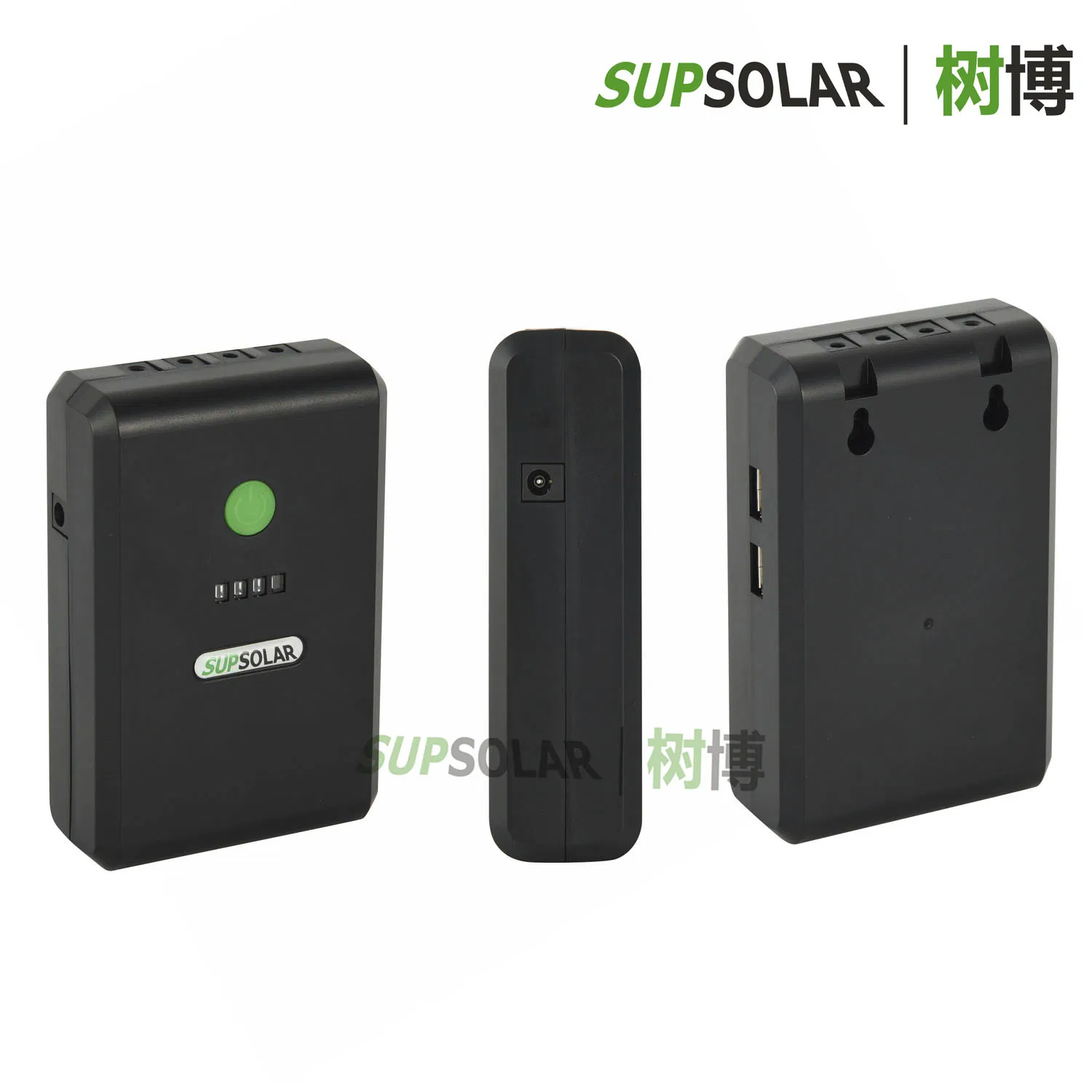

1pc x 3.2V 5000mAh Control box

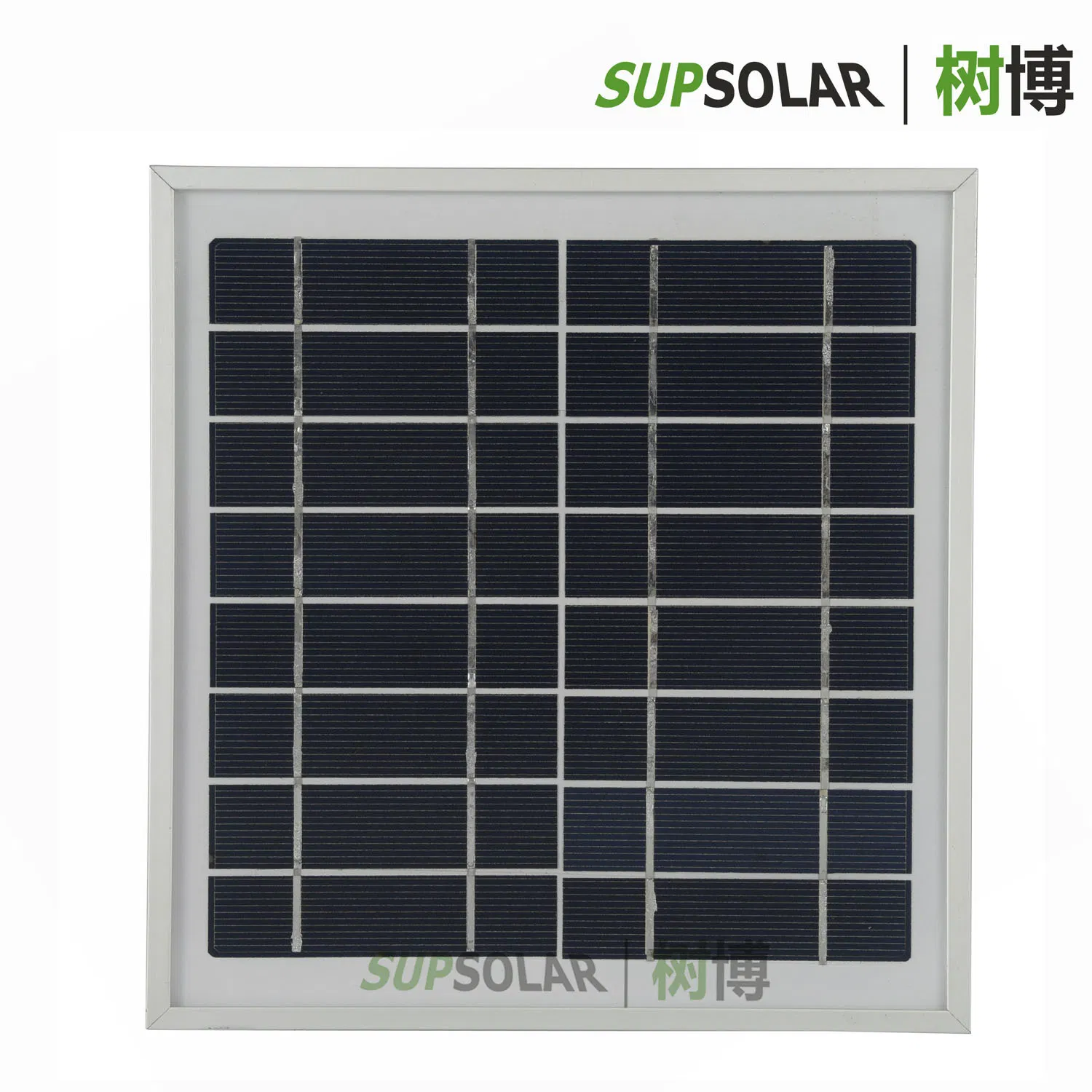

1pc x 8V 4W Solar panel

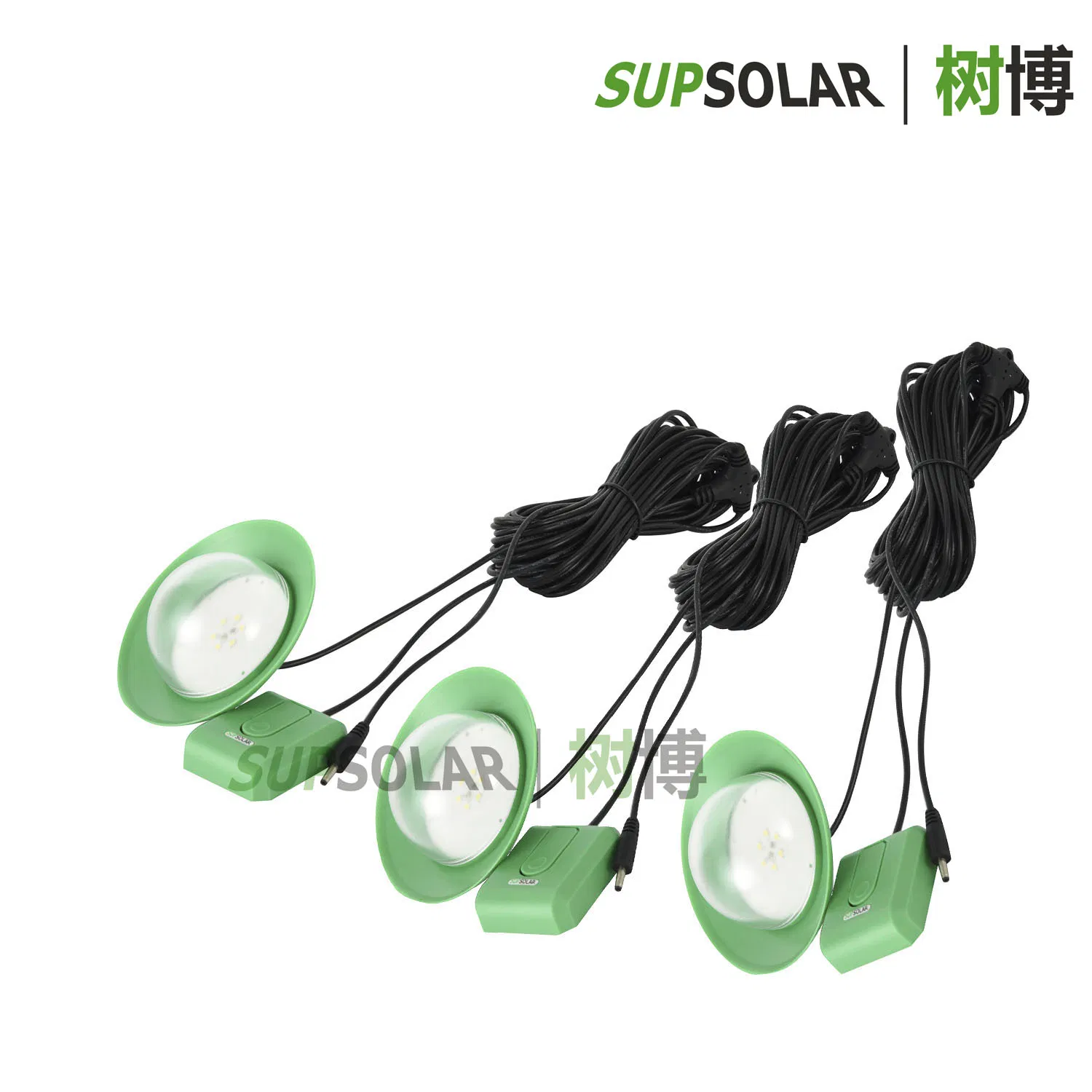

3pcs x 1W LED lighting lamp

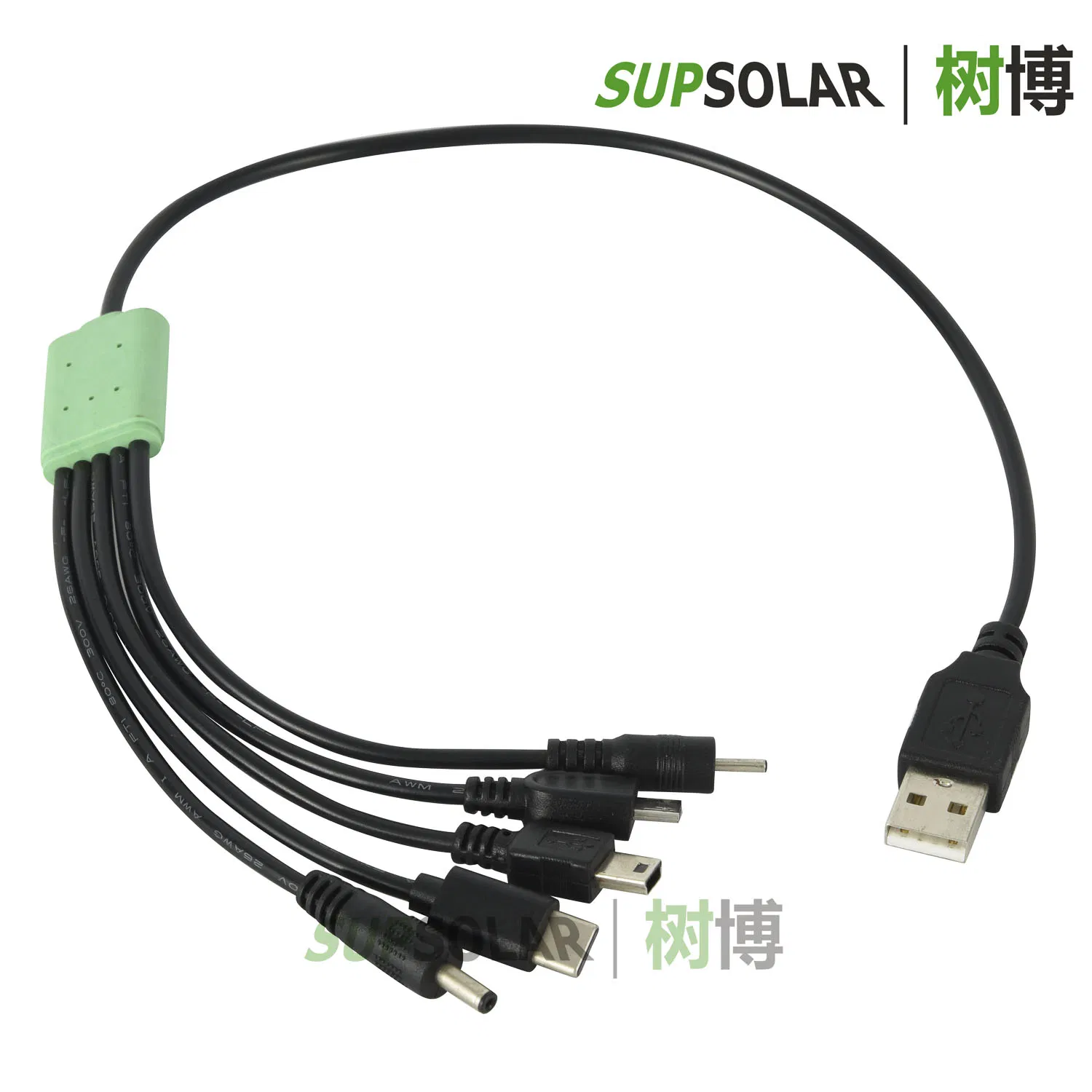

1pc x Multi-function Mobile Phone USB charger wire
8pcs x Screws
Frequently Asked Questions
How long does it take to fully charge the system?
Under standard sunlight conditions, it takes approximately 6 to 7 hours to fully charge the battery using the provided 4W solar panel.
What is the expected working time on a full charge?
The system provides between 3 to 9.5 hours of operation, depending on the number of LED lamps in use and whether mobile devices are being charged.
Is the battery safe and durable?
Yes, the system uses LiFePO4 (Lithium Iron Phosphate) technology, which is known for higher safety standards, environmental protection, and a long lifespan of up to 50,000 hours.
Can I charge my smartphone with this system?
Absolutely. The control box features 2 USB output ports (5V 1A) specifically designed for charging mobile phones and other small electronic devices.
What kind of protections does the system have?
The system includes integrated overcharge and overdischarge protection, as well as overcurrent and short circuit protection for both the USB outputs and LED lamps.
Is this system suitable for outdoor use?
Yes, it is designed for portability and can operate in temperatures ranging from -10°C to 50°C, making it perfect for off-grid homes, camping, or rural lighting.
