Model NO.
H1Z2Z2-K 1X6mm2
Material Shape
Round Wire
Wire Core Material
Red Copper Wire
Certification
ISO, CE, RoHS, TUV/UL/Retie/CB
Conductor
Tinned Copper Wire, Class 5 (IEC 60228)
Temperature Range
-40°C~+90°C, Dry/ Humidity
Standard
IEC62930/En50618

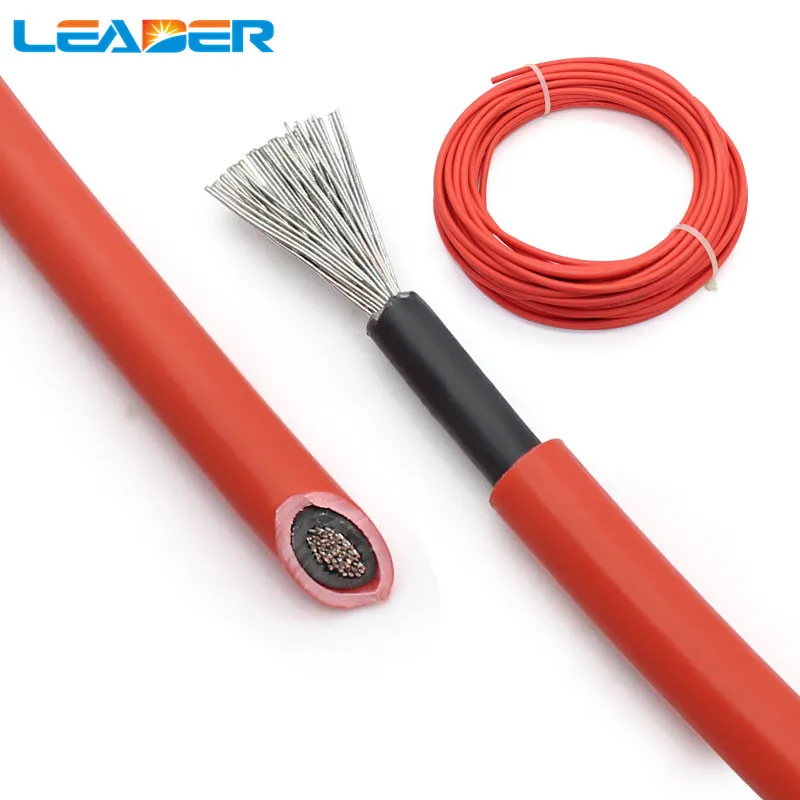

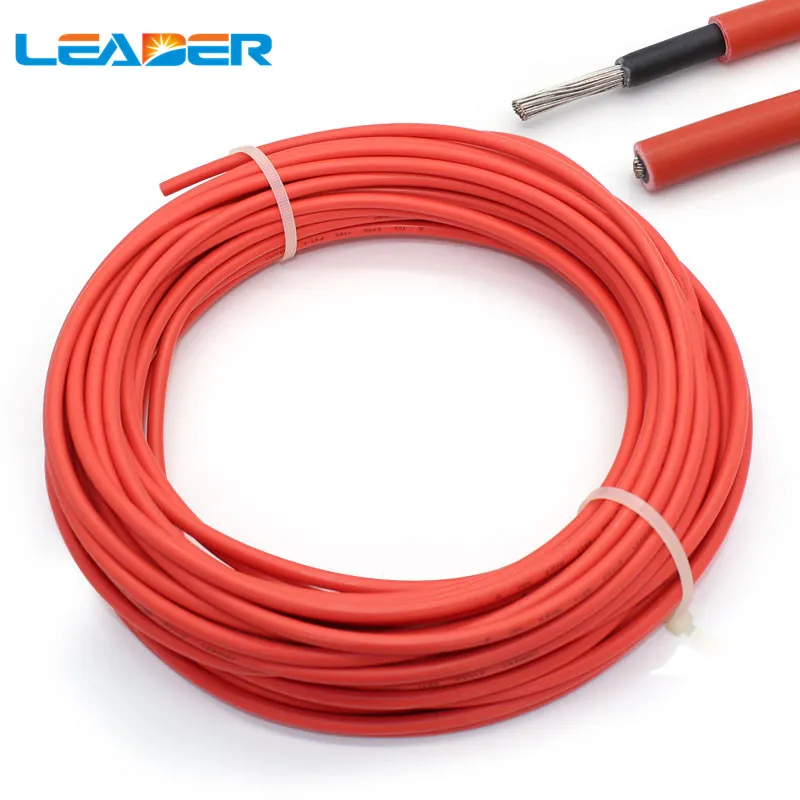

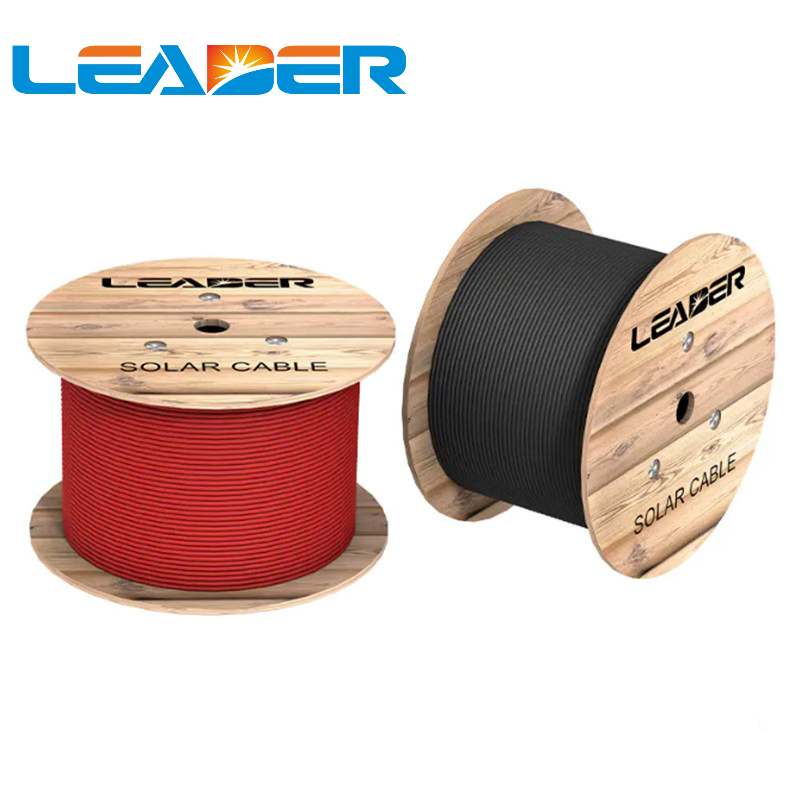

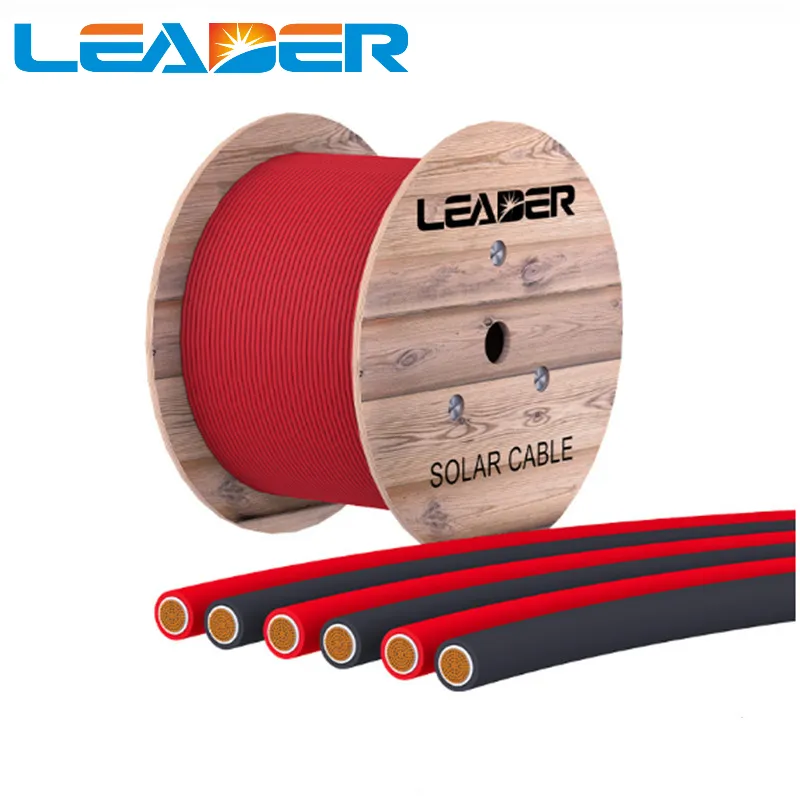

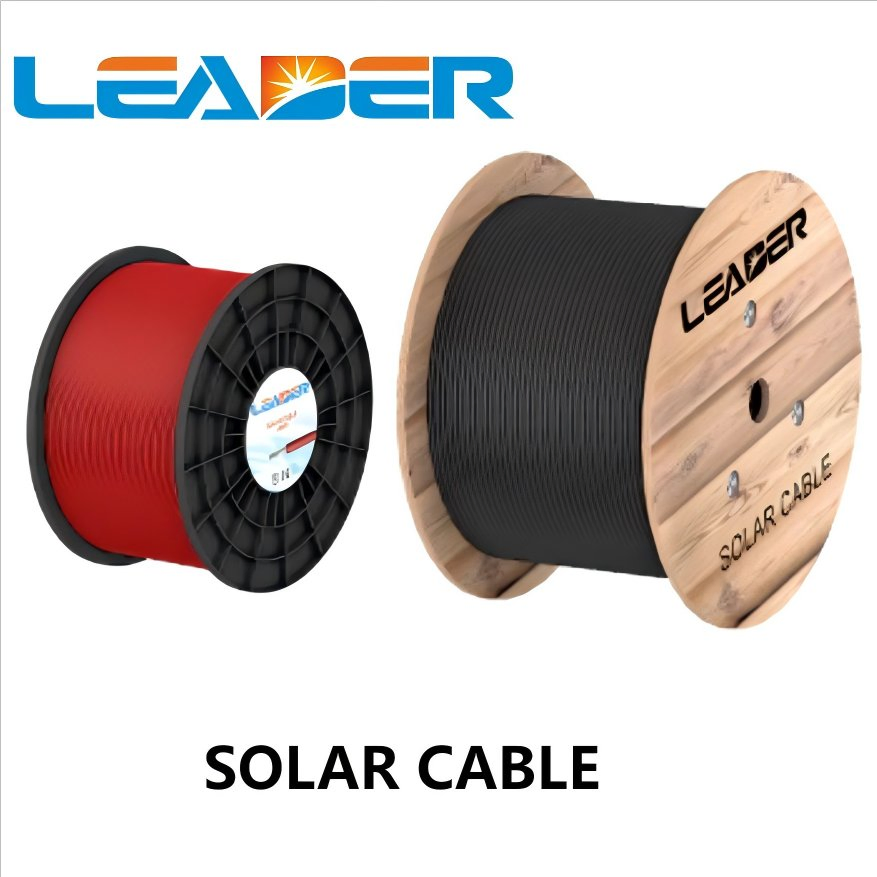

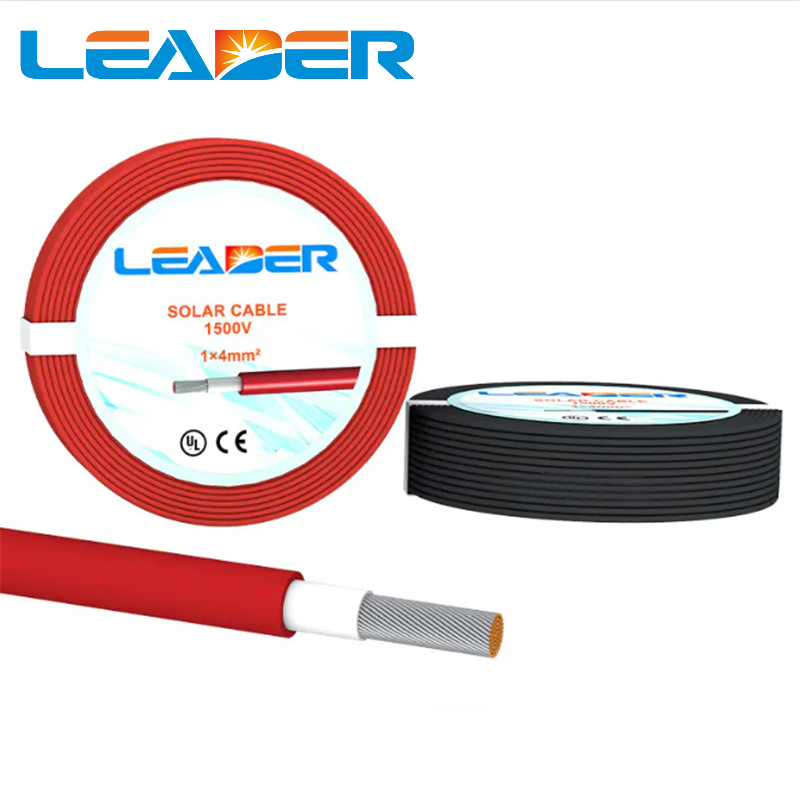

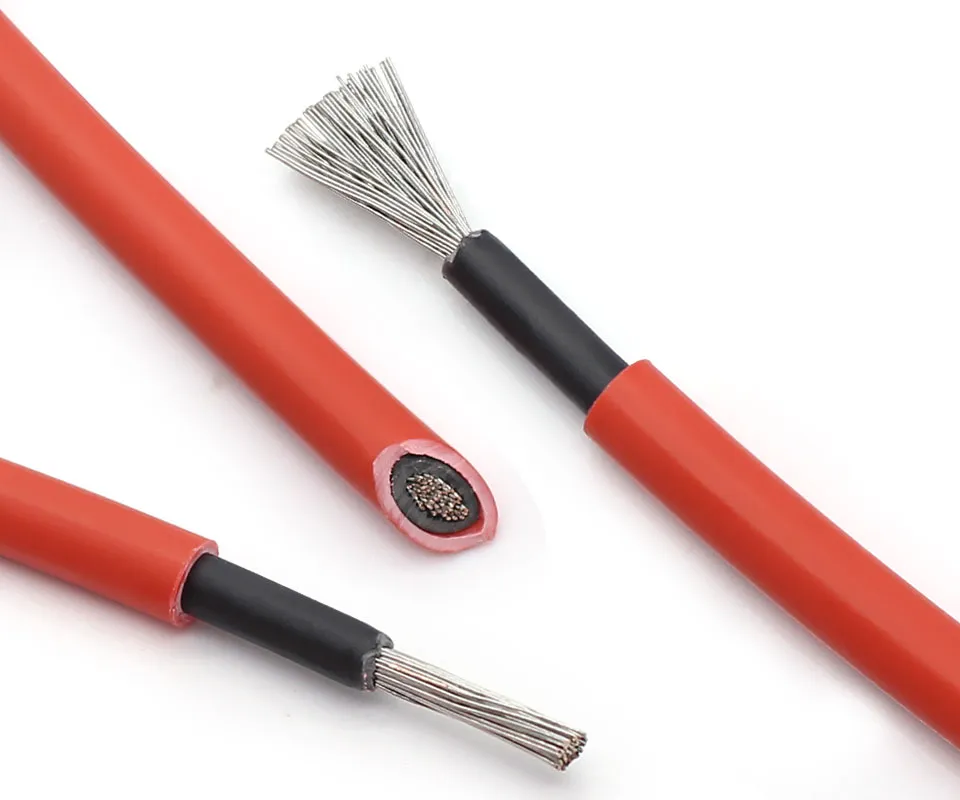

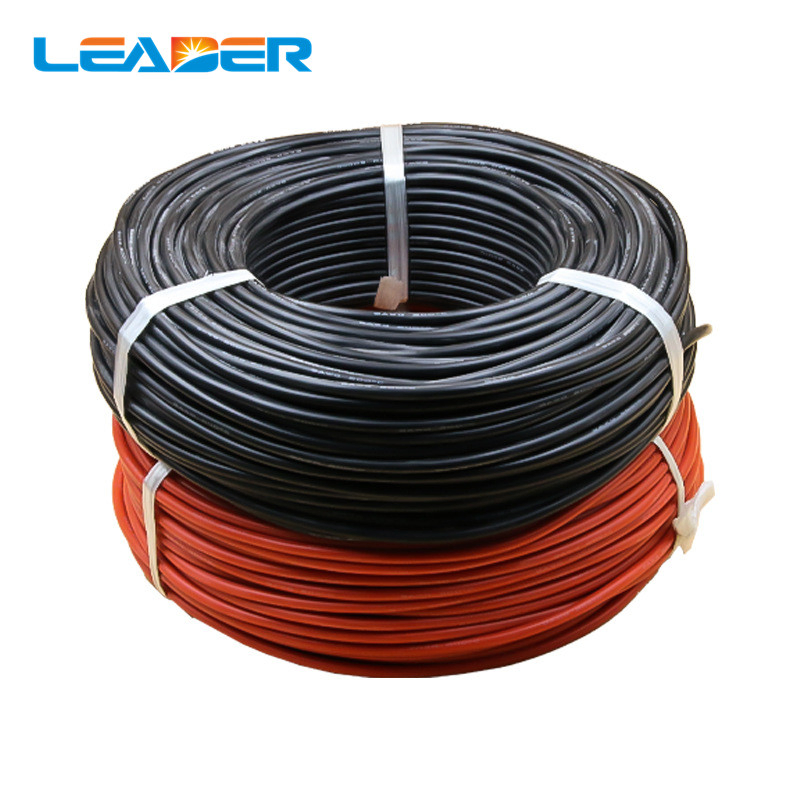

Tinned Copper Wire TUV H1z2z2-K 1X6mmsq 1.5kv PV DC Solar Cable
| Model |
H1z2z2-K 1X6mm2 |
| Conductor |
Tinned copper wire, class 5 (as per IEC 60228) |
| Insulation |
No Halogen PO insulation |
| Sheath |
No Halogen PO sheath |
| Rating Voltage |
DC1500V |
| Test Voltage |
AC 6.5KV, 50Hz 5min |
| Short Circuit Temperature |
250ºC 5S |
1. What is the expected lifespan of this PV solar cable?
This H1Z2Z2-K solar cable is designed for longevity, with a service life period of 25 years or more under standard operating conditions.
2. Can this cable withstand extreme weather conditions?
Yes, it features a wide temperature range from -40°C to +90°C, making it suitable for both extremely cold and high-heat environments, as well as dry and humid conditions.
3. What are the conductor and insulation materials used?
The cable uses Class 5 tinned copper wire as the conductor for excellent conductivity and corrosion resistance. The insulation and sheath are made of Halogen-free Polyolefin (XLPO).
4. What is the maximum rated voltage for this solar cable?
The cable is specifically rated for DC 1500V applications, meeting the requirements of modern high-voltage solar power systems.
5. Which international standards does this product comply with?
The cable complies with major international standards including IEC62930 and EN50618, and holds certifications such as TUV, CE, RoHS, and ISO.
6. Is the cable flexible enough for complex installations?
Yes, with a bending radius of 6 times the diameter (6×D), it offers the necessary flexibility for professional solar panel array installations.
