Basic Specifications
Conductor Type
Tinned Copper
Certification
TUV/UL/IEC/CE/Retie/CB
Solar Cable Standard
EN50618:2014 H1Z2Z2-K DC 1500V
Test Voltage
AC 6.5KV, 50Hz 5min
Product Description

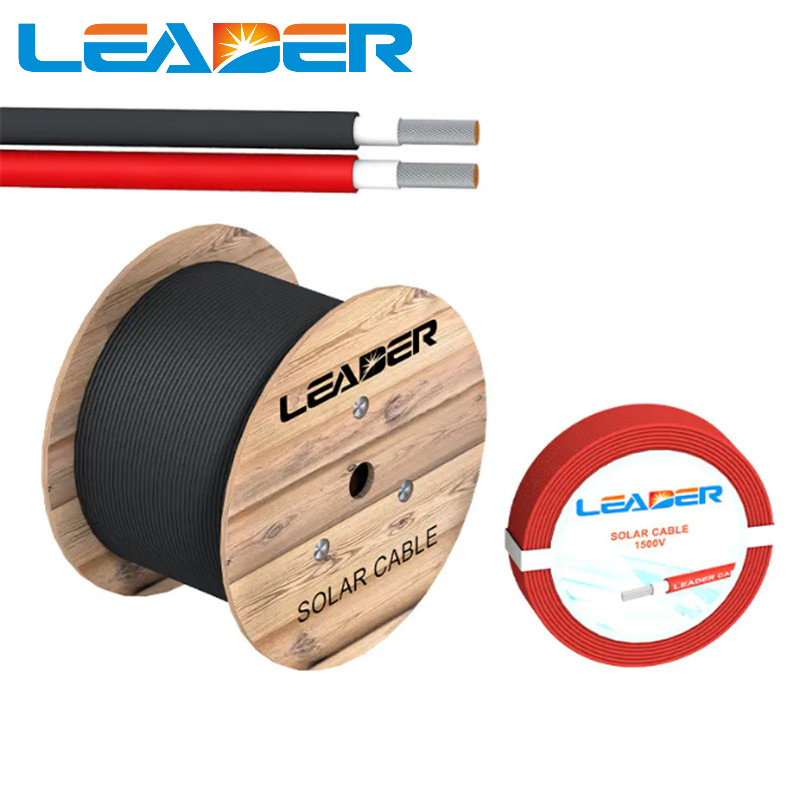

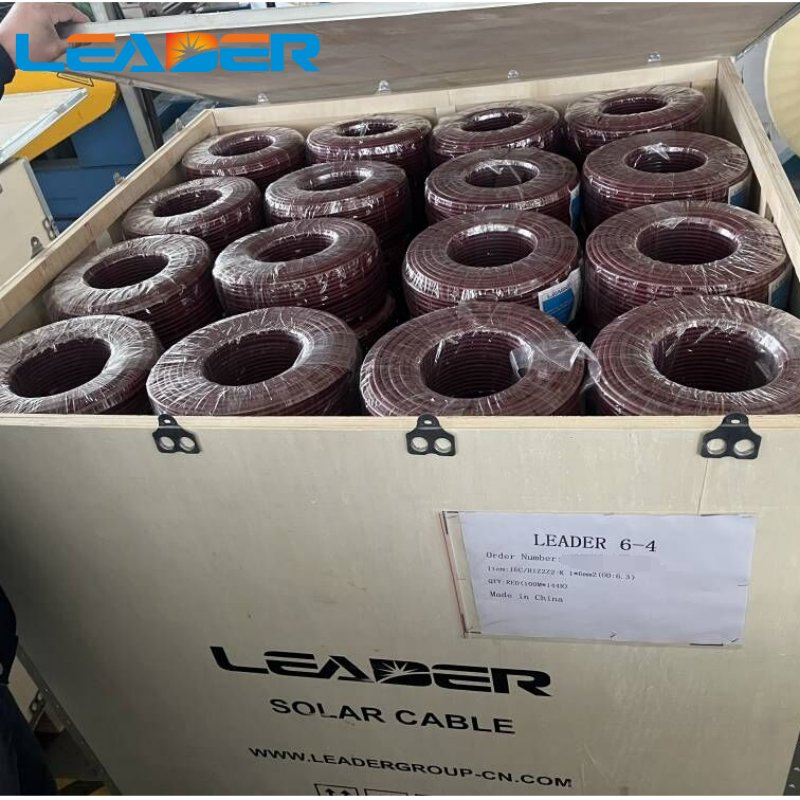

PV Wire Copper Conductor TUV IEC62930 Approved H1Z2Z2-K 4mmsq DC Solar Cable for Solar Panel

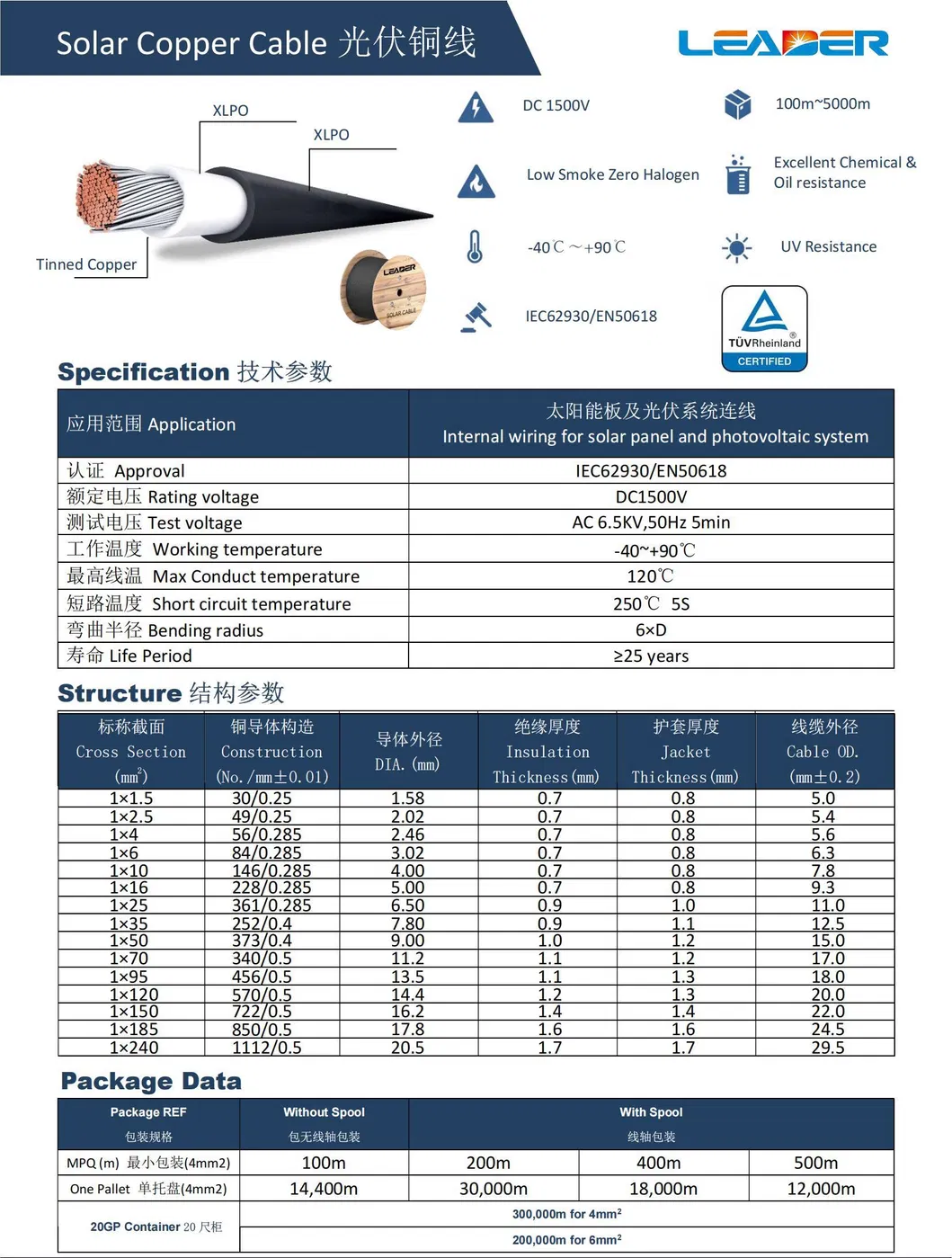

| Cross Section (mm2) |
Construction (No./mm±0.01) |
DIA.(mm) |
Insulation Thickness (mm) |
Jacket Thickness (mm) |
Cable OD. (mm±0.2) |
| 1x1.5 | 30/0.25 | 1.58 | 0.7 | 0.8 | 5.0 |
| 1x2.5 | 49/0.25 | 2.02 | 0.7 | 0.8 | 5.4 |
| 1x4 | 56/0.285 | 2.46 | 0.7 | 0.8 | 5.6 |
| 1x6 | 84/0.285 | 3.02 | 0.7 | 0.8 | 6.3 |
| 1x10 | 142/0.285 | 4.00 | 0.7 | 0.8 | 7.6 |
| 1x16 | 228/0.285 | 5.00 | 0.7 | 0.8 | 9.3 |
| 1x25 | 361/0.285 | 6.50 | 0.7 | 1.0 | 11 |
| 1x35 | 252/0.4 | 7.80 | 0.9 | 1.1 | 12.5 |
| 1x50 | 373/0.4 | 9.00 | 0.9 | 1.2 | 15.0 |
| 1x70 | 340/0.5 | 11.20 | 1.1 | 1.2 | 17.0 |
| 1x95 | 456/0.5 | 13.50 | 1.1 | 1.3 | 18.0 |
| 1x120 | 570/0.5 | 14.40 | 1.2 | 1.3 | 20.0 |
| 1x150 | 722/0.5 | 16.20 | 1.4 | 1.4 | 22.0 |
| 1x185 | 850/0.5 | 17.80 | 1.6 | 1.6 | 24.5 |
| 1x240 | 1112/0.5 | 20.50 | 1.7 | 1.7 | 29.5 |

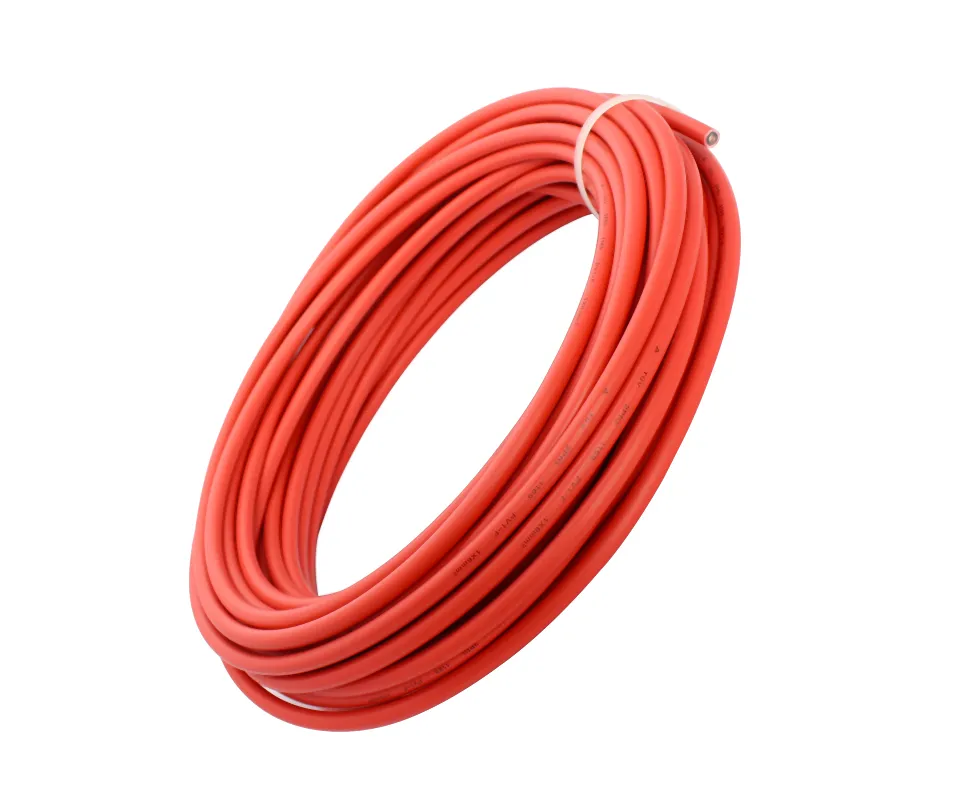

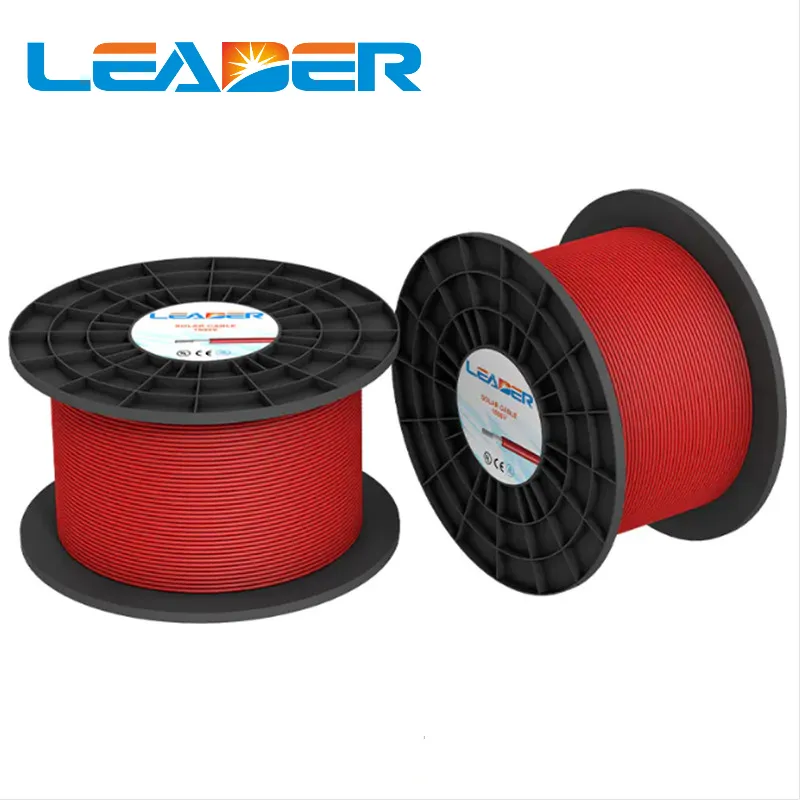

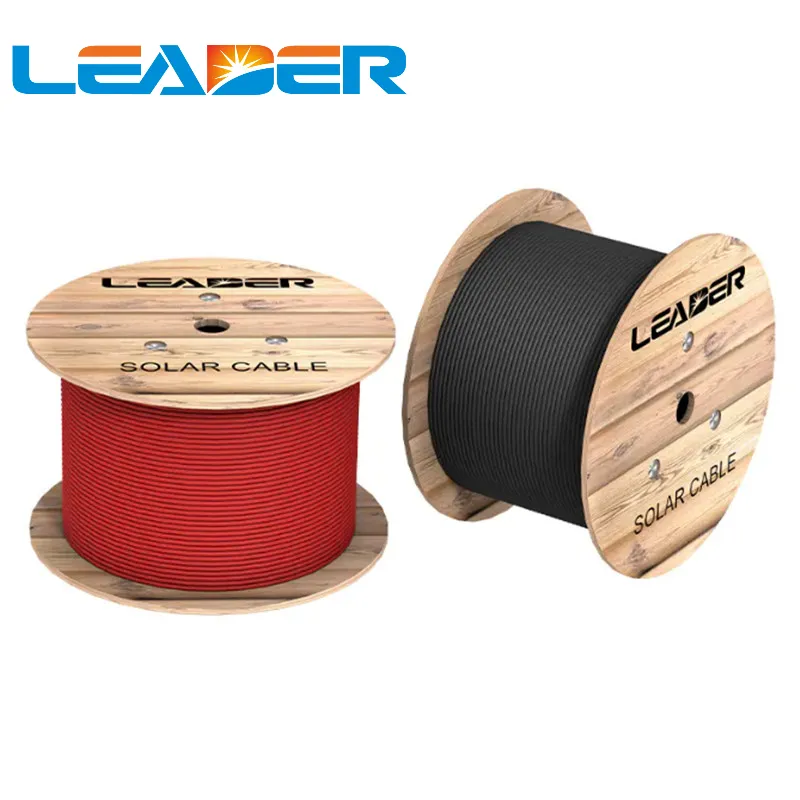

Product Visuals
Professional Services
1
Prompt Support: Receive a response to your inquiry within 24 hours.
2
Quality Assurance: Commitment to excellence with rigorous testing standards.
3
Fast Logistics: Benefit from a freight forwarder that is faster, safer, and more convenient.
4
Satisfaction Guarantee: If the purchase is unsatisfactory, items in original condition can be returned within three days.
Frequently Asked Questions
What is the expected lifespan of this solar cable?
The H1Z2Z2-K solar cable is designed for long-term outdoor use with an expected life period of ≥25 years.
What is the rated voltage for this PV wire?
This cable is rated for DC 1500V, making it suitable for modern high-voltage solar power systems.
What materials are used for the conductor and insulation?

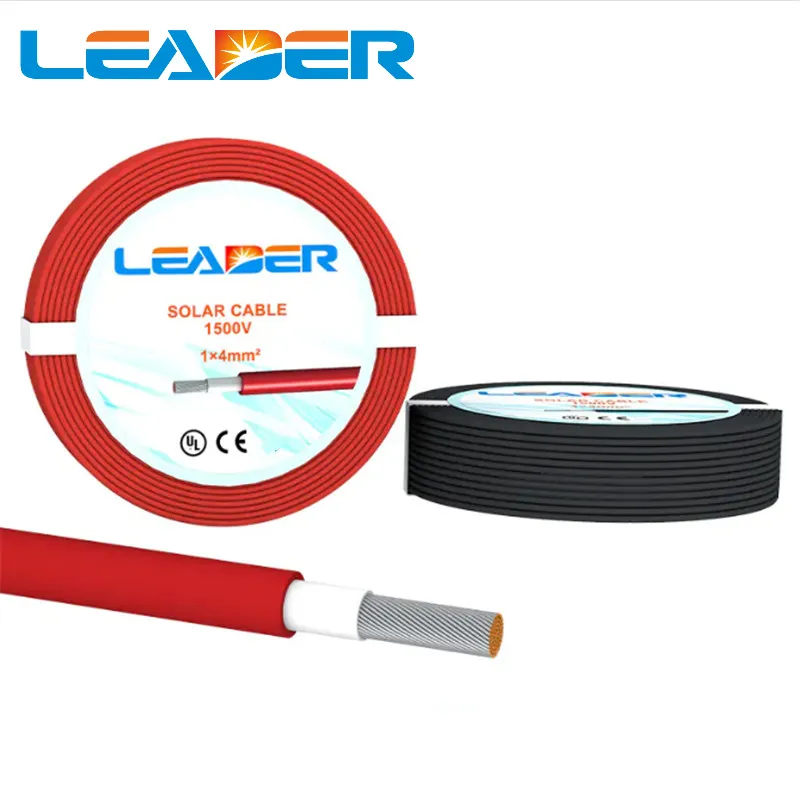

It features a tinned copper conductor (Class 5) for superior conductivity and corrosion resistance, with halogen-free XLPO insulation and sheath.
What temperature range can the cable withstand?
The cable operates effectively in temperatures ranging from -40℃ to +90℃, with a maximum conductor temperature capacity of 120℃.
Does this product carry international certifications?
Yes, the solar cable is approved by TUV, UL, IEC, CE, Retie, and CB, ensuring it meets global safety and quality standards.
What is the bending radius of the cable?
The recommended bending radius is 6 times the outer diameter (6×D), allowing for flexible installation in various solar configurations.
