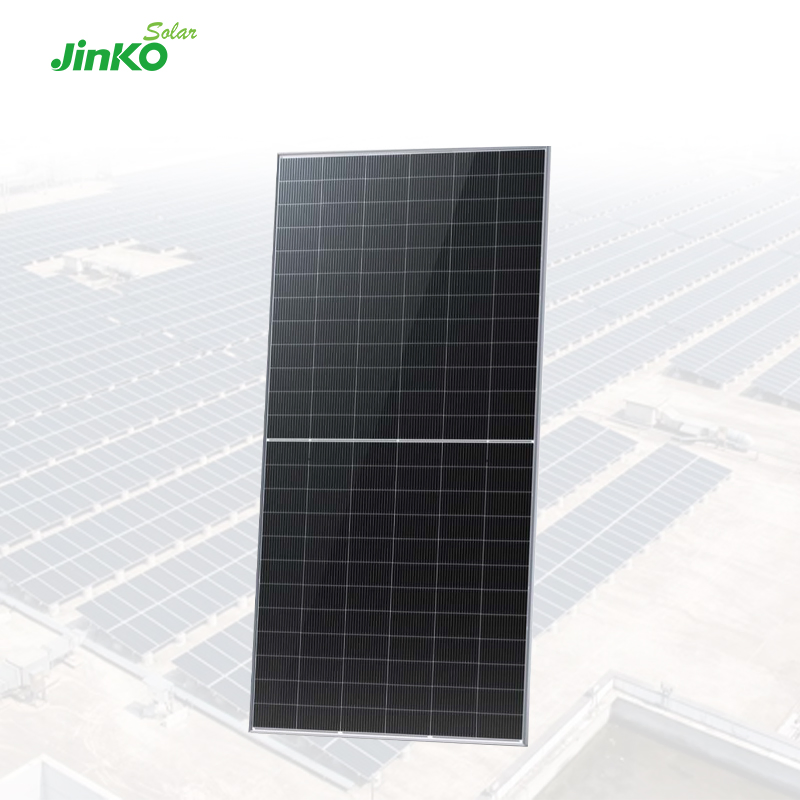

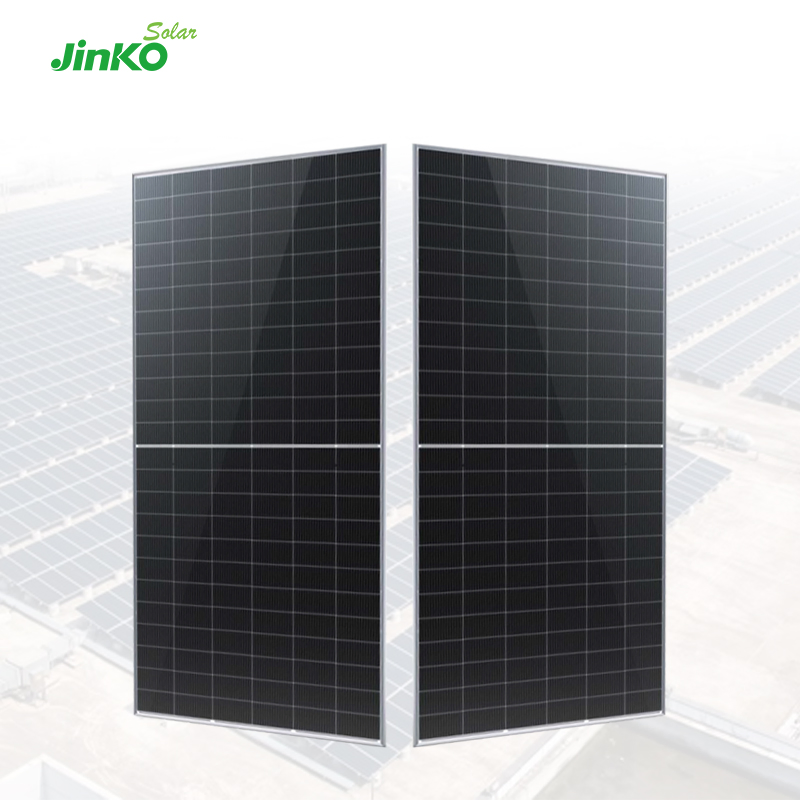

Jinko Solar Tiger Neo N-Type Panel Solar 425-625W Double Glass Bifacial Solar Panels

1 / 5

Jinko Solar Tiger Neo N-Type Panel Solar 425-625W Double Glass Bifacial Solar Panels

Customization:	Available
After-sales Service:	Yes
Warranty:	25 Years

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

JKM445N-54HL4R-V

Number of Cells

72pcs

Application

Solar System

Condition

New

Certification

ISO, CE, TUV, IEC

Material

Monocrystalline Silicon

Cell Type

N Type Mono-Crystalline

Weight

22 Kg (48.50 Lbs)

Junction Box

IP68 Rated

Frame

Anodized Aluminium Alloy

Specification

1762*1134*30mm

Trademark

Jinko

📦

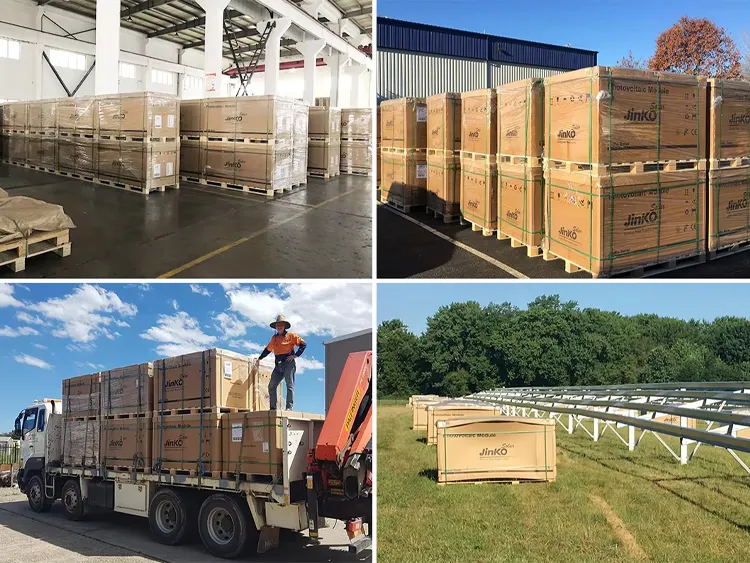

Packaging & Delivery

Package Size

100.00cm * 100.00cm * 100.00cm

Gross Weight

100.000kg

Transport Package

Carton & Wooden Pallet

Capacity

50000PCS/Month

☀️

Product Description

✨ Product Parameter

Module Type	JKM435N-54HL4R-V	JKM445N-54HL4R-V	JKM450N-54HL4R-V
Maximum Power (Pmax)	435Wp	445Wp	450Wp
Maximum Power Voltage (Vmp)	32.59V	33.02V	33.21V
Maximum Power Current (Imp)	13.35A	13.35A	13.55A
Open-circuit Voltage (Voc)	39.16V	39.59V	39.78V
Short-circuit Current (Isc)	13.80A	13.80A	14.00A
Module Efficiency STC (%)	21.77%	22.27%	22.52%
Operating Temperature	-40~+85ºC
Max System Voltage	1000/1500VDC (IEC)
Max Series Fuse Rating	25A
Power Tolerance	0~+3%

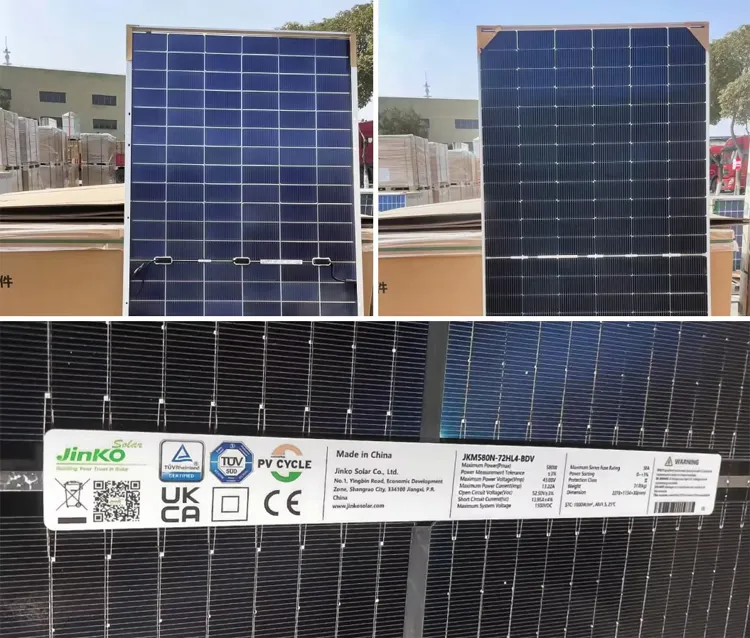

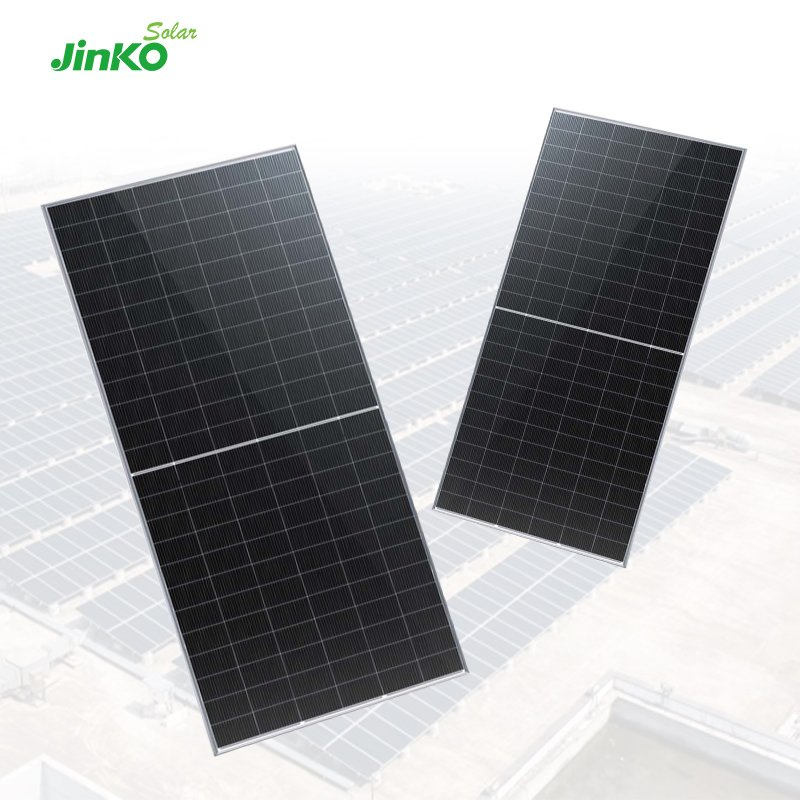

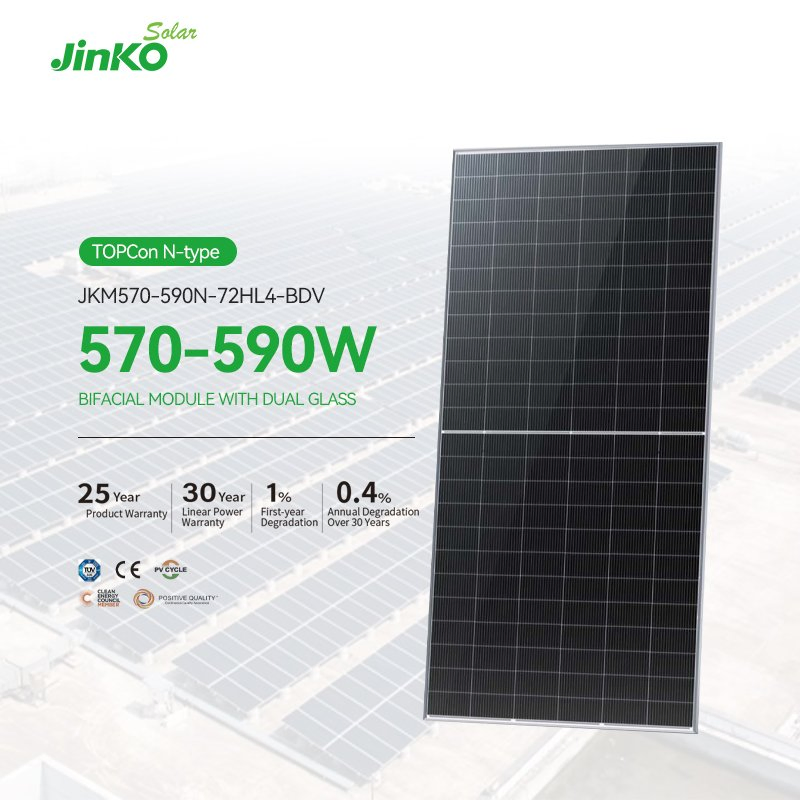

🔍 Detailed Views

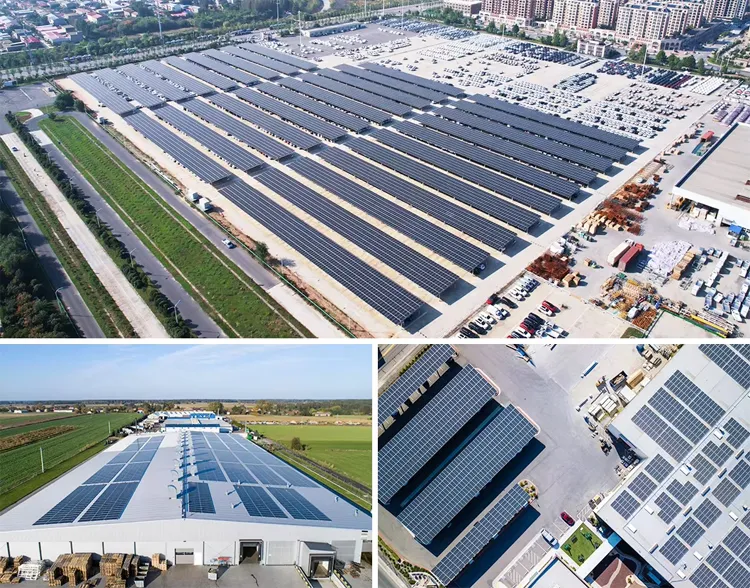

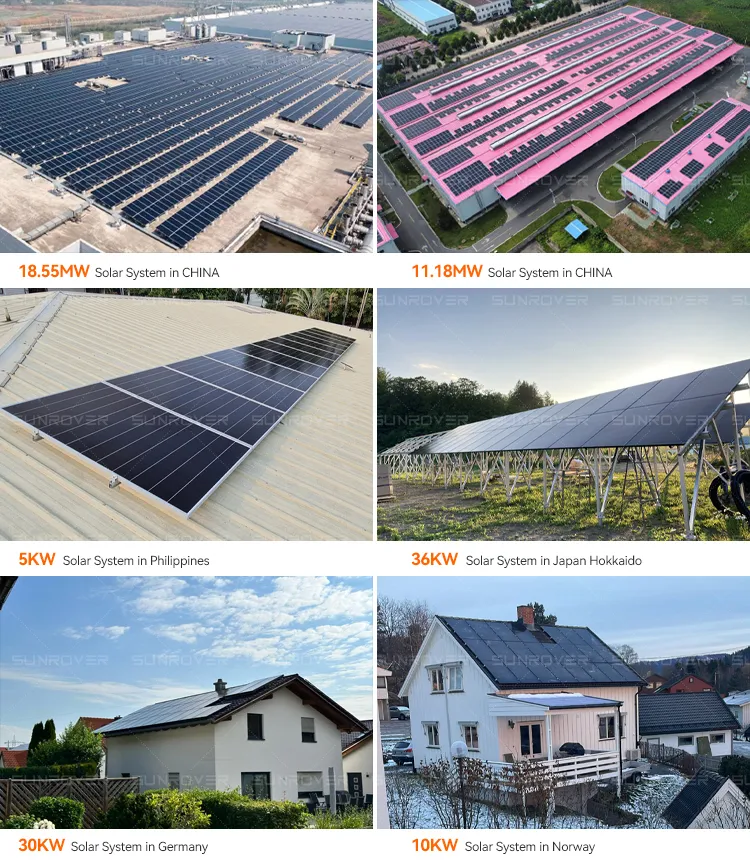

🏗️ Project Cases

❓

Frequently Asked Questions

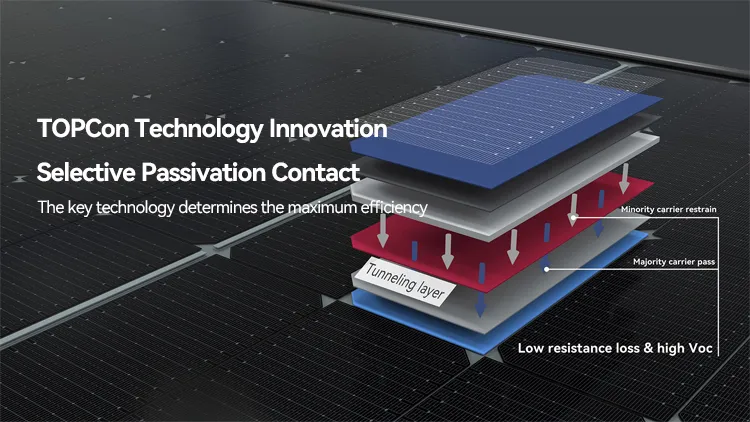

What are the advantages of N-type solar cells?

N-type cells offer higher efficiency, lower degradation rates, and better performance in high-temperature conditions compared to traditional P-type cells.

Is the frame durable enough for extreme weather?

Yes, the panels feature an anodized aluminium alloy frame designed to withstand high wind loads and heavy snow pressure.

What is the waterproof rating of the junction box?

The junction box is IP68 rated, ensuring the highest level of protection against dust and water ingress.

How does the bifacial technology improve energy yield?

Bifacial panels can capture sunlight from both the front and the back sides, significantly increasing total energy generation depending on the surface albedo.

Are these panels compatible with standard mounting systems?

Yes, the 1762*1134*30mm dimensions are standard, making them compatible with most residential and commercial racking solutions.

What certifications do these modules hold?

These modules are fully certified by ISO, CE, TUV, and IEC, meeting global safety and quality standards.
