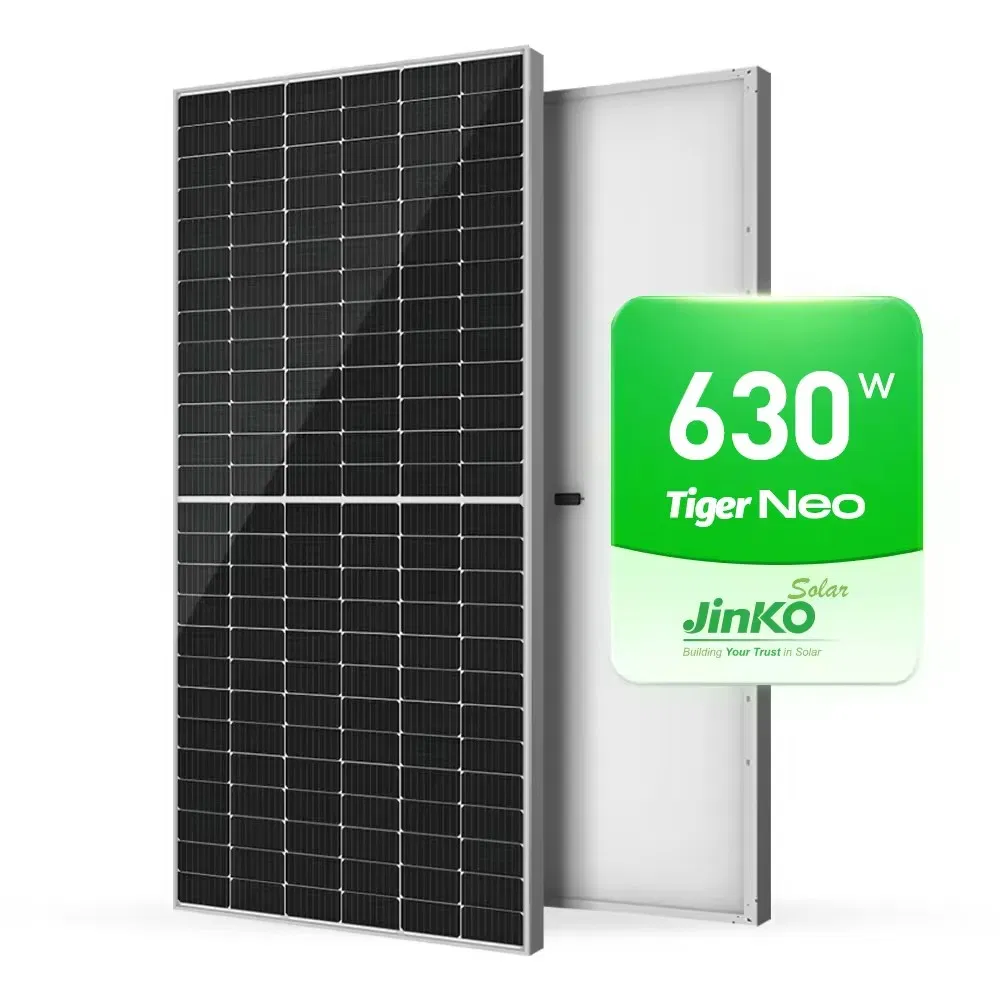

Jinko Solar Panel Price 580W 600W 670W 700W Bifacial Photovoltaic PV Solar Panels

Customization: Available
After-sales Service: Yes
Warranty: 25 Years

Product Description

ℹ️

Basic Info.

Model NO.
JKM570N-590N-72HL4-V
Number of Cells
144PCS
Application
Industrial
Condition
New
Certification
ISO, CE
Material
Monocrystalline Silicon
Solar Cell
A Grade
Junction Box
IP 68 Rated
Service
OEM Avaliable
Glass
3.2mm Tempered Low Iron
Type
Perc
Weight
27kg
Panel Efficiency
22.84%
Backsheet
Tpt Material
Frame
Anodized Aluminium Alloy
Front Glass
3.2mm Tempered Glass
Cable
4mm^2 300mm PV Cable
Transport Package
31PCS in a Carton
Specification
2278*1134*35mm
Origin
China
HS Code
85414020
Production Capacity
800mwatt/Years
📄

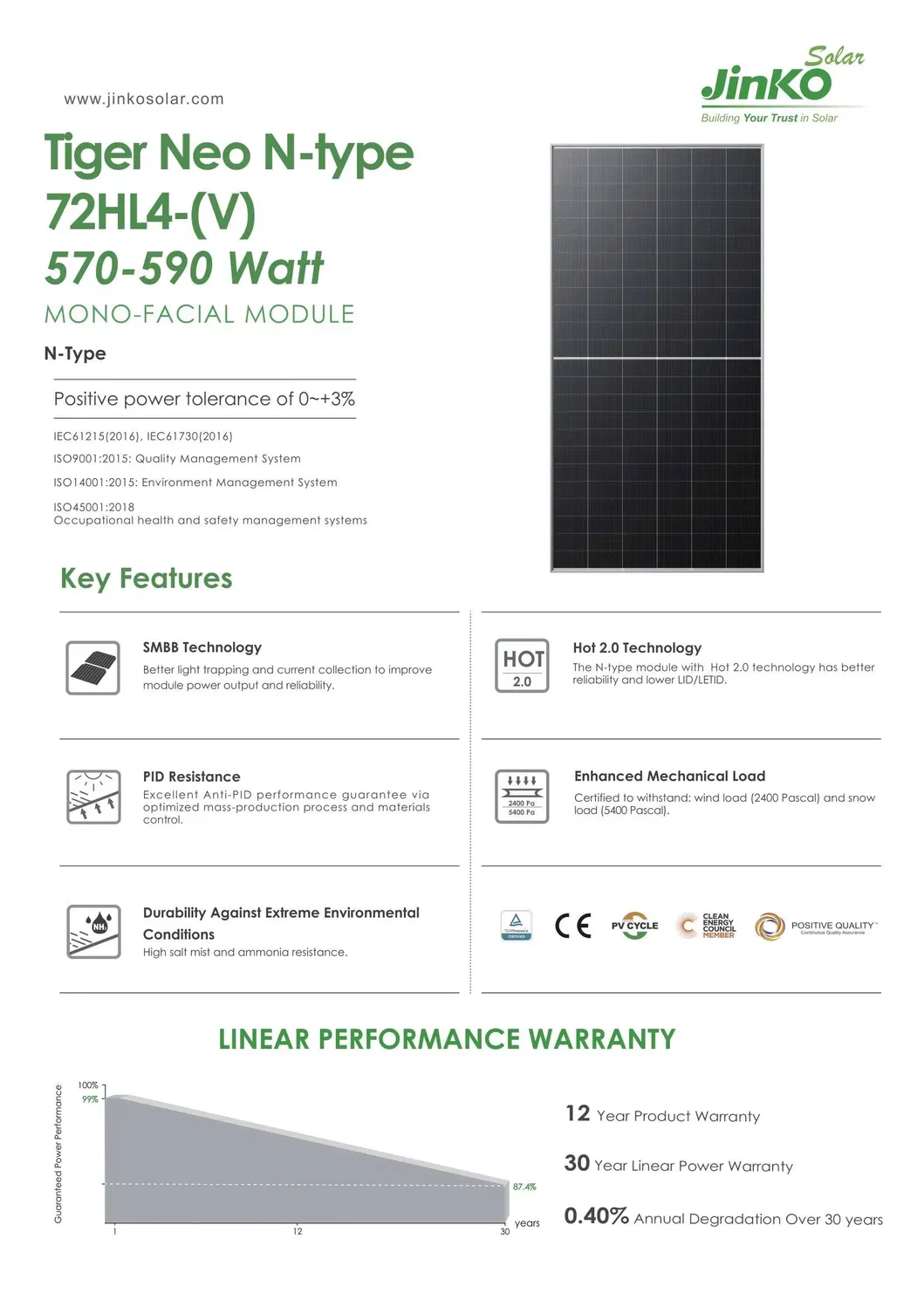

Product Description

Photovoltaic PV Solar Panels
Specification
Peak Power Watts-PMAX (Wp)*590w
Module Dimensions2278× 1134 ×35 mm
Weight27kg
Power Output Tolerance-PMAX (W)0 ~ +5
Maximum Power Voltage-VMPP (V)42.07V
Maximum Power Current-IMPP (A)13.55A
Open Circuit Voltage-VOC (V)50.74V
Short Circuit Current-ISC (A)14.31A
21.93Module Eciency m (%)22.07%
NOCT(Nominal Operating Cell Temperature)44°C (±2°C)
Operational Temperature-40~+85°C
ELECTRICAL SPECIFICATIONS (STC Testing Condition)
Parameter 570W 575W 580W 585W 590W
Maximum Power (Pmax/W)570575580585590
Maximum Power Voltage (Vmp)42.99V43.17V43.35V43.53V43.71V
Maximum Power Current (Imp)13.26A13.32A13.38A13.44V13.50A
Open-circuit Voltage (Voc)51.99V52.15V52.31V52.47V52.63V
Short-circuit Current (Isc)13.89A13.95A14.01A14.07A14.13A
Module Efficiency STC (%)22.07%22.26%22.45%22.65%22.84%
Operating Temperature(ºC)-40ºC~+85ºC
Power tolerance0~+3%
Temp Coeff. of Pmax-0.29%/ºC
Temp Coeff. of Voc-0.25%/ºC
Temp Coeff. of Isc0.045%/ºC

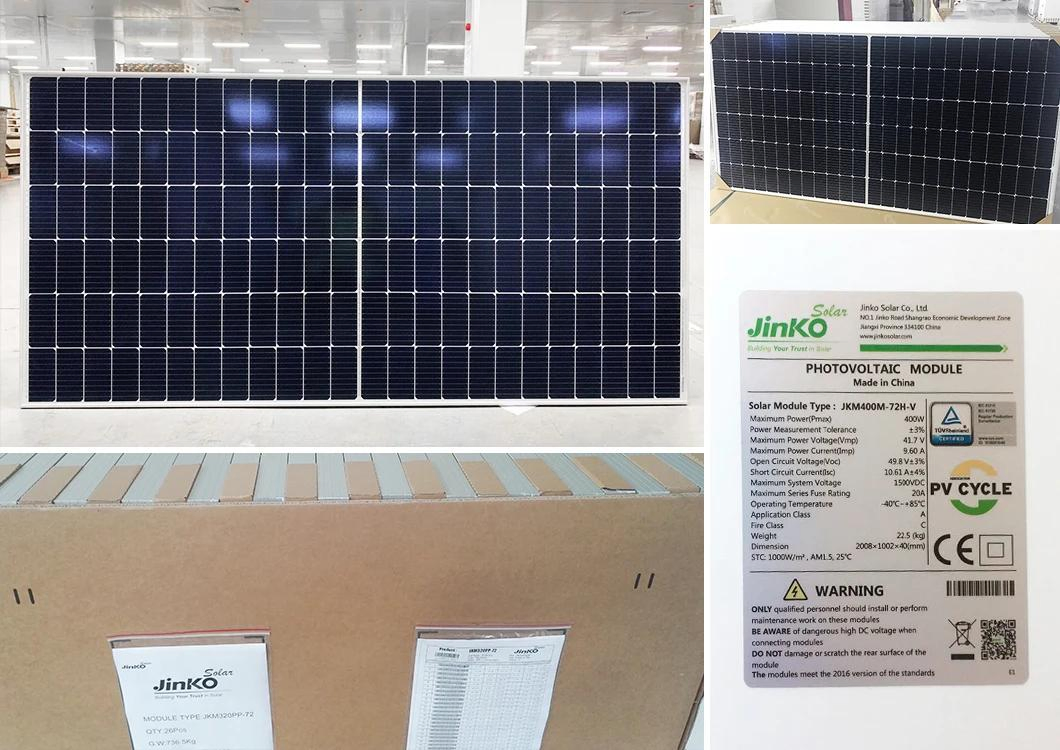

Solar Panel Details

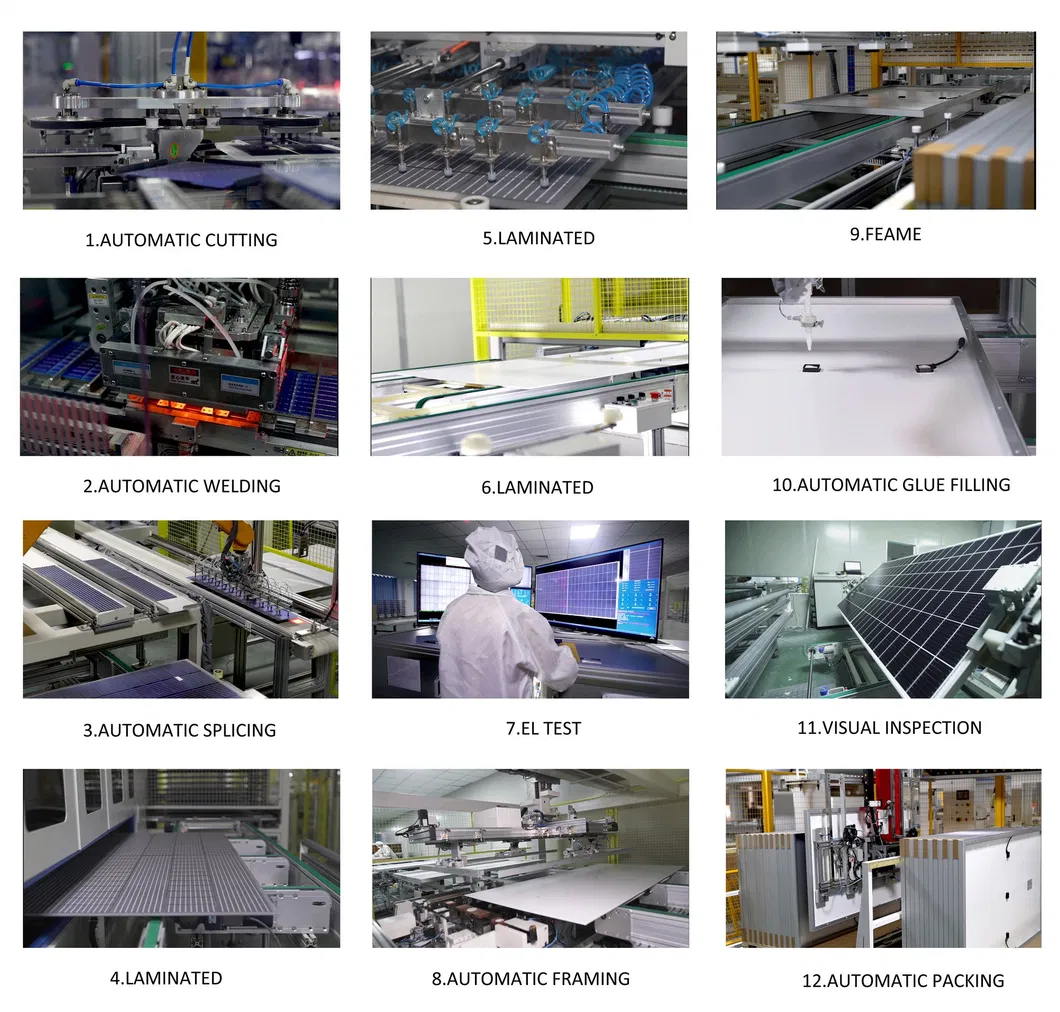

Production Process
Solar Panel Production Process

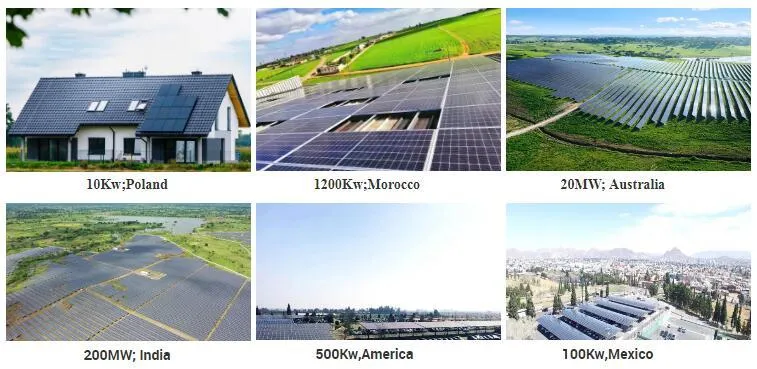

Project Cases
Global Solar Project Cases

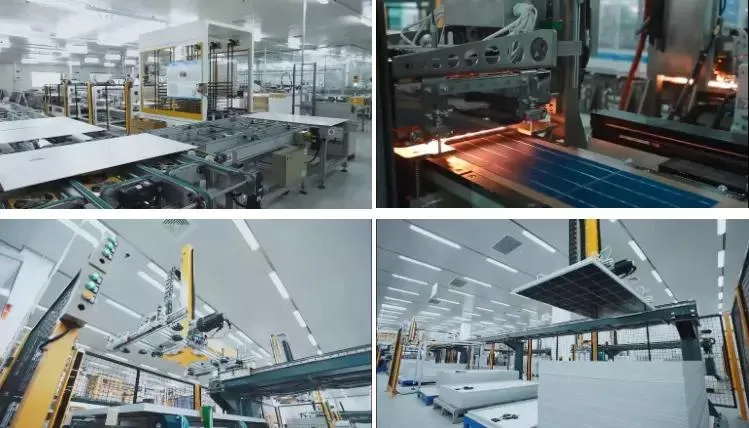

Factory Overview
Automated Manufacturing Factory

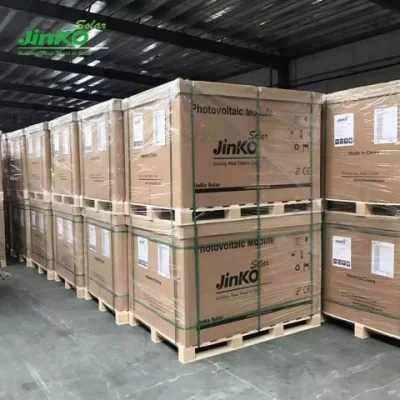

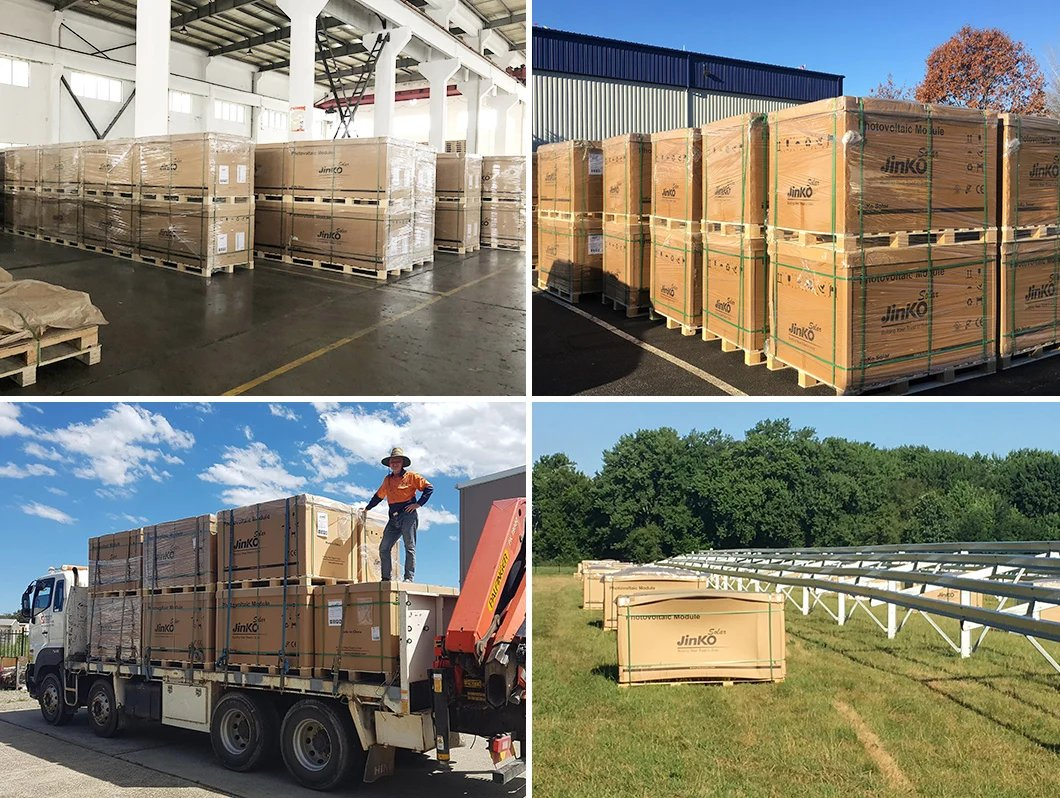

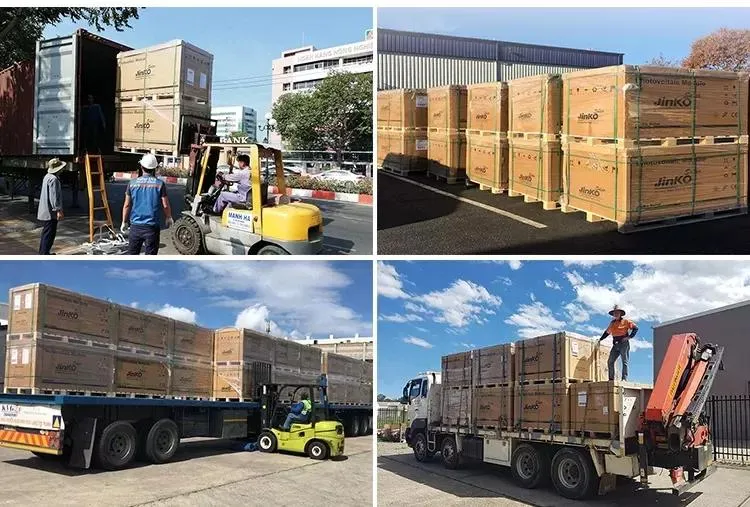

Delivery & Logistics

Frequently Asked Questions

1. What's your payment terms and conditions? We accept T/T, Letter of Credit, Paypal, Western Union etc. on FOB, CIF, CFR, DDU, DDP terms.
2. Can we print our own sticker? Yes, OEM and ODM services are our key advantages to meet customized requirements.
3. What are the advantages of your company? With extensive experience as an OEM provider for Tier 1 brands, we now offer our own high-quality products with competitive pricing and reliable performance.
4. What is the lead time for mass production? Generally, the lead time is determined by the order quantity. Standard orders usually take 10-20 business days to prepare for dispatch.
5. Do your solar panels come with certification? Yes, our solar panels are certified with international standards including ISO and CE to ensure high quality and safety.
6. How are the products packaged for safe transportation? Products are professionally packed, typically with 31 pieces per carton, using reinforced pallets and protective materials to prevent damage during transit.
