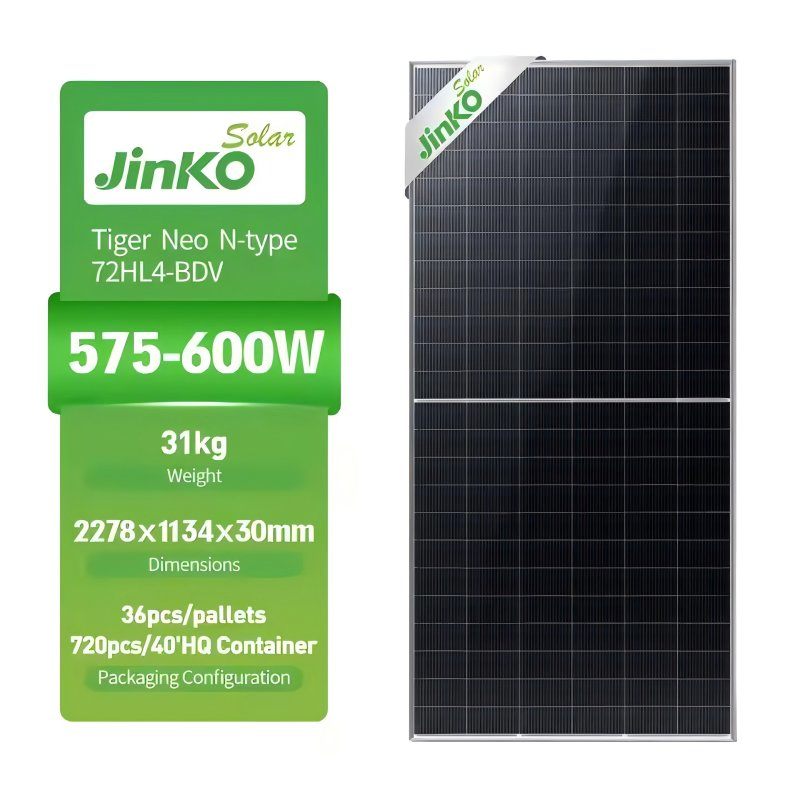

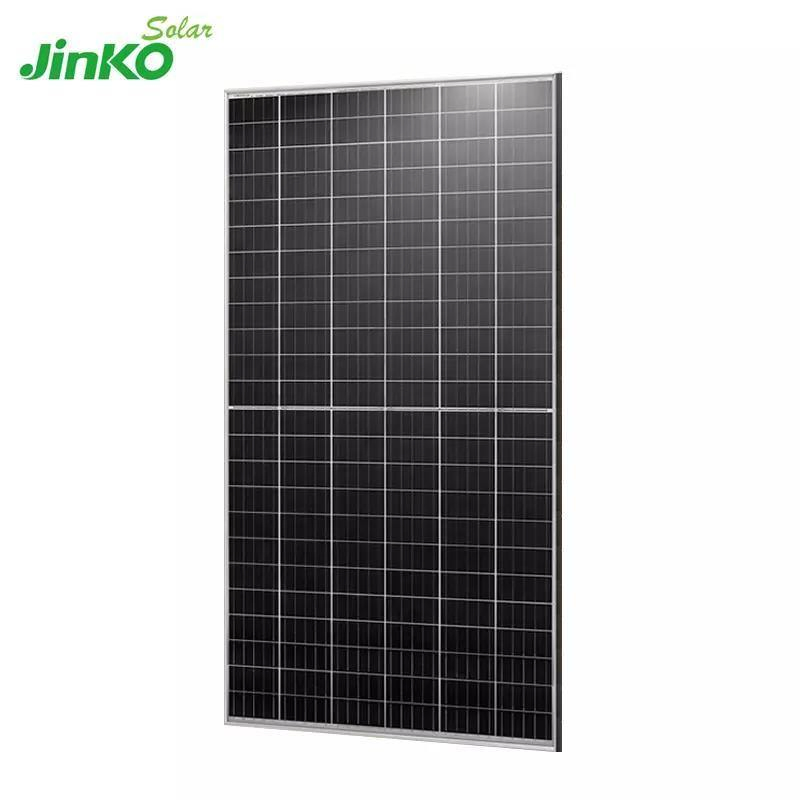

Jinko Solar Panel Price 560W 570W 580W 575W 585W 590W Bifacial PV Panels Original Jinko Photovoltaic Solar Energy Panel 620W 630W 720W for Solar Power System
Jinko Solar Panel Price 560W 570W 580W 575W 585W 590W Bifacial PV Panels Original Jinko Photovoltaic Solar Energy Panel 620W 630W 720W for Solar Power System
Jinko Solar Panel Price 560W 570W 580W 575W 585W 590W Bifacial PV Panels Original Jinko Photovoltaic Solar Energy Panel 620W 630W 720W for Solar Power System
Jinko Solar Panel Price 560W 570W 580W 575W 585W 590W Bifacial PV Panels Original Jinko Photovoltaic Solar Energy Panel 620W 630W 720W for Solar Power System
Jinko Solar Panel Price 560W 570W 580W 575W 585W 590W Bifacial PV Panels Original Jinko Photovoltaic Solar Energy Panel 620W 630W 720W for Solar Power System
1 / 5
Jinko Solar Panel Price 560W 570W 580W 575W 585W 590W Bifacial PV Panels Original Jinko Photovoltaic Solar Energy Panel 620W 630W 720W for Solar Power System
Jinko Solar Panel Price 560W 570W 580W 575W 585W 590W Bifacial PV Panels Original Jinko Photovoltaic Solar Energy Panel 620W 630W 720W for Solar Power System
Jinko Solar Panel Price 560W 570W 580W 575W 585W 590W Bifacial PV Panels Original Jinko Photovoltaic Solar Energy Panel 620W 630W 720W for Solar Power System
Jinko Solar Panel Price 560W 570W 580W 575W 585W 590W Bifacial PV Panels Original Jinko Photovoltaic Solar Energy Panel 620W 630W 720W for Solar Power System
Jinko Solar Panel Price 560W 570W 580W 575W 585W 590W Bifacial PV Panels Original Jinko Photovoltaic Solar Energy Panel 620W 630W 720W for Solar Power System

Jinko Solar Panel Price 560W 570W 580W 575W 585W 590W Bifacial PV Panels Original Jinko Photovoltaic Solar Energy Panel 620W 630W 720W for Solar Power System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
Tiger Neo N-type 72HL4-BDV 575-600 Watt
Number of Cells
144 cells
Application
Solar System
Condition
New
Certification
EST, ISO, CB, CE
Material
Monocrystalline Silicon
Weight
31 Kg
Junction Box
IP68 Rated
Frame
Anodized Aluminium Alloy
Specification
2278*1134*30mm
Trademark
Jinko
Origin
China

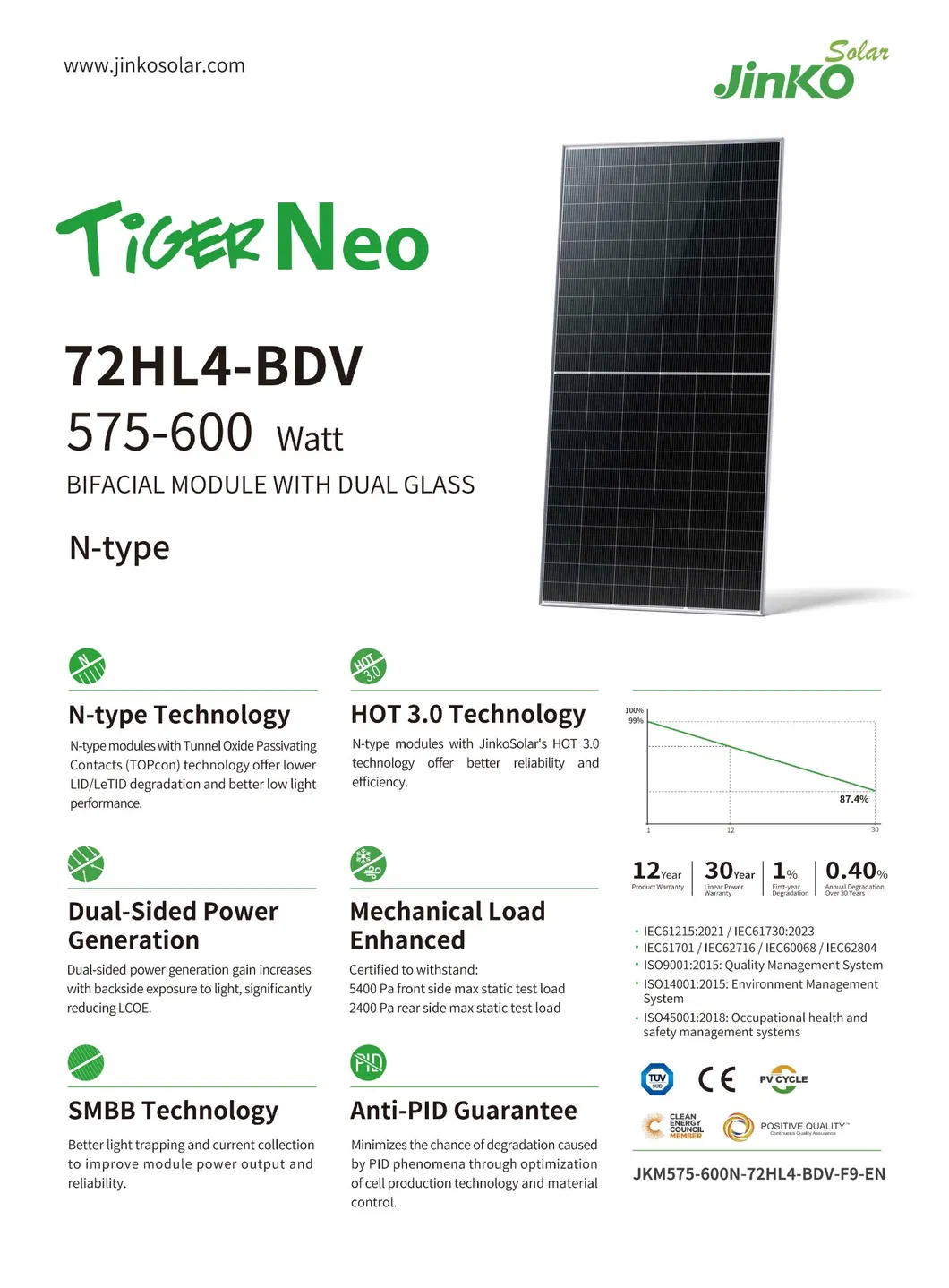

Bifacial PV Panels Overview
📦

Packaging & Logistics

Packing
36PCS/Pallets
Loading
720PCS/ 40'hq Container
Package Size
227.80cm * 113.40cm * 3.00cm
Gross Weight
31.000kg
🛡️

Product Performance

Separator Decor Jinko Solar Panel Series
SPECIFICATIONS 585Wp 590Wp 595Wp 600Wp
Voltage (Vmp) 44.02 44.17 44.31 44.45
Current (Imp) 13.29 13.36 13.43 13.50
Open-circuit Voltage (Voc) 52.70 52.90 53.10 53.30
Short-circuit Current (Isc) 14.01 14.07 14.13 14.19
Efficiency STC (%) 22.65 22.84 23.03 23.23
Separator
Technical Spec 1 Technical Spec 2
Separator

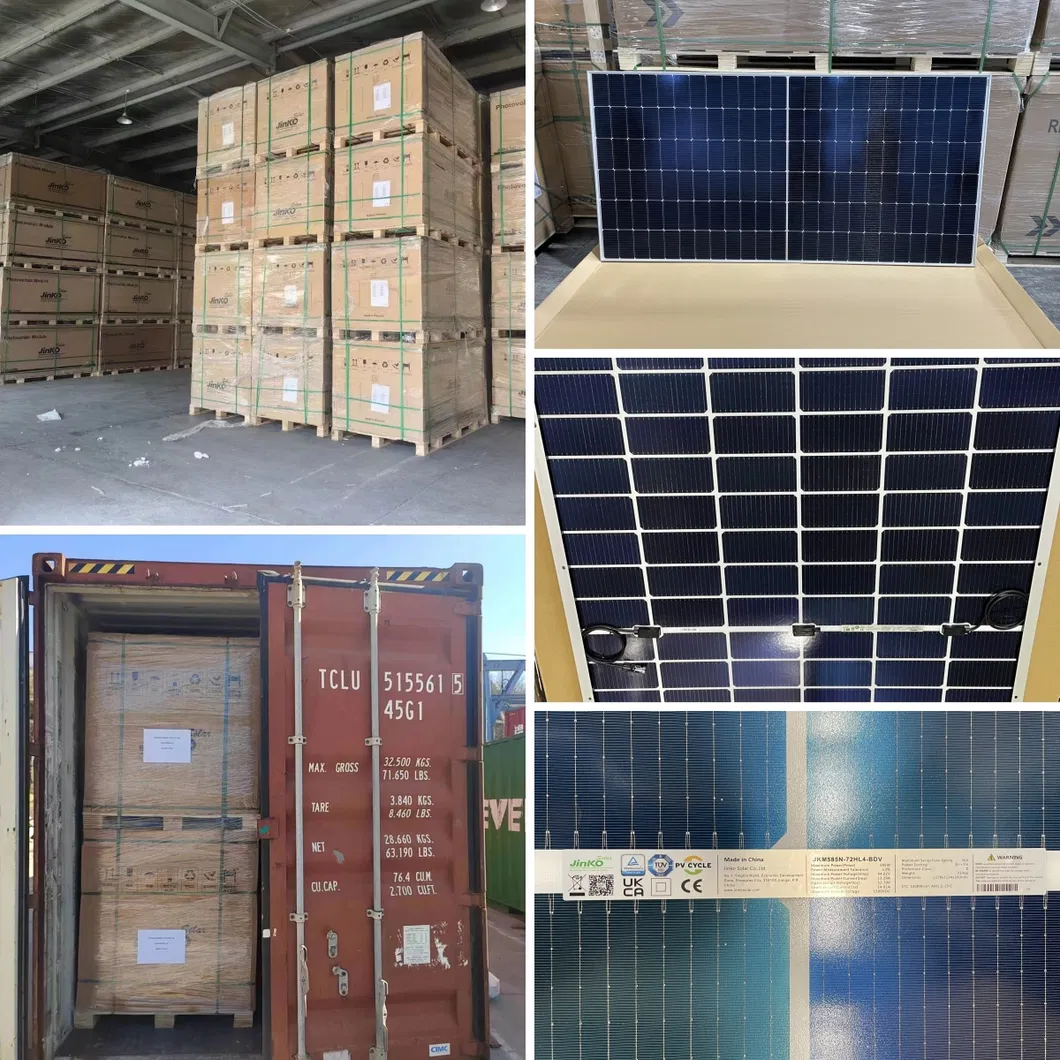

Module Detail 1 Module Detail 2
Dimensional Drawing Certification Summary
❓

Frequently Asked Questions

What are the main advantages of Tiger Neo N-type solar panels?
N-type panels offer higher efficiency, better temperature coefficients, and lower degradation rates compared to traditional P-type panels, resulting in higher lifetime energy yield.

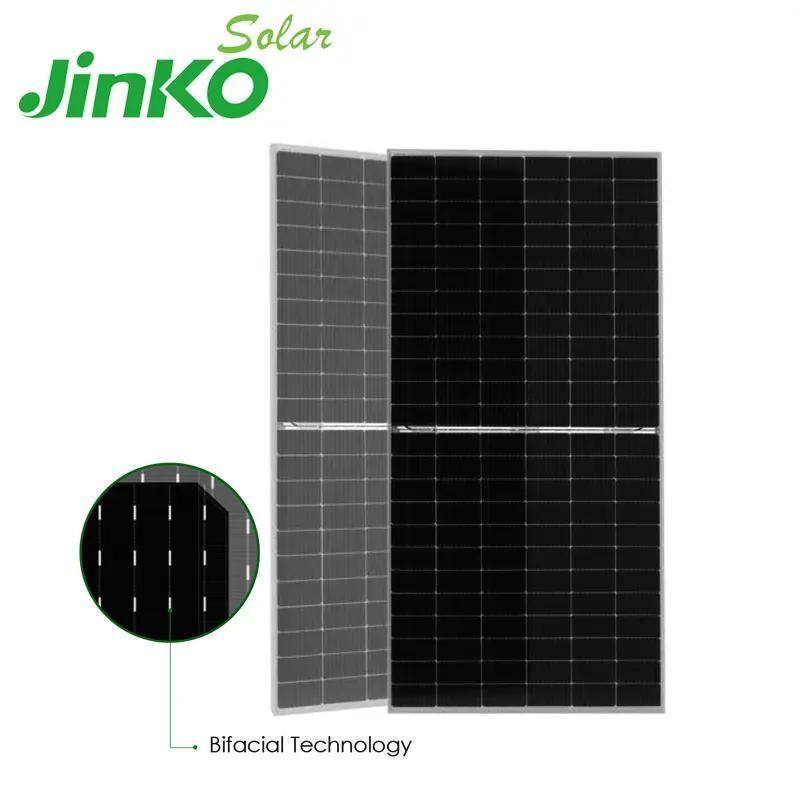

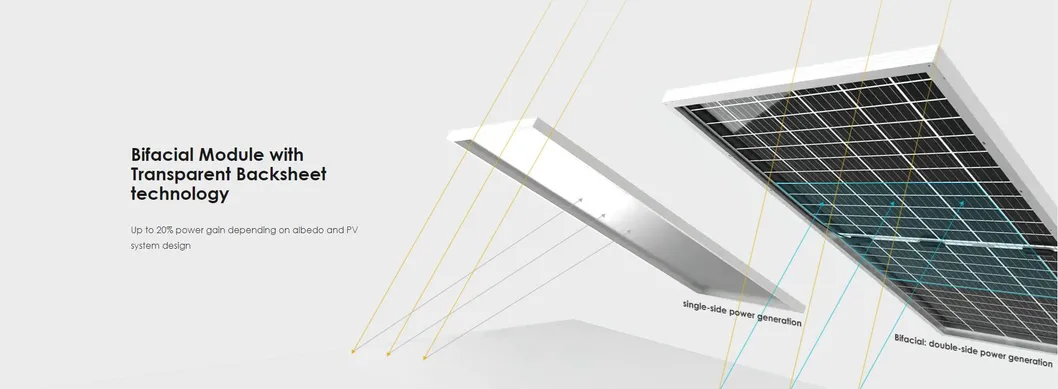

What does "Bifacial" mean for these PV panels?
Bifacial technology allows the panel to capture sunlight from both the front and rear sides, significantly increasing power generation, especially in high-albedo environments like snow or sandy areas.
Are these panels durable for extreme weather?
Yes, they feature an anodized aluminium alloy frame and IP68 rated junction boxes, designed to withstand standard mechanical loads and provide high resistance to environmental factors.
What is the efficiency rating of the 600W model?
The 600W model achieves a module efficiency of approximately 23.23% under Standard Test Conditions (STC).

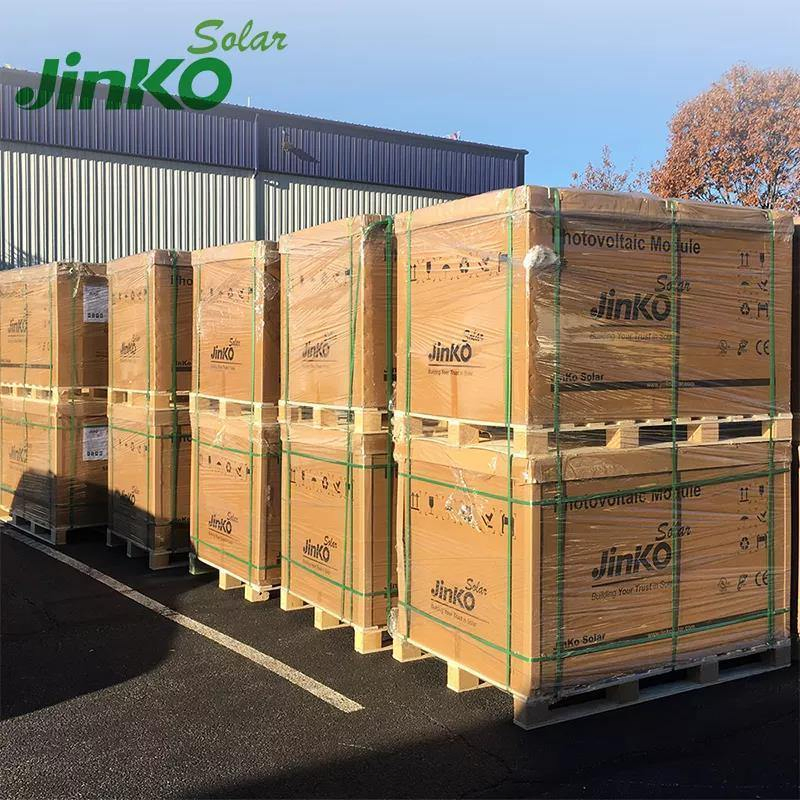

How are the panels packaged for international shipping?
The panels are securely packed with 36 pieces per pallet, with a standard 40'HQ container holding up to 720 pieces (20 stacks) to ensure safe transport.
Is the anti-reflection coating beneficial?
Yes, the 2.0mm front glass with anti-reflection coating reduces light reflection and increases the amount of light absorbed by the solar cells, improving overall power output.
