Standard Test Conditions: Irradiance 1000W/m², Cell Temperature 25°C, Air Mass AM1.5. Measuring Tolerance: ±3%.
| Model | Cell Types | Watts | Cells | Size | Package |
|---|---|---|---|---|---|
| Tiger Neo N-type 54HL4-B | N type mono 182×182mm | 395-415W | 108 (6×18) | 1722×1134×30mm | 36pcs/pallet |
| Tiger Neo N-type 54HL4-B | N type mono 182×182mm | 410-430W | 108 (6×18) | 1722×1134×30mm | 36pcs/pallet |
| Tiger Neo N-type 60HL4-B | N type mono 182×182mm | 460-480W | 120 (6×20) | 1903×1134×30mm | 36pcs/pallet |
| Tiger Neo N-type 72HL4-B | N type mono 182×182mm | 555-575W | 144 (6×24) | 2278×1134×35mm | 31pcs/pallet |
| Tiger Neo N-type 72HL4-B | N type mono 182×182mm | 550-570W | 144 (6×24) | 2278×1134×35mm | 36pcs/pallet |
| Tiger Neo N-type 78HL4-B | N type mono 182×182mm | 595-615W | 156 (2×78) | 2465×1134×35mm | 31pcs/pallet |

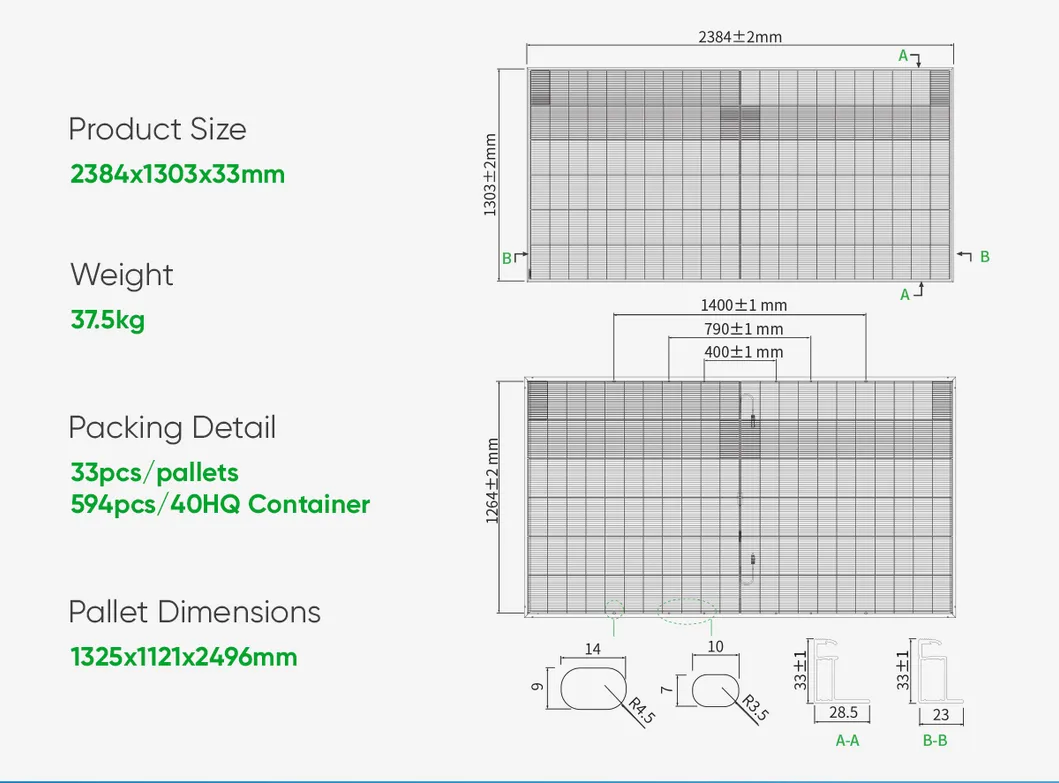

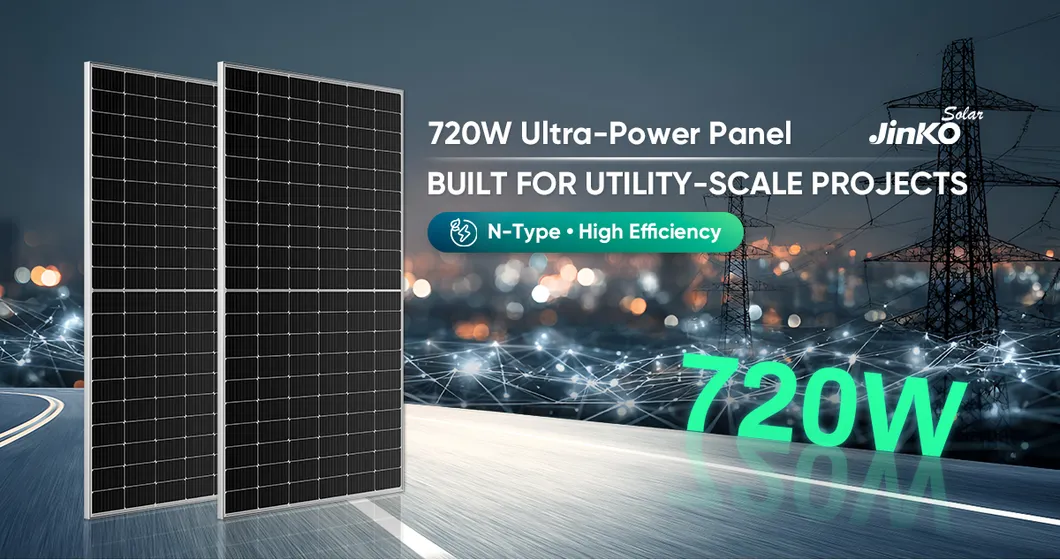

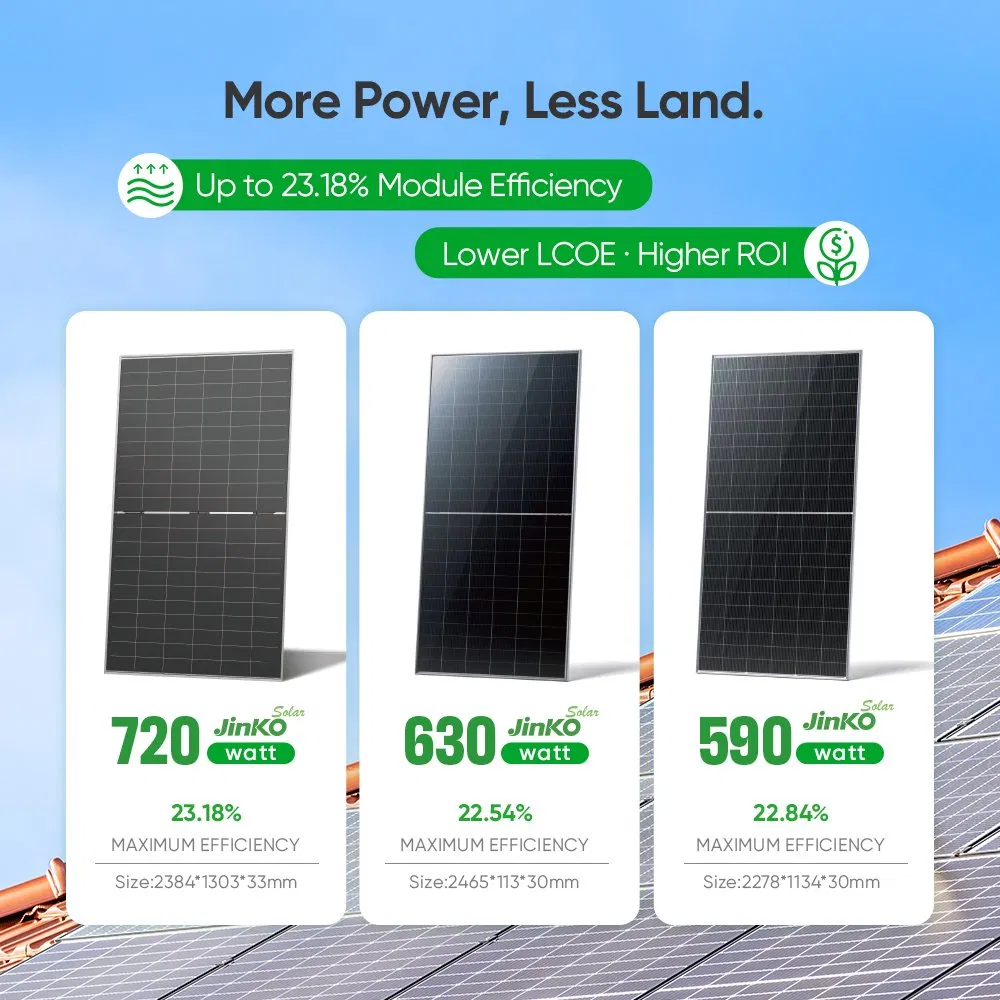

| Tiger Neo N-type 66HL5-B | N type mono 210×210mm | 710-735W | 132 (66x2) | 2384x1303x33mm | 33pcs/pallet |

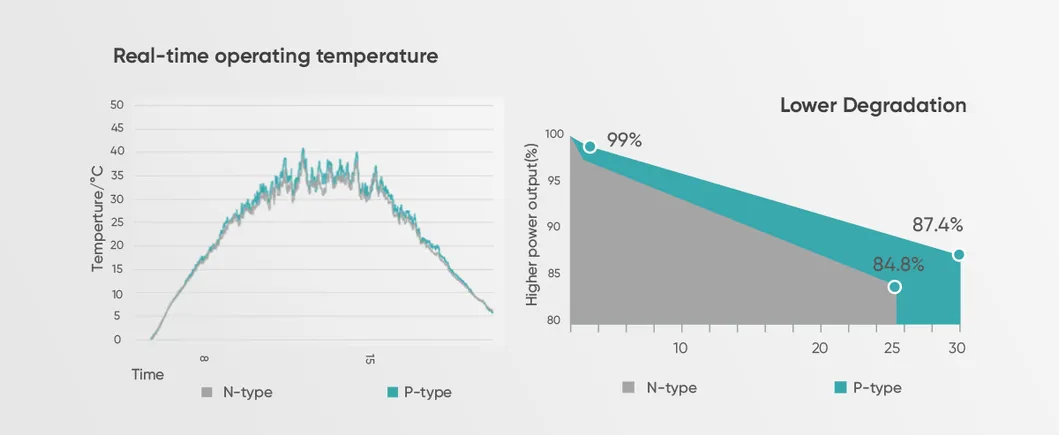

Optimized Temperature Coefficient -0.29%/ºC. Compared to the P-type coefficient of -0.35%/ºC, Tiger Neo can generate approximately 2% more power under high-temperature conditions.

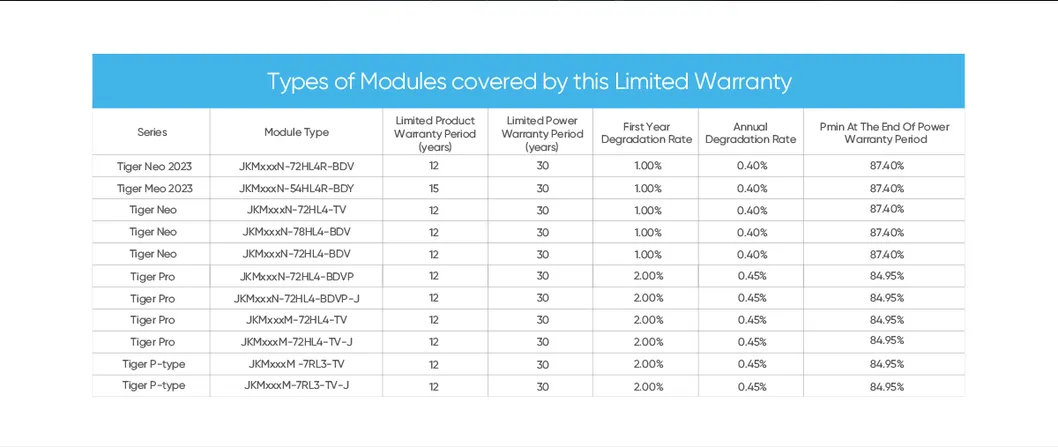

Warranties are provided to the original purchaser and permitted assigns for solar modules sold under agreements signed on or after April 1st, 2023.
