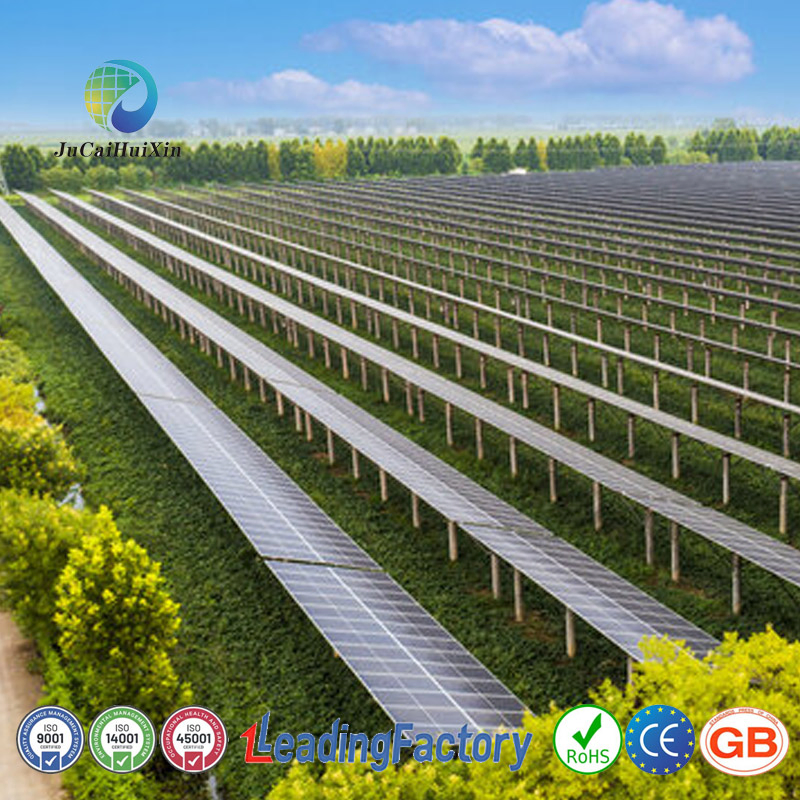

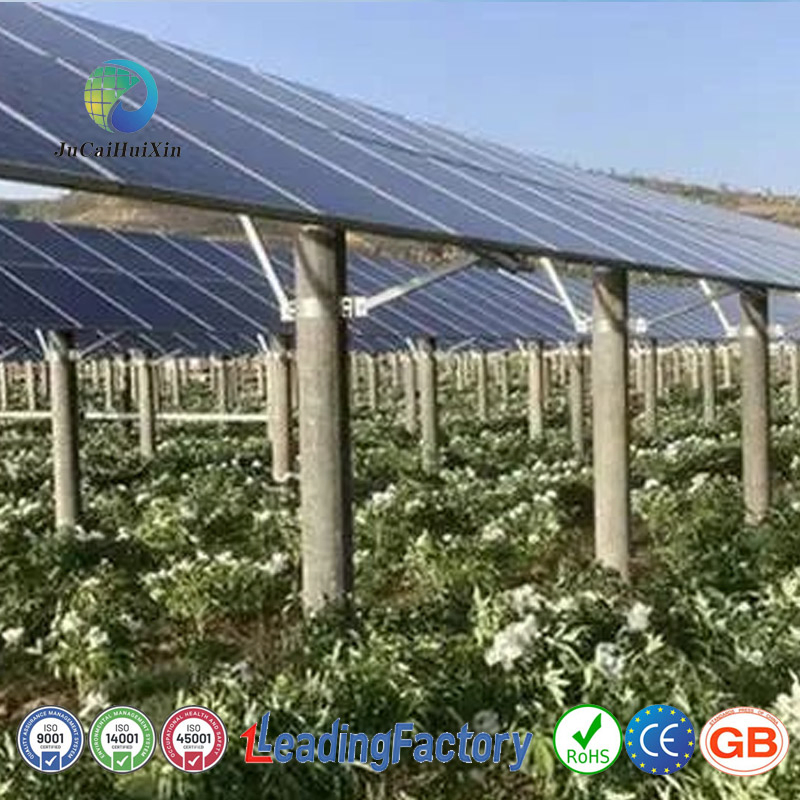

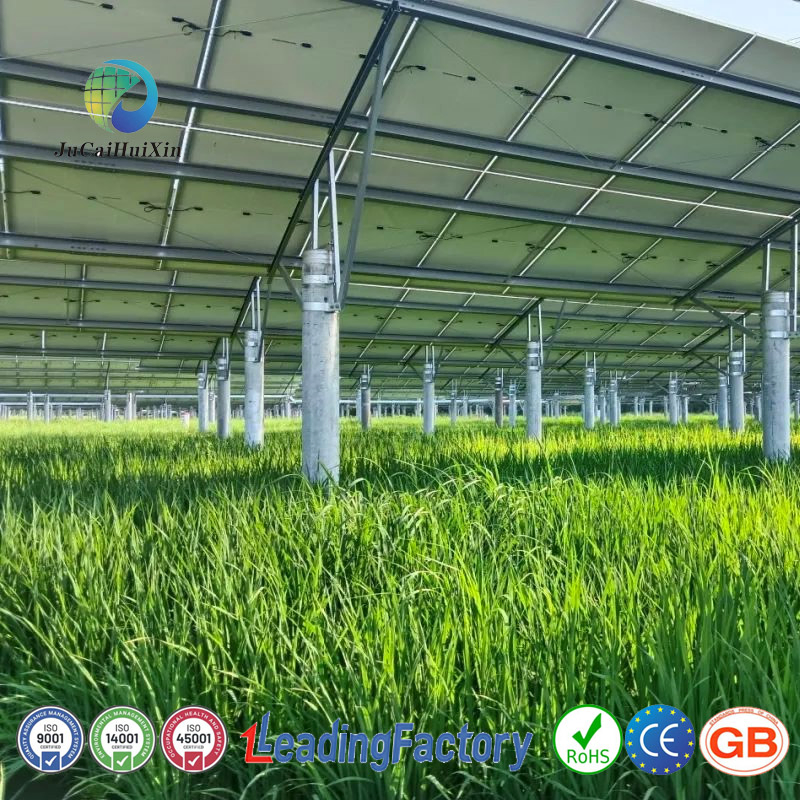

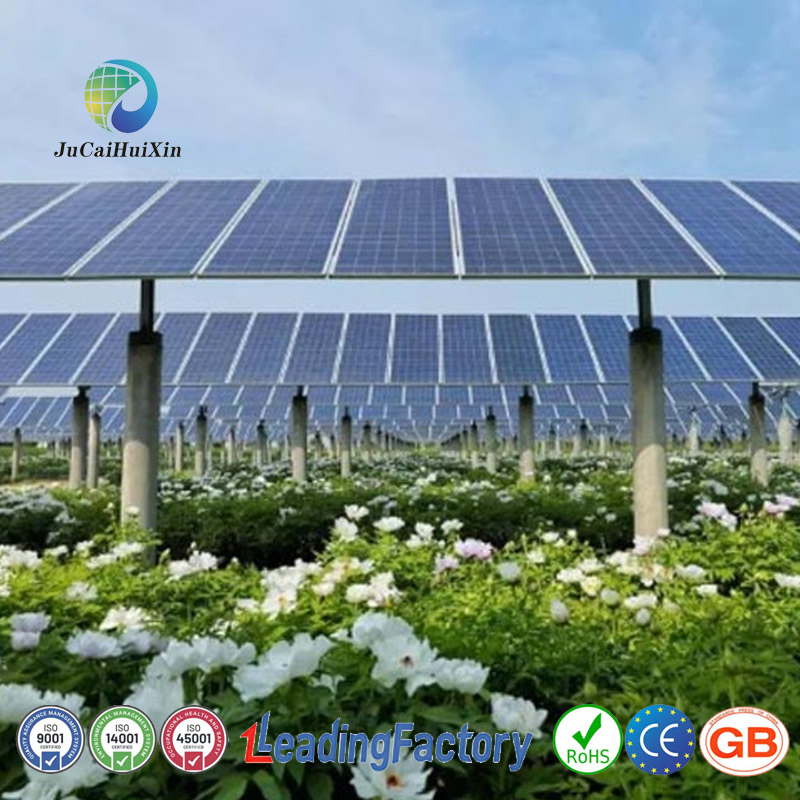

Jchx Hot Galvanized Solar Ground Rack Ground Solar Mounting System
Jchx Hot Galvanized Solar Ground Rack Ground Solar Mounting System
Jchx Hot Galvanized Solar Ground Rack Ground Solar Mounting System
Jchx Hot Galvanized Solar Ground Rack Ground Solar Mounting System
Jchx Hot Galvanized Solar Ground Rack Ground Solar Mounting System
1 / 5
Jchx Hot Galvanized Solar Ground Rack Ground Solar Mounting System
Jchx Hot Galvanized Solar Ground Rack Ground Solar Mounting System
Jchx Hot Galvanized Solar Ground Rack Ground Solar Mounting System
Jchx Hot Galvanized Solar Ground Rack Ground Solar Mounting System
Jchx Hot Galvanized Solar Ground Rack Ground Solar Mounting System

Jchx Hot Galvanized Solar Ground Rack Ground Solar Mounting System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
HDG PV Carport
Certification
GB, ISO, CE, RoHS
Application
Industrial
Material
Steel
Type
Ground Bracket
Coating
Hot DIP Galvanized or Zinc Al Mg Coating
Wind Load
0-60m/S
Snow Load
0-3kN/M²
Production Capacity
100,000 Tons / Year

Package Size: 228.00cm * 100.00cm * 100.00cm

Package Gross Weight: 500.000kg

Product Description

The hot galvanized Solar Ground Rack and Mounting System is a highly corrosion-resistant and popular photovoltaic bracket variety. It features excellent yield strength, tensile strength, and wear resistance.

The thick hot-dip galvanized protective layer allows the system to adapt to harsh climates including drought, humidity, salt spray, rain, and snow. It is especially suitable for coastal environments.

MaterialCarbon Steel Q235/355 Size120*50*20mm (Customizable)
Wall Thickness1.8-2.5mm CoatingHot dip galvanized / Spray painting
Service LifeOver 25 years Annual Capacity1,000,000 Tons per year
Corrosion ResistanceSuperior Performance Lead Time3-45 Days
Solar Mounting System

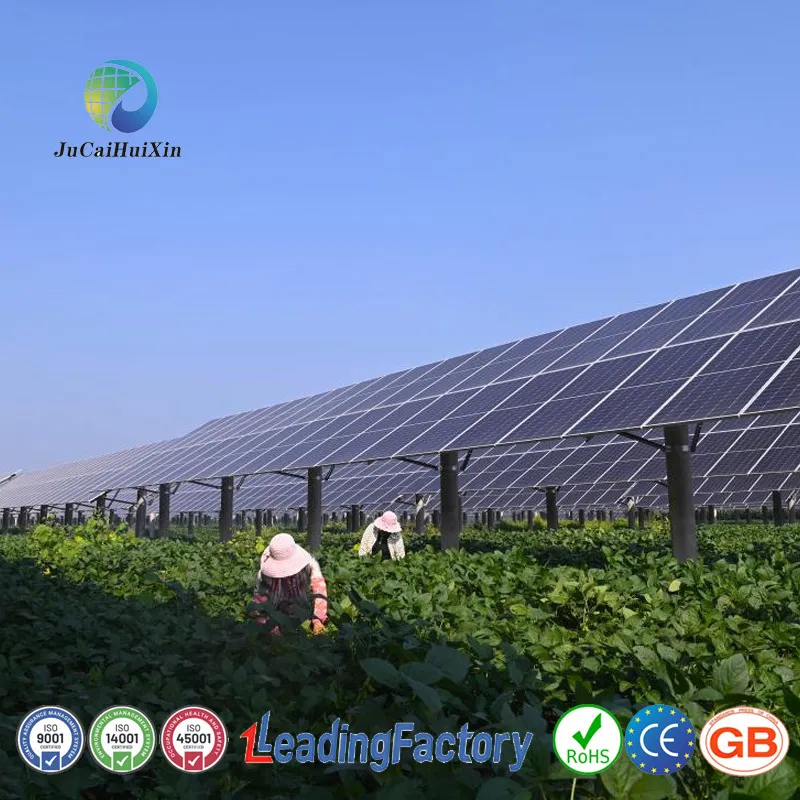

Ground Solar Rack
Galvanized Support

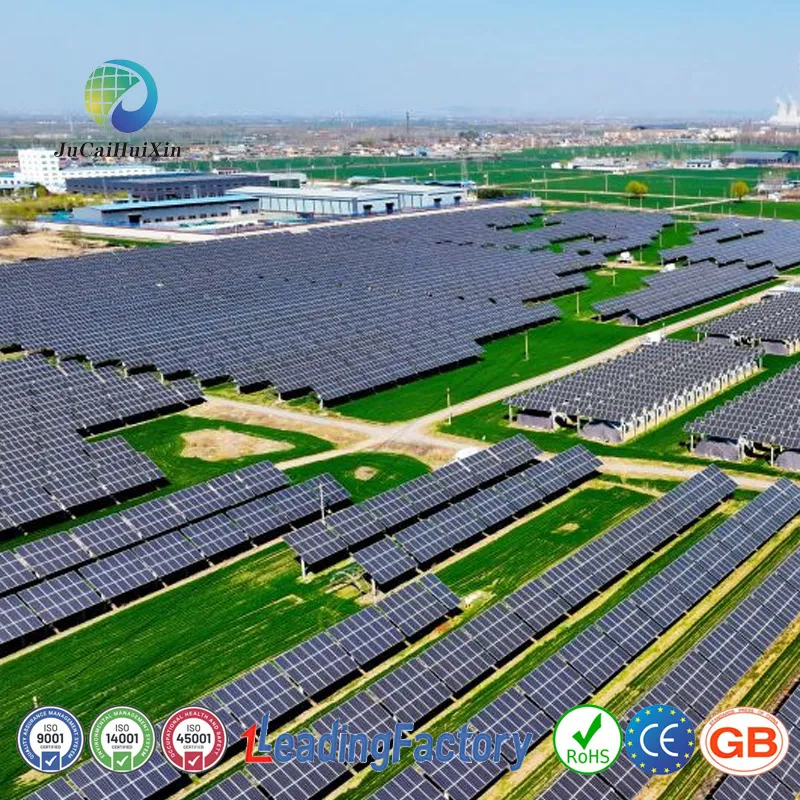

Solar Panel Bracket
Key Advantages
  • High Corrosion Resistance: Excellent weather resistance and fatigue resistance. Uniform stress distribution ensures safety under extreme wind and snow loads.
  • Structural Stability: Made of high-grade carbon steel with specialized treatment to resist seismic impacts and heavy environmental pressure.
  • Versatile Applications: Suitable for centralized large power stations, industrial arrays, and BIPV waterproof solutions.
Certifications Display
Manufacturing Excellence

Our intelligent manufacturing base supports the global green future through high-standard production matrix:

  • 10,000 sqm Intelligent Base: Large scale physical factory with robust production capabilities.
  • Automated Production: 10 internationally advanced automated production lines producing 200,000 tons of profiles annually.
  • Global Standards: ISO triple system, CE, and RoHS certified manufacturing process.

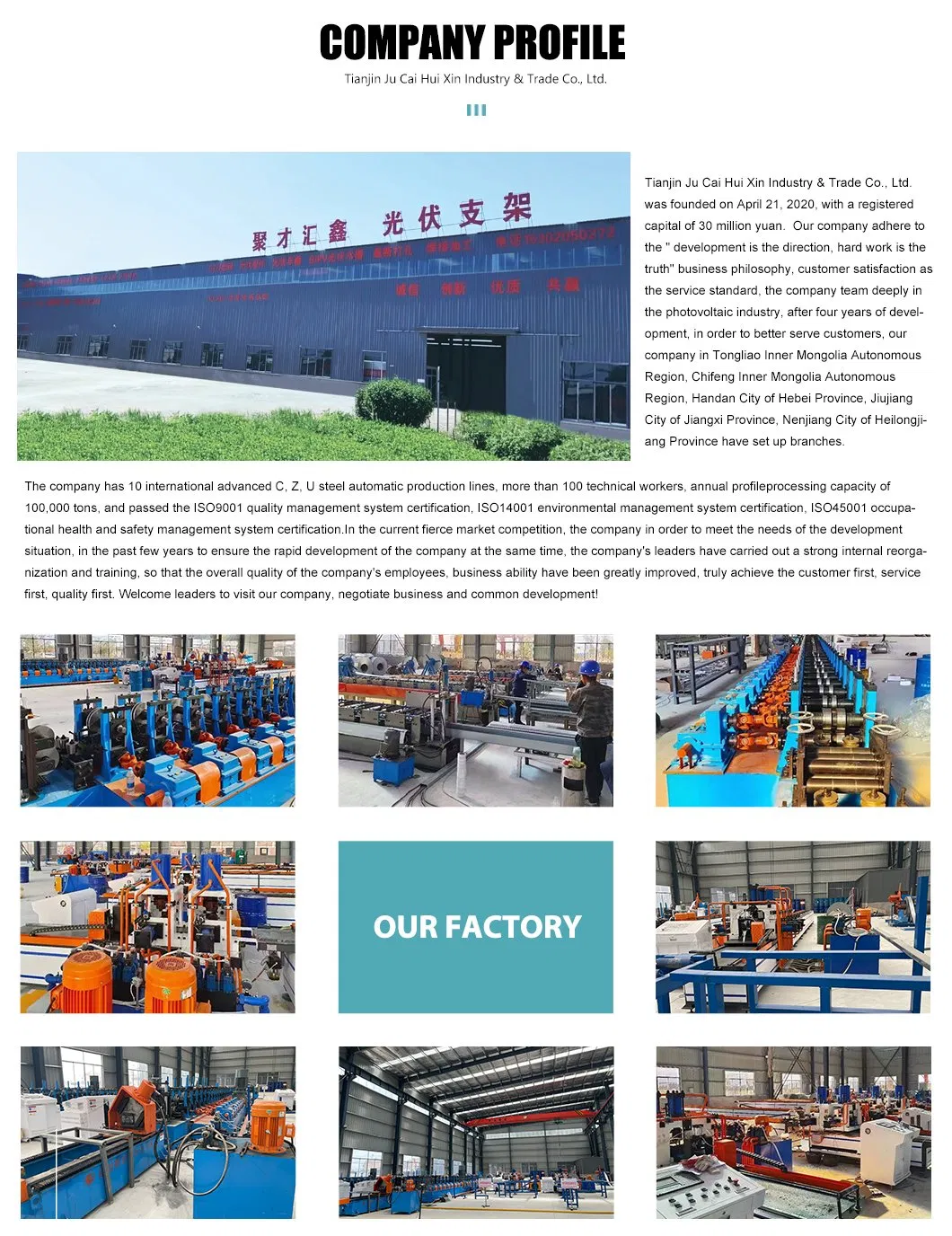

Production Base
Profile Production
System Series

We offer specialized solutions for diverse scenarios:

Project 1
Project 2
Project 3
Packaging and Logistics
Logistics 1
Logistics 2
Frequently Asked Questions
What is Ground Mount PV Racking?
It is a structural system designed to support solar panels on the ground, adjustable to maximize sunlight absorption, suitable for large-scale power stations and agricultural scenarios.
What are the main materials used?
Common materials include hot-dip galvanized steel for high load-bearing and corrosion resistance, aluminum alloy for lightweight needs, and stainless steel for special environments.
How weatherproof are these brackets?
High-quality brackets can resist strong winds (up to 60m/s), heavy snow loads (up to 3kN/M²), and saline corrosion, with a service life of over 25 years.
Can the angle of the support be adjusted?
Yes, fixed-tilt, adjustable, or tracking systems are available. Tracking systems can follow the sun automatically to increase power generation by 10%-30%.
What maintenance is required?
Regular checks on bolt tightness, anti-corrosion coating integrity, component cleanliness, and foundation stability are recommended to ensure long-term performance.
How is safety ensured in high-wind areas?
Through structural reinforcement, optimized foundation depth, and precise wind load calculations following international standards.
