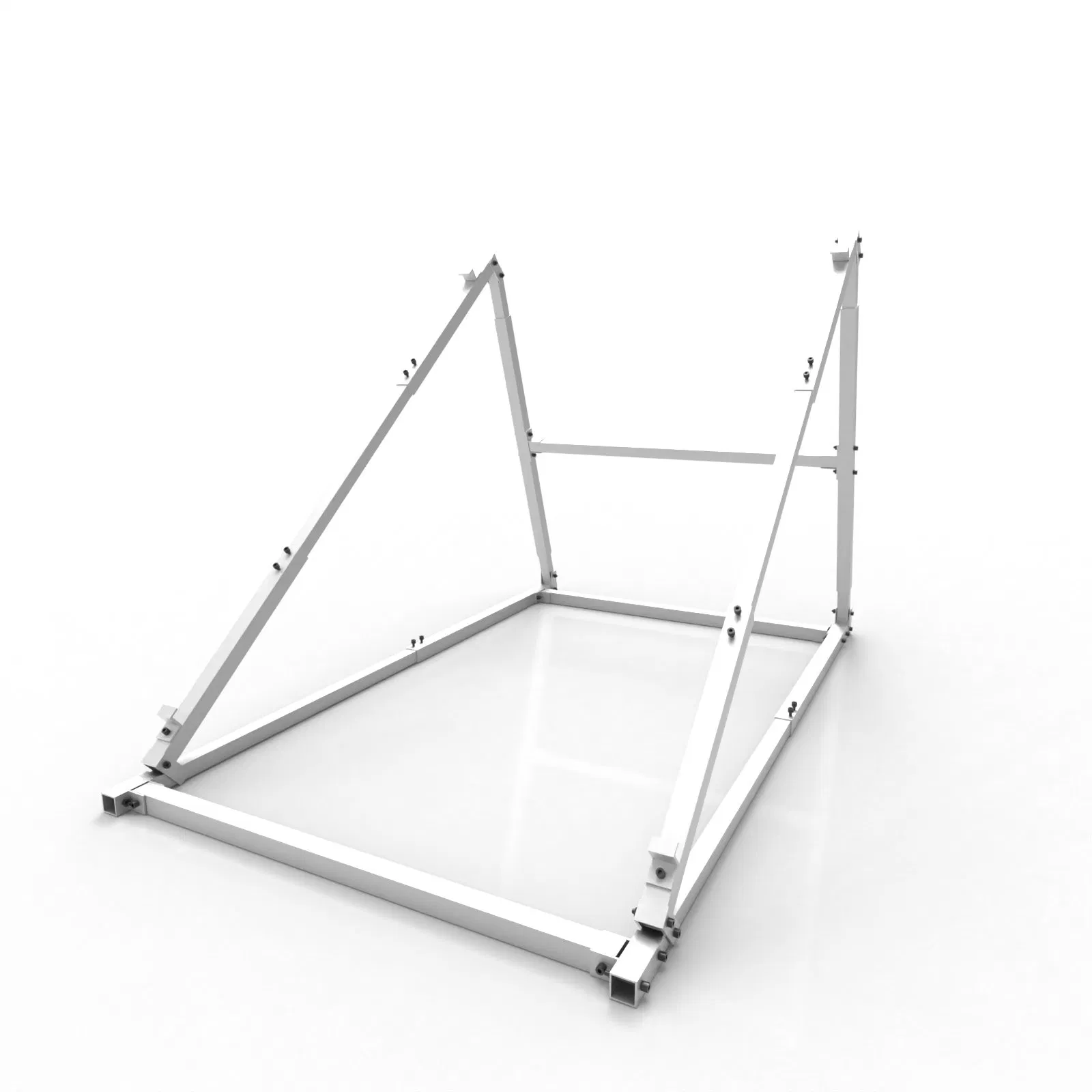

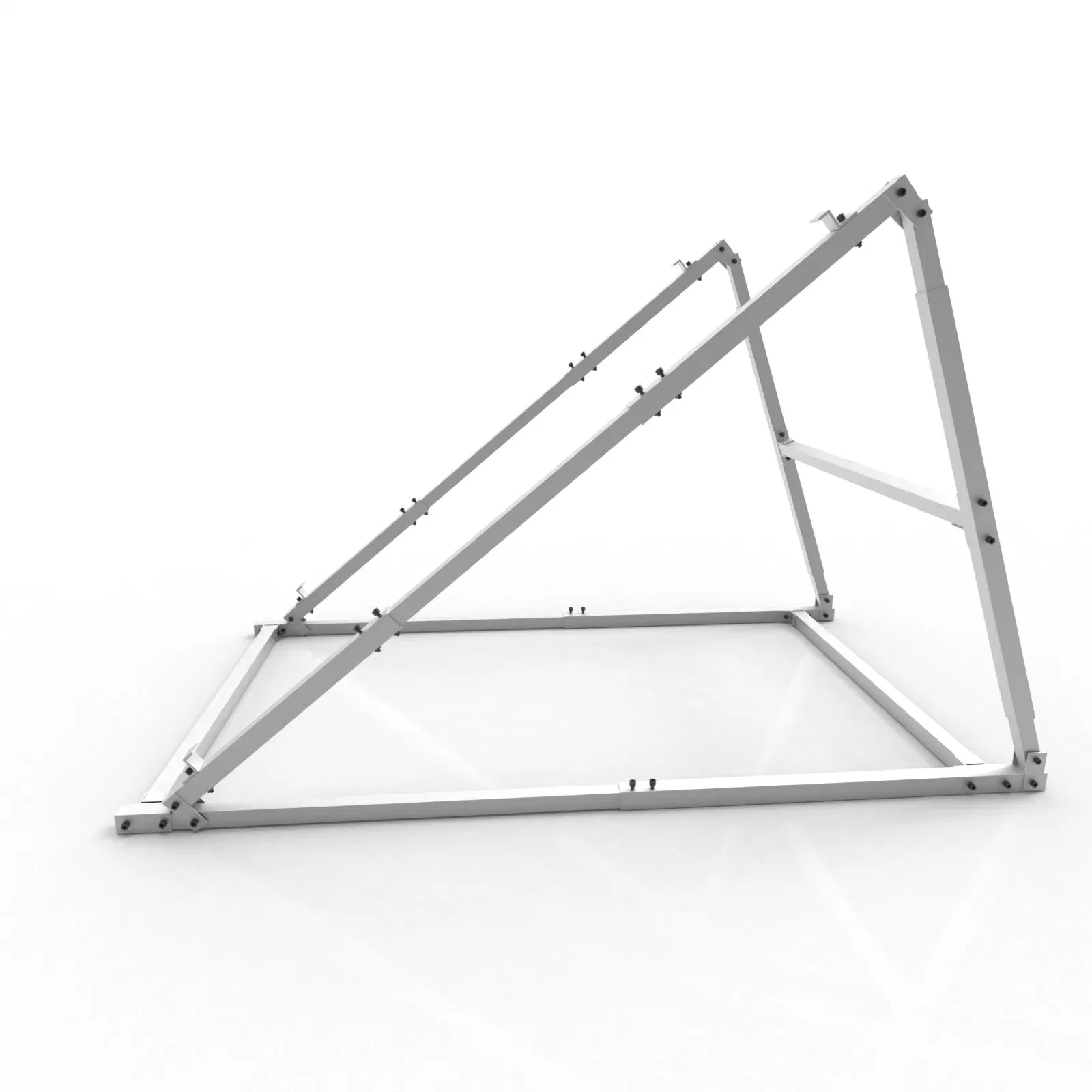

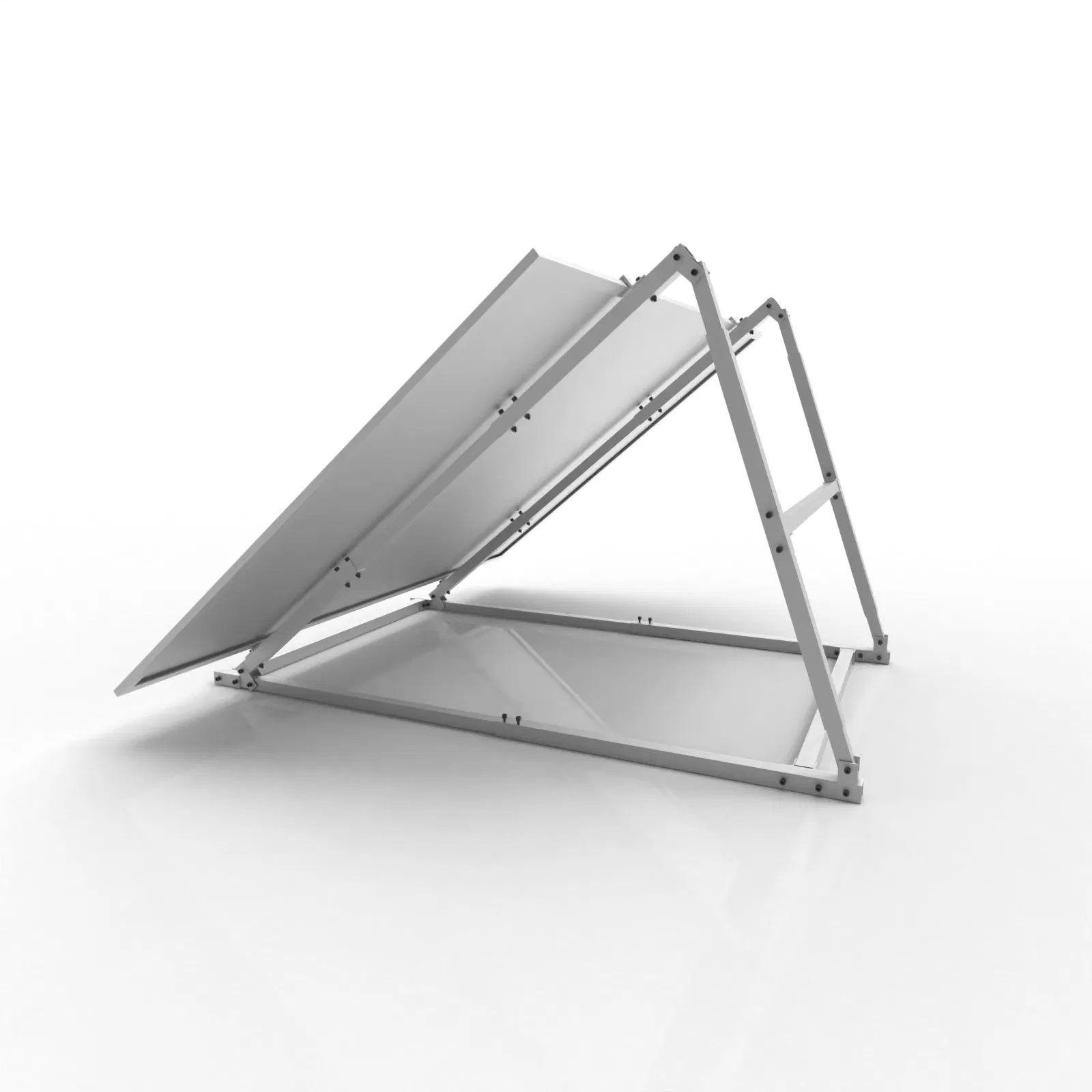

Jchx-CE Solar Panel Mounting Brackets Balcony Solar System

Overview & Basic Info

Model NO.

JCHX-M00360

Certification

GB, ISO, CE, RoHS

Application

Commercial / Residential

Material

Steel / Aluminum Alloy

Wind Load

0-60m/S

Snow Load

0-3kN/M²

Mounting Type

Rapid Balcony Installation

Thickness

1.0-1.5mm

Technical Specifications

Material	Aluminum Alloy	Grade	6005-T5/6063-T6 or custom
Size	40x40 / 30x40 custom	Wall Thickness	1.0-2.0mm or custom
Coating	Aluminum Alloy Oxidation	Service Life	Over 25 years
Annual Capacity	100,000 Tons per year	Corrosion Resistance	Very Strong

Solar Panel Mounting Brackets Balcony System: Designed to support solar panels in a robust and reliable manner, these mounts are crafted from high-quality aluminum alloy. Engineered to withstand diverse weather conditions, they provide enduring structural support for solar installations. Their versatile design facilitates straightforward installation and ensures compatibility with solar panels of various dimensions.

Product Advantages

Highly Corrosion-Resistant

Excellent weather resistance and fatigue resistance. Built with uniform stress materials to resist external forces like wind, snow, and earthquakes.

High Structural Stability

Fabricated from aluminum alloy with an oxidation coating, providing integrity to withstand seismic events and extreme loads.

Non-Destructive Install

Adaptive clamping design requires no drilling, protecting the building's exterior and waterproofing layers.

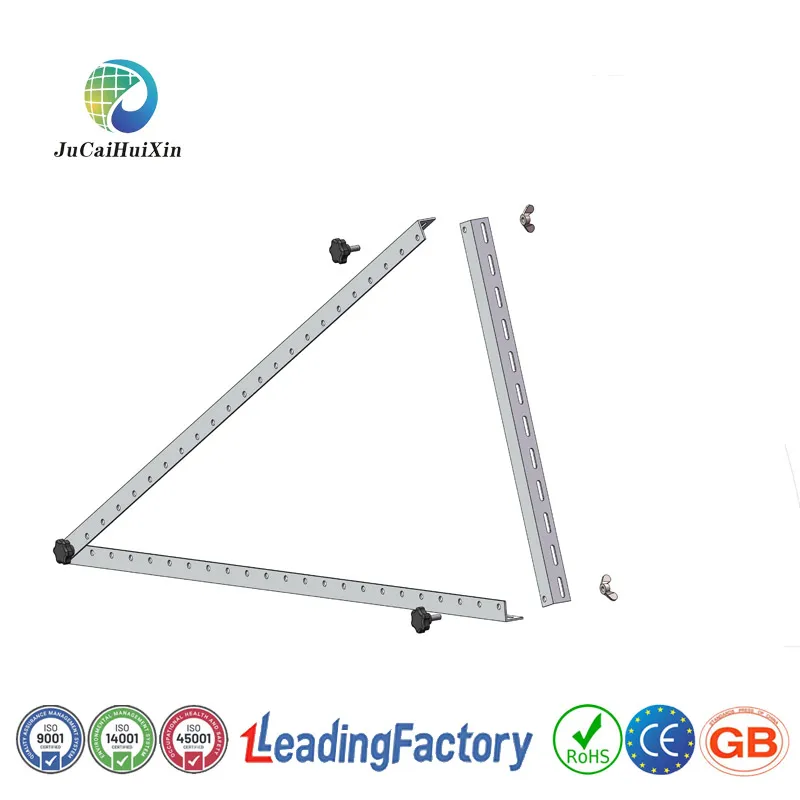

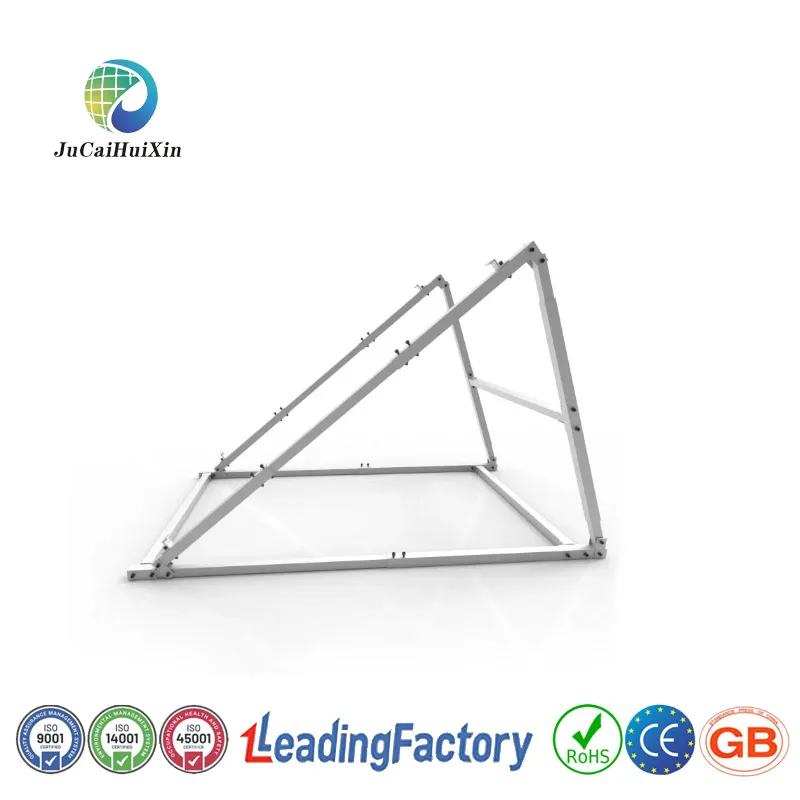

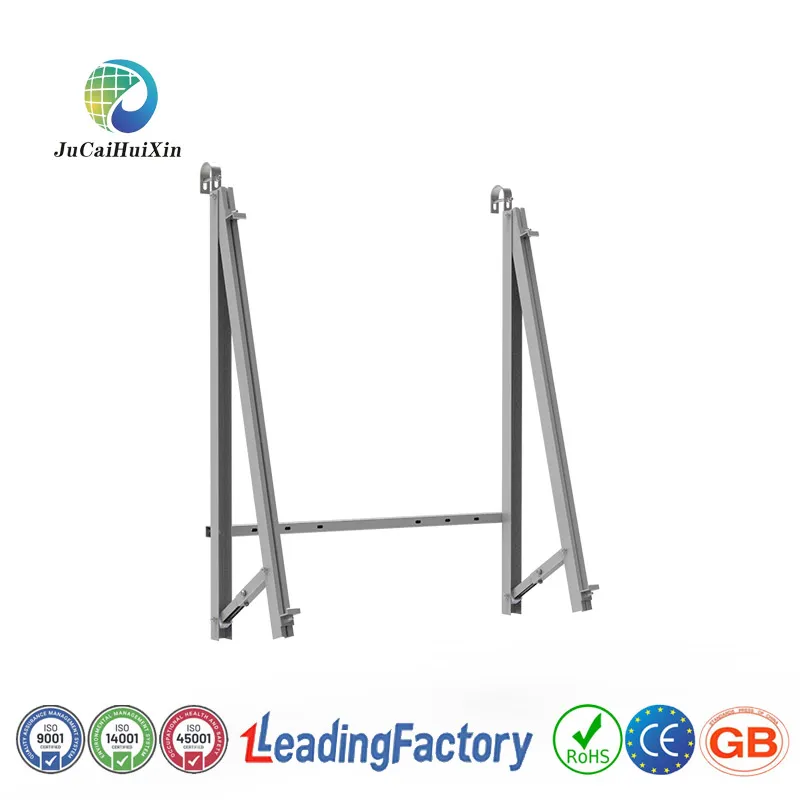

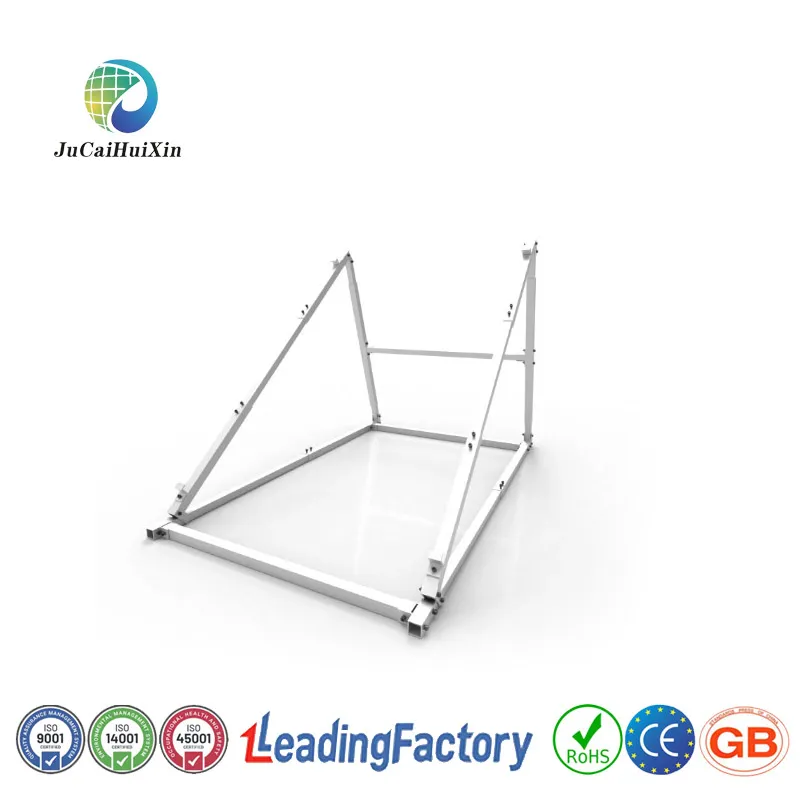

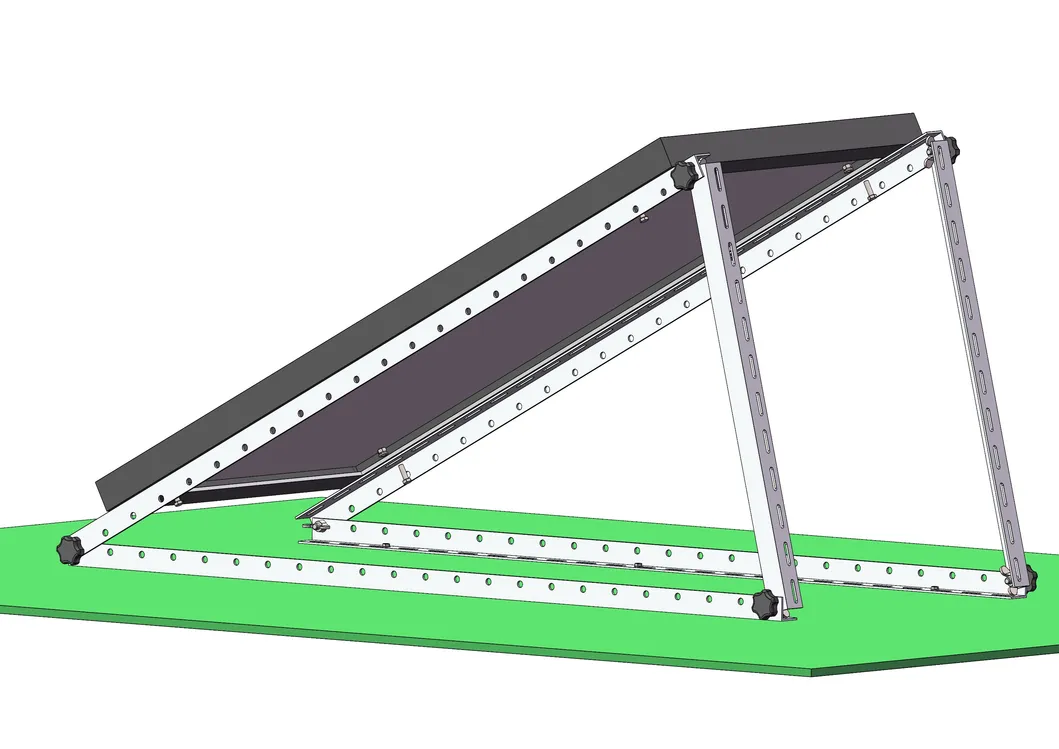

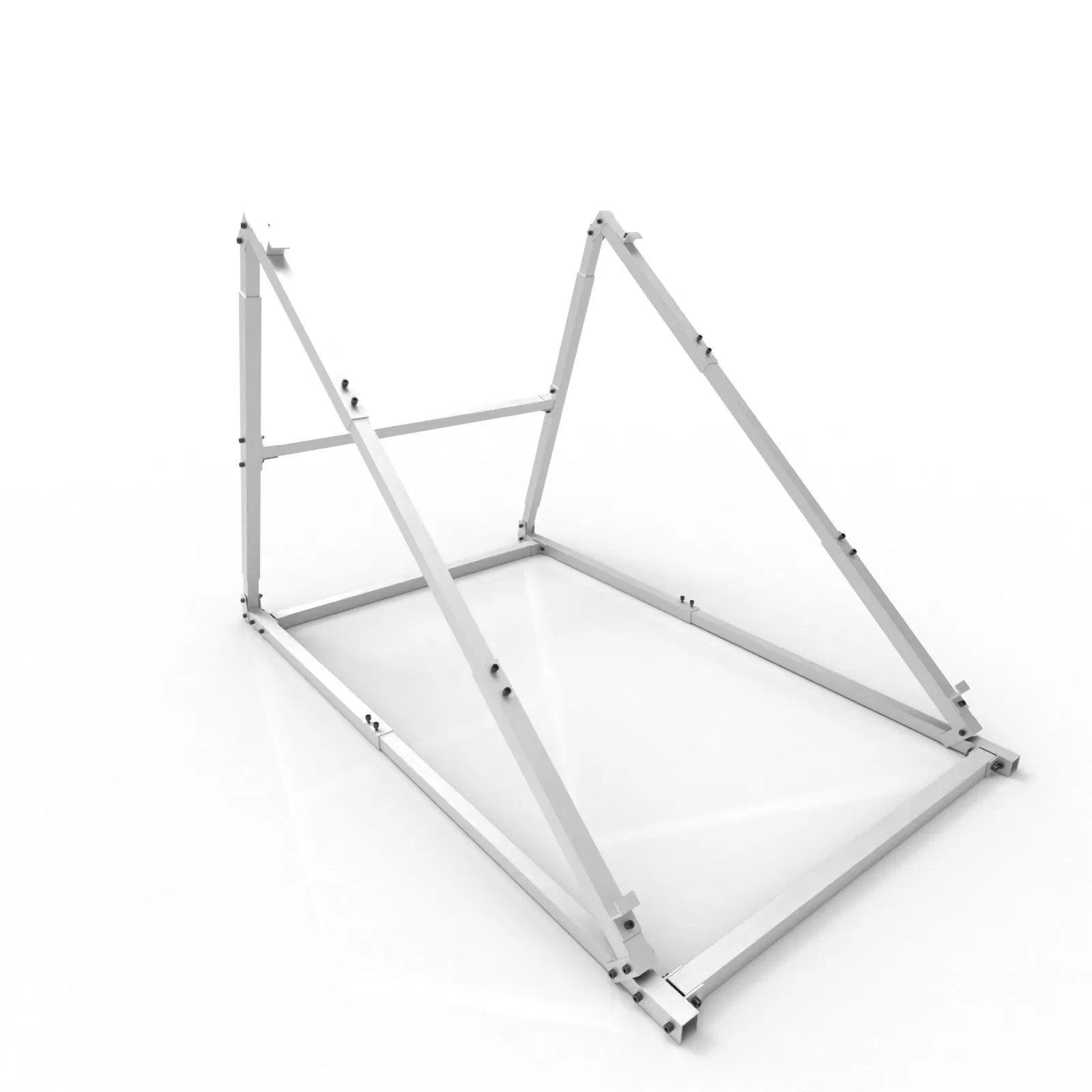

Product Display

Quality Assurance & Manufacturing

Intelligent Manufacturing Base: Features a 10,000 square meter physical factory with advanced production matrices, including 10 internationally advanced CZU steel automated production lines, producing 200,000 tons of profiles annually.

Frequently Asked Questions

Can this bracket be installed on various balcony materials?

Yes. The system features an adaptive clamping design, requiring no drilling. It seamlessly adapts to materials like glass, metal, and concrete for 100% non-destructive installation.

How is the wind resistance capacity?

The bracket is engineered to withstand extreme conditions, including winds ≥ Level 10 and heavy snow, having passed rigorous wind pressure and seismic tests.

Is the installation process complicated for a single person?

It is very straightforward due to the modular design. A single person can typically complete assembly in 1-2 hours using basic tools like a wrench.

Will the aluminum alloy rust outdoors over time?

No. Benefiting from oxidation-resistant alloy and protective coating, the bracket's design life exceeds 25 years, matching the lifespan of standard PV modules.

Is the panel angle adjustable after installation?

Yes, most units offer an adjustable range of 10°-40°, allowing you to optimize the tilt angle based on the season to maximize power generation.

Is it compatible with all solar panel brands?

The rail system is highly versatile and accommodates most standard-sized framed PV panels available on the market with flexible securing clamps.
