ISO Approved Commercial Br Solar Container 20FT /40FT 12192mm (L) *2438mm (W) *2591mm (H) Lithium Battery Energy Storage
ISO Approved Commercial Br Solar Container 20FT /40FT 12192mm (L) *2438mm (W) *2591mm (H) Lithium Battery Energy Storage
ISO Approved Commercial Br Solar Container 20FT /40FT 12192mm (L) *2438mm (W) *2591mm (H) Lithium Battery Energy Storage
ISO Approved Commercial Br Solar Container 20FT /40FT 12192mm (L) *2438mm (W) *2591mm (H) Lithium Battery Energy Storage
ISO Approved Commercial Br Solar Container 20FT /40FT 12192mm (L) *2438mm (W) *2591mm (H) Lithium Battery Energy Storage
1 / 5
ISO Approved Commercial Br Solar Container 20FT /40FT 12192mm (L) *2438mm (W) *2591mm (H) Lithium Battery Energy Storage
ISO Approved Commercial Br Solar Container 20FT /40FT 12192mm (L) *2438mm (W) *2591mm (H) Lithium Battery Energy Storage
ISO Approved Commercial Br Solar Container 20FT /40FT 12192mm (L) *2438mm (W) *2591mm (H) Lithium Battery Energy Storage
ISO Approved Commercial Br Solar Container 20FT /40FT 12192mm (L) *2438mm (W) *2591mm (H) Lithium Battery Energy Storage
ISO Approved Commercial Br Solar Container 20FT /40FT 12192mm (L) *2438mm (W) *2591mm (H) Lithium Battery Energy Storage

ISO Approved Commercial Br Solar Container 20FT /40FT 12192mm (L) *2438mm (W) *2591mm (H) Lithium Battery Energy Storage

Customization: Available
After-sales Service: Yes
Warranty: 10 Years
Send Inquiry

Product Description

i

Basic Specifications

Condition
New
Certification
ISO, CB, CE, TUV
Application
Industrial, Commercial
Battery Type
LFP 3.2V314ah
Capacity
261 Kwh
Cooling System
Liquid Cooling
Grid Connection
Off Grid, Hybrid Grid
Protection Class
IP55
Output Voltage
380/400VAC (Three-Phase)
Operating Voltage
650~949 V
Origin
China
HS Code
8543709990
📦

Packaging & Delivery

Package Size
110.00cm * 140.00cm * 238.00cm
Gross Weight
1500.000kg
Transport Package
Container
✓

Product Description

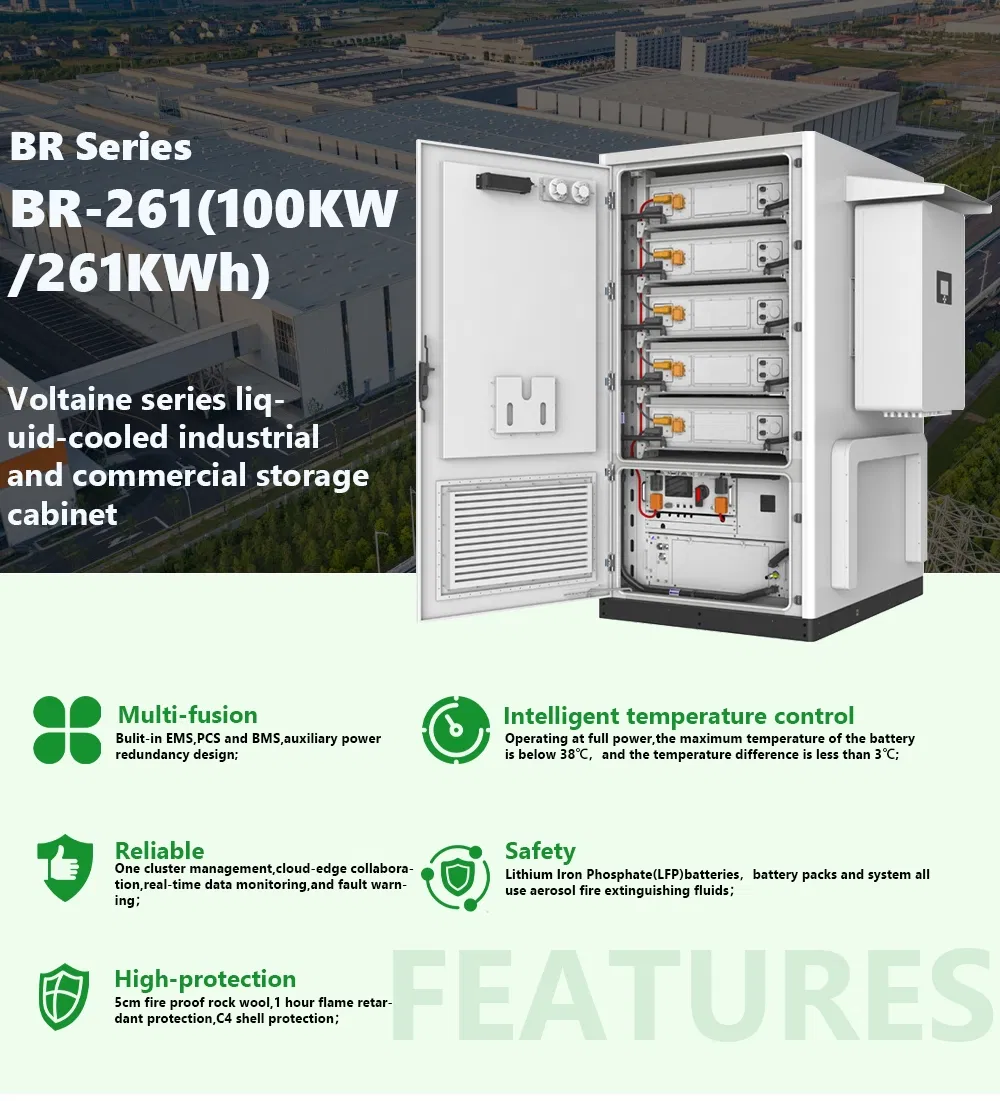

Energy Storage Container
System Parameters (Model BR-261)
Rated output power(kW)100
AC output frequency/voltage50/60Hz: 380/400Vac
Capacity(kWh)261
Dimensions(W/D/H, mm)1100×1400×2380
Weight(kg)≤3000
Battery operating voltage(V)650~949
Maximum cycle efficiency92%
CommunicationETH/4G
Ambient temperature(°C)−20~55
Protection RatingIP55 / C4 Corrosion protection
Converter Parameters
Maximum output current(A)192
Power factor−0.99~+0.99
Maximum efficiency≥98.2%
Battery Technical Parameters
Cell typeLFP 3.2V314Ah
Standard voltage(V)166.4
Cycle life≥6000 (@25ºC±2ºC, 0.5C/0.5C, 70%EOL)

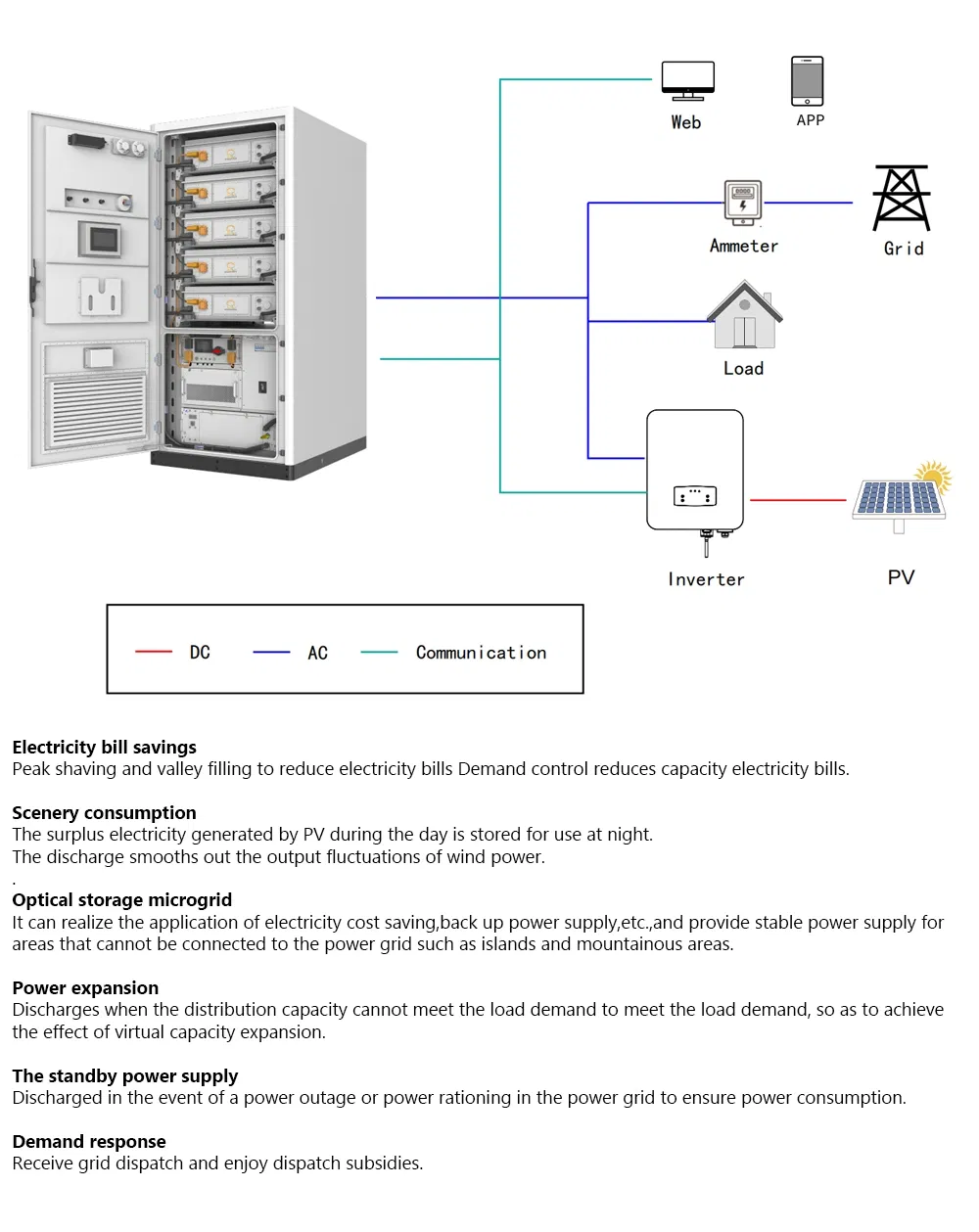

Feature 1 Feature 2
Schematic
Application 1 Application 2 Application 3

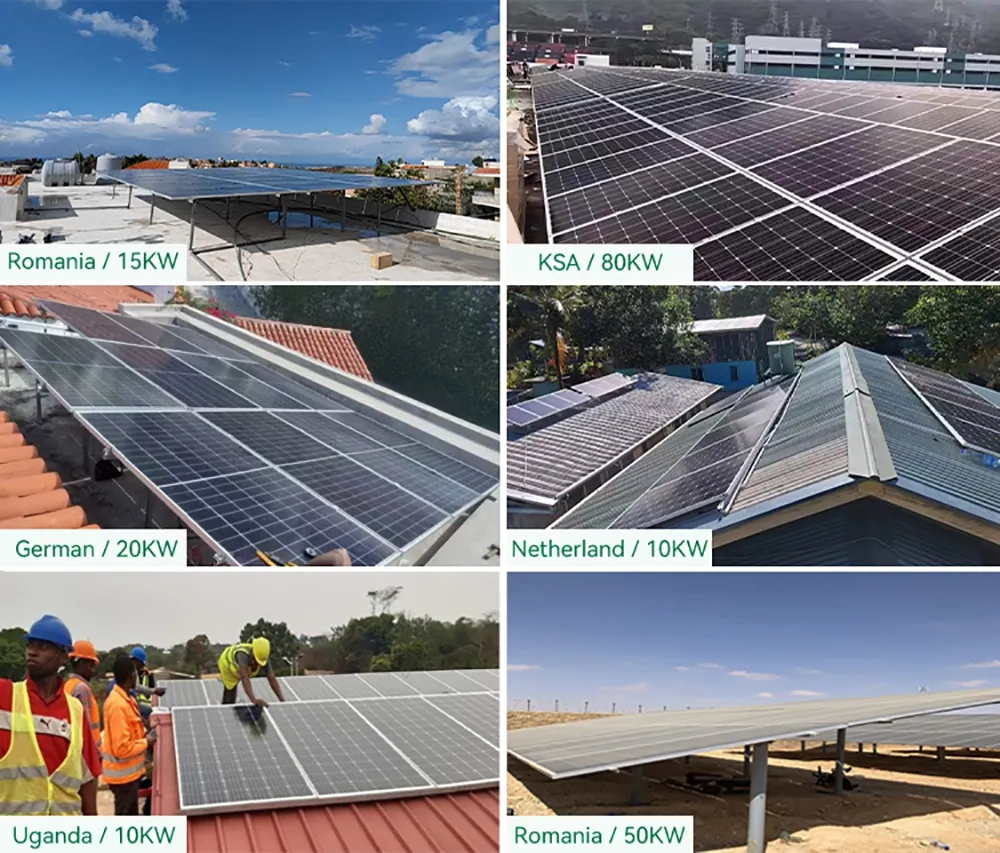

Tech Detail 1 Tech Detail 2 Tech Detail 3
?

Frequently Asked Questions

What is the total capacity of this energy storage system?
The system provides a total capacity of 261kWh using high-efficiency LFP 3.2V 314Ah cells.
Is the system suitable for outdoor industrial environments?
Yes, it features an IP55 protection rating and C4 corrosion protection level, making it ideal for ground-mounted industrial and commercial applications.
What kind of cooling technology is used?
This model utilizes advanced liquid cooling technology to maintain optimal battery temperatures and extend service life.
How many cycles can the battery handle?
The system offers a long cycle life of ≥6000 cycles at 25ºC with 0.5C charge/discharge rates.
Can it operate in extreme temperatures?
Yes, the system is designed to operate in ambient temperatures ranging from -20ºC to 55ºC.
What grid types are supported?
It supports Three-Phase Five-Wire grid types and is compatible with Off-grid and Hybrid Grid connections.
