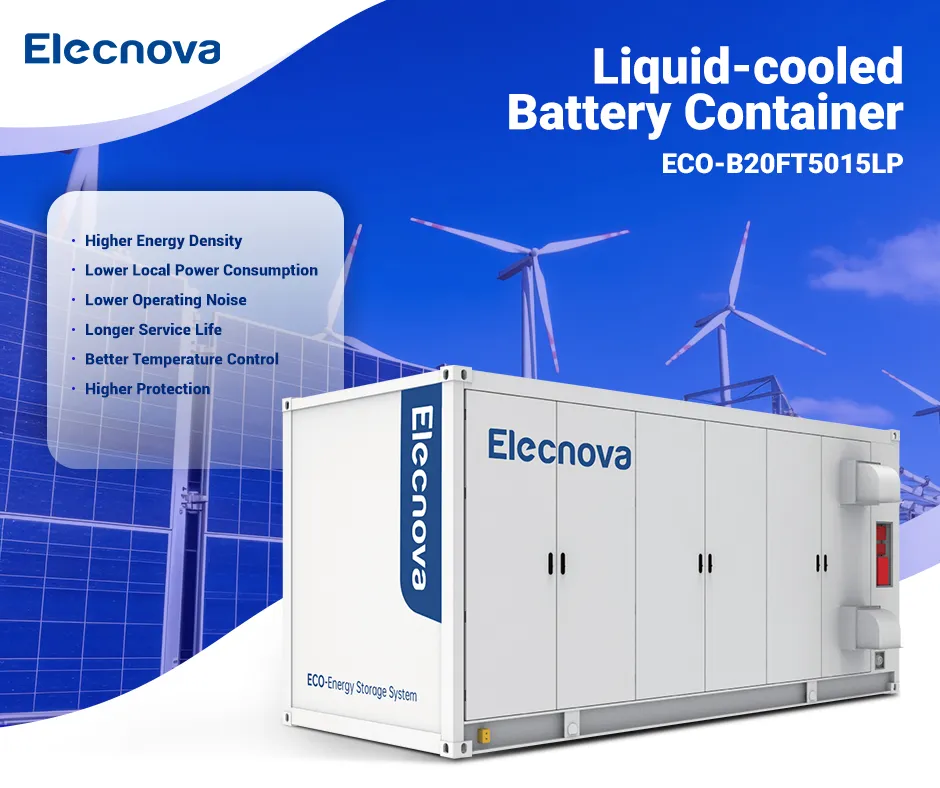

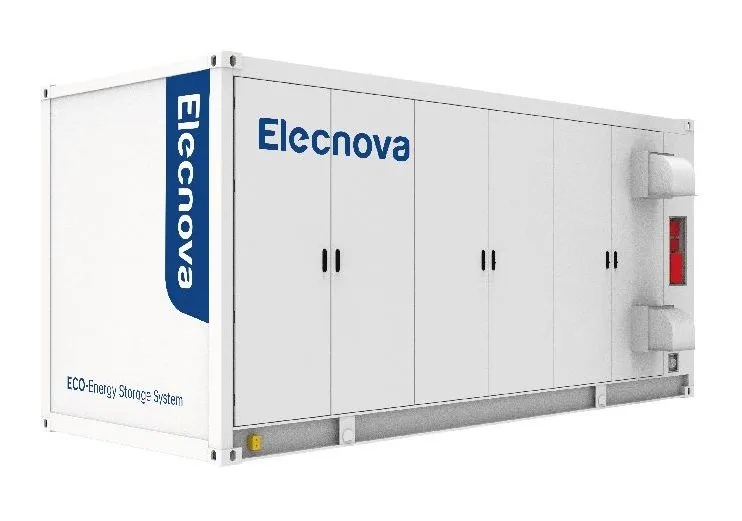

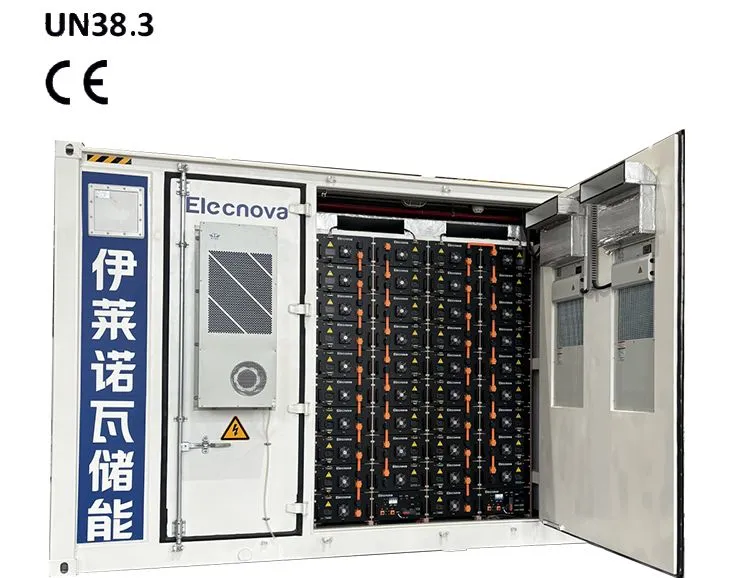

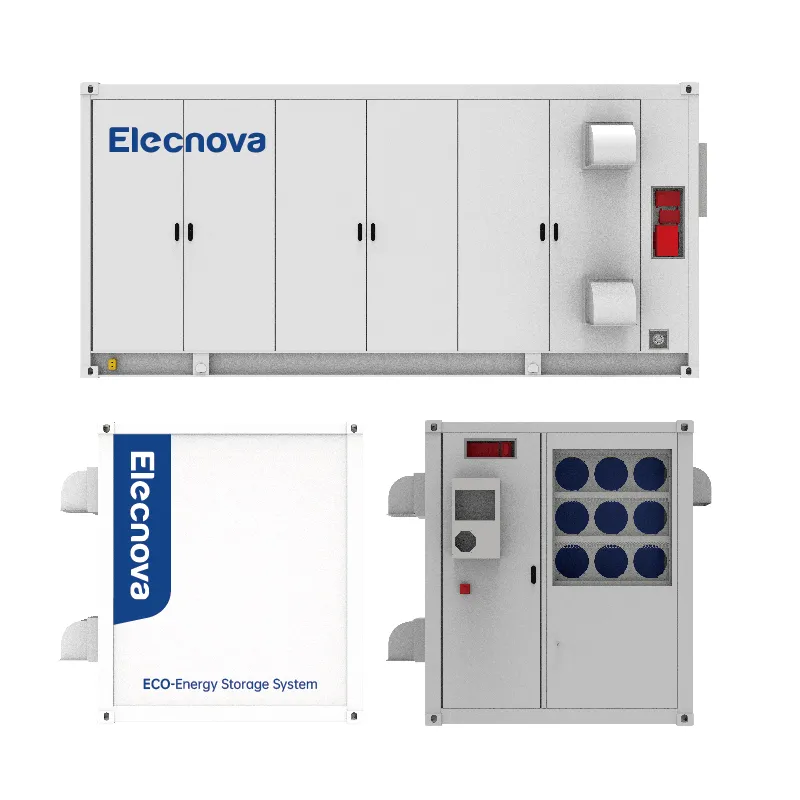

The 20-ft liquid-cooled ESS container product integrates PACK, EMS, BMS, HVAC, and fire safety systems into one unified container. Compared with traditional air cooling, the liquid cooling technology empowers the ESS product with higher power density and ensures the temperature difference between cells remains within 3ºC. This effectively extends battery service life and significantly improves energy efficiency. This system can be applied to power generation, grid-side operations, and Commercial & Industrial (C&I) scenarios.
| Item | Specification |
|---|---|
| Cell type | LFP314Ah |
| Configuration | 12P416S |
| Rated Energy | 5.015MWh |
| Rated Voltage | 1331.2Vdc |
| Voltage Range | 1165-1498Vdc |
| PACK Ingress Rating | IP65 |
| Rated Charge/Discharge Rate | 0.5P |
| Operating Temperature | -25ºC~55ºC |
| Fire Safety | Aerosol+water |
| Cooling | Chiller+liquid cooling |
| Dimensions (W*D*H) | 6,058 mm x 2,550mm x 2,896 mm |
| System Compliance | IEC62477, IEC61000, IEC62619, IEC63056, UL9540A, UN3536 |
Our company integrates R&D, manufacturing, sales, and service, maintaining a complete product ecosystem from smart terminal components to Internet of Things platforms. Our electrical application solutions empower users with intelligent and digital energy management, providing reliable data services for energy saving, consumption reduction, and refined energy management.
We focus on power monitoring systems, power quality mitigation products, electrical components, and energy storage systems. Our goal is to meet the diversified energy requirements of segmented markets and customers with high-quality customized products for power generation, grid, and user-side scenarios.
