| Model NO. | BH-High Voltage Lithium Ion Battery | Rechargeable | Yes |
| Size | Medium | Protection Class | IP65 |
| Battery Type | Rack-Mounted Lithium Battery | Sealed Type | Sealed |
| Communication Port | CAN | Specification | LiFePO4 |
| Origin | China | Production Capacity | 10000/Month |
| Package Size | 20.00cm * 30.00cm * 12.00cm |
| Package Gross Weight | 1.000kg |

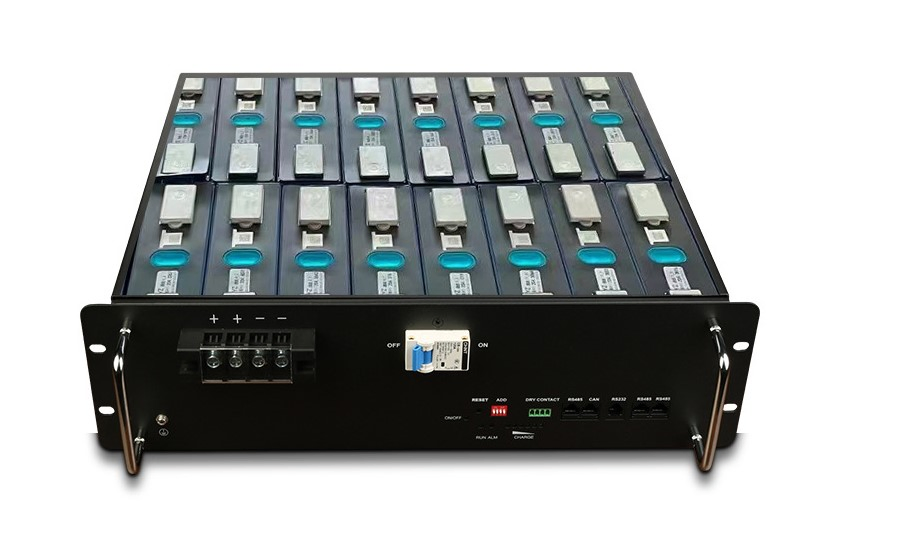

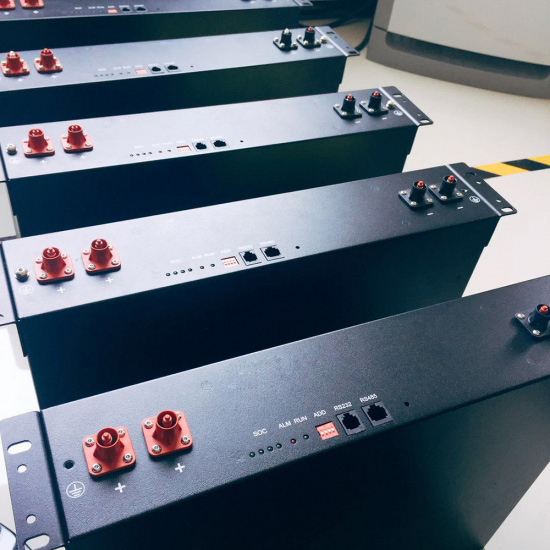

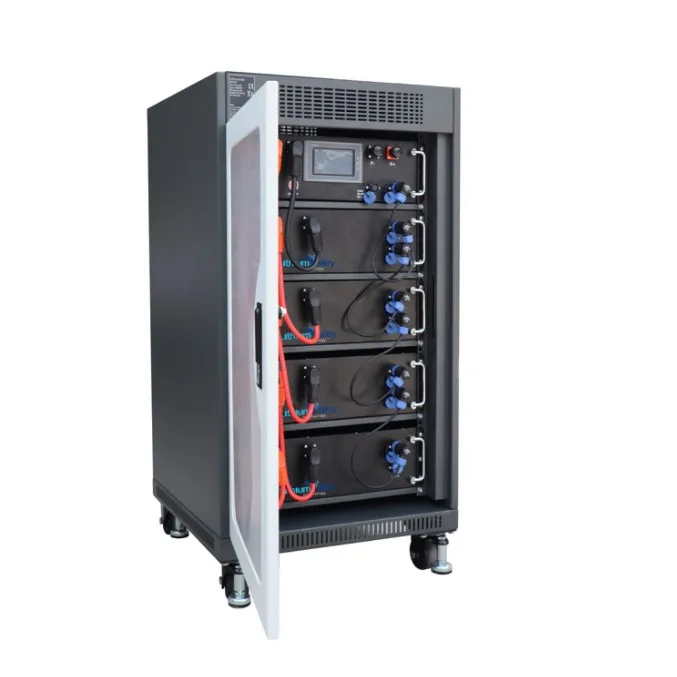

Rack-mounted lithium battery is a battery pack composed of multiple lithium battery cells, which is combined with high-quality lithium iron phosphate battery cells and advanced BMS management system. It usually adopts rack-mounted design and can be used as an independent DC power supply or as a "basic unit" to form a variety of specifications of energy storage lithium battery power supply system, which can be directly installed on the cabinet or rack. It takes up less space.
It ensures more than 6000 cycles with 80% DoD. Safe lithium iron phosphate battery cell.
Each battery with independent BMS system manages power output smartly and effectively.
Modular design gives the end customers the choice of capacity deliver up to 163KW with single max module (10.24KWh) at 16 pcs parallel connection.
Just plug and play to minimize the installation time and cost.
Compact and fashionable design fits in your sweet home environment.
Compatible with most of the available Hybrid inverters.

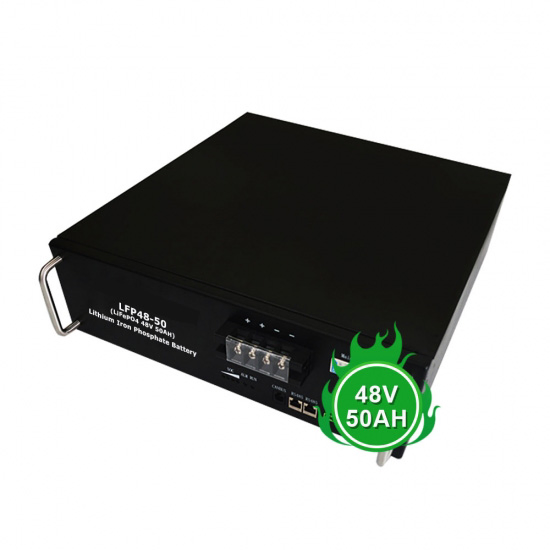

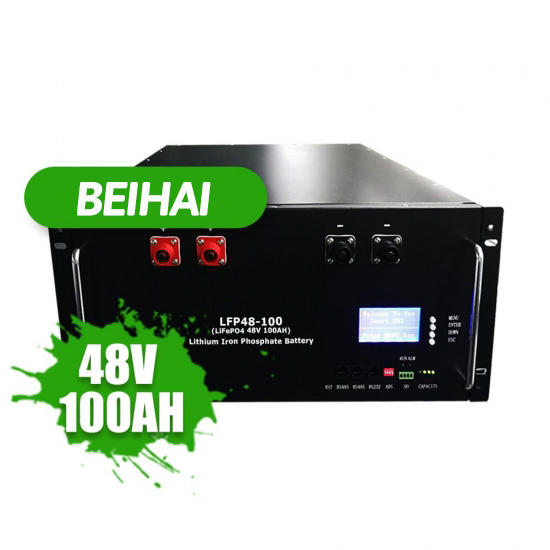

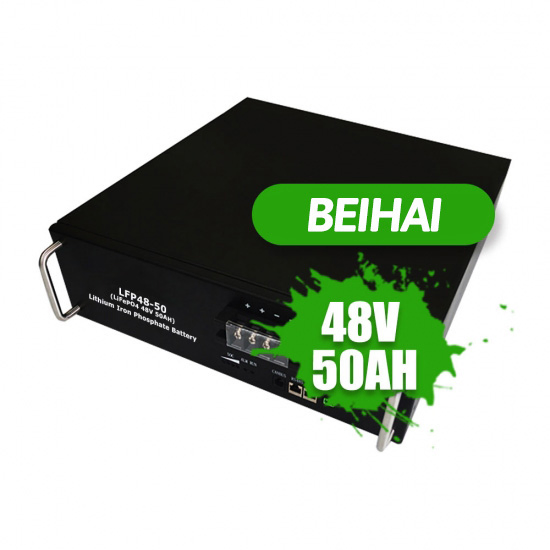

| Model | 48V 50AH | 48V 100AH | 48V 150AH | 48V 200AH |
| Nominal Voltage | 48V | 48V | 48V | 48V |
| Nominal Capacity | 2400WH | 4800WH | 7200WH | 9600WH |
| Usable Capacity (80% DOD) | 1920WH | 3840WH | 5760WH | 7680WH |
| Weight (Kg) | 27Kg | 45Kg | 58Kg | 75Kg |
| Cycle Time | 6000+ Cycles | |||
| Product Warranty | 10 Years | |||
| Compatible Inverter | SMA, GROWATT, DEYE, GOODWE, SOLA X, SOFAR, etc. | |||
Rack-mounted lithium batteries are widely used in power storage and applications in data centers, communication equipment, industrial automation, power equipment, rail transit and other fields, such as UPS power supplies, energy storage systems, etc. The advantages of rack-mounted lithium batteries are their high energy density and long life, which can meet demanding application scenarios.
