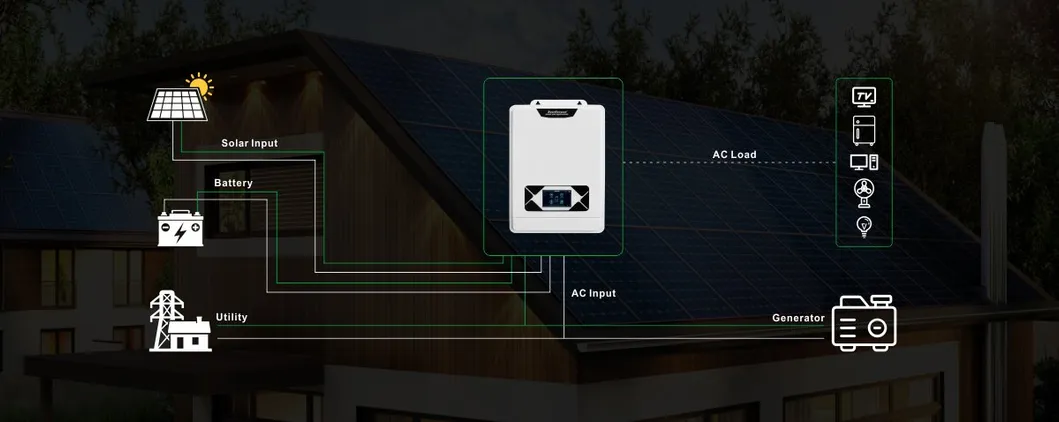

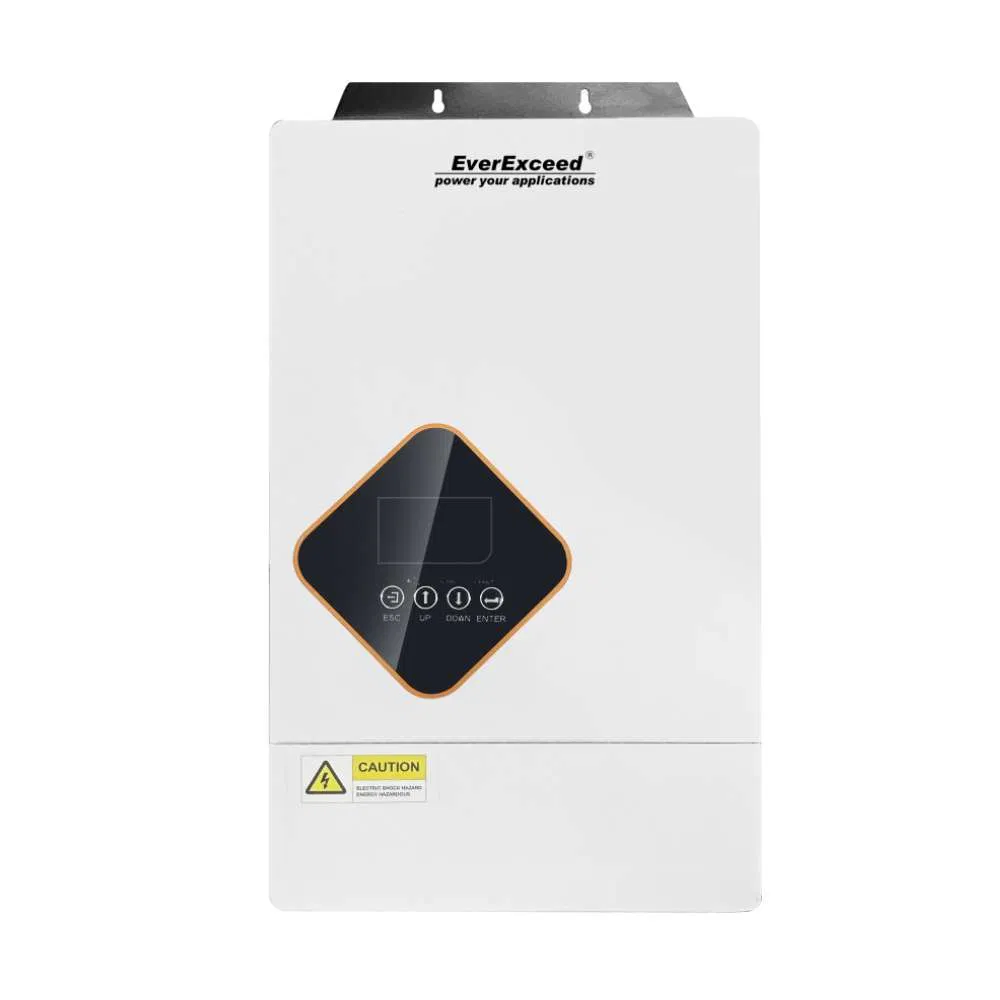

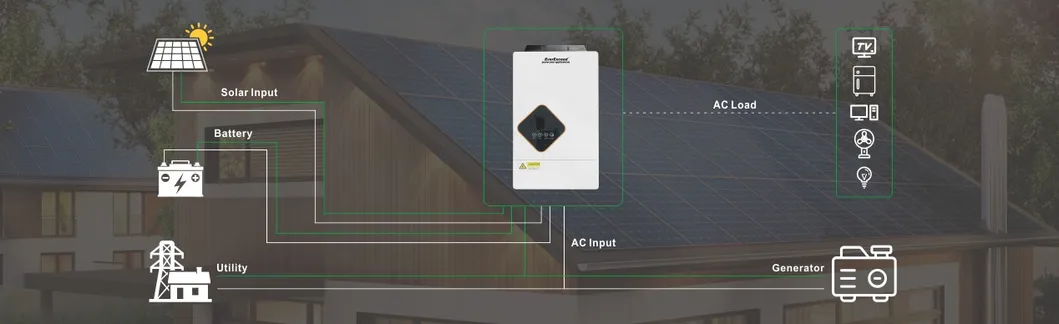

The EHCS series inverter is a high-end solar hybrid inverter designed for households and small commercial solar power plants. It utilizes solar power, batteries, and utility grid for hybrid power supply to ensure uninterrupted power supply. It optimizes solar consumption, reducing dependence on energy providers and protecting against rising electricity costs.
Pure sine wave output, selectable charging current based on specific application needs.
Perfect match for a variety of batteries including Lithium, AGM, and GEL types.
Equipped with short circuit, over voltage, over temperature, and reverse current protection.
Supports remote monitoring via WiFi module and dedicated mobile application.
Parallel capability for up to 9 units to allow for rapid capacity growth.
Maximum support for 80A charging current to ensure rapid energy restoration.
| Models | EHCS-6.5K-Pro | EHCS-8K-Pro | |
|---|---|---|---|
| AC Input | Input Voltage | 90-264VAC (Normal) / 170-264VAC (UPS) | |
| Frequency | 50/60Hz | ||
| AC Output | Rated Power | 6500W | 8000W |
| Waveform | Pure Sine Wave | ||
| Transfer Time | <20ms (Normal) / <10ms (UPS) | ||
| Battery | Rated Voltage | 48VDC | |
| Charge Voltage | 56.4VDC (Adjustable) | ||
| PV Charge | Max. PV Power | 6500W | 7000W |
| Max. PV Input | 450VDC | ||
| MPPT Range | 60-430VDC | ||
| General | Dimension | 440x300x120mm | |
