Wing Solar
Wing Solar
MPPT Solar Charge Controller
Series: MPPT-R
| Model | MPPT2420R | MPPT2430R | MPPT2440R | MPPT2450R | MPPT2460R | MPPT4830R | MPPT4840R | MPPT4850R | MPPT4860R | MPPT4880R | MPPT48100R | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| System voltage | 12 / 24V Auto | 12 / 24 / 48V Auto (36V Manual set) | ||||||||||
| Rated charging current | 20A | 30A | 40A | 50A | 60A | 30A | 40A | 50A | 60A | 80A | 100A | |
| Max PV VOC | <60V | <75V | <100V | <150V | ||||||||
| Max PV Input Power | 12V | 260W | 390W | 520W | 650W | 780W | 390W | 520W | 650W | 780W | 1040W | 1300W |
| 24V | 520W | 780W | 1040W | 1300W | 1560W | 780W | 1040W | 1300W | 1560W | 2080W | 2600W | |
| Battery type | GEL, Sealed, Flooded, LiFePO4, Li(NiCoMn)O2, customization | |||||||||||
| Lithium battery activation | YES | |||||||||||
| Protection class | IP30 | |||||||||||

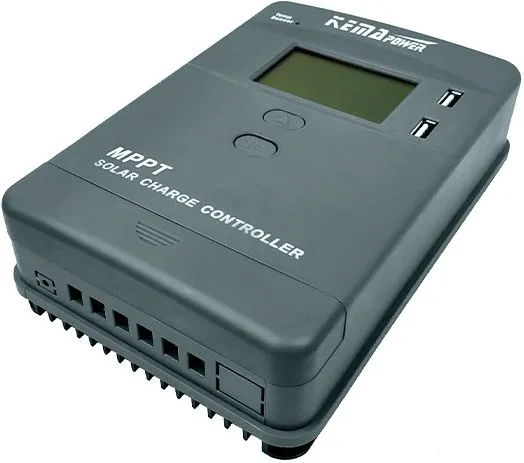

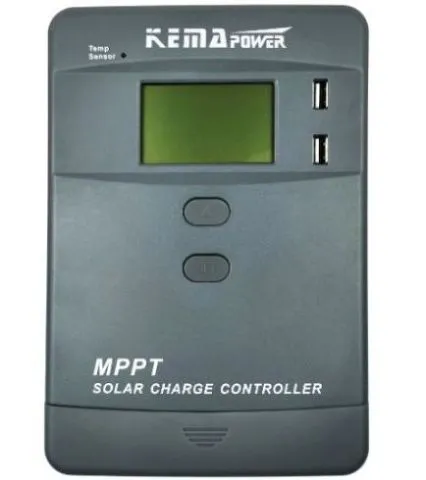

MPPT-R 20-40A Front View
Side Profile

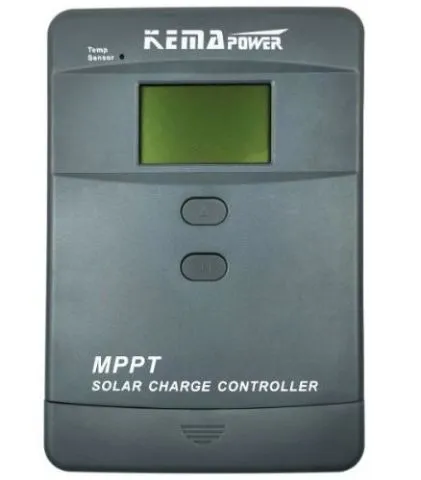

MPPT-R 50-60A High Power

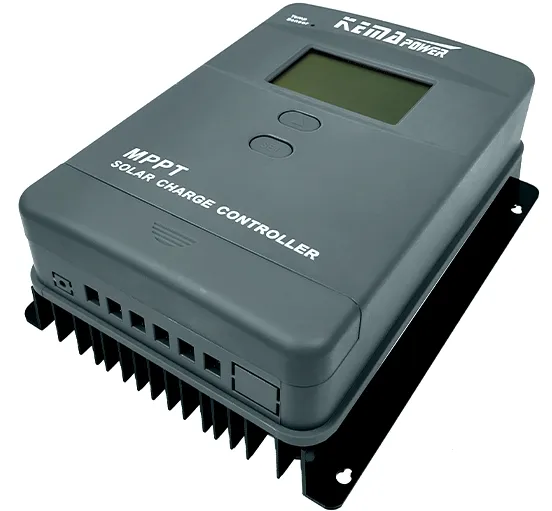

Efficient Heat Dissipation

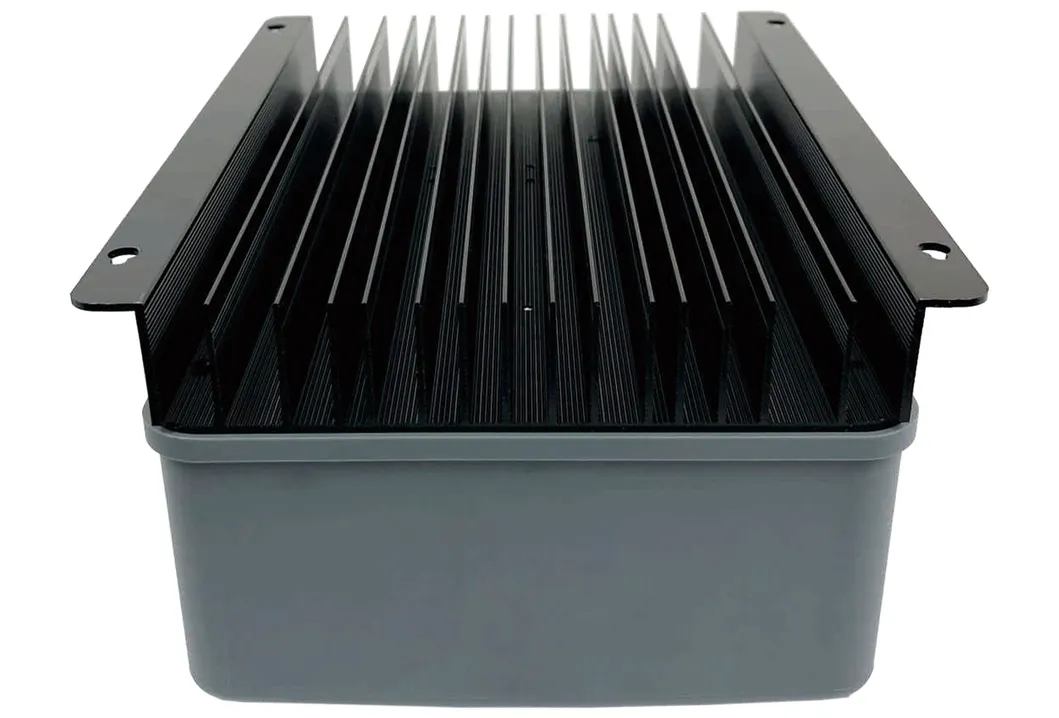

20-40A Natural Cooling

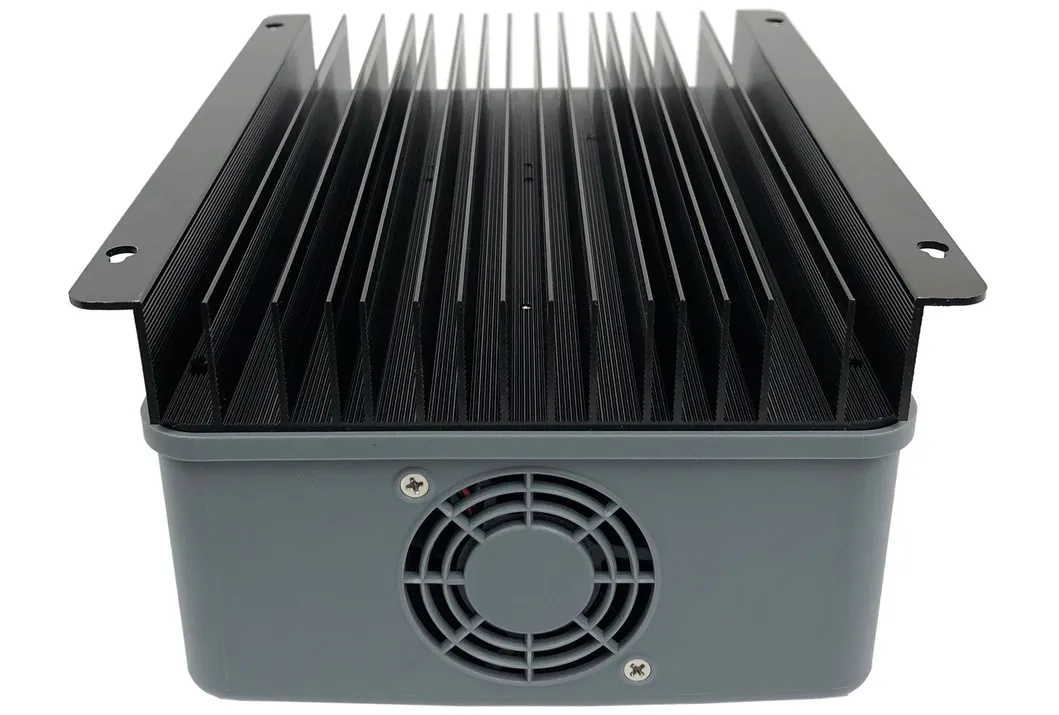

50-100A Fan Cooling

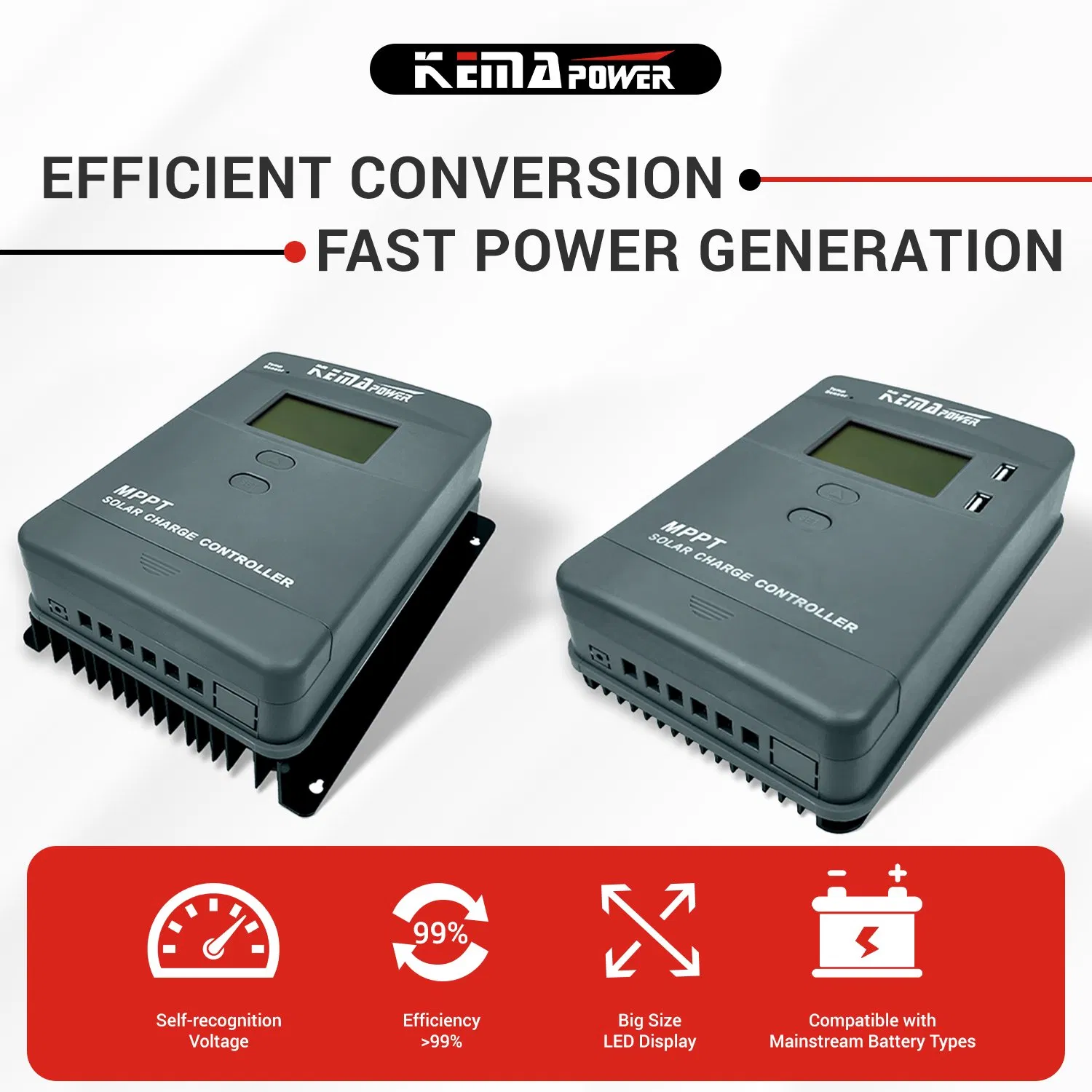

The MPPT-R series features advanced Maximum Power Point Tracking technology with a conversion efficiency of over 99%.

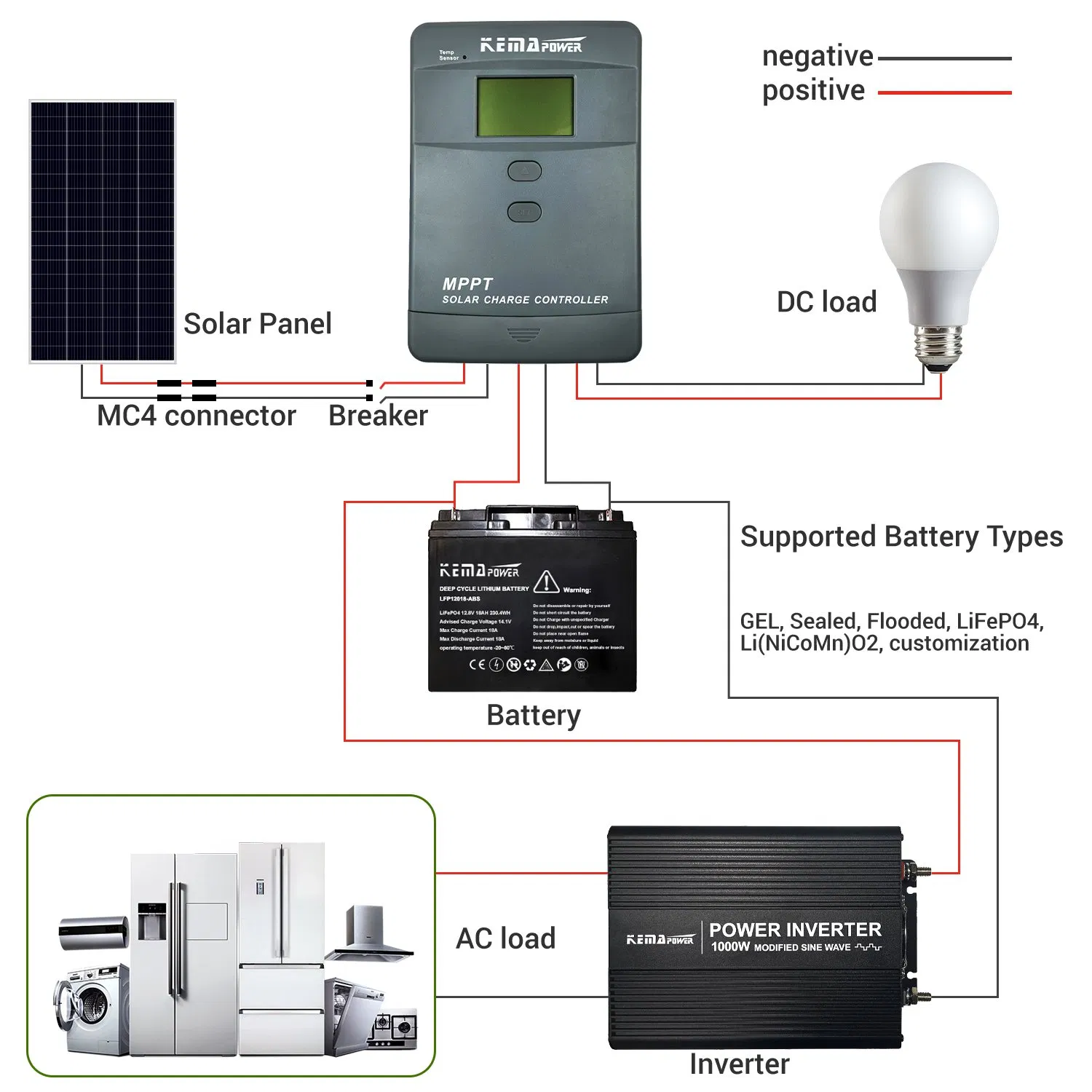

It supports a wide range of batteries including GEL, Sealed, Flooded, LiFePO4, and Li(NiCoMn)O2. Custom charging parameters can also be set.
Yes, specific models in the range support 12V, 24V, and 48V automatic identification (with 36V available via manual setting).

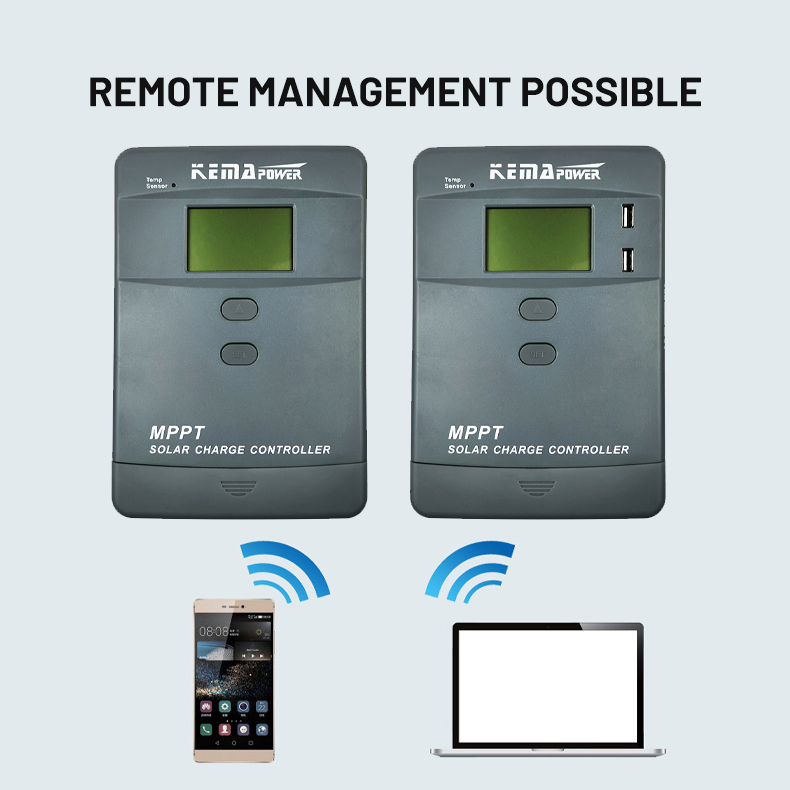

Yes, the series offers optional Internal Bluetooth or External WiFi communication for remote monitoring and status checks.
The controller includes multiple safety protections: PV/Battery Reverse Connection, Battery Over/Low Voltage, and Overload protection.
Lower power models (20-40A) use natural cooling for silent operation, while higher power models (50-100A) are equipped with intelligent fan cooling.
