Wing Solar
Wing Solar

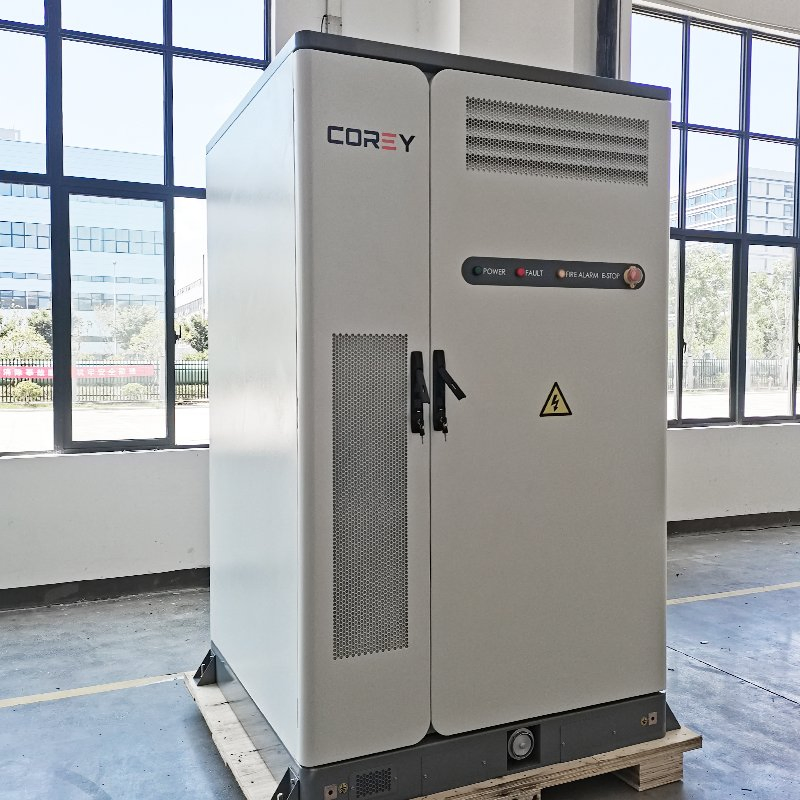

| Model No. | Corey233 | Nominal Voltage | 230V/400V |
|---|---|---|---|
| Warranty | 5 years | Nominal Capacity | 233kWh |
| Cycle Life | 9000 | Battery Type | LiFePO4 |
| Cooling Method | Intelligent Liquid Cooling | Protection Level | IP54 |
| AC Rated Frequency | 50/60 Hz | AC Maximum Current | 167A |
| Dimensions | L1560mm * D1380mm * H2385mm | ||
| Project Item | Unit | Value |
|---|---|---|
| System Capacity | kWh | 100 |
| Peak and Valley Price Difference | €/kWh | 0.238 |
| Annual Net Income | €/year | 7,447 |
| Static Payback Period | Year | 4.4 |

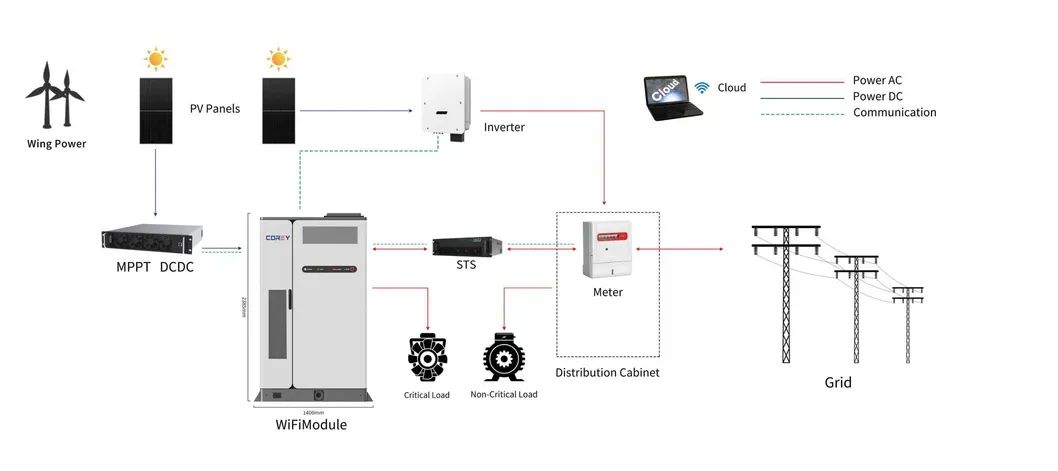

1. Peak-Valley Arbitrage: Charge during low-cost periods and discharge during high-cost peak hours.
2. Supply Reliability: Functions as backup power during grid outages.
3. Power Quality: Mitigates fluctuations and ensures stable equipment operation.
4. Demand Response: Financial incentives for adjusting usage to grid requirements.

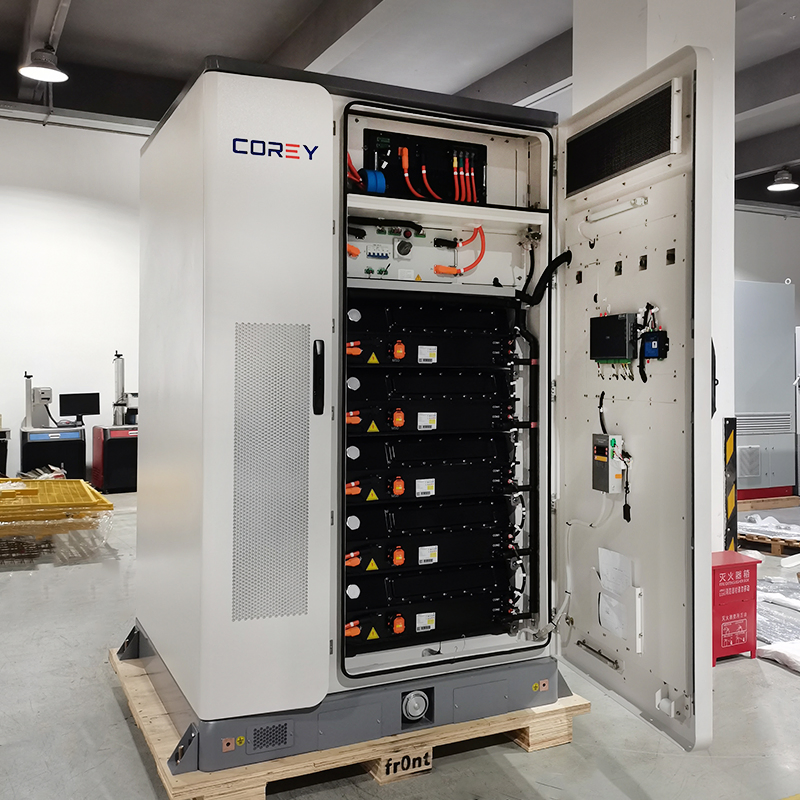

| System Parameter | Specification Details | |
|---|---|---|
| Battery Cell | LFP (LiFePO4) 3.2V 280Ah | |
| Rated Power | 105kW | |
| Fire Fighting System | Aerosol (Pack + Cluster) + Water (Cabinet) | |
| Operating Temperature | -20ºC to 50ºC (Discharge) | |
| Protection / Anti-corrosion | IP54 / C4 | |
| AC Side | Rated Voltage | 230V/400V (±15%) |
| Power Factor | ≥0.99 | |
| Switching Time | 20ms (Optional) | |
